Peugeot 306 Break (2002 year). Instruction - part 7





32
MAINTENANCE OF YOUR 306
1
1
2
1
3
2
2
CHANGING A WHEEL

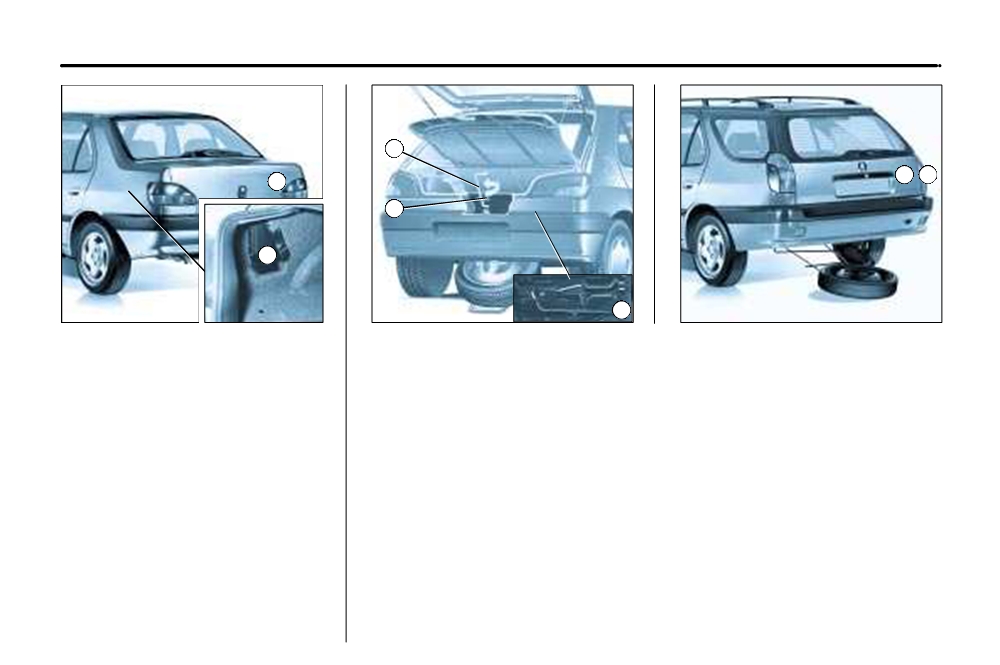

Access to the spare wheel
The wheel is on the outside of the vehicle, under the boot, supported by a metal
Jack location
carrier.
Petrol and Diesel
Take out the wheelbrace 1.
3 or 5 door: the jack is in the boot 2.
Using the wheelbrace 1, unscrew the spare wheel carrier securing bolt located
Rear crossbar (right side). Press the
under the carpet in the boot.
tab and open the storage box to
Raise the carrier to release the hook rearwards, then lower the carrier.
remove it.
Release the spare wheel.
4 door: the jack is in the left-hand
side of the boot.
Estate: the jack is in the right-hand
storage compartment of the boot.
33
MAINTENANCE OF YOUR 306
4-door: Use the jack storage box to
chock the wheel diagonally opposite
For your safety, always
the wheel to be changed.
change the wheel:
Loosen the wheel bolts.

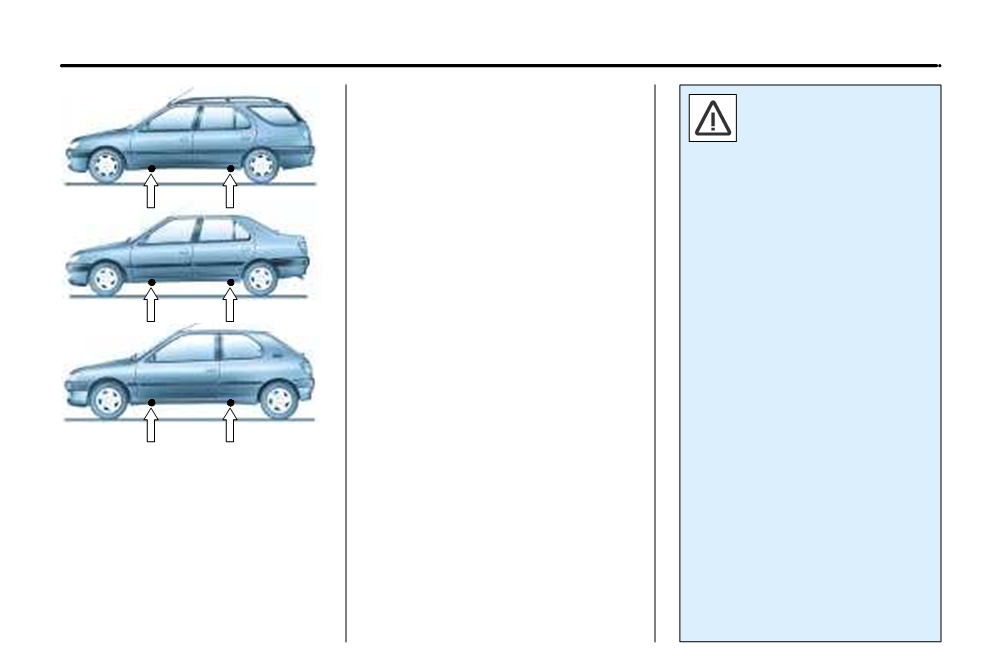

Place the jack in the location designed
- on level, stabIe and non-slippe-
for it, as close as possible to the
ry ground,
wheel to be changed.
- with the handbrake applied,
Ensure that the whole of the base of
- with first gear or reverse enga-
the jack is in contact with the ground.
ged (position P for the automa-
Extend the jack, fully loosen the wheel
tic gearbox).
bolts and remove the wheel.
Never go underneath a vehicle
which is supported only by a jack.
To fit the wheel
(Use a ramp).
After positioning the wheel, pre-
tighten the bolts using the wheel-
After changing the wheel:
brace.
-
have the tightening of the bolts
Lower the jack and remove it.
and the tyre pressure checked
Fully tighten the wheel bolts using the
by a PEUGEOT dealer as soon
wheelbrace.
as possible,
Fit the wheel trim starting with the
-
have the punctured wheel
section by the valve and press into
repaired and refit it to the
place using the palm of the hand.
vehicle as soon as possible.
Refitting the wheel in the
Removing the wheel
carrier
Park the vehicle on level, stable and
Raise the wheel, then the carrier, and
non-slippery ground.
resecure it on the hook.
Apply the handbrake, engage first
Do not forget to fully tighten the spare
gear or reverse (position P for the
wheel carrier securing bolt.
automatic gearbox).
Remove the wheel trim by using the
wheelbrace and pulling next to the
valve.
Warning: your wheel trims are fitted
with dummy nuts. Do not use them to
remove your wheel trims.
34
MAINTENANCE OF YOUR 306
3
3

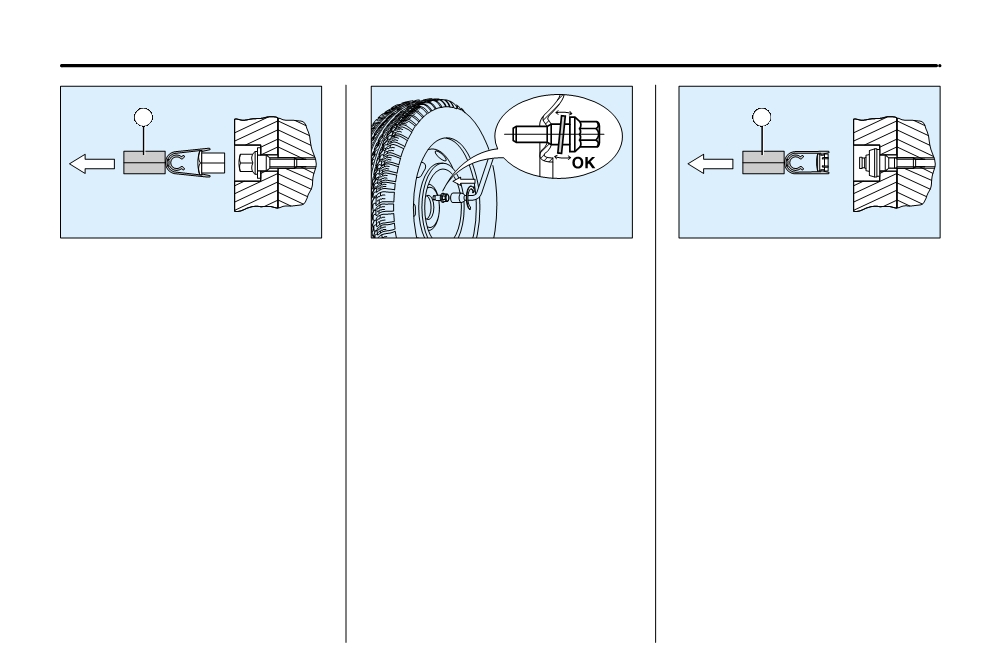

Special features of the alloy
Fitting the spare wheel
Anti-theft bolts**
wheels*
If your vehicle is fitted with a steel
If your wheels are fitted with an anti-
spare wheel, it is normal to notice
theft bolt (one per wheel), the chro-
Bolt covers
that the bolt washers do not come
me trim and then the plastic cover
Alloy wheel bolts are covered by
into contact with the rim. The spare
must be removed using tool 3, befo-
chrome trims.
wheel is secured by the cone shape
re unscrewing the bolt using one of
Use tool 3 to remove the trims befo-
of each bolt. Tighten the bolts fully.
the two anti-theft sockets
(which
re slackening the bolts.
were given to you on delivery of your
vehicle with the duplicate keys and
Fitting snow tyres
the confidential card) and the wheel
brace 1.
If you fit snow tyres mounted on
steel wheels, it is essential to use
special bolts available from your
Comment: make a careful note of
PEUGEOT dealer.
the code number engraved on the
head of the anti-theft socket. This
will enable you to obtain a duplicate
of the anti-theft sockets from a
Peugeot dealer.
* According to specification.
** According to model and destination.
35
MAINTENANCE OF YOUR 306
ATTENTION
VOIR NOTICE
WARNING
READ
INSTRUCTIONS
H7 UV
Warning
There is a risk of damage to the
dipped/main beam Headlamps.
Only use bulbs supplied by the
following manufacturers:
- GE/TUNGSRAM
CHANGING A BULB
- PHILIPS
Side lights W5W

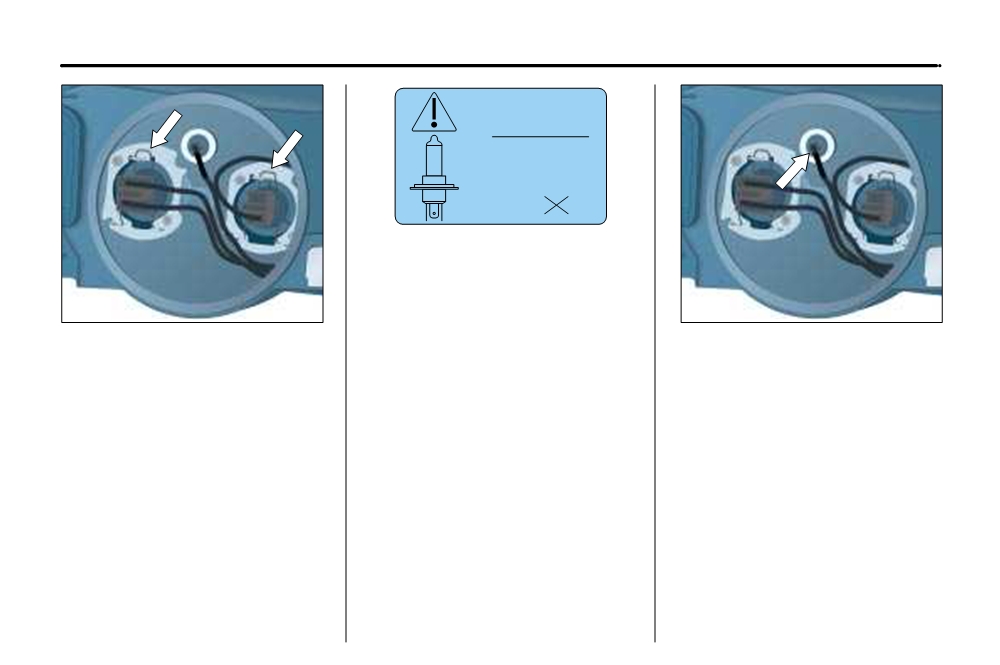

Dipped/main beam headlamps
- OSRAM
Turn the plastic protector and
These bulbs meet the UV-free speci-
remove it.
Double Headlamps: two H7
55W
bulbs.
fications necessary for the correct
Turn the pin a quarter turn and
operation and reliability of the Head-
remove it.
Changing the bulbs
lamps.
Change the bulb.
Turn the plastic protector and
The Headlamps are fitted with poly-
remove it.
carbon glass with a protective coating.
Disconnect the connectors.
We strongly advise against cleaning
Press the spring to unclip the bulb and
them using a dry or abrasive cloth or
then change it.
using products which contain deter-
When fitting, ensure that the direction
gents or solvents.
notches are positioned correctly and
that the plastic protector is secured
correctly.
Only handle the bulb using a dry cloth.
36
MAINTENANCE OF YOUR 306

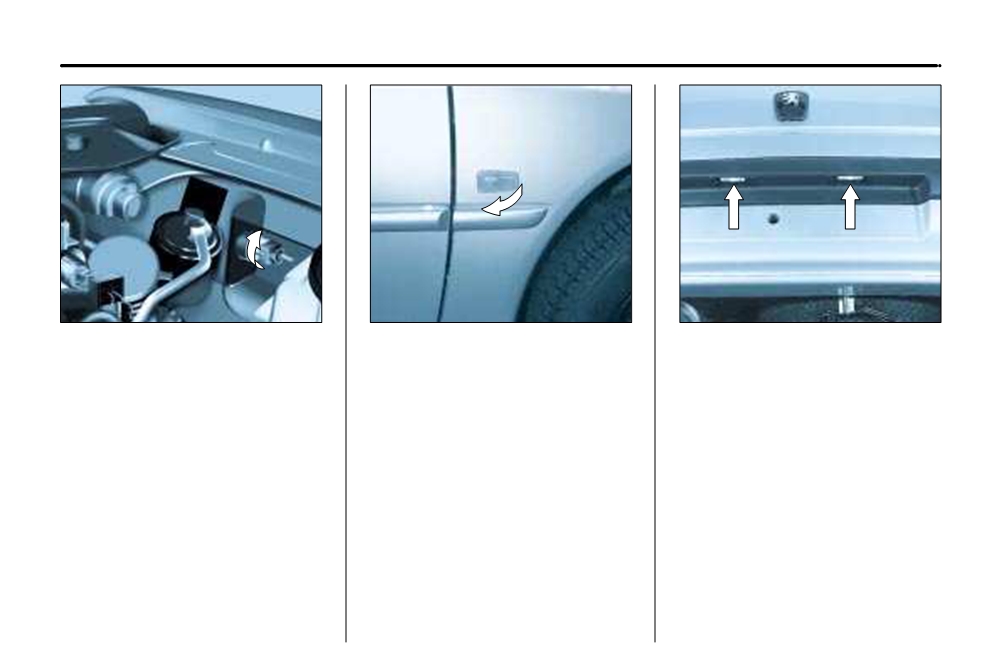

Amber direction indicator lights
Amber side repeater lights W5W
Number plate lights W5W
PY21W
Pull the rear part of the transparent
Remove the translucent plastic
Pull out the connector. Turn the holder
cover and release the assembly.
protectors.
a quarter of a turn.
Support the connector and turn the
Replace the light.
transparent cover a quarter turn.
Change the bulb.
36
MAINTENANCE OF YOUR 306
Amber direction indicator lights
Amber side repeater lights W5W
Number plate lights W5W
PY21W
Pull the rear part of the transparent
Remove the translucent plastic
Pull out the connector. Turn the holder
cover and release the assembly.
protectors.
a quarter of a turn.
Support the connector and turn the
Replace the light.
transparent cover a quarter turn.
Change the bulb.
37
MAINTENANCE OF YOUR 306

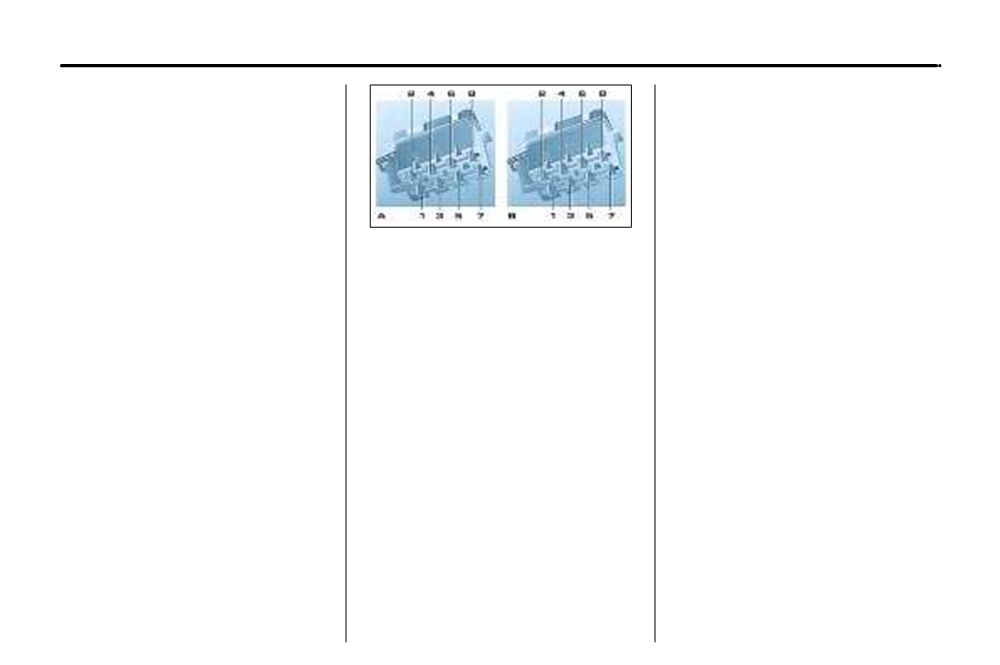

B
1
3
C
A
C
2
1
3
4
5
2
5
4
Rear lights 3, 4 and 5 door
Rear lights 3 and 5 door
Rear lights 4 door
- Unscrew the two wing nuts inside
1
Brake lights/side lights P21/5W.
1
Amber direction indicator lights
the boot.
PY21W.
- Remove the plastic cover.
2
Side lights P21/5W.
- Disconnect the connector A by
2
Rear fog lamp P21W.
pressing the metal bar.
3
Rear fog lamp P21W.
3
Reversing lights P21W.
- Disconnect the connector B by
4
Reversing lights P21W.
releasing the tab.
4
Brake lights/side lights P21/5W.
- Release the light unit.
5
Amber direction indicator lights
PY21W.
5
Side lights P21/5W.
- Pinch the tabs and remove the bulb
holder C.
- Change the faulty bulb.
When refitting, ensure
that the seal is clean, in
order to prevent water
entry.
38
MAINTENANCE OF YOUR 306
A
A
B
B

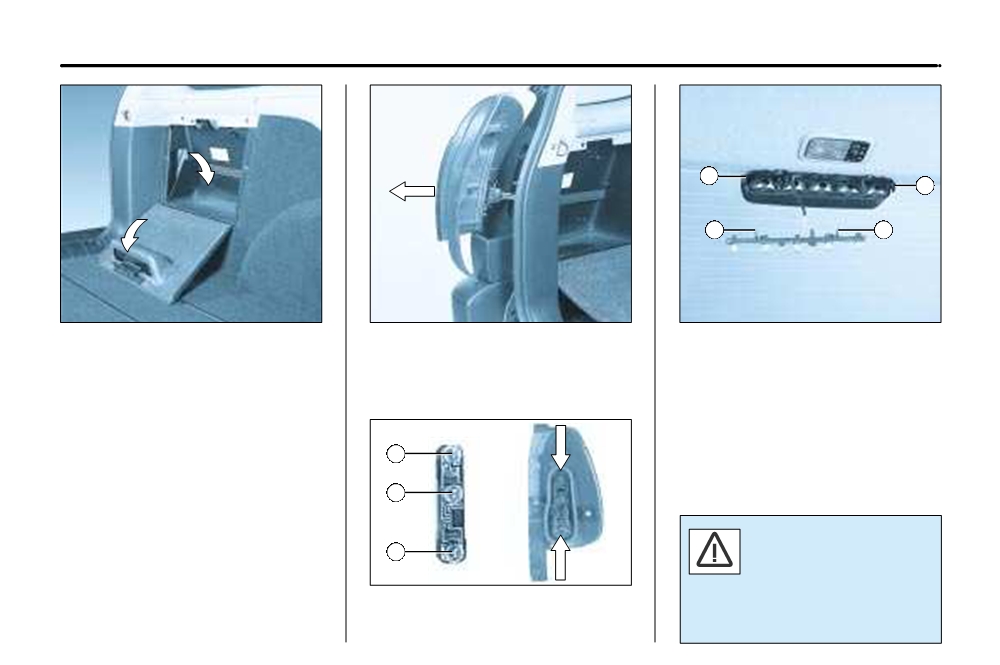

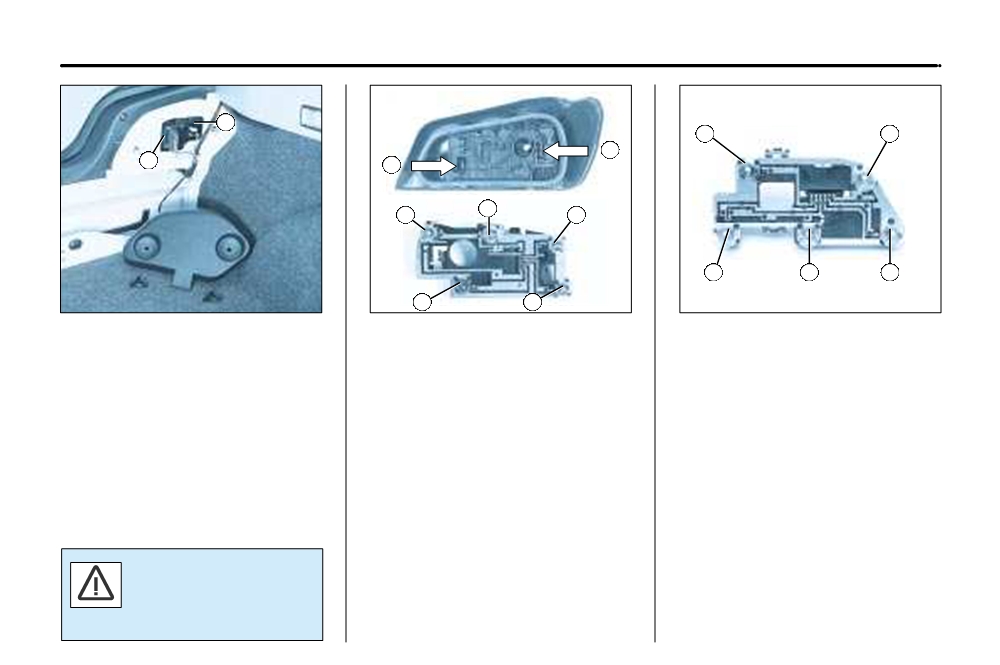

Rear lights (estate)
1
Amber direction indicator lights
Additional brake light 5 bulbs W5W
- Open the storage compartment
PY21W.
Remove the plastic protector by pres-
inside the boot.
sing the notches A.
2
Reversing lights P21W.
- Open the access flap.
Squeeze the tabs B to release the
- Unscrew the wing bolt on the
3
Brake lights/side lights P21/5W.
lamp holder.
inside.
Change the faulty bulb.
- Unscrew the second wing bolt
outside the vehicle.
1
Use the wheelbrace to make it easier
to unscrew the bolts. Warning: never
use it for refitting.
2
- Release the light unit.
- Disconnect the connector by pres-
sing the metal bar.
The bulbs must be repla-
3
ced by bulbs of identical
- Pinch the tabs and remove the bulb
specification and colour.
holder.
- Change the faulty bulb.
Fog lamp P21W
This is located in the bumper.
39
MAINTENANCE OF YOUR 306

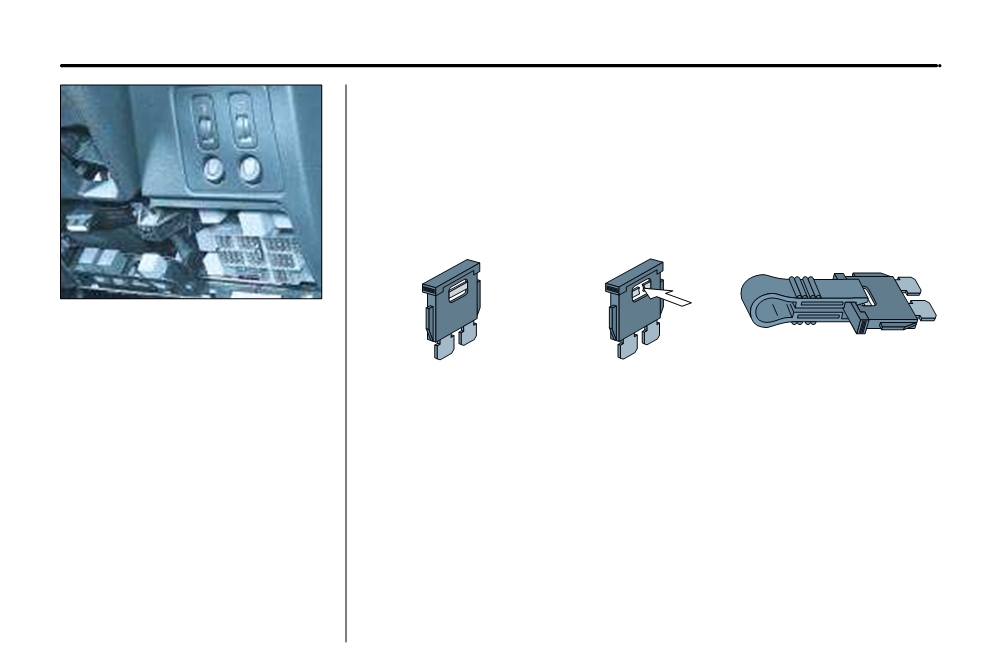

Removing and changing a fuse
Before changing a fuse you must find out the cause of the fault and have it put right.
The fuse numbers are indicated on the fuse box.
Use the special pliers A attached to the box.
Always change a faulty fuse for one of the same rating.
Correct
Incorrect
Pliers A
CHANGING A FUSE
The fuse boxes are located under the
fascia and in the engine compartment.
Fascia fuse box
Unscrew the catch a quarter turn
using a coin then remove the cover to
gain access to the fuses.
42
MAINTENANCE OF YOUR 306

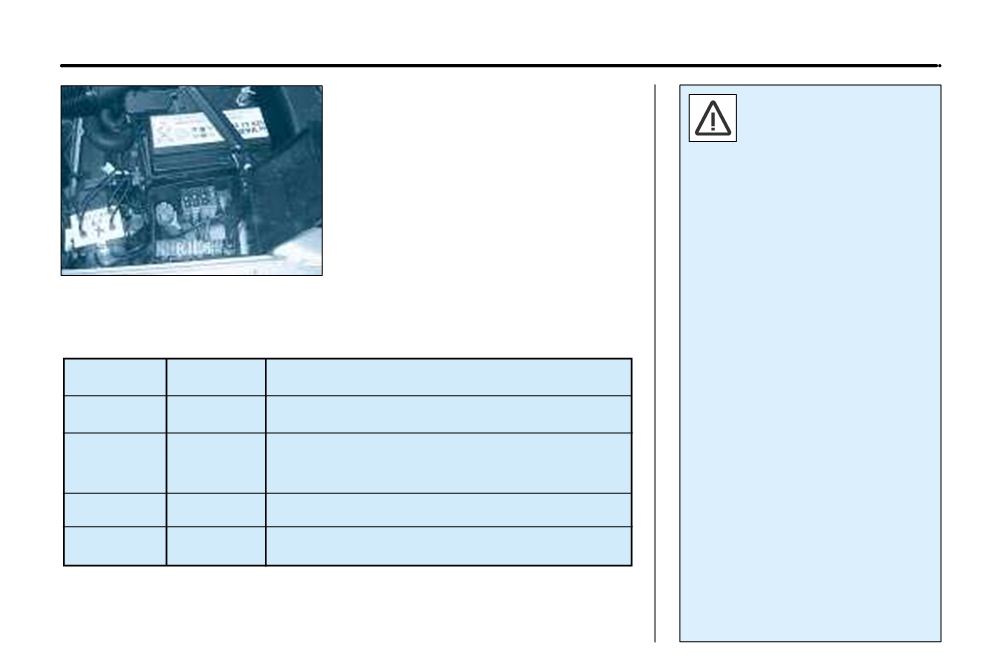

Engine compartment fuses*
The electrical system of
To access the fuse box in the engine
your vehicle is designed
compartment (beside the battery),
to operate with standard
unclip the cover.
or optional equipment.
Carefully close the cover when you
Before installing other electrical
have finished.
equipment or accessories on your
vehicle, contact a PEUGEOT
dealer.
Some electrical accessories or the
way in which they are fitted can
have damaging effects on the ope-
ration of your vehicle; the electronic
control circuits, the audio circuit
and the battery charging circuit.
PEUGEOT will not accept respon-
sibility for the cost incurred in repai-
ring your vehicle or for rectifying
the malfunctions resulting from the
installation of accessories not sup-
Fuse No.
Rating*
Functions*
plied and not recommended by
PEUGEOT and not installed in
accordance with its instructions, in
1**
40A
Anti-theft supply
particular where the equipment in
question consumes more than
2**
60A
Supply to Locks - lighting switch -
10 milliamperes.
air conditioning blower unit - front fog
relay - diagnostic connector
** The maxi-fuses provide addi-
tional protection for the electrical
3**
60A
ABS ECU supply
systems. All work must be carried
out by a PEUGEOT dealer.
4**
60A
+ positive fuse box supply
* According to specification.
43
MAINTENANCE OF YOUR 306
Fuse No.
Rating*
Functions*
29
10A
Left-hand dipped beam
30
10A
Right-hand dipped beam
31
10A
Left-hand main beam
32
10A
Right-hand main beam
33
15A
Diesel control unit
34
10A
Oxygen sensor
35
15A
Petrol pump
36
20A
Headlamp wash timer
37
40A
Cooling fan unit
38
-
Not used
39
40A
Fan unit spare fuse
40
40A
Fan unit
* According to specification.
39
MAINTENANCE OF YOUR 306
Removing and changing a fuse
Before changing a fuse you must find out the cause of the fault and have it put right.
The fuse numbers are indicated on the fuse box.
Use the special pliers A attached to the box.
Always change a faulty fuse for one of the same rating.
Correct
Incorrect
Pliers A
CHANGING A FUSE
The fuse boxes are located under the
fascia and in the engine compartment.
Fascia fuse box
Unscrew the catch a quarter turn
using a coin then remove the cover to
gain access to the fuses.
40
MAINTENANCE OF YOUR 306
FASCIA FUSE BOX
28-fuse box
Fuse No.
Rating*
Functions*
1
Not used
2
7.5A
Automatic gearbox or excess speed buzzer control unit
3
5A
ABS control unit
4
5A
Instrument panel - Passenger compartment protection unit - Coolant temperature unit -
Automatic gearbox lever lighting - Automatic gearbox relay - Passenger airbag disarming switch
5
25A
Reversing lights switch - Automatic gearbox relay - Stop lights switch - Daylight running
lights relay - Fan assembly relay - Pressostat control - Compressor relay
6
5A
Instrument panel - Passenger compartment protection unit - Alarm warning light - Clock -
Boot light - Radio aerial
7
30A
Rear screen and mirrors demisting
8
20A
Passenger compartment protection unit - Radio
9
20A
Injection control unit - Fan assembly relay - Coolant temperature unit
10
20A
Hazard warning lights - Front and rear courtesy lights
11
10A
Instrument panel lighting - Side lights buzzer - Clock - Lighting rheostat - Side lights
12
10A
Rear fog lamp
13
Not used
14
30A
Rear screen and heated seats relay
* According to specification.
41
MAINTENANCE OF YOUR 306
Fuse No.
Rating*
Functions*
15
20A
Towing attachment
16
30A
Front window and sun roof relay
17
20A
Horn control
18
10A
Front fog lamps
19
10A
Right rear light
20
30A
Ventilation - Heating and air conditioning
21
10A
Left rear light - Number plate lighting - Front side lights
22
10A
Ventilation relay - Rear screen and mirrors demisting control
23
20A
Lighter
24
Not used
25
10A
Radio
26
30A
Front window wiper and windscreen wash pump - Front windscreen wiper motor - Window
wiper or rain sensor relay timer
27
15A
Storage compartment lighting - Glove compartment lighting - Direction indicators - Electric mirrors control
- Map reading lights - Courtesy mirror - Rain sensor - Passenger compartment temperature sensor
28
15A
Clock - Outside temperature - Window and heated seats relay - Rear screen wiper - Sun roof
* According to specification.
44
MAINTENANCE OF YOUR 306
Battery
To charge the battery using a battery charger:
- Never disconnect a
terminal when the
- Disconnect the battery, starting with the negative (-) terminal.
engine is running.
- Follow the instructions for use given by the battery charger manufacturer.
- Never charge a battery without
- Reconnect starting with the positive (+) terminal.
first disconnecting the terminals.
- Check that the terminals and connectors are clean. If they are covered with sul-
- After every disconnection of the
phate deposits (white or greenish deposit), disconnect them and clean them.
battery, switch on the ignition
To start the vehicle and charge the battery from another battery:
and wait
10 seconds before
Ensure that the connections are good:
starting. If slight difficulties are
experienced after this, please
- Connect the red cable to the positive (+) terminals of the two batteries.
contact a PEUGEOT dealer.
- Connect one end of the green or black cable to the negative (-) terminal of the
slave battery.
- Connect the other end of the green or black cable to an earth point on the
broken down vehicle as far as possible from the battery.
Operate the starter, let the engine run.
Wait for the engine to return to idle, and disconnect the cables.
It is advisable to disconnect the battery if the vehicle
is not to be used for a period of more than one month.
45
MAINTENANCE OF YOUR 306
FITTING AUDIO EQUIPMENT
Connector B
Your vehicle is factory-fitted with
B1
: (+) Right rear loud-speaker.
certain audio equipment:
B2
: (-) Right rear loud-speaker.
- Roof aerial.
B3
: (+) Right front loud-speaker.
- Aerial coaxial cable.
B4
: (-) Right front loud-speaker.
- Basic interference suppression.
B5
: (+) Left front loud-speaker.
- Supply to front speakers.
B6
: (-) Left front loud-speaker.
- Supply to rear speakers*.
B7
: (+) Left rear loud-speaker.
- Two 8-way connectors.
B8
: (-) Left rear loud-speaker.
Wiring positions and functions
Connector A
A1 : Telephone mute connection.
A2 : -
FITTING SPEAKERS
A3 : -
165 mm diameter speakers can be
A4 : (+ve) Accessories.
fitted in the front doors and on the rear
A5 : -
parcel shelf.
A6 : (+ve) Sidelights.
A7 : (+ve) Permanent.
A8 : Earth.
Contact your PEUGEOT dealer.
* According to specification.
46
MAINTENANCE OF YOUR 306
Special features of the automatic
gearbox
When towing with four wheels on the
ground, the following rules must be
obeyed:
- lever in position N,
- tow the vehicle at less than
30 m.p.h. (50 km/h) over a maximum
distance of 30 miles (50 km),
- do not add oil to the gearbox.
TOWING
Without lifting (four wheels on the ground)
You must always use a towbar.

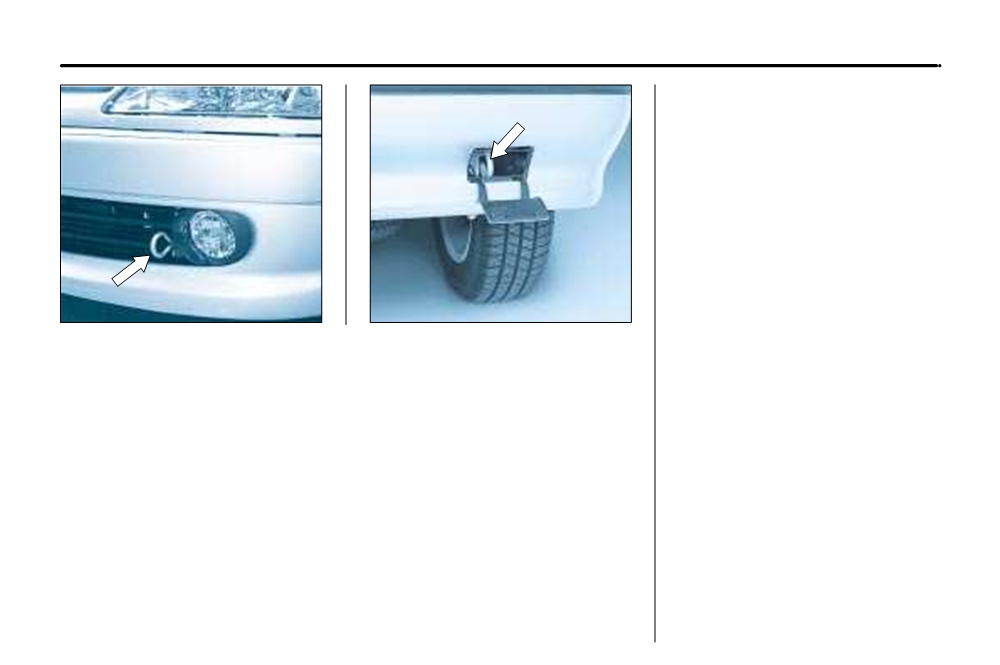

From the front or the rear
Attach the towbar to the towing eye.
By lifting (two wheels only on the ground)
It is preferable to lift the vehicle by the wheels.
Never use the radiator crossmember.















Content   ..  5  6  7  8   ..
