Peugeot 207 (2011 year). Instruction - part 11





9

i

!

i

PRACTICAL INFORMATION

159

       FITTING ROOF BARS (SALOON)

 When  fi tting transverse roof bars, use

the four quick-fi t fi xings provided for this

purpose:
   )   lift the concealing fl aps,
  )   adjust the roof bar quick-fi t fi xings.

 Maximum authorised weight on the

roof rack, for a loading height not

exceeding 40 cm (with the excep-

tion of bicycle carriers): 65 kg.
 If the height exceeds 40 cm, adapt

the speed of the vehicle to the pro-

fi le of the road to avoid damaging

the roof bars and the fi xings on the

roof.
 Be sure to refer to national legis-

lation in order to comply with the

regulations for transporting objects

which are longer than the vehicle.

FITTING ROOF BARS (SW)

 Consult a PEUGEOT dealer or a quali-

fi ed workshop for the installation of lon-

gitudinal roof bars.
 When  fi tting transverse roof bars, en-

sure that they are positioned correctly

as shown by marks on the longitudinal

roof bars.
 Use accessories recommended by

PEUGEOT and follow the accessory

manufacturer's fi tting instructions.
 In order to place a load on the roof, your

vehicle must be fi tted with longitudinal

roof bars with transverse roof bars fi tted

on top of these.
 The longitudinal roof bars cannot be re-

moved.

 Maximum authorised weight on the

roof bars, for a loading height not

exceeding 40 cm (except bicycle

carriers): 75 kg.
 If the height exceeds 40 cm, adapt the

speed of the vehicle to the condition

of the road, to avoid damaging the

roof bars and the fi xings on the roof.
 Please refer to national legislation

to comply with the regulations re-

garding the transport of objects

which are longer than the vehicle.

 Lashing the straps through the

ends of the longitudinal roof bars is

prohibited.

9

PRACTICAL INFORMATION

160

     ACCESSORIES

 A wide range of accessories and

genuine parts is available from the

PEUGEOT dealer network.
 These accessories and parts have been

tested and approved for reliability and

safety.
 They are all adapted to your vehicle and

benefi t from PEUGEOT's recommenda-

tion and warranty.

   Conversion kits
 You can obtain an "Enterprise" kit to

convert a trade vehicle to a private car

and vice-versa.

  "Transport solutions":
 boot liner, luggage net, cigarette lighter,

roof bars, bicycle carrier on roof bars,

ski carrier, roof box...
 Tow bar, which mst be fi tted by PEUGEOT

dealer or a qualifi ed workshop.

        "Comfort":
 door defl ectors, side blinds and rear

blind, coat hanger fi xed to head restraint,

front centre armrest, under shelf storage,

front and rear parking sensors...

  "Styling":
 aluminium gear lever knob, spoiler, styl-

ing strips, alloy wheels, trims, chromed

mirror shells, body kit...

  *     To avoid any risk of jamming of the

pedals:
   -   ensure that the mat is positioned

and secured correctly,

  -

never fi t one mat on top of another.

  "Security":
 anti-theft alarm, window engraving,

wheel security bolts, child seats and

booster cushions, breathalyzer, fi rst aid

kit, warning triangle, high visibility jack-

et, stolen vehicle tracking system, tem-

porary puncture repair kit, snow chains,

non-slip covers, front foglamps kit...

  "Protection":
 mats * , seat covers compatible with lat-

eral airbags, aluminium or PVC door

aperture fi nishers...

9

!

i

i

PRACTICAL INFORMATION

161

  Installation of radio

communication transmitters
 Before installing any after-market ra-

dio communication transmitter, you

can contact a PEUGEOT dealer for

the specifi cation of transmitters which

can be fi tted (frequency, maximum

power, aerial position, specifi c  instal-

lation requirements), in line with the

Vehicle Electromagnetic Compatibility

Directive (2004/104/EC).

  Depending on the legislation in

force in the country, it may be

compulsory to have a high vis-

ibility safety vest, warning triangle

and spare bulbs and fuses avail-

able in the vehicle.

 The fi tting of electrical equipment

or accessories which are not rec-

ommended by PEUGEOT may

result in a failure of your vehicle's

electronic system and excessive

electrical consumption.
 Please note this precaution. You

are advised to contact a PEUGEOT

representative to be shown the

range of recommended equipment

and accessories.

  "Multimedia":
 audio systems, satellite navigation

systems, hands-free kit, CD changer,

speakers, DVD player, connection kit

for MP3 or CD player, USB Box...

  You can also obtain products for cleaning

and maintenance (exterior and interior),

topping up (screenwash...), and refi lls

(cartridge for the temporary puncture re-

pair kit...) by visiting a PEUGEOT dealer.

10

162

TECHNICAL DATA

  *   Not available on SW Outdoor.

 MODELS:

 ENGINES AND GEARBOXES

  PETROL ENGINES

   1.4 litre 75 hp  *

   1.4 litre VTi 95 hp

 Cubic capacity (cc)

  1 360

  1 397

 Bore x stroke (mm)

  75 x 77

  75 x 77

 Maximum power: EU standard (kW)

  54

  70

 Maximum power engine speed (rpm)

  5 400

  6 000

 Maximum torque: EU standard (Nm)

  118

  136

 Maximum torque engine speed (rpm)

  3 300

  4 000

 Fuel

 Unleaded

  Unleaded

 Catalytic converter

  Yes

  Yes

  GEARBOXES

  Manual

(5-speed)

  Manual

(5-speed)

  OIL CAPACITIES (in litres)





 Engine (with fi lter replacement)

  3.25

  4.25

10

TECHNICAL DATA

163

  MODELS:

   ENGINES AND GEARBOXES

  PETROL ENGINES

   1.6 litre VTi 120 hp

   1.6 litre THP 156 hp **

 Cubic capacity (cc)

  1 598

  1 598

 Bore x stroke (mm)

  77 x 85.8

  77 x 85.8

 Maximum power: EU standard (kW)

  88

  115

 Maximum power engine speed (rpm)

  6 000

  5 800

 Maximum torque: EU standard (Nm)

  160

  240

 Maximum torque engine speed (rpm)

  4 250

  1 400

 Fuel

 Unleaded

  Unleaded

 Catalytic converter

  Yes

  Yes

  GEARBOXES

  Manual

(5-speed)

  Automatic

(4-speed)

  Manual

(6-speed)

  OIL CAPACITIES   (in litres)







 Engine (with fi lter replacement)

  4.25

  4.25

  4.25

  **   Only on 5-door saloon.

10

164

TECHNICAL DATA

 The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must

be reduced by 10 % for each additional 1 000 metres of altitude.

 The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

 High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when

the ambient temperature is higher than 37 °C, limit the weight towed.

  SALOON WEIGHTS AND TOWED LOADS (in kg)

  Petrol engines

   1.4 litre 75 hp

  Gearboxes

   Manual

   -  Kerb

weight



  1 214 - 1 201 - 1 207/1 248

   -

Gross vehicle weight (GVW)

  1 617 - 1 601 - 1 582

   -

Gross train weight (GTW)

  2 397 - 2 421 - 2 412

   -

Braked trailer (within GTW limit)

  780 - 820 - 830

   -  Braked

trailer

**  (with load transfer within

GTW limit)

  950

   -  Unbraked

trailer



  600 - 600 - 590

   -

Recommended nose weight

  38 - 38 - 46

  **  The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced

by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.

10

TECHNICAL DATA

165

 The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must

be reduced by 10% for each additional 1 000 metres of altitude.

 The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

 High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when

the ambient temperature is higher than 37 °C, limit the weight towed.

  **  The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced

by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.

   SALOON WEIGHTS AND TOWED LOADS (in kg)

  Petrol engines

   1.4 litre VTi 95 hp

  Gearboxes

   Manual

   -  Kerb

weight



  1 164 - 1 162

   -

Gross vehicle weight (GVW)

  1 643 - 1 626

   -

Gross train weight (GTW)

  2 583 - 2 566

   -

Braked trailer (within GTW limit)

  940

   -  Braked

trailer

**  (with load transfer within

GTW limit)

  1 150

   -  Unbraked

trailer



  580

   -

Recommended nose weight

  46

10

166

TECHNICAL DATA

   SALOON WEIGHTS AND TOWED LOADS (in kg)

  Petrol engines

   1.6 litre VTi 120 hp

   1.6 litre THP 156 hp

  Gearboxes

   Manual

   Automatic

   Manual

   -  Kerb

weight



  1 278 - 1 255

  1 3279 - 1 270

  1 3719

   -

Gross vehicle weight (GVW)

  1 671 - 1 655

  1 711 - 1 696

  1 714

   -

Gross train weight (GTW)

 2 631 - 2 615

  2 671 - 2 516

  2 644

   -

Braked trailer (within GTW limit)

 960

 960 - 820

  930

   -  Braked

trailer

**  (with load transfer within

GTW limit)

  1 150

  1 150 - 950

  1 150

   -  Unbraked

trailer



  600

  600

  600

   -

Recommended nose weight

  46

  46

  46

 The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must

be reduced by 10 % for each additional 1 000 metres of altitude.

 The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

 High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when

the ambient temperature is higher than 37 °C, limit the weight towed.

  **  The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced

by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.

10

TECHNICAL DATA

167

   SW WEIGHTS AND TOWED LOADS (in kg)

  Petrol engines

   1.4 litre 75 hp

   1.4 litre VTi 95 hp

  Gearboxes

   Manual

   Manual

   -  Kerb

weight



  1 259

  1 273

   -

Gross vehicle weight (GVW)

  1 643

  1 694

   -

Gross train weight (GTW)



 2 423



 2 594

   -

Braked trailer (within GTW limit)

  780

  900

   -  Braked

trailer

**  (with load transfer within

GTW limit)

  1 045

  1 150

   -  Unbraked

trailer



  600

  600

   -

Recommended nose weight

  42

  46

 The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must

be reduced by 10 % for each additional 1 000 metres of altitude.

 The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

 High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when

the ambient temperature is higher than 37 °C, limit the weight towed.

  **  The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced

by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.

10

168

TECHNICAL DATA

   SW WEIGHTS AND TOWED LOADS (in kg)

  Petrol engines

   1.6 litre VTi 120 hp

  Gearboxes

   Manual

   Automatic

   -  Kerb

weight



  1 279

  1 279

   -

Gross vehicle weight (GVW)

  1 707

  1 731

   -

Gross train weight (GTW)

  2 607

  2 681

   -

Braked trailer (within GTW limit)

  900

  950

   -  Braked

trailer

**  (with load transfer within

GTW limit)

  1 150

  1 150

   -  Unbraked

trailer



  600

  600

   -

Recommended nose weight

  46

  46

 The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must

be reduced by 10 % for each additional 1 000 metres of altitude.

 The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

 High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when

the ambient temperature is higher than 37 °C, limit the weight towed.

**    The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced

by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.

10

TECHNICAL DATA

169

   SW OUTDOOR WEIGHTS AND TOWED LOADS (in kg)

  Petrol engines

   1.4 litre VTi 95 hp

   1.6 litre VTi 120 hp

  Gearboxes

   Manual

   Manual

   Automatic

   -  Kerb

weight



  1 362

  1 323

  1 378

   -

Gross vehicle weight (GVW)

  1 712

  1 722

  1 747

   -

Gross train weight (GTW)

  2 612

  2 572

  2 697

   -

Braked trailer (within GTW limit)

  900

  850

  950

   -  Braked

trailer

**  (with load transfer within

GTW limit)

  1 150

  1 110

  1 150

   -  Unbraked

trailer



  600

  600

  600

   -

Recommended nose weight

  46

  45

  46

 The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must

be reduced by 10 % for each additional 1 000 metres of altitude.

 The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

 High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when

the ambient temperature is higher than 37 °C, limit the weight towed.

  **  The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced

by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.

10

170

TECHNICAL DATA

  MODELS:

   ENGINES AND GEARBOXES

  DIESEL ENGINES

   1.4 litre HDi 70 hp

PEF *

   1.6 litre HDi 90 hp

PEF 98g *

   1.6 litre HDi 92 hp

PEF

  1.6 litre HDi

112 hp PEF

 Cubic capacity (cc)

  1 398

  1 560

  1 560

  1 560

 Bore x stroke (mm)

  73.7 x 82

  75 x 88.3

  75 x 88.3

  75 x 88.3

 Maximum power: EU standard (kW)

  50

  66

  68

  82

 Maximum power engine speed (rpm)

  4 000

  4 000

  4 000

  4 000

 Maximum torque: EU standard (Nm)

  160

  215

  230

  270

 Maximum torque engine speed (rpm)

  2 000

  1 750

  1 750

  1 750

 Fuel

 Diesel

  Diesel

  Diesel

  Diesel

 Catalytic converter

  Yes

  Yes

  Yes

  Yes

 Particle emission fi lter

  Yes

  Yes

  Yes

  Yes

  GEARBOXES

  Manual

(5-speed)

  Manual

(5-speed)

  Manual

(5-speed)

  Manual

(6-speed)

  OIL CAPACITIES (in litres)









 Engine (with fi lter replacement)

  3.75

  3.25

  3.25

  3.25

  *   Not available on SW and SW Outdoor.

10

TECHNICAL DATA

171

   SALOON WEIGHTS AND TOWED LOADS (in kg)

  Diesel engines

   1.4 litre HDi

70 hp PEF

   1.6 litre HDi

90 hp PEF 98g

   1.6 litre HDi

92 hp   PEF

   1.6 litre HDi

112 hp PEF

  Gearboxes

   Manual

   Manual

   Manual

   Manual

   -  Kerb

weight



  1 259 - 1 246 -

1 245/1 279

  1 278 - 1 265

  1 277 - 1 264 -

1 214/1 317

  1 280 - 1 265 -

1 296/1 339

   -

Gross vehicle weight (GVW)

  1 665 - 1 642 -

1 620

  1 664 - 1 643

  1 718/1 703 -

1 649

  1 737 - 1 726 -

1 671

   -

Gross train weight (GTW)

  2 265 - 2 242 -

2 220

  1 664 - 1643

  2 673/2 688 -

2 669

  2 717 - 2 706 -

2 691

   -

Braked trailer (within GTW limit)

  600



  970

  980 - 980 - 1 020

   -  Braked

trailer

**  (with load transfer within

GTW limit)

  850 - 850



  1 150

  1 150 - 1 150

   -  Unbraked

trailer



  600



  600

  600

   -

Recommended nose weight

  46



  46

  46

 The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must

be reduced by 10 % for each additional 1 000 metres of altitude.

 The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

 High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when

the ambient temperature is higher than 37 °C, limit the weight towed.

  **    The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced

by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

10

172

TECHNICAL DATA

 The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must

be reduced by 10 % for each additional 1 000 metres of altitude.

 The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

 High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when

the ambient temperature is higher than 37 °C, limit the weight towed.

  **  The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced

by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

   SW WEIGHTS AND TOWED LOADS (in kg)

  Diesel engines

   1.6 litre HDi 92 hp PEF

   1.6 litre HDi 112 hp PEF

  Gearboxes

   Manual

   Manual

   -  Kerb

weight



  1 275

  1 280

   -

Gross vehicle weight (GVW)

  1 743

  1 759

   -

Gross train weight (GTW)

  2 693

  2 709

   -

Braked trailer (within GTW limit)

  950

  950

   -  Braked

trailer

**  (with load transfer within

GTW limit)

  1 150

  1 150

   -  Unbraked

trailer



  600

  600

   -

Recommended nose weight

  46

  46

10

TECHNICAL DATA

173

 The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must

be reduced by 10 % for each additional 1 000 metres of altitude.

 The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

 High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when

the ambient temperature is higher than 37 °C, limit the weight towed.

  **  The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced

by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

   SW OUTDOOR WEIGHTS AND TOWED LOADS (in kg)

  Diesel engines

   1.6 litre HDi 92 hp PEF

   1.6 litre HDi 112 hp PEF

  Gearboxes

   Manual

   Manual

   -  Kerb

weight



  1 383

  1 393

   -

Gross vehicle weight (GVW)

  1 769

  1 775

   -

Gross train weight (GTW)

  2 719

  2 725

   -

Braked trailer (within GTW limit)

  950

  950

   -  Braked

trailer

**  (with load transfer within

GTW limit)

  1 150

  1 150

   -  Unbraked

trailer



  600

  600

   -

Recommended nose weight

  46

  46

10

174

TECHNICAL DATA

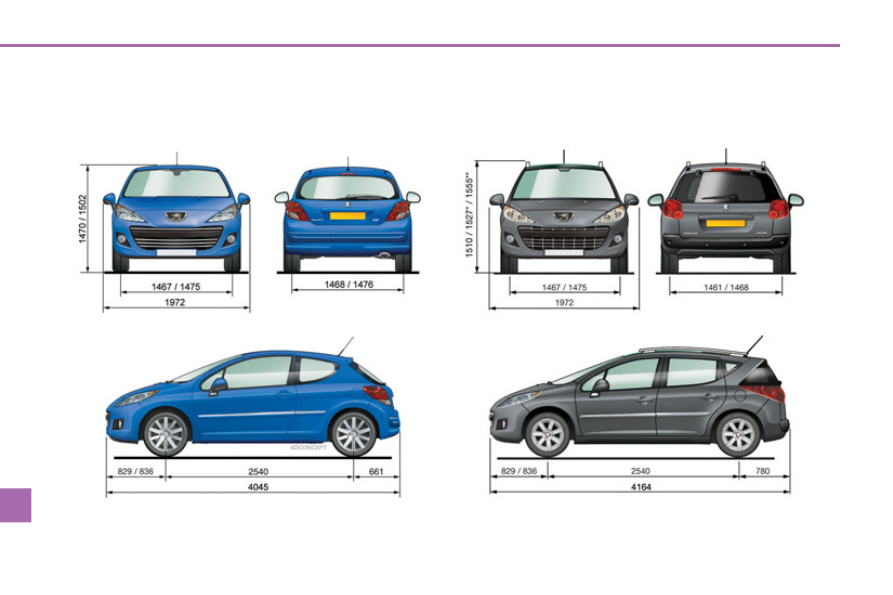

DIMENSIONS (IN MM)

  207 saloon (3 and 5 door versions)

  207 SW/207 SW Outdoor

 *  SW with roof bars.
 **  SW Outdoor with roof bars.















Content   ..  9  10  11  12   ..
