Peugeot 207 (2011 year). Instruction - part 6





3

i

ACCESS

79

 The key cannot be removed from

the lock until the cap is refi tted.

FUEL TANK

  Fuel tank capacity: approximately

50 litres (petrol) or 48 litres (Diesel).

 Opening the fi ller cap may create a

noise caused by an inrush of air. This

vacuum is entirely normal, resulting

from the sealing of the fuel system.
 To fi ll the tank safely:
   )    the engine must be switched off,
  )   open the fuel fi ller fl ap,
  )   insert the key in the cap, then turn it

to the left,

 When you have fi lled the tank:
   )   put the cap back in place,
  )   turn the key to the right, then remove

it from the cap,

  )  close the fl ap.

  )  remove the cap and hook it onto

the clip located on the inside of the

fl ap,

  )   fi ll the tank,

but do not continue

after the 3rd cut-off of the pump ;

this could cause malfunctions.

  Low fuel level

  Filling

 When the fuel tank minimum

level is reached this warning

lamp comes on on the instru-

ment panel. When it fi rst comes

on there remains  approximately 5 litres

of fuel in the tank.
 You must refuel as soon as possible to

avoid running out of fuel.
 If you run out of fuel (Diesel), refer also

to the "Checks" section.

 A label affi xed to the inside of the fl ap

reminds you of the type of fuel to be

used depending on your engine.
 Additions of fuel must be of at least

5 litres, in order to be taken into account

by the fuel gauge.

3

DIESEL

ACCESS

80

           Quality of the fuel used for

petrol engines

            Quality of the fuel used for

Diesel engines

  The petrol engines are perfectly com-

patible with E10 type petrol biofuels

(containing 10% ethanol), conforming

to European standards EN 228 and

EN 15376.
 E85 type fuels (containing up to 85%

ethanol) are reserved exclusively for ve-

hicles marketed for the use of this type

of fuel (BioFlex vehicles). The quality of

the ethanol must comply with European

standard EN 15293.
 For Brazil only, special vehicles are

marketed to run on fuels containing up

to 100% ethanol (E100 type).

  The Diesel engines are perfectly com-

patible with biofuels which conform to

current and future European standards

(Diesel fuel which complies with stan-

dard EN 590 mixed with a biofuel which

complies with standard EN 14214)

available at the pumps (containing up

to 7 % Fatty Acid Methyl Ester).
 The B30 biofuel can be used in cer-

tain Diesel engines; however, this use

is subject to strict application of the

special servicing conditions. Contact a

PEUGEOT dealer or a qualifi ed  work-

shop.
 The use of any other type of (bio)fuel

(vegetable or animal oils, pure or dilut-

ed, domestic fuel...) is strictly prohibited

(risk of damage to the engine and fuel

system).

3

i

i

ACCESS

81

MISFUEL PREVENTION *

 Mechanical device which prevents fi ll-

ing the tank of a Diesel vehicle with

petrol. It avoids the risk of engine dam-

age that can result from fi lling with the

wrong fuel.
 Located in the fi ller neck, the misfuel

prevention device appears when the

fi ller cap is removed.

  Operation

 When a petrol fi ller nozzle is introduced

into the fuel fi ller neck of your Diesel

vehicle, it comes into contact with the

fl ap. The system remains closed and

prevents fi lling.
  Do not persist but introduce a Diesel

type fi ller nozzle.

 It is still possible to use a fuel can

to fi ll the reservoir.
In order to ensure a good fl ow of fuel,

do not place the nozzle of the fuel

can in direct contact with the fl ap of

the misfuel prevention device.

   Travelling abroad
 As Diesel fuel pump nozzles may be

different in other countries, the pres-

ence of the misfuel prevention device

may make refuelling impossible.
 Before travelling abroad, we rec-

ommend that you check with the

PEUGEOT dealer network, whether

your vehicle is suitable for the fuel

pumps in the country in which you

want to travel.

  *   According to destination country.

4

82

VISIBILITY

LIGHTING CONTROL STALK

 System for selection and control of the

various front and rear lamps providing

the vehicle's lighting.

  Manual controls

 The lighting commands are made di-

rectly by the driver by means of ring  A

and stalk  B .

 lighting off,

 sidelamps only,

 dipped or main beam

headlamps,

  B.    stalk for inversion of the beam by pull-

ing: dipped headlamps/main beam

headlamps.

 In the lighting off and sidelamps modes,

the driver can switch on the main beam

headlamps directly ("headlamp fl ash")

by pulling and holding the stalk.

  Displays

 The corresponding indicator lamp comes

on in the instrument panel to confi rm  the

switching on of the lighting selected.

  Main lighting

 The vehicle's various front and rear

lamps are designed to adapt the driver's

visibility gradually in relation to the cli-

matic conditions:
   -

sidelamps, to be seen,

  -   dipped beam headlamps to see

without dazzling other drivers,

  -

main beam headlamps for good vis-

ibility when the road is clear.

  Additional lighting

 Other lamps are installed to respond to

particular driving conditions:
   -

rear foglamps to be seen from a dis-

tance,

  -

front foglamps for even better visibility.

  Programmes

 Various automatic lighting control

modes are also available according to

the following options:
   -  "guide-me-home"

lighting,

  -  automatic

lighting.



  A.   main lighting mode selection ring, with:

  Model without AUTO lighting

  Model with AUTO lighting

 automatic illumination of

headlamps.

4

!

i

83

VISIBILITY

  Model with rear foglamps only

  Model with front and rear foglamps

 front and rear foglamps

 rear foglamps

  C.  foglamps selection ring.
 These operate with the dipped and main

beam headlamps.

   )  To switch on the foglamps, turn

ring  C  forwards.

 When the lighting is switched off au-

tomatically (on AUTO model), the fo-

glamps and the dipped headlamps will

remain on.
   )   To switch off all of the lighting turn

ring  C  rearwards.

   )   To switch on the foglamps, turn ring

 C  forwards.

  )   To switch off the rear foglamps, turn

ring  C  rearwards twice in succession.

 When the lighting is switched off au-

tomatically (on AUTO model) or when

the dipped headlamps are switched off

manually, the foglamps and the side-

lamps will remain on.
   )  Turn the ring rearwards to switch

off the foglamps, the sidelamps will

then switch off.

 In good weather or in rain, both

day and night, the front foglamps

and the rear foglamps are prohib-

ited. In these situations, the in-

tensity of their beams may dazzle

other drivers.
 Do not forget to switch off the front fo-

glamps and the rear foglamps when

they are no longer necessary.

  Lighting on reminder
 The triggering of an audible signal

when a front door is opened warns

the driver that they have forgotten

to switch off the vehicle's lighting,

with the ignition off.
 In this case, switching off the light-

ing will stop the audible signal.
 When the ignition is switched off, if

the dipped headlamps remain on,

they will be switched off automati-

cally after thirty minutes to prevent

discharging of the battery.

4

!

84

VISIBILITY

 In fog or snow, the sunshine sen-

sor may detect suffi cient  light.

Therefore, the lighting will not

come on automatically.
 Do not cover the sunshine sen-

sor, coupled with the rain sensor

and located in the centre of the

windscreen behind the rear view

mirror; the associated functions

would no longer be controlled.

  Coupling with the "Guide-me-home"

lighting
 Association with the automatic illumination of

headlamps provides the "guide-me-home"

lighting with the following additional options:
   -

selection of the lighting duration to 15, 30

or 60 seconds in the vehicle parameters

in the multifunction screen confi guration

menu,

  -

automatic activation of "guide-me-home"

lighting when automatic illumination of

headlamps is in operation.

          Automatic illumination

of headlamps

 The sidelamps and dipped beam head-

lamps are switched on automatically,

without any action on the part of the

driver, when a low level of external light

is detected (sensor behind the rear view

mirror) or when the windscreen wipers

are switched on.
 As soon as the brightness returns to a

suffi cient level or after the windscreen

wipers are switched off, the lighting is

switched off automatically.

  "Guide-me-home" lighting

 The dipped headlamps remain on tem-

porarily, after switching off the vehicle's

ignition, to make the driver's exit easier

in poor light.

  Activation
   )  With the ignition off, activate a

"headlamp fl ash" using stalk  B .

  )   A second "headlamp fl ash" switches

the function off again.

  Switching off
 The "guide-me-home" lighting is switched

off automatically following the door lock-

ing command, after a given time.

  Activation
   )   Turn ring  A  to the " AUTO " position. The

automatic illumination of headlamps

is accompanied by a message in the

multifunction screen.

  Operating fault

 In the event of a malfunction of

the brightness sensor, the light-

ing comes on accompanied by

the service warning lamp, an

audible signal and a message on the

multifunction screen.
 Have it checked by a PEUGEOT dealer

or a qualifi ed workshop.

  Daytime running lamps *

 On vehicles fi tted with daytime running

lamps, the dipped headlamps come on

when the vehicle is started.

 This indicator lamp comes on

in the instrument panel.

 The instruments and controls (multi-

function screen, air conditioning control

panel, ...) are not lit, unless the auto-

matic lighting mode is activated or the

lighting is switched on manually.

  Deactivation
   )   Turn ring

A  to a position other than

AUTO ". Deactivation is accompa-

nied by a message in the multifunction

screen.

  *   According to country.

4

i

85

VISIBILITY

HEADLAMP ADJUSTMENT

This position is suffi cient to avoid

causing dazzle.
Higher settings may limit the spread

of light from the headlamps.
 The initial setting is position  "0" .

 To avoid causing a nuisance to other

road users, the height of the headlam-

ps should be adjusted in relation to the

load in the vehicle.
  0  .   Driver only or driver + front passenger.
  - .   Intermediate setting
  1.    5 people.
  - .   5 people + load in the boot.
  2.   Driver only + maximum authorised

load in the boot.

4

86

VISIBILITY

WIPER CONTROL STALK

 System for the selection and control of

the various front and rear wiping modes

permitting the dispersal of rain and

cleaning.
 The vehicle's various front and rear wipers

are designed to progressively improve the

driver's visibility according to the weather

conditions.

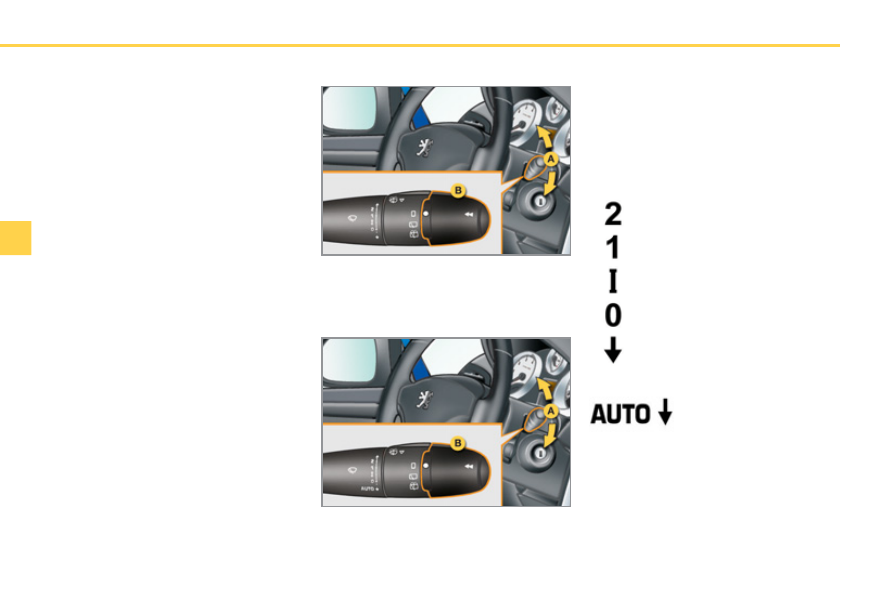

  Manual controls

 The wiping commands are made di-

rectly by the driver using stalk  A  and its

ring  B .

  Model with intermittent wiping

  Model with AUTO wiping

fast (heavy rain),

normal (moderate rain),

intermittent (in proportion to

the speed of the vehicle),

automatic (refer to a fol-

lowing page).

off,

single wipe (press down-

wards),

  Programmes

 Various automatic wiping control modes

are also available depending on the fol-

lowing options:
   -   automatic rain sensitive windscreen

wipers,

  -   rear wiping on engaging reverse

gear.

  Windscreen wipers
   A.   wiping speed selection control:

4

!

i

87

VISIBILITY

          Windscreen and headlamp

wash

  B.  rear wiper selection ring:

off,

intermittent wipe,

wiping with screenwash (fi xed

duration).

  Reverse gear
 When reverse gear is engaged, if the

windscreen wipers are operating, the

rear wiper will start.

  Programming

   )   Pull the windscreen wiper stalk to-

wards you.

 The headlamp wash is only activate  if

the dipped headlamps are on .

  Rear wiper

 In the presence of snow or con-

siderable frost and when using a

tailgate bicycle carrier, deactivate

the automatic rear wiper via the

multifunction screen confi gura-

tion menu.

 The function is activated or

switched off via the multi-

function screen confi guration

menu.
 By default, this function is

activated.

 With daytime running lamps, to

activate the headlamp wash,

position the lighting stalk in the

dipped beam position.
 On vehicles fi tted with digital air

conditioning, any action on the

windscreen wash control results

in temporary closing of the air

intake to avoid odours inside the

passenger compartment.

4

!

i

88

VISIBILITY

   Special position of the windscreen

wipers

             Automatic rain sensitive

windscreen wipers

 The windscreen wipers operate auto-

matically, without any action on the part

of the driver, if rain is detected (sensor

behind the rear view mirror), adapting

their speed to the intensity of the rain-

fall.

  Activation
 This is controlled manually by the driver

by pushing the stalk  A  to the  "AUTO"

position.
 It is accompanied by a message in the

multifunction screen.

 In the minute following switching off of

the ignition, any action on the stalk po-

sitions the wipers vertically on the wind-

screen.
 This action enables you to position the

wiper blades for winter parking.
 To park the wipers after this has been

done, switch on the ignition and operate

the stalk.

 Do not cover the rain sensor, cou-

pled with the sunshine sensor and

located in the centre of the wind-

screen behind the rear view mirror.
 Switch off the ignition when using

an automatic car wash.
 In winter, it is advisable to wait

until the windscreen is completely

clear of ice before activating the

automatic rain sensitive wipers.

 The automatic rain sensitive wipers

must be reactivated if the ignition has

been off for more than one minute,

by pushing the stalk  A  downwards.

  Switching off
 This is controlled manually by the driver

by moving the stalk  A  to another posi-

tion and returning it to position  "0" .
 It is accompanied by a message in the

multifunction screen.

  Operating fault
 If an automatic wiping malfunction oc-

curs, the wipers will operate in intermit-

tent mode.
 Have it checked by a PEUGEOT dealer

or a qualifi ed workshop.

4

i

89

VISIBILITY

COURTESY LAMPS

  3.    Rear courtesy lamp

  Front and rear courtesy lamps

 In this position, the courtesy

lamp comes on gradually:

  Map reading lamps

   )   With the ignition on, press the cor-

responding switch.

 In permanent lighting mode, differ-

ent lighting times are available:
   -   with the ignition off, approxi-

mately ten minutes,

  -   in energy economy mode, ap-

proximately thirty seconds,

  -

with the engine running, unlimited.

   -

when the vehicle is unlocked,

  -   when the key is removed from the

ignition,

  -

when the remote control locking button is

activated, in order to locate your vehicle.

 Permanently off.

 Permanent lighting.

 It switches off gradually:
   -

when the vehicle is locked,

  -

when the ignition is switched on,

  -   30 seconds after the last door is

closed.

   1.    Front courtesy lamp
  2.    Map reading lamp

5

i

CHILD SAFETY

90

  PEUGEOT recommends  that

children should travel in the  rear

seats  of your vehicle:
   -

 "rearwards-facing"  up to the

age of 2,

  -

 "forwards-facing"  over the

age of 2.

GENERAL POINTS RELATING
TO CHILD SEATS

CHILD SEAT IN THE FRONT

  "Rearwards-facing"
 When a "rearwards-facing" child seat is

installed on the  front passenger seat ,

it is essential that the passenger airbag

is deactivated. Otherwise,

the child

would risk being seriously injured or

killed if the airbag were to infl ate .

  *    The rules for carrying children are

specifi c to each country. Refer to the

current legislation in your country.

 Although one of PEUGEOT's main cri-

teria when designing your vehicle, the

safety of your children also depends on

you.
 For maximum safety, please observe

the following recommendations:
   -  in accordance with European

regulations,  all children under the

age of 12 or less than one and a

half metres tall must travel in ap-

proved child seats suited to their

weight , on seats fi tted with a seat

belt or ISOFIX mountings * ,

  -

 statistically, the safest seats in

your vehicle for carrying children

are the rear seats,

  -

 a child weighing less than 9 kg

must travel in the "rearwards-

facing" position both in the front

and in the rear.

  Intermediate longitudinal

position

  "Forwards-facing"
 When a "forwards-facing" child seat is

installed on the  front passenger seat ,

adjust the vehicle's seat to the interme-

diate longitudinal position with the seat

back upright and leave the passenger

airbag activated.

5

!

CHILD SAFETY

91

   Passenger airbag OFF

  Refer to the advice given on the label present

on both sides of the sun visor(s):

  CAUTION
  RISK OF DEATH OR SERIOUS INJURY.
 DO NOT install a child seat facing rearwards on the front seat, which is fi tted

with an airbag.

5

CHILD SAFETY

92

 CHILD SEATS RECOMMENDED BY PEUGEOT

 PEUGEOT offers a complete range of recommended child seats which are se-

cured using a  three point seat belt :

   Group 0+: from birth to 13 kg



   L1

"RÖMER Baby-Safe Plus"

Installed in the rearwards-facing position.

   Groups 2 and 3: from 15 to 36 kg



   L3

"RECARO Start''



   L4

"KLIPPAN Optima"

From the age

of 6 years

(approximately 22 kg),

the booster is used on

its own.



   L5

"RÖMER KIDFIX"

Can be fi tted to the vehicle's ISOFIX mountings.

The child is restrained by the seat belt.

5

CHILD SAFETY

93

LOCATIONS FOR CHILD SEATS SECURED WITH THE SEAT BELT (SALOON)

 In accordance with the European regulation, this table indicates the options for the installation of child seats secured using

the seat belt and universally approved (a) in relation to the weight of the child and the seat in the vehicle.

 (a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
 (b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
 (c) Consult the legislation in force in your country before installing your child on this seat.
  U :  seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/or

"forward facing".

  X : seat not suitable for the installation of a child seat of the weight group indicated.

   Weight of the child/ indicative age

  Seat

   Less than 13 kg

(groups 0 (b) and 0+)
Up to 1 year approx

   From 9 to 18 kg

(group 1)

From 1 to 3 years

approx

   From 15 to 25 kg

(group 2)

From 3 to 6 years

approx

   From 22 to 36 kg

(group 3)

From 6 to 10 years

approx

 Front passenger seat (c)

   U

   U

   U

   U

   -

fi xed

   -  height

adjustable



 Outer rear seats

   U

   U

   U

   U

 Centre rear seat

   U

   X

   X

   X

5

CHILD SAFETY

94

LOCATIONS FOR CHILD SEATS SECURED WITH THE SEAT BELT (SW)

 In accordance with the European regulation, this table indicates the options for the installation of child seats secured using

the seat belt and universally approved (a) in relation to the weight of the child and the seat in the vehicle.

 (a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
 (b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
 (c) Consult the legislation in force in your country before installing your child on this seat.
  U:   seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/or

"forward facing".

   Weight of the child /indicative age

   Seat

   Less than 13 kg

(groups 0 (b) and 0+)

Up to 1 year approx

   From 9 to 18 kg

(group 1)

From 1 to 3 years approx

   From 15 to 25 kg

(group 2)

From 3 to 6 years approx

   From 22 to 36 kg

(group 3)

From 6 to 10 years approx

 Front passenger seat (c)

   U

   U

   U

   U

   -

fi xed

   -  height

adjustable



 Outer rear seats

   U

   U

   U

   U

 Centre rear seat

   U *

   U *

   U *

   U *

  *   The rear left side seat becomes unusable.















Content   ..  4  5  6  7   ..
