Peugeot 207 (2011 year). Instruction - part 5





2

COMFORT

63

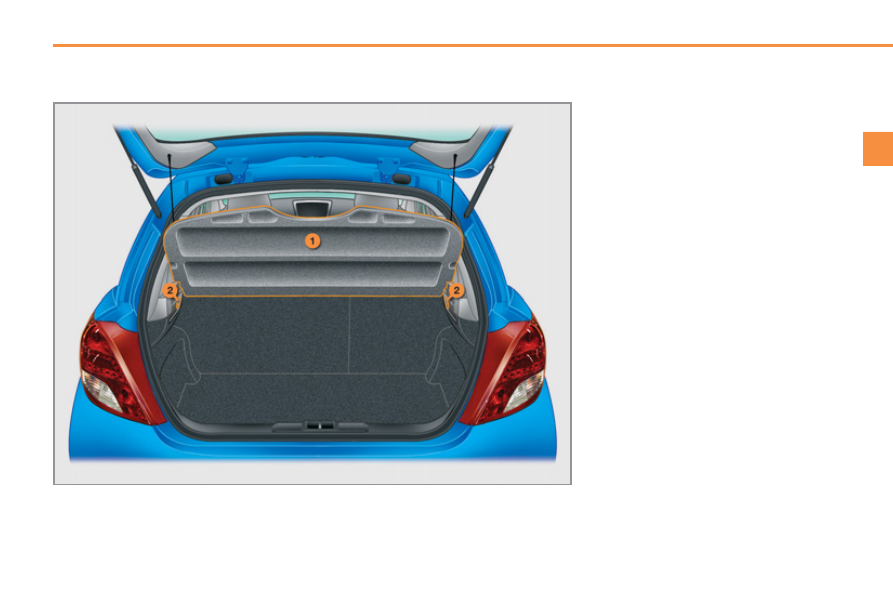

BOOT FITTINGS (SALOON)

   1.    Rear parcel shelf


(see details on following page)

  2.    Hooks


(see details on following page)

2

i

COMFORT

64

       Hooks

       Rear parcel shelf (Saloon)

 To remove the shelf:
   )   unhook the two cords,
  )   raise the shelf slightly, then remove it.

 The hooks can be used to secure shop-

ping bags.

  When changing a wheel
 The hooks facilitate access to the

spare wheel by holding up the

boot carpet by its cord.

 You have two storage options:
   -

either upright behind the front seats,

  -

or upright behind the rear seats.

2

COMFORT

65

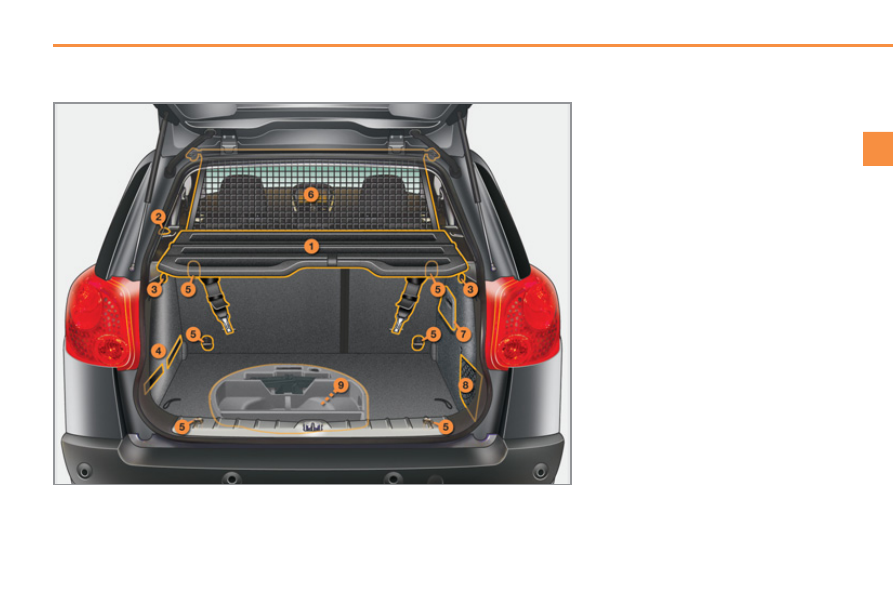

BOOT FITTINGS (SW)

   1.    Rear parcel shelf


(see details on following page)

  2.    12 V accessories socket


(see details on following page)

  3.    Hooks


(see details on previous page)

  4.    Retaining straps

  5.    Stowing rings

  6.    High load retaining net


(see details on following page)

  7.    Storage box

  8.    Storage net

  9.    Storage box


(refer to the section "Practical infor-

mation - § Changing a wheel")

2

i

COMFORT

66

       Rear parcel shelf (SW)

 This consists of three sections which

can be folded back on each other.
 To store it, fold it on itself and place it

vertically at the back of the boot.

 To fold it from the boot:
   )   take hold of the rear parcel shelf by

its strap  A ,

  )  fold it concertina-style to the rear

seats.

 To unfold it from the boot:
   )   take hold of the rear parel shelf by

its strap  A ,

  )   unfold it to the boot pillars.
 To gain access from the rear seats:
   )   raise the front section of the rear

parcel shelf using the handle  B .

       12 V accessory socket (SW)

   )   In order to connect a 12 V accesso-

ry (max power: 120 Watts), remove

the cap and connect the appropriate

adaptor.

  )   Turn the key to the ignition on position.

  Maximum loads
 7.5 kg, rear parcel shelf unfolded

with high load retaining net at row 2.

2

i

COMFORT

67

  High load retaining net (SW)

 Hooked onto the upper fi xings and onto

the ISOFIX rings or the lugs, this per-

mits use of the entire loading volume up

to the roof:
   -

behind the rear seats (row 2),

  -   behind the front seats (row 1) when

the rear seats are folded.

 To use it in row 1:
   )   open the covers of the upper fi xings  1 ,
  )   unroll the high load retaining net,
  )   position one of the ends of the net's

metal bar in the corresponding

upper  fi xing   1 , then do the same

with the other end,

  )   slacken the straps fully,
  )   fi x the snap hook of each of the straps

on the corresponding lug  3 , located

under the bench seat cushion,

  )   fold the rear seats,
  )   tighten the straps without raising the

bench seat,

  )   check that the net is hooked and

tightened correctly.

 To use it in row 2:
   )   fold or remove the load space cover,
  )   open the covers of the upper fi xings  2 ,
  )   unroll the high load retaining net,
  )   position one of the ends of the net's

metal bar in the corresponding upper

fi xing   2 , then do the same with the

other end,

  )   attach the hook of each of the net's

straps in the corresponding ISOFIX

ring  4 ,

  )   tighten the straps,
)

check that the  net is  hooked  and

tightened correctly.

 When positioning the net, check

that the strap loops are visible from

the boot; this will make slackening

or tightening easier.

3

i

ACCESS

68

REMOTE CONTROL KEY

 System which permits central unlocking

or locking of the vehicle using the lock

or remotely. It also locates and starts

the vehicle, as well as providing protec-

tion against theft.

  Unfolding the key
   )   First press button

A  to unfold the

key.

  Unlocking the vehicle

 Unlocking is confi rmed by rapid fl ashing

of the direction indicators for approxi-

mately two seconds.
 According to version, the door mirrors

unfold at the same time.

  Locking the vehicle

   )   Press the open padlock to

unlock the vehicle.

  Unlocking using the key
   )   Turn the key to the left in the driver's

door lock to unlock the vehicle.

  Normal locking using the key
   )   Turn the key to the right in the driv-

er's door lock to lock the vehicle.

 Locking is confi rmed by fi xed lighting of

the direction indicators for approximate-

ly two seconds.
 According to version, the door mirrors

fold at the same time.

  Unlocking using the remote control

   )  Press the closed padlock

to lock the vehicle.

  )  Press the closed padlock

for more than two seconds

to close the windows auto-

matically in addition to lock-

ing (with sequential electric

windows).

 If one of the doors or the boot is

still open, the central locking does

not take place.

  Normal locking using the remote

control

3

i

ACCESS

69

  Folding the key
   )   First press button  A  to fold the key.

  Electronic engine immobiliser
 The key contains an electronic chip

which has a special code. When the

ignition is switched on, this code must

be recognised in order for starting to be

possible.
 This electronic engine immobiliser locks

the engine management system a few

minutes after the ignition is switched off

and prevents starting of the engine by

anyone who does not have the key.

             Anti-theft protection

 In the event of a fault, you are

informed by illumination of this

warning lamp, an audible signal

and a message in the screen.

 In this case, your vehicle does not start;

contact a PEUGEOT dealer as soon as

possible.

 The vehicle will relock automati-

cally after thirty seconds unless a

door is opened. This system pre-

vents unintentional unlocking.

 The folding and unfolding of the

door mirrors can be deactivated

by a PEUGEOT dealer or a quali-

fi ed workshop.

3

i

ACCESS

70

          Starting the vehicle

   )   Insert the key in the ignition switch.


The system recognises the starting

code.

  )   Turn the key fully towards the dash-

board to position  3 (Starting) .

  )   When the engine starts, release the

key.

  Switching the vehicle off

   )   Immobilise the vehicle.
  )   Turn the key fully towards you to po-

sition  1 (Stop) .

  )   Remove the key from the ignition

switch.

                Remote control problem

 Following disconnection of the vehicle

battery, replacement of the remote con-

trol battery or in the event of a remote

control malfunction, you can no longer

unlock, lock or locate your vehicle.
   )   First of all, use the key in the lock to

unlock or lock your vehicle.

  )   Then, reinitialise the remote control.
 If the problem persists, contact a

PEUGEOT dealer as soon as possible.

  Changing the battery

 Battery ref.: CR1620/3 volts.

  Reinitialisation
   )   Switch off the ignition.
  )   Turn the key to position  2 (Ignition

on) .

  )   Press the closed padlock immedi-

ately for a few seconds.

  )   Switch off the ignition and remove

the key from the ignition switch.

 The remote control is fully operational

again.

   )   Unclip the casing using a coin at the

notch.

  )  Slide the fl at battery out of its location.
  )   Slide the new battery into its loca-

tion observing the original direction.

  )   Clip the casing.
  )   Reinitialise the remote control.

 If the battery is fl at, you are in-

formed by illumination of this

warning lamp, an audible signal

and a message in the multifunc-

tion screen.

       Locating your vehicle

 To locate your vehicle, if you have

locked it, in a car park:
   )   press the closed padlock, the cour-

tesy lights come on and the direction

indicators fl ash for a few seconds.

        Key in ignition
 If the key has been left in the igni-

tion, an audible signal is heard on

opening the driver's door.

3

!

ACCESS

71

               Lost keys

 Visit a PEUGEOT dealer with the vehicle's V5 registration document and your

personal identifi cation documents.
 The PEUGEOT dealer will be able to retrieve the key code and the trans-

ponder code required to order a replacement key.

         Do not throw the remote control bat-

teries away, they contain metals which

are harmful to the environment.
 Take them to an approved collection

point.

  Remote control

 The high frequency remote control is a sensitive system; do not operate it

while it is in your pocket as there is a possibility that it may unlock the vehicle,

without you being aware of it.
 Do not repeatedly press the buttons of your remote control out of range and

out of sight of your vehicle. You run the risk of stopping it from working and the

remote control would have to be reinitialised.
 The remote control does not operate when the key is in the ignition, even

when the ignition is switched off, except for reinitialisation.

  Locking the vehicle

 Driving with the doors locked may make access to the passenger compart-

ment by the emergency services more diffi cult in an emergency.
 As a safety precaution (with children on board), remove the key from the

ignition when you leave the vehicle, even for a short time.

  Anti-theft protection

 Do not make any modifi cations to the electronic engine immobiliser system;

this could cause malfunctions.

  When purchasing a second-hand vehicle

 Have the key codes memorised by a PEUGEOT dealer, to ensure that the

keys in your possession are the only ones which can start the vehicle.

3

i

i

i

ACCESS

72

WINDOW CONTROLS

  Electric windows

 In the event of unwanted opening

of the window on closing (for ex-

ample in the presence of frost):
   )   press the switch until it opens

completely,

  )   then pull it immediately until it

closes.

  )   continue to hold the switch for

approximately one second af-

ter the window has closed.

  The safety anti-pinch function is

not active during these operations.

  One-touch electric windows

 There are two methods of operation:

   -

 manual mode

   )

Press or pull the switch gently.

The window stops as soon as the

switch is released.

  -

 automatic mode

   )  Press or pull the switch fully. The

window opens or closes complete-

ly when the switch is released.

  )  Pressing the switch again stops

the movement of the window.

   )  Press or pull the switch.

The window stops as soon

as the switch is released.

 The electric window switches

remain operational for approxi-

mately 45 seconds after the ignition

is switched off or until a front door

is opened.

 System which opens or closes a window

manually or automatically. It is fi tted with

a system which provides protection if an

obstacle is detected on the one-touch

models and a deactivation system to

prevent misuse of the rear switches on

all models.

   1.    Driver's electric window switch.
  2.    Passenger's electric window

switch.

  3.    Rear right electric window

switch.

  4.    Rear left electric window switch.
  5.    Deactivating the rear electric

window switches.

 The electric window switches re-

main operational for approximate-

ly 45 seconds after the ignition is

switched off or until a front door is

opened.

  Safety anti-pinch
 In automatic mode, when the window

rises and meets an obstacle, it stops

and partially lowers again.

3

!

73

  Deactivating the rear window

switches

  Reinitialisation

 Following reconnection of the battery or

in the event of a malfunction you must

reinitialise the operation of the electric

windows:
   )   release the switch and pull it again

until the window closes completely,

  )  hold the switch for approximately

one second after closing,

 Always remove the key from the

ignition when leaving the vehicle,

even for a short time.
 In the event of contact during op-

eration of the windows, you must

reverse the movement of the win-

dow. To do this, press the switch

concerned.
 When the driver operates the pas-

senger electric window switches,

they must ensure that no one is

preventing correct closing of the

windows.
 The driver must ensure that the

passengers use the electric win-

dows correctly.
 Be aware of children when operat-

ing the windows.

REAR QUARTER WINDOWS

 On the 3-door versions, system for ven-

tilation of the rear seats by the partial

opening of the window.

  Opening

   )   For the safety of your children, press

switch  5  to prevent operation of the

rear windows irrespective of their

position.

 When the button is pressed down, the

rear window switches are deactived.
 When the button is raised, the rear window

switches are active.

  Closing

   )   Pull the lever to release the window.
  )   Tilt the lever fully inwards to secure

the window in the closed position.

   )   Tilt the lever outwards.
  )   Push it fully to secure the window in

the open position.

  )   press the switch to lower the win-

dow automatically,

  )   when the window has reached the

low position, press the switch again

for approximately one second.

  The safety anti-pinch function is not

active during these operations.

3

ACCESS

74

DOORS

   )   After unlocking the vehicle using the

remote control or the key, pull the

door handle.

  From inside

   )   Pull the front door control to open

the door; this unlocks the vehicle

completely.

  )   Pull the rear door control to open

the door; this unlocks the door con-

cerned only.

  Closing

 If a door is not closed correctly:

   -

when the engine is running,

this warning lamp comes

on, accompanied by a mes-

sage in the multifunction

screen for a few seconds,

  -   when the vehicle is moving (speed

above 6 mph (10 km/h)), this warn-

ing lamp comes on, accompanied

by an audible signal and a message

in the multifunction screen for a few

seconds.

  Opening

  From outside

3

!

i

i

ACCESS

75

 If one of the doors or the boot is

open, the automatic central lock-

ing does not take place.

           Centralised locking control

 System which provides full manual

locking or unlocking of the doors from

the inside.

  Locking
   )   Press this button to lock the vehicle.
 The red indicator lamp in the button

comes on.

          Automatic central locking

 This system automatically locks the

doors and boot while driving.
 You can activate or deactivate this function.

  Ignition on:

 Activation
   )  Press this button for more than

two seconds.

 A confi rmation message appears in the

multifunction screen.

  Unlocking
   )   Above 6 mph (10 km/h), press this

button to unlock the doors, the boot

and the rear screen temporarily.

 If one of the doors is open, the

central locking from the inside

does not take place.

  Unlocking
   )   Press this button again to unlock the

vehicle.

 The red indicator lamp in the button

goes off.

  Locking
 When the speed exceeds 6 mph

(10 km/h), the doors and boot lock au-

tomatically.

  Deactivation
   )  Press this button again for more

than two seconds.

 A confi rmation message appears in the

multifunction screen.

  When locking from the outside
 When the vehicle is locked from

the outside, the red indicator lamp

fl ashes and the button is inactive.
   )   Pull the interior door lever to

unlock the vehicle.

3

ACCESS

76

  Emergency control

 System which locks or unlocks the

doors mechanically in the event of a

malfunction of the central locking.

   )   Insert the key in the lock, located on

the edge of the door, then turn it one

eighth of a turn.

  Locking the driver's door
   )   Insert the key in the lock, then turn it

to the right.

  Unlocking the driver's door
   )   Insert the key in the lock, then turn it

to the left.

  Locking the front and rear

passenger doors

  Unlocking the front and rear

passenger doors
   )   Pull the interior door opening control.

   -

 when the engine is run-

ning , this warning lamp

comes on, accompanied

by a message on the mul-

tifunction screen for a few

seconds,

  -

 when the vehicle is moving  (speed

above 6 mph (10 km/h)), this warn-

ing lamp comes on, accompanied

by an audible signal and a message

on the multifunction screen for a

few seconds.

          Tailgate release

 System for mechanical unlocking of the

boot in the event of a central locking

malfunction.

  Unlocking
   )  Fold back the rear seats to gain

access to the lock from inside the

boot.

  )   Insert a small screwdriver into hole  A

of the lock to unlock the tailgate.

  Opening

   )   After unlocking the vehicle using the

remote control or the key, pull the

handle and raise the tailgate.

BOOT (SALOON)

  Closing

 If the tailgate is not closed correctly:

3

ACCESS

77

  Opening

   )   After unlocking the vehicle using the

remote control or the key, pull on the

handle  A  and raise the tailgate.

   -

 when the engine is running ,

this warning lamp comes on,

accompanied by a message in

the multifunction screen for a

few seconds,

  -

 when the vehicle is moving  (speed

above 6 mph (10 km/h)), this warning

lamp comes on, accompanied by an au-

dible signal and a message in the multi-

function screen for a few seconds.

  Closing

   )   Lower the tailgate using the interior

grab handle.

 If the tailgate is not closed correctly:

BOOT (SW)

3

!

ACCESS

78

         PANORAMIC SUNROOF
(SALOON)

 System which consists of a panoramic

tinted glass area to increase the light

and visibility in the passenger compart-

ment. It is fi tted with a manual blind

in two parts to maintain a comfortable

temperature.

   )  Take the blind by its handle and

push it rearwards to the required

position.

  Opening

  Closing

   )   Take the blind by its handle and pull

it forwards to the required position.

 If an obstacle is encountered dur-

ing operation of the blind, the

movement of the blind must be re-

versed. To do this, press the control

concerned.
 When the driver operates the blind

control, they must ensure that no

one is preventing correct closing

of the blind.
 The driver must ensure that pas-

sengers use the blind correctly.
 Be aware of children when operat-

ing the blind.

PANORAMIC SUNROOF (SW)

 System which consists of a panoramic

tinted glass area to increase the light

and visibility in the passenger compart-

ment. It is fi tted with an electric blind

in two parts to maintain a comfortable

temperature.

  Opening

   )   Pull control  A .
 The blind stops when the control is re-

leased.

  Closing

   )   Press control  A .
 The blind stops when the control is re-

leased.















Content   ..  3  4  5  6   ..
