FAMILIARISATION

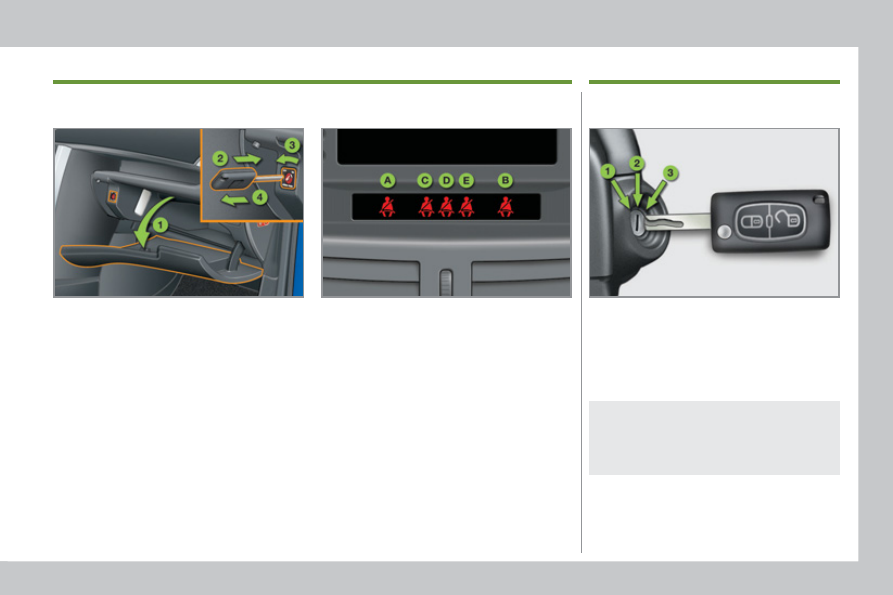

Front passenger's airbag

START

   1.   Open the glove box.
  2.   Insert the key.
  3.  Select position:

"ON" (activation), with front passenger

or "forwards facing" child seat,

"OFF" (deactivation), with "rear facing"

child seat".

4. Remove the key keeping the switch

in the new position.

109

Ignition switch

A. Front left seat belt not fastened or

unfastened warning lamp on red.

B. Front right seat belt not fastened or

unfastened warning lamp on red.

C. Rear left seat belt not fastened or

unfastened warning lamp on red.

D. Rear centre seat belt not fastened

or unfastened warning lamp on red.

E. Rear right seat belt not fastened or

unfastened warning lamp lit on red.

106

Front and rear seat belts

   1.    Stop  position.
  2.    Ignition  position.
  3.    Starting  position.
     70

PASSENGER SAFETY

A heavy object (key fob...), attached

to the key and weighing down on

its shaft in the ignition switch, could

cause a malfunction.

FAMILIARISATION

DRIVING SAFELY

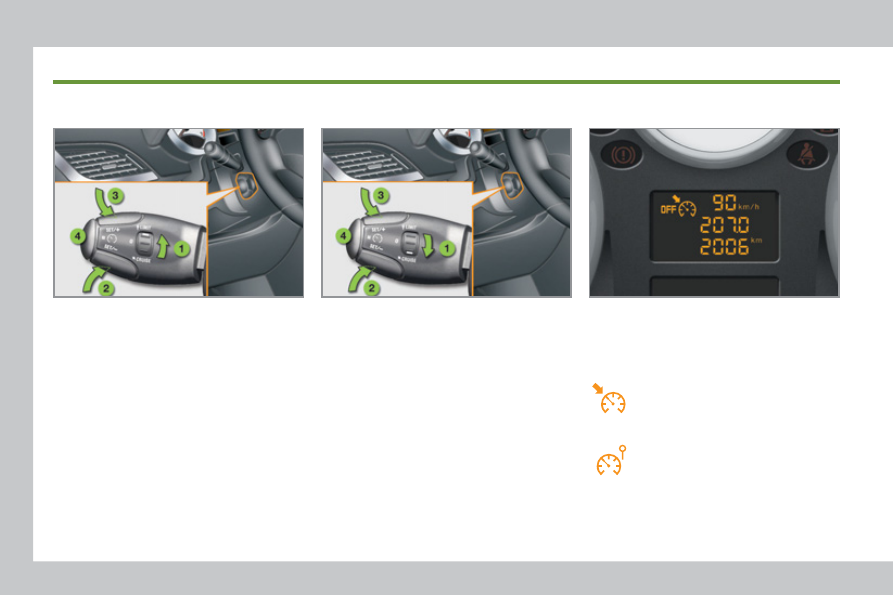

Speed limiter "LIMIT"

Instrument panel display

1. Selecting/Switching off speed limiter

mode.

  2.   Decrease the programmed value.
  3.   Increase the programmed value.
  4.   Speed limiter on/off.
The values must be set with the engine

running.
117

The cruise control or speed limiter mode

appears in the instrument panel when it

is selected.

1. Selecting/Switching off cruise control

mode.

  2.   Decrease the programmed value.
  3.   Increase the programmed value.
  4.   Cruise control Off/Resume.
In order to be programmed or activated,

the vehicle speed must be higher than

25 mph (40 km/h), with at least fourth

gear engaged on a manual gearbox

(second gear on an automatic gearbox).
119

Cruise control "CRUISE"

Cruise control

Speed limiter

ECO-DRIVING

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO

emissions.

Optimise the use of your

gearbox

With a manual gearbox, move off gen-

tly, change up without waiting and

drive by changing up quite soon. If

your vehicle has the system, the gear

shift indicator invites you to change

up; it is displayed in the incstrument

panel, follow its instructions.

With an automatic or electronic gear-

box, stay in Drive

"D" or Auto

"A" ,

according to the type of gear selector,

without pressing the accelerator pedal

heavily or suddenly.

Drive smoothly

Maintain a safe distance between vehi-

cles, use engine braking rather than the

brake pedal, and press the accelerator

progressively. These attitudes contribute

towards a reduction in fuel consump-

tion and CO

emissions and also helps

reduce the background traffi c noise.

When the traffi c is fl owing well, and if

you have cruise control, make use of

the system at speeds above 25 mph

(40 km/h).

Control the use of your

electrical equipment

Before moving off, if the passenger

compartment is too warm, ventilate it by

opening the windows and air vents be-

fore using the air conditioning.
Above 30 mph (50 km/h), close the win-

dows and leave the air vents open.
Remember to make use of equipment

that can help keep the temperature in

the passenger compartment down (sun

roof and window blinds...).
Switch off the air conditioning, unless

it has automatic digital regulation, as

soon as the desired temperature is at-

tained.
Switch off the demisting and defrosting

controls, if not automatic.
Switch off the heated seat as soon as

possible.

Switch off the headlamps and front fo-

glamps on when the level of light does

not require their use.

Avoid running the engine before moving

off, particularly in winter; your vehicle will

warm up much faster while driving.

As a passenger, if you avoid connecting

your multimedia devices (fi lm, music,

video game...), you will contribute to-

wards limiting the consumption of elec-

trical energy, and so of fuel.
Disconnect your portable devices before

leaving the vehicle.

Limit the causes of excess

consumption

Spread loads throughout the vehicle;

place the heaviest items in the bottom

of the boot, as close as possible to the

rear seats.
Limit the loads carried in the vehicle

and reduce wind resistance (roof bars,

roof rack, bicycle carrier, trailer...). Use

a roof box in preference.
Remove roof bars and roof racks after

use.

At the end of winter, remove snow

tyres and refi t your summer tyres.

Observe the recommendations

on maintenance

Check the tyre pressures regularly,

when cold, referring to the label in the

door aperture, driver's side.
Carry out this check in particular:
-

before a long journey,

at each change of season,

after a long period out of use.

Don't forget the spare wheel and the

tyres on any trailer or caravan.

Have your vehicle serviced regularly (en-

gine oil, oil fi lter, air fi lter...) and observe the

schedule of operations recommended by

the manufacturer.

When refuelling, do not continue after

the 3 rd cut-off of the nozzle to avoid

any overfl ow.

At the wheel of your new vehicle, it is only

after the fi rst 1 800 miles (3 000 kilome-

tres) that you will see the fuel consumption

settle down to a consistent average.

INSTRUMENTS and CONTROLS

PETROL - DIESEL, MANUAL OR AUTOMATIC GEARBOX
INSTRUMENT PANELS

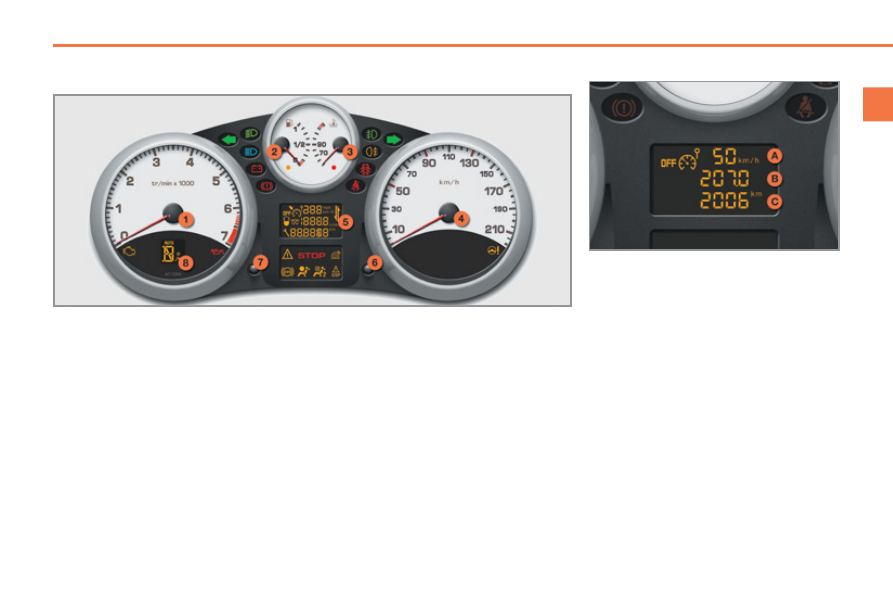

Panel which groups together the vehicle

operation dials and indicator lamps.

5. Screen.

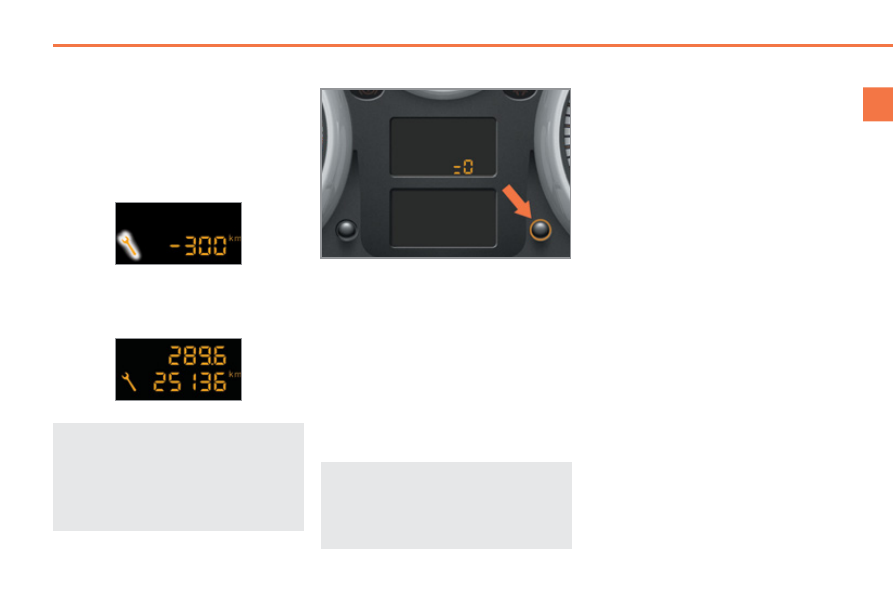

6. Display zero reset button.

Resets the selected function to zero

(trip distance recorder or service

indicator).

7. Instrument panel lighting button.

Adjusts the brightness of the lighting

of the instruments and controls.

8. Automatic gearbox.

Indicates the programme selected

and the gear engaged.

Dials

1. Rev counter.

Indicates the speed of rotation of the

engine (x 1000 rpm).

2. Fuel gauge.

Indicates the quantity of fuel remaining

in the tank.

3. Coolant temperature.

Indicates the temperature of the engine

coolant (° Celsius).

4. Speedometer.

Indicates the current speed of the

moving vehicle (mph or km/h).

A. Speed limiter.
or

Cruise control.

(mph or km/h)

B. Trip distance recorder.

(miles or km)

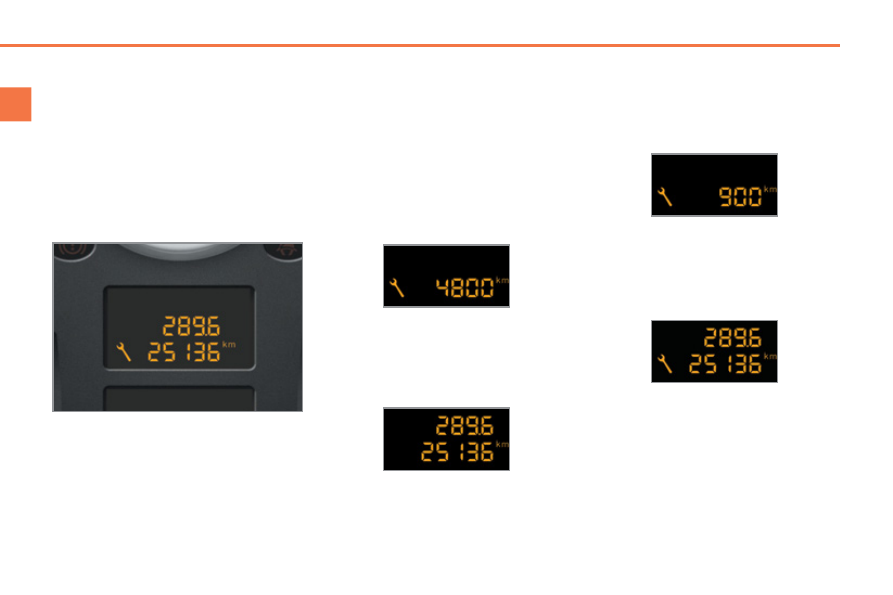

C. Service indicator.

(miles or km) then,

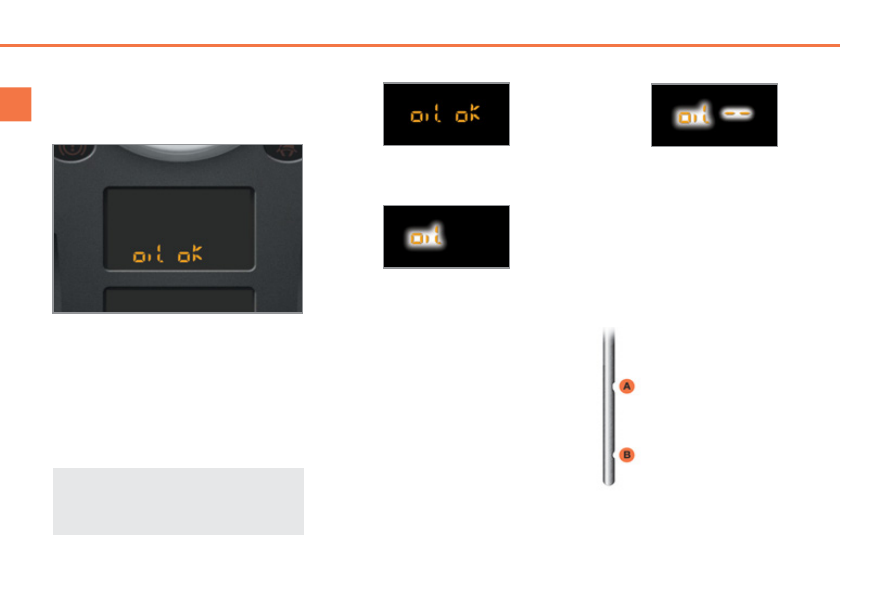

Engine oil level indicator.

then

Distance recorder.

(miles or km)

These three functions are displayed

in succession when the ignition is

switched on.

Screen

For more information, refer to the section

which corresponds to the function and to

the display associated with it.

INSTRUMENTS and CONTROLS

Indicator and warning lamps

Visual indicators informing the driver that a system is in operation (operation or

deactivation indicator lamps) or of the occurrence of a fault (warning lamp).

When the ignition is switched on
Certain warning lamps come on for a few seconds when the vehicle's ignition is switched on.
When the engine is started, these same warning lamps should go off.
If they remain on, before moving off, refer to the information on the warning lamp

concerned.

Associated warnings
The illumination of certain warning lamps may be accompanied by an audible

signal and a message in the multifunction screen.

The warning lamps may come on

continuously (fi xed) or fl ash.
Certain warning lamps may come

on in two different modes. Only by

relating the type of illumination to

the operating status of the vehicle

can it be ascertained whether the

situation is normal or whether a

fault has occurred.

Operation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding

system has come into operation.

Warning lamp

is on

Cause

Action/Observations

Left-hand

direction

indicato r

fl ashing with

buzzer.

The lighting stalk is pushed

down.

Right-hand

direction

indicator

fl ashing with

buzzer.

The lighting stalk is pushed

up.

Dipped beam

headlamps

fi xed.

The lighting stalk is in the

"Dipped beam headlamps"

position.

Main beam

headlamps

fi xed.

The lighting stalk is pulled

towards you.

Pull the stalk to return to dipped beam

headlamps.

INSTRUMENTS and CONTROLS

Warning lamp

is on

Cause

Action/Observations

Front

foglamps

fi xed.

The front foglamps are

switched on.

Turn the ring on the stalk rearwards twice to

switch off the front foglamps.

Rear

foglamps

fi xed.

The rear foglamps are

switched on.

Turn the ring on the stalk rearwards to switch off

the rear foglamps.

Diesel engine

pre-heating

fi xed.

The ignition switch is at the

2nd position (ignition on).

Wait until the warning lamp has switched off before starting.
The duration for which the warning lamp is on is determined

by the climatic conditions.

Parking brake

fi xed.

The parking brake is

applied or not properly

released.

Release the parking brake to switch off the

warning lamp, keeping your foot on the brake

pedal.
Observe the safety recommendations.
For further information on the parking brake, refer

to the "Driving" section.

INSTRUMENTS and CONTROLS

         Deactivation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message on the multifunction screen.

Warning lamp

is on

Cause

Action/Observations

Passenger's

airbag

system

fi xed.

The control, located in the

glove box, is set to the OFF

position.
The passenger's front

airbag is deactivated.
In this case you can install

a "rear facing" child seat.

Set the control to the ON position to activate the

passenger's front airbag.
In this case, do not fi t a child seat in the rear-

facing position.

ESP/ASR

fi xed.

The button, located

in the centre of

the dashboard,

is pressed. Its

indicator lamp is on.

The ESP/ASR is deactivated.
ESP: electronic stability

programme.
ASR: anti-skid regulation.

Press the button again to reactivate the ESP/ASR

manually. Its indicator lamp goes off.
From approximately 30 mph (50 km/h), the

system is reactivated automatically.
The ESP/ASR system is reactivated

automatically when the vehicle is started.

INSTRUMENTS and CONTROLS

Warning lamps
When the engine is running or the

vehicle is being driven, the illumination

of one of the following warning lamps

indicates a fault which requires action

on the part of the driver.

Any fault resulting in the illumination of a warning lamp must be investigated

further by reading the associated message in the multifunction screen.
If you encounter any problems, do not hesitate to contact a PEUGEOT dealer

or a qualifi ed workshop.

Warning lamp

is on

Cause

Action/Observations

STOP

fi xed, alone

or associated

with another

warning lamp,

accompanied

by an audible

signal and a

message on

the screen.

Illumination of the warning

lamp is associated with a

serious braking system or

engine coolant temperature

problem.

Stop as soon as it is safe to do so as the engine

may cut out when driving.
Park, switch off the ignition and call a PEUGEOT

dealer or a qualifi ed workshop.

Service

temporarily.

Minor problems have

occurred for which there is

no specifi c warning lamp.

Identify the problem by reading the message

shown in the screen, such as, for example:
-

the engine oil level,

the screenwash level,

the remote control battery,

saturation of the particle emission fi lter on

Diesel vehicles (see "Checks - § particle

emissions fi lter").

For any other faults, contact a PEUGEOT dealer

or a qualifi ed workshop.

fi xed.

Major problems have

occurred for which there is

no specifi c warning lamp.

Identify the problem by reading the message

shown in the screen and contact a PEUGEOT

dealer or a qualifi ed workshop.

INSTRUMENTS and CONTROLS

Braking

fi xed,

associated

with the STOP

warning lamp.

The braking system fl uid

level is too low.

You must stop as soon as it is safe to do so.
Top up with brake fl uid recommended by

PEUGEOT.
If the problem persists, have the system checked

by a PEUGEOT dealer or a qualifi ed workshop.

fi xed, associated

with the STOP

and ABS

warning lamp.

The electronic brake force

distribution (EBFD) system

has a fault.

You must stop as soon as it is safe to do so.
Have it checked by a PEUGEOT or a qualifi ed

workshop.

Warning lamp

is on

Cause

Action/Observations

Anti-lock

Braking

System

(ABS)

fi xed.

The anti-lock braking

system has a fault.

The vehicle retains conventional braking.
Drive carefully at reduced speed and contact

a PEUGEOT dealer or a qualifi ed workshop

without delay.

Dynamic

stability

control

(ESP/ASR)

fl ashing.

The ESP/ASR regulation is

active.

The system optimises traction and improves the

directional stability of the vehicle.

fi xed.

Unless it has been

deactivated (button pressed

and its indicator lamp on) the

ESP/ASR system has a fault.

Have it checked by a PEUGEOT or a qualifi ed

workshop.

INSTRUMENTS and CONTROLS

Warning lamp

is on

Cause

Action/Observations

Maximum

coolant

temperature

fi xed red.

The temperature of the

cooling system is too high.

Stop as soon as it is safe to do so.
Wait until the engine has cooled down before

topping up the level, if necessary.
If the problem persists, contact a PEUGEOT

dealer or qualifi ed workshop.

Engine oil

pressure

fi xed.

There is a fault with the

engine lubrication system.

You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a

PEUGEOT dealer or a qualifi ed workshop.

Engine

autodiagnosis

system

fi xed.

The emission control

system has a fault.

The warning lamp should go off when the engine

is started.
If it does not go off, contact a PEUGEOT dealer

or qualifi ed workshop without delay.

fl ashing.

The engine management

system has a fault.

Risk of destruction of the catalytic converter.
Have it checked by a PEUGEOT dealer or a

qualifi ed workshop.

Low fuel level

fi xed.

When it fi rst comes on there

remains approximately

5 litres of fuel in the tank.

You must refuel as soon as possible to avoid

running out of fuel.
This warning lamp will come on every time the

ignition is switched on, until a suffi cient addition

of fuel is made.
Fuel tank capacity: approximately 50 litres

(petrol) or 48 litres (Diesel).
Never continue to drive until you run out of fuel

as this could damage the emission control and

injection systems.

INSTRUMENTS and CONTROLS

Battery

charge

fi xed.

The battery charging circuit

has a fault (dirty or loose

terminals, slack or cut

alternator belt, ...).

The warning lamp should go off when the engine

is started.
If it does not go off, contact a PEUGEOT dealer

or a qualifi ed workshop.

Door(s) open

fi xed if the

speed is

below 6 mph

(10 km/h).

A door or the boot is still

open.

Close the door or boot.

fi xed and

accompanied

by an audible

signal if the

speed is

above 6 mph

(10 km/h).

Warning lamp

is on

Cause

Action/Observations

Airbags

temporarily.

This lamp comes on for a

few seconds when you turn

on the ignition, then goes

off.

This lamp should go off when the engine is

started.
If it does not go off, contact a PEUGEOT dealer

or a qualifi ed workshop.

fi xed.

One of the airbag or seat

belt pretensioner systems

has a fault.

Have it checked by a PEUGEOT dealer or a

qualifi ed workshop.

INSTRUMENTS and CONTROLS

Front seat

belt not

fastened/

unfastened

fi xed then

fl ashing

accompanied

by an

increasing

audible signal.

The driver and/or the front

passenger has not fastened

or has unfastened their seat

belt.

Pull the strap then insert the tongue in the

buckle.

Rear seat belt

not fastened/

unfastened

fi xed then

fl ashing

accompanied

by an audible

signal.

One or more rear

passengers have

unfastened their seat belt.

Power

steering

fi xed.

The power steering has a

fault.

Drive carefully at reduced speed.
Have it checked by a PEUGEOT dealer or a

qualifi ed workshop.

Water in

Diesel

fi xed.

The Diesel fuel fi lter

contains water.

Risk of damage to the injection system on Diesel

engines.
Contact a PEUGEOT dealer or a qualifi ed

workshop without delay.

Warning lamp

is on

Cause

Action/Observations

INSTRUMENTS and CONTROLS

Service indicator

System which informs the driver when

the next service is due, in accordance

with the manufacturer's servicing

schedule.
The point at which the service is due is cal-

culated from the last indicator zero reset. It

is determined by two parameters:
-

the distance travelled,

- the time elapsed since the last ser-

vice.

More than 1 000 km remain before

the next service is due
For 5 seconds after the ignition is

switched on, the spanner symbolising

the service operations comes on. The

distance recorder display line indicates

the distance remaining before the next

service is due.
Example: 4800 km remain before the

next service is due.
For 5 seconds after the ignition is

switched on, the display indicates:

5 seconds after the ignition is switched

on, the spanner goes off ; the distance

recorder resumes its normal operation.

The display then indicates the total and

trip distances.

Less than 1 000 km remain before

the next service is due
Example : 900 km remain before the

next service is due.
For 5 seconds after the ignition is

switched on, the display indicates:

5 seconds after the ignition is switched

on, the distance recorder resumes its

normal operation.

The spanner re-

mains on to indicate that a service

must be carried out soon.

INSTRUMENTS and CONTROLS

The distance remaining may be

weighted by the time factor, de-

pending on the driver's driving

habits.
Therefore, the spanner may also

come on if you have exceeded the

two year service interval.

Service overdue
For 5 seconds after the ignition is

switched on,

the spanner fl ashes to

indicate that the service must be carried

out as soon as possible.
Example: the service is overdue by

300 km.
For 5 seconds after the ignition is

switched on, the display indicates:

5 seconds after the ignition is switched

on, the distance recorder resumes its

normal operation.

The spanner re-

mains on .

Service indicator zero reset

After each service, the service indicator

must be reset to zero.
The procedure for resetting to zero is as

follows:
) switch off the ignition,
) press and hold the trip distance re-

corder zero reset button,

) switch on the ignition; the distance

recorder display begins a count-

down,

) when the display indicates "=0" , release

the button; the spanner disappears.

Following this operation, if you

wish to disconnect the battery,

lock the vehicle and wait at least

fi ve minutes for the zero reset to

be taken into account.

INSTRUMENTS and CONTROLS

The level shown will only be cor-

rect if the vehicle is on level ground

and the engine has been off for

more than 30 minutes.

Engine oil level indicator

System which informs the driver whether

the engine oil level is correct or not.

This information is indicated for a few

seconds when the ignition is switched

on, after the service information.

Oil level correct

Oil level indicator fault

Dipstick

This is indicated by the fl ashing of

"OIL" , linked with the service warning

lamp, accompanied by an audible sig-

nal and a message in the multifunction

screen.
If the low oil level is confi rmed by a

check using the dipstick, the level must

be topped up to prevent damage to the

engine.

This is indicated by the fl ashing of

"OIL --" . Contact a PEUGEOT dealer

or a qualifi ed workshop.

Refer to the "Checks" section to locate

the dipstick and the oil fi ller cap on your

engine.

There are 2 marks on the

dipstick:
-

A = max; never exceed

this level (risk of dam-

age to the engine),

B = min; top up the lev-

el via the oil fi ller cap,

using the grade of oil

suited to your engine.

Oil level low

Content .. 1 2 3 ..
