Peugeot 207 (2011 year). Instruction - part 1





   Handbook

!

  Please note the following point:

 The fi tting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure of

your vehicle's electronic system. Please note this specifi c warning. It is advisable to contact a PEUGEOT dealer to be

shown the recommended equipment and accessories.

   PEUGEOT's SERVICE BOX Internet site permits easy

and free consultation of your vehicle documentation

on line.

  Connect to http://public.servicebox.peugeot.com:

 Simple and user friendly, SERVICE BOX allows you

access:

   ●   to your Handbook,
  ●   to previous Vehicle documentation.

 select your language,

 click on the link in the "Private customer access"

zone to consult the Vehicle documentation,

 A window opens giving access to all of the handbooks...

 select your vehicle,

  choose its body type then the date of publication

of the handbook,

 fi nally, click on the item which is of interest to you.

!

i

1

 Thank you for choosing a 207, a symbol

of confi dence, passion and inspiration.

Page reference:

this symbol invites you to refer to

the pages which provide  details

of the function.

Key

  Protection of the environment:

 this symbol accompanies advice

relating to protection of the envi-

ronment.

  Information:

 this symbol  draws  your attention

to additional information for better

use of your vehicle.

  Warning:

 this symbol marks warnings which

it is essential to observe for  your

own safety, for the safety of others

or to avoid any risk of damaging

your vehicle.

 Your vehicle may be fi tted with only

some of the equipment mentioned in

this document, depending on the trim

level, version and the specifi cation  for

the country in which it is sold.

WELCOME

 This handbook has been designed to

enable you to make the most of your

207.

 On the fi rst few pages, you will fi nd  a

detailed summary, followed by a quick

reference guide intended to make it

easier for you to become familiar with

your vehicle.

 All of the details specifi c to your 207,

comfort, safety, driving, are then pre-

sented in this handbook, to increase

your appreciation of the vehicle and to

help you make the most of it.

2

CONTENTS

Instrument panels

19

Indicator and warning lamps

20

Indicators

28

Adjustment buttons

32

Screens without audio system  33
Screens with audio system

35

16/9 colour screen
(Peugeot Connect Navigation)  40
Trip computer

42

„
„
„
„
„
„
„

„

Ventilation

45

Heating

47

Manual air conditioning

47

Rear screen demist - defrost

49

Digital air conditioning

50

Front seats

52

Rear seats

54

Mirrors

57

Steering wheel adjustment

59

Interior fi ttings 59

„
„
„
„
„
„
„
„
„
„

COMFORT 45 Î 67

Remote control key

68

Window controls

72

Rear quarter windows

73

Doors

74

Boot

76

Panoramic sunroof

78

Fuel tank

79

Misfuel prevention

81

„
„
„
„
„
„
„
„

ACCESS 68

Î

81

Lighting control stalk

82

Headlamp adjustment

85

Wiper control stalk

86

Courtesy lamps

89

„
„
„
„

VISIBILITY 82

Î

 89

Child seats

90

Isofi x child seats

96

Child lock 100

„
„
„

CHILD

SAFETY 90 Î 100

FAMILIARISATION 4

Î

 16

INSTRUMENTS and

CONTROLS

19 Î 44

5

4

3

2

1

ECO-DRIVING

17 Î 18

3

CONTENTS

Direction indicators

101

Emergency or assistance call  101
Hazard warning lamps

102

Horn

102

Braking assistance systems

103

Trajectory control systems

104

Seat belts

105

Airbags

108

„
„
„
„
„
„
„
„

SAFETY 101 Î 111

Parking brake

112

Manual gearbox

112

Gear shift indicator 113
Automatic gearbox

114

Speed limiter

117

Cruise control 119
Parking sensors

121

„
„
„
„
„
„
„

DRIVING 112 Î 122

Bonnet

124

Running out of fuel (Diesel)

124

Petrol engines

126

Diesel engines

127

Checking levels

128

Checks

130

„
„
„
„
„
„

CHECKS

123 Î 131

Temporary puncture repair kit 13

t

2

Changing a wheel

137

Changing a bulb

142

Changing a fuse 148
Battery

153

Energy economy mode

155

Changing a wiper blade

155

Towing the vehicle

156

Towing a trailer

158

Fitting roof bars

159

Accessories

160

„
„
„
„
„
„
„
„
„
„
„

PRACTICAL

INFORMATION  132 Î 161

Petrol engines

162

Petrol weights

164

Diesel engines

170

Diesel weights

171

Dimensions

174

Identifi cation markings 175

„
„
„
„
„
„

TECHNICAL

DATA

162 Î 175

AUDIO EQUIPMENT and

TELEMATICS 176

Î

234

Emergency or assistance

177

Peugeot Connect Navigation 179
Peugeot Connect Sound 213

„
„
„

ALPHABETICAL

INDEX 240

Î

 243

7

8

6

9

10

VISUAL

SEARCH 235

Î

239

4

FAMILIARISATION

 EXTERIOR

  Panoramic sunroof
 This extensively glazed roof provides

incomparable visibility and light in the

passenger compartment.
     78

  Temporary tyre repair kit
 This kit is a complete system, consist-

ing of a compressor and an integral

sealant, for the temporary repair of a

tyre.
     132

  Rear parking sensors
 This system provides a warn-

ing when reversing by detecting

obstacles located behind the

vehicle.
     121

5

FAMILIARISATION

 OPEN

  Remote control key

  A.   Unfolding/Folding the key.
  B.   Unlocking the vehicle.
  C.   Locking the vehicle.
     68

  Fuel tank

   1.   Opening the fuel fi ller fl ap.
  2.   Opening and hooking the fuel fi ller

cap.

 Capacity of the tank: approximately

50 litres.
     79

  Bonnet

   A.   Interior release lever.
  B.   Exterior safety catch.
  C.  Bonnet stay.



     124

  On Diesel vehicles, the fuel fi ller

neck incorporates a misfuel preven-

tion device which prevents fi lling

with petrol.

     81

6

FAMILIARISATION

 ACCESS

  Boot

   1.   Unlocking the vehicle.
  2.   Opening the boot.
     77

  Panoramic sunroof (SW)

   1.   Opening the blind.
  2.   Closing the blind.
     78

7

FAMILIARISATION

 INTERIOR

  Dual-zone digital air conditioning
 This system allows different levels of

comfort to be set for the driver and the

front passenger. It then automatically

controls these levels according to the

ambient conditions.
     50

  Distance recorder
 The trip distance recorder is reset to

zero by pressing the right-hand button

in the instrument panel for more than

two seconds.
     32

  Audio and communication systems
 This equipment benefi ts from the latest

technology: MP3 compatible Peugeot

Connect Sound, Peugeot Connect USB,

Bluetooth hands-free system, Peugeot

Connect Navigation, auxiliary sockets.
  Peugeot Connect Navigation
     179
  Peugeot Connect Sound
     213
  Peugeot Connect USB
     220

8

FAMILIARISATION

 INSTRUMENTS AND CONTROLS

   1.   Cruise control/speed limiter

switches.

  2.   Steering wheel adjustment control.
  3.   Lighting and direction indicator

control stalk.

  4.  Instrument panel.
  5.  Driver's airbag.



 Horn.
  6.  Gear lever.
  7.  Parking brake.
  8.   Panoramic sunroof blind control

(SW).

  9.   Bonnet release lever.
  10.  Door mirror controls.


Electric window controls.



Rear electric windows deactivation

control.

  11.  Fusebox.
  12.  Headlamp height adjustment.
  13.  Side adjustable air vent.
  14.  Front door window demisting vent.
  15.  Speaker  (tweeter).
  16.  Windscreen demisting vent.

9

FAMILIARISATION

 INSTRUMENTS AND CONTROLS

   1.   Steering lock and ignition.
  2.   Audio equipment steering mounted

controls.

  3.  Wiper/wash-wipe/trip computer

control stalk.

  4.   Hazard warning lamps switch.
  5.  Multifunction screen.





Seat belt fastening status warning

lamps.

  6.  Sunshine sensor.
  7.  Passenger's airbag.
  8.   Glove box/Passenger's airbag

deactivation/Audio/video sockets.

  9.   Heated seat control.
  10.  Front  ashtray.
  11.  12 V accessory socket.
  12.  USB  port.
  13.  Dynamic stability control

(ESP/ASR) button.



Central locking button.



Electric child lock button.

  14.  Heating/air conditioning controls.
  15.  Storage  compartment.
  16.  Peugeot Connect Sound or

Peugeot Connect Navigation.

  17.  Central adjustable air vents.

i

10

FAMILIARISATION

 SITTING COMFORTABLY

  Also...
  5.   Access to the rear seats (3-door).
  6.   Armrest (except 3-door).
  7.  Heated seat.



  Front seat adjustment

  Steering wheel adjustment

  1.  Forwards-backwards adjustment.
  2.   Height adjustment.
  3.   Seat back angle adjustment.
  4.   Head restraint height adjustment.
     52

   1.   Releasing the adjustment mechanism.
  2.   Adjustment for height and reach.
  3.   Locking the adjustment mechanism.
 As a safety precaution, these operations

must only be carried out when stationary.

     59

i

11

FAMILIARISATION

 SITTING COMFORTABLY

  Door mirror adjustment

  A.   Selecting the mirror.
  B.   Adjusting the position of the mirror.
  C.   De-selecting the mirror.
     57

  Also...
  D.  Folding/Unfolding.



  Rear view mirror adjustment

   1.   Selecting the "day" position of the

mirror.

  2.   Adjusting the mirror.

     58

  Front seat belts

   1.  Fastening.
  2.  Height adjustment.



     105

12

FAMILIARISATION

 SEEING CLEARLY

  Lighting

  Ring A

  Switching on "AUTO" mode
   )   Push the control downwards and re-

lease it.

  Ring B

  Control A: windscreen wipers
  2.  Fast wipe.
  1.    Normal wipe.
  I.   Intermittent wipe.
  0.   Park.
  AUTO  È    Automatic wiping or single wipe.
 Wash-wipe: pull the control towards you.

     86

  Wipers

  Switching off "AUTO" mode
   )   Push the control upwards and return

it to position  "0" .

     88

     82

 Lighting off.

 Sidelamps.

 Dipped/main beam headlamps.

 Rear foglamps.

 or

 Front and rear foglamps.

 Automatic illumination of headlamps.

  Ring B: rear wiper

 Park.

     87

 Intermittent wipe.

 Wash-wipe.

13

FAMILIARISATION

  Digital air conditioning:  use of the fully automatic mode by pressing the  "AUTO"  button is recommended.

   I require...

   Heating or Manual air conditioning

   Air distribution

   Air fl ow

   Air recirculation /

  Exterior air intake

   Temperature

   Manual A/C

   HEAT

   COOL

   DEMISTING

  DEFROSTING

 VENTILATION

  Advice on interior settings

14

FAMILIARISATION

 MONITORING

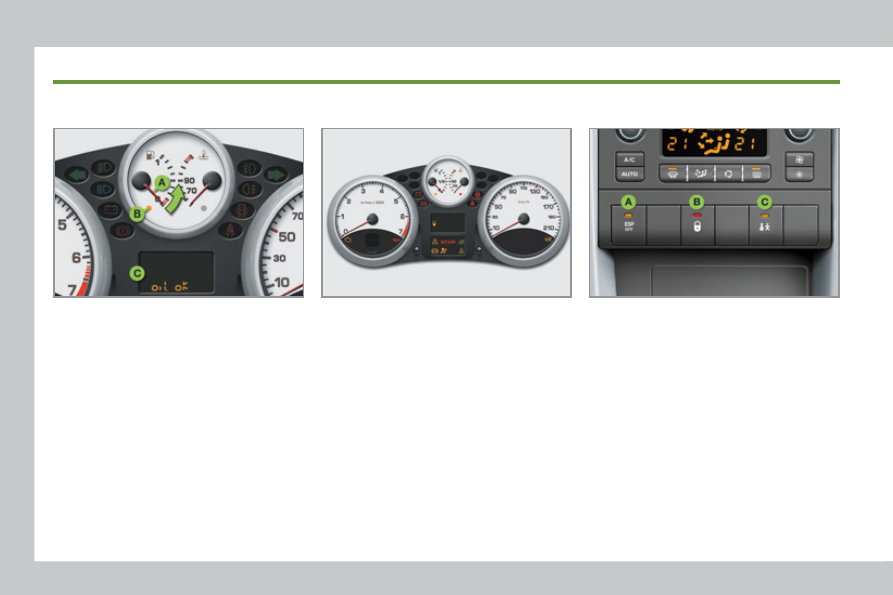

  Instrument panel

   A.   With the ignition on, the fuel gauge

needle should rise.

  B.   With the engine running, the associ-

ated low level warning lamp should

switch off.

  C.   With the ignition on, the oil level in-

dicator should display  "OIL OK"  for

a few seconds.

 If the levels are not correct, top up the

level which is low.
     19

   1.   With the ignition on, the orange and

red warning lamps come on.

  2.  With the engine running, these

warning lamps should go off.

 If a warning lamp remains on, refer to

the corresponding page.
     20

  Warning lamps

  *   Except 3-door.

 Lighting of the indicator lamp indicates

the status of the corresponding function.
   A.   Deactivation of the ESP/ASR system.


  104

  B.  Central locking.





  75

  C.   Activation of the electric child lock * .


  100

  Switch panel
