Peugeot 206 SW (2008 year). Instruction - part 8

PRACTICAL INFORMATION

102 -

The electrical circuit of
your vehicle is designed

to operate with standard

or optional equipment.
Before

installing

other

electrical equipment or acces-

sories in your vehicle, consult a

PEUGEOT dealer.

Some electrical accessories or

the way in which they are itted

may have an adverse effect on the
operation of your vehicle (its elec-

tronic control circuits, the audio

circuit and the electrical charging
circuit).

PEUGEOT declines any responsi-
bility for expenses incurred in the
repair of your vehicle or for any
malfunctions resulting from the in-

stallation of auxiliary accessories,

not supplied and not recommend-
ed by PEUGEOT and not installed

in accordance with PEUGEOT's

instructions, in particular for any

equipment the power consumption

of which exceeds 10 milliamps.

Fuse N°

Rating

Functions

20 A

Fan unit

60 A

ABS/ESP

30 A

ABS/ESP

70 A

Built-in systems interface supply

70 A

Built-in systems interface supply

Not used

30 A

Ignition switch supply

20 A

Audio ampliier

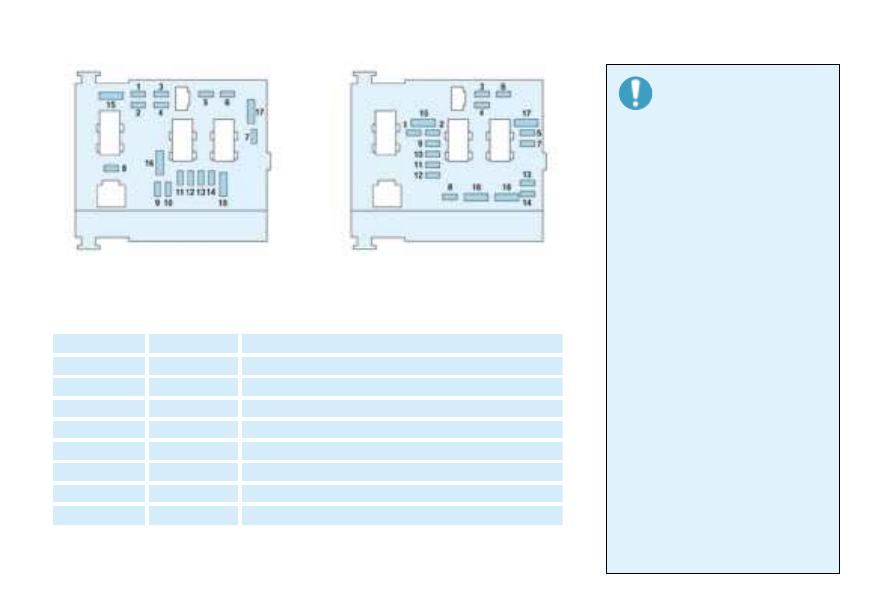

Engine compartment fuse box

To gain access to the box in the engine compartment (next to the battery), unclip

the cover.

After carrying out work, close the cover very carefully.

* The maxi fuses provide additional protection for the electrical systems. Any

work on these must be carried out by a PEUGEOT dealer.

103

PRACTICAL INFORMATION -

Fuse N°

Rating

Functions

10 A

Pre-heat unit (diesel) - Water in diesel sensor - Reversing lights switch - Speed sensor -

Air low sensor (diesel)

15 A

Canister solenoid valve - Fuel pump

10 A

ABS/ESP engine control unit - ESP brake switch

10 A

Automatic gearbox control unit - Engine control unit

Not used

15 A

Front fog lamps

Not used

20 A

Fan assembly relay - Engine control unit - Diesel injection pump -
Diesel high pressure regulator - Engine management solenoid valve

15 A

Left dipped beam

15 A

Right dipped beam

10 A

Left main beam

15 A

Right main beam

15 A

Horn

10 A

Front and rear windscreen wash pumps

30 A

Throttle housing heater - Diesel injection pump - Oxygen sensor - Engine control unit -

Air low sensor - Ignition coil - Engine management solenoid valve - Diesel heater -

Injectors

30 A

Air pump relay

30 A

High and low speed windscreen wiper

40 A

Air conditioning fan

PRACTICAL INFORMATION

104 -

BATTERY

To charge the battery using a
battery charger:

- Disconnect the battery,
- Follow the instructions for use

given by the battery charger

manufacturer,

- Reconnect starting with the

negative (-) terminal,

Check that the terminals and
connectors are clean. If they are

covered with sulphate (white or

greenish deposit), disconnect

them and clean them.

Wait for 2 minutes

after switching off

the ignition before
disconnecting the
battery.

Never disconnect a terminal

when the engine is running.

Never charge a battery

without irst disconnecting the

terminals.

- Close the windows and the

roof before disconnecting the
battery.

After every reconnection of

the battery, switch on the

ignition and wait 1 minute

before starting to allow the

electronic systems to be

initialised. If slight dificulties

are experienced after this,

please consult a PEUGEOT
dealer.

It is advisable to disconnect the
battery if the vehicle is not to be
used for a period of more than
one month.

ECONOMY MODE FUNCTION

After the engine has stopped, certain

functions (windscreen wiper, elec-

tric windows, courtesy lights, audio

equipment, etc.) can only be used for

a combined duration of approximately

thirty minutes, to prevent discharging

the battery.

Once the thirty minutes are over, a

switching to economy mode mes-

sage  appears  on  the  multi-function
display  and  the  active  functions  are
put on standby.
These  functions  are  reactivated  au-
tomatically  next  time  the  vehicle  is
driven.
In  order  to  resume  the  use  of  these

functions immediately, the engine

must be started and left to run for a

few minutes.

The time available to you will then be

double the duration for which the en-

gine is left running. However, this pe-

riod will always be between ive and

thirty minutes.

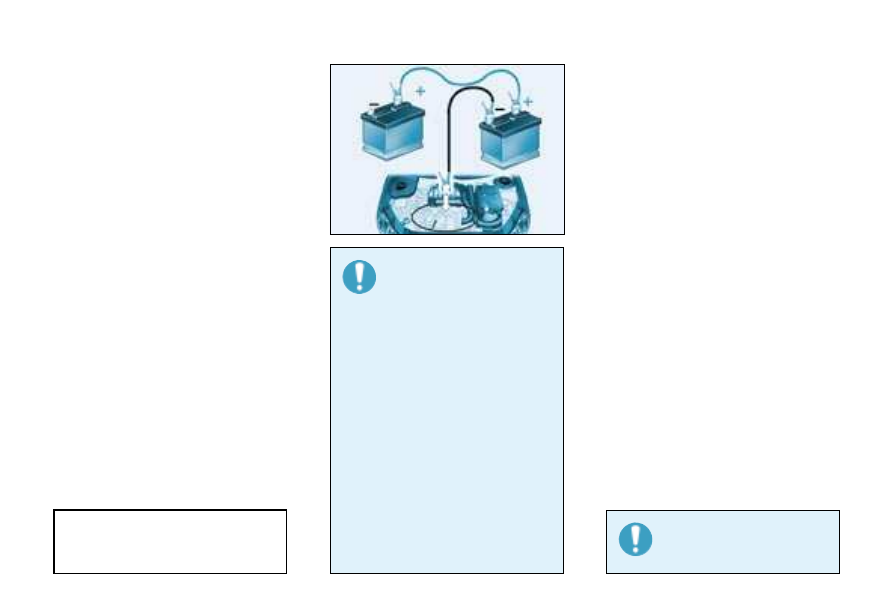

To start the vehicle from another
battery:
-

Connect the red cable to the
positive (+) terminals of the

two batteries,

Connect one end of the green
or black cable to the negative (-)

terminal of the slave battery,

Connect the other end of the
green or black cable to an

earth point on the broken down

vehicle, as far as possible from

the battery (for example, right-

hand engine mounting),

- Operate the starter, let the

engine run,

Wait for the engine to return to

idle, then disconnect the cables.

A lat battery prevents the

engine from starting.

105

PRACTICAL INFORMATION -

FITTING SPEAKERS

The factory-itted equipment allows

the itting of:

165 mm diameter speakers in

the front doors,

130 mm diameter speakers in

the rear doors,

- 22.5 mm diameter tweeters in

the mirror trims.

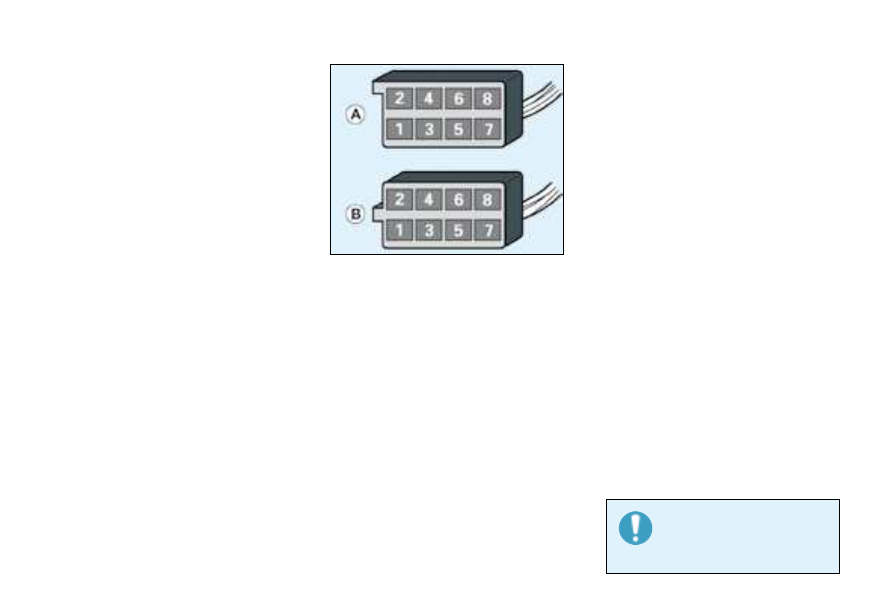

Making the connections

A1: -
A2: -
A3: -
A4: -
A5: -
A6: (+ve) Ignition positive
A7: (+ve) Permanent
A8: Earth
B1: (+)

Rear right speaker

B2: (-)

Rear right speaker

B3: (+)

Front right speaker and

tweeter

B4: (-)

Front right speaker and

tweeter

B5: (+)

Front left speaker and

tweeter

B6: (-)

Front left speaker and

tweeter

B7: (+)

Rear left speaker

B8: (-)

Rear left speaker

Consult a PEUGEOT deal-
er before installing audio
equipment or speakers in
your vehicle.

FITTING AUDIO EQUIPMENT

Your vehicle is equipped with certain

factory-itted audio equipment:

-  roof aerial,
-  coaxial aerial cable,
-  basic interference suppression,
-  supply to front speakers,
-  supply to rear speakers,
-  two 8-way connectors.

PRACTICAL INFORMATION

106 -

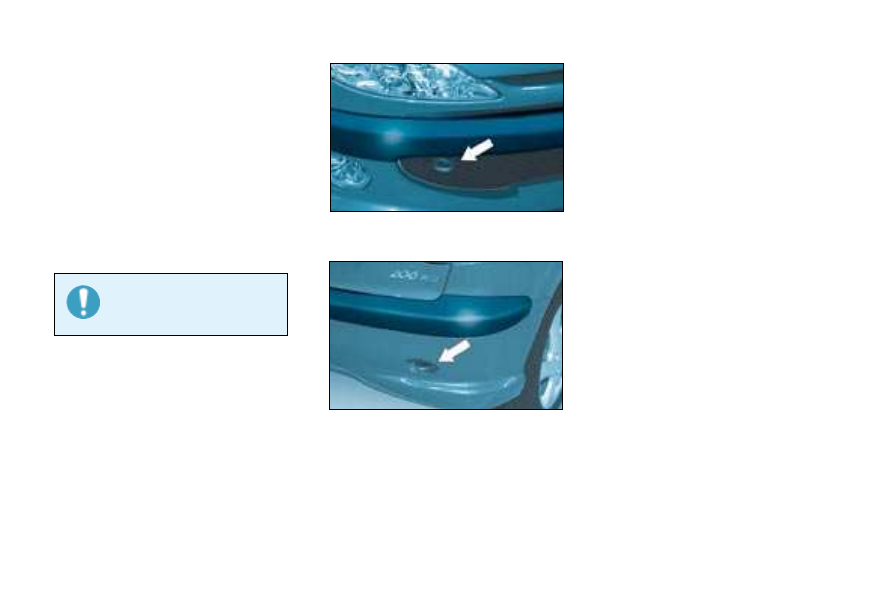

Front towing eye

TOWING YOUR VEHICLE

Never use the radiator
crossmember.

Special features of the automatic
gearbox
When towing with all four wheels on

the ground, the following rules must

be adhered to:
-

gear lever in position N

- tow the vehicle at a speed less

than 30 mph (50 km/h) over
a distance of not more than

30 miles (50 km),

do not add oil to the gearbox.

Rear towing eye

From the front or the rear
Attach the tow bar to the towing eye.

By lifting (two wheels only on the
ground)
It is preferable to lift the vehicle by

the wheels.

Without lifting (four wheels on the
ground)
You must always use a tow bar.

VEHICLES FITTED WITH A
MANUAL GEARBOX
(diesel version)
In the case of vehicles itted with a

manual gearbox, the gear lever must

be in the "neutral" position. Failure to
observe  this  special  condition  may
result  in  damage  to  certain  brak-
ing  components  and  the  absence  of
braking assistance the next time the
engine is started.

107

PRACTICAL INFORMATION -

TOWING A TRAILER,
CARAVAN, BOAT, ETC.

We recommend the use of original

PEUGEOT towbars and their har-

nesses that have been tested and
approved from the design stage of

your vehicle and that the itting of the

towbar is entrusted to a PEUGEOT

dealer.

If the towbar is not itted by a

PEUGEOT dealer, it is imperative

that it is itted using the electrical

pre-equipment installed at the rear

of the vehicle, in accordance with the

manufacturer's instructions.
Your vehicle is primarily designed
for transporting people and luggage

but it may also be used for towing a

trailer.

Driving with a trailer subjects the

towing vehicle to more signiicant

stress and its driver must be particu-
larly careful.

Air density decreases with altitude,

thus reducing engine performance.

Above 1 000 metres, the maximum

towing load must be reduced by 10 %

and so on for every 1 000 metres of
altitude.

Driving advice

Distribution of loads: Distribute the
load in the trailer so that the heaviest
items are as close as possible to the

axle and the nose weight approach-

es the maximum permitted without

exceeding it.

Cooling:

Towing a trailer on a slope

increases the temperature of the
coolant.

As the fan is electrically controlled,

its cooling capacity is not dependent
on the engine speed.

On the contrary, use a high gear to

lower the engine speed and reduce

your speed.

The maximum towing load on a long

slope depends on the gradient and
the outside temperature.

In all cases, pay attention to the cool-

ant temperature.
In certain cases of particularly arduous

use (towing the maximum load on a

steep gradient in high temperatures),

switching off the air conditioning per-

mits the recovery of engine power and

therefore an increase in the towing ca-

pacity.

If the warning light comes on, stop

the vehicle and switch off the engine

as soon as possible.

Tyres: Check the tyre pressures of

the towing vehicle and of the trailer,

observing the recommended pres-
sures.

Braking:

Towing increases the

braking distance.

Lights: Check the electrical signal-
ling on the trailer.

Side wind: Take into account the

increased sensitivity to side wind.

PRACTICAL INFORMATION

108 -

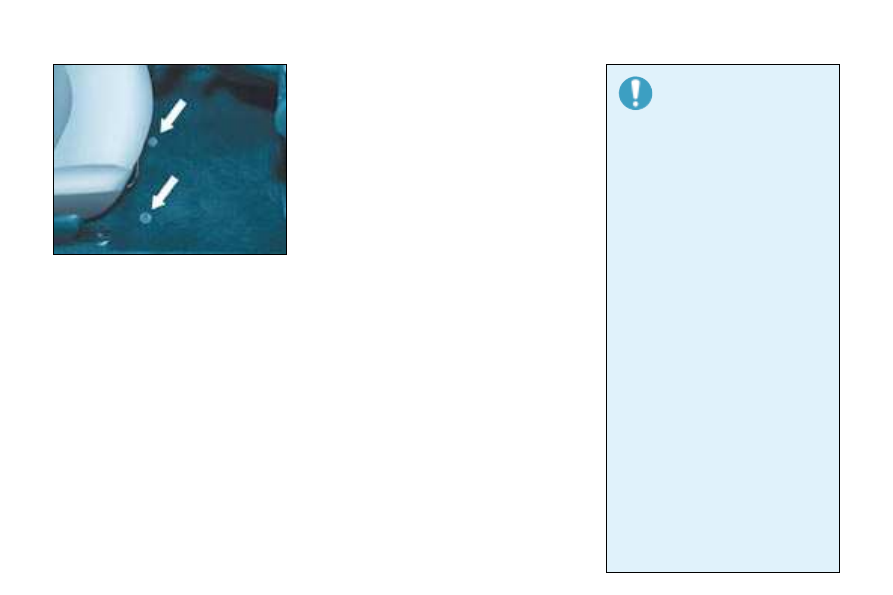

Fitting/removing the mat

When removing the mat on the driver’s

side, push the seat as far back as pos-

sible and remove the ixings.

When reitting, position the mat correct-

ly on the pin and clip the ixings. Check

that the mat is secured correctly.

To prevent the mat from becoming
caught under the pedals:
-

only use mats suited to the

ixings already present in the

vehicle. It is imperative that

these ixings are used.

- never it one mat on top of

another.

- Clean off bird drop-

pings, resinous depos-

its, tar stains and grease

marks as soon as pos-

sible; (these all contain

substances which can

cause serious damage

to the paintwork).

Do  not  use  a  dry  or  abrasive
cloth  or  detergent  or  solvent
products  to  clean  the  double

lens, complex surface head-

lamps as they are itted with

polycarbonate glass covered

in a protective inish.

- Do not use petrol, oil or cloth

stain removers to clean the

bodywork and plastic parts of

your vehicle.

To prevent the development of

bodywork corrosion as a result

of accidental damage (stone

chips, scratches, etc.) have

them repaired swiftly.

BODYWORK MAINTENANCE

To preserve the paintwork and the

plastic trim on your vehicle, we recom-

mend that you wash them regularly.

- by hand: there are no speciic

precautions to take;

- using an automatic car wash: re-

peated use of poorly maintained

automatic car washes can lead

to the appearance of microscopic

scratches which give the paint-

work a matt appearance (espe-

cially visible on dark colours);

- using a high pressure washer:

always follow the recommenda-

tions on the equipment (pres-
sure and spraying distance).
If there are damaged areas on the
vehicle (painted bumpers or head-

lamps), it is not recommended to

direct the high pressure jet onto
them. Wash these areas by hand.

Also avoid the entry of water into

the locks.

For all questions relating to the main-

tenance of your vehicle, contact an

approved dealer who can advise you

on quality products selected by our
departments.

109

PRACTICAL INFORMATION -

206 ACCESSORIES

For your PEUGEOT only use acces-
sories and original parts approved by
the manufacturer.
These accessories and parts are all

adapted to your PEUGEOT, after be-

ing tested and approved for reliability

and safety, which PEUGEOT cannot

guarantee for other products.

A wide choice of original accessories,

approved by PEUGEOT, is available

through the dealer network. They all

carry the PEUGEOT guarantee:

Travel and Leisure:

Towbar, boot

luggage rack

, boot tray, roof bars,

roof boxes, ski carrier, bicycle carrier

(do not it the bicycle carrier on the

spoiler or on the rear screen), snow

chains, ...
Exterior style:

Alloy wheels, trims,

mud laps, sunroof (it is imperative

that only genuine PEUGEOT prod-

ucts are used for the itting of a sun-

roof), front fog lamps, tailgate spoil-

er, sports exhaust, aluminium and

wood panel trim, door sills, body kit,

wing extenders, two-tone steering

wheel, ...

Interior equipment:

Central armrest,

writing table, passenger seat protec-

tor, seat covers suitable for side air

bags, mats, boot tray, can holder, CD

storage, audio/telephone console,

door delectors, under-shelf storage,

sun blinds, ...
Technology:

Audio/telephone, hands-

free kit, satellite navigation system, CD

changers, audio systems, speakers,

audio trim, rear shelf itted with

4 speakers, ...
Safety:

Anti-theft alarm, window en-

graving, wheel locks, warning trian-

gle, irst aid kit, safety jacket, booster

seats and child seats, Isoix Kiddy

seat, ...
Van:

Kit for conversion into a van, ...

Depending on the coun-

try in which the vehicle

is sold, it is compulsory

to have a safety jacket,

warning triangle and spare bulbs

available in the vehicle.
Installation of radiocommunica-
tion transmitters
You are advised to contact a rep-
resentative  of  the  PEUGEOT
marque  before  installing  acces-
sory  radiocommunication  trans-

mitters with external aerial on your

vehicle.

The PEUGEOT network will inform

you of the characteristics (frequen-

cy band, maximum output power,

aerial position, speciic installa-

tion conditions) of the transmitters

which can be itted, in accordance

with the Motor Vehicle Electro-

magnetic Compatibility Directive
(2004/104/CE).

The itting of electrical equipment

or accessories which are not rec-

ommended by PEUGEOT may
result in a failure of your vehicle's
electronic system.

Please note this speciic warning.

You are advised to contact a rep-
resentative of the Marque to be

shown the range of recommended

equipment and accessories.

TECHNICAL DATA

110 -

Models
Model codes

2CHFX
2AHFX

2CKFW
2AKFW

2CKFWA
2AKFWA

2ANFUA
2BNFUA
2CNFUA
2HNFUA

2JNFUA

2KNFU

2ANFUB
2BNFUB
2CNFUB
2HNFUB

2JNFUB

Engine

1.1 litre

1.4 litre

1.6 litre 16V

Cubic capacity (cm

)

1 124

1 360

1 587

Bore x stroke (mm)

72 x 69

75 x 77

78.5 x 82

EU standard maximum power (kW)

44.1

Maximum power at engine speed (rpm)

5 500

5 800

EU standard maximum torque (Nm)

120

147

Maximum torque at engine speed (rpm)

2 700

2 800

400

Fuel

Unleaded

Catalytic converter

Yes

Gearbox

Manual

(5 speed)

Manual

(5 speed)

Automatic

(4 speed)

Manual

(5 speed)

Automatic

(4 speed)

Oil capacity (in litres)

Engine (with cartridge replacement)

3.2 (2) - 3.4 (3)

3(2) - 3.25 (3)

3.2 (2) - 3.4 (3)

Gearbox - Final drive

ENGINES AND GEARBOXES, PETROL

(2) Draining by gravity.
(3) Draining by suction.

111

TECHNICAL DATA -

ENGINES AND GEARBOXES, DIESEL

Models
Model codes

2C8HX
2A8HX
2S8HX

2S8HZA
2A8HZA

2C8HZA

Engine

1.4 litre Turbo HDI

Cubic capacity (cm³)

1 398

Bore x stroke (mm)

73.7 x 82

EU standard maximum power (kW)

Maximum power at engine speed (rpm)

4 000

EU standard maximum torque (Nm)

160

Maximum torque at engine speed (rpm)

1 750

Fuel

Diesel

Catalytic converter

Yes

Particle Emission Filter (PEF)

Gearbox

Manual

(5 speed)

Oil capacity (in litres)
Engine (with cartridge replacement)

3.8

Gearbox - Final drive

TECHNICAL DATA

112 -

CONSUMPTION

In accordance with EC Directive 80/1268 (as amended) mpg (litres/100 km)

Engine

Gearbox

Model

codes 2...

Urban

driving

Inter-urban

Mixed

Emission of

by weight
(g/km)

1.1 litre

Manual

HFXF

8.2

6.2

148

1.4 litre

Manual

KFWF

8.4

6.3

149

KFWA

8.5

5.2

6.3

151

1.4 litre

Automatic

KFWR

9.6

5.3

6.9

165

1.6 litre 16V

Manual

NFUF

8.6

5.1

6.4

153

HNFUF/NFUA

8.7

5.5

6.7

159

1.6 litre 16V

Automatic

NFUR

9.9

5.5

7.1

179

HNFUR

10.2

5.8

7.5

176

NFUB

10.2

5.7

7.4

176

1.4 litre Turbo HDI

Manual

8HXF

5.5

3.6

4.3

113

8HZA

5.4

3.7

4.3

112

Fuel consumption values correct at time of printing. These consumption values were established in accordance with EC

Directive 80/1268 (as amended). They may vary depending on the style of driving, trafic conditions, weather conditions, the

load in the vehicle, the maintenance of the vehicle and the use of the accessories.

113

TECHNICAL DATA -

WEIGHTS AND TOWING LOADS (IN KG)

Petrol engine

1.1 litre

1.4 litre

1.6 litre 16V

Gearbox

Manual

Auto

Manual

Auto

Model codes:

HFX

KFWF/A

KFWR

NFUA

NFUF

NFUB

NFUR

Kerb weight

985

1 025

1 055

1 100

1 055

Gross vehicle weight (GVW)

1405

1 450

1 480

1 567

1 614

Gross train weight (GTW)

1 920

2 365

2 395

2 467

2 504

Unbraked trailer

485

510

525

550

Braked trailer* (within GTW)

700

1 100

Recommended nose weight

Diesel engine

1.4 litre HDI

Gearbox

Manual

Model codes:

8HX

8HZA

2S8HZA
2S8HXF

Kerb weight

1 061

1 049

Gross vehicle weight (GVW)

1 525

Gross train weight (GTW)

2 425

Unbraked trailer

530

524

Braked trailer* (within GTW)

1 100

Recommended nose weight

VANS

TECHNICAL DATA

114 -

The GTW and towing load values indicated are valid for a maximum altitude of 1 000 metres; the towing load

mentioned must be reduced by 10 % for every additional 1 000 metres.

In the case of a towing vehicle, the speed must not exceed 60 mph (100 km/h) (comply with the legislation in force in your

country).

High exterior temperatures may result in a reduction in the performance of the vehicle to protect the engine; when the

exterior temperature is higher than 37 °C, limit the towed load.

* The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing

vehicle is reduced by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse

effect on its road holding ability.

115

TECHNICAL DATA -

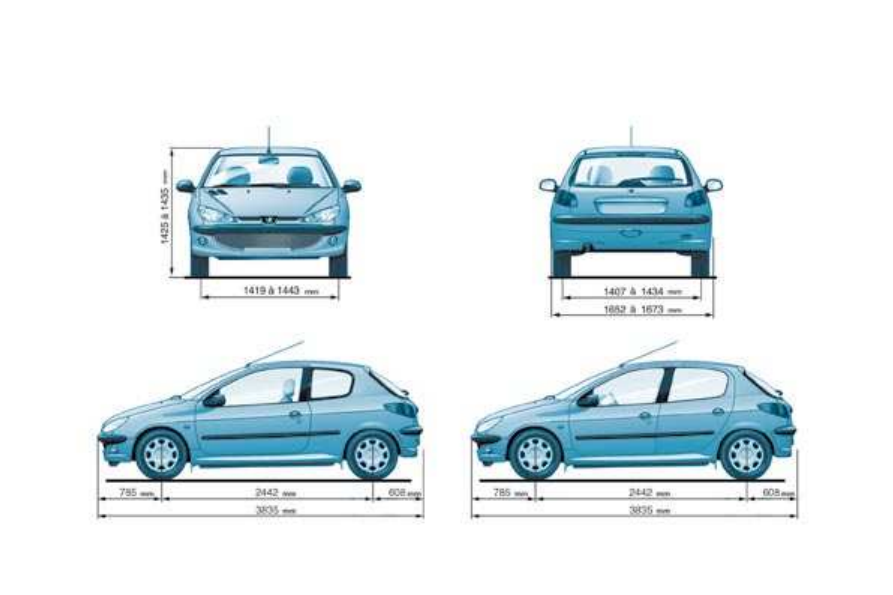

DIMENSIONS

3-door

5-door

TECHNICAL DATA

116 -

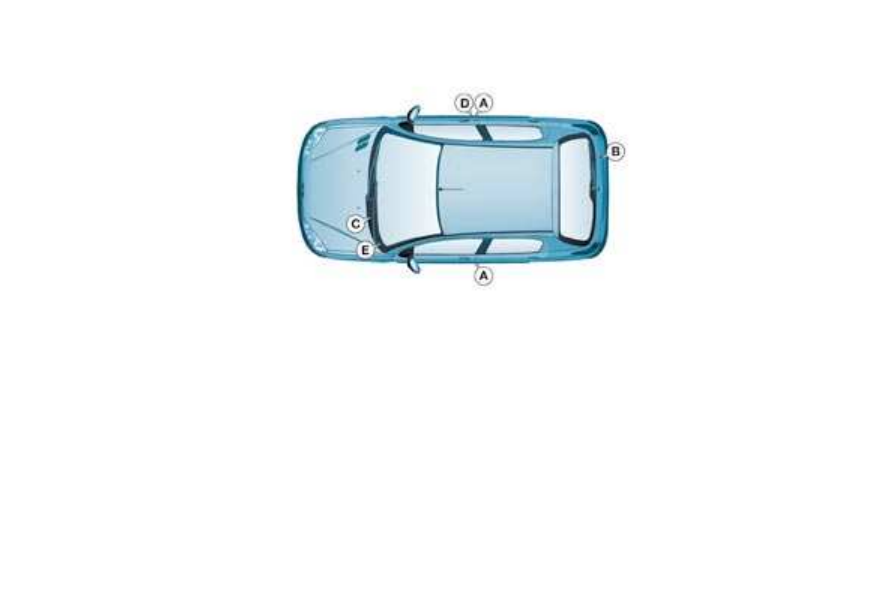

A. Manufacturer’s plate on

the centre pillar (location
according to version).

B. Serial number on the

bodywork.

C. Serial number on the fascia.

D. Tyres and paint reference.
The label D on the door centre pillar
gives:
- the wheel and tyre sizes,
-

the brands of tyres approved by

the manufacturer,

the tyre pressures: (tyre
pressure checks must be
carried out cold, at least every
month).

the paint colour reference.

E. Fuel consumption in the

corner of the windscreen.

THE IDENTIFICATION FEATURES OF YOUR 206

Content .. 6 7 8
