SAFETY -

The driver must ensure
that the passengers use
the seat belts correctly and
that they are all properly re-
strained before setting off.
Wherever you are seated in

the vehicle, always fasten your seat

belt, even for short journeys.
Do not invert the seat belt buckles

as they will not fulil their role fully.

If the seats have armrests*, the lap

part of the seat belt must always

pass under the armrest.
The seat belts are itted with an in-

ertia reel permitting automatic ad-
justment of the length of the strap
to your size. The seat belt is stored

automatically when not in use.

Before and after use, ensure that

the seat belt is rolled up correctly.
The lower part of the strap must be

positioned as low as possible on

the pelvis.
The upper part must be positioned

in the hollow of the shoulder.

The inertia reels are itted with an

automatic locking device which

comes into operation in the event of

a collision, on emergency braking

or if the vehicle rolls over. You can
release the device by pulling rapidly
on the strap and releasing it.

In order to be effective, a seat belt:
-

must be tightened as close to the

body as possible,

- must restrain one adult only,
-

must not bear any trace of cuts

or fraying,

must be pulled in front of you

with a smooth movement,

checking that it does not twist,

must not be transformed or

modiied to avoid altering its

performance.

In accordance with current safety

regulations, all repairs and checks

must be carried out by a PEUGEOT

dealer who guarantees that the work

is carried out correctly.
Have your seat belts checked regularly
by a PEUGEOT dealer and particularly

if the straps show signs of damage.

Clean the seat belt straps with soapy

water or a textile cleaning product,

sold by PEUGEOT dealers.
After folding or moving a seat or rear

bench seat, ensure that the seat belt

is positioned and rolled up correctly.

Recommendations for children:
-

use a suitable child seat if the
passenger is less than 12 years
old or shorter than one metre

ifty,

do not use the strap-guide*

when a child seat is installed.

never use the same seat belt to

secure more than one person,

- never allow a child to travel on

your lap.

Depending on the nature and se-
riousness of the impacts

, the pre-

tensioning device may be triggered
before  and  independently  of  the
air  bags.  Triggering  of  the  pre-ten-
sioners  is  accompanied  by  a  slight
emission of harmless smoke and a

noise, due to the activation of the

pyrotechnic cartridge incorporated
in the system.
In all cases, the air bag warning

light comes on.
Following an impact, have the seat

belts system checked, and if nec-

essary replaced, by a PEUGEOT

dealer.

* According to model.

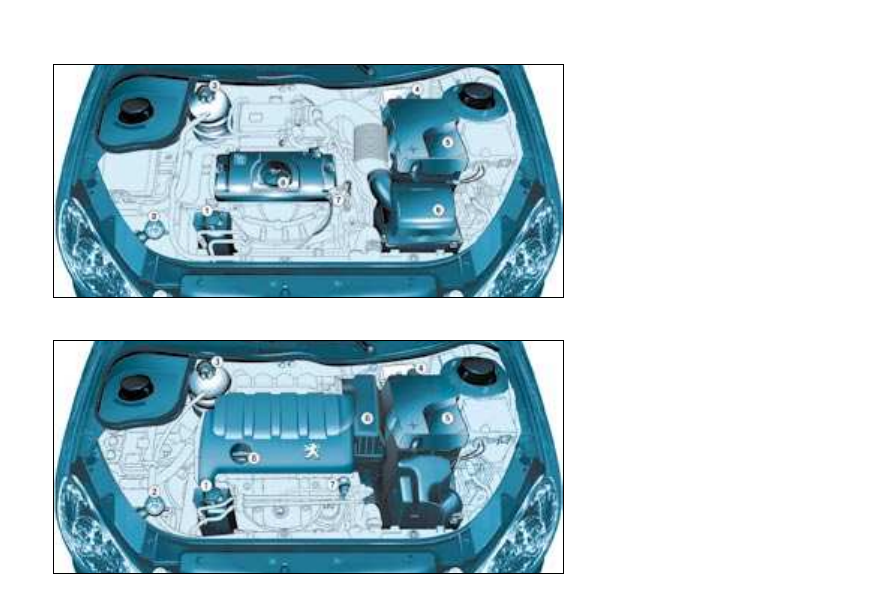

CHECKS -

1.1 LITRE (60 BHP)
AND 1.4 LITRE (75 BHP)
PETROL ENGINES

Power steering reservoir.

Windscreen and headlamp wash

reservoir.

3. Coolant reservoir.
4.

Brake luid reservoir.

5. Battery.
6.

Air ilter.

7. Dipstick.
8. Engine oil reservoir.

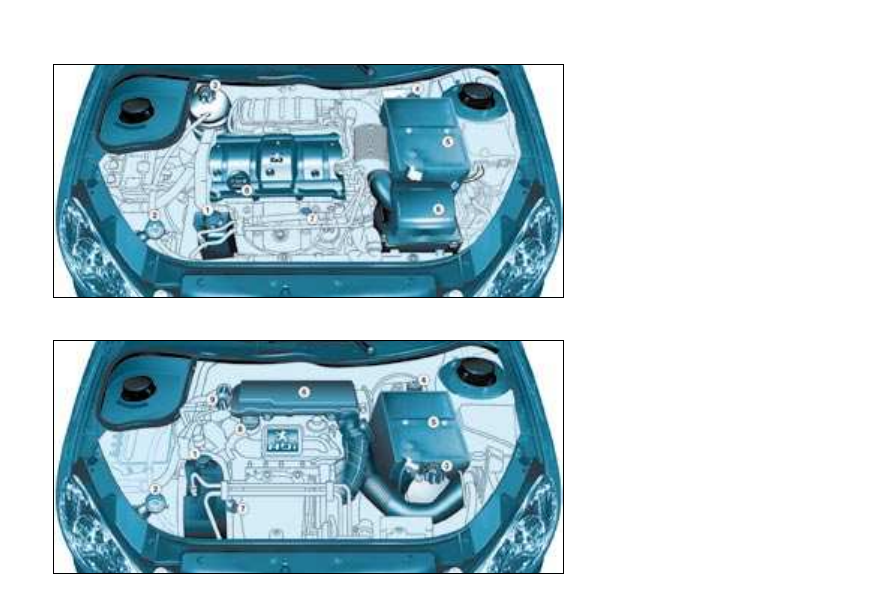

CHECKS

90 -

1.6 LITRE 16V (110 BHP)
PETROL ENGINES

Power steering reservoir.

Windscreen and headlamp wash

reservoir.

3. Coolant reservoir.
4.

Brake luid reservoir.

5. Battery.
6.

Air ilter.

7. Dipstick.
8. Engine oil reservoir.

1.4 LITRE HDI (70 BHP)
TURBO DIESEL ENGINES

Power steering reservoir.

Windscreen and headlamp wash

reservoir.

3. Coolant reservoir.
4.

Brake luid reservoir.

5. Battery.
6.

Air ilter.

7.  Dipstick.
8.  Engine oil reservoir.
9.  Priming pump.

CHECKS -

CHECKING THE LEVELS

There are two marks on

the dipstick:
A = maximum

Never ill past this mark.

B = minimum
To maintain the reliability
of engines and emission

control systems, the use

of additives in engine oil
is prohibited.

Oil change
According to the information given in
the servicing booklet.
Note: avoid used oil coming into pro-

longed contact with the skin. Empty

the used oil into the containers intend-
ed for this purpose in the PEUGEOT

network.

Brake fluid level:

The brake luid must be changed ac-

cording to the manufacturer's servic-
ing schedule.

Use luids recommended by the

manufacturer, which fulil DOT4

standards.
Note:

brake luid is harmful to health

and very corrosive. Avoid all contact

with the skin.

Used oil

Do not dispose of used oil, brake luid

or coolant into drains or onto the
ground.

Dipstick

Viscosity selection
In all cases, the oil selected must

meet the manufacturer's require-
ments.

Cooling system

Use the luid recommended by the

manufacturer.

When the engine is warm, the tem-

perature of the coolant is controlled
by the engine fan. As this fan can ope-

rate with the ignition key removed

and because the cooling system is

pressurised, wait for at least one hour

after the engine has stopped before

carrying out any work.

Slacken the cap by two turns to re-

lease the pressure to prevent any
risk of scalding. When the pressure

has dropped, remove the cap and

top up the level.
Note: the coolant does not need to
be changed.
For vehicles equipped with a

particle ilter, the engine fan may

operate after the ignition has been
switched off, even when the en-
gine is cold.

Power steering reservoir

Open the reservoir, with the

engine at ambient temperature.

The level should always be

above the MIN. mark and close
to the MAX. mark.

Windscreen and headlamp
wash level

For best quality cleaning and for your

safety, we would advise that you use

products recommended by PEUGEOT.
For optimum cleaning and to prevent

freezing, this luid must not be topped

up or replaced with water.

Oil level

F Check the level regularly and

top up between changes. The

maximum consumption is 0.5 l
per 600 miles (1 000 km).

Check the level with the vehicle level,

engine cold, using the oil level gauge

on the instrument panel or the dip-
stick.

CHECKS

92 -

CHECKS

Handbrake

Where the handbrake travel is too
great or there is a reduction in the

performance of the system, the

handbrake should be adjusted, even

between services.

Have the system checked by a
PEUGEOT dealer.

Only use products recom-
mended by PEUGEOT
or products of equivalent

quality and speciications.

To ensure best perfor-

mance from components as im-

portant as the power steering and

the braking system, PEUGEOT

selects and offers quite speciic

products.
To prevent damage to the electri-

cal units, avoid washing the en-

gine.

RUNNING OUT OF FUEL
(DIESEL)

If you should run out of fuel, it is neces-

sary to re-prime the circuit:

- ill the fuel tank with at least ive

litres of diesel,

squeeze and release the manual

re-priming pump, until fuel

appears in the transparent pipe

under the bonnet,

operate the starter until the
engine starts.

Brake pads

Brake pad wear depends on the style

of driving, in particular for vehicles

which are used in town, over short

distances.
It may be necessary to check the

thickness of the pads, even between

services.

Disc wear status

For any information relating to check-

ing the disc wear status, contact a

PEUGEOT dealer.

Oil filter

Change the ilter regularly, in accor-

dance with the servicing schedule.

Air filter and passenger
compartment filter

Have the ilter elements replaced reg-

ularly. If you drive in dusty condi-
tions, change them twice as often.

Manual gearbox

This does not require an oil change.

Check the level in accordance with the

manufacturer's servicing schedule.
To check the main levels and cer-
tain  components,  in  accordance
with  the  manufacturer's  servicing
schedule,  refer  to  the  pages  of
the servicing booklet which corre-
spond to your vehicle's engine.

Battery

At the start of winter, have your bat-

tery checked by a PEUGEOT dealer.

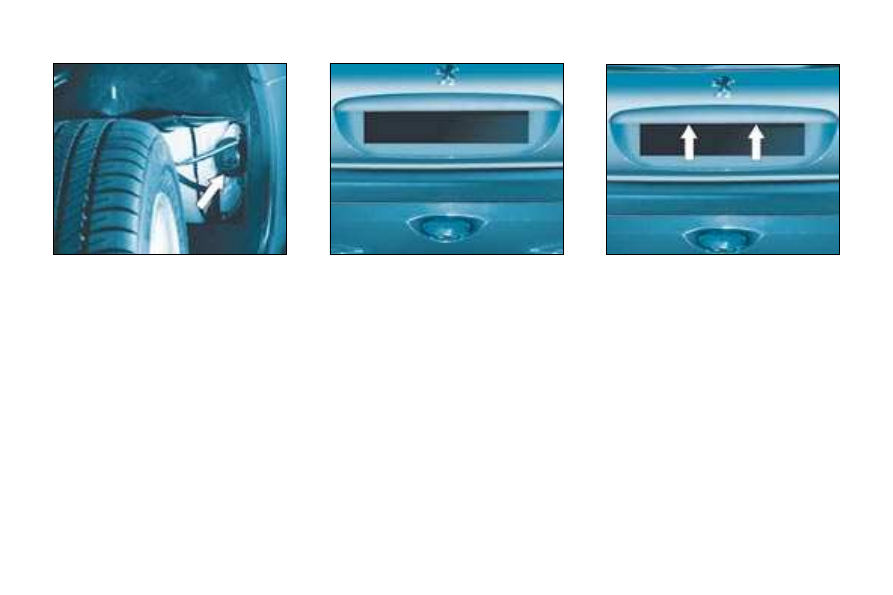

PRACTICAL INFORMATION -

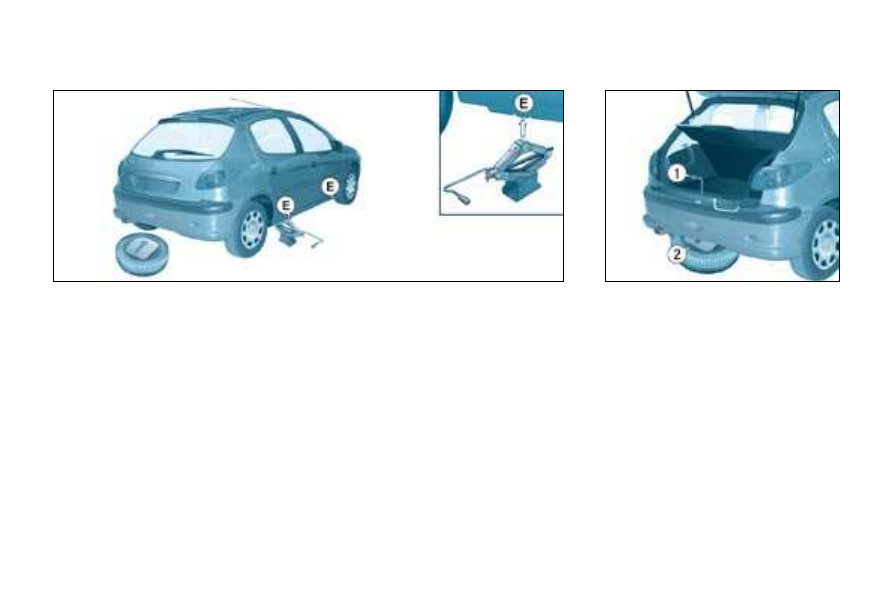

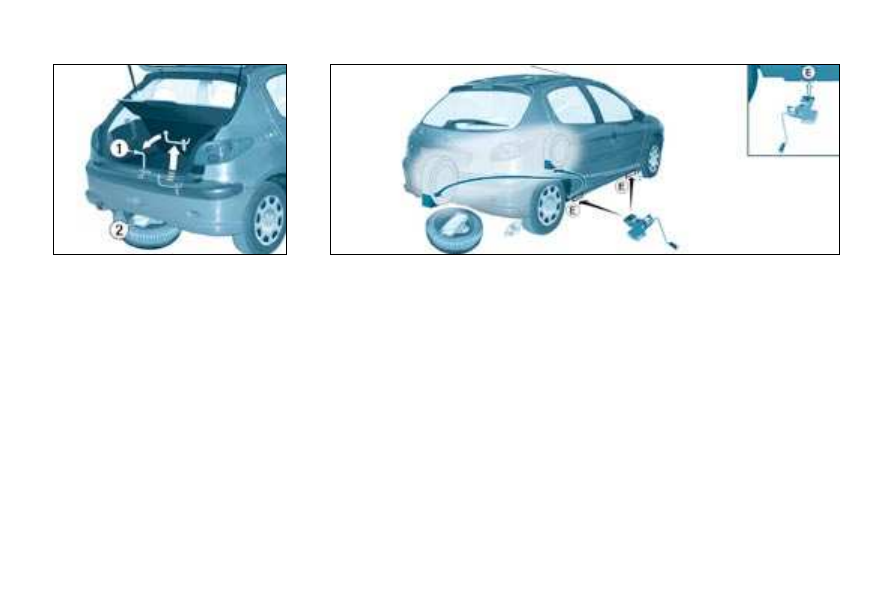

Access to the spare wheel and
the jack
The wheel is located outside the

vehicle, under the boot, supported by

a metal carrier.

- Remove the wheelbrace 1,

secured on the rear right inner
panel of the boot.

- Using the wheelbrace 1, slacken

the spare wheel carrier retaining

bolt, located inside the boot

under the carpet.

Lift the carrier to release the

hook rearwards, then lower it.

Remove the jack storage box 2

located in the spare wheel.

CHANGING A WHEEL

Removing a wheel
- Chock the rear of the wheel

diagonally opposite the wheel

to be changed, using the jack

storage box.

- Remove the wheel trim using

the wheelbrace, by pulling at the

valve passage hole.

- Slacken the wheel bolts.
-

Place the jack under the locating
point on the sub-frame E that

is closest to the wheel to be

changed. Ensure that the entire
surface of the jack base plate is

in contact with the ground.

- Extend the jack, completely

unscrew the bolts and remove

the wheel.

Parking the vehicle
- If possible, park the vehicle on

level, stable and non-slippery

ground.

- Apply the handbrake, engage

irst or reverse gear (position P

for the automatic gearbox).

PRACTICAL INFORMATION

94 -

For your safety, always change a wheel:
-  on level, stable and non slippery ground,
-  with the handbrake applied,
-  with irst or reverse gear engaged,
-  with the vehicle chocked using the jack storage box,
-  never go underneath a vehicle raised using a jack (use an axle stand).

After changing the wheel
-

Have the tightening of the bolts and the pressure of the spare tyre checked as soon as possible by a PEUGEOT dealer.

Have the punctured tyre repaired and replace it on the vehicle as soon as possible.

- The space-saver spare wheel must only be used temporarily:
- inlation pressure: 4.2 bars (60 p.s.i.),
-

maximum speed: 50 mph (80 km/h).

SPECIAL FEATURES OF
ALLOY WHEELS

Fitting the spare wheel

If your vehicle is equipped with a

steel spare wheel, when itting it, it is

normal

to notice that the bolt wash-

ers do not come into contact with the

rim. The spare wheel is secured by

the cone shape of each bolt.

Wheel anti-theft bolts

If your wheels are itted with anti-theft

bolts (one per wheel), the chrome-

plated trim cap and then the plastic

cover on the wheel must be removed,

using the yellow tool (located in the

box ixed to the left-hand side of the

boot), before slackening the bolt us-

ing the anti-theft socket (located in

the glove box) and the wheelbrace,

located in the boot rear right inner
panel.

Note: take a careful note of the code
number engraved on the head of the

anti-theft socket. This will enable you

to obtain a duplicate anti-theft socket
from a PEUGEOT dealer.

Fitting snow tyres

If you it snow tyres that are mounted

on steel rims onto your vehicle, it is

essential that you use special bolts
available from your PEUGEOT dealer.

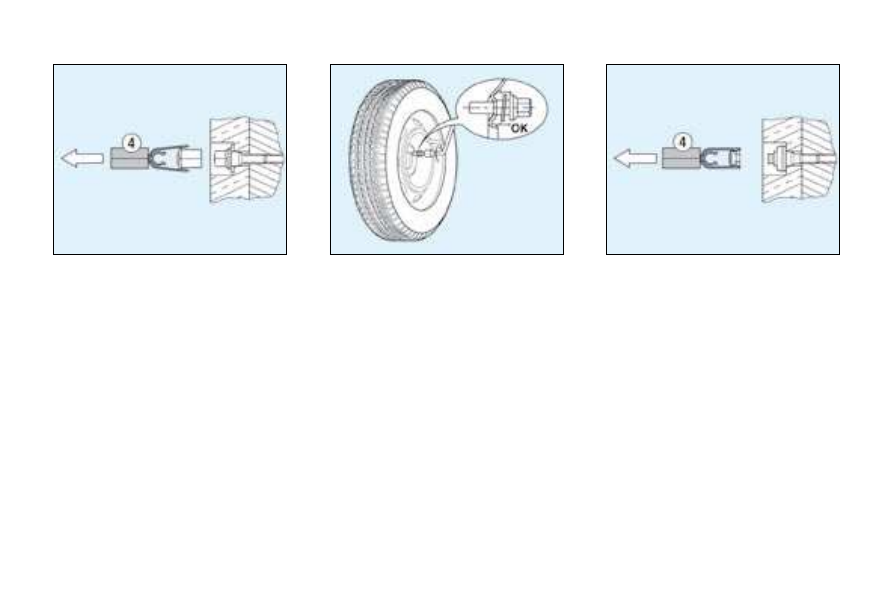

Bolt covers

Alloy wheel bolts are covered by

chrome trims.

Use the yellow tool 4 to remove the

trims before slackening the bolts.
Tool 4 is located on the rear right
inner panel of the boot.

PRACTICAL INFORMATION -

SPECIAL FEATURES

120 -

CHANGING A WHEEL

Changing a wheel is identical to the

method described in the paragraph

''Changing a wheel'' in the section

''Practical information'', except that

the folding shim located in the stor-
age box must be used to chock a

wheel.

Depending on the country in which

the vehicle is registered, the jack

and the jack storage box may differ

from those shown in the paragraph

''Changing a wheel'' in the section

''Practical information''.
The illustrations on this page show

the alternative version.

The box also contains the tool pro-
vided for removal of the bolt covers.

PRACTICAL INFORMATION

96 -

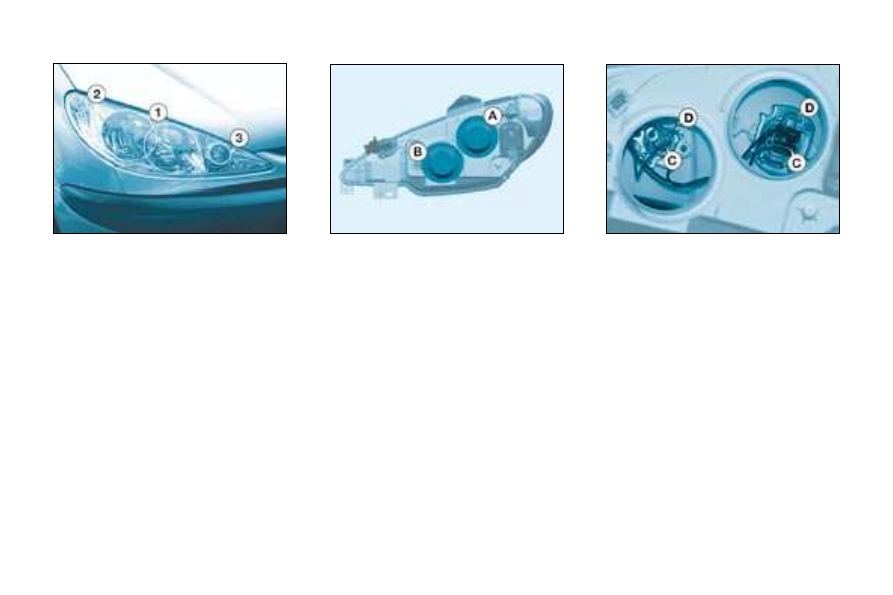

Dipped headlamps H7 55W/
main beam headlamps H1 55 W

F Remove the protective cover A

for the H7 55 W bulb or B for the
H1 55 W bulb.

F Disconnect the connector(s) C.
F Press the end of the securing

clip(s) D to remove it(them).
Change the faulty bulb.

CHANGING A BULB

To make access easier, on the right-

hand side

, irst remove the screen

wash reservoir iller pipe:
F

align the notches by turning,

pull upwards.

1. Dipped beam headlamps/

main beam headlamps

2. Side lights
3. Direction indicators

On itting, ensure that the

direction notches are in the
correct position and that the
securing clip(s) is(are) secured
correctly.

F Reconnect the connector.
F

Replace the protective cover(s),

then the screen wash reservoir

iller pipe (right-hand side).

PRACTICAL INFORMATION -

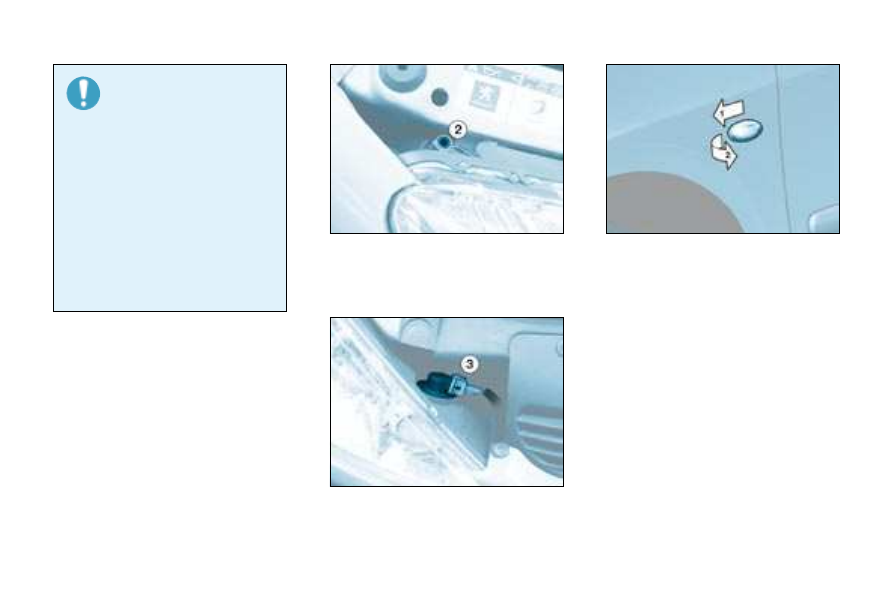

Amber direction indicators
PY 21 W

F Turn the pin connector 3 a

quarter turn (towards the front of

the vehicle) and remove it.

F Change the bulb.

Amber direction indicator
side repeater WY 5 W

Push the repeater forwards and

release it.

F Remove the repeater and

change it.

It can be obtained from a PEUGEOT
dealer.

Side lights W 5 W

F Turn the pin connector 2 a

quarter turn and remove it.

F Change the bulb.

Handle the bulbs with a

dry cloth.

The headlamps are itted

with polycarbon glass with

a protective coating. Do

not clean them using a dry or
abrasive cloth, or using deter-
gents or solvents.

Use a sponge and soapy water.

High pressure washing
When using this type of washing

on stubborn dirt, do not persist on

the headlamps, lights and their

surrounds to avoid damaging their
coating and seal.

PRACTICAL INFORMATION

98 -

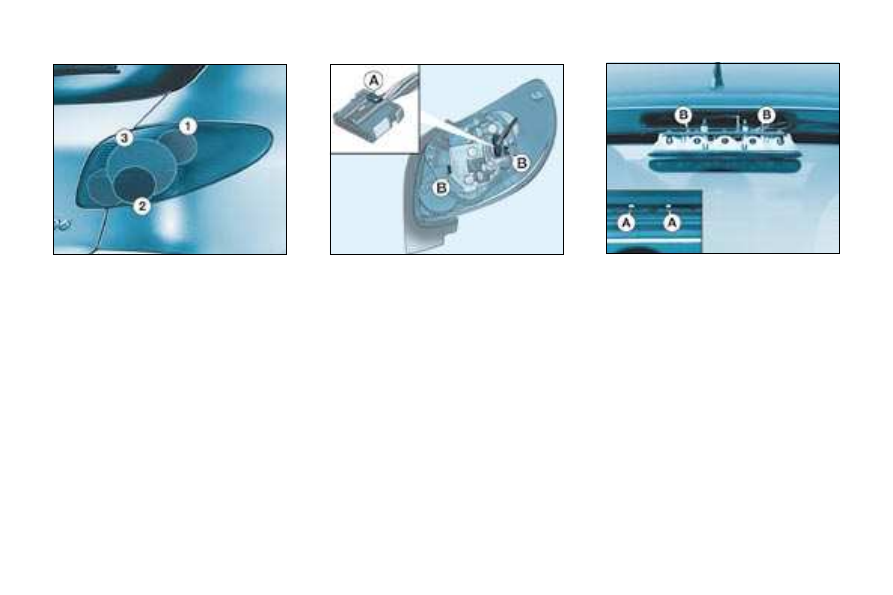

Unclip the boot side trim.
Unclip the foam cover and reach

behind the cover to locate the wing

nut.

Remove the wing nut.

Release the light unit.
Press the lug A and disconnect the
connector.
Remove the foam.
Move aside the tabs B and remove
the bulb holder.
Change the faulty bulb.

When reitting, ensure that the bulb

holder, the light and the foam cover

are repositioned correctly.

Third brake light 5 bulbs
W 5 W

Using a 10 mm spanner, unscrew the

2 nuts A.
Release the light unit.

Squeeze the two tabs B to release

the bulb holder.
Change the faulty bulb.

Rear lights

1.  Direction indicators P21 W.
2.  Reversing lights P21 W.
3.  Brake lights/side lights

P21/5 W.

PRACTICAL INFORMATION -

Front fog lamps H1 55 W

Press under the access lap to re-

lease it.

Open the lap.

Turn the cover to remove it.
Disconnect the bulb.

Press the two ends of the securing

clip to release the bulb.

Rear fog lamp P21 W

Unclip the lamp and release the as-
sembly.
Turn the pin connector a quarter turn
and remove it.
Change the bulb.

Number plate lights W 5 W

Insert a thin screwdriver into one of the

outer holes of the transparent cover.

Push it outwards to unclip it.

Remove the transparent cover.
Change the faulty bulb.

PRACTICAL INFORMATION

100 -

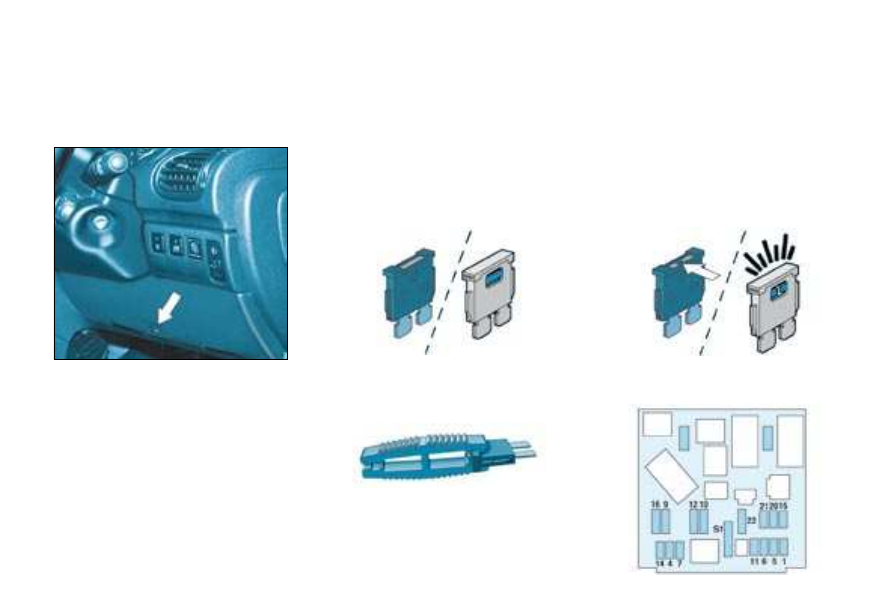

CHANGING A FUSE

The fuse boxes are located under
the fascia and in the engine compart-
ment.

Correct

Incorrect

Pliers A

Fascia fuse box

Unscrew the catch a quarter turn us-

ing a coin then remove the cover to
gain access to the fuses.
The spare fuses and the pliers A are

itted inside of the fascia fuse box

lid.

Removing and itting a fuse

Before changing a fuse, the cause of the fault must be found and remedied. The

fuse numbers are indicated on the fuse box.
Use the pliers A.
Always replace a faulty fuse with a fuse of the same rating.

PRACTICAL INFORMATION

100 -

CHANGING A FUSE

The fuse boxes are located under
the fascia and in the engine compart-
ment.

Correct

Incorrect

Pliers A

Fascia fuse box

Unscrew the catch a quarter turn us-

ing a coin then remove the cover to
gain access to the fuses.
The spare fuses and the pliers A are

itted inside of the fascia fuse box

lid.

Removing and itting a fuse

Before changing a fuse, the cause of the fault must be found and remedied. The

fuse numbers are indicated on the fuse box.
Use the pliers A.
Always replace a faulty fuse with a fuse of the same rating.

101

PRACTICAL INFORMATION -

Fuse N°

Rating

Functions

15 A

Alarm siren

20 A

Multifunction display - Boot lighting - Audio equipment - Steering wheel controls - Trailer

15 A

Automatic gearbox diagnostics

10 A

Coolant level - Automatic gearbox - Audio equipment - Steering wheel angle sensor (ESP)

15 A

Driving school accessory - Alarm

30 A

Rear electric windows

40 A

Rear screen and mirror demisting

15 A

Rear windscreen wiper

30 A

Front electric windows - Sunroof

10 A

Engine fuse box - Air bags - Steering wheel controls - Rain sensor

15 A

Instrument panel - Multifunction display - Air conditioning - Audio equipment

30 A

Locking/unlocking controls for doors, bonnet and boot - Deadlocking controls

10 A

Right-hand brake light

15 A

Left-hand brake light - 3rd brake light

20 A

Front courtesy light - Map reader - Glove box lighting - Lighter

Shunt

PARC shunt

Content .. 5 6 7 8 ..
