PRACTICAL INFORMATION

106 -

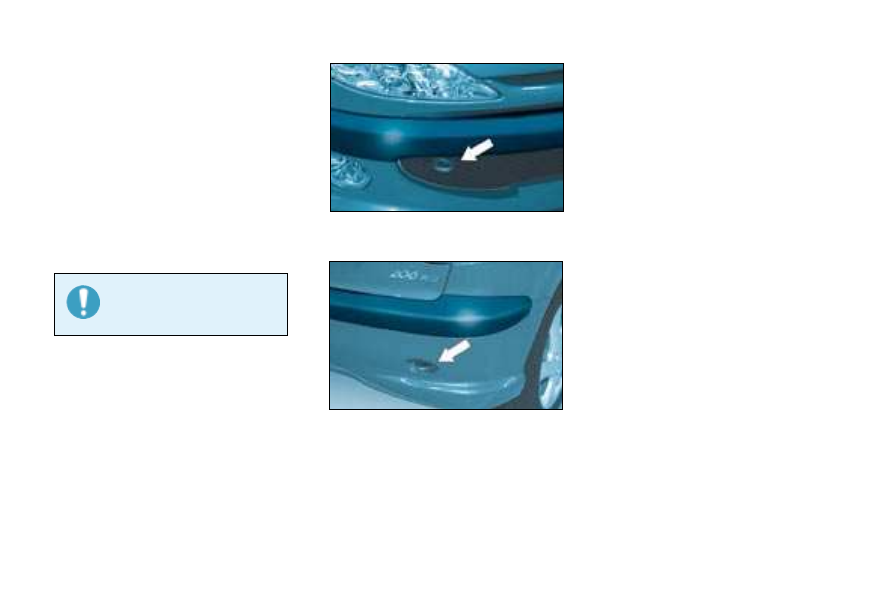

Front towing eye

TOWING YOUR VEHICLE

Never use the radiator
crossmember.

Special features of the automatic
gearbox
When towing with all four wheels on
the ground, the following rules must
be adhered to:
-

gear lever in position N,

tow the vehicle at a speed less

than 30 mph (50 km/h) over a

distance of not more than

30 miles (50 km),

do not add oil to the gearbox.

Rear towing eye

From the front or the rear
Attach the tow bar to the towing eye.

By lifting (two wheels only on the
ground)
It is preferable to lift the vehicle by
the wheels.

Without lifting (four wheels on the
ground)
You must always use a tow bar.

VEHICLES FITTED WITH A
MANUAL GEARBOX
(diesel version)
In the case of vehicles itted with a

manual gearbox, the gear lever must
be in the "neutral" position. Failure to
observe  this  special  condition  may
result  in  damage  to  certain  brak-
ing  components  and  the  absence  of
braking assistance the next time the
engine is started.

107

PRACTICAL INFORMATION -

TOWING A TRAILER,
CARAVAN, BOAT, ETC.

We  recommend  the  use  of  original
PEUGEOT  towbars  and  their  har-
nesses  that  have  been  tested  and
approved  from  the  design  stage  of

your vehicle and that the itting of the

towbar is entrusted to a PEUGEOT
dealer.

If the towbar is not itted by a PEUGEOT

dealer, it is imperative that it is itted us-

ing the electrical pre-equipment installed
at the rear of the vehicle, in accordance
with the manufacturer's instructions.
Your vehicle is primarily designed
for transporting people and luggage
but it may also be used for towing a
trailer.
Driving with a trailer subjects the tow-

ing vehicle to more signiicant stress

and  its  driver  must  be  particularly
careful.
Air  density  decreases  with  altitude,
thus  reducing  engine  performance.

Above 1000 metres, the maximum

towing load must be reduced by 10%

and so on for every 1000 metres of

altitude.

Driving advice

Distribution of loads: Distribute the
load in the trailer so that the heaviest
items are as close as possible to the
axle and the nose weight approach-
es the maximum permitted without
exceeding it.

Cooling: Towing a trailer on a slope
increases  the  temperature  of  the
coolant.
As  the  fan  is  electrically  controlled,
its cooling capacity is not dependent
on the engine speed.
On  the  contrary,  use  a  high  gear  to
lower  the  engine  speed  and  reduce
your speed.
The maximum towing load on a long
slope  depends  on  the  gradient  and
the outside temperature.

In all cases, pay attention to the cool-
ant temperature.
In certain cases of particularly ardu-

ous use (towing the maximum load

on a steep gradient in high tempera-
tures), switching off the air condition-
ing  permits  the  recovery  of  engine
power  and  therefore  an  increase  in
the towing capacity.
If  the  warning  light  comes  on,  stop
the vehicle and switch off the engine
as soon as possible.

Tyres  :  Check  the  tyre  pressures  of
the  towing  vehicle  and  of  the  trailer,
observing  the  recommended  pres-
sures.

Braking : Towing increases the brak-
ing distance.

Lights : Check the electrical signal-
ling on the trailer.

Side wind : Take into account the in-
creased sensitivity to side wind.

PRACTICAL INFORMATION

108 -

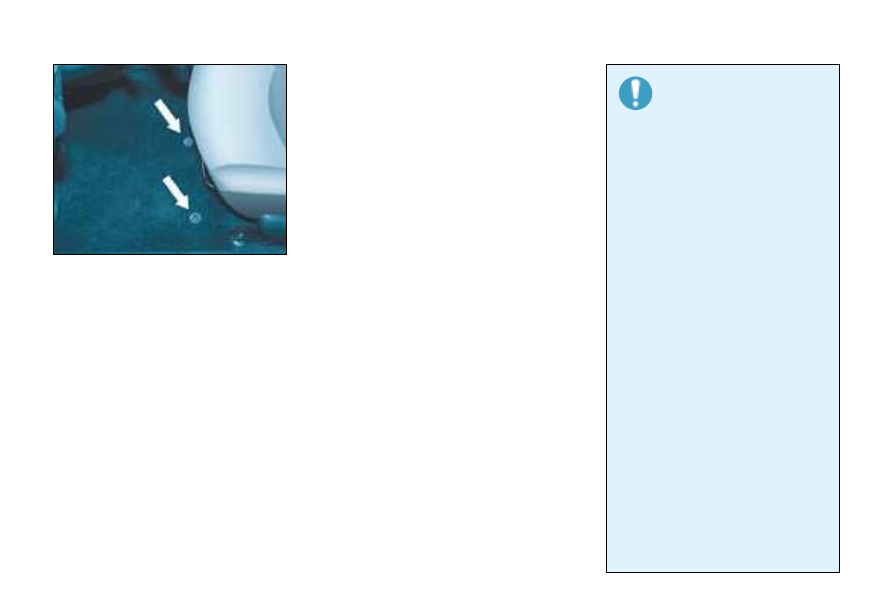

Fitting / removing the
mat

When removing the mat on the driv-
er's side, push the seat as far back

as possible and remove the ixings.

When reitting, position the mat cor-

rectly on the pin and clip the ixings.

Check that the mat is secured cor-
rectly.

To prevent the mat from becoming
caught under the pedals:
-

only use mats suited to the

ixings already present in the

vehicle. It is imperative that

these ixings are used.

- never it one mat on top of

another.

- Clean off bird

droppings, resinous
deposits, tar stains and
grease marks as soon

as possible; (these all contain

substances which can cause
serious damage to the
paintwork).

Do not use a dry or abrasive
cloth or detergent or solvent
products to clean the double
lens, complex surface

headlamps as they are itted

with polycarbonate glass
covered in a protective

inish.

Do not use petrol, oil or cloth
stain removers to clean the
bodywork and plastic parts of
your vehicle.

To prevent the development
of bodywork corrosion as a
result of accidental damage

(stone chips, scratches, etc.)

have them repaired swiftly.

BODYWORK MAINTENANCE

To preserve the paintwork and the
plastic trim on your vehicle, we recom-
mend that you wash them regularly.
- by hand: there are no speciic

precautions to take;

using an automatic car
wash: repeated use of poorly
maintained automatic car
washes can lead to the
appearance of microscopic
scratches which give the
paintwork a matt appearance

(especially visible on dark

colours);

using a high pressure washer:
always follow the
recommendations on the

equipment (pressure and

spraying distance).

If there are damaged areas on

the vehicle (painted bumpers

or headlamps), it is not
recommended to direct the high
pressure jet onto them. Wash
these areas by hand.

Also avoid the entry of water into
the locks.

For all questions relating to the main-
tenance of your vehicle, contact an
approved dealer who can advise you
on quality products selected by our
departments.

109

PRACTICAL INFORMATION -

206 ACCESSORIES

For your PEUGEOT only use acces-
sories and original parts approved by
the manufacturer.
These accessories and parts are all
adapted to your PEUGEOT, after be-
ing tested and approved for reliability
and safety, which PEUGEOT cannot
guarantee for other products.
A wide choice of original accessories,
approved by PEUGEOT, is available
through the dealer network. They all
carry the PEUGEOT guarantee:

Travel and Leisure: Towbar, boot
luggage rack, boot tray, roof bars,
roof boxes, ski carrier, bicycle carrier

(do not it the bicycle carrier on the

spoiler or on the rear screen), snow
chains, ...

Exterior style: Alloy wheels, trims,

mud laps, sunroof (it is imperative

that only genuine PEUGEOT products

are used for the itting of a sunroof),

front fog lamps, tailgate spoiler, sports
exhaust, aluminium and wood panel
trim, door sills, body kit, wing exten-
ders, two-tone steering wheel, ...

Interior equipment: Central armrest,
writing table, passenger seat protec-
tor, seat covers suitable for side air
bags, mats, boot tray, can holder, CD

storage, audio/telephone console,

door delectors, under-shelf storage,

sun blinds, ...

Technology:

Audio/telephone, hands-

free kit, satellite navigation system,
CD changers, audio systems, speak-

ers, audio trim, rear shelf itted with

4 speakers, ...

Safety: Anti-theft alarm, window en-
graving, wheel locks, warning trian-

gle, irst aid kit, safety jacket, booster

seats and child seats, Isoix Kiddy

seat, ...

Van:

Kit for conversion into a van, ...

Depending  on  the  coun-
try  in  which  the  vehicle
is  sold,  it  is  compulsory
to  have  a  safety  jacket,

warning  triangle  and  spare  bulbs
available in the vehicle.
Installation of radiocommunica-
tion transmitters
You are advised to contact a rep-
resentative  of  the  PEUGEOT
marque  before  installing  acces-
sory  radiocommunication  trans-
mitters with external aerial on your
vehicle.
The PEUGEOT network will inform

you of the characteristics (frequen-

cy band, maximum output power,

aerial position, speciic installa-

tion conditions) of the transmitters

which can be itted, in accordance

with the Motor Vehicle Electro-
magnetic Compatibility Directive

(2004/104/CE).

The itting of electrical equipment

or accessories which are not rec-
ommended by PEUGEOT may
result in a failure of your vehicle's
electronic system.
Please note this speciic warning.

You are advised to contact a repre-
sentative of the Marque to be
shown the range of recommended
equipment and accessories.

TECHNICAL DATA

110 -

Models
Model codes

2CHFX
2AHFX

2CKFW
2AKFW

2CKFWA

2AKFWA

2ANFUA
2BNFUA
2CNFUA
2HNFUA

2JNFUA

2KNFU

2ANFUB
2BNFUB
2CNFUB
2HNFUB

2JNFUB

Engine

1.1 litre

1.4 litre

1.6 litre 16 V

Cubic capacity (cm

)

1 124

1 360

1 587

Bore x stroke (mm)

72 x 69

75 x 77

78.5 x 82

EU standard maximum power (kW)

44.1

Maximum power at engine speed (rpm)

5 500

5 800

EU standard maximum torque (Nm)

120

147

Maximum torque at engine speed (rpm)

2 700

2 800

400

Fuel

Unleaded

Catalytic converter

Yes

Gearbox

Manual

(5 speed)

Manual

(5 speed)

Automatic

(4 speed)

Manual

(5 speed)

Automatic

(4 speed)

Oil capacity (in litres)

Engine (with cartridge replacement)

3.2 (2) - 3,4 (3)

3(2) - 3.25 (3)

3.2 (2) - 3.4 (3)

Gearbox-Final drive

ENGINES AND GEARBOXES, PETROL

(2) Draining by gravity.
(3) Draining by suction.

111

TECHNICAL DATA -

ENGINES AND GEARBOXES, DIESEL

Models
Model codes

2C8HX
2A8HX
2S8HX

2S8HZA
2A8HZA

2C8HZA

Engine

1.4 litre Turbo HDI

Cubic capacity (cm³)

1 398

Bore x stroke (mm)

73.7 x 82

EU standard maximum power (kW)

Maximum power at engine speed (rpm)

4 000

EU standard maximum torque (Nm)

160

Maximum torque at engine speed (rpm)

1 750

Fuel

Diesel

Catalytic converter

Yes

Particle Emission Filter (PEF)

Gearbox

Manual

(5 speed)

Oil capacity (in litres)
Engine (with cartridge replacement)

3.8

Gearbox-Final drive

TECHNICAL DATA

112 -

CONSUMPTION

In accordance with EC Directive 80/1268 (as amended) mpg (litres/100 km)

Engine

Gearbox

Model

codes 2...

Urban

driving

Inter-

urban

Mixed

Emission of

weight (g/km)

1.1 litre

Manual

HFXF

8.2

6.2

148

1.4 litre

Manual

KFWF

8.4

6.3

149

KFWA

8.5

5.2

6.3

151

1.4 litre

Automatic

KFWR

9.6

5.3

6.9

165

1.6 litre 16V

Manual

NFUF

8.6

5.1

6.4

153

HNFUF/NFUA

8.7

5.5

6.7

159

1.6 litre 16V

Automatic

NFUR

9.9

5.5

7.1

179

HNFUR

10.2

5.8

7.5

176

NFUB

10.2

5.7

7.4

176

1.4 litre Turbo HDI

Manual

8HXF

5.5

3.6

4.3

113

8HZA

5.4

3.7

4.3

112

Fuel consumption values correct at time of printing. These consumption values were established in accordance with EC

Directive 80/1268 (as amended). They may vary depending on the style of driving, trafic conditions, weather conditions, the

load in the vehicle, the maintenance of the vehicle and the use of the accessories.

113

TECHNICAL DATA -

WEIGHTS AND TOWING LOADS (IN KG)

Petrol engine

1.1 litre

1.4 litre

1.6 litre 16V

Gearbox

Manual

Auto

Manual

Auto

Model codes :

HFX

KFWF/A

KFWR

NFUA

NFUF

NFUB

NFUR

Kerb weight

985

1 025

1 055

1 100

1 055

Gross vehicle weight (GVW)

1405

1 450

1 480

1 567

1 614

Gross train weight (GTW)

1 920

2 365

2 395

2 467

2 504

Unbraked trailer

485

510

525

550

Braked trailer * (within GTW)

700

1 100

Recommended nose weight

Diesel engine

1.4 litre HDI

Gearbox

Manual

Manuelle

Model codes :

8HX

8HZA

2S8HZA
2S8HXF

Kerb weight

1 061

1 049

Gross vehicle weight (GVW)

1 525

Gross train weight (GTW)

2 425

Unbraked trailer

530

524

Braked trailer * (within GTW)

1 100

Recommended nose weight

VANS

TECHNICAL DATA

114 -

The GTW and towing load values indicated are valid for a maximum altitude of 1000 metres; the towing load men-
tioned must be reduced by 10 % for every additional 1000 metres.

In the case of a towing vehicle, the speed must not exceed 60 mph (100 km/h) (comply with the legislation in force in your
country).

High exterior temperatures may result in a reduction in the performance of the vehicle to protect the engine; when the
exterior temperature is higher than 37 °C, limit the towed load.

The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing
vehicle is reduced by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse
effect on its road holding ability.

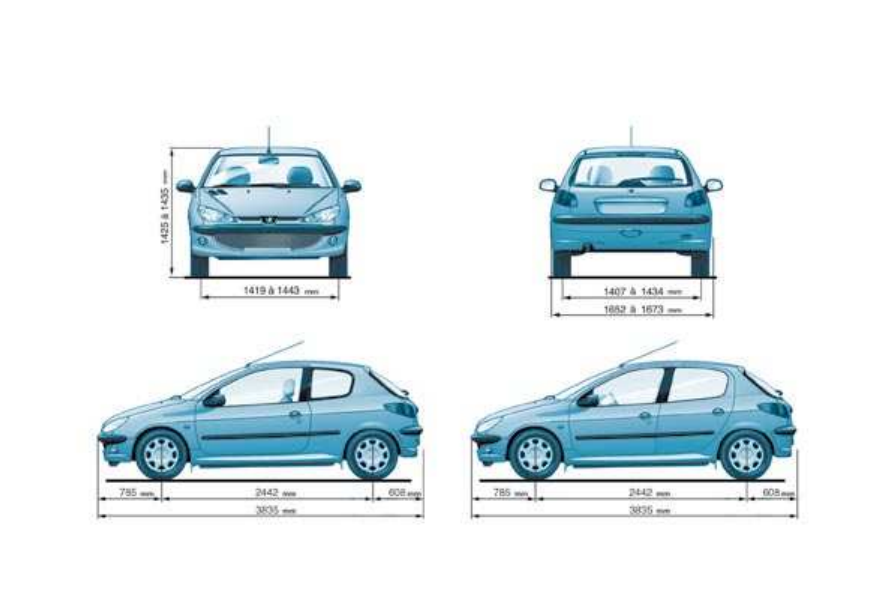

TECHNICAL DATA

116 -

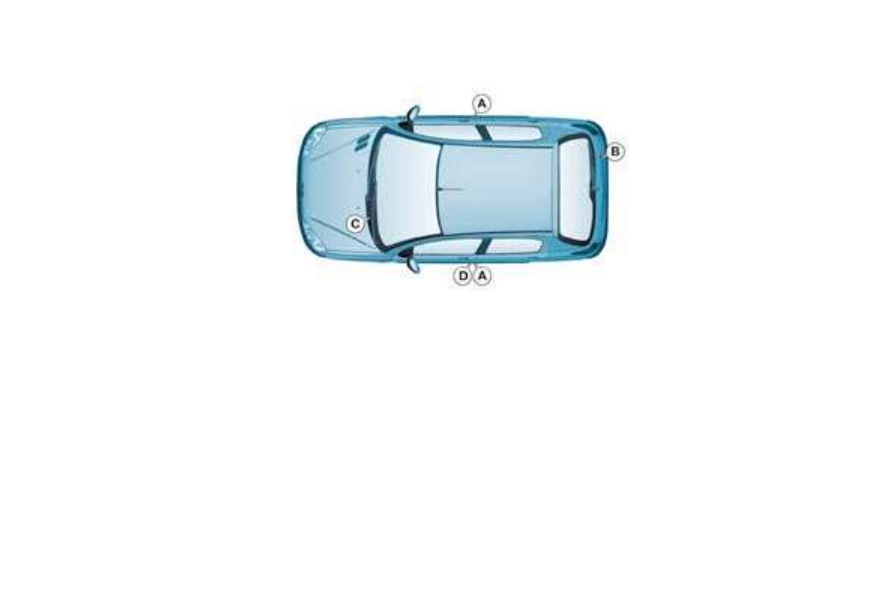

A. Manufacturer's plate

on the centre pillar
(location according to model).

B. Serial number on the

bodywork (location according
to model).

C. Serial number on

the fascia.

D. Tyres and paint reference.
The label D on the centre door pillar
gives:
-

the wheel and tyre sizes,

the brands of tyres approved by
the manufacturer,

the tyre pressures:
(tyre pressure checks must be
carried out cold, at least every
month).

the paint colour reference.

THE IDENTIFICATION FEATURES OF YOUR 206

Peugeot 206 SW Dag (2008 year). Instruction - part 8
