Peugeot 206 P Dag (2010.5). Instruction - part 2





INSTRUMENTS and CONTROLS

20

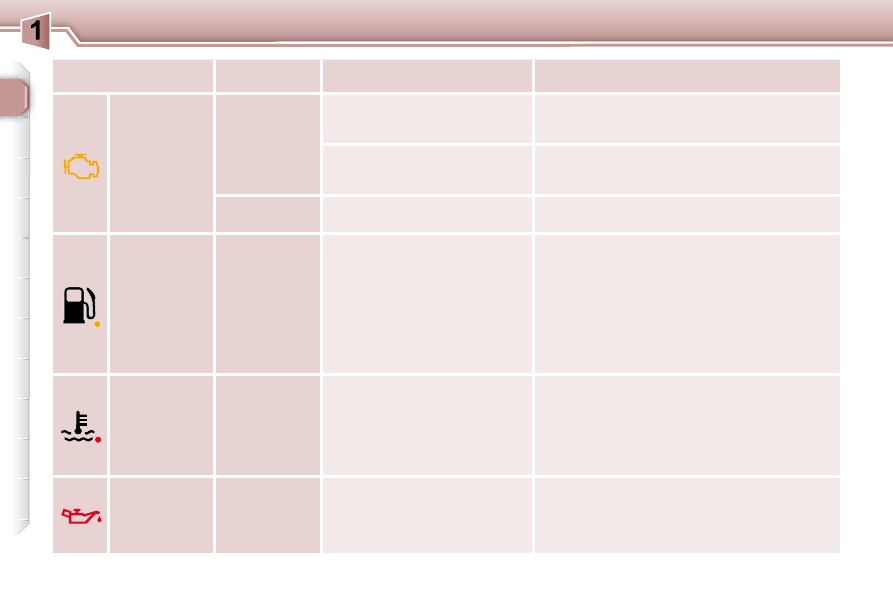

   Warning lamp

   is on

   Cause

   Action/Observations



   Engine

autodiagnosis

system

  fi xed.

 The emission control system
has a fault.

 This lamp should go off when the engine is started.
 If it does not go off, contact a PEUGEOT dealer
urgently.

 Particle emissions fi lter fault

(fuel additive level, risk of
blockage...).

 Refer to the "Checks" section.
 Have it checked by a PEUGEOT dealer.

  fl ashing.

 The engine management
system has a fault.

 Risk of destruction of the catalytic converter.
 Have it checked by a PEUGEOT dealer.



   Low fuel level

  fi xed with the

needle in the

red zone.

 When it fi rst comes on there

remains approximately  5 litres
of fuel in the tank.
At this point, you begin to use
the fuel reserve.

 Refuel as soon as possible to avoid running
out of fuel.
This warning lamp will come on every time

the ignition is switched on, until a suffi cient

addition of fuel is made.
 Fuel tank capacity: approximately  50 litres .
 Never continue to drive until you run out
of fuel, as this could damage the emission
control and injection systems.



   Maximum

coolant

temperature

  fi xed with

the needle in

the red zone.

 The temperature of the cooling
system is too high.

 Stop as soon as it is safe to do so.
 Wait until the engine has cooled down before
topping up the level, if necessary.
 If the problem persists, contact a PEUGEOT
dealer.



   Engine oil

pressure

  fi xed.

 There is a fault with the engine
lubrication system.

 Stop as soon it is safe to do so.
 Park, switch off the ignition and contact a
PEUGEOT dealer.

INSTRUMENTS and CONTROLS

21

   Warning lamp

   is on

   Cause

   Action/Observations



   Battery

charge

  fi xed.

 The battery charging circuit has
a fault (dirty or loose terminals,
slack or cut alternator belt, ...).

 The warning lamp should go off when the
engine is started.
 If  it  does  not  switch  off,  contact  a  PEUGEOT
dealer.



   Seat belt not

fastened/

unfastened

  fi xed.

 The  driver  has  not  fastened  or
has unfastened their seat belt.

 Pull the strap then insert the tongue in the
buckle.



   Airbags

  temporarily.

 This lamp comes on for a few
seconds when you turn on the
ignition, then switches off.

 This lamp should switch off when the engine is
started.
 If it does not switch off, contact a PEUGEOT dealer.

  fi xed.

 One of the airbag or seat belt
pretensioner systems has a
fault.

 Have it checked by a PEUGEOT dealer.

ii

INSTRUMENTS and CONTROLS

22

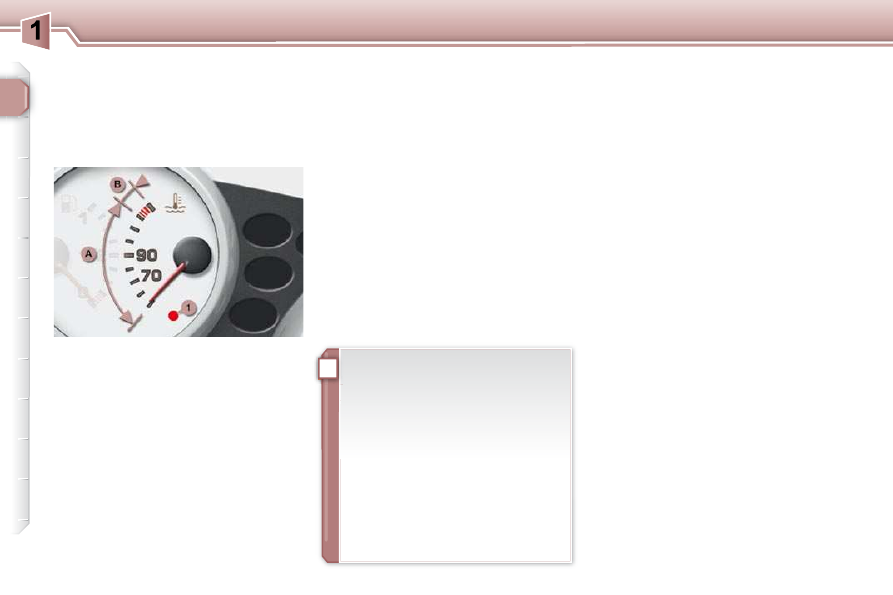

       COOLANT TEMPERATURE
INDICATOR

 System  which  informs  the  driver  of
the  changes  in  the  temperature  of  the
engine coolant while driving.

 With the engine running, when the nee-
dle is:
   -

in zone  A , the temperature is correct,

  -

in  zone   B ,  the  temperature  is  too
high;  the  max  temperature  warning
lamp  1  and the central  STOP  warn-
ing lamp come on, accompanied by
an audible signal and a message in
the multifunction screen.

  You MUST stop as soon as it is safe
to do so.

 Consult a PEUGEOT dealer.

 After driving for a few minutes, the tem-
perature  and  pressure  in  the  cooling
system increase.
 To top up the level:
      wait for the engine to cool,
     unscrew  the  cap  by  two  turns  to

allow the pressure to drop,

     when  the  pressure  has  dropped,

remove the cap,

     top  up  the  level  to  the  "MAX"  mark

(circular line).

 On petrol engines, the cooling of the
engine  is  managed  electronically
to  reduce  fuel  consumption.  Con-
sequently, the coolant temperature
levels  are  no  longer  simply  linked
with  the  external  ambient  condi-
tions and the use of the  vehicle.
 For example, in town, it is normal for
the coolant temperature to be slight-
ly higher in cold weather than in hot
weather (normal operation may lead
to a temperature of over 100 °).

INSTRUMENTS and CONTROLS

23

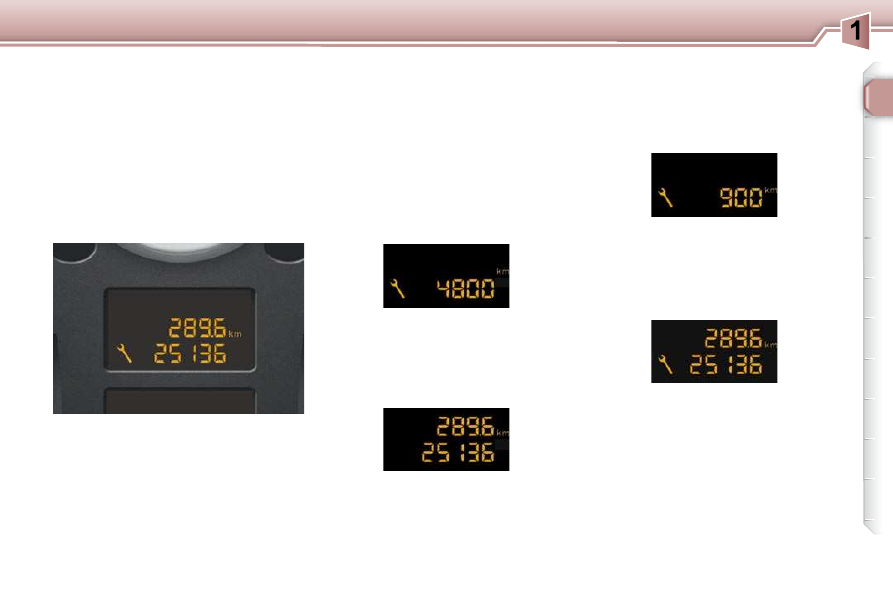

          SERVICE INDICATOR

 System which informs the driver when the
next  service  is  due,  in  accordance  with
the manufacturer's servicing schedule.
 The point at which the service is due is
calculated  from  the  last  indicator  zero
reset.  It  is  determined  by  two  param-
eters:
   -

the distance travelled,

  -

the time elapsed since the last ser-
vice.

  More than 1 000 km remain before
the next service is due
 For  5  seconds  after  the  ignition  is
switched  on,  the  spanner  symbolising
the  service  operations  comes  on.  The
distance recorder display line indicates
the  distance  remaining  before  the  next
service is due.
  Example:  4 800  km  remain before  the
next service is due.
 For  5  seconds  after  the  ignition  is
switched on, the display indicates:

 5 seconds after the ignition is switched
on,  the spanner   goes   off ; the distance
recorder resumes its normal operation.
The display then indicates the total and
trip distances.

  Less than 1 000 km remain before
the next service is due
  Example:   900  km  remain  before  the
next service is due.
 For  5  seconds  after  the  ignition  is
switched on, the display indicates:

 5 seconds after the ignition is switched
on,  the  distance  recorder  resumes  its
normal  operation.   The  spanner  re-
mains  on
   to  indicate  that  a  service
must be carried out soon.

ii

ii

INSTRUMENTS and CONTROLS

24

 Following  this  operation,  if  you
wish  to  disconnect  the  battery,
lock  the  vehicle  and  wait  at  least

fi ve minutes for the zero reset to be

taken into account.

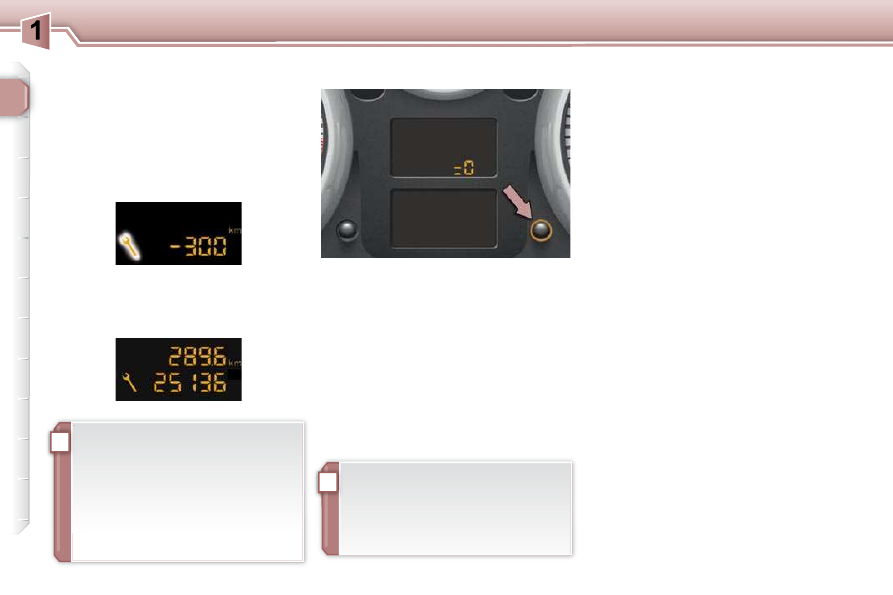

              Service indicator zero reset

 After each service, the service indicator
must be reset to zero.
 The procedure for resetting to zero is as
follows:
      switch off the ignition,
     press and hold the trip distance re-

corder zero reset button,

     switch  on  the  ignition;  the  distance

recorder  display  begins  a  count-
down,

     when  the  display  indicates   "=0" ,

 release  the  button;  the  spanner
disappears.

 The  distance  remaining  may  be
weighted by the time factor, depend-
ing on the driver's driving habits.
 Therefore,  the  spanner  may  also
come on if you have exceeded the
two year service interval.

  Service overdue
 For  5  seconds  after  the  ignition  is
switched  on,

the  spanner  fl ashes   to

indicate that the service must be carried
out as soon as possible.
  Example:   the  service  is  overdue  by
300 km.
 For  5  seconds  after  the  ignition  is
switched on, the display indicates:

 5 seconds after the ignition is switched
on,  the  distance  recorder  resumes  its
normal  operation.   The  spanner  re-
mains
  on .

INSTRUMENTS and CONTROLS

25

             TOTAL DISTANCE RECORDER

 System  which  measures  the  total  dis-
tance travelled by the vehicle during its
life.

          LIGHTING DIMMER

 System  for  manual  adjustment  of  the
brightness  of  the  instrument  panel  in
relation to the exterior brightness.

 The  total  and  trip  distances  are  dis-
played  for  thirty  seconds  when  the  ig-
nition is switched off, when the driver's
door is opened and when the vehicle is
locked or unlocked.

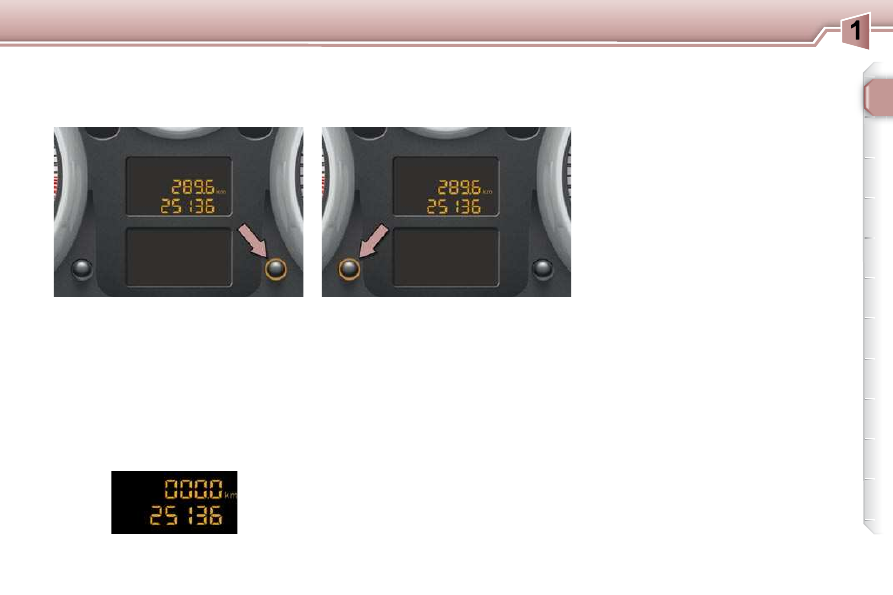

  TRIP DISTANCE RECORDER

 System  which  measures  a  distance
travelled  during  a  day  or  other  period
since it was reset to zero by the driver.

      With  the  ignition  on,  press  the  but-

ton until zeros appear.

  Activation
 When the exterior lighting is on:
      press  the  button  to  change  the

brightness of the instrument panel,

     when  the  lighting  reaches  the  mini-

mum  setting,  release  the  button,
then press again to increase it,

 or
      when the lighting reaches the maxi-

mum  setting,  release  the  button,
then press again to reduce it,

     when  the  lighting  reaches  the  level

of  brightness  required,  release  the
button.

  Deactivation
 When the exterior lighting off, pressing
the button does not have any effect.

INSTRUMENTS and CONTROLS

26

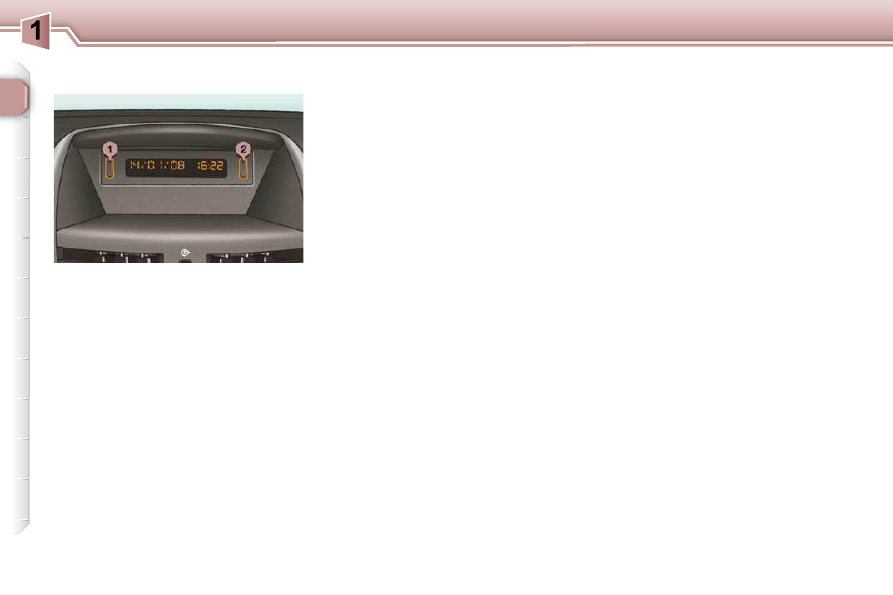

MONOCHROME SCREEN A

  Adjusting the parameters
 Press and hold button  1  for two seconds

to access the settings; the data fl ashes,

indicating it is ready to be modifi ed.
 Then,  each  press  of  button   1   scrolls
through the various data in the following
order:
   -

language of information displayed,

  -

hours (12 then 24 hour mode),

  -

minutes,

  -

year,

  -

month,

  -

day,

  -

unit  of  temperature  (degrees  Cel-
sius or Fahrenheit).

 Pressing  button

 allows  modifi cation

of the data selected. Press and hold for
rapid  advance  (return  to  start  after  the
last possible value).
 After 7 seconds with no action, the main

display  returns;  the  modifi ed  data  are

now recorded.
  Note:  Pressing button  2

  briefl y displays

the  ambient  temperature  for  a  few
seconds.
 When  the  ambient  temperature  is  be-
tween  -3°  and  3 °C,  the  ambient  tem-
perature  display  on  the  screen  takes
priority over the clock display.

 This displays the following information:
   -

time,

  -

date,

  -   ambient  temperature *   (this  fl ashes

when it is between -3 and 3 °C),

  -

audio system information,

  -

a  door  check  (e.g.:  ''left  front  door
open''),

  -

warning  messages  (e.g.  ''remote

control  battery  fl at'')  or  information

messages  (e.g.  ''economy  mode
active''), displayed temporarily.

  *   With digital air conditioning only.

INSTRUMENTS and CONTROLS

27

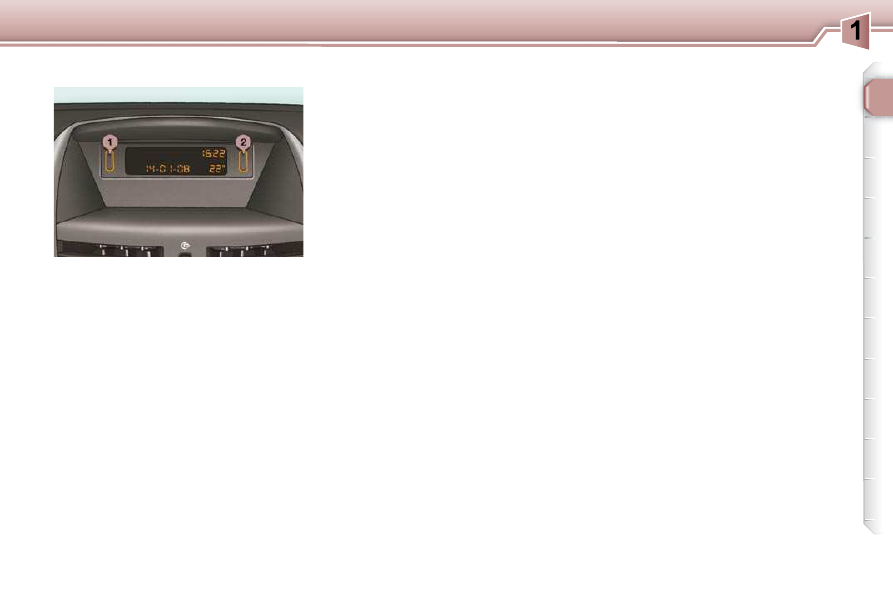

MONOCHROME SCREEN B

 This  enables  the  following  information
to be displayed:
   -

time,

  -

date,

  -   ambient  temperature *   (this  fl ashes

when it is between -3 and 3 °C),

  -

status  of  the  doors.  The  display
shows you, by means of a graphic,
whether a door is open,

  -

warning  messages  (e.g.  ''battery
charge  fault'')  or  information  mes-
sages  (e.g.  "fuel  level  low''),  dis-
played  temporarily,  can  be  cleared
by pressing button  1  or  2 ,

  -

trip computer.

  Setting the parameters
 Press button  1  for two seconds to access

the  settings. The  information  fl ashes  to

show it is ready to be modifi ed.
 Then,  individual  presses  on  button   1
allow  you  to  scroll  through  the  various
data in the following sequence:
   -

language in which the information is
displayed,

  -

unit of distance (kms or miles),

  -

unit  of  temperature  (degrees  Cel-
sius or Fahrenheit),

  -

time format (12 then 24 hour mode),

  -

hour,

  -

minutes,

  -

year,

  -

month,

  -

day.

 Pressing button  2  allows you to change
the  information  selected.  Maintain  the
pressure for rapid scrolling.
 After  7  seconds  without  operation,  the
screen  returns  to  the  normal  display

and the modifi ed data is recorded.
  Note:  Pressing button  2

  briefl y displays the

outside temperature for a few seconds.
 When  the  ambient  temperature  is  be-
tween  -3°  and  3 °C,  the  temperature
display  takes  priority  over  the  time  on
the screen.

  *   With digital air conditioning only.

INSTRUMENTS and CONTROLS

28

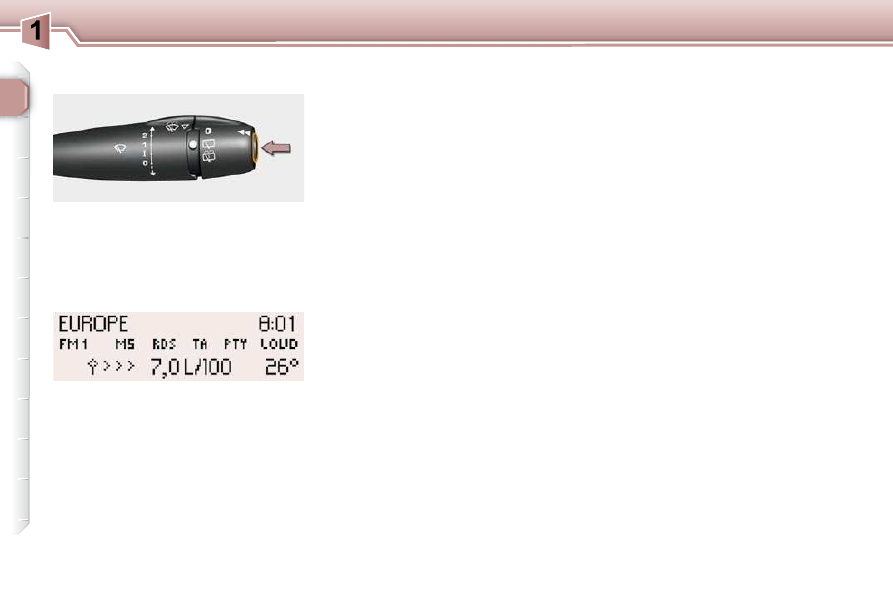

  SCREEN B

TRIP COMPUTER

  ZERO RESET

 Press the stalk for more than two seconds.

   Range
 This shows the distance that can still be
covered  with  the  fuel  remaining  in  the
tank.
  Note:

   this  fi gure  may  increase  if  there

is a change in the style of driving or the

road  surface,  producing  a  signifi cant

drop in current fuel consumption.
 When  the  range  is  less  than  20  miles
(30 km),  three  segments  are  dis-

played. After fi lling with fuel, the range

is  displayed  when  it  exceeds  60 miles
(100 km).
 If horizontal segments are displayed for
long periods instead of digits, contact a
PEUGEOT dealer.

 Pressing  the  button  on  the  end  of  the
  wiper    stalk   enables  the  following  data
to be displayed:

   -

range

  -

distance travelled

  -

average fuel consumption

  -

current fuel consumption

  -

average speed

  Average fuel consumption
 This  is  the  average  fuel  consumption
since the computer was last set to zero.

  Current fuel consumption
 This  is  the  average  fuel  consumption
during the last few seconds.
 This function is displayed only when the
vehicle  is  travelling  at  a  speed  greater
than 20 mph (30 km/h).

  Distance travelled
 This  indicates  the  distance  travelled
since  the  computer  was  last  set  to
zero.

  Average speed
 This  is  the  average  speed  calculated
since the computer was last set to zero
(with the ignition on).

29

VENTILATION

 System  which  creates  and  maintains
comfortable  conditions  in  the  vehicle's
passenger compartment.

  Air paths

 The incoming air follows various routes
depending  on  the  controls  selected  by
the driver:
   -

direct arrival in the passenger com-
partment (air intake),

  -

passage  through  a  heating  circuit
(heating),

  -

passage  through  a  cooling  circuit
(air conditioning).

 The temperature control enables you to
obtain  the  level  of  comfort  required  by
mixing the air of the various circuits.
 The air distribution control enables you
to diffuse the air in the passenger com-
partment combining several air vents.
 The  air  fl ow  control  enables  you  to

increase  or  reduce  the  speed  of  the
ventilation blower.

 The  air  circulating  in  the  passenger

compartment  is  fi ltered  and  originates

either from the outside via the grille lo-
cated  on  the  bonnet  or  from  the  inside
in air recirculation mode.

  Control panel

 The controls of this system are grouped
together  on  the  centre  console.  De-
pending  on  the  model,  the  functions
 offered are:
   -

the level of comfort required,

  -   air fl ow,
  -

air distribution,

  -

demisting and defrosting,

  -

manual  or  digital  air  conditioning
controls.

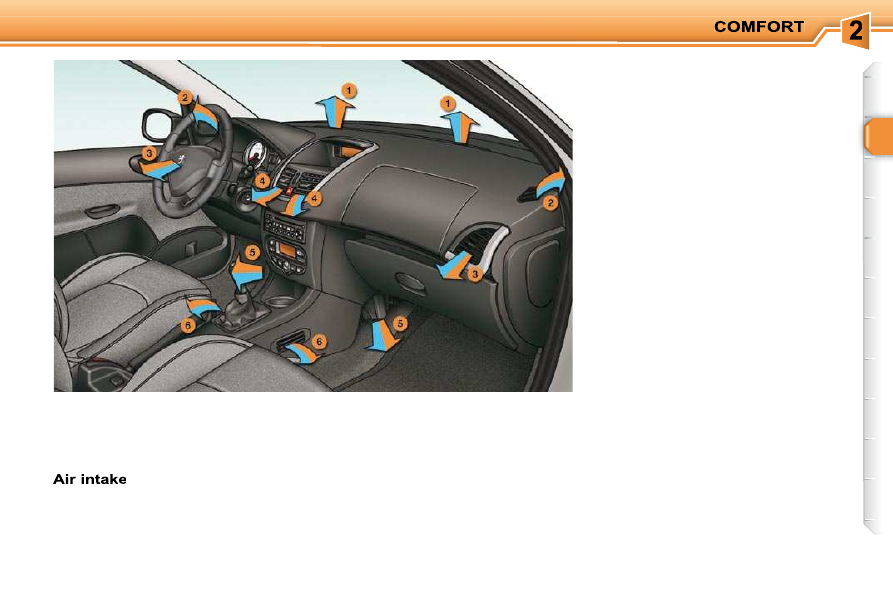

  Air diffusion

   1.   Windscreen demisting/defrosting vents.
  2.   Front

side

window

demisting/

defrosting vents.

  3.   Side adjustable air vents.
  4.   Central adjustable air vents.
  5.   Air outlets to the front footwells.
  6.   Lower  air  outlets  (under  the  front

seats). *

  *   Only present with digital air conditioning.

i

30

 The  air  conditioning  system  does
not  contain  chlorine  and  does  not
present  any  danger  to  the  ozone
layer.

 In  order  for  these  systems  to  be  fully  effective,  follow  the  operation  and
maintenance guidelines below:
      If  the  interior  temperature  remains  very  high  after  the  vehicle  has  been

parked  in  the  sun  for  a  considerable  time,  fi rst  ventilate  the  passenger

compartment for a few minutes.



Place the air fl ow control at a suffi cient level to provide an adequate renewal

of air in the passenger compartment.

     To obtain an even air distribution, take care not to obstruct the exterior air

intake grille located on the bonnet, the vents and the air passages under
the front seats.

     Operate the air conditioning system for 5 to 10 minutes, once or twice a

month to keep it in good working order.

  

   Ensure  that  the  passenger  compartment  fi lter  is  in  good  condition  and

have the fi lter elements replaced regularly (refer to the "Checks" section).



We  recommend  the  use  of  a  combined  passenger  compartment  fi lter.

Thanks to its second special active fi lter, it contributes to the purifi cation

of the air breathed by the occupants and the cleanliness of the passenger
compartment  (reduction  of  allergic  symptoms,  bad  odours  and  greasy
deposits).

     To  ensure  correct  operation  of  the  air  conditioning  system,  you  are  also

advised to have it checked regularly.

     If the system does not produce cold air, do not use it and contact a PEUGEOT

dealer.

 When  towing  the  maximum  load  on  a  steep  gradient  in  high  temperatures,
switching off the air conditioning saves engine power and therefore improves
towing capacity.
 The  condensation  created  by  the  air  conditioning  results  in  a  discharge  of
water under the vehicle which is perfectly normal.

31

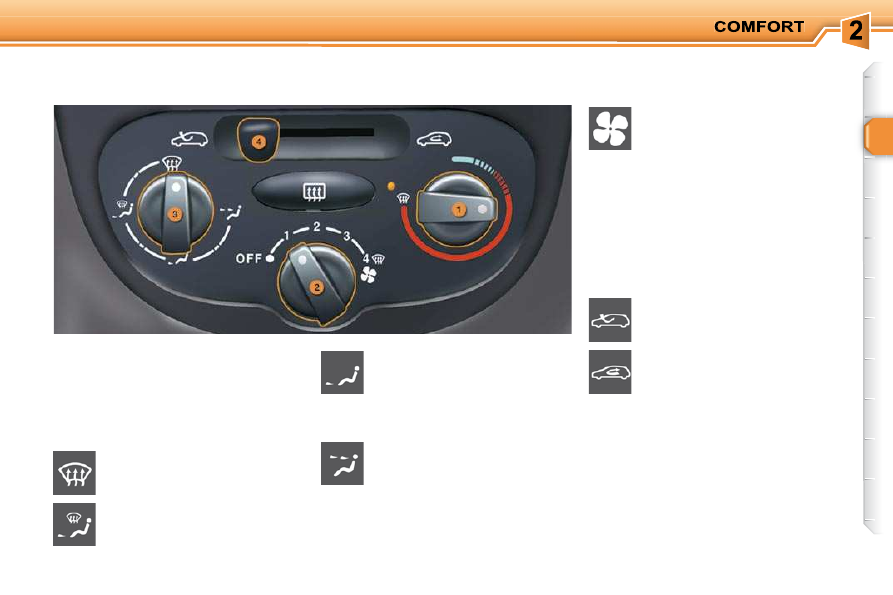

HEATING/VENTILATION

 The heating and ventilation can only operate when the engine is running.

  1. Temperature adjustment
 Turn the control from blue (cold) to red
(hot)  to  adjust  the  temperature  to  suit
your requirements.

 Windscreen  and  side  windows
(demisting/defrosting).

  2. Air distribution adjustment

 Windscreen, side windows and
footwells.

 Footwells.

 Centre and side vents.

 The  air  distribution  can  be  adjusted  by
placing  the  control  in  an  intermediate
position.

  3. Air fl ow adjustment

 Turn the control from position  1
to  position   4   to  obtain  an  air

fl ow  suffi cient  to  ensure  your

comfort.

  4. Air intake/Air recirculation
 The recirculation of interior air prevents
exterior odours and smoke entering the
passenger compartment.
 The  intake  of  exterior  air  prevents  and
eliminates  misting  of  the  windscreen
and side windows.

 Air intake.

 Air recirculation.

 Move the manual control  4  to the right for

the "Interior air recirculation" position.
 Move the manual control  4  to the left to

return to the "Exterior air intake" position

as soon as possible to prevent deteriora-
tion of the air quality.

 These  settings  are  recommended  for
cold climates.

 This  setting  is  recommended  for  hot
climates.

32

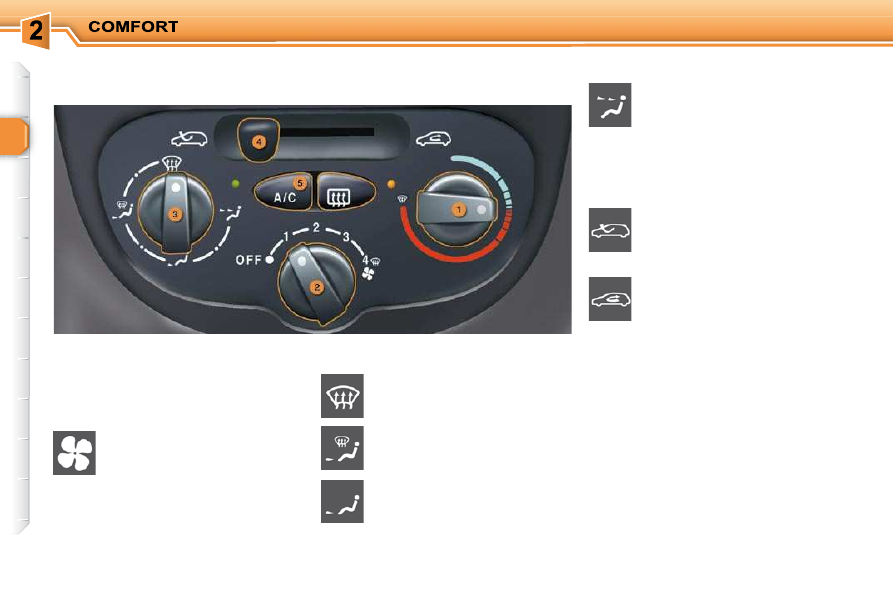

MANUAL AIR CONDITIONING

 The air conditioning system can only operate when the engine is running.

  1. Temperature adjustment
      Turn the dial from blue (cold) to red

(hot)  to  adjust  the  temperature  to
suit your requirements.

  2. Air fl ow adjustment

  3. Air distribution adjustment

  4. Air intake/Air recirculation

 Windscreen and side windows.

 Windscreen, side windows and
footwells.

 Footwells.

 These  settings  are  recommended  for
cold climates.

 Central and side vents.

 This  setting  is  recommended  for  hot
climates.

     Move  the  manual  control

to  the  left  to  return  to  the

"Exterior air intake" position.

 The  intake  of  exterior  air  prevents  the
formation of condensation on the wind-
screen and side windows.
 The recirculation of interior air prevents
exterior  odours  and  smoke  from  enter-
ing the passenger compartment.
 Used simultaneously with the air condi-
tioning, the air recirculation improves its
performance.
 Used in a damp climate, the air recircu-
lation may cause condensation to form
on the windows.
 Return to exterior air intake mode as soon
as  possible  to  avoid  deterioration  of  the
air quality and prevent conden sation.

      Move the manual control to

the  right  to  the  "Interior  air

recirculation" position.

      Turn the dial from position  1

to  position   4   to  obtain  an

air  fl ow  suffi cient  to  ensure

your comfort.

  

   If  you  place  the  air  fl ow  control  in

 position   OFF   (deactivation  of  the
system),  the  temperature  is  no
 longer  maintained  at  a  comfortable

level.  However,  a  slight  fl ow  of  air,

due to the movement of the vehicle,
can still be felt.

33

  Demisting - defrosting

 To  quickly  demist  or  defrost  the  wind-
screen and side windows:
      place  the  air  intake  control   4   in  the

"Exterior air intake" position,

     place the air distribution dial  3  in the

"Windscreen" position,

     place the temperature dial  1  and the

air fl ow dial  2  in the maximum posi-

tion,

     close the central vents,
     switch  on  the  air  conditioning  by

pressing the  "A/C"  button.

  5. Air conditioning On/Off

  Switching on

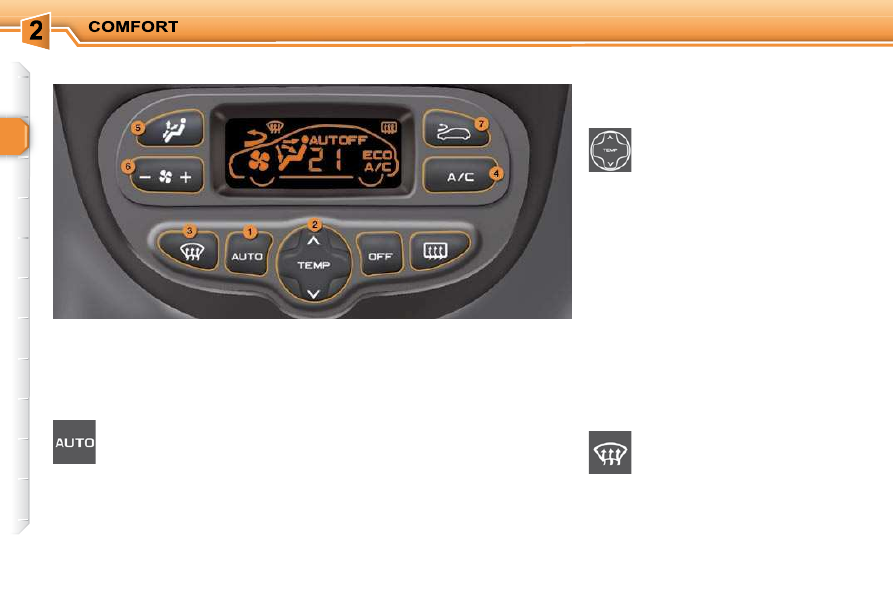

      Press the  "A/C"  button, the associated

indicator lamp comes on.

  The air conditioning does not operate

when the air fl ow adjustment dial 2 is

in position "OFF".

  Switching off
      Press  the   "A/C"   button  again,  the

associated  indicator  lamp  switches
off.

HEATED REAR SCREEN

  Switching on

 The heated rear screen can only oper-
ate when the engine is running.
      Press this button to demist/defrost the

rear screen. The indicator lamp asso-
ciated with the button comes on.

  Switching off

 The  heated  rear  screen  switches  off
automatically  to  prevent  an  excessive
consumption of current.
      It  is  possible  to  stop  the  demist-

ing/defrosting  operation  before  it  is
switched off automatically by press-
ing  the  button  again.  The  indicator
lamp  associated  with  the  button
switches off.

 If  the  engine  is  switched  off  before  the
heated  rear  screen  is  switched  off  auto-
matically, demisting/defrosting will resume
next time the engine is switched on.
      Switch off the heated rear screen as

soon  as  appropriate  as  lower  cur-
rent consumption results in reduced
fuel consumption.

 The control button is located on
the air conditioning system con-
trol panel.

 The air conditioning is designed
to operate effectively in all sea-
sons, with the windows closed.

 It enables you to:
   -

lower the temperature, in summer,

  -

increase  the  effectiveness  of  the
demisting, in winter above 0 °C.

33

  Demisting - defrosting

 To  quickly  demist  or  defrost  the  wind-
screen and side windows:
      place  the  air  intake  control   4   in  the

"Exterior air intake" position,

     place the air distribution dial  3  in the

"Windscreen" position,

     place the temperature dial  1  and the

air fl ow dial  2  in the maximum posi-

tion,

     close the central vents,
     switch  on  the  air  conditioning  by

pressing the  "A/C"  button.

  5. Air conditioning On/Off

  Switching on
      Press the  "A/C"  button, the associated

indicator lamp comes on.

  The air conditioning does not operate

when the air fl ow adjustment dial 2 is

in position "OFF".

  Switching off
      Press  the   "A/C"   button  again,  the

associated  indicator  lamp  switches
off.

HEATED REAR SCREEN

  Switching on

 The heated rear screen can only oper-
ate when the engine is running.
      Press this button to demist/defrost the

rear screen. The indicator lamp asso-
ciated with the button comes on.

  Switching off

 The  heated  rear  screen  switches  off
automatically  to  prevent  an  excessive
consumption of current.
      It  is  possible  to  stop  the  demist-

ing/defrosting  operation  before  it  is
switched off automatically by press-
ing  the  button  again.  The  indicator
lamp  associated  with  the  button
switches off.

 If  the  engine  is  switched  off  before  the
heated  rear  screen  is  switched  off  auto-
matically, demisting/defrosting will resume
next time the engine is switched on.
      Switch off the heated rear screen as

soon  as  appropriate  as  lower  cur-
rent consumption results in reduced
fuel consumption.

 The control button is located on
the air conditioning system con-
trol panel.

 The air conditioning is designed
to operate effectively in all sea-
sons, with the windows closed.

 It enables you to:
   -

lower the temperature, in summer,

  -

increase  the  effectiveness  of  the
demisting, in winter above 0 °C.

34

               DIGITAL AIR CONDITIONING

  1. Automatic comfort programme

  Automatic operation

  2. Temperature adjustment
 The value indicated on the display cor-
responds  to  a  level  of  comfort  and  not
to a temperature in degrees Celsius or
Fahrenheit.

  3. Automatic visibility programme
 The automatic comfort programme may

not be suffi cient to quickly demist or de-

frost the windscreen and side windows
(humidity, several passengers, ice...).

 This  system  is  designed  to  operate
effectively  in  all  seasons,  with  the  win-
dows closed.
 When  the  engine  is  cold,  to  prevent
too  great  a  distribution  of  cold  air,  the

air fl ow will only reach its optimum level

gradually.
 In  cold  weather,  it  favours  the  distribu-
tion of warm air to the windscreen, the
side windows and the footwells only.

 The air conditioning can only operate with the engine running.

      Press  the   "AUTO"   button.

The  "AUTO"  symbol is dis-
played.

      Press  the  arrows   1   (up  and

down) to change this value.

      In this case, select the auto-

matic visibility programme.

 We recommend that you use this mode:
it  provides  optimised  automatic  con-
trol  of  all  of  the  functions,  passenger

compartment  temperature,  air  fl ow,

air  distribution  and  air  recirculation,  in
 accordance with the comfort value that
you have selected.

 The  system  automatically  controls  the

air conditioning, the air fl ow and the air

intake  and  provides  optimum  distribu-
tion of the ventilation to the windscreen
and side windows.
      To  exit  this  programme,  press  the

 "AUTO"  button again.

 A  setting  around  21  provides  an  opti-
mum  level  of  comfort.  Depending  on
your  requirements,  a  setting  between
18 and 24 is usual.
 On  entering  the  vehicle,  if  the  interior
temperature  is  much  colder  or  warmer
than the comfort value, there is no need
to  alter  the  value  displayed  in  order  to
obtain the required level of comfort. The
system corrects the temperature differ-
ence  automatically  and  as  quickly  as
possible.















Content   ..   1  2  3   ..
