FAMILIARISATION

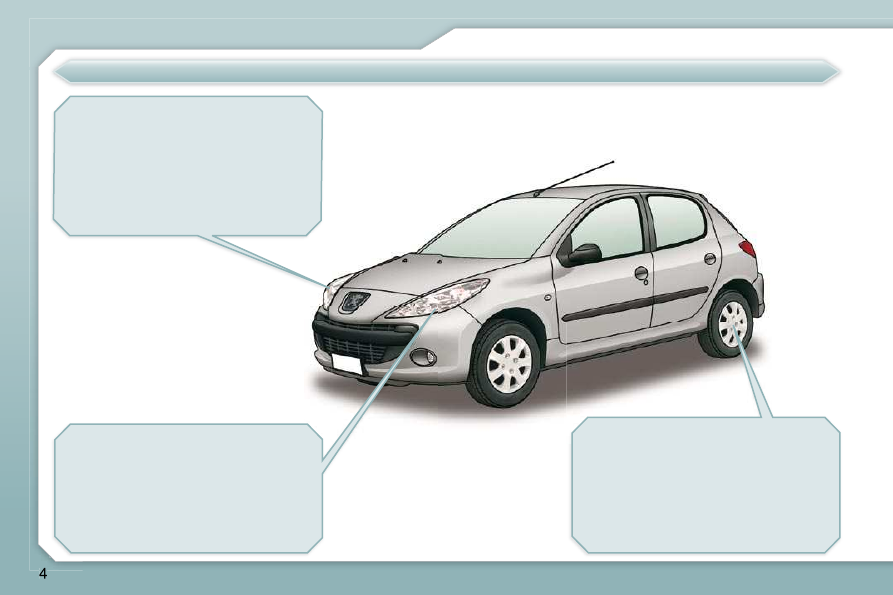

EXTERIOR

  AUTOMATIC ILLUMINATION OF
HEADLAMPS
This system switches on the sidelamps
and dipped beam headlamps when the
light  is  poor  or  when  the  windscreen
wipers  are  operating  continuously,
when the lighting stalk is in the " AUTO "
position.
     54

  GUIDE-ME-HOME LIGHTING
This  function,  linked  with  the  automatic
illumination  of  headlamps  or  activated
manually,  allows  you  to  leave  the  front
lighting on after switching off the ignition.
     53

  BRAKING ASSISTANCE SYSTEMS
(ABS, EBFD AND EBA)
These systems are linked and comple-
ment each other to assist you to brake
safely  and  effectively  in  emergency
situations.
     58

FAMILIARISATION

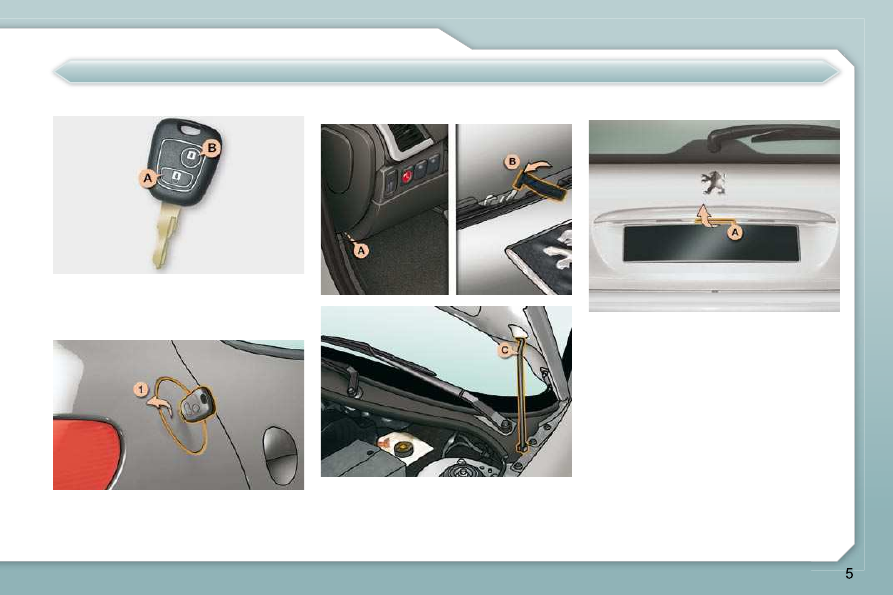

OPEN

REMOTE CONTROL KEY

   A.   Locking the vehicle.
  B.   Unlocking the vehicle.
     44
  FUEL TANK

Opening the ﬁ ller cap.

Capacity of the tank: approximately
50 litres.
 50

BONNET

   A.   Interior release lever.
  B.   Exterior safety catch.
  C.   Bonnet stay.

 77

BOOT

Unlock the vehicle using the remote
control.

Operate the handle A to open.

 49

FAMILIARISATION

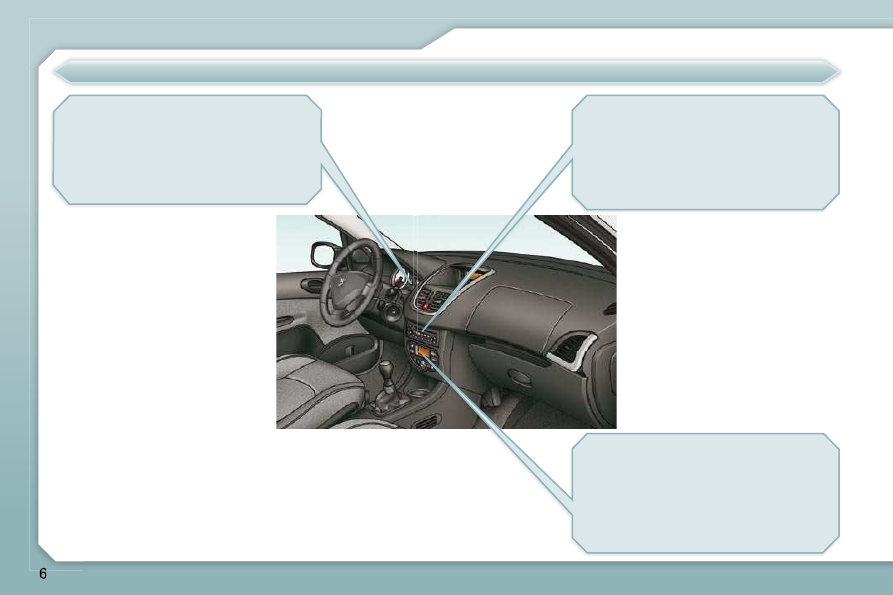

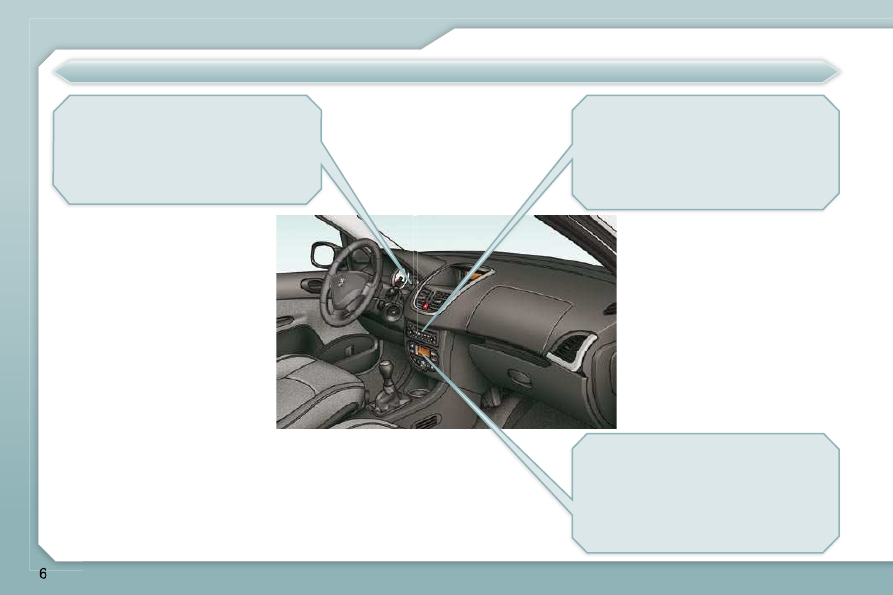

INTERIOR

  DISTANCE RECORDER
The  trip  distance  recorder  is  reset  to
zero by pressing the right-hand button
on the instrument panel for more than
two seconds.
     25

DIGITAL AIR CONDITIONING
This system allows a level of comfort to
be set for the passenger compartment.
It then maintains this level automatically
according to exterior climatic conditions.
 34

AUDIO SYSTEMS
These systems beneﬁ t from the latest

technology: radio, steering mounted
controls.
 106

FAMILIARISATION

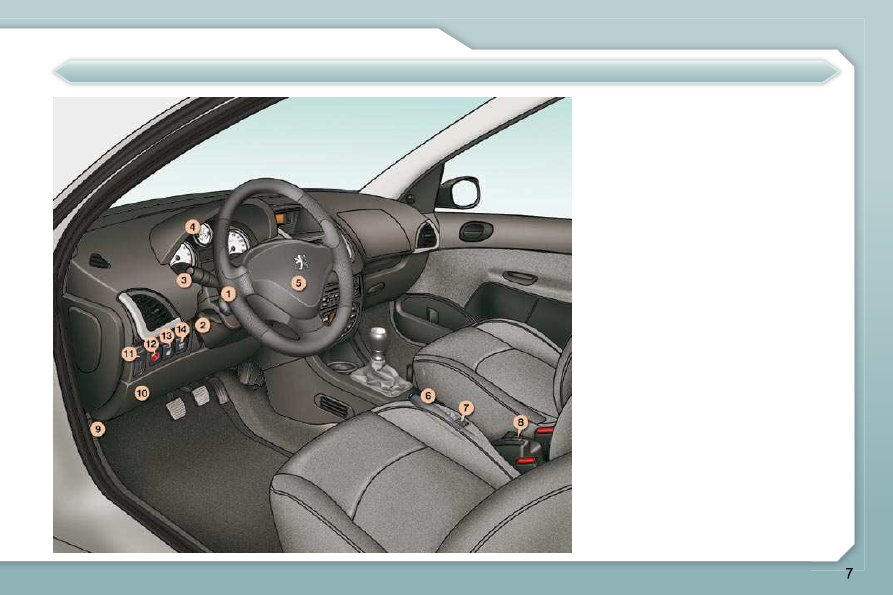

INSTRUMENTS AND CONTROLS

1. Speed limiter/cruise controls.
2. Steering wheel height adjustment

control.

3. Lighting and direction indicator

control stalk.

4. Instrument panel.

Instrument panel lighting dimmer.

5. Driver's airbag.

Horn.

6. Parking brake.

7. Front electric window controls.

8. Central locking control.

9. Bonnet release lever.

10. Fusebox.

11. Headlamp height adjustment.

12. Passenger's airbag deactivation.

13. Heated seats control.

14. ESP/ASR deactivation.

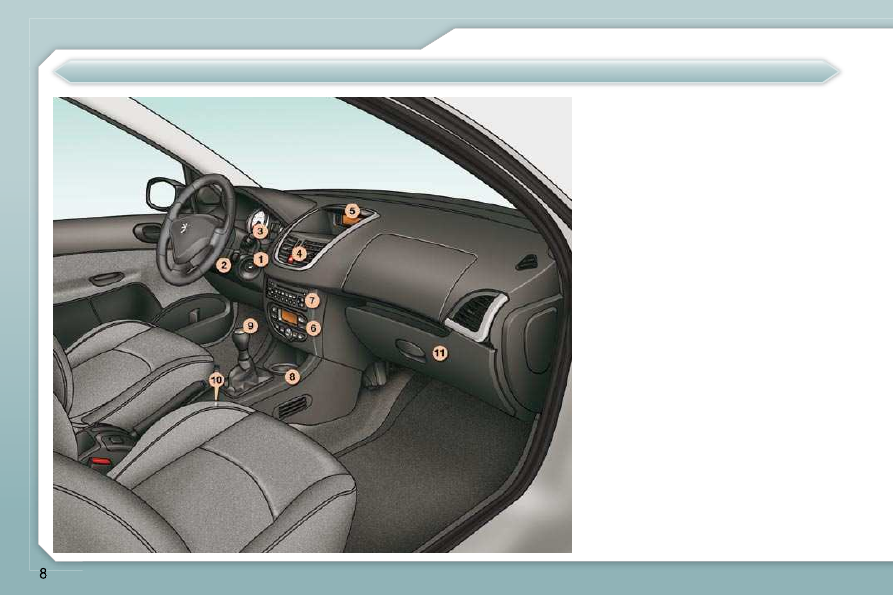

FAMILIARISATION

1. Steering lock.

2. Audio system steering mounted

controls.

3. Wipers/screenwash/trip computer

control stalk.

4. Hazard warning lamps switch.

5. Multifunction screen.

6. Air conditioning and rear screen

and mirrors demist/defrost switch.

7. Audio system.

8. Cup holder.

9. Gear lever.

10. 12 V accessory socket.

11. Glove box.

INSTRUMENTS AND CONTROLS

FAMILIARISATION

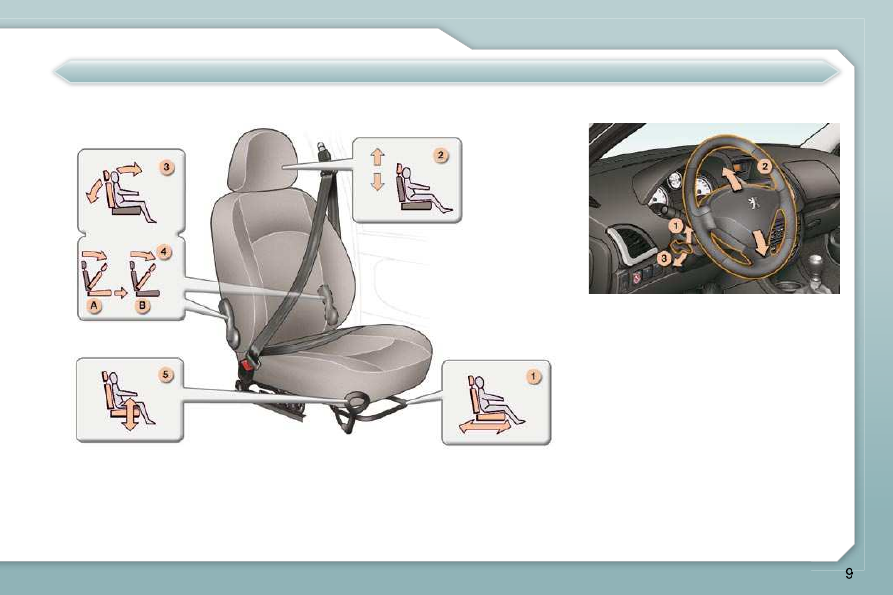

SITTING COMFORTABLY

FRONT SEAT ADJUSTMENTS

   1.   Forwards-backwards adjustment.
  2.   Head restraint height adjustment.
  3.   Seat back angle adjustment.

 37

4. Access to the rear seats (3-door).
5. Height adjustment.

STEERING WHEEL ADJUSTMENT

   1.   Releasing the adjustment mechanism.
  2.   Adjustment of height.
  3.   Locking the adjustment mechanism.

 42

FAMILIARISATION

FRONT SEAT BELT

1. Fastening.

 60

SITTING COMFORTABLY

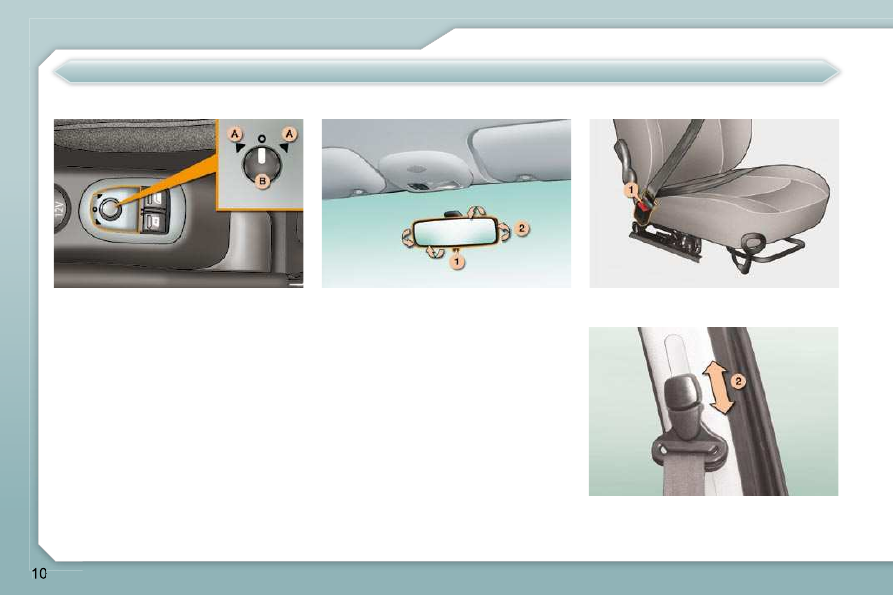

DOOR MIRROR ADJUSTMENT

A. Selection of the mirror.
B. Adjustment of the position of the

mirror glass.

 41

REAR VIEW MIRROR ADJUSTMENT

1. Selection of the "day" position of the

mirror.

2. Mirror adjustment.

 41

2. Height adjustment.

FAMILIARISATION

SEEING CLEARLY

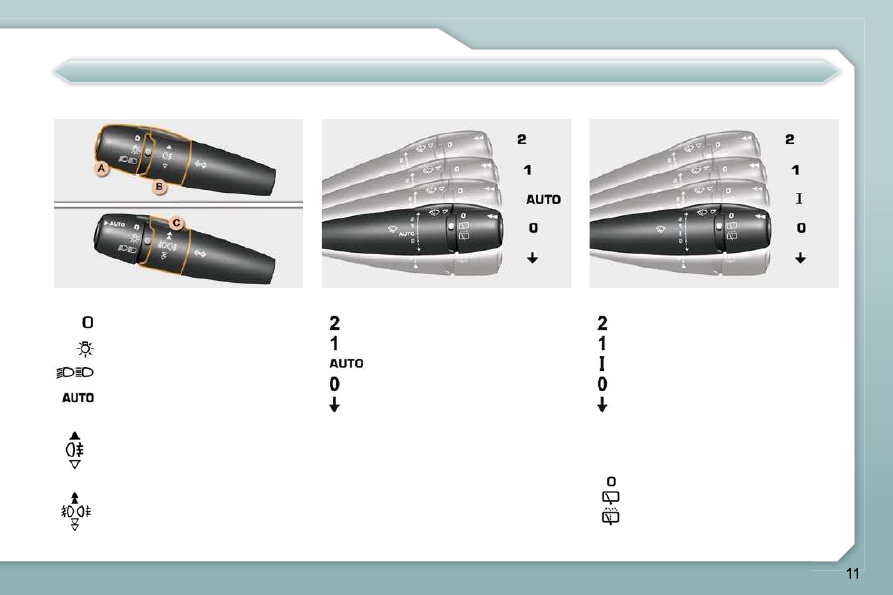

LIGHTING

Ring A

Rear

Ring B

Front

WIPERS

 52

 56

Lighting off.

Dipped/main beam headlamps.

Automatic illumination of
headlamps.

Rear foglamps.

Ring C

Front and rear foglamps.

Park.

Intermittent wipe.

Wash-wipe.

Sidelamps.

 55

Fast wipe.

Normal wipe.

Automatic wipe.

Park.

Single wipe.

Normal wipe.

Intermittent wipe.

Park.

Single wipe.

Wash-wipe: pull the stalk towards you.

FAMILIARISATION

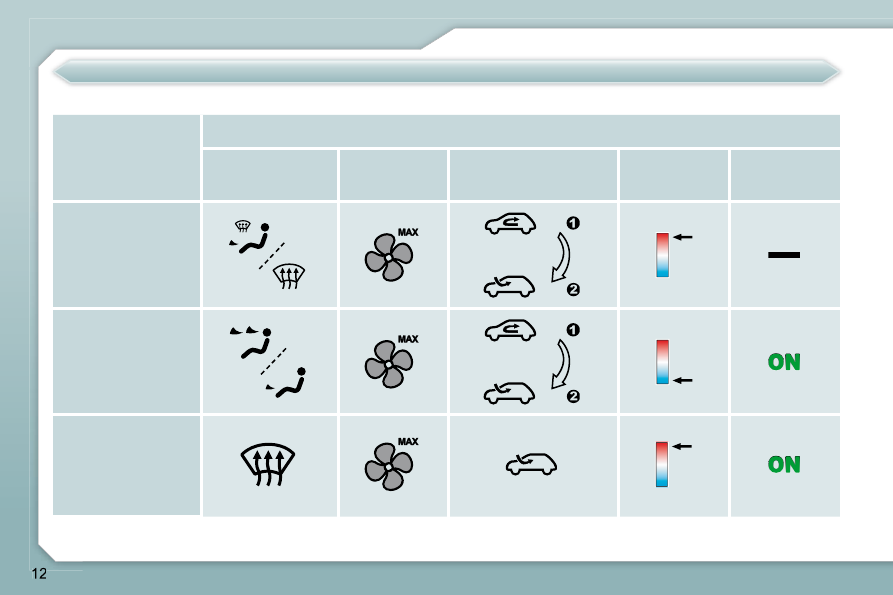

I require...

Manual air conditioning

Air distribution

Air ﬂ ow

Air recirculation/

Intake of exterior air

Temperature

Manual A/C

HOT

COLD

DEMISTING

DEFROSTING

Digital air conditioning : use of the fully automatic mode by pressing the "AUTO" button is recommended.

Recommended interior settings

VENTILATION

FAMILIARISATION

MONITORING

1. When the ignition is on, the orange

and red warning lamps come on.

2. When the engine is running, these

warning lamps should go off.

If warning lamps remain on, refer to the
page concerned.

WARNING LAMPS

 16

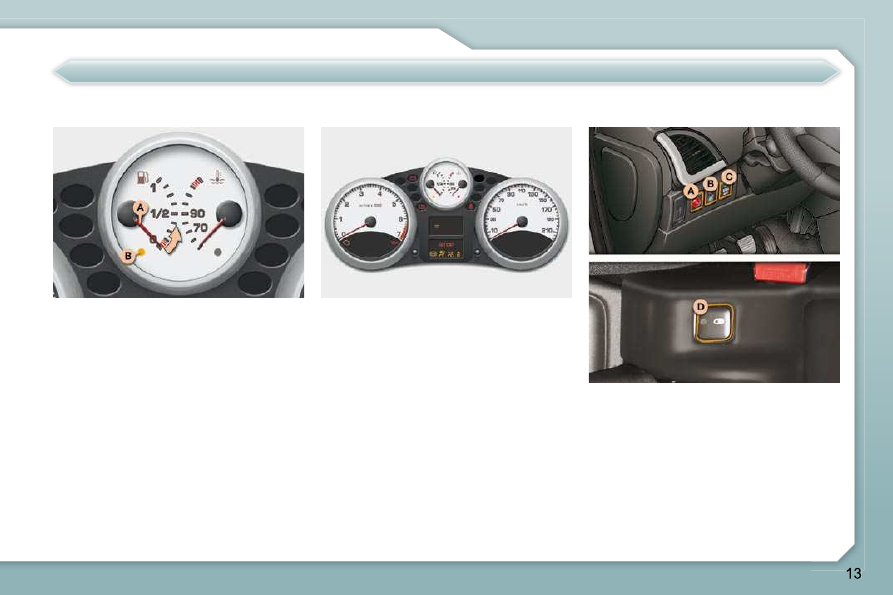

INSTRUMENT PANEL

A. When the ignition is on, the fuel

gauge needle should rise.

B. When the engine is running, the

associated low level warning lamp
should go off.

If the levels are not correct, top up as
required.

 15

CONTROLS

   A.   Passenger's airbag deactivation.
    63
  B.   Heated seats control.
    37
  C.   ESP/ASR deactivation.
    59
  D.   Central locking/unlocking.
    48

FAMILIARISATION

DRIVING SAFELY

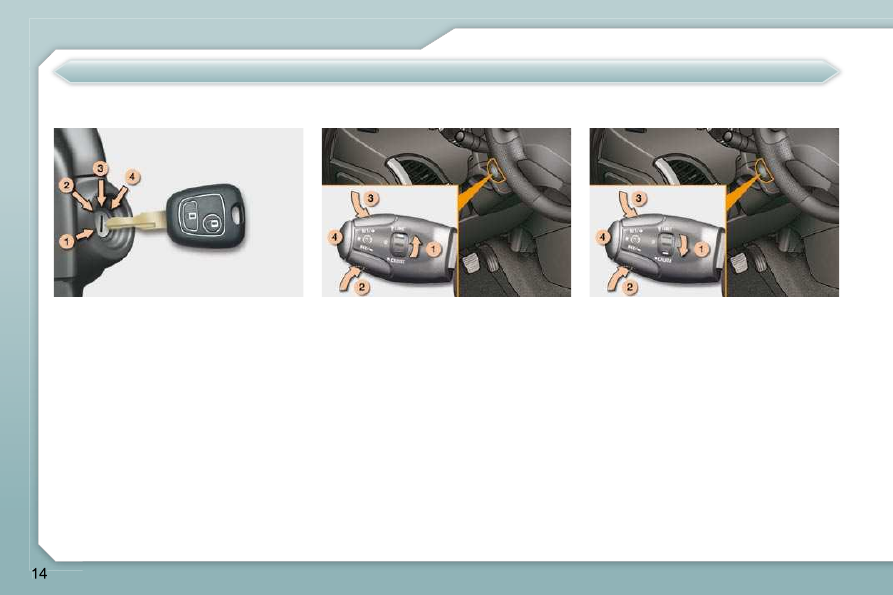

   1.    Stop  position.
  2.    Accessories  position.
  3.    Ignition     on  position.
  4.    Starting  position.

START

 44

CRUISE CONTROL "CRUISE"

   1.   Cruise control mode Selection/Off.
  2.   Decreasing the programmed value.
  3.   Increasing the programmed value.
  4.   Cruise control Off/Resume.

   1.   Speed limiter mode Selection/Off.
  2.   Decreasing the programmed value.
  3.   Increasing the programmed value.
  4.   Speed limiter On/Off.

SPEED LIMITER "LIMIT"

 72

 74

Adjustments must be made with the en-
gine running.

In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on the manual gearbox.

INSTRUMENTS and CONTROLS

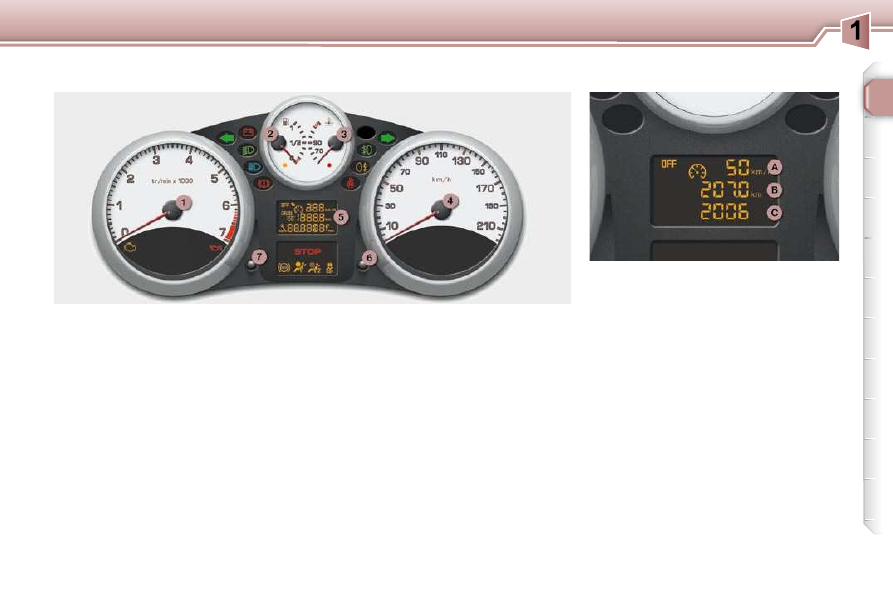

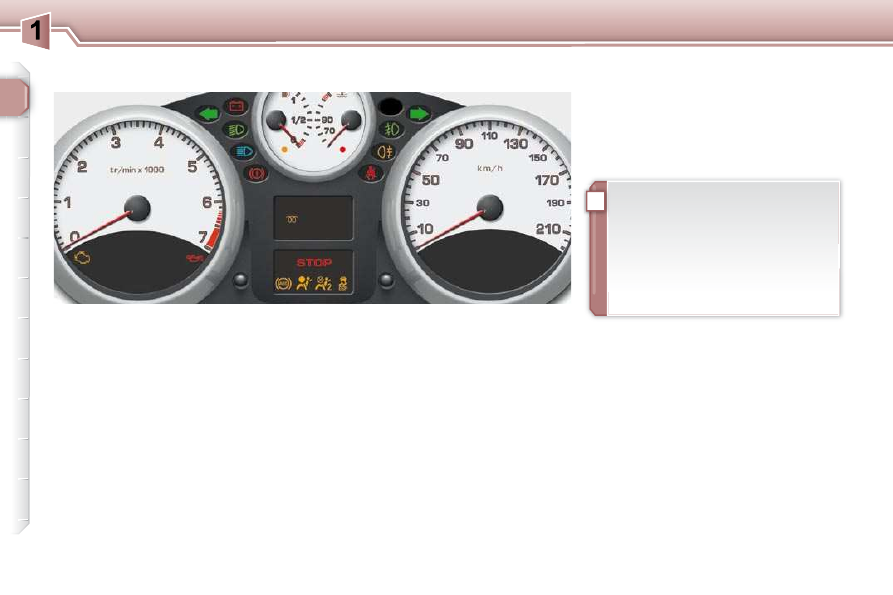

PETROL - DIESEL MANUAL GEARBOX INSTRUMENT PANELS

Panel which groups together the vehicle operation dials and indicator lamps.

4. Speedometer.

Indicates the current speed of the
moving vehicle (km/h).

5. Screen.
6. Screen display zero reset button.

Resets the selected function to zero
(trip distance recorder or service in-
dicator).

7. Instrument panel lighting button.

Adjusts the brightness of the lighting
of the instrument panel.

DIALS

1. Rev counter.

Indicates the speed of rotation of the
engine (x 1 000 rpm).

2. Fuel gauge.

Indicates the quantity of fuel remain-
ing in the tank.

3. Coolant temperature.

Indicates the temperature of the en-
gine coolant (° Celsius).

A. Cruise control.

Speed limiter.

(km/h)

B. Trip distance recorder.

(km)

C. Service indicator.

(km) then,

Distance recorder.

(km)

These three functions are displayed
in succession when the ignition is
switched on.

For  more  information,  refer  to  the  sec-
tion  which  corresponds  to  the  function
and to the display associated with it.

Display

INSTRUMENTS and CONTROLS

The warning lamps may come on

continuously (ﬁ xed) or ﬂ ash.
Certain  warning  lamps  may  come
on in two different modes. Only by
relating  the  type  of  lighting  to  the
operating status of the vehicle can
it  be  ascertained  whether  the  situ-
ation  is  normal  or  whether  a  fault
has occurred.

INDICATOR AND WARNING LAMPS

Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lamps) or of the
occurrence of a fault (warning lamp).

  Associated warnings
The  switching  on  of  certain  warning
lamps  may  be  accompanied  by  an  au-
dible signal and a message on the mul-
tifunction screen.

  When the ignition is switched on
Certain  warning  lamps  come  on  for  a
few seconds when the vehicle's ignition
is switched on.
When the engine is started, these same
warning lamps should switch off.
If  they  remain  on,  before  moving  off,
refer  to  the  information  on  the  warning
lamp concerned.

INSTRUMENTS and CONTROLS

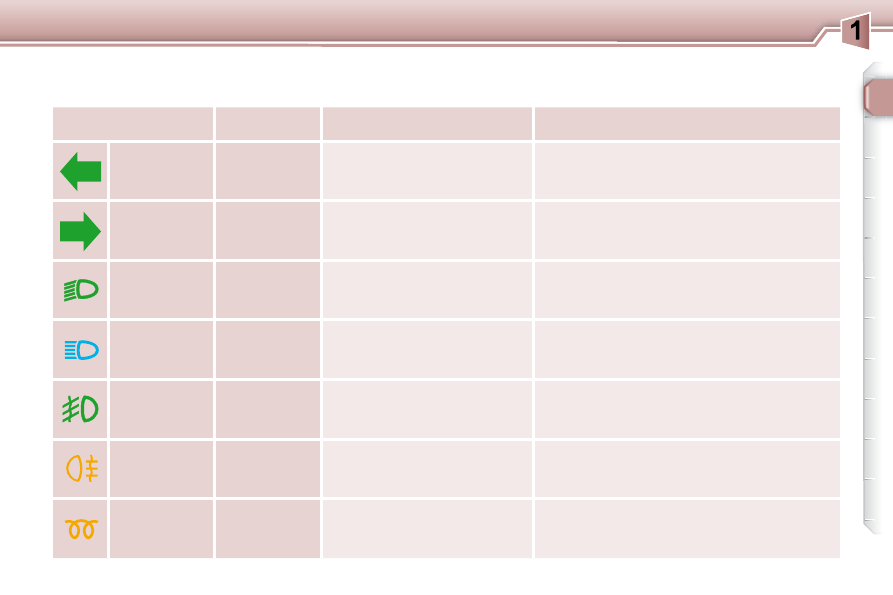

Operation indicator lamps
If one of the following indicator lamps comes on, this conﬁ rms that the corresponding system has come into operation.

Warning lamp

is on

Cause

Action/Observations

Left-hand

direction
indicato r

ﬂ ashing with

buzzer.

The lighting stalk is pushed
down.

Right-hand

direction
indicator

ﬂ ashing with

buzzer.

The lighting stalk is pushed up.

Dipped beam

headlamps

ﬁ xed.

The lighting stalk is in the
"Dipped beam headlamps"
position.

Main beam

headlamps

ﬁ xed.

The lighting stalk is pulled
towards you.

Pull the stalk to return to dipped beam
headlamps.

Front

foglamps

ﬁ xed.

The front foglamps are
switched on.

Turn the ring on the stalk rearwards twice to
switch off the front foglamps.

Rear

foglamps

ﬁ xed.

The rear foglamps are
switched on.

Turn the ring on the stalk rearwards to switch
off the rear foglamps.

Diesel engine

pre-heating

ﬁ xed.

The ignition switch is at the
2nd position (ignition on).

Wait until the warning lamp has switched off
before starting.
The duration for which the warning lamp is on
is determined by the climatic conditions.

INSTRUMENTS and CONTROLS

           Deactivation indicator lamps
If one of the following indicator lamps comes on, this conﬁ rms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message on the multifunction screen.

Warning lamp

is on

Cause

Action/Observations

Passenger's

airbag

system

ﬁ xed.

The control, located on the
passenger's side of the
dashboard, is set to the OFF
position.
The passenger's front airbag is
deactivated.
In this case you can install a
"rear facing" child seat.

Set the control to the ON position to activate
the passenger's front airbag. In this case, do

not ﬁ t a child seat in the rear-facing position.
The passenger's airbag system is put into
service automatically when the vehicle is
started.

ﬂ ashing.

The airbags system is faulty.

Consult a PEUGEOT dealer.

ESP/ASR

ﬁ xed.

The button, located at the
bottom left of the dashboard,
is pressed. Its indicator lamp
is on.
The ESP/ASR is deactivated.
ESP: electronic stability
programme.
ASR: anti-skid regulation.

Press the button to activate the ESP/ASR. Its
indicator lamp goes off.
The ESP/ASR system is activated
automatically when the vehicle is started.

INSTRUMENTS and CONTROLS

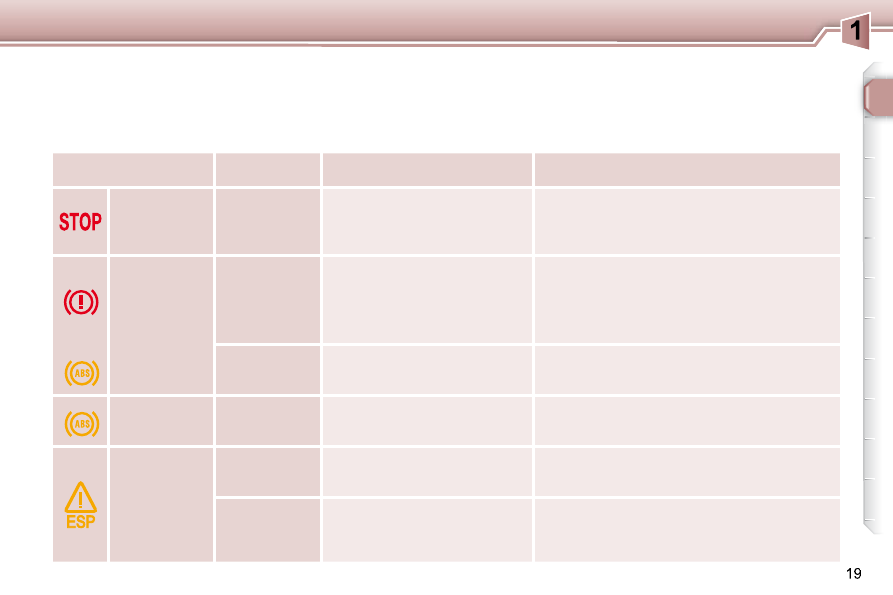

Warning lamps
When the engine is running or the vehicle is being driven, the switching on of one of the following warning lamps indicates a
fault which requires action on the part of the driver.
Any fault resulting in the switching on of a warning lamp must be investigated further by reading the associated message on
the multifunction screen.
If you encounter any problems, do not hesitate to contact a PEUGEOT dealer.

Warning lamp

is on

Cause

Action/Observations

STOP

ﬁ xed,

associated

with another

warning lamp.

It is associated with the
braking, the engine oil pressure
or the coolant temperature.

Stop as soon as it is safe to do so.
Park, switch off the ignition and call a
PEUGEOT dealer.

Braking

ﬁ xed,

associated

with the STOP

warning lamp.

The braking system ﬂ uid level

is too low.

You must stop as soon as it is safe to do so.
Top up with brake ﬂ uid recommended by

PEUGEOT.
If the problem persists, have the system
checked by a PEUGEOT dealer.

ﬁ xed, associated

with the STOP and

ABS warning lamp.

The electronic brake force
distribution (EBFD) system has
a fault.

You must stop as soon as it is safe to do so.
Have it checked by a PEUGEOT dealer.

Anti-lock

Braking

System (ABS)

ﬁ xed.

The anti-lock braking system
has a fault.

The vehicle retains conventional braking.
Drive carefully at reduced speed and contact
a PEUGEOT dealer without delay.

Dynamic

stability

control

(ESP/ASR)

ﬂ ashing.

The ESP/ASR regulation is
active.

The system optimises traction and improves
the directional stability of the vehicle.

ﬁ xed.

Unless it has been deactivated
with the indicator lamp on
the button on, the ESP/ASR
system is faulty.

Have it checked by a PEUGEOT dealer.

Content .. 1 2 3 ..
