Peugeot 108 (2016 year). Instruction

175

In the event of a breakdown

108_en_Chap08_en-cas-pannes_ed01-2016

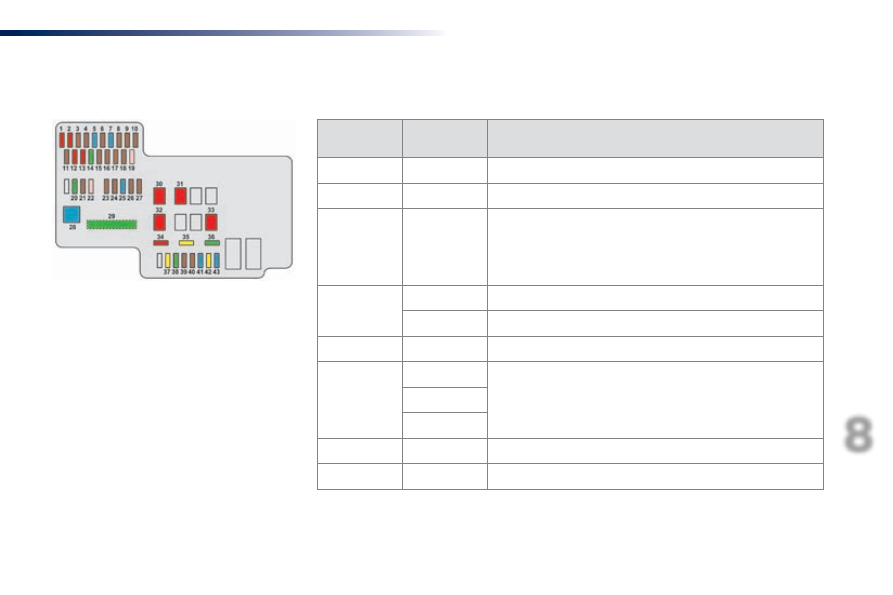

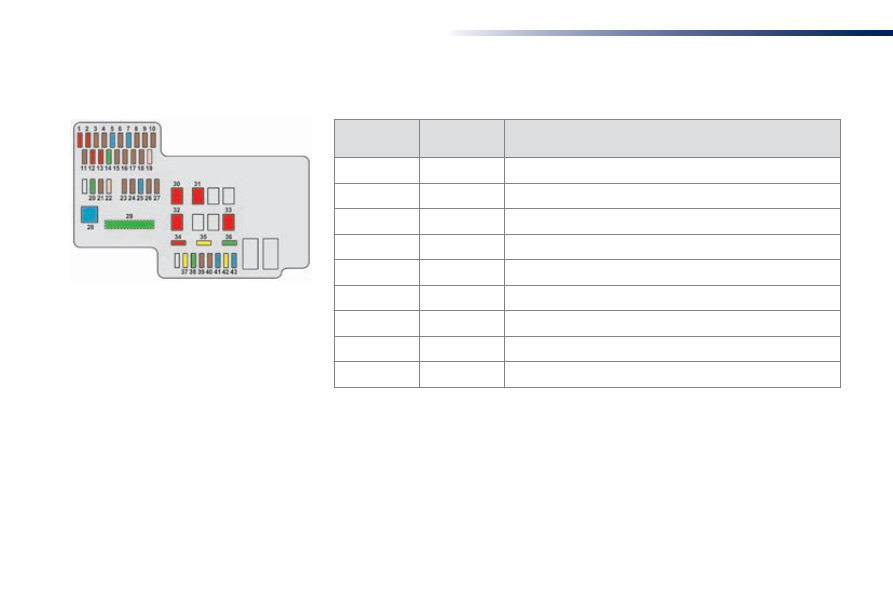

Fuse

N°

Rating

(A)

Functions

7.5

VSC system

Passenger compartment fusebox

29**

125***

Heated rear screen and door mirror heating - Heated seats -
electric fabric roof - ABS system - VSC system - Cooling fan -
Front foglamps - LeD daytime running lamps

electronic gearbox

Stop & Start

Power steering

50*

Cooling fan

ABS system - VSC system

Spare fuse

* Puretech 82 engine.
** Vti 68 engine.
*** this fuse must be replaced only by a

PeugeOt dealer or a qualified workshop.

176

In the event of a breakdown

108_en_Chap08_en-cas-pannes_ed01-2016

Fuse

N°

Rating

(A)

Functions

Spare fuse

Heated rear screen and door mirror heating

ABS system - VSC system

7.5

Front foglamps - Instrument panel - Display screen

7.5

LeD daytime running lamps

Right hand heated seat

electric fabric roof

Left hand heated seat

177

In the event of a breakdown

108_en_Chap08_en-cas-pannes_ed01-2016

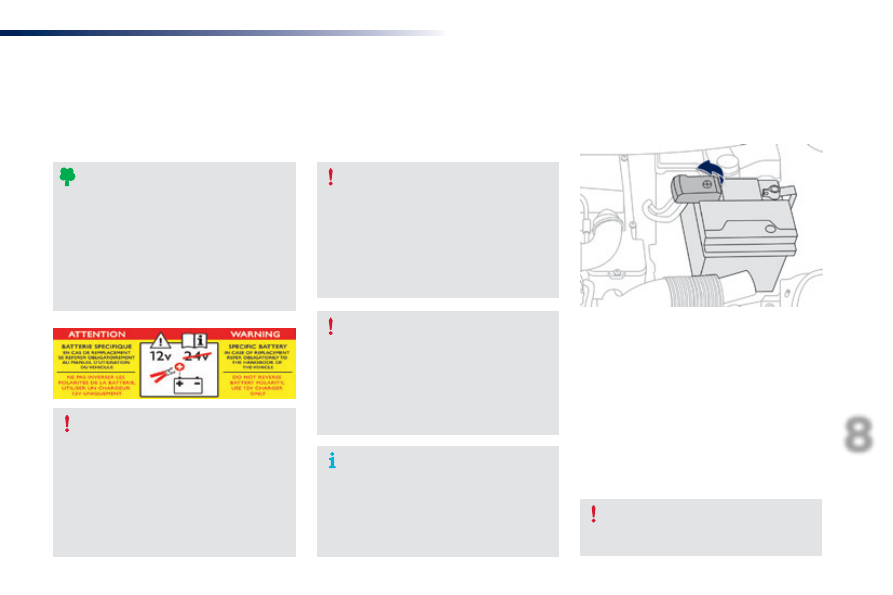

12 V battery

the battery is located under the bonnet.
For access to the (+) terminal:
F release the bonnet using the interior lever,

then the exterior safety catch,

F raise the bonnet and secure it with its stay,
F lift the plastic cover for access to

the (+) terminal.

Access to the battery

Procedure for starting the engine using another battery or charging a discharged battery.

Before doing any work

Immobilise the vehicle: apply the
parking brake, put the gearbox in
neutral, then switch off the ignition.
Check that all electrical equipment is
switched off.

the presence of this label, in particular
with the Stop & Start system, indicates
the use of a 12 V lead-acid battery with
special technology and specification;
the involvement of a PeugeOt dealer
or a qualified workshop is essential
when replacing or disconnecting the
battery.

After refitting the battery, the Stop &
Start system will only be active after a
continuous period of immobilisation of the
vehicle, a period which depends on the
climatic conditions and the state of charge
of the battery (up to about 8 hours).

Do not push the vehicle to start the
engine if you have an etg electronic
gearbox.

general points

Lead-acid starter batteries

Batteries contain harmful substances
such as sulphuric acid and lead.
they must be disposed of in
accordance with regulations and must
not, in any circumstances, be discarded
with household waste.
take used remote control batteries and
vehicle batteries to a special collection
point.

Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area and
away from naked flames and sources
of sparks, so as to avoid the risk of
explosion or fire.
Wash your hands afterwards.

178

In the event of a breakdown

108_en_Chap08_en-cas-pannes_ed01-2016

Starting using another battery

F Start the engine of the vehicle with the

good battery and leave it running for a
few minutes.

F Operate the starter on the broken down

vehicle and let the engine run.

If the engine does not start straight
away, switch off the ignition and wait a
few moments before trying again.

Never try to start the engine by
connecting a battery charger.
Never use a 24 V or higher battery
booster.
First check that the slave battery has a
nominal voltage of 12 V and a capacity
at least equal to that of the discharged
battery.
the two vehicles must not be in contact
with each other.
Switch off the electrical consumers on
both vehicles (audio system, wipers,
lighting, ...).
ensure that the jump lead cables do
not pass close to moving parts of the
engine (cooling fan, belts, ...).
Do not disconnect the (+) terminal when
the engine is running.

F Wait until the engine returns to idle then

disconnect the jump lead cables in the
reverse order.

F Refit the plastic cover to the (+) terminal,

if your vehicle has one.

F Allow the engine to run for at least

30 minutes, by driving or with the vehicle
stationary, so that the battery reaches an
adequate state of charge.

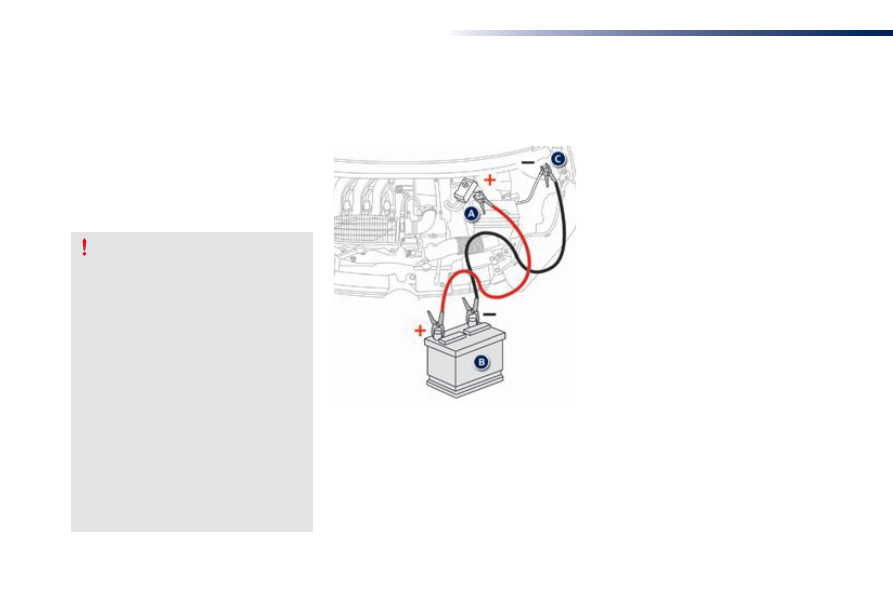

When your vehicle's battery is discharged, the
engine can be started using a slave battery
(external or on another vehicle) and jump lead
cables or a battery booster.

F Raise the plastic cover on the (+) terminal,

if your vehicle has one.

F Connect the red cable to the positive

terminal (+) of the flat battery A (at the (+)
of the slave battery B or the booster.

F Connect one end of the green or black

cable to the negative terminal (-) of the
slave battery B or the booster (or earth
point on the other vehicle).

F Connect the other end of the green or black

cable to the earth point C on the broken
down vehicle.

179

In the event of a breakdown

108_en_Chap08_en-cas-pannes_ed01-2016

Never try to charge a frozen battery.
If the battery has been frozen, have it
checked by a PeugeOt dealer or a
qualified workshop, who will check that
the internal components have not been
damaged and the casing is not cracked,
which could cause a leak of toxic and
corrosive acid.

Charging the battery using
a battery charger

F Disconnect the battery from the vehicle.
F Follow the instructions for use provided by

the manufacturer of the charger.

F Connect the battery starting with the

positive terminal (+).

F Check that the terminals and connectors

are clean. If they are covered with sulphate
(whitish or greenish deposit), remove them
and clean them.

Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.

Before disconnecting the battery

Wait 2 minutes after switching off the ignition
before disconnecting the battery.
Close the windows, the fabric roof and the
doors before disconnecting the battery.

Following reconnection of the
battery

Following reconnection of the battery, switch on
the ignition and wait 1 minute before starting to
permit initialisation of the electronic systems.
However, if problems remain following this
operation, contact a PeugeOt dealer or a
qualified workshop.

180

In the event of a breakdown

108_en_Chap08_en-cas-pannes_ed01-2016

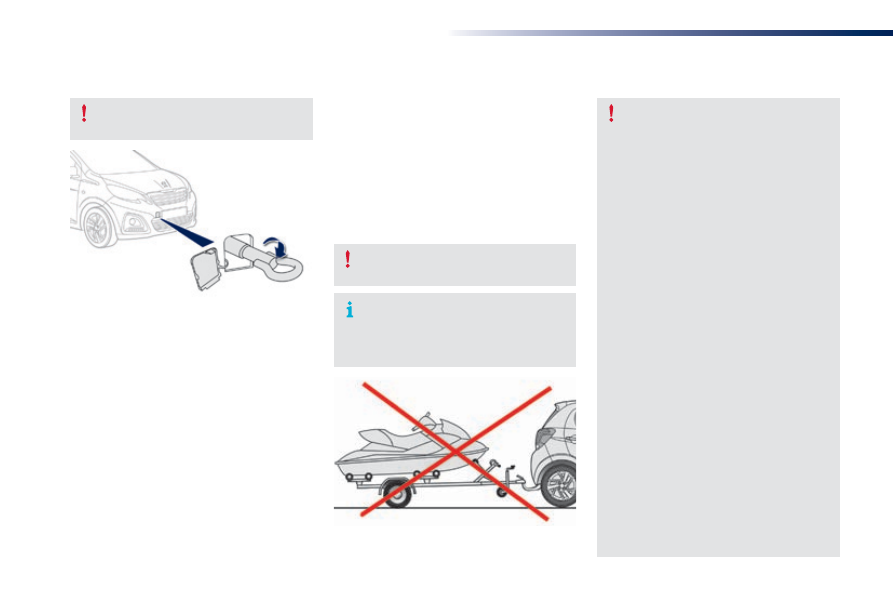

towing the vehicle

F take the removable towing eye stowed in

the tool box, under the boot carpet.

F unclip the plastic cover, by pressing at the

bottom.

F Fully screw in the towing eye.

general recommendations

Observe the legislation in force in your
country.
ensure that the weight of the towing
vehicle is higher than that of the towed
vehicle.
the driver must remain at the wheel of
the towed vehicle and must have a valid
driving licence.
When towing a vehicle with all four
wheels on the ground, always use an
approved towing arm; rope and straps
are prohibited.
the towing vehicle must move off
gently.
When towing a vehicle with the engine
off, there is no longer any power
assistance for braking or steering.
In the following cases, you must always
call on a professional recovery service:
-

vehicle broken down on a motorway
or fast road,

four-wheel drive vehicle,

when it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking
brake,

towing with only two wheels on the
ground,

where there is no approved towing
arm available...

Your vehicle can only be towed from
the front.

F Install the towing arm.
F With a manual gearbox: put the gear lever

into neutral.

F With an etg gearbox: place the selector at

position N.

Never use the radiator crossmember.

When being towed, the speed limiter
should be dectivated, as well as the
"Active City Brake" system (if fitted to
your vehicle).

Your vehicle is not designed to tow a trailer or
use a towbar.

Failure to follow this advice may result in
damage to certain components (braking,
transmission, ...) and the absence of braking
assistance when the engine is restarted.
F unlock the steering and release the

parking brake.

F Switch on the hazard warning lamps on

both vehicles.

181

Technical data

108_en_Chap09_caracteristiques-techniques_ed01-2016

Petrol engine

Vti 68

Vti 68 S&S

Puretech 82

gearbox

Manual

(5-speed)

etg electronic

(5-speed)

Manual

(5-speed)

Manual

(5-speed)

Model code:
P...

SCFBB
SCFBC

...B1A
...H1A
...P1A

...W1A

SCFBB
SCFBC

...B1C
...H1C
...P1C

...W1C

SCFB2
SCFB3

...B1B
...H1B
...P1B

...W1B

AHMtB
AHMtC

...B1A
...H1A
...P1A

...W1A

Cubic capacity (cc)

998

1 199

Bore x stroke (mm)

71 x 84

75 x 90.5

eu standard maximum power (kW)*

Max power engine speed (rpm)

6 000

5 750

eu standard max torque (Nm)

118

Max torque engine speed (rpm)

4 300

2 750

Fuel

unleaded petrol

Catalytic converter

Yes

engine oil capacity in litres (with filter
replacement)

3.2

3.25

* the maximum power corresponds to the value type-approved on a test bed, under conditions defined in european legislation

(Directive 1999/99/eC).

engines

...B1: 3-door version.
...H1: 5-door version.

...P1: 3-door convertible version.
...W1: 5-door convertible version.

182

Technical data

108_en_Chap09_caracteristiques-techniques_ed01-2016

engine

Vti 68

Vti 68 S&S

Puretech 82

gearbox

Manual

(5-speed)

etg electronic

(5-speed)

Manual

(5-speed)

Manual

(5-speed)

Model code:
P...

SCFBB
SCFBC

...B1A
...H1A
...P1A

...W1A

SCFBB
SCFBC

...B1C
...H1C
...P1C

...W1C

SCFB2
SCFB3

...B1B
...H1B
...P1B

...W1B

AHMtB
AHMtC

...B1A
...H1A
...P1A

...W1A

Kerb weight

840

860

855

865

unladen weiight*

915

935

930

940

gross vehicle weight (gVW)

1 240

gross train weight (gtW)

1 240

Weights (in kg)

the design of your vehicle does not permit the fitting of a towbar.

* the unladen weight is equal to the kerb weight + driver (75 kg).

...B1: 3-door version.
...H1: 5-door version.

...P1: 3-door convertible version.
...W1: 5-door convertible version.

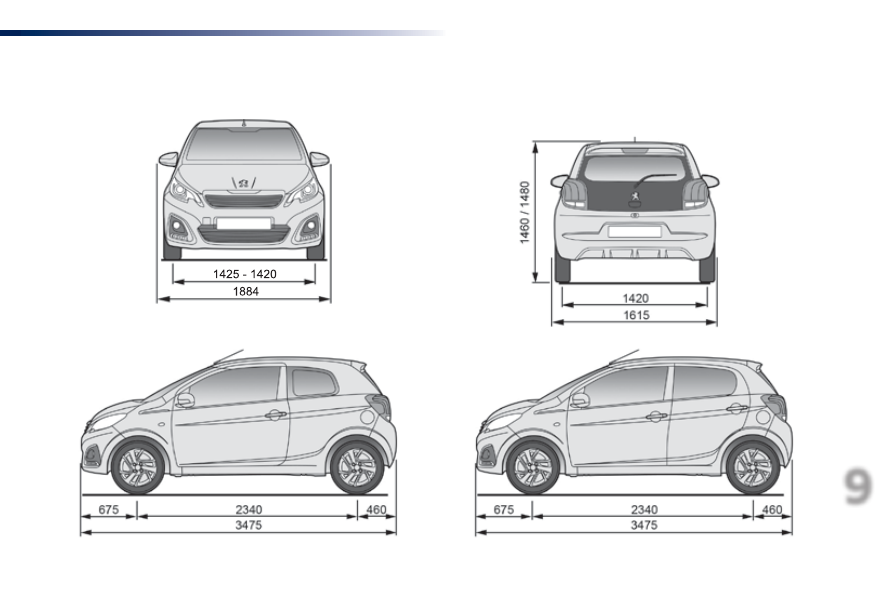

184

Technical data

108_en_Chap09_caracteristiques-techniques_ed01-2016

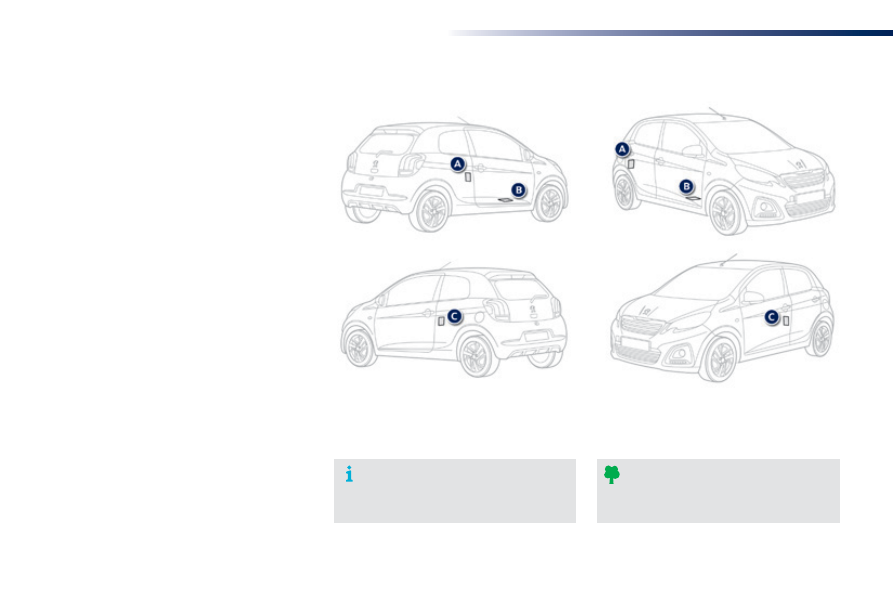

Identification markings

A. Vehicle Identification Number

(VIN) on the body.

this number is engraved on the middle door
pillar, or the rear door pillar, right hand side.

the tyre pressures must be checked
when cold, at least once a month.

Low tyre pressures increase fuel
consumption.

B. Vehicle Identification Number

(VIN) in the passenger
compartment.

this is engraved on the crossmember, under
the front right seat.

C. tyre label.

this label on the middle door pillar, driver's
side, carries the following information:
-

the tyre sizes,

the tyre pressures.

3-door

5-door

Audio and Telematics

185

108_en_Chap10a_Autoradio-toyota-tactile-1_ed01-2016

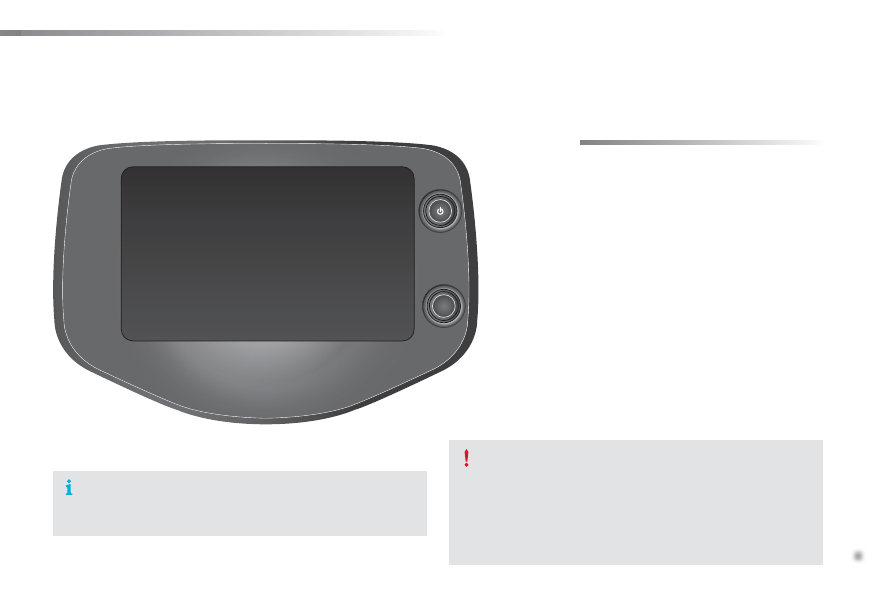

7-inch touch screen

Multimedia system - Bluetooth

telephone - Mirror Screen

- gPS navigation

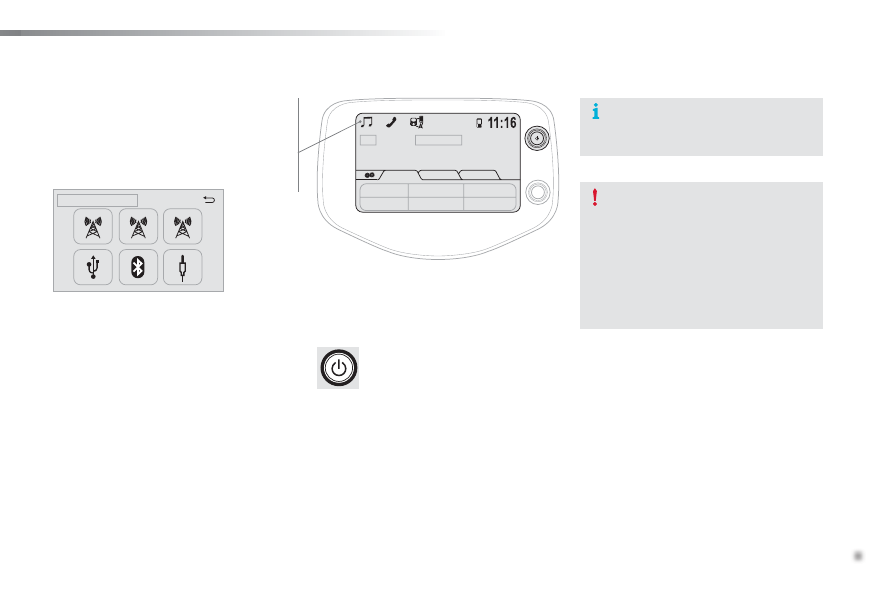

First steps

186

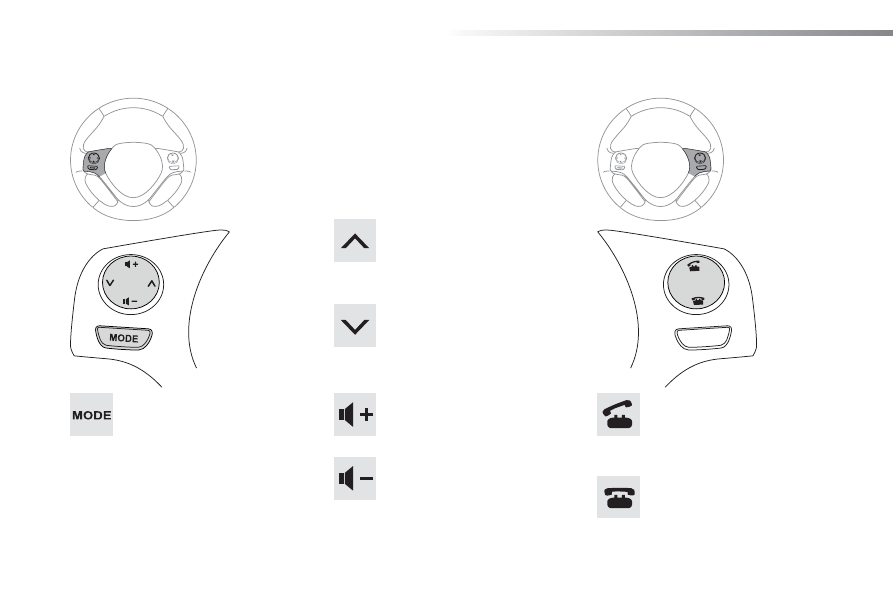

Steering mounted controls

188

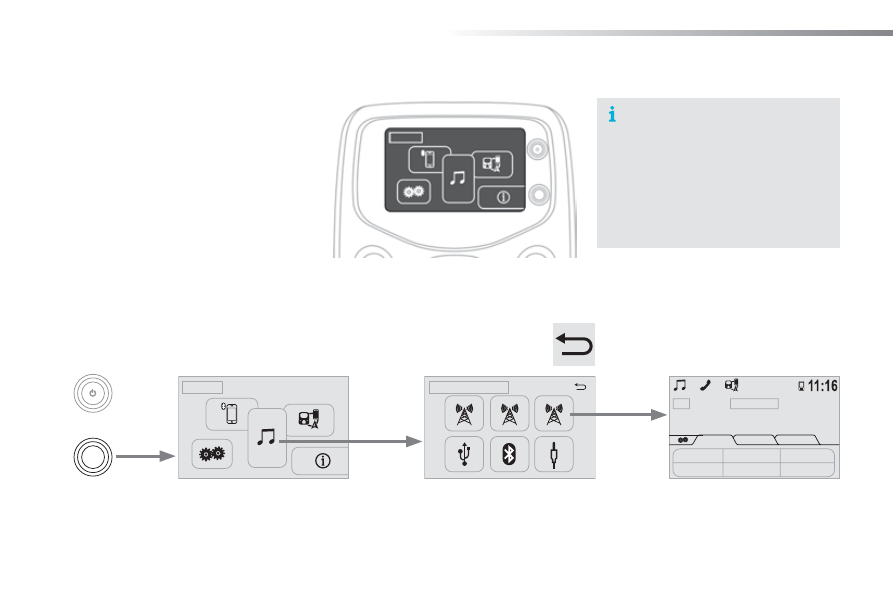

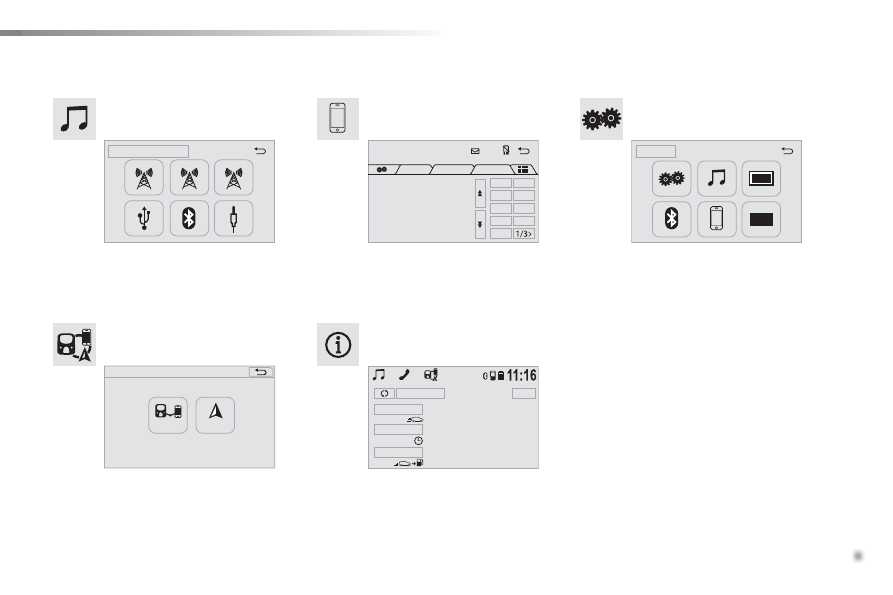

Menus 189

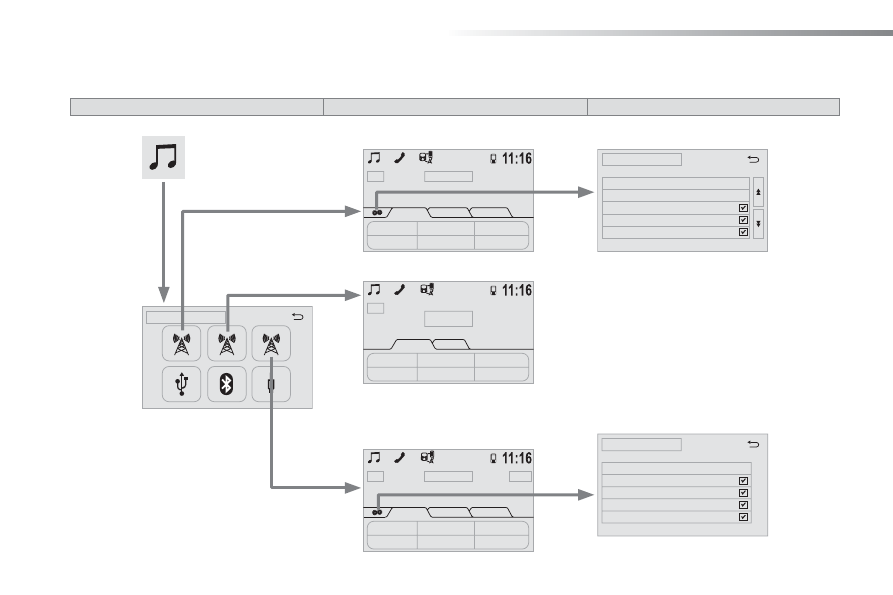

Audio source

190

Radio 194
DAB (Digital Audio Broadcasting) radio

196

Media 198
telephone 202
Configuration

Navigation 220
Frequently asked questions

231

As a safety measure, the driver must carry out operations which
require prolonged attention while the vehicle is stationary.
to prevent discharging of the battery, the system cuts off
following activation of energy economy mode, 20 minutes after
switching off the engine on vehicles fitted with the Keyless entry
and Starting system.

Contents

the temperature of a telephone may increase when connected
by MirrorLink

. In this case, the telephone battery discharges as

a safety measure.

Audio and Telematics

187

108_en_Chap10a_Autoradio-toyota-tactile-1_ed01-2016

Press to mute the sound.
A long press reinitialises the system.

Volume (each source is independent).

Select audio source (depending on version):
-

"FM" / "AM" / "DAB"* radio.

"uSB" player.

telephone connected by Bluetooth and
with Bluetooth streaming.

Media player connected to the auxiliary
socket (jack, cable not supplied).

Short-cuts: using virtual buttons in the top bar
of the screen, it is possible to go directly to the
choice of audio source, telephone functions or
"Mirror Screen

" mode.

* Depending on equipment.

to clean the screen, use a soft non-
abrasive cloth (spectacles cloth) without
any additional product or a damp cloth.
Do not use pointed objects on the
screen.
Do not touch the screen with wet hands.

Pressing with more than one finger is not
recognised.
the screen can be used when wearing gloves.

Audio and Telematics

188

108_en_Chap10a_Autoradio-toyota-tactile-1_ed01-2016

Steering mounted controls

Change multimedia source.
Press and hold: mute / restore
sound from the radio or pause media
sources.

Increase volume.

Decrease volume.

Reject the incoming call.
end the call in progress.
Other than on a call: press to return
to the radio screen or the clock if the
radio is not active.

Radio: change to preset radio
stations in ascending order.
Media: next track.

Radio: change to preset radio
stations in descending order.
Media: previous track.

Accept an incoming call.
Other than on a call: press to open
the list of contacts; a second press
opens the calls history.

Audio and Telematics

189

108_en_Chap10a_Autoradio-toyota-tactile-1_ed01-2016

Menus

Audio source

Configuration

telephone

Connection

Vehicle information

Select an audio source, a radio station, view
photos or videos.

Adjust settings for sounds or brightness
and activate or deactivate certain settings
according to use.

Connect a telephone by Bluetooth

Run certain applications on a your smartphone
in the touch screen.
enter navigation settings and select a
destination.

Access the trip computer.

Peugeot 108 (2016 year). Instruction - part 12
