Peugeot 205 (954 cc, 1124 cc, 1360 cc, 1580 cc & 1905 cc). Manual - part 27

12•

22

Wiring diagrams

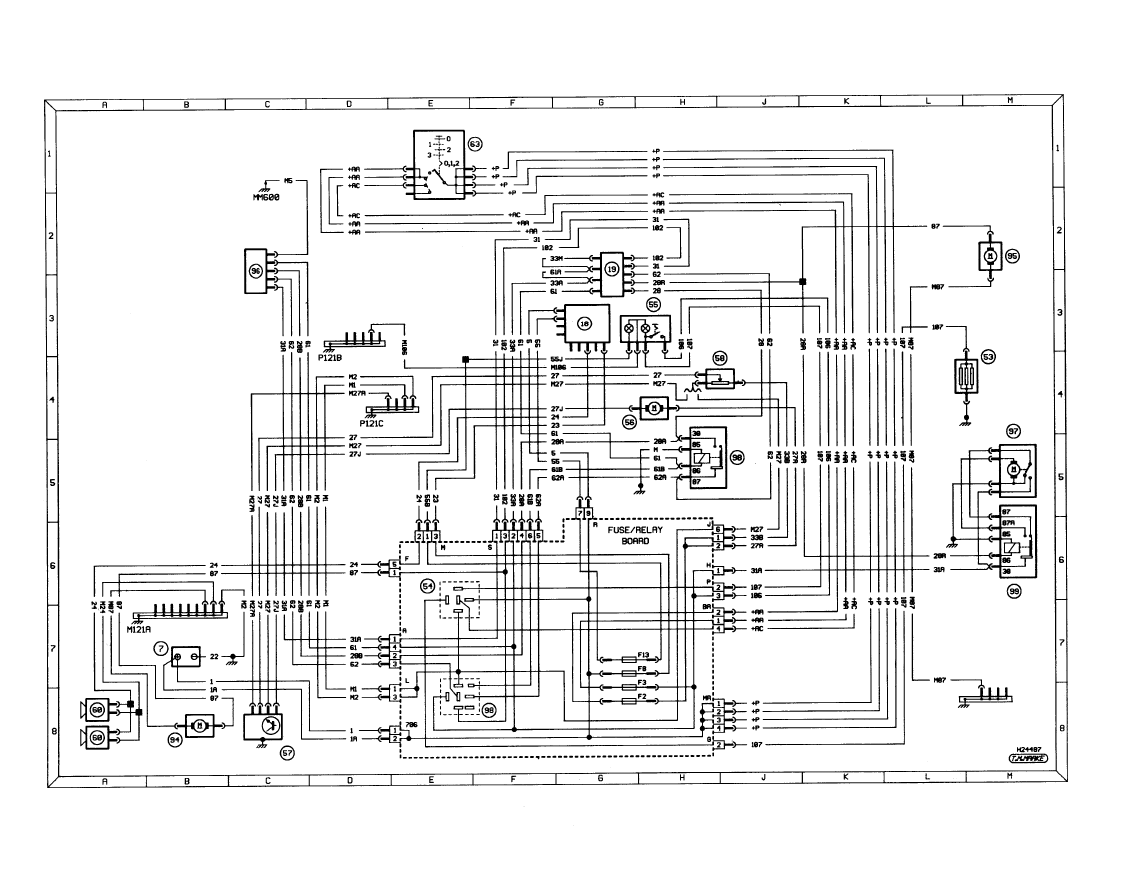

Diagram 3:  Typical ancillary circuits - wash/wipe, horn, heater blower and heated rear window

Wiring diagrams  12•

23

12

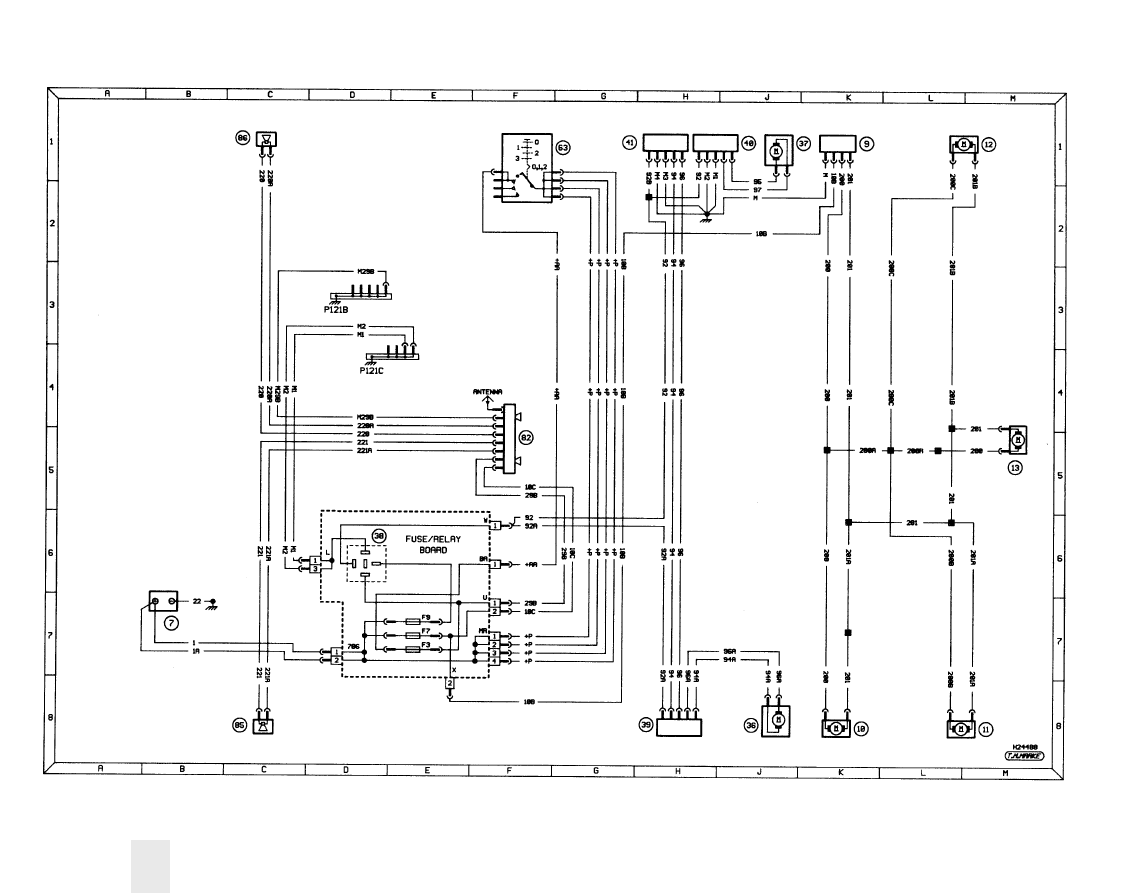

Diagram 3a:  Typical ancillary circuits - electric windows, central locking and radio/cassette

12•

24

Wiring diagrams

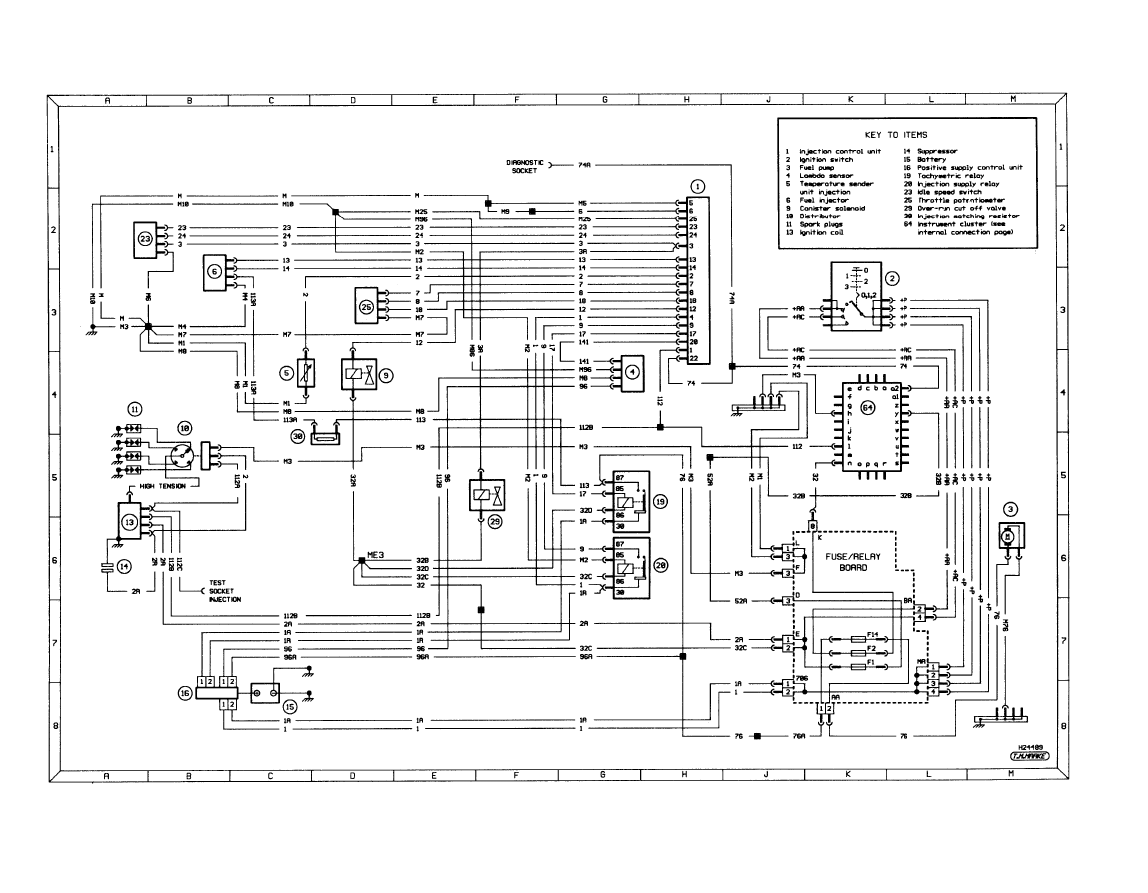

Supplementary diagram A:  Typical engine management (TU3M/Z and TU3FM/L engine models)

Wiring diagrams  12•

25

12

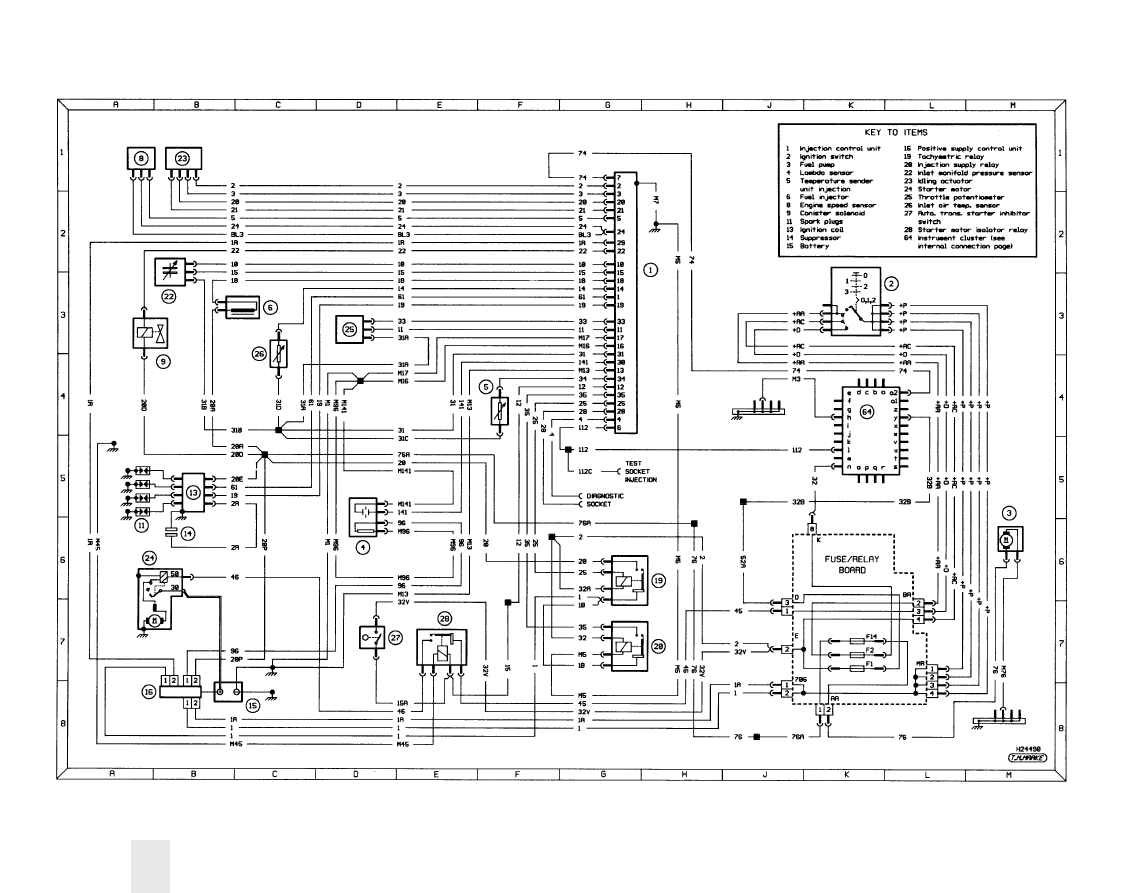

Supplementary diagram B:  Typical engine management (TU1M/L and XU5M3/Z/L engine models)

12•

26

Wiring diagrams

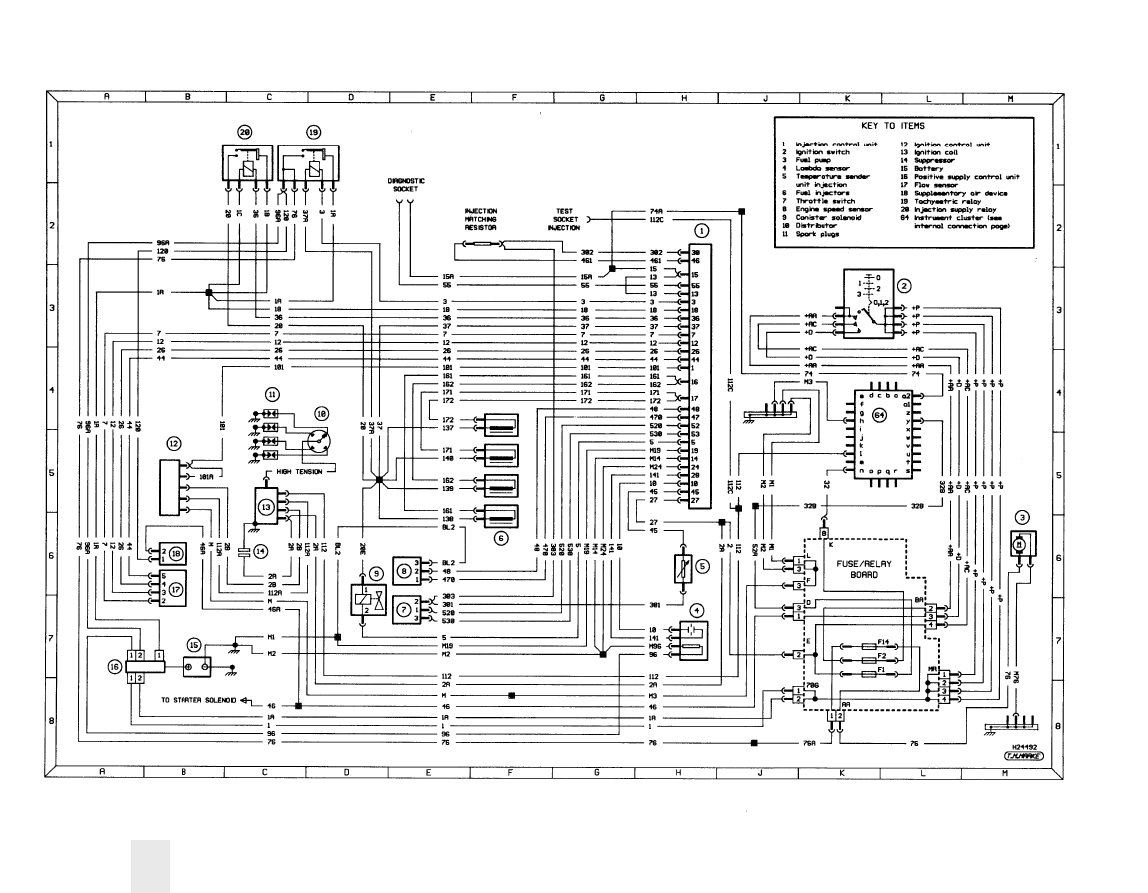

Supplementary diagram C:  Typical engine management (XU9J1/Z/L engine models)

Wiring diagrams  12•

27

12

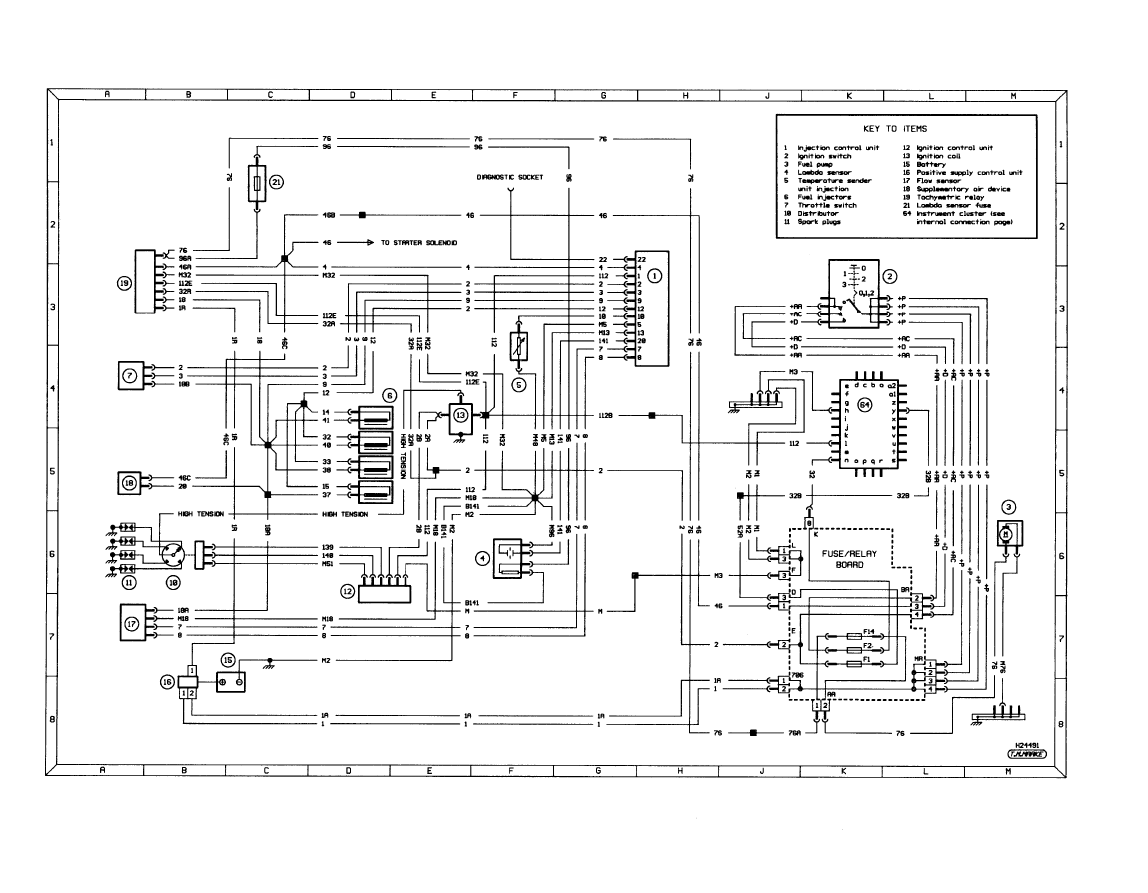

Supplementary diagram D:  Typical engine management (XU9JA/L engine models)

REF

Dimensions and weights

Note: All figures are approximate, and may vary according to model. Refer to manufacturer’s data for exact figures.

Dimensions

Overall length  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3705 mm

Overall width:

Basic, GL, GE and Van  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1562 mm

All other models except Cabriolet  . . . . . . . . . . . . . . . . . . . . . . . . . . .

1572 mm

Cabriolet  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1589 mm

Overall height  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1372 to 1381 mm

Wheelbase  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2420 mm

Front track:

All models except SR, GT, Cabriolet and GTI  . . . . . . . . . . . . . . . . . .

1350 mm

SR and GT models  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1364 mm

1.6 GTI and Cabriolet models  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1392 mm

1.9 GTI models  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1383 mm

Rear track:

All models except SR, GT, Cabriolet and GTI  . . . . . . . . . . . . . . . . . .

1300 mm

SR and GT models  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1314 mm

1.6 GTI and Cabriolet models  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1328 mm

1.9 GTI models  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1344 mm

Weights

Kerb weight*  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

740 to 935 kg

Maximum towing weight:

TU9 and TU1 engines  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

700 kg

All other engines  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

800 kg

Maximum roof rack load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

50 kg

*Exact kerb weight varies depending on model - refer to VIN plate for details

Dimensions and weights . . . . . . . . . . . . . . . .REF•1
Conversion factors  . . . . . . . . . . . . . . . . . . . .REF•2
Buying spare parts  . . . . . . . . . . . . . . . . . . . .REF•3
Vehicle identification  . . . . . . . . . . . . . . . . . . .REF•3
General repair procedures  . . . . . . . . . . . . . .REF•4
Jacking and vehicle support  . . . . . . . . . . . . .REF•5

Radio/cassette unit anti-theft system   . . . . .REF•5
Tools and working facilities  . . . . . . . . . . . . . .REF•6
MOT test checks . . . . . . . . . . . . . . . . . . . . . .REF•8
Fault finding  . . . . . . . . . . . . . . . . . . . . . . . .REF•12
Glossary of technical terms  . . . . . . . . . . . .REF•20
Index  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .REF•25

Reference

REF•1

REF•2

Conversion factors

Length (distance)

Inches (in)

x 25.4

= Millimetres (mm)

x 0.0394 = Inches (in)

Feet (ft)

x 0.305

= Metres (m)

x 3.281 = Feet (ft)

Miles

x 1.609

= Kilometres (km)

x 0.621 = Miles

Volume (capacity)

Cubic inches (cu in; in

3

)

x 16.387 = Cubic centimetres (cc; cm

3

)

x 0.061 = Cubic inches (cu in; in

3

)

Imperial pints (Imp pt)

x 0.568 = Litres (l)

x 1.76

= Imperial pints (Imp pt)

Imperial quarts (Imp qt)

x 1.137 = Litres (l)

x 0.88

= Imperial quarts (Imp qt)

Imperial quarts (Imp qt)

x 1.201 = US quarts (US qt)

x 0.833 = Imperial quarts (Imp qt)

US quarts (US qt)

x 0.946 = Litres (l)

x 1.057 = US quarts (US qt)

Imperial gallons (Imp gal)

x 4.546 = Litres (l)

x 0.22

= Imperial gallons (Imp gal)

Imperial gallons (Imp gal)

x 1.201 = US gallons (US gal)

x 0.833 = Imperial gallons (Imp gal)

US gallons (US gal)

x 3.785 = Litres (l)

x 0.264 = US gallons (US gal)

Mass (weight)

Ounces (oz)

x 28.35 = Grams (g)

x 0.035 = Ounces (oz)

Pounds (lb)

x 0.454 = Kilograms (kg)

x 2.205 = Pounds (lb)

Force

Ounces-force (ozf; oz)

x 0.278 = Newtons (N)

x 3.6

= Ounces-force (ozf; oz)

Pounds-force (lbf; lb)

x 4.448 = Newtons (N)

x 0.225 = Pounds-force (lbf; lb)

Newtons (N)

x 0.1

= Kilograms-force (kgf; kg)

x 9.81

= Newtons (N)

Pressure

Pounds-force per square inch

x 0.070 = Kilograms-force per square

x 14.223 = Pounds-force per square inch

(psi; lbf/in

2

; lb/in

2

)

centimetre (kgf/cm

2

; kg/cm

2

)

(psi; lbf/in

2

; lb/in

2

)

Pounds-force per square inch

x 0.068 = Atmospheres (atm)

x 14.696 = Pounds-force per square inch

(psi; lbf/in

2

; lb/in

2

)

(psi; lbf/in

2

; lb/in

2

)

Pounds-force per square inch

x 0.069 = Bars

x 14.5

= Pounds-force per square inch

(psi; lbf/in

2

; lb/in

2

)

(psi; lbf/in

2

; lb/in

2

)

Pounds-force per square inch

x 6.895 = Kilopascals (kPa)

x 0.145 = Pounds-force per square inch

(psi; lbf/in

2

; lb/in

2

)

(psi; lbf/in

2

; lb/in

2

)

Kilopascals (kPa)

x 0.01

= Kilograms-force per square

x 98.1

= Kilopascals (kPa)

centimetre (kgf/cm

2

; kg/cm

2

)

Millibar (mbar)

x 100

= Pascals (Pa)

x 0.01

= Millibar (mbar)

Millibar (mbar)

x 0.0145 = Pounds-force per square inch

x 68.947 = Millibar (mbar)

(psi; lbf/in

2

; lb/in

2

)

Millibar (mbar)

x 0.75

= Millimetres of mercury (mmHg)

x 1.333 = Millibar (mbar)

Millibar (mbar)

x 0.401 = Inches of water (inH

2

O)

x 2.491 = Millibar (mbar)

Millimetres of mercury (mmHg)

x 0.535 = Inches of water (inH

2

O)

x 1.868 = Millimetres of mercury (mmHg)

Inches of water (inH

2

O)

x 0.036 = Pounds-force per square inch

x 27.68 = Inches of water (inH

2

O)

(psi; lbf/in

2

; lb/in

2

)

Torque (moment of force)

Pounds-force inches

x 1.152 = Kilograms-force centimetre

x 0.868 = Pounds-force inches

(lbf in; lb in)

(kgf cm; kg cm)

(lbf in; lb in)

Pounds-force inches

x 0.113 = Newton metres (Nm)

x 8.85

= Pounds-force inches

(lbf in; lb in)

(lbf in; lb in)

Pounds-force inches

x 0.083 = Pounds-force feet (lbf ft; lb ft)

x 12

= Pounds-force inches

(lbf in; lb in)

(lbf in; lb in)

Pounds-force feet (lbf ft; lb ft)

x 0.138 = Kilograms-force metres

x 7.233 = Pounds-force feet (lbf ft; lb ft)

(kgf m; kg m)

Pounds-force feet (lbf ft; lb ft)

x 1.356 = Newton metres (Nm)

x 0.738 = Pounds-force feet (lbf ft; lb ft)

Newton metres (Nm)

x 0.102 = Kilograms-force metres

x 9.804 = Newton metres (Nm)

(kgf m; kg m)

Power

Horsepower (hp)

x 745.7 = Watts (W)

x 0.0013 = Horsepower (hp)

Velocity (speed)

Miles per hour (miles/hr; mph)

x 1.609 = Kilometres per hour (km/hr; kph) x 0.621 = Miles per hour (miles/hr; mph)

Fuel consumption*

Miles per gallon (mpg)

x 0.354 = Kilometres per litre (km/l)

x 2.825 = Miles per gallon (mpg)

Temperature

Degrees Fahrenheit = (°C x 1.8) + 32

Degrees Celsius (Degrees Centigrade; °C) = (°F - 32) x 0.56

* It is common practice to convert from miles per gallon (mpg) to litres/100 kilometres (l/100km), where mpg x l/100 km = 282
