Headlight beam
adjustment switch

Models up to 1992

15 The switch is integral with the adjustment
mechanism. Refer to Section 8 for details of
how to remove the mechanism.

Models from 1993

16 Carefully prise the switch from the facia
panel using a small screwdriver (take care not
to damage the trim), then disconnect the
wiring plug and withdraw the switch.
17 Refitting is a reversal of removal.

Heater blower motor switch

18 The switch is integral with the heater
control panel, and cannot be renewed
separately. Removal and refitting details for
the heater control panel are given in Chapter 3.

Centre
console-mounted switches

Front switches

19 Prise out the trim panel from the bottom
of the oddments tray below the handbrake
lever (see illustration).
20 Prise off the switch trim panel (see
illustration).
21 Prise the switch from the centre console,
and disconnect the wiring plug (see
illustration).
22 Refitting is a reversal of removal.

Rear switches

23 Prise the rear ashtray from the centre
console.

24 Prise off the switch trim panel (see
illustration).
25 Prise the switch from the centre console,
and disconnect the wiring plug (see illustration).
26 Refitting is a reversal of removal.

Door-mounted switches

27 Prise the switch from its location in the
door, and disconnect the wiring plug.
28 Refitting is a reversal of removal.

Courtesy light switches

Door-pillar-mounted switches

29 Open the door, then prise the rubber
gaiter from the switch (see illustration).
30 Remove the securing screw, then
carefully withdraw the switch from the door
pillar. Disconnect the wiring connector as it
becomes accessible, bearing in mind the
danger of losing the wiring connector (see
Haynes Hint).

31 Refitting is a reversal of removal, but
ensure that the rubber gaiter is correctly
seated on the switch.

Roof panel-mounted switches

32 The switches are integral with the lights,
and cannot be renewed separately.

Luggage compartment
light switch

Saloon models

33 Open the boot lid.
34 The switch is located in a bracket at the
rear of the boot, and is operated by the boot
lid hinge.
35 Release the clips, and pull the switch from
the bracket (see illustration).
36 Disconnect the wiring plug and withdraw
the switch.
37 Refitting is a reversal of removal.

Estate models

38 The light is operated by a tilt-sensitive
switch fitted inside the tailgate.
39 Open the tailgate.
40 Remove the screws, and withdraw the
plastic trim panel from inside the tailgate.
41 Working around the edge of the carpeted
trim panel, release the securing clips, ideally
using a forked tool to avoid breaking the clips.
Withdraw the carpeted panel.

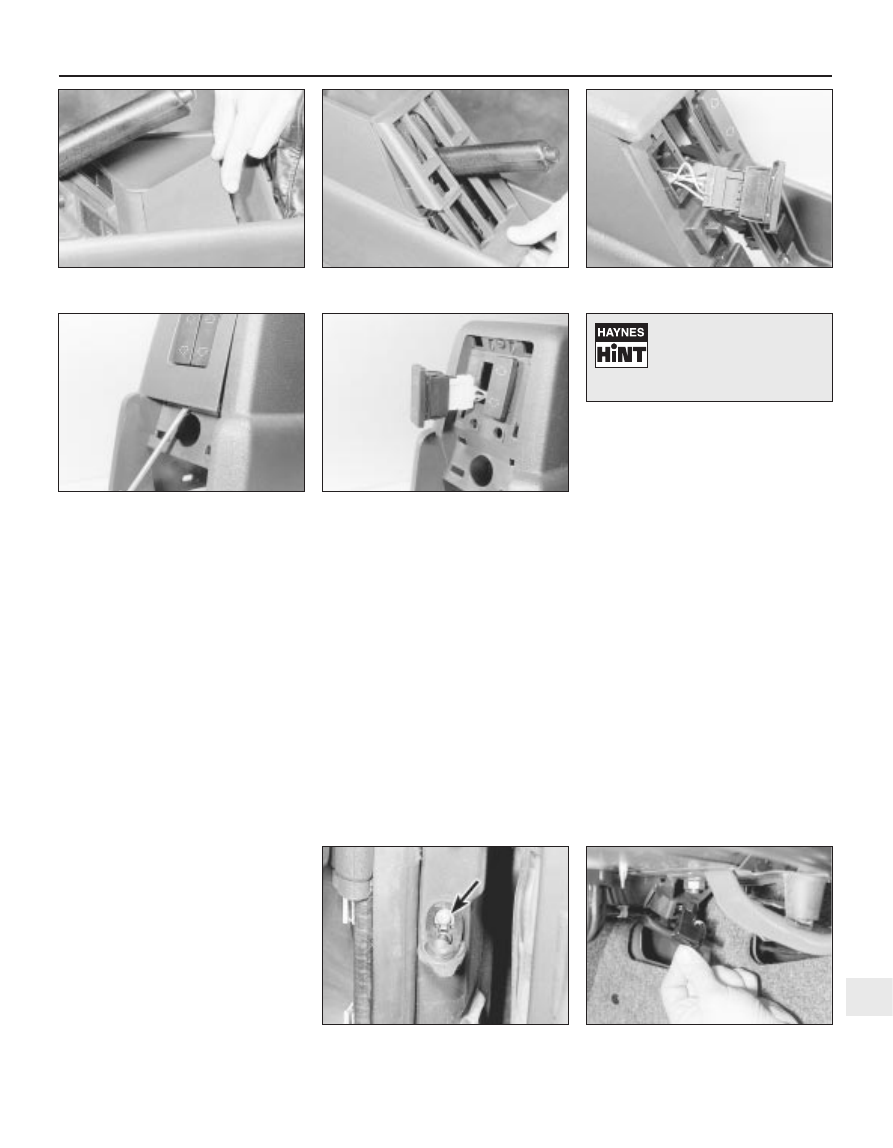

Body electrical system  12•5

4.21  . . . and remove the switch

4.29  Rubber gaiter pulled back to expose

courtesy light securing screw (arrowed)

4.25  . . . for access to the switches

4.24  Prising off a rear centre console

switch trim panel . . .

4.20  . . . then prise off the switch

trim panel . . .

4.19  Prise the trim panel from the bottom

of the oddments tray . . .

12

4.35  Removing the luggage compartment

courtesy light switch - Saloon model

Tape the wiring to the door
pillar, to prevent it falling
back into the door pillar.
Alternatively, tie a piece of

string to the wiring, to retrieve it.

42 Remove the screw securing the switch to
the tailgate. Where applicable, recover the
lockwasher (see illustration).
43 Disconnect the wiring plug and withdraw
the switch.
44 Refitting is a reversal of removal.

Map reading light switch

45 The switch is integral with the light, and
cannot be renewed separately.

Electric sunroof switch

46 Carefully prise the blanking plate (fitted
next to the sunroof switch) from the centre
console (see illustration).
47 Reach in through the aperture left by
removal of the blanking plate, then push out
the switch and disconnect the wiring plug
(see illustration).
48 Refitting is a reversal of removal.

5

Bulbs (exterior lights) -
renewal

2

1 Whenever a bulb is renewed, note the
following points.

a) Disconnect the battery negative lead

before starting work.

b) Remember that, if the light has just been

in use, the bulb may be extremely hot.

c) Always check the bulb contacts and

holder, ensuring that there is clean metal-
to metal contact between the bulb and its
live(s) and earth. Clean off any corrosion
or dirt before fitting a new bulb.

d) Wherever bayonet-type bulbs are fitted

(see Specifications), ensure that the live
contact(s) bear firmly against the bulb
contact.

e) Always ensure the new bulb is of the

correct rating, and that it is completely
clean before fitting it; this applies
particularly to headlight/foglight bulbs
(see below).

Headlight

2 Working in the engine compartment,
release the clip securing the cover to the rear
of the headlight unit. Withdraw the cover (see
illustration).

3 Disconnect the wiring plug from the rear of
the headlight bulb.
4 Release the spring clip securing the bulb in
the light unit, then withdraw the bulb (see
illustrations).
5 When handling the new bulb, use a tissue
or clean cloth, to avoid touching the glass
with the fingers; moisture and grease from the
skin can cause blackening and rapid failure of
this type of bulb. If the glass is accidentally
touched, wipe it clean using methylated spirit.
6 Install the new bulb, ensuring that it locates
correctly in the light unit. Secure the bulb in
position with the spring clip, and reconnect
the wiring plug.
7 Refit the cover to the rear of the light unit,
and secure with the clip.

Front sidelight

8 The sidelight bulb is located in the rear of
the headlight housing.

9 Working in the engine compartment,
release the clip securing the cover to the rear
of the headlight unit.
10 On models up to 1992, pull the bulbholder
from the rear of the headlight unit. On models
from 1993, it will be necessary to twist the
bulbholder through a quarter turn before it can
be removed (see illustration).
11 The bulb is a push-fit in the bulbholder
(see illustration).
12 Refitting is the reverse of the removal
procedure, ensuring that the bulbholder seal
is in good condition.

Front direction indicator

13 Working in the engine compartment,
unhook the indicator light unit retaining spring
from the lug behind the light (see illustration).
14 Pull the light forwards from the wing panel.
15 Twist the bulbholder anti-clockwise to
release it from the light unit (see illustration).

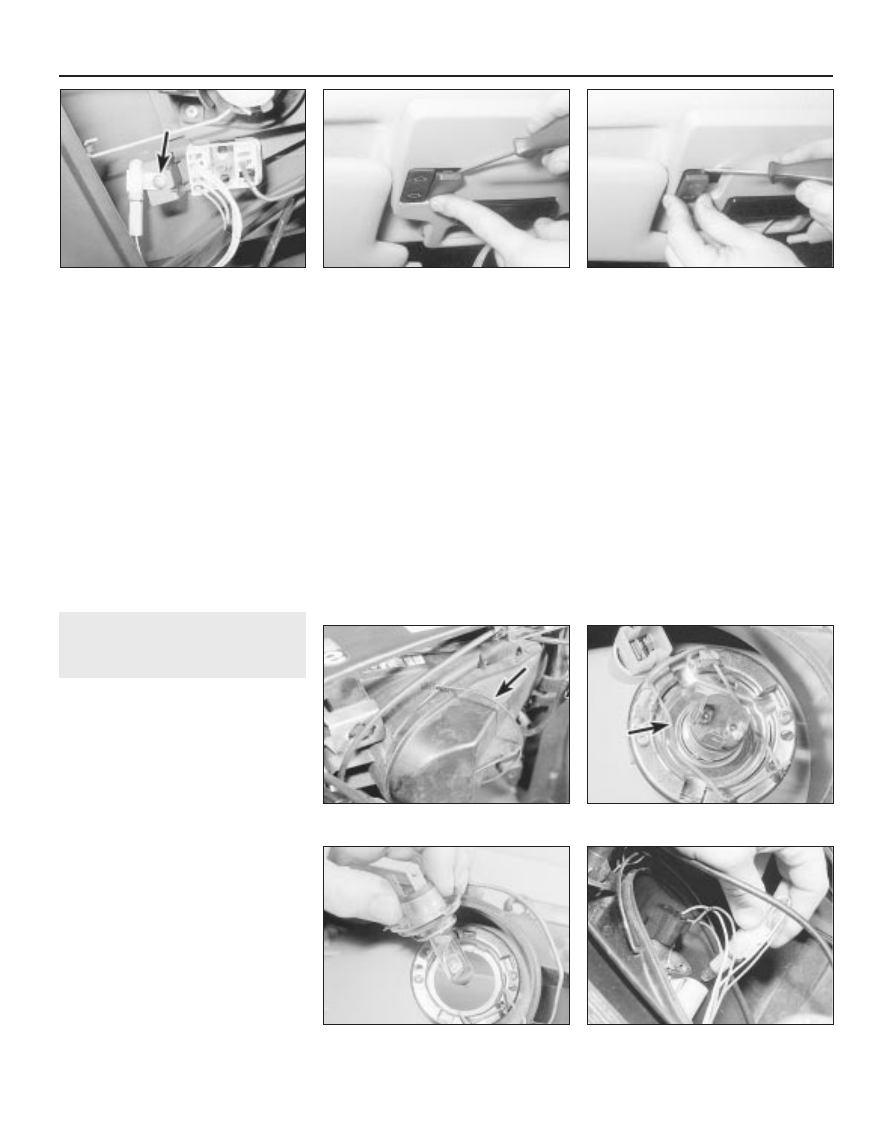

12•6 Body electrical system

4.42  Luggage compartment courtesy light

switch screw (arrowed) - Estate model

4.47  . . . then prise out the sunroof switch

5.4b  . . . then withdraw the

headlight bulb

5.4a  Release the spring clip

(arrowed) . . .

5.2  Headlight rear cover securing clip

(arrowed)

4.46  Prise out the blanking plate . . .

5.10  Pull out the sidelight

bulbholder . . .

16 The bulb is a bayonet-fit in the bulbholder.
17 Refitting is a reversal of removal, but
ensure that the light unit retaining spring is
correctly engaged.

Front direction
indicator side repeater

18 Twist the light unit a quarter-turn anti-
clockwise, and carefully pull the unit from the
wing panel, taking care not to damage the
paint.
19 Twist the bulbholder anti-clockwise, and
remove it from the light unit.
20 The bulb is a bayonet-fit in the bulbholder
(see illustration).
21 Refitting is a reversal of the removal
procedure.

Headlight-mounted
front driving light

22 On certain models, a driving light is
mounted in the headlight unit. The light
operates when the headlights are switched to
main beam.
23 Proceed as described previously in this
Section for the headlight bulb (see illustrations).

Front spoiler-mounted
driving light/foglight

Note: Some models are fitted with front
foglights which have no securing screws
visible from the front of the lens. At the time of
writing, no information was available for this
type of foglight.
24 Two alternative types of light assembly
may be fitted, depending on model. On some
models, access to the bulb can be obtained

from the behind the spoiler. On other models,
the light unit must be removed for access to
the bulb.
25 On models where the light unit can be
reached from behind the spoiler, reach up

behind the spoiler and disconnect the wiring
from the light. Prise the rubber cover from the
light, then release the spring clip and
withdraw the bulb.
26 On models where the rear of the light unit
is covered by the spoiler, remove the two
securing screws from the front of the light unit
and withdraw the reflector/lens assembly.
Disconnect the wiring from the bulb, then
release the spring clip and withdraw the bulb.
27 When handling the new bulb, use a tissue
or clean cloth, to avoid touching the glass
with the fingers; moisture and grease from the
skin can cause blackening and rapid failure of
this type of bulb. If the glass is accidentally
touched, wipe it clean using methylated spirit.
28 Refitting is the reverse of the removal
procedure, ensuring that the bulb locates
correctly in its housing.

Rear light cluster

Saloon models

29 Open the boot lid.
30 Squeeze the two retaining clips, and
withdraw the bulbholder from the rear of the
light unit (see illustration).
31 The bulbs are a bayonet-fit in the
bulbholder

(see illustration).

32 Fit the new bulb using a reversal of the
removal procedure.

Estate models

33 The stop/tail lights and the direction
indicator lights are located in the rear wing
panels. The remaining rear lights are located
in the tailgate.

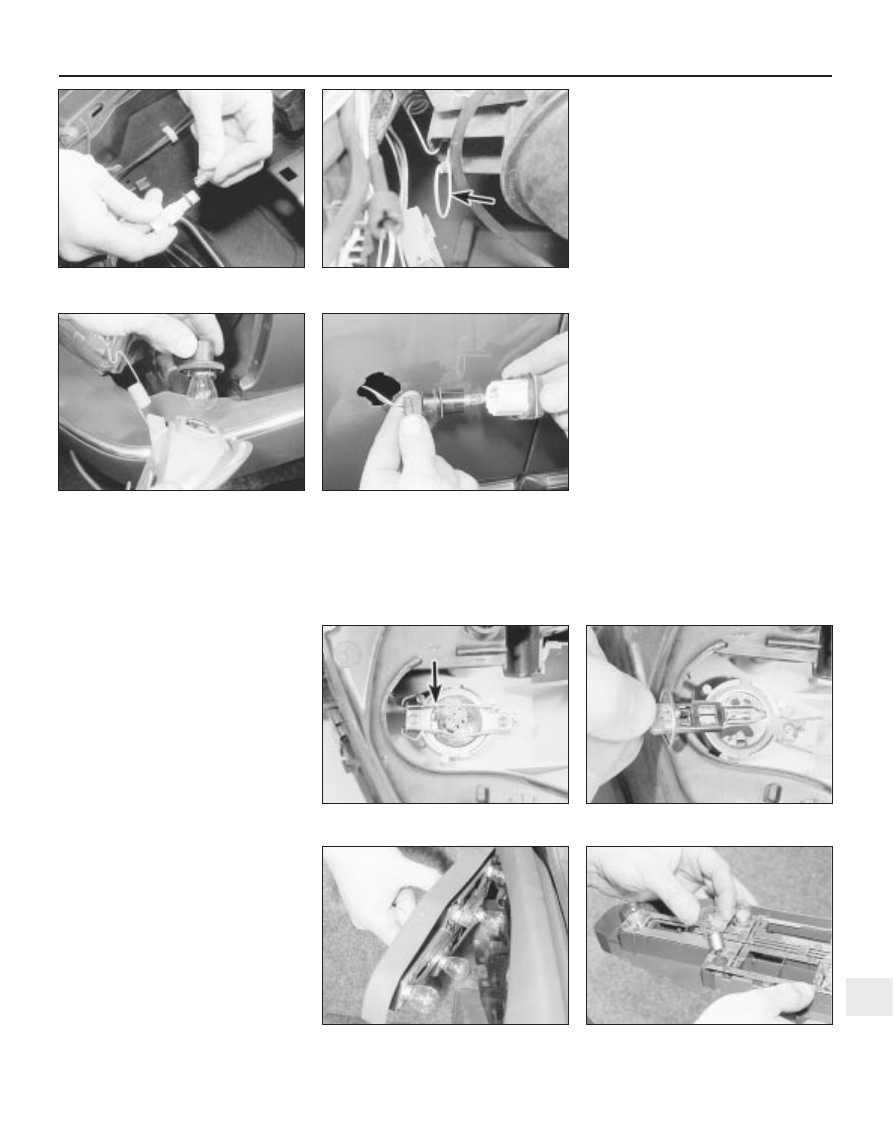

Body electrical system  12•7

5.15  Withdrawing the bulbholder from the

front direction indicator light

5.23b  Removing a headlight-mounted

driving light bulb

5.23a  Headlight-mounted driving light bulb

securing clip (arrowed)

5.20  Removing the bulbholder from the

front direction indicator side repeater light

5.13  Front direction indicator light

retaining spring (arrowed)

5.11  . . . and withdraw the bulb

12

5.30  Removing a rear light cluster

bulbholder - Saloon model

5.31  The bulbs are a bayonet-fit in the

bulbholder

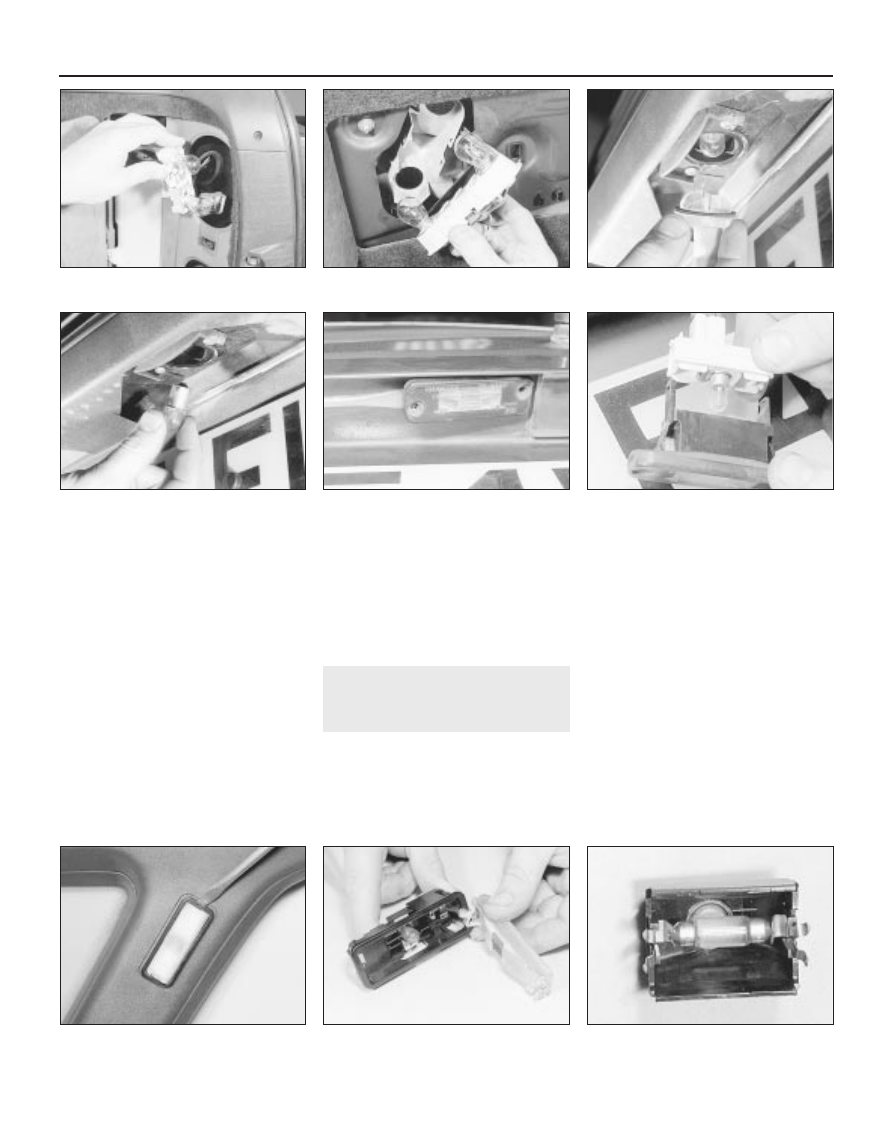

34 Open the tailgate.
35 Turn the retaining clip and open the light
unit cover flap.
36 Squeeze the two retaining clips, and
withdraw the bulbholder from the rear of the
light unit (see illustrations).
37 The bulbs are a bayonet-fit in the
bulbholder.
38 Fit the new bulb using a reversal of the
removal procedure.

Number plate light

Saloon models

39 Prise the lens from the underside of the
bumper for access to the bulb (see
illustration).
40 The bulb is a bayonet-fit in the bulbholder
(see illustration).
41 Fit the new bulb using a reversal of the
removal procedure.

Estate models

42 Carefully prise the light unit from the
tailgate (see illustration).
43 Unclip the bulbholder from the lens
assembly (see illustration).
44 The bulb is a bayonet-fit in the bulbholder.
45 Fit the new bulb using a reversal of the
removal procedure.

6

Bulbs (interior lights) -
renewal

2

General

1 Refer to Section 5, paragraph 1.

Courtesy light, glovebox and
luggage compartment lights

2 Carefully prise the lens from the light unit.

Note that in some cases, it may prove
necessary to prise out the complete light unit
to enable the lens to be removed (see
illustrations).
3 The bulb is a push-fit in the holder.
4 Refitting is a reversal of removal.

Map reading light

5 Prise the map reading light from the roof
console.
6 The festoon-type bulb is held between the
spring contacts (see illustration).
7 Refitting is a reversal of removal.

Heater/ventilation
control unit illumination bulbs

Models up to 1992

8 For access to the bulbs, the control unit
must be removed as described in Chapter 11,
but note that there is no need to disconnect
the control cables from the unit. Once the

12•8 Body electrical system

5.36a  Removing a rear wing-mounted light

bulbholder - Estate model

5.39  Prise the lens from the bumper . . .

5.43  . . . and unclip the bulbholder from

the lens - Estate model

5.42  Prise out the number plate

light unit . . .

5.40  . . . and withdraw the number plate

light bulb - Saloon model

5.36b  Removing a tailgate-mounted light

bulbholder - Estate model

6.2a  Prising out a courtesy light

6.2b  Prise off the lens for access

to the bulb

6.6  Map reading light removed

for access to bulb
