Wiring diagrams  12•17

12

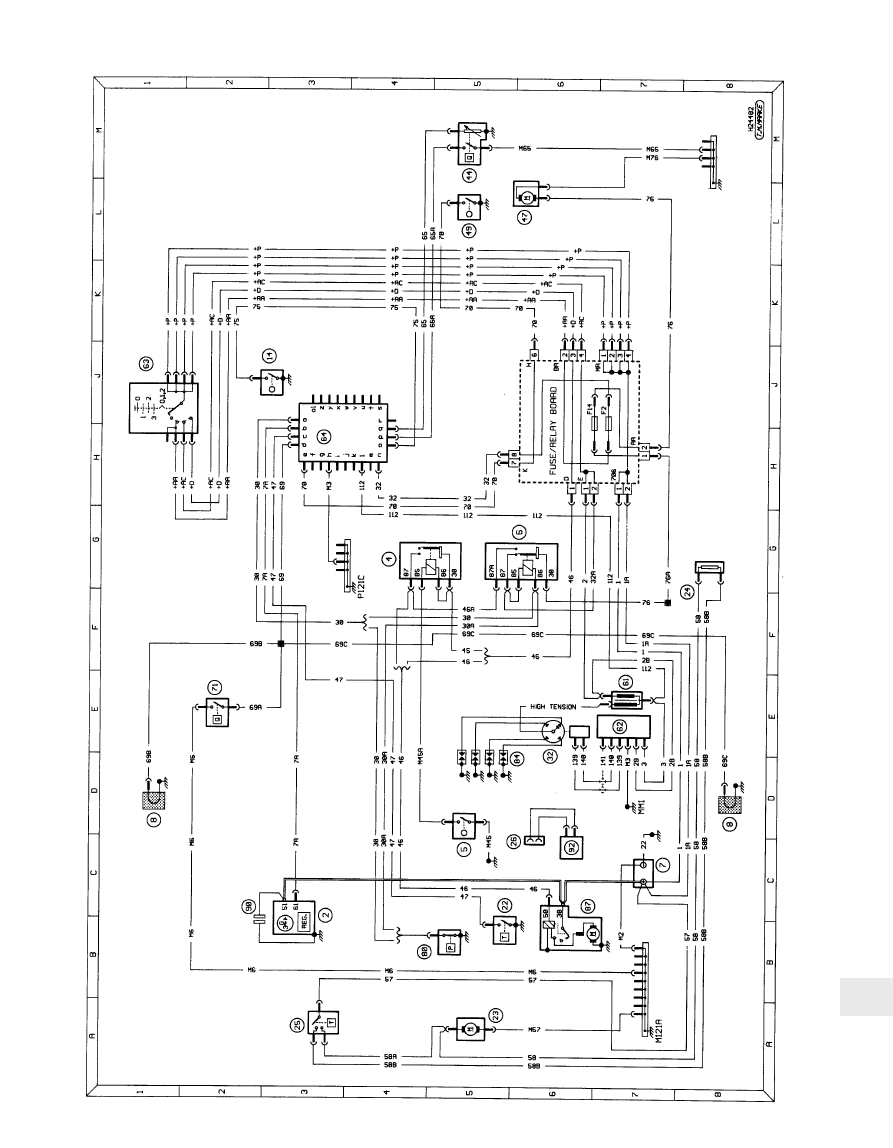

Diagram1:  Typical starting, charging, ignition, cooling fan, warning lamps and gauges (XV8, XW7, XY8 and XU51C engine models)

12•18 Wiring diagrams

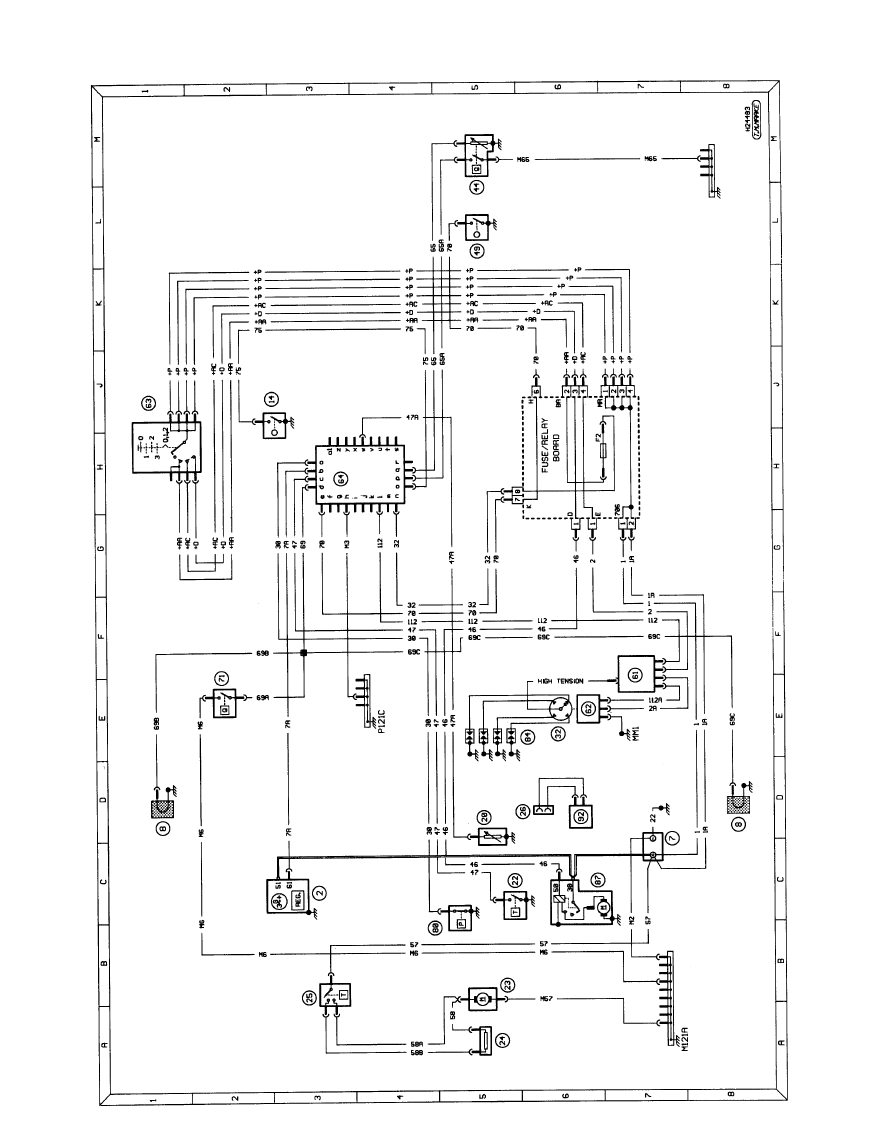

Diagram1a:  Typical starting, charging, ignition, cooling fan, warning lamps and gauges (TU1, TU3 and TU9 engine models)

Wiring diagrams  12•19

12

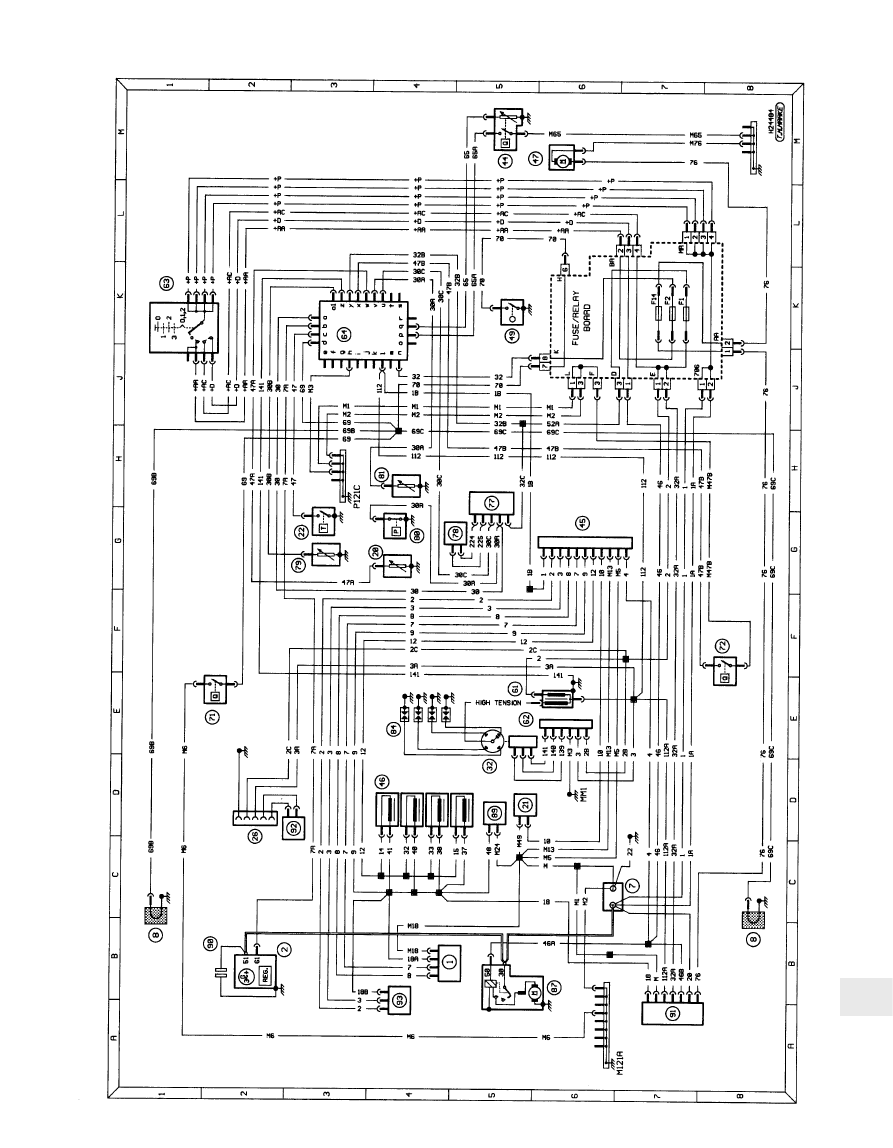

Diagram1b:  Typical engine management, warning lamps and gauges (XU5J/JA and XU9JA engine models)

12•20 Wiring diagrams

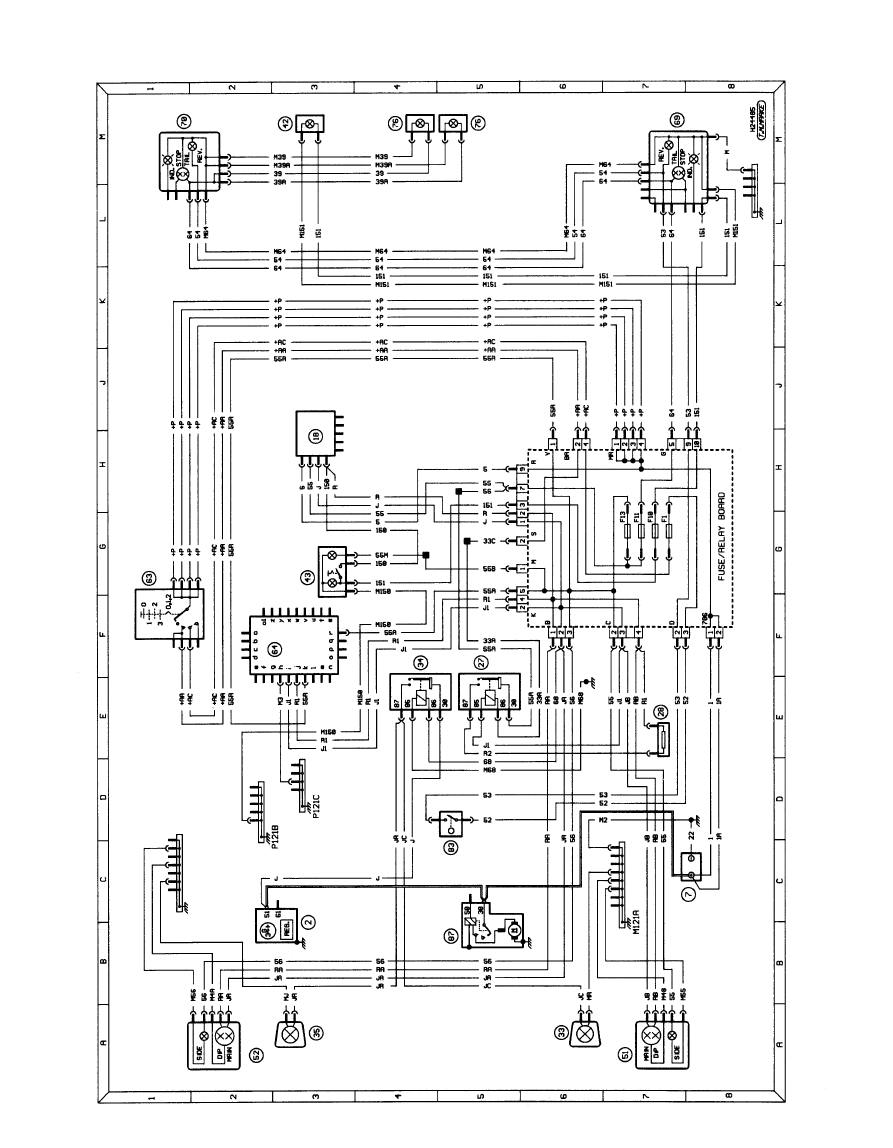

Diagram 2:  Typical exterior lighting - reversing lamps, foglamps, sidelamps and headlamps
