Vehicle care

Vehicle checks

Performing work

9 Warning

Only perform engine compartment

checks when the ignition is off.
The cooling fan may start

operating even if the ignition is off.

9 Danger

The ignition system and Xenon

headlights use extremely high

voltage. Do not touch.

Bonnet

Opening

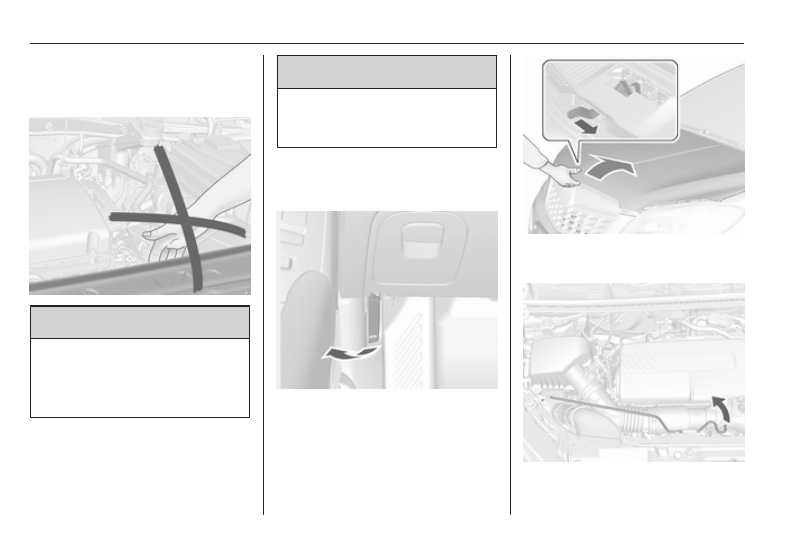

Pull the release lever and return it to

its original position.

Move the safety catch sideways to the

left vehicle side and open the bonnet.

Vehicle care

183

Pull up the support rod lightly from the

holder. And then secure it at the left

side hook on the bonnet.
If the bonnet is opened during an

Autostop, the engine will be restarted

automatically for safety reasons.

Closing

Before closing the bonnet, press the

support into the holder.
Lower the bonnet and allow it to fall

into the latch from a low height

(20-25 cm). Check that the bonnet is

engaged.

Caution

Do not press the bonnet into the

latch, to avoid dents.

Engine oil

Check the engine oil level manually

on a regular basis to prevent damage

to the engine. Ensure that the correct

specification of oil is used.
Recommended fluids and lubricants

3

 222.

The maximum engine oil

consumption is 0.6 l per 1000 km.
Check with the vehicle on a level

surface. The engine must be at

operating temperature and switched

off for at least 5 min.

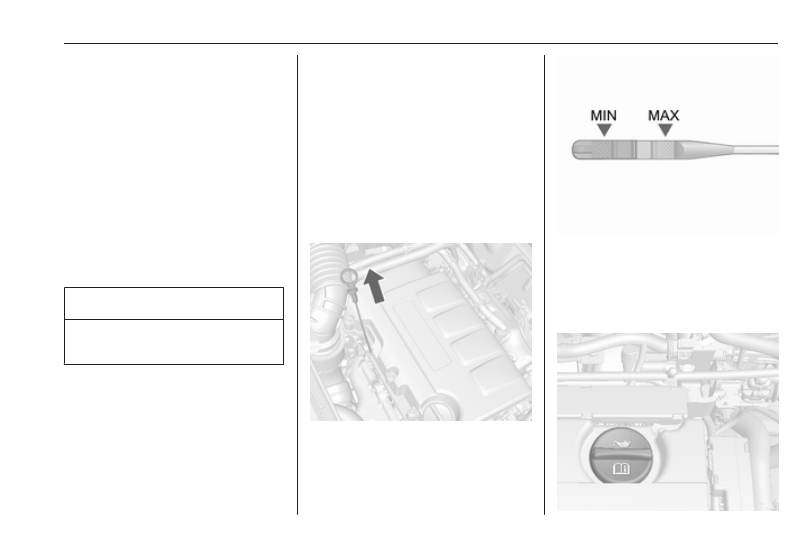

Pull out the dipstick, wipe it clean,

insert it to the stop on the handle, pull

out and read the engine oil level.
Insert dipstick to the stop on the

handle.

When the engine oil level has

dropped to the MIN mark, top up

engine oil.

We recommend the use of the same

grade of engine oil that was used at

last change.
The engine oil level must not exceed

the MAX mark on the dipstick.

184

Vehicle care

The engine oil filler cap is located on

the camshaft cover.

Caution

Overfilled engine oil must be

drained or suctioned out. If the oil

exceeds the maximum level, do

not start the vehicle and contact a

workshop.

Capacities 3 234.
Fit the cap on straight and tighten it.

Engine coolant

The coolant provides freeze

protection down to approx. -30 °C. In

northern countries with very low

temperatures the factory filled coolant

provides frost protection down to

approx. -40 °C.

Caution

Only use approved antifreeze.

Coolant and antifreeze 3 222.

Coolant level

Caution

Too low a coolant level can cause

engine damage.

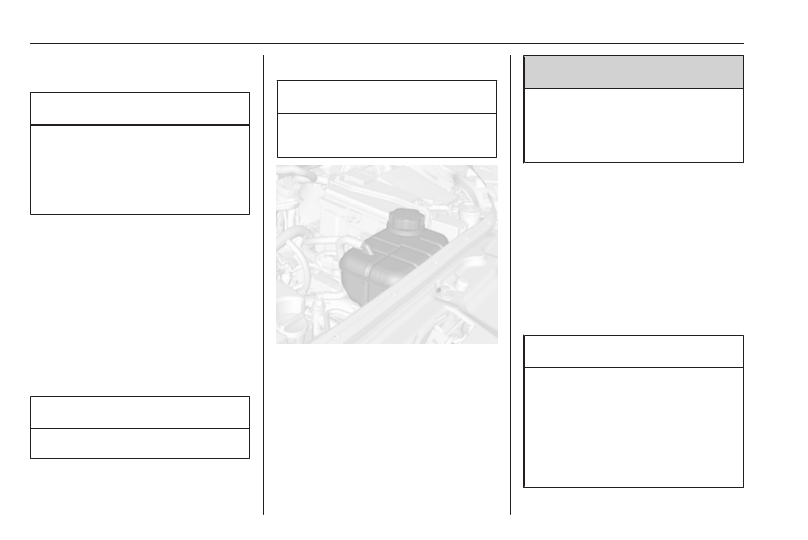

If the cooling system is cold, the

coolant level should be above the

filling line mark. Top up if the level is

low.

9 Warning

Allow the engine to cool before

opening the cap. Carefully open

the cap, relieving the pressure

slowly.

To top up use a 1:1 mixture of

released coolant concentrate mixed

with clean tap water. If no coolant

concentrate is available, use clean

tap water. Install the cap tightly. Have

the coolant concentration checked

and have the cause of the coolant

loss remedied by a workshop.

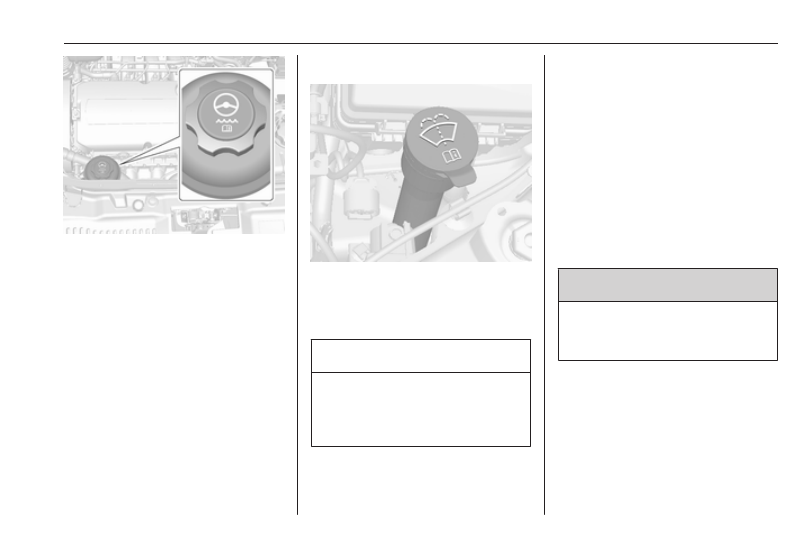

Power steering fluid

Caution

Extremely small amounts of

contamination can cause steering

system damage and cause it to not

work properly. Do not allow

contaminates to contact the fluid

side of the reservoir cap / dipstick

or from entering the reservoir.

Vehicle care

185

Power steering fluid level normally

does not need to be checked. If an

unusual noise sounds during steering

or the power steering reacts

conspicuously, seek the assistance of

a workshop.

Washer fluid

Fill with clean water mixed with a

suitable quantity of approved

windscreen washer fluid which

contains antifreeze.

Caution

Only washer fluid with a sufficient

antifreeze concentration provides

protection at low temperatures or

a sudden drop in temperature.

Washer fluid 3 222.

Brakes

In the event of minimum thickness of

the brake lining, a squealing noise

sounds during braking.
Continued driving is possible but

have the brake lining replaced as

soon as possible.
Once new brake linings are installed,

do not brake unnecessarily hard for

the first few journeys.

Brake fluid

9 Warning

Brake fluid is poisonous and

corrosive. Avoid contact with eyes,

skin, fabrics and painted surfaces.

186

Vehicle care

The brake fluid level must be between

the MIN and the MAX marks.
If fluid level is below MIN seek the

assistance of a workshop.
Brake and clutch fluid 3 222.

Vehicle battery

The vehicle battery is maintenance-

free provided that the driving profile

allows sufficient charging of the

battery. Short-distance-driving and

frequent engine starts can discharge

the battery. Avoid the use of

unnecessary electrical consumers.

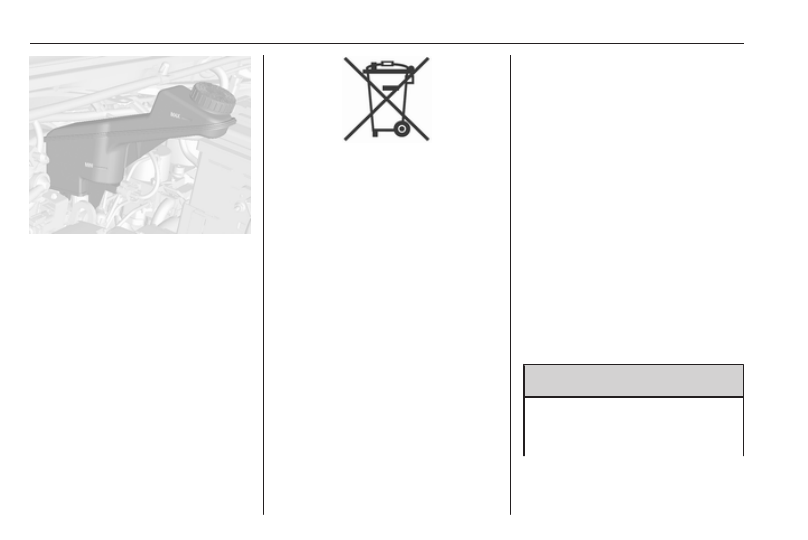

Batteries do not belong in household

waste. They must be disposed of at

an appropriate recycling collection

point.
Laying up the vehicle for more than

four weeks can lead to battery

discharge. Disconnect the clamp from

the negative terminal of the vehicle

battery.
Ensure the ignition is switched off

before connecting or disconnecting

the vehicle battery.
Vehicle battery discharge protection

3

 126.

Replacing the vehicle battery

Note

Any deviation from the instructions

given in this section may lead to

temporary deactivation or

disturbance of the stop-start system.

When the vehicle battery is being

replaced, please ensure that there

are no open ventilation holes in the

vicinity of the positive terminal. If a

ventilation hole is open in this area, it

must be closed off with a dummy cap,

and the ventilation in the vicinity of the

negative terminal must be opened.
Only use vehicle batteries that allow

the fuse box to be mounted above the

vehicle battery.
Ensure that the battery is always

replaced by the same type of battery.
We recommend that you have the

vehicle battery replaced by a

workshop.
Stop-start system 3 139.

Charging the vehicle battery

9 Warning

On vehicles with stop-start

system, ensure that the charging

potential does not exceed 14.6 V

Vehicle care

187

when using a battery charger.

Otherwise the vehicle battery may

be damaged.

Jump starting 3 214.

Warning label

Meaning of symbols:

● No sparks, naked flames or

smoking.

● Always shield eyes. Explosive

gases can cause blindness or

injury.

● Keep the vehicle battery out of

reach of children.

● The vehicle battery contains

sulphuric acid which could cause

blindness or serious burn

injuries.

● See the Owner's Manual for

further information.

● Explosive gas may be present in

the vicinity of the vehicle battery.

Diesel fuel system bleeding

If the tank has been run dry, the diesel

fuel system must be bled. Switch on

the ignition three times for

15 seconds at a time. Then crank the

engine for a maximum of

40 seconds. Repeat this process after

no less than 5 seconds. If the engine

fails to start, seek the assistance of a

workshop.

Wiper blade replacement

Windscreen

Lift the wiper arm, press button to

disengage the wiper blade and

remove.
Attach the wiper blade slightly angled

to the wiper arm and push until it

engages.
Lower wiper arm carefully.

188

Vehicle care

Rear window

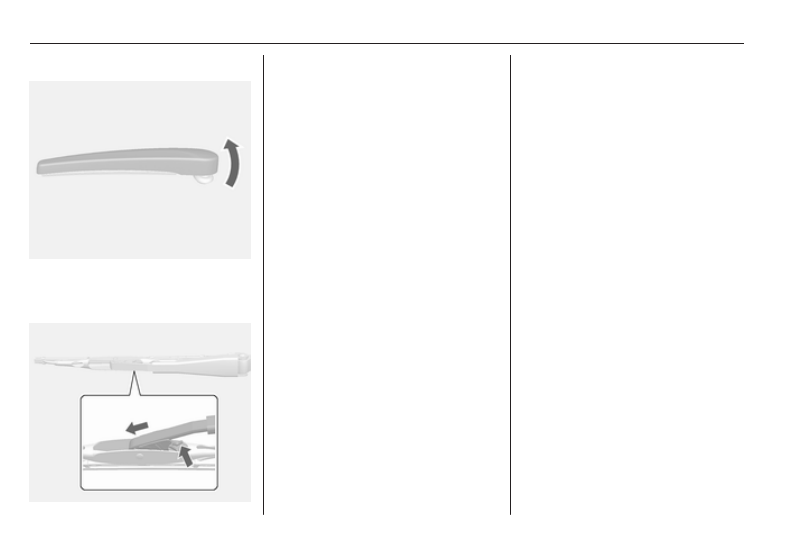

1. Remove the wiper cover from the

wiper assembly.

2. Lift wiper blade.

3. Press slider holder pin.
4. Pull wiper blade out.

Bulb replacement

Switch off the ignition and turn off the

relevant switch or close the doors.
Only hold a new bulb at the base. Do

not touch the bulb glass with bare

hands.
Use only the same bulb type for

replacement.
Replace headlight bulbs from within

the engine compartment.

Note

After driving in heavy rain or after

washing, some exterior light lenses

could appear frosty.
This condition is caused by the

temperature difference between the

inside and outside of the light.
This is similar to the condensation

on your windows inside your vehicle

during the rain and doesn't indicate

a problem with your vehicle.
If the water leaks into the light bulb

circuitry, have the vehicle checked

by your authorised workshop.

Vehicle care

189

Halogen bulbs

9 Warning

Halogen bulbs have pressurized

gas inside and can burst if you

drop or scratch the bulb. You or

others could be injured. Be sure to

read and follow the instructions on

the bulb package.

LED lighting

This vehicle has several LED lights.

For replacement of any LED lighting

assembly, contact a workshop.

Halogen headlights

Baselevel headlight assembly

The base model vehicle has halogen

high beam and low beam headlights,

LED turn lights, a sidelight and

daytime running lights on the

headlight assembly.

Passenger side shown, driver side

similar.
On the driver side remove the

windscreen washer bottle filler neck,

before changing a bulb.

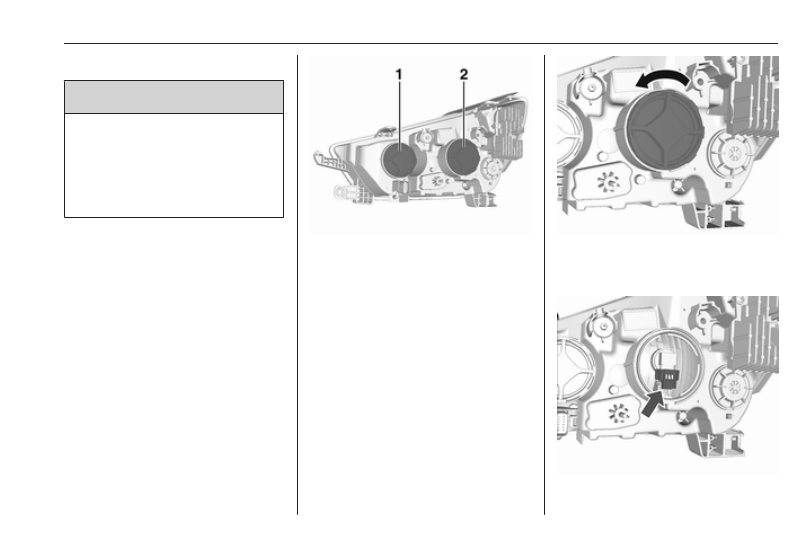

1. High beam headlights
2. Low beam headlights

High beam and low beam headlights

1. Open the bonnet.

Bonnet 3 182.

2. Remove the protective cover.
3. Turn the bulb anticlockwise and

pull straight back.

4. Disconnect the wiring harness

connector from the bulb.

190

Vehicle care

5. Install the new bulb in the

headlight assembly by turning

clockwise.

6. Reconnect the wiring harness

connector.

7. Install the protective cover.

For the driver side, reinstall the

windscreen washer bottle filler neck

by firmly pushing it straight into the

bottle. Ensure that the filler neck clip

engages into the underhood electrical

centre retainer.

Uplevel headlight assembly

The uplevel model vehicle has LED

high beam and low beam headlights,

turn lights, a sidelight and daytime

running lights on the headlight

assembly.

Front fog lights

The bulbs are accessible from the

underside of the vehicle

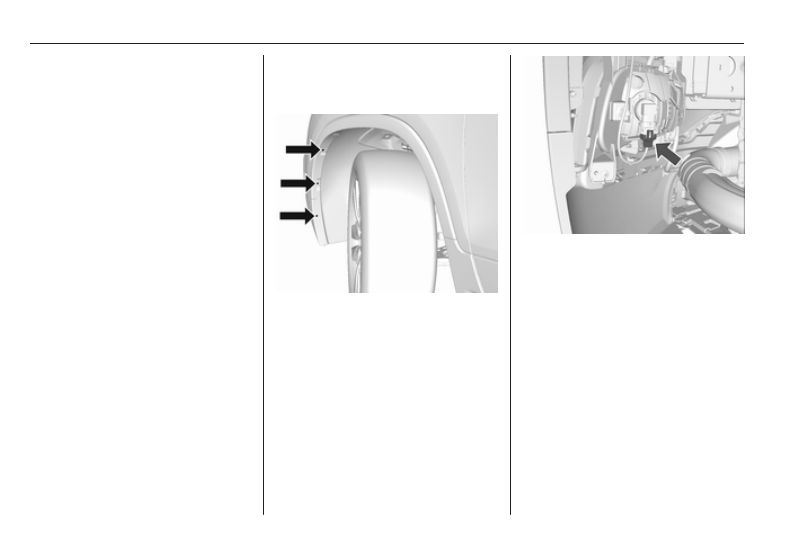

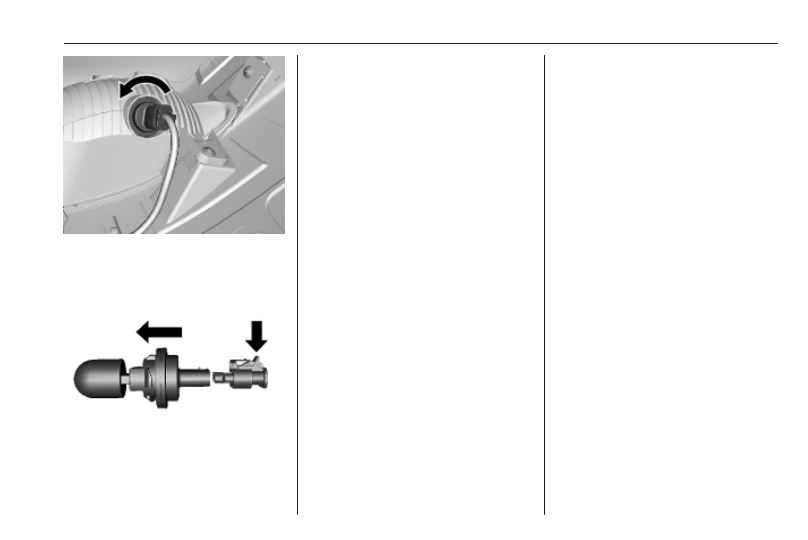

1. Turn the respective wheel inside

to get better access and remove

three torx screws on outside of

wheel house.
Vehicle tools 3 199.

2. Pull and hold lining to get access

to the bulb holder.

3. Pull the retaining rib outwards and

remove plug connector from the

bulb socket.

4. Turn the bulb holder anticlockwise

and remove it from the reflector.

5. Remove and replace the bulb

socket with bulb and attach the

plug connector.

6. Insert the bulb socket into the

reflector by turning clockwise and

engage.

7. Re-assemble the lining and fasten

the three torx screws.

Vehicle care

191

Tail lights

Left-hand side

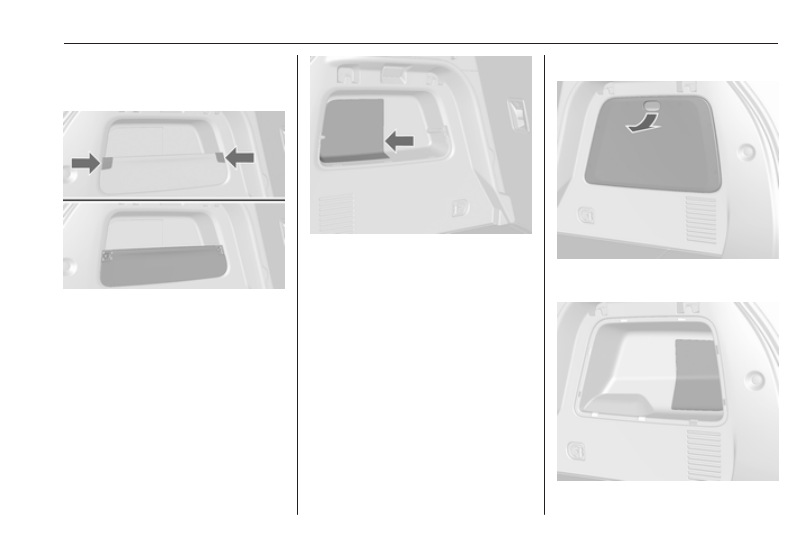

1. Disengage both covers at the

respective outer side by inserting

a screwdriver. Remove both

covers and unscrew screws.

Remove the panel.

2. First disengage cover by inserting

a screwdriver at the recess. Then

disengage cover at the front and

upper side. Remove cover.

Right-hand side

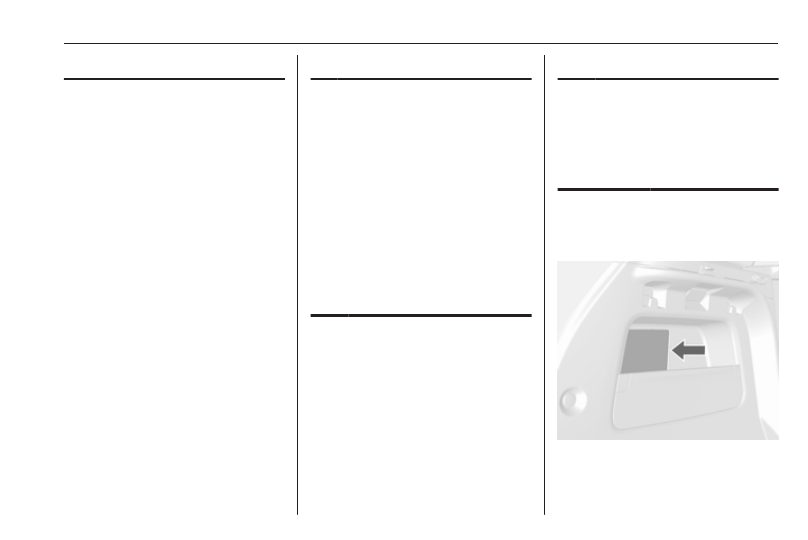

1. Remove the storage door and the

tyre repair kit.

2. Remove the cover.

192

Vehicle care

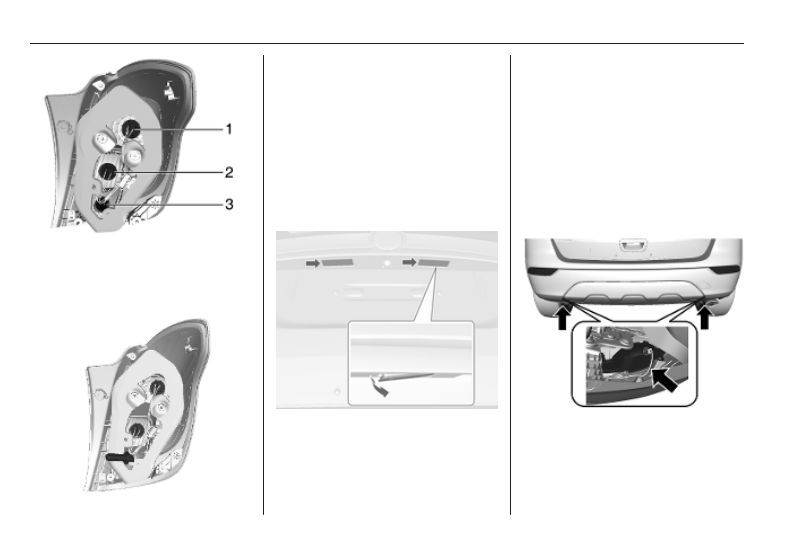

3. Tail / stop light, if not equipped

with LEDs (1)
Turn light (2)
Back-up light (3)

4. Remove bulb holder. Remove

and renew bulb.

5. Insert bulb holder into the tail light

assembly. Install tail light

assembly in body and tighten.

Close covers and engage.

6. Switch on ignition, operate and

check all lights.

Number plate light

1. Prise the light out with a

screwdriver.

2. Remove bulb housing

downwards, taking care not to pull

on the cable.

Rotate bulb holder anticlockwise

to disengage.

3. Remove bulb from holder and

renew bulb.

4. Insert bulb holder in bulb housing

and rotate clockwise.

5. Insert bulb housing and secure

using a screwdriver.

Rear fog light

The bulbs are accessible from the

underside of the vehicle.

Vehicle care

193

1. Turn the bulb holder anticlockwise

and remove it from reflector.

2. Disengage the bulb socket from

the plug connector by pressing

the retaining lug.

3. Remove and replace the bulb

socket with bulb and attach the

plug connector.

4. Insert the bulb socket into the

reflector and turn clockwise to

engage.

Electrical system

Fuses

Data on the replacement fuse must

match the data on the defective fuse.
In a box above the positive terminal of

the battery are some main fuses. If

necessary have them changed by a

workshop.
Before replacing a fuse, turn off the

respective switch and the ignition.
A blown fuse can be recognised by its

melted wire. Do not replace the fuse

until the cause of the fault has been

remedied.
Some functions are protected by

several fuses.
Fuses may also be inserted without

existence of a function.

Note

Not all fuse box descriptions in this

manual may apply to your vehicle.
When inspecting the fuse box, refer

to the fuse box label.

194

Vehicle care

Fuse extractor

A fuse extractor may be located in the

fuse box in the engine compartment.
Place the fuse extractor on the

various types of use from the top or

side, and withdraw fuse.

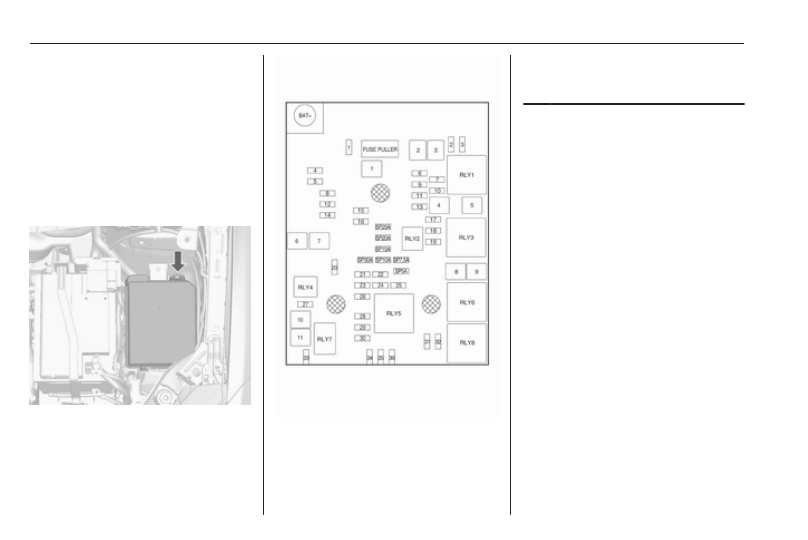

Engine compartment fuse

box

The fuse box is in the engine

compartment.
Disengage the cover, lift it upwards

and remove.

Mini Fuses

No. Circuit
1

Sunroof

2

Exterior mirror switch / Rain

sensor / Power window DRV

3

–

4

–

5

Electrical brake control module

6

Intelligent battery sensor

7

Steering column lock

8

Transmission control module

9

–

10 Rear view camera / Interior rear

view mirror / Headlight switch /

Headlight

11 Rear window wiper
12 Heated rear window
13 Seat, lumbar support
14 Heated exterior mirrors

Vehicle care

195

No. Circuit
15 LPG module / Fuel system

control module

16 Seat heating
17 Transmission control module R/

C / Water pump / Auxiliary

heater

18 Engine control module R/C
19 Fuel pump
20 –
21 Cooling fan
22 –
23 Ignition coil / Injectors
24 Washer pump
25 Headlamp actuator
26 Engine control sensors
27 –
28 Ignition
29 Ignition 1/2

No. Circuit
30 Exhaust system
31 Left-hand high beam
32 Right-hand high beam
33 Engine control module
34 Horn
35 Air conditioning system
36 Front fog light

J-cases Fuses

No. Circuit
1

Electrical brake control module

2

Front wiper

3

Linear power module

4

Power terminal of instrument

panel fuse box

5

–

6

Fuel heater

7

Starter

No. Circuit
8

Cooling fan

9

Cooling fan

10 Engine control module / Glow

plug

11 Starter

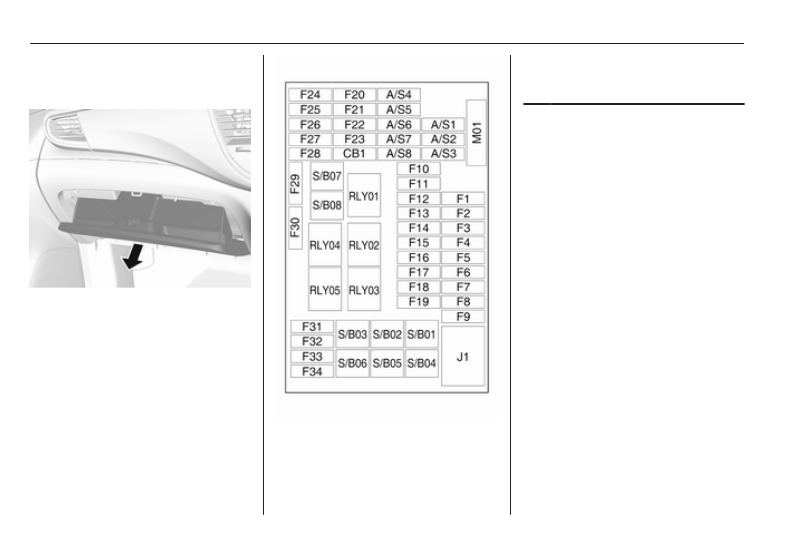

Instrument panel fuse box

In left-hand drive vehicles, the interior

fuse box is located on the underside

of the driver's side instrument panel.

196

Vehicle care

To access the fuses, remove the

storage. To remove the storage, open

and pull it.

In right-hand drive vehicles, the

interior fuse box is located behind a

cover in the glovebox on the

passenger side. To access the fuses,

open the glovebox, then open the

cover, fold it down and pull it.

Mini Fuses

No. Circuit
1

Body control module

2

Body control module

3

Body control module

4

Body control module

5

Body control module

6

Body control module

7

Body control module

8

Body control module

9

Ignition switch

10 Safety diagnosis module
11 Data link connector
12 Climate control
13 Tailgate
14 Central gateway module
15 Lane departure warning / Inte‐

rior mirror

Vehicle care

197

No. Circuit
16 Adaptive forward lighting
17 Column lock
18 Ultrasonic park assist module
19 Body control module / Regu‐

lated voltage control

20 Steering wheel
21 –
22 Cigarette lighter / DC accessory

power outlet (front)

23 Cigarette lighter / DC accessory

power outlet (rear center

console)

24 Spare
25 Telematics service module
26 Heated steering wheel
27 Instrument panel cluster / Info‐

tainment system / Auxiliary

heater switch

28 Trailer socket

No. Circuit
29 Info Display / Infotainment

system

30 Transmission control module
31 Instrument panel cluster
32 Infotainment system
33 Trailer socket
34 Passive entry / Passive start

module

S/B Fuses

No. Circuit
01

Power seat switch

02

Spare

03

Power windows front

04

Power windows rear

05

Logistic mode

06

Power seat switch

No. Circuit
07

Spare

08

Spare

Midi Fuse

No.

Circuit

M01

PTC

Load compartment fuse box

Located in the left side of rear

compartment.
To access the fuses, remove the

cover.
