182

Vehicle care

No. Circuit
18 Rain sensor
19 Body control module/Regulated

voltage control

20 Steering wheel
21 AC accessory power outlet/

Automatic transmission

22 Cigarette lighter/DC accessory

power outlet

23 Spare
24 Spare
25 Spare
26 Spare
27 Instrument panel cluster/Auxil‐

iary heater/Clutch switch

28 Adaptive forward lighting/

Voltage converter/Headlamp

switch

29 Spare
30 Spare

No. Circuit
31 Instrument panel cluster
32 Infotainment system/Chime
33 Display/Infotainment system
34 Onstar UHP/DAB

S/B Fuses
No. Circuit
01

Spare

02

Spare

03

Power windows front

04

Power windows rear

05

Logistic mode

06

Spare

07

Spare

08

Spare

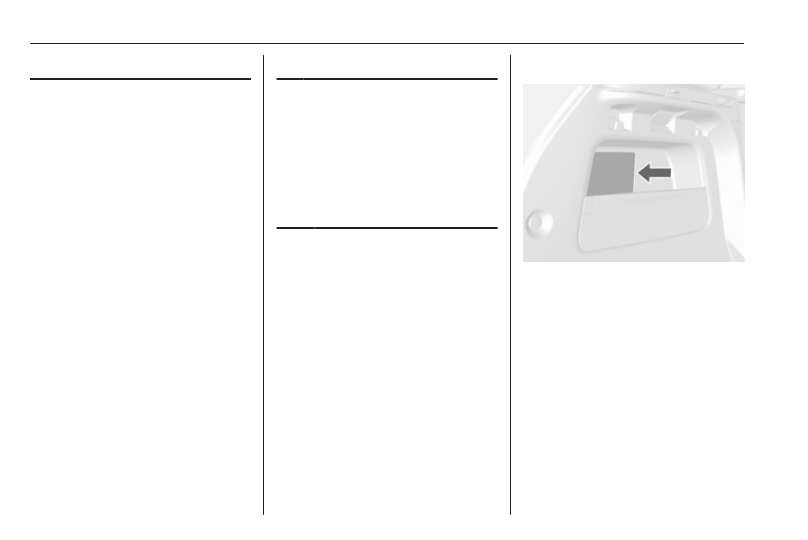

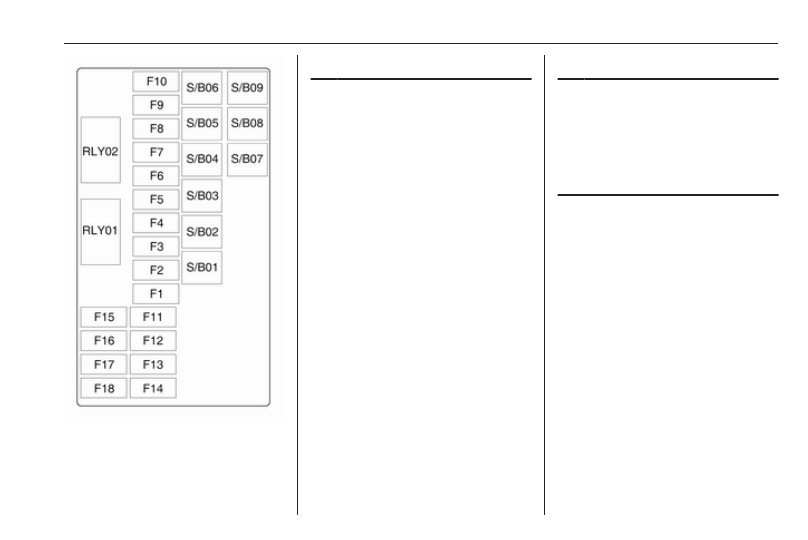

Load compartment fuse box

Located in the left side of rear

compartment.
To access the fuses, remove the

cover.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

183

Mini Fuses

No. Circuit
1

Seat, lumbar support, driver

2

Seat, lumbar support,

passenger

3

Amplifier

4

Trailer socket

5

All-wheel drive

6

Spare

7

LPG system

8

Spare

9

Spare

10 Spare
11 Trailer control module
12 Spare
13 Heated steering wheel
14 Trailer socket
15 Spare
16 Water in fuel sensor

No. Circuit
17 Interior mirror/Rear view

camera

18 LPG system

S/B Fuses
No. Circuit
1

Power seat driver

2

Power seat passenger

3

Trailer control module

4

Voltage converter

5

Battery

6

Headlight washer

7

Spare

8

Spare

9

Spare

-------------------------------------------------------------------------------------------------------------------------------------------------------------

184

Vehicle care

Vehicle tools

Tools

Vehicles with tyre repair kit

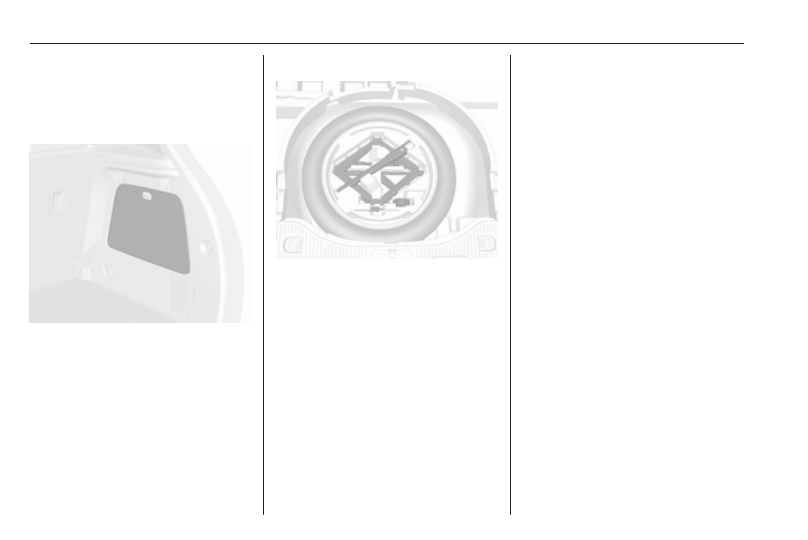

The tools and tyre repair kit are in the

right side of the load compartment.

3

 191.

Vehicles with spare wheel

The jack and the tools are in a storage

compartment in the load

compartment above the spare wheel.
Wheel changing 3 194, spare wheel

3

 196.

Wheels and tyres

Tyre condition, wheel condition

Drive over edges slowly and at right

angles if possible. Driving over sharp

edges can cause tyre and wheel

damage. Do not trap tyres on the kerb

when parking.
Regularly check the wheels for

damage. Seek the assistance of a

workshop in the event of damage or

unusual wear.

Winter tyres

Winter tyres improve driving safety at

temperatures below 7 °C and should

therefore be fitted on all wheels.
All tyre sizes are permitted as winter

tyres 3 218.
In accordance with country-specific

regulations, affix the speed sticker in

the driver's field of view.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

185

Tyre designations

E.g. 215/60 R 16 95 H
215 : tyre width, mm

60 : cross-section ratio (tyre height

to tyre width), percentage

R

: belt type: Radial

RF : type: RunFlat

16 : wheel diameter, inches

95 : load index e.g. 95 is equivalent

to 690 kg

H

: speed code letter

Speed code letter:
Q : up to 160 km/h

S : up to 180 km/h

T : up to 190 km/h

H : up to 210 km/h

V : up to 240 km/h

W : up to 270 km/h
Choose a tyre appropriate for the

maximum speed of your vehicle.
The maximum speed is achievable at

kerb weight with driver (75 kg) plus

125 kg payload. Optional equipment

could reduce the maximum speed of

the vehicle.
Performance 3 214.

Directional tyres

Fit directional tyres such that they roll

in the direction of travel. The rolling

direction is indicated by a symbol

(e.g. an arrow) on the sidewall.

Tyre pressure

Check the pressure of cold tyres at

least every 14 days and before any

long journey. Do not forget the spare

wheel. This also applies to vehicles

with tyre pressure monitoring system.
Unscrew the valve cap.

Tyre pressure 3 218.

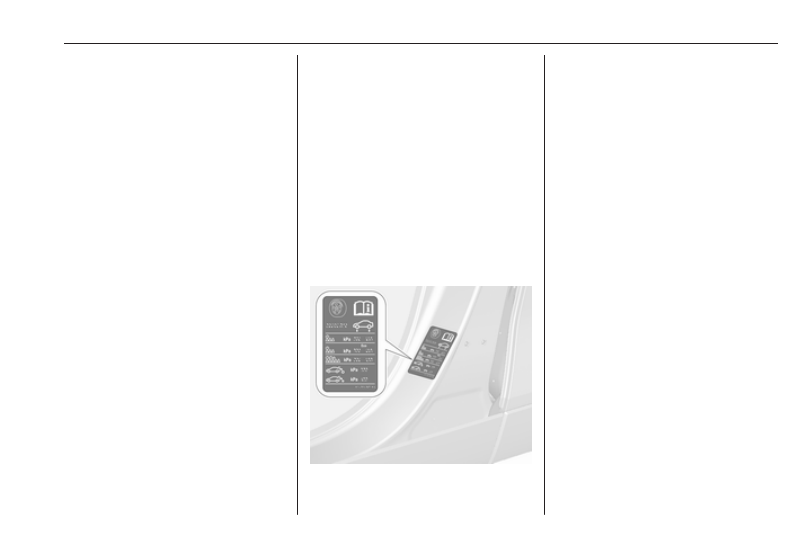

The tyre pressure information label

on the left or right door frame

indicates the original equipment tyres

and the correspondent tyre

pressures.
The tyre pressure data refers to cold

tyres. It applies to summer and winter

tyres.
Always inflate the spare tyre to the

pressure specified for full load.
The ECO tyre pressure serves to

achieve the smallest amount of fuel

consumption possible.
Incorrect tyre pressures will impair

safety, vehicle handling, comfort and

fuel economy and will increase tyre

wear.
Tyre pressures differ depending on

various options. For the correct tyre

pressure value, follow the procedure

below:

1. Identify the engine identifier code.

Engine data 3 213.

2. Identify the respective tyre.

The tyre pressure tables show all

possible tyre combinations 3 218.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

186

Vehicle care

For the tyres approved for your

vehicle, refer to the EEC Certificate of

Conformity provided with your vehicle

or other national registration

documents.
The driver is responsible for correct

adjustment of tyre pressure.

9 Warning

If the pressure is too low, this can

result in considerable tyre warm-

up and internal damage, leading to

tread separation and even to tyre

blow-out at high speeds.

9 Warning

For specific tyres the

recommended tyre pressure as

shown in the tyre pressure table

may exceed the maximum tyre

pressure as indicated on the tyre.

Never exceed the maximum tyre

pressure as indicated on the tyre.

Temperature dependency

The tyre pressure depends on the

temperature of the tyre. During

driving, tyre temperature and

pressure increase. Tyre pressure

values provided on the tyre

information label and tyre pressure

chart are valid for cold tyres, which

means at 20 °C.
The pressure increases by nearly

10 kPa for a 10 °C temperature

increase. This must be considered

when warm tyres are checked.
The tyre pressure value displayed in

the Driver Information Centre shows

the real tyre pressure. A cooled down

tyre will show a decreased value,

which does not indicate an air leak.

Tyre pressure monitoring

system

The tyre pressure monitoring system

checks the pressure of all four tyres

once a minute when vehicle speed

exceeds a certain limit.

Caution

Tyre pressure monitoring system

warns only about low tyre pressure

condition and does not replace

regular tyre maintenance by the

driver.

All wheels must be equipped with

pressure sensors and the tyres must

have the prescribed pressure.

Note

In countries where the tyre pressure

monitoring system is legally

required, the use of wheels without

pressure sensors will invalidate the

vehicle type approval.

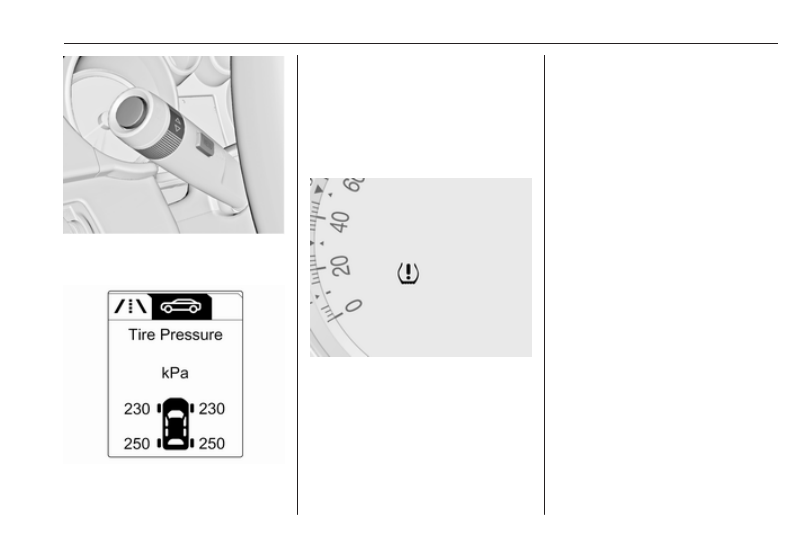

The current tyre pressures can be

shown in the Vehicle Information

Menu in the Driver Information

Centre.
The menu can be selected by the

buttons on the turn signal lever.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

187

Press MENU to select the Vehicle

Information Menu X.

Turn the adjuster wheel to select the

tyre pressure monitoring system.

System status and pressure warnings

are displayed by a message with the

corresponding tyre flashing in the

Driver Information Centre.
The system considers the tyre

temperature for the warnings.
Temperature dependency 3 185.

A detected low tyre pressure

condition is indicated by the control

indicator w 3 87.
If w illuminates, stop as soon as

possible and inflate the tyres as

recommended 3 218.

If w flashes for 60-90 seconds and

then illuminates continuously, there is

a fault in the system. Consult a

workshop.
After inflating, driving may be

required to update the tyre pressure

values in the Driver Information

Centre. During this time w may

illuminate.
If w illuminates at lower temperatures

and extinguishes after some driving,

this could be an indicator for

approaching a low tyre pressure

condition. Check tyre pressure.
Vehicle messages 3 94.
If the tyre pressure shall be reduced

or increased, switch off ignition.
Only mount wheels with pressure

sensors, otherwise the tyre pressure

will not be displayed and w

illuminates continuously.
A temporary spare wheel is not

equipped with pressure sensors. The

tyre pressure monitoring system is

not operational for these wheels.

Control indicator w illuminates. For

the further three wheels the system

remains operational.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

188

Vehicle care

The use of commercially available

liquid tyre repair kits can impair the

function of the system. Factory-

approved repair kits can be used.
Operating electronic devices or being

close to facilities using similar wave

frequencies could disrupt the tyre

pressure monitoring system.
Each time the tyres are replaced, tyre

pressure monitoring system sensors

must be dismounted and serviced.

For the screwed sensor, replace

valve core and sealing ring. For

clipped sensor, replace complete

valve stem.

Vehicle loading status

Adjust tyre pressure to load condition

according to tyre information label or

tyre pressure chart 3 218, and select

the relevant setting in the menu Tyre

Load in the Driver Information Centre,

Vehicle Information Menu 3 89. This

setting is the reference for the tyre

pressure warnings.

The Tyre Load menu only appears if

the vehicle is in a standstill and the

parking brake is applied. On vehicles

with automatic transmission the

selector lever has to be in P.

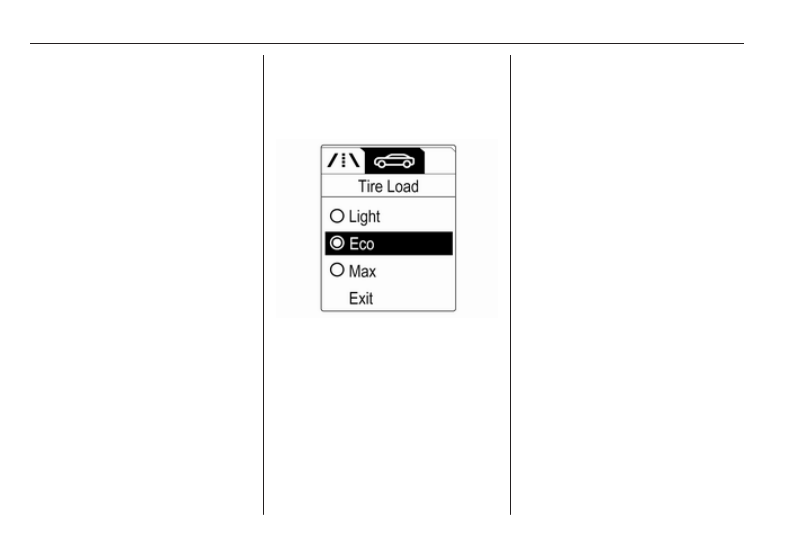

Select:

● Light for comfort pressure up to

3 people

● Eco for Eco pressure up to

3 people

● Max for full loading

Tyre pressure sensor matching

process

Each tyre pressure sensor has a

unique identification code. The

identification code must be matched

to a new wheel position after rotating

the wheels or exchanging the

complete wheel set and if one or more

tyre pressure sensors were replaced.

The tyre pressure sensor matching

process should also be performed

after replacing a spare wheel with a

road wheel containing the tyre

pressure sensor.
The malfunction light w and the

warning message or code should go

off at the next ignition cycle. The

sensors are matched to the wheel

positions, using a relearn tool, in the

following order: left side front wheel,

right side front wheel, right side rear

wheel and left side rear wheel. The

turn signal light at the current active

position is illuminated until sensor is

matched.
Consult a workshop for service or

purchase a relearn tool. There are

two minutes to match the first wheel

position, and five minutes overall to

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

189

match all four wheel positions. If it

takes longer, the matching process

stops and must be restarted.
The tyre pressure sensor matching

process is:

1. Apply the parking brake.
2. Turn the ignition on.
3. On vehicles with automatic

transmission: set the selector

lever to P.
On vehicles with manual

transmission: select neutral.

4. Press MENU on the turn signal

lever to select the Vehicle

Information Menu in the Driver

Information Centre.

5. Turn the adjuster wheel to scroll to

the tyre pressure menu.

6. Press SET/CLR to begin the

sensor matching process. A

message requesting acceptance

of the process should display.

7. Press SET/CLR again to confirm

the selection. The horn sounds

twice to signal the receiver is in

relearn mode.

8. Start with the left side front wheel.

9. Place the relearn tool against the

tyre sidewall, near the valve stem.

Then press the button to activate

the tyre pressure sensor. A horn

chirp confirms that the sensor

identification code has been

matched to this tyre and wheel

position.

10. Proceed to the right side front

wheel, and repeat the procedure

in Step 9.

11. Proceed to the right side rear

wheel, and repeat the procedure

in Step 9.

12. Proceed to the left side rear

wheel, and repeat the procedure

in Step 9. The horn sounds twice

to indicate the sensor

identification code has been

matched to the driver side rear

wheel, and the tyre pressure

sensor matching process is no

longer active.

13. Turn off the ignition.

14. Set all four tyres to the

recommended air pressure level

as indicated on the tyre pressure

information label.

15. Ensure the tyre loading status is

set according selected pressure

3

 89.

Tread depth

Check tread depth at regular

intervals.
Tyres should be replaced for safety

reasons at a tread depth of 2-3 mm

(4 mm for winter tyres).
For safety reasons it is recommended

that the tread depth of the tyres on

one axle should not vary by more than

2 mm.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

190

Vehicle care

The legally permissible minimum

tread depth (1.6 mm) has been

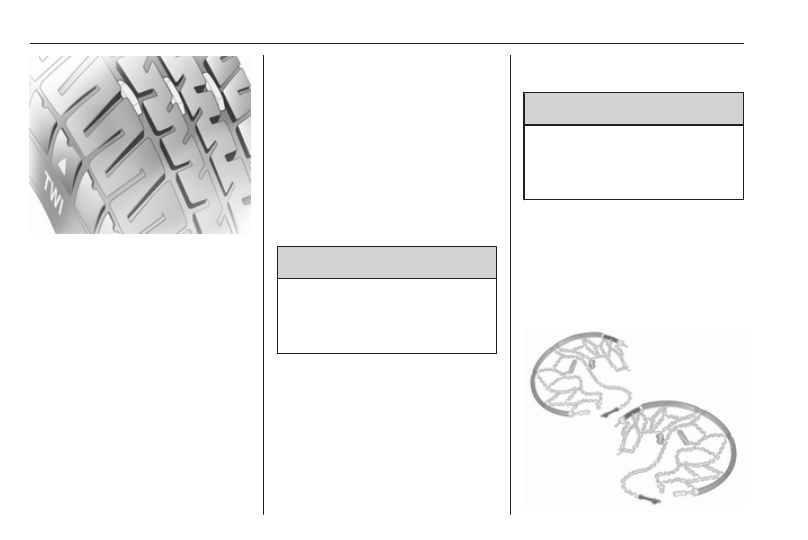

reached when the tread has worn

down as far as one of the tread wear

indicators (TWI). Their position is

indicated by markings on the

sidewall.
If there is more wear at the front than

the rear, swap round front wheels and

rear wheels. Ensure that the direction

of rotation of the wheels is the same

as before.
Tyres age, even if they are not used.

We recommend tyre replacement

every six years.

Changing tyre and wheel

size

If tyres of a different size than those

fitted at the factory are used, it may be

necessary to reprogramme the

speedometer as well as the nominal

tyre pressure and make other vehicle

modifications.
After converting to a different tyre

size, have the label with tyre

pressures replaced.

9 Warning

Use of unsuitable tyres or wheels

may lead to accidents and will

invalidate the vehicle type

approval.

Wheel covers

Wheel covers and tyres that are

factory-approved for the respective

vehicle and comply with all of the

relevant wheel and tyre combination

requirements must be used.
If the wheel covers and tyres used are

not factory-approved, the tyres must

not have a rim protection ridge.

Wheel covers must not impair brake

cooling.

9 Warning

Use of unsuitable tyres or wheel

covers could lead to sudden

pressure loss and thereby

accidents.

Vehicles with alloy wheels: When

mounting steel wheels with alloy

wheel nuts, e.g. when changing to

winter tyres, the wheel covers cannot

be attached to the steel wheels.

Tyre chains

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

191

Use tyre chains only on front wheels.

9 Warning

Damage may lead to tyre blowout.

Tyre chains are permitted on tyres of

size 215/65 R16, 215/60 R17 and

215/55 R18.
On tyres of size 215/65 R16 always

use fine mesh chains suitable for

sport utility vehicles that add no more

than 9 mm to the tyre tread and the

inboard sides (including chain lock).
On tyres of size 215/60 R17 and

215/55 R18 only use special snow

chains which are permitted for Opel

Mokka and tyres of these sizes. For

further information contact a

workshop.
The use of tyre chains is not permitted

on the temporary spare wheel.

Tyre repair kit

Minor damage to the tyre tread can be

repaired with the tyre repair kit.
Do not remove foreign bodies from

the tyres.

Tyre damage exceeding 4 mm or that

is at tyre's sidewall cannot be repaired

with the tyre repair kit.

9 Warning

Do not drive faster than 80 km/h.
Do not use for a lengthy period.
Steering and handling may be

affected.

If you have a flat tyre:
Apply the parking brake and engage

first gear, reverse gear or P.

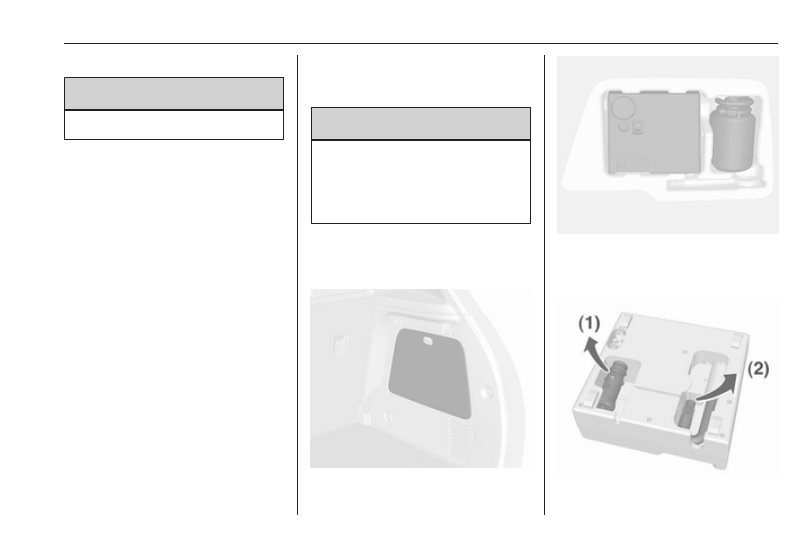

The tyre repair kit is located in the

right side of rear compartment.

1. Take the tyre repair kit from the

compartment.

2. Remove the compressor.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

192

Vehicle care

3. Remove the electrical connection

cable (1) and air hose (2) from the

stowage compartments on the

underside of the compressor.

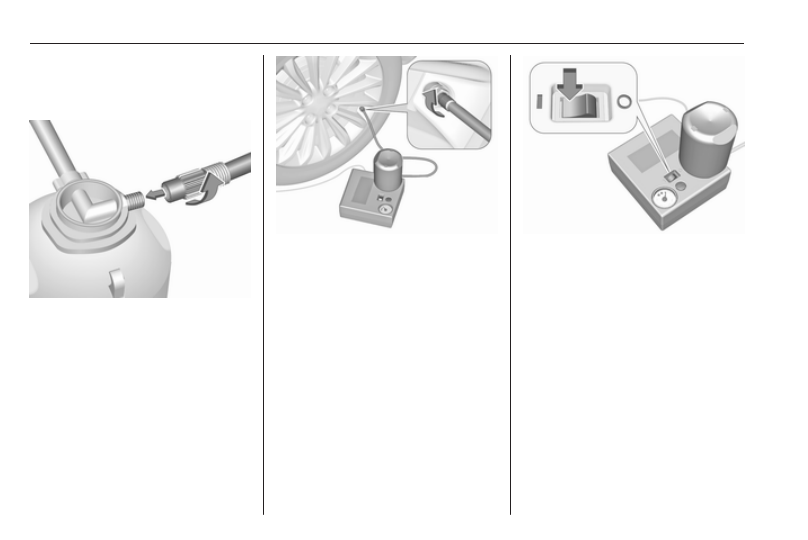

4. Screw the compressor air hose to

the connection on the sealant

bottle.

5. Fit the sealant bottle into the

retainer on the compressor.
Set the compressor near the tyre

in such a way that the sealant

bottle is upright.

6. Unscrew valve cap from defective

tyre.

7. Screw the filler hose to the tyre

valve.

8. The switch on the compressor

must be set to J.

9. Connect the compressor plug to

the power outlet or cigarette

lighter socket.
To avoid discharging the battery,

we recommend running the

engine.

10. Set the rocker switch on the

compressor to I. The tyre is filled

with sealant.

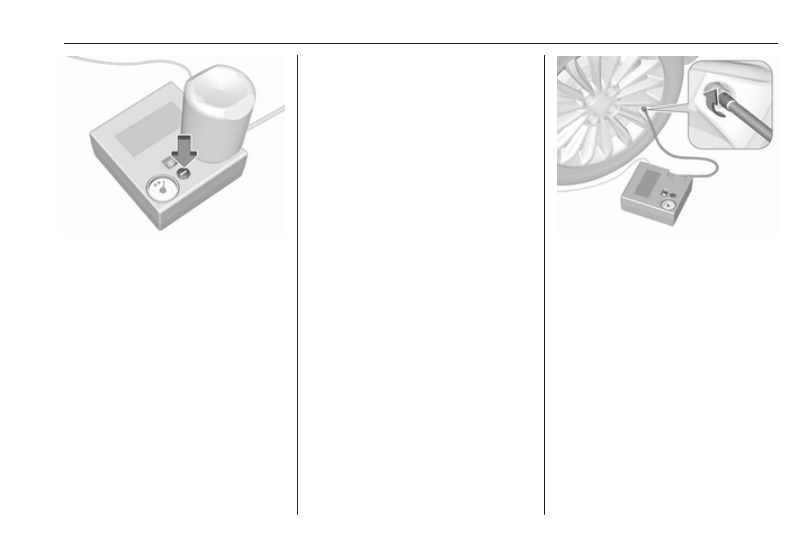

11. The compressor pressure gauge

briefly indicates up to 6 bar whilst

the sealant bottle is emptying

(approx. 30 seconds). Then the

pressure starts to drop.

12. All of the sealant is pumped into

the tyre. Then the tyre is inflated.

13. The prescribed tyre pressure

should be obtained within

ten minutes. Tyre pressure

3

 218. When the correct pressure

is obtained, switch off the

compressor.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

193

If the prescribed tyre pressure is

not obtained within ten minutes,

remove the tyre repair kit. Move

the vehicle one tyre rotation.

Reattach the tyre repair kit and

continue the filling procedure for

10 minutes. If the prescribed tyre

pressure is still not obtained, the

tyre is too badly damaged. Seek

the assistance of a workshop.
Drain excess tyre pressure with

the button over the pressure

indicator.
Do not run the compressor longer

than 10 minutes.

14. Detach the tyre repair kit. Push

catch on bracket to remove

sealant bottle from bracket. Screw

the tyre inflation hose to the free

connection of the sealant bottle.

This prevents sealant from

escaping. Stow tyre repair kit in

load compartment.

15. Remove any excess sealant

using a cloth.

16. Take the label indicating

maximum permitted speed from

the sealant bottle and affix in the

driver's field of view.

17. Continue driving immediately so

that sealant is evenly distributed

in the tyre. After driving approx.

10 km (but no more than

ten minutes), stop and check tyre

pressure. Screw compressor air

hose directly onto tyre valve and

compressor when doing this.

If tyre pressure is more than

1.3 bar, set it to the correct value.

Repeat the procedure until there

is no more loss of pressure.
If the tyre pressure has fallen

below 1.3 bar, the vehicle must

not be used. Seek the assistance

of a workshop.

18. Stow away tyre repair kit in load

compartment.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

194

Vehicle care

Note

The driving characteristics of the

repaired tyre are severely affected,

therefore have this tyre replaced.
If unusual noise is heard or the

compressor becomes hot, turn

compressor off for at least

30 minutes.
The built-in safety valve opens at a

pressure of 7 bar.
Note the expiry date of the kit. After

this date its sealing capability is no

longer guaranteed. Pay attention to

storage information on sealant

bottle.
Replace the used sealant bottle.

Dispose of the bottle as prescribed

by applicable laws.
The compressor and sealant can be

used from approx. -30 °C.
The adapters supplied can be used

to pump up other items e.g.

footballs, air mattresses, inflatable

dinghies etc. They are located on the

underside of the compressor. To

remove, screw on compressor air

hose and withdraw adapter.

Wheel changing

Some vehicles are equipped with a

tyre repair kit instead of a spare wheel

3

 191.

Make the following preparations and

observe the following information:

● Park the vehicle on a level, firm

and non-skid surface. The front

wheels must be in the straight-

ahead position.

● Apply the parking brake and

engage first gear, reverse gear or

P.

● Remove the spare wheel 3 196.
● Never change more than one

wheel at a time.

● Use the jack only to change

wheels in case of puncture, not

for seasonal winter or summer

tyre change.

● The jack is maintenance-free.
● If the ground on which the vehicle

is standing is soft, a solid board

(max. 1 cm thick) should be

placed under the jack.

● Take heavy objects out of the

vehicle before jacking up.

● No people or animals may be in

the vehicle when it is jacked-up.

● Never crawl under a jacked-up

vehicle.

● Do not start the vehicle when it is

raised on the jack.

● Clean wheel nuts and thread with

a clean cloth before mounting the

wheel.

9 Warning

Do not grease wheel bolt, wheel

nut and wheel nut cone.

1. Disengage wheel nut caps with a

screwdriver and remove. Pull off

the wheel cover.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

195

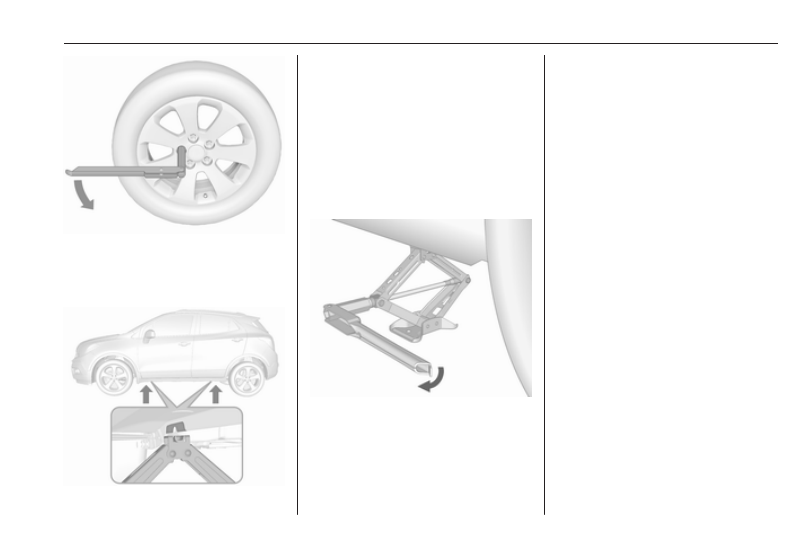

2. Fold out the wheel wrench and

install ensuring that it locates

securely and loosen each wheel

nut by half a turn.

3. Ensure the jack is correctly

positioned under the relevant

vehicle jacking point.
Depending on the equipment, first

remove the covers from the

jacking points.

4. Set the jack to the necessary

height. Position it directly below

the jacking point in a manner that

prevents it from slipping.

Attach wheel wrench and with the

jack correctly aligned rotate wheel

wrench until wheel is clear of the

ground.

5. Unscrew the wheel nuts.
6. Change the wheel. Spare wheel

3

 196.

7. Screw on the wheel nuts.
8. Lower the vehicle and remove

jack.

9. Install the wheel wrench ensuring

that it locates securely and tighten

each nut in a crosswise

sequence. Tightening torque is

140 Nm.

10. Align the valve hole in the wheel

cover with the tyre valve before

installing.
Install wheel nut caps.
Install centre cap on alloy wheels.

11. Install vehicle jacking point cover

on versions with sill panelling.

12. Stow the replaced wheel 3 196

and the vehicle tools 3 184.

13. Check the tyre pressure of the

installed tyre and the wheel nut

torque as soon as possible.

Have the defective tyre renewed or

repaired as soon as possible.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

196

Vehicle care

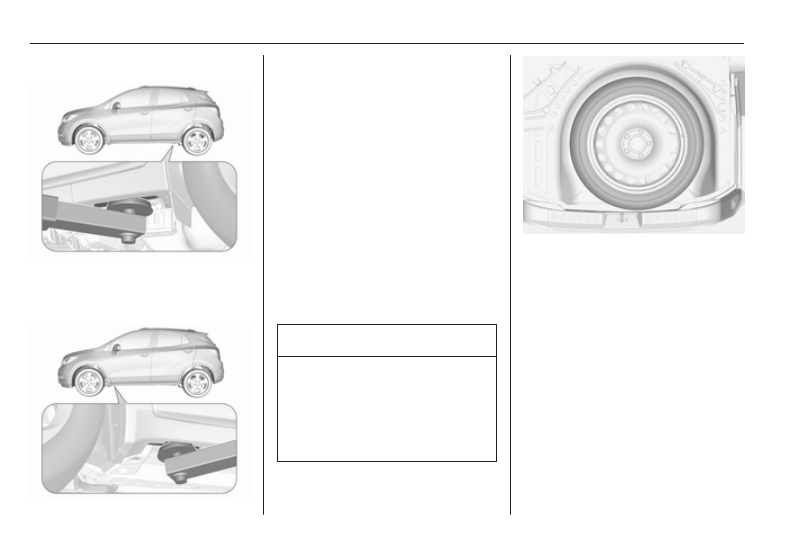

Jacking position for lifting platform

Rear arm position of the lifting

platform centrically under the recess

of the sill.

Front arm position of the lifting

platform at the underbody.

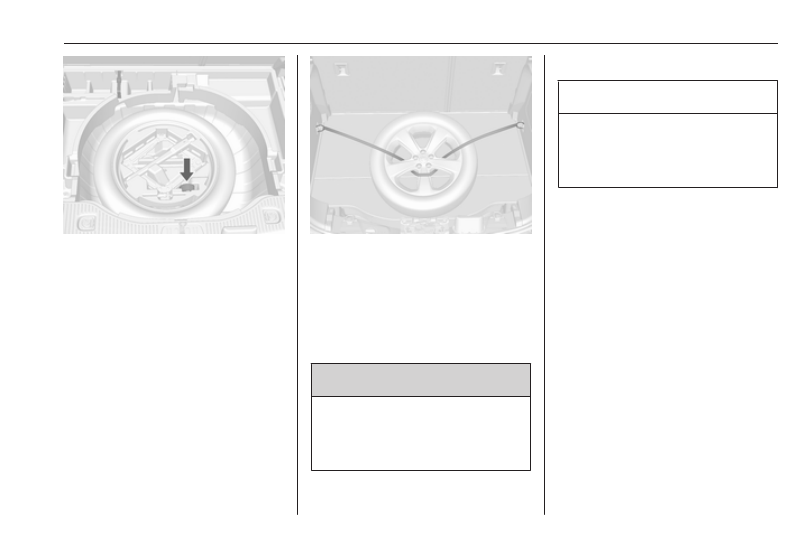

Spare wheel

Some vehicles are equipped with a

tyre repair kit instead of a spare wheel

3

 191.

If mounting a spare wheel, which is

different from the other wheels, this

wheel might be classified as a

temporary spare wheel and the

corresponding speed limits apply,

even though no label indicates this.

Seek the assistance of a workshop to

check the applicable speed limit.
The spare wheel has a steel rim.

Caution

The use of a spare wheel that is

smaller than the other wheels or in

combination with winter tyres

could affect driveability. Have the

defective tyre replaced as soon as

possible.

The spare wheel is located in the load

compartment beneath the floor

covering. It is secured with a wing nut.

Stowing a damaged full size

wheel in the load compartment

The spare wheel well is not designed

for other tyre sizes than the spare

wheel.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

197

A damaged full size wheel must be

stowed in the load compartment and

secured with a strap. Vehicle tools

3

 184.

To secure the wheel:

1. Position the wheel in the middle of

the load compartment.

2. Place the loop end of the strap

through the lashing eye on one

side.

3. Place the hook end of the strap

through the loop and pull it until

the strap is fastened securely to

the lashing eye.

4. Insert the strap through the

spokes of the wheel as shown in

the illustration.

5. Mount the hook to the opposite

lashing eye.

6. Tighten the strap and secure it

using the buckle.

9 Danger

Always drive with folded up and

engaged rear seat backrests when

stowing a damaged full size wheel

in the load compartment.

Temporary spare wheel

Caution

The use of the temporary spare

wheel could affect driveability.

Have the defective tyre renewed

or repaired as soon as possible.

Only mount one temporary spare

wheel. Do not drive faster than

80 km/h. Take curves slowly. Do not

use for a long period of time.
If your vehicle gets a flat tyre on the

rear while towing another vehicle,

mount the temporary spare wheel at

the front and the full size tyre at the

rear.
Tyre chains 3 190.

Spare wheel with directional tyre

If possible, fit directional tyres such

that they roll in the direction of travel.

The rolling direction is indicated by a

symbol (e.g. an arrow) on the

sidewall.

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     10      11      12      13     ..
