Opel Mokka (2017 year). Manual - part 11





166

Vehicle care

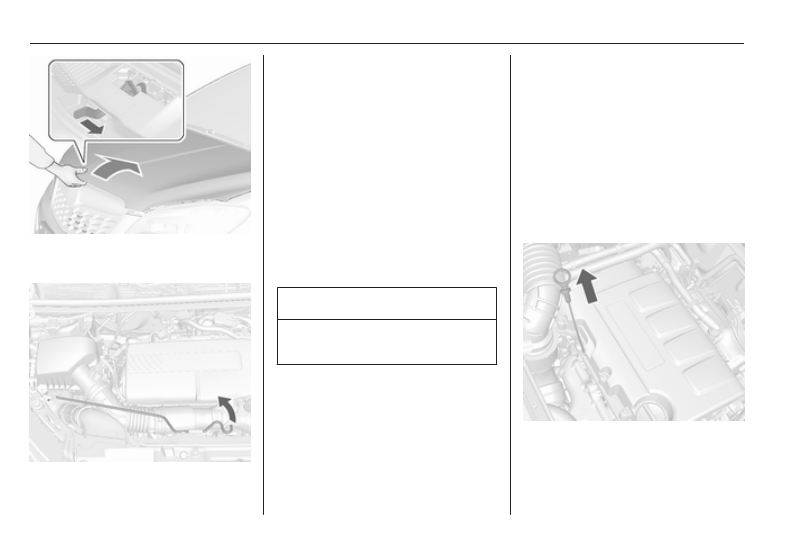

Move the safety catch sideways to the

left vehicle side and open the bonnet.

Pull up the support rod lightly from the

holder. And then secure it at the left

side hook on the bonnet.
If the bonnet is opened during an

Autostop, the engine will be restarted

automatically for safety reasons.

Closing

Before closing the bonnet, press the

support into the holder.
Lower the bonnet and allow it to fall

into the latch from a low height

(20-25 cm). Check that the bonnet is

engaged.

Caution

Do not press the bonnet into the

latch, to avoid dents.

Engine oil

Check the engine oil level manually

on a regular basis to prevent damage

to the engine. Ensure that the correct

specification of oil is used.

Recommended fluids and lubricants

3

 206.

The maximum engine oil

consumption is 0.6 l per 1000 km.
Check with the vehicle on a level

surface. The engine must be at

operating temperature and switched

off for at least five minutes.

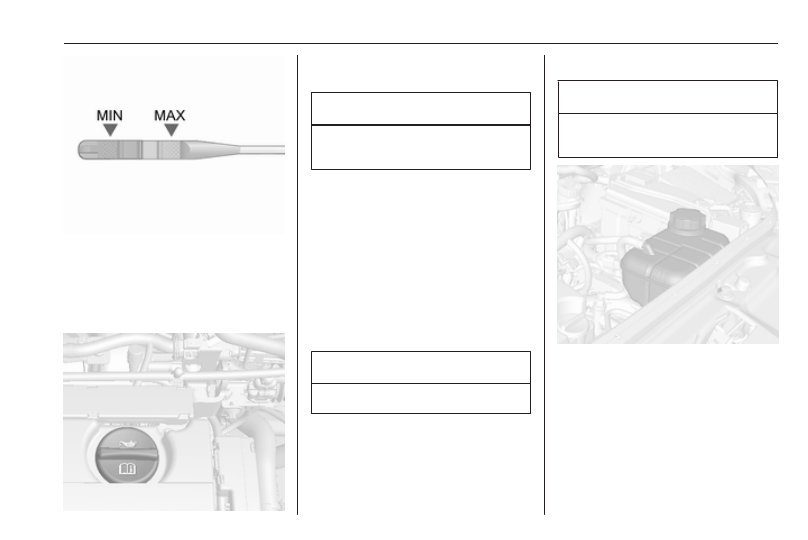

Pull out the dipstick, wipe it clean,

insert it to the stop on the handle, pull

out and read the engine oil level.
Insert dipstick to the stop on the

handle and make half a turn.

When the engine oil level has

dropped to the MIN mark, top up

engine oil.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

167

We recommend the use of the same

grade of engine oil that was used at

last change.
The engine oil level must not exceed

the MAX mark on the dipstick.

The engine oil filler cap is located on

the camshaft cover.

Caution

Overfilled engine oil must be

drained or suctioned out.

Capacities 3 217.
Fit the cap on straight and tighten it.

Engine coolant

The coolant provides freeze

protection down to approx. -30 °C. In

northern countries with very low

temperatures the factory filled coolant

provides frost protection down to

approx. -40 °C.

Caution

Only use approved antifreeze.

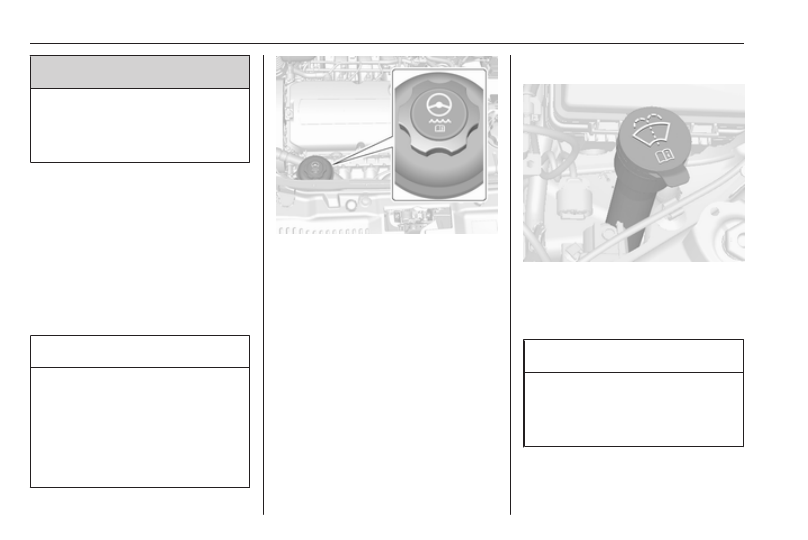

Coolant level

Caution

Too low a coolant level can cause

engine damage.

If the cooling system is cold, the

coolant level should be above the

filling line mark. Top up if the level is

low.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

168

Vehicle care

9 Warning

Allow the engine to cool before

opening the cap. Carefully open

the cap, relieving the pressure

slowly.

To top up use a 1:1 mixture of

released coolant concentrate mixed

with clean tap water. If no coolant

concentrate is available, use clean

tap water. Install the cap tightly. Have

the coolant concentration checked

and have the cause of the coolant

loss remedied by a workshop.

Power steering fluid

Caution

Extremely small amounts of

contamination can cause steering

system damage and cause it to not

work properly. Do not allow

contaminates to contact the fluid

side of the reservoir cap/dipstick or

from entering the reservoir.

Power steering fluid level normally

does not need to be checked. If an

unusual noise sounds during steering

or the power steering reacts

conspicuously, seek the assistance of

a workshop.

Washer fluid

Fill with clean water mixed with a

suitable quantity of approved

windscreen washer fluid which

contains antifreeze.

Caution

Only washer fluid with a sufficient

antifreeze concentration provides

protection at low temperatures or

a sudden drop in temperature.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

169

Brakes

In the event of minimum thickness of

the brake lining, a squealing noise

sounds during braking.
Continued driving is possible but

have the brake lining replaced as

soon as possible.
Once new brake linings are installed,

do not brake unnecessarily hard for

the first few journeys.

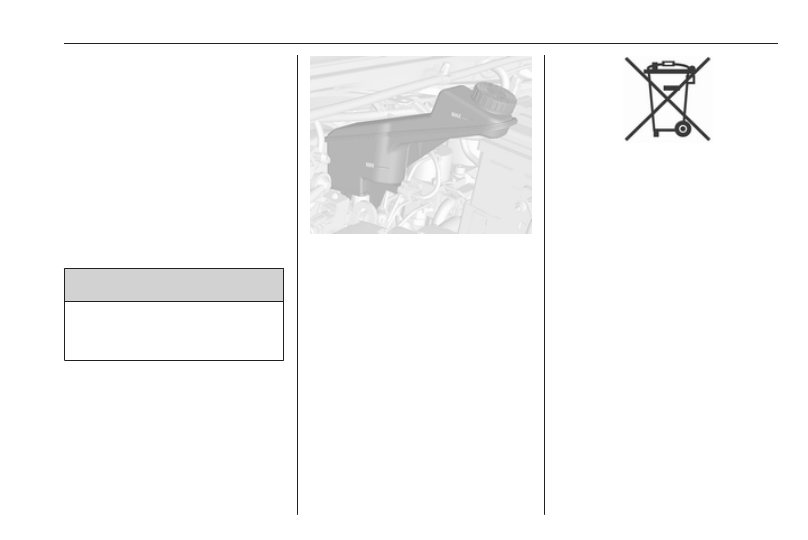

Brake fluid

9 Warning

Brake fluid is poisonous and

corrosive. Avoid contact with eyes,

skin, fabrics and painted surfaces.

The brake fluid level must be between

the MIN and the MAX marks.
If fluid level is below MIN seek the

assistance of a workshop.
Brake and clutch fluid 3 206.

Vehicle battery

The vehicle battery is maintenance-

free provided that the driving profile

allows sufficient charging of the

battery. Short-distance-driving and

frequent engine starts can discharge

the battery. Avoid the use of

unnecessary electrical consumers.

Batteries do not belong in household

waste. They must be disposed of at

an appropriate recycling collection

point.
Laying up the vehicle for more than

four weeks can lead to battery

discharge. Disconnect the clamp from

the negative terminal of the vehicle

battery.
Ensure the ignition is switched off

before connecting or disconnecting

the vehicle battery.
Vehicle battery discharge protection

3

 116.

Replacing the vehicle battery

Note

Any deviation from the instructions

given in this section may lead to

temporary deactivation of the stop-

start system.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

170

Vehicle care

When the vehicle battery is being

replaced, please ensure that there

are no open ventilation holes in the

vicinity of the positive terminal. If a

ventilation hole is open in this area, it

must be closed off with a dummy cap,

and the ventilation in the vicinity of the

negative terminal must be opened.
Only use vehicle batteries that allow

the fuse box to be mounted above the

vehicle battery.
In vehicles with an AGM (Absorptive

Glass Mat) battery, make sure to

have the battery replaced with

another AGM battery.

An AGM battery can be identified by

the label on the battery. We

recommend the use of an original

Opel vehicle battery.

Note

Using an AGM vehicle battery

different from the original Opel

vehicle battery may result in a lower

performance.

We recommend that you have the

vehicle battery replaced by a

workshop.
Stop-start system 3 127.

Charging the vehicle battery

9 Warning

On vehicles with stop-start

system, ensure that the charging

potential does not exceed

14.6 volts when using a battery

charger. Otherwise the vehicle

battery might be damaged.

Jump starting 3 198.

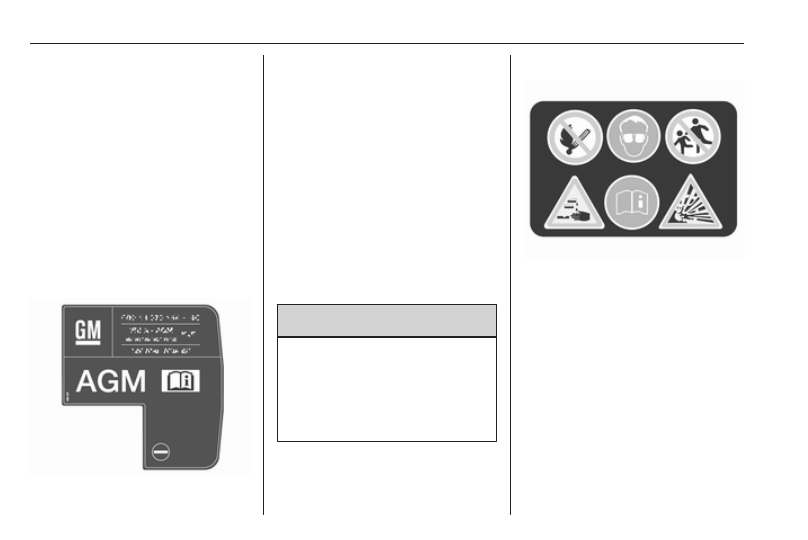

Warning label

Meaning of symbols:

● No sparks, naked flames or

smoking.

● Always shield eyes. Explosive

gases can cause blindness or

injury.

● Keep the vehicle battery out of

reach of children.

● The vehicle battery contains

sulphuric acid which could cause

blindness or serious burn

injuries.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

171

● See the Owner's Manual for

further information.

● Explosive gas may be present in

the vicinity of the vehicle battery.

Diesel fuel system bleeding

If the tank has been run dry, the diesel

fuel system must be bled. Switch on

the ignition three times for

15 seconds at a time. Then crank the

engine for a maximum of

40 seconds. Repeat this process after

no less than 5 seconds. If the engine

fails to start, seek the assistance of a

workshop.

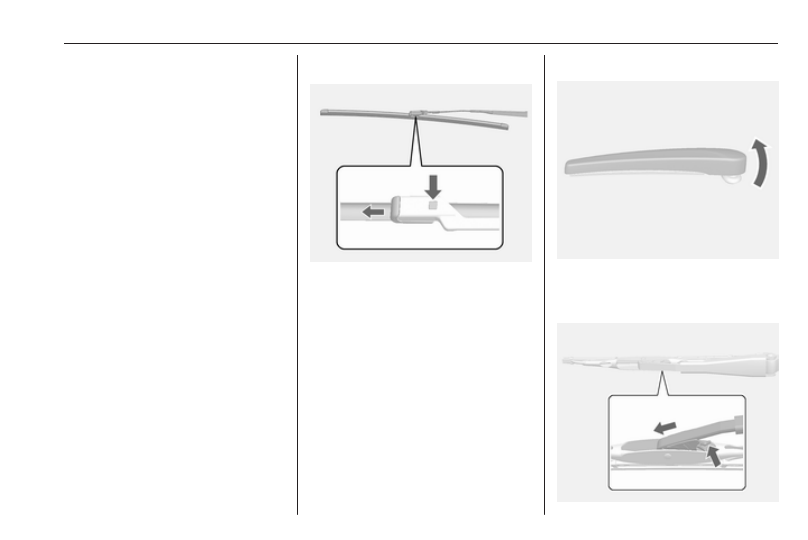

Wiper blade replacement

Lift the wiper arm, press button to

disengage the wiper blade and

remove.
Attach the wiper blade slightly angled

to the wiper arm and push until it

engages.
Lower wiper arm carefully.

Wiper blade on the rear window

1. Remove the wiper cover from the

wiper assembly.

2. Lift wiper blade.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

172

Vehicle care

3. Press slider holder pin.
4. Pull wiper blade out.

Bulb replacement

Switch off the ignition and turn off the

relevant switch or close the doors.
Only hold a new bulb at the base. Do

not touch the bulb glass with bare

hands.
Use only the same bulb type for

replacement.
Replace headlight bulbs from within

the engine compartment.

Halogen headlights

Low beam and high beam

Remove protective cover.

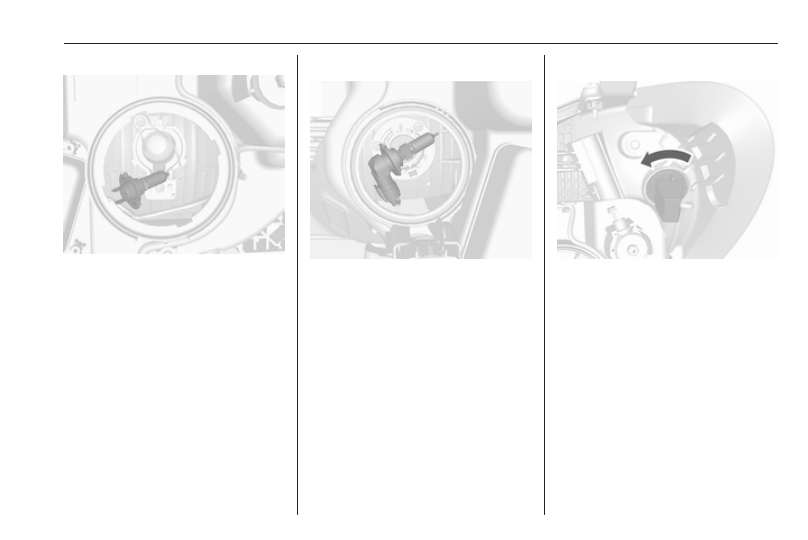

Low beam

1. Disconnect the headlight bulb

socket connector.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

173

2. Press spring clip, disengage it.

3. Remove the bulb from the bulb

socket and replace the bulb.

4. When fitting a new bulb, engage

the lugs in the recesses on the

reflector.

5. Reinstall the headlight assembly.
6. Engage the spring clip.
7. Connect the bulb socket

connector.

8. Place headlight protective cover

in position and close.

High beam

1. Remove the bulb socket by

pulling.

2. Remove the bulb from the bulb

socket and replace the bulb.

3. When fitting a new bulb, engage

the lugs in the recesses on the

reflector.

4. Reinstall the headlight assembly.
5. Place headlight protective cover

in position and close.

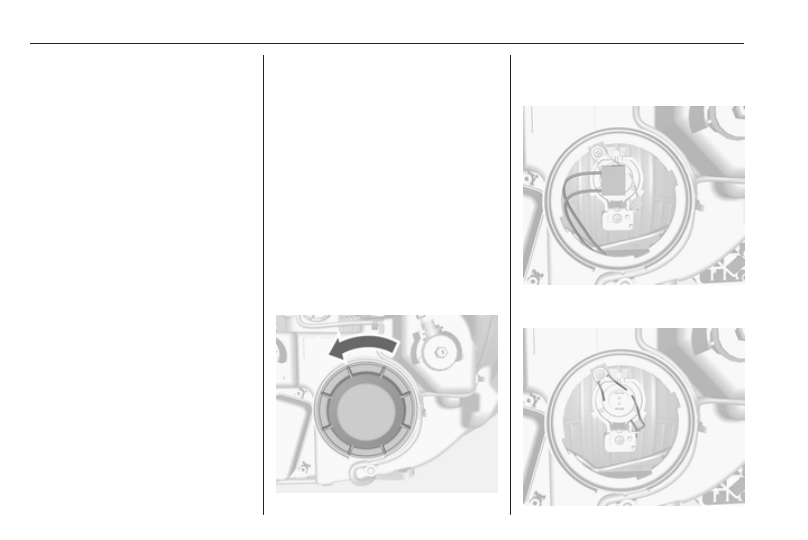

Sidelights

1. Remove the socket from the

assembly by turning

anticlockwise.

2. Remove bulb socket from

reflector.

3. Detach plug connector from bulb.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

174

Vehicle care

4. Remove bulb from socket.
5. Insert new bulb.
6. Plug connector onto bulb.
7. Insert socket in reflector.
8. Reinstall the assembly.

Xenon headlights

9 Danger

Xenon headlights work under

extremely high electrical voltage.

Do not touch. Have bulbs replaced

by a workshop.

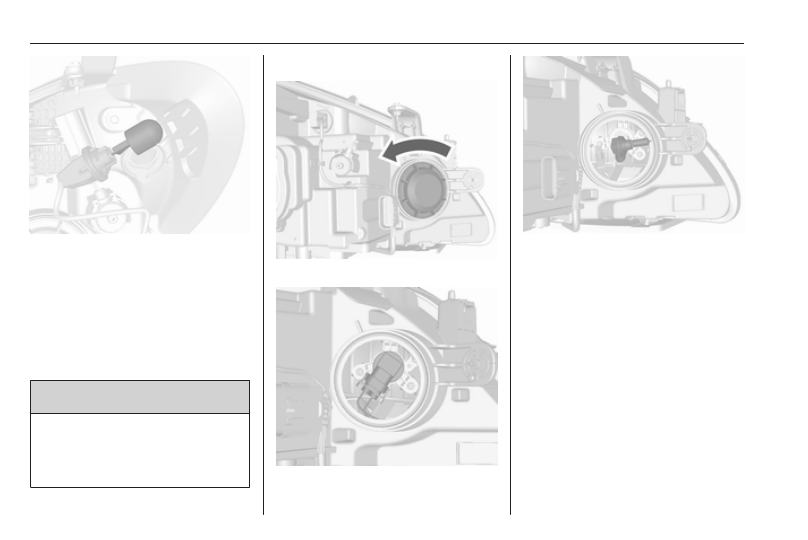

Cornering lights

1. Remove the protective cover.

2. Remove the bulb socket by

pulling.

3. Remove the bulb from the bulb

socket and replace the bulb.

4. When fitting a new bulb, engage

the lugs in the recesses on the

reflector.

5. Reinstall the headlight assembly.
6. Place headlight protective cover

in position and close.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

175

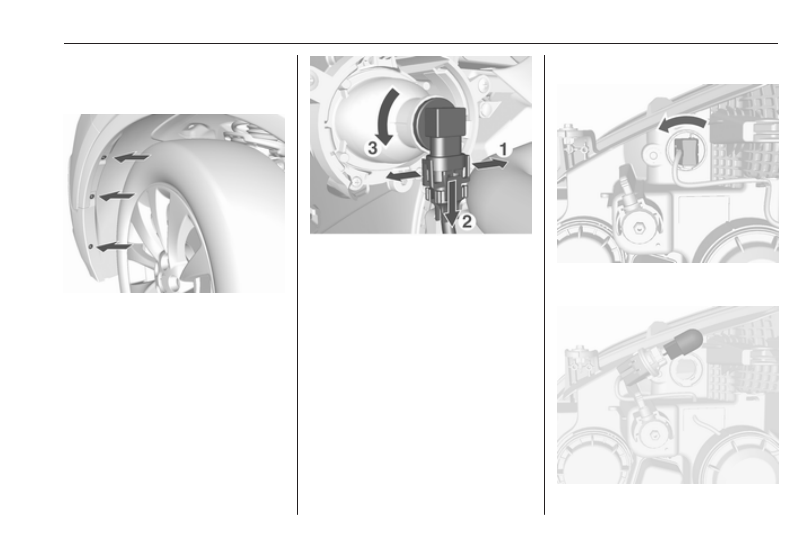

Fog lights

The bulbs are accessible from the

underside of the vehicle

1. Turn the respective wheel inside

to get better access and remove

three torx screws on outside of

wheel house. Vehicle tools

3

 184.

2. Pull and hold lining to get access

to the bulb holder.

3. Pull the retaining rib (1) outwards

and remove plug connector (2)

from the bulb socket.

4. Turn the bulb holder anti-

clockwise (3) and remove it from

the reflector.

5. Remove and replace the bulb

socket with bulb and attach the

plug connector.

6. Insert the bulb socket into the

reflector by turning clockwise and

engage.

7. Re-assemble the lining and fasten

the three torx screws.

Front turn signal lights

1. Rotate bulb holder anticlockwise

and disengage.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

176

Vehicle care

2. Push bulb into socket slightly,

rotate anticlockwise, remove and

renew bulb.

3. Insert bulb holder in reflector,

rotate clockwise to engage.

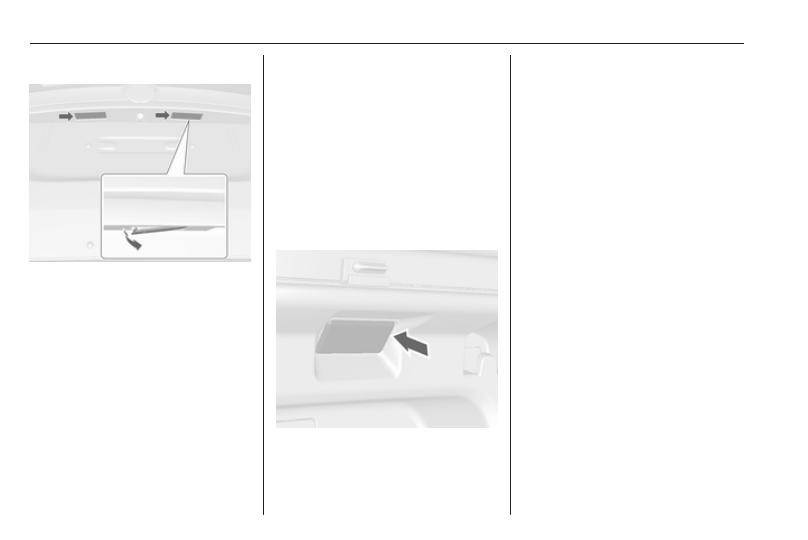

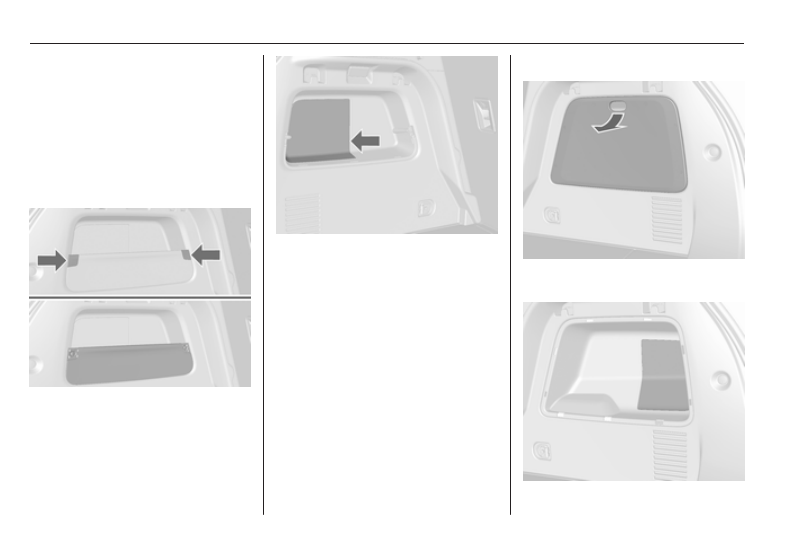

Tail lights

Left-hand side

1. Disengage both covers at the

respective outer side by inserting

a screwdriver. Remove both

covers and unscrew screws.

Remove the panel.

2. First disengage cover by inserting

a screwdriver at the recess. Then

disengage cover at the front and

upper side. Remove cover.

Right-hand side

1. Remove the storage door and the

tyre repair kit.

2. Remove the cover.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

177

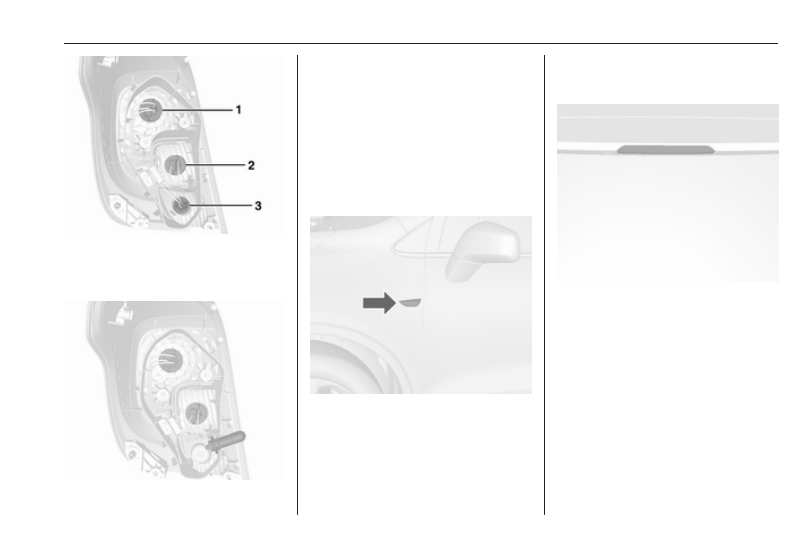

3. Tail/Stop light (1)

Turn signal light (2)
Back-up lamp (3)

4. Remove bulb holder. Remove

and renew bulb.

5. Insert bulb holder into the tail light

assembly. Close covers and

engage.

6. Switch on ignition, operate and

check all lights.

Side turn signal lights

If the lights do not operate, have them

checked by a workshop.

Centre high-mounted brake

light

If the centre high-mounted brake light

does not operate, have it checked by

a workshop.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

178

Vehicle care

Number plate light

1. Prise the light out with a

screwdriver.

2. Remove bulb housing

downwards, taking care not to pull

on the cable.
Rotate bulb holder anticlockwise

to disengage.

3. Remove bulb from holder and

renew bulb.

4. Insert bulb holder in bulb housing

and rotate clockwise.

5. Insert bulb housing and secure

using a screwdriver.

Interior lights

Courtesy lights

1. To remove it, prise the opposite

side of the light switch using a flat-

blade screwdriver.

2. Remove the bulb.
3. Replace the bulb.
4. Reinstall the light assembly.

Load compartment light

1. Prise the light out with a

screwdriver.

2. Remove bulb.

3. Insert new bulb.
4. Install light.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

179

Electrical system

Fuses

Data on the replacement fuse must

match the data on the defective fuse.
In a box above the positive terminal of

the battery are some main fuses. If

necessary have them changed by a

workshop.
Before replacing a fuse, turn off the

respective switch and the ignition.
A blown fuse can be recognised by its

melted wire. Do not replace the fuse

until the cause of the fault has been

remedied.
Some functions are protected by

several fuses.
Fuses may also be inserted without

existence of a function.

Note

Not all fuse box descriptions in this

manual may apply to your vehicle.
When inspecting the fuse box, refer

to the fuse box label.

Fuse extractor

A fuse extractor may be located in the

fuse box in the engine compartment.
Place the fuse extractor on the

various types of use from the top or

side, and withdraw fuse.

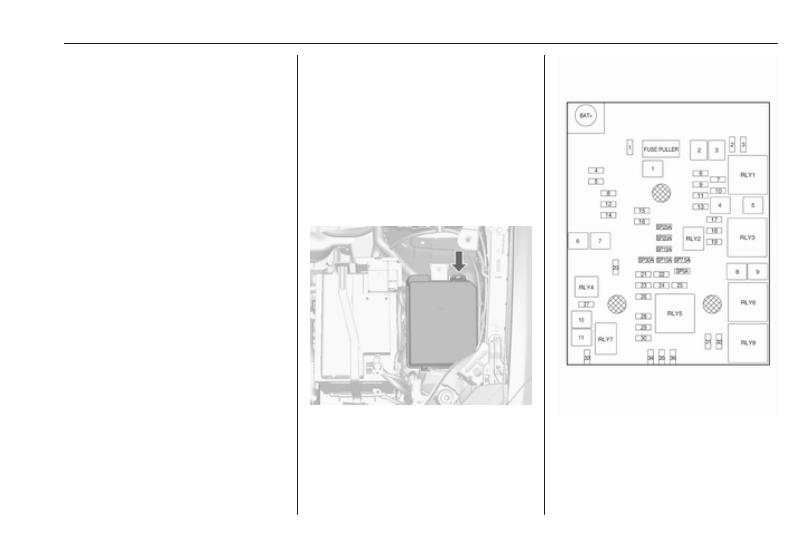

Engine compartment fuse

box

The fuse box is in the engine

compartment.
Disengage the cover, lift it upwards

and remove.

Mini Fuses

-------------------------------------------------------------------------------------------------------------------------------------------------------------

180

Vehicle care

No. Circuit
1

Sunroof

2

Exterior mirrors

3

4

5

Electrical brake control module

6

Intelligent battery sensor

7

8

Transmission control module

9

10 Headlight levelling
11 Rear window wiper
12 Heated rear window
13 Headlight actuator (left hand)
14 Heated exterior mirrors
15 –
16 Seat heating
17 Transmission control module

No. Circuit
18 Engine control module
19 Fuel pump
20 –
21 Cooling fan
22 –
23 Ignition coil/Engine control

module

24 Washer pump
25 Headlamp actuator (right hand)
26 Engine control sensors
27 –
28 Ignition
29 Ignition
30 Exhaust system
31 Left-hand high beam
32 Right-hand high beam
33 Engine control module
34 Horn

No. Circuit
35 Air conditioning system
36 Front fog lamp

J-cases Fuses
No. Circuit
1

Electrical brake control module

2

Front wiper

3

Power module

4

Power terminal of instrument

panel fuse box

5

6

Fuel heater

7

8

Cooling fan

9

Cooling fan

10 Engine control module/Glow

plug

11 Starter

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

181

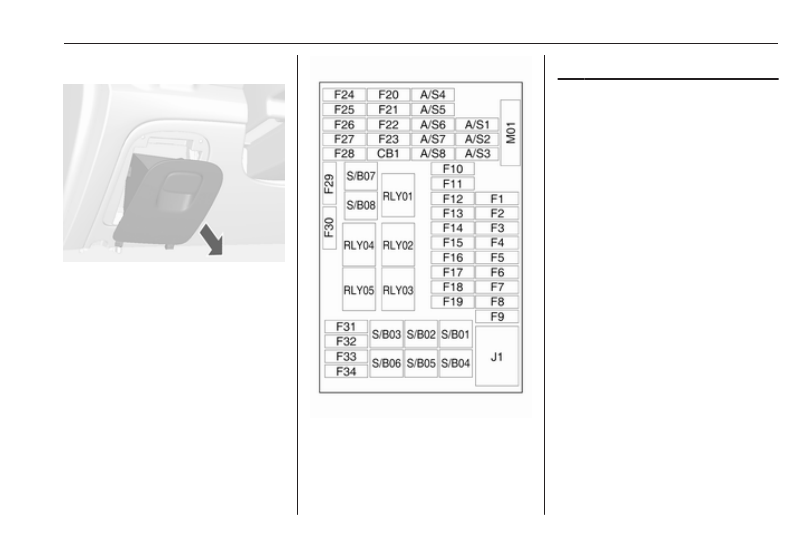

Instrument panel fuse box

Interior fuse block is located on the

underside of the driver's side

instrument panel.
To access the fuses, remove the

storage.
To remove the storage, open and pull

it.

Mini Fuses

No. Circuit
1

Body control module

2

Body control module

3

Body control module

4

Body control module

5

Body control module

6

Body control module

7

Body control module

8

Body control module

9

Ignition switch

10 Safety diagnosis module
11 Data link connector
12 Climate control
13 Tailgate
14 Parking assist
15 Lane departure warning/Interior

mirror

16 Adaptive forward lighting
17 Power window driver

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     9      10      11      12     ..
