Opel Astra Saloon (2014 year). Manual - part 15





230

Technical data

Van

Comfort with up to 3 people ECO with up to 3 people

With full load

Engine Tyres

front

rear

front

rear

front

rear

[kPa/bar](psi) [kPa/bar] (psi) [kPa/bar] (psi) [kPa/bar] (psi) [kPa/bar] (psi) [kPa/bar] (psi)

A17DTJ,
A17DTR

195/65 R 15,

230/2.3 (33) 210/2.1 (30) 270/2.7 (39) 250/2.5 (36) 250/2.5 (36) 290/2.9 (42)

205/55 R 16

all

Temporary spare

wheel

420/4.2 (61) 420/4.2 (61) –

420/4.2 (61) 420/4.2 (61)

TwinTop

Comfort with up to 3 people ECO with up to 3 people

With full load

Engine Tyres

front

rear

front

rear

front

rear

[kPa/bar](psi) [kPa/bar] (psi) [kPa/bar] (psi) [kPa/bar] (psi) [kPa/bar] (psi) [kPa/bar] (psi)

A16XER 225/40 R 18

230/2.3 (33) 210/2.1 (30) –

240/2.4 (35) 280/2.8 (41)

205/55 R 16,

210/2.1 (30) 210/2.1 (30) 250/2.5 (36) 250/2.5 (36) 220/2.2 (32) 260/2.6 (38)

225/45 R 17

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data

231

Comfort with up to 3 people ECO with up to 3 people

With full load

Engine Tyres

front

rear

front

rear

front

rear

[kPa/bar](psi) [kPa/bar] (psi) [kPa/bar] (psi) [kPa/bar] (psi) [kPa/bar] (psi) [kPa/bar] (psi)

A18XER 205/55 R 16,

210/2.1 (30) 210/2.1 (30) 250/2.5 (36) 250/2.5 (36) 220/2.2 (32) 260/2.6 (38)

225/45 R 17
225/40 R 18

230/2.3 (33) 210/2.1 (30) –

240/2.4 (35) 280/2.8 (41)

all

Temporary spare

wheel

420/4.2 (61) 420/4.2 (61) –

420/4.2 (61) 420/4.2 (61)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

232

Technical data

Towing hitch installation dimensions

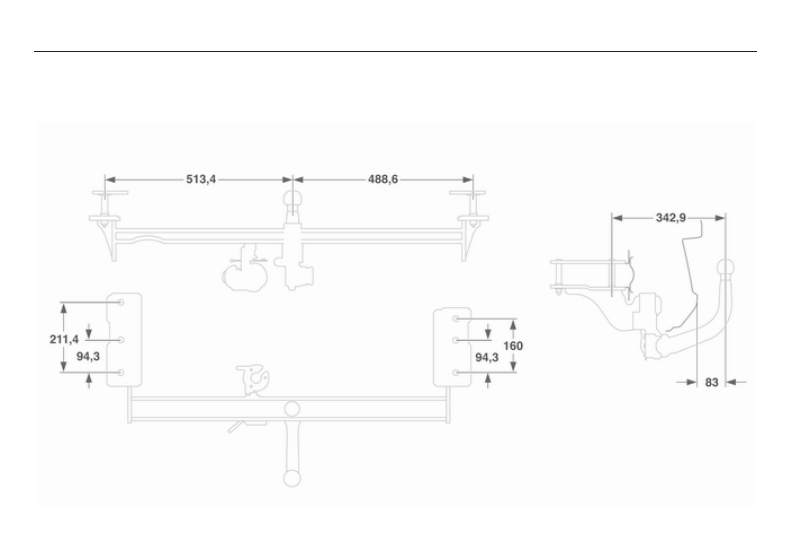

Saloon

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data

233

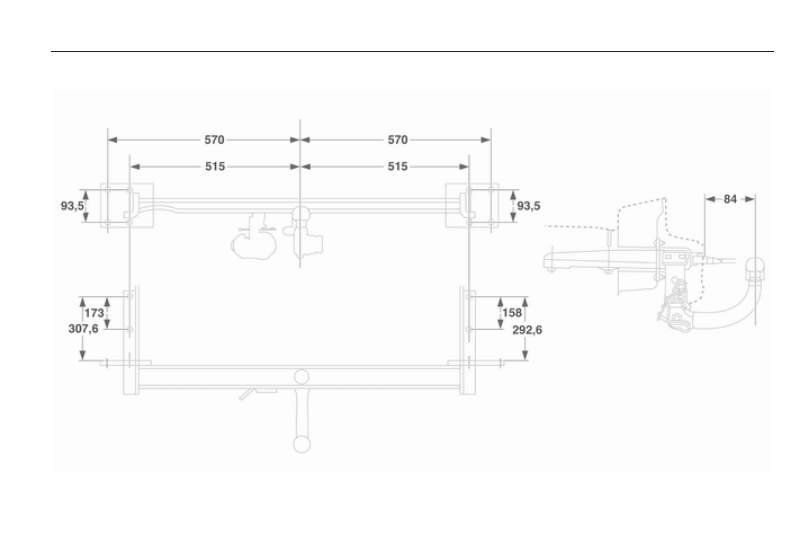

Station wagon, Van

-------------------------------------------------------------------------------------------------------------------------------------------------------------

234

Technical data

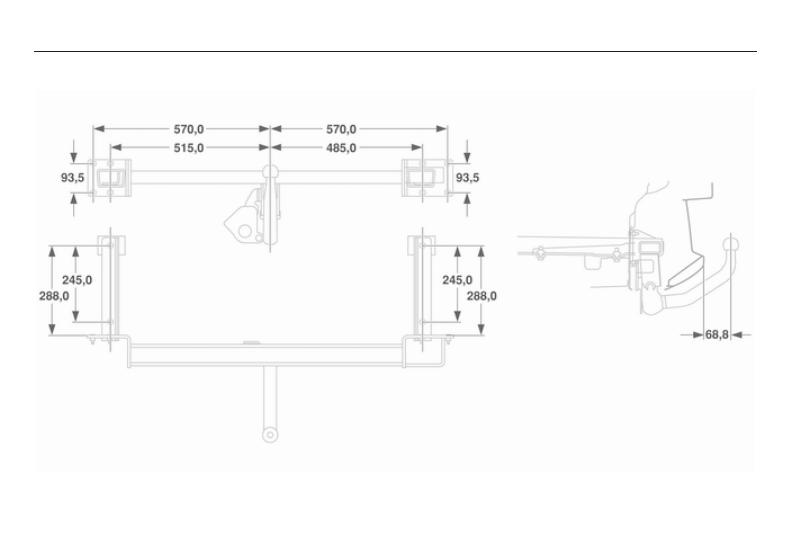

TwinTop

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Customer information

235

Customer information

Customer information ................ 235
Vehicle data recording and pri‐

vacy ........................................... 235

Customer information

Declaration of conformity

This vehicle has systems that

transmit and/or receive radio waves

subject to Directive 1999/5/EC.

These systems are in compliance

with the essential requirements and

other relevant provisions of Directive

1999/5/EC. Copies of the original

Declarations of Conformity can be

obtained on our website.

Vehicle data recording

and privacy

Event data recorders

Data storage modules in the

vehicle

A large number of electronic

components of your vehicle contain

data storage modules temporarily or

permanently storing technical data

about the condition of the vehicle,

events and errors. In general, this

technical information documents the

condition of parts, modules, systems

or the environment:

■ Operating conditions of system

components (e.g. filling levels)

■ Status messages of the vehicle and

its single components (e.g. number

of wheel revolutions / rotational

speed, deceleration, lateral

acceleration)

■ Dysfunctions and defects in

important system components

-------------------------------------------------------------------------------------------------------------------------------------------------------------

236

Customer information

■ Vehicle reactions in particular

driving situations (e.g. inflation of

an airbag, activation of the stability

regulation system)

■ Environmental conditions (e.g.

temperature)

These data are exclusively technical

and help identifying and correcting

errors as well as optimizing vehicle

functions.
Motion profiles indicating travelled

routes cannot be created with these

data.
If services are used (e.g. repair

works, service processes, warranty

cases, quality assurance),

employees of the service network

(manufacturer included) are able to

read out this technical information

from the event and error data storage

modules applying special diagnostic

devices. If required, you will receive

further information at these

workshops. After an error has been

corrected, the data are deleted from

the error storage module or they are

constantly overwritten.

When using the vehicle, situations

may occur in which these technical

data related to other information

(accident report, damages on the

vehicle, witness statements etc.) may

be associated with a specific person -

possibly, with the assistance of an

expert.
Additional functions contractually

agreed upon with the client (e.g.

vehicle location in emergency cases)

allow the transmission of particular

vehicle data from the vehicle.

Radio Frequency

Identification (RFID)

RFID technology is used in some

vehicles for functions such as tyre

pressure monitoring and ignition

system security. It is also used in

connection with conveniences such

as radio remote controls for door

locking/unlocking and starting, and in-

vehicle transmitters for garage door

openers. RFID technology in Opel

vehicles does not use or record

personal information or link with any

other Opel system containing

personal information.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

239

Child restraint systems ................ 61

Cigarette lighter ........................... 91

Climate control ............................. 15

Climate control systems............. 124

Clock ............................................ 89

Continuous damping control ...... 149

Control indicators.......................... 94

Control of the vehicle ................. 132

Controls........................................ 86

Convex shape .............................. 32

Coolant and antifreeze............... 208

Cruise control .................... 102, 149

Cupholders .................................. 67

Curtain airbag system .................. 59

Curve lighting.............................. 119

D

Danger, Warnings and Cautions ... 3

Daytime running lights ............... 119

Declaration of conformity............ 235

Deflation detection system and

tyre pressure monitoring system 99

Diesel fuel system bleeding ....... 165

Diesel particle filter .................... 135

Door open .................................. 102

Doors............................................ 28

Drain diesel fuel filter ................. 110

Driving characteristics and

towing tips .............................. 154

Driving hints................................ 132

E

Easytronic................................... 142

Electric adjustment ...................... 33

Electrical system......................... 181

Electronic climate control system 127

Electronic driving programmes .

........................................ 139, 143

Electronic Stability Program  99, 147

End-of-life vehicle recovery ....... 160

Engine compartment fuse box ... 182

Engine coolant ........................... 162

Engine coolant temperature ........ 99

Engine cooling level .................. 110

Engine data ............................... 216

Engine exhaust .......................... 135

Engine identification................... 212

Engine oil ................... 161, 208, 213

Engine oil pressure .................... 100

Entry lighting .............................. 122

Event data recorders.................. 235

Exit lighting ................................ 123

Exterior care .............................. 203

Exterior light ............................... 101

Exterior lighting .................... 13, 117

Exterior mirrors............................. 32

F

Fault ................................... 140, 144

First aid......................................... 81

First aid kit ................................... 81

Fixed air vents ........................... 130

Fog light ..................................... 102

Fog lights ................................... 171

Folding mirrors ............................. 33

Folding tray .................................. 80

Front airbag system ..................... 58

Front fog lights ........................... 120

Front seats.................................... 49

Front turn signal light.................. 166

Front turn signal lights ............... 171

Fuel............................................. 151

Fuel consumption - CO

2

-

Emissions ............................... 153

Fuel for diesel engines .............. 152

Fuel for petrol engines ............... 151

Fuel gauge ................................... 94

Fuses ......................................... 181

G

Gauges......................................... 93

General information ................... 154

Glovebox ..................................... 67

Graphic-Info-Display, Colour-

Info-Display ............................ 105

H

Halogen headlights .................... 166

Hand brake......................... 146, 147

Hazard warning flashers ............ 119

-------------------------------------------------------------------------------------------------------------------------------------------------------------

240

Headlight flash ........................... 118

Headlight range adjustment ...... 118

Headlights................................... 117

Headlights when driving abroad  118

Head restraint adjustment ............. 8

Head restraints ............................ 47

Heated mirrors ............................. 34

Heated rear window ..................... 38

Heating ........................................ 53

Heating and ventilation system . 124

High beam ......................... 101, 118

Hill start assist ........................... 147

Horn ....................................... 14, 87

I

Identification plate ..................... 212

Ignition switch positions ............. 133

Immobiliser .................................. 32

Indicators...................................... 93

Information displays.................... 102

Instrument cluster ........................ 93

Instrument panel illumination ..... 180

Instrument panel illumination

control .................................... 121

Instrument panel overview ........... 10

Interactive driving system........... 148

Interactive driving system,

continuous damping control,

sport mode.............................. 100

Interior care ............................... 205

Interior lighting............................ 121

Interior lights ...................... 121, 180

Interior mirrors.............................. 34

Interruption of power supply  140, 145

Introduction .................................... 3

Isofix child restraint systems ........ 65

J

Jump starting ............................. 200

K

Keys ............................................. 20

Keys, locks................................... 20

Keys, memorised settings............ 22

L

Lashing eyes ............................... 75

Lighting ...................................... 111

Lighting features......................... 122

Light switch ................................ 117

Load compartment ................ 28, 68

Load compartment cover ............. 73

Load compartment fuse box ...... 185

Load compartment grille............... 80

Loading assist .............................. 77

Loading information ..................... 84

Load rails and hooks ................... 75

Low engine oil level ................... 100

Low fuel ..................................... 100

M

Malfunction indicator light ............ 97

Manual adjustment ...................... 32

Manual anti-dazzle ...................... 34

Manual mode ..................... 138, 143

Manual transmission .................. 141

Manual transmission automated 142

Memorised settings...................... 22

Mirror adjustment ........................... 9

Misted light covers ..................... 121

N

New vehicle running-in .............. 132

Number plate light ..................... 179

O

Object detection systems........... 150

Odometer ..................................... 93

Oil, engine.......................... 208, 213

Open&Start system ............. 22, 101

Outside temperature .................... 89

Overrun cut-off ........................... 134

P

Parking ................................ 18, 134

Parking assist ............................ 150

Parking brake ............................ 147

Parking lights ............................. 120

Particle filter................................ 135

Performance .............................. 217

-------------------------------------------------------------------------------------------------------------------------------------------------------------

241

Performing work ........................ 160

Pollen filter ................................. 131

Power outlets ............................... 90

Power windows ............................ 35

Preheating and diesel particle

filter .......................................... 99

Puncture..................................... 196

Q

Quickheat................................... 130

R

Radio Frequency Identification

(RFID)..................................... 236

Radio remote control ................... 20

Reading lights ............................ 122

Rear fog light ............................. 102

Rear fog lights ........................... 120

Rear seats.................................... 53

Rear window wiper/washer .......... 88

Recommended fluids and

lubricants ........................ 208, 213

Refuelling ................................... 152

Retractable hardtop ..................... 41

Reversing lights ......................... 121

Ride control systems.................. 147

Roof.............................................. 39

Roof rack ..................................... 83

Run-flat tyres ............................. 189

S

Safety net .................................... 78

Seat adjustment ....................... 7, 50

Seat belt ........................................ 8

Seat belt reminder ....................... 96

Seat belts ..................................... 54

Seat folding .................................. 52

Seat occupancy recognition . . 60, 96

Seat position ................................ 49

Selector lever ..................... 137, 142

Service ............................... 131, 207

Service display ............................ 94

Service information .................... 207

Service vehicle soon .................... 97

Side airbag system ...................... 59

Sidelights.................................... 117

Side turn signal lights ................ 178

Spare wheel ............................... 198

Speedometer ............................... 93

Sport mode .......................... 98, 148

Starting and operating................ 132

Starting off ................................... 17

Starting the engine ............ 133, 142

Steering wheel adjustment ...... 9, 86

Steering wheel controls ............... 86

Stop watch ................................. 116

Storage......................................... 67

Storage compartments................. 67

Sunglasses storage ..................... 68

Sunroof ........................................ 39

Sunvisor lights ........................... 122

Sun visors .................................... 38

Symbols ......................................... 4

T

Tachometer ................................. 93

Tail lights ................................... 171

Three-point seat belt .................... 55

Tools .......................................... 187

Top-tether child restraint systems  65

Tow bar....................................... 154

Towing................................ 154, 201

Towing another vehicle ............. 202

Towing equipment ..................... 155

Towing hitch installation

dimensions ............................. 232

Towing the vehicle ..................... 201

Trailer coupling........................... 154

Trailer stability assist ................. 158

Trailer towing ............................. 155

Transmission ............................... 16

Transmission display ......... 136, 142

Tread depth ............................... 192

Trip computer in Board-Info-

Display ................................... 112

Trip computer in Graphic-Info-

Display or Colour-Info-Display  113

Triple-Info-Display ..................... 102

Trip odometer .............................. 93

-------------------------------------------------------------------------------------------------------------------------------------------------------------

242

Turn and lane-change signals ... 120

Turn signal ................................... 96

Tyre chains ................................ 193

Tyre deflation detection system . 191

Tyre designations ...................... 190

Tyre pressure .................... 111, 190

Tyre pressure monitoring system 191

Tyre pressures ................... 116, 225

Tyre repair kit ............................. 193

Tyres .......................................... 188

U

Ultrasonic parking assist .............. 98

Upholstery.................................. 205

Using this manual .......................... 3

V

Vehicle battery ........................... 164

Vehicle checks............................ 160

Vehicle data................................ 213

Vehicle data recording and

privacy..................................... 235

Vehicle dimensions .................... 223

Vehicle Identification Number .... 211

Vehicle jack................................ 187

Vehicle messages ..................... 109

Vehicle security............................ 30

Vehicle specific data ...................... 3

Vehicle storage........................... 159

Vehicle tools............................... 187

Vehicle unlocking ........................... 6

Vehicle weight ........................... 220

Ventilation................................... 124

W

Warning chimes ......................... 109

Warning lights............................... 93

Warning triangle .......................... 80

Washer and wiper systems ......... 14

Washer fluid ............................... 163

Washer fluid level ...................... 111

Wheel changing ......................... 196

Wheel covers ............................. 193

Wheels and tyres ....................... 188

Windows....................................... 35

Windscreen................................... 35

Windscreen wiper/washer ........... 87

Winter mode ................................ 98

Winter tyres ............................... 188

Wiper blade replacement .......... 165

X

Xenon headlights ....................... 169

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     13      14      15
