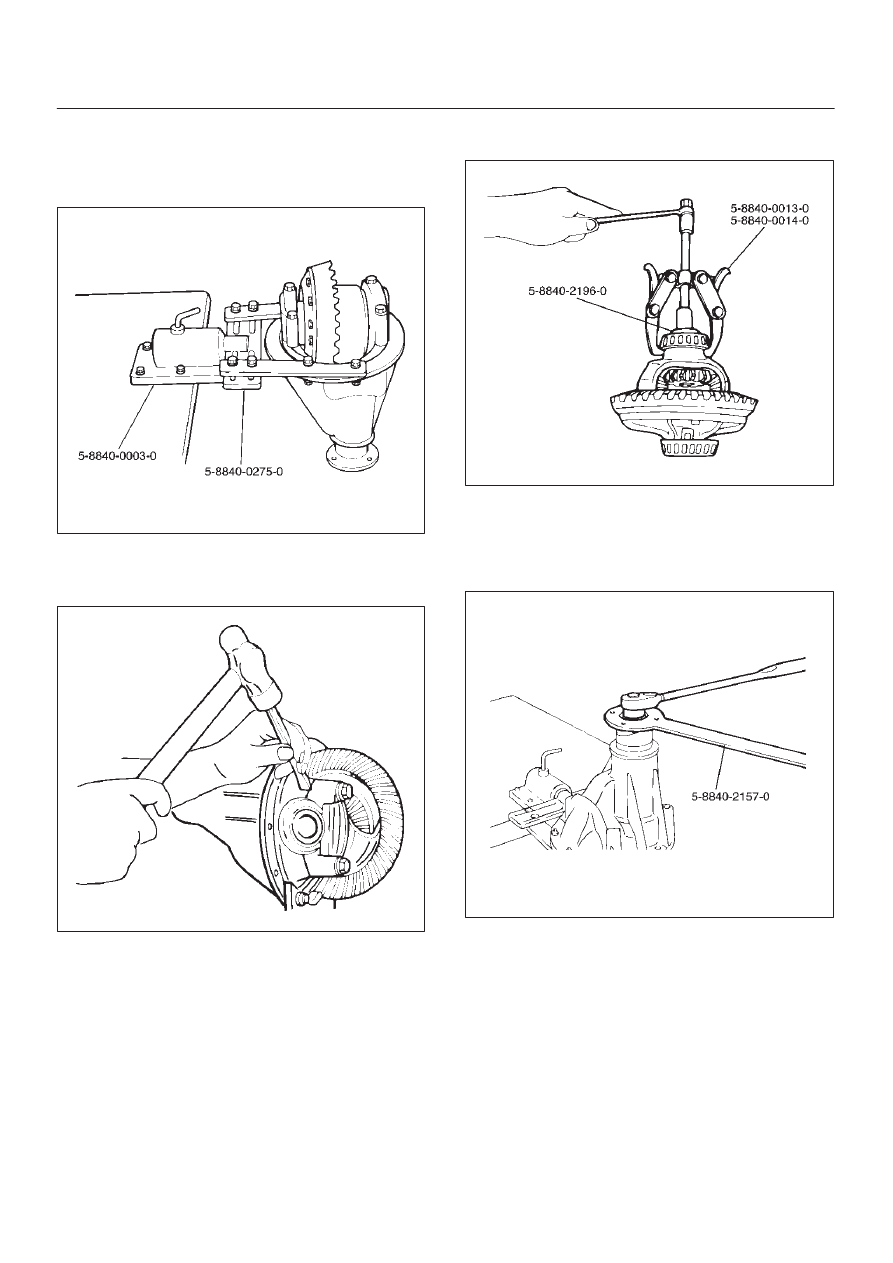

4A2A–14 DIFFERENTIAL (REAR 220mm) Disassembly 1. Using holding fixture 5–8840–0275–0 and holding fixture base 5–8840–0003–0, fix the differential 425RW046 2. Remove bearing cap bolt. differential carrier then remove bearing cap. 425RS009 4. Remove differential cage assembly. the right and left hand side bearing assemblies 6. Remove side bearing, using remover 5–8840–0013/0014–0 and adapter 5–8840–2196–0. 415RW031 7. Remove adjust shim, note the thickness and position of the shims removed. 8. Remove the flange nut using holding wrench 5–8840–2157–0 after raising up its staked parts 425RW057 9. Remove flange. 10. Remove dust cover. |
