REAR SUSPENSION; COIL SPRING 3D – 9
INSPECTION AND REPAIR
Make necessary correction or parts replacement if wear,
damage, corrosion or any other abnormal condition are
found through inspection.
1. Trailing Link
2. Rubber Bushing

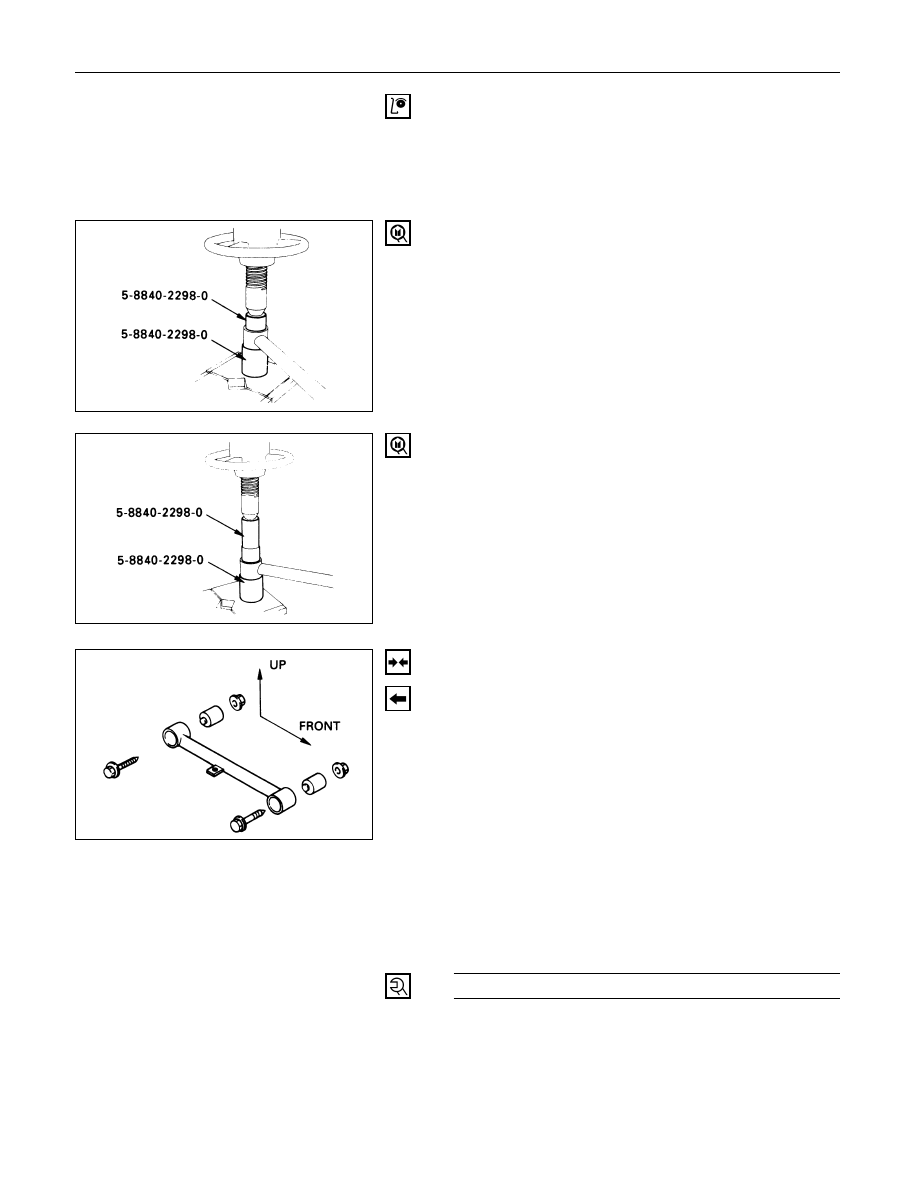

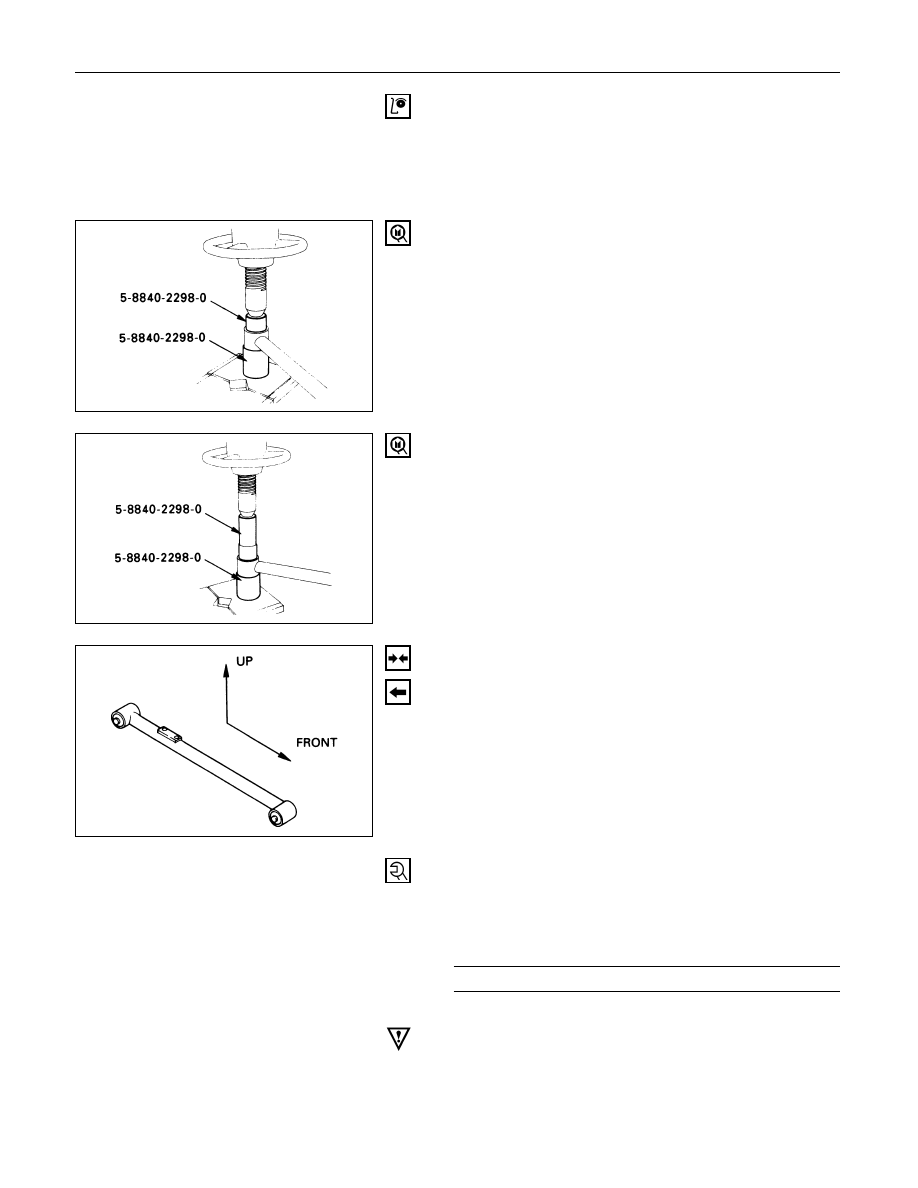

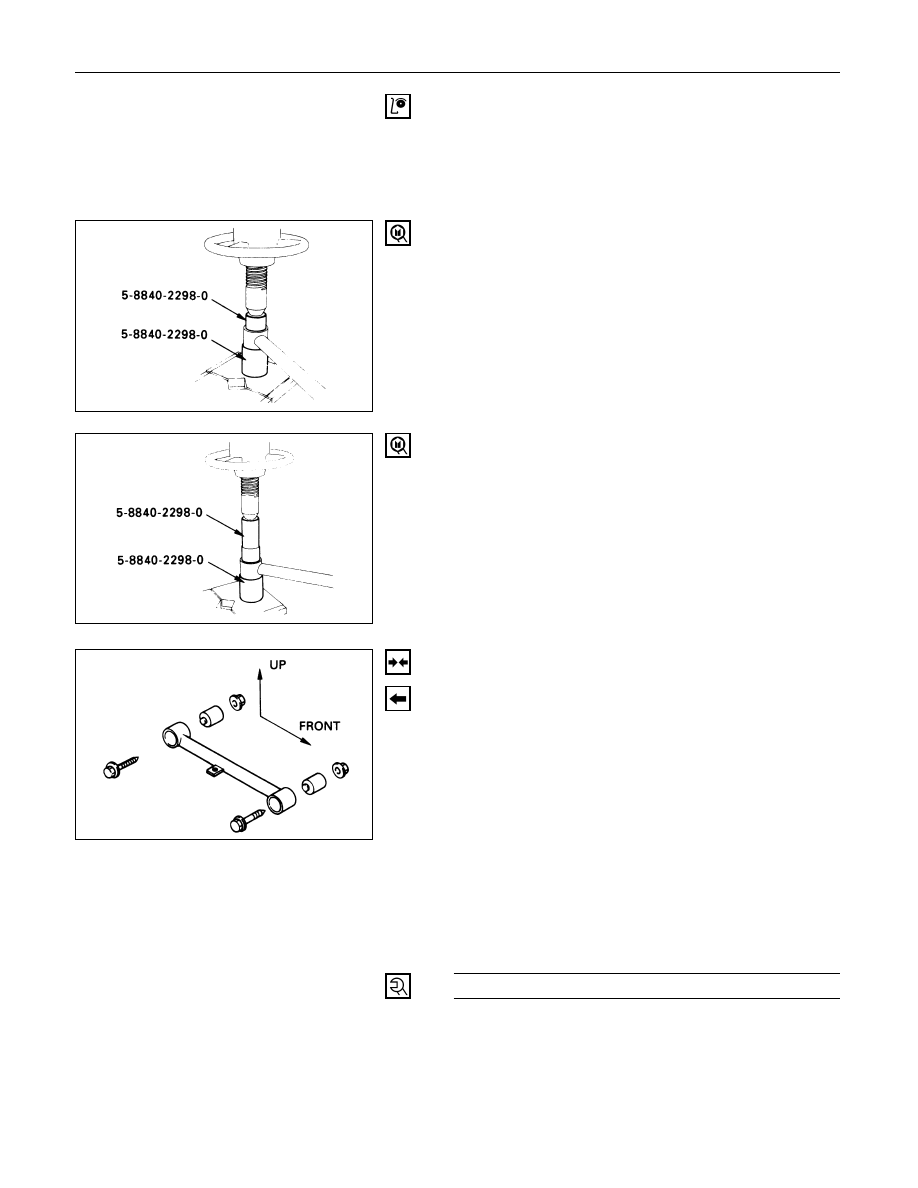

Remove the rubber bushing.
Remover: 5-8840-2298-0 (J-39214)
Install the rubber bushing.
Installer: 5-8840-2298-0 (J-39214)
NOTE:
When mounting rubber bushings, be sure not to use
grease on bushings or any other nearby part.

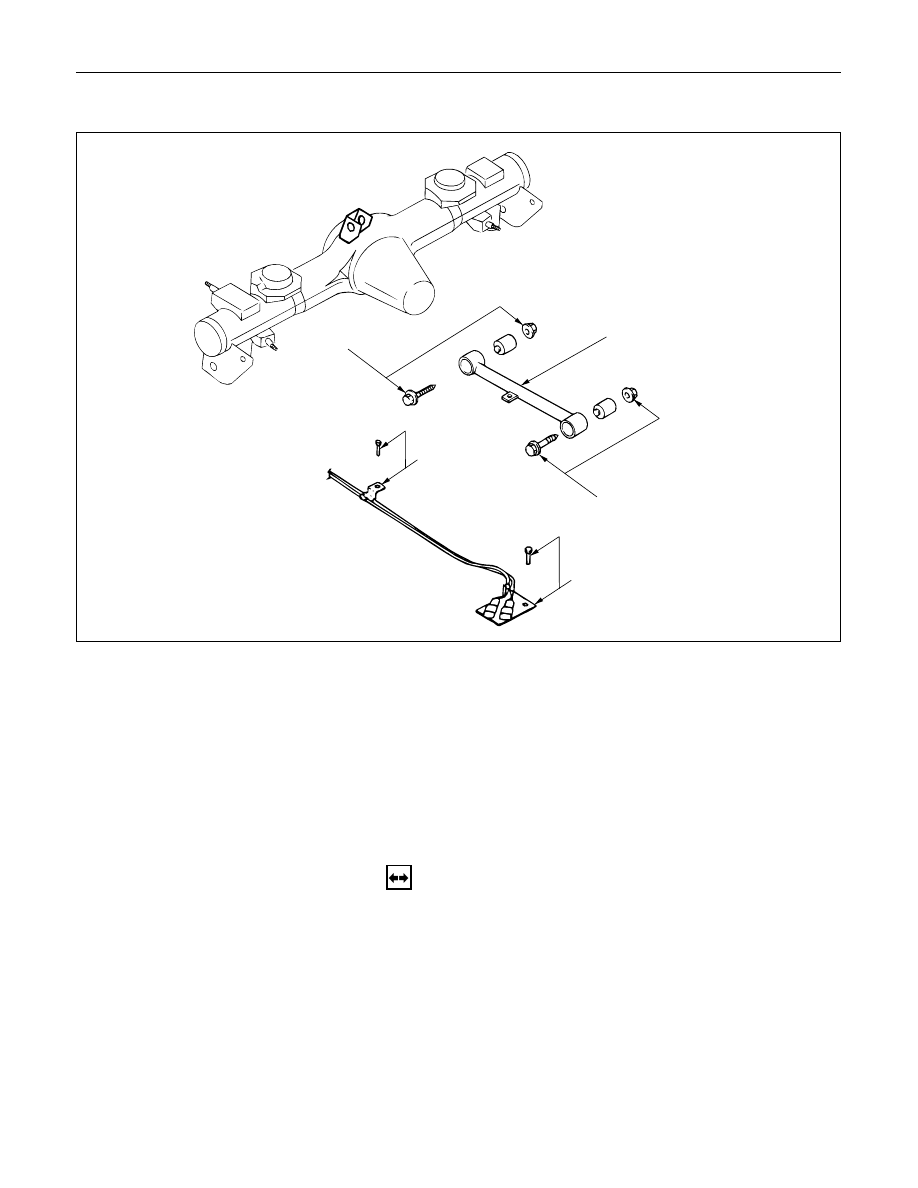

INSTALLATION

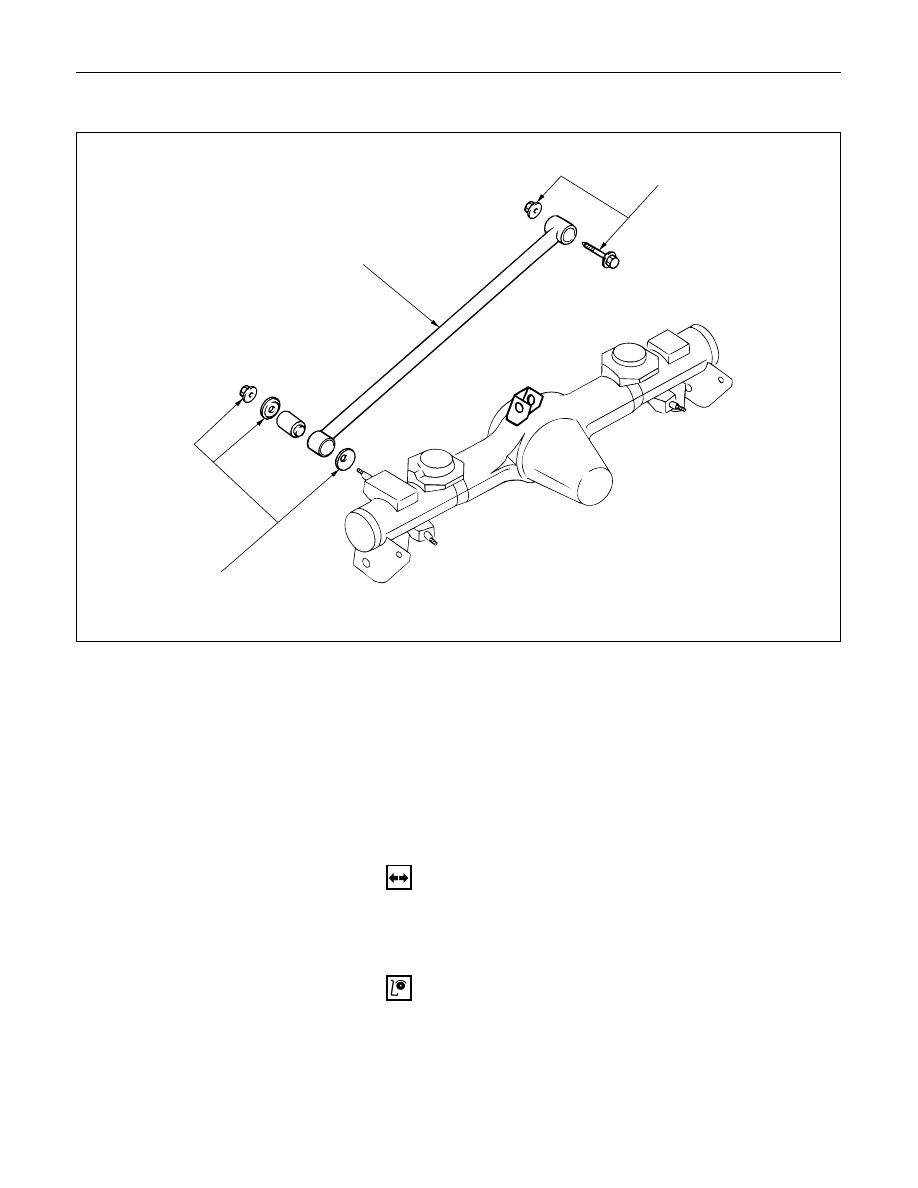

3. Trailing Link
Make sure that the trailing link is in its correct
position.
NOTE:
When mounting trailing link, be sure not to use
grease on bushings or any other nearby part.
2. Bolt and Nut
NOTE:
Tighten the bolts and nuts lightly, and retighten to
the specified torque after the vehicle is at curb height.
Trailing Link Nut Torque
N·m (kg·m/lb·ft)
137 (14.0 / 101)
1. Parking Brake Cable
CAUTION:
The parking brake cable should not be overstrained or
slackened.
