REAR SUSPENSION; COIL SPRING 3D – 5

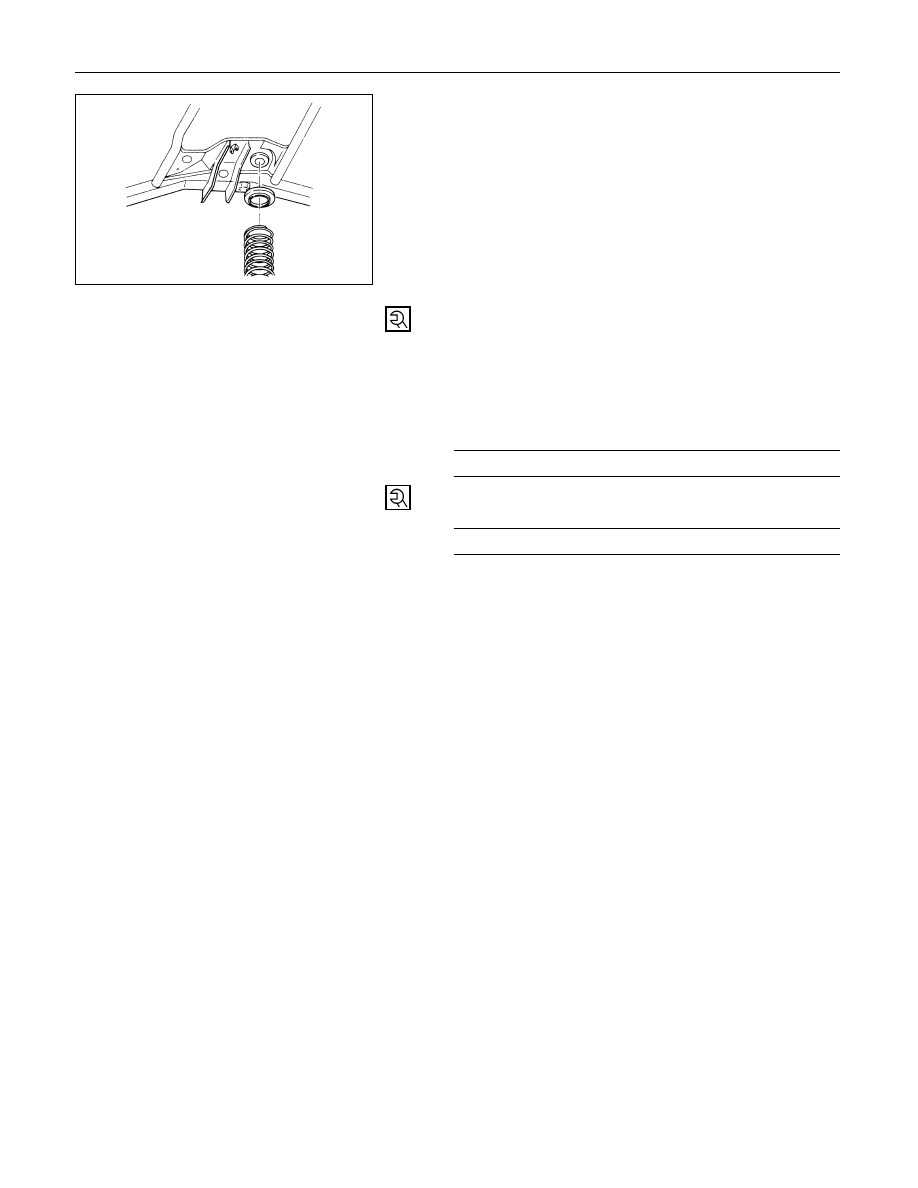

4. Insulator

Install the insulator on the coil spring. Jack up the axle
case gently with the top of the coil spring to set the
spring seat on the frame side.

3. Shock Absorber

Tighten the nut lightly, and retighten to the specified
torque after the vehicle is at curb height.

NOTE:
When mounting shock absorber, be sure not to use
grease on bushings or any other nearby part.

Shock Absorber Nut Torque

N·m (kg·m/lb·ft)

78 (8.0 / 58)

2. Stabilizer Bar

Stabilizer Bar Nut Torque

N·m (kg·m/lb·ft)

50 (5.1 / 37)

1. Parking Brake Cable Bracket

3D – 6 REAR SUSPENSION; COIL SPRING

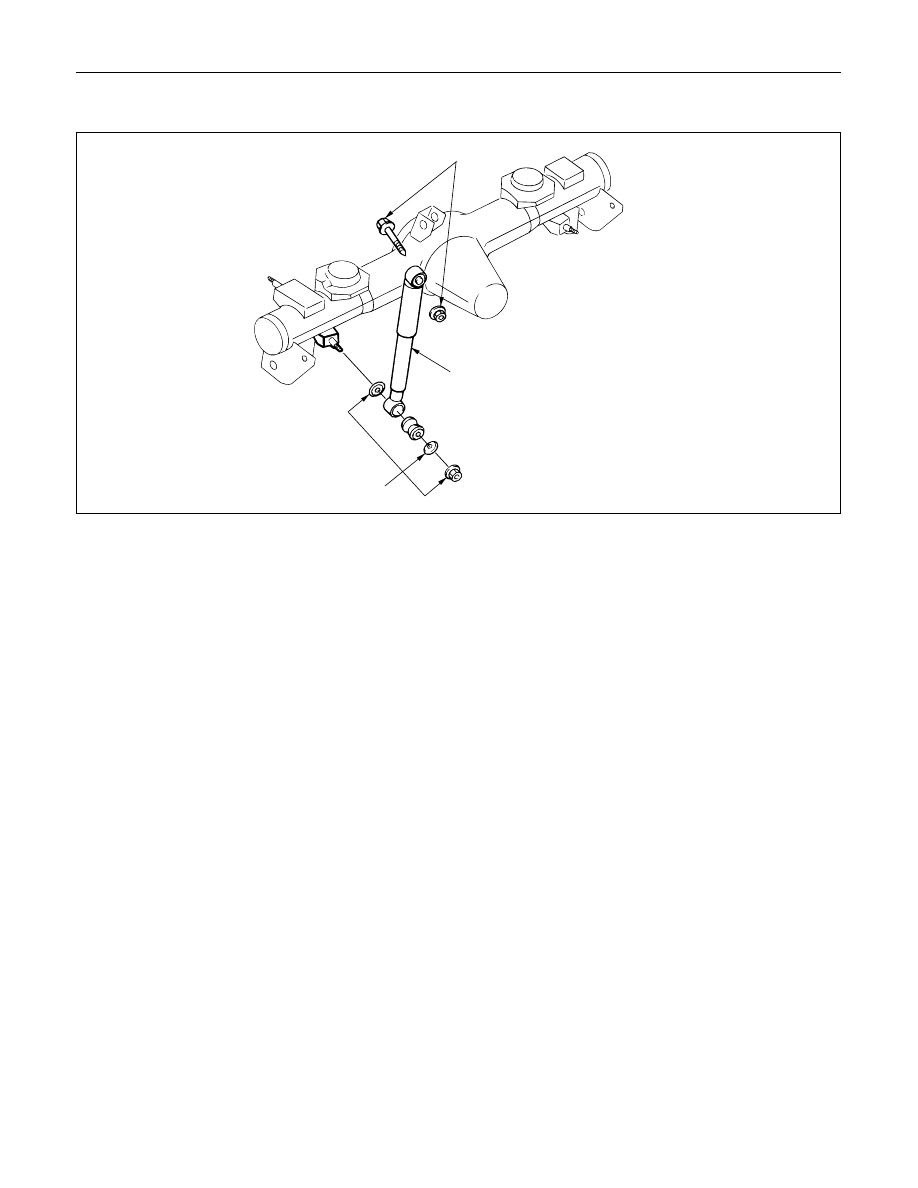

SHOCK ABSORBER

Removal Steps

Nut and washer

Bolt, nut and washer

Shock absorber

Installation Steps

Shock absorber

Bolt, nut and washer

Nut and washer

461RW003

REAR SUSPENSION; COIL SPRING 3D – 7

REMOVAL

1. Nut and Washer

2. Bolt, Nut and Washer

3. Shock Absorber

INSPECTION AND REPAIR

Make necessary correction or parts replacement if wear,
damage, corrosion or any other abnormal condition are
found through inspection.

•

Shock absorber

•

Rubber bushing (Axle side)

INSTALLATION

3. Shock Absorber

NOTE:
When mounting rubber bushings, be sure not to use
grease on bushings or any other nearby part.

2. Bolt, Nut and Washer

NOTE:
Tighten the bolt and nut lightly, and retighten to the
specified torque after the vehicle is at curb height.

Shock Absorber Nut Torque

N·m (kg·m/lb·ft)

95 (9.7 / 70)

1. Nut and Washer

NOTE:
Tighten the bolt and nut lightly, and retighten to the
specified torque after the vehicle is at curb height.

Shock Absorber Nut Torque

N·m (kg·m/lb·ft)

78 (8.0 / 58)

3D – 8 REAR SUSPENSION; COIL SPRING

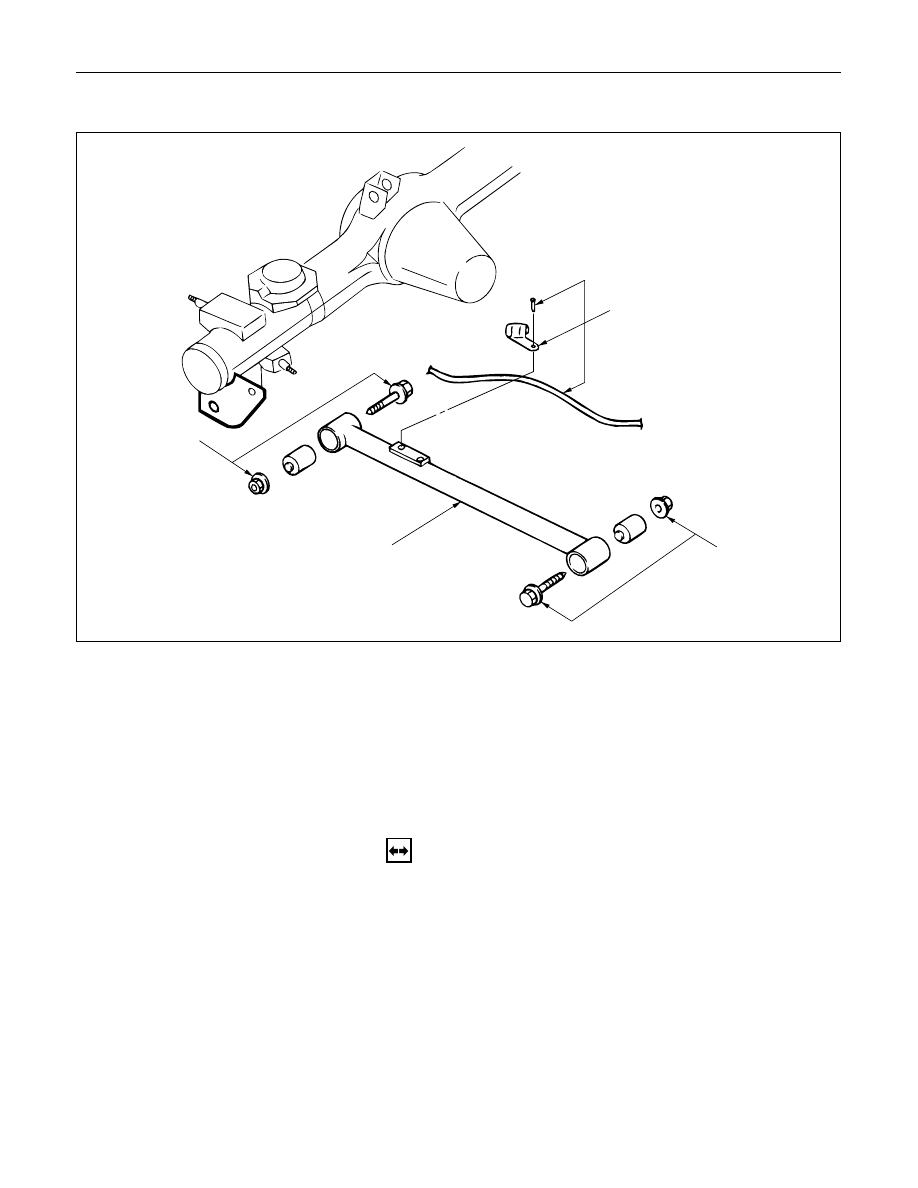

TRAILING LINK

Removal Steps

Parking brake cable

Bolt and nut

Trailing link

Installation Steps

Trailing link

Bolt and nut

Parking brake cable

REMOVAL

1. Parking Brake Cable

Remove the parking brake cable from the trailing link.

2. Bolt and Nut

3. Trailing Link

460RW025
