2A – 78 SUPPLEMENTAL RESTRAINT SYSTEM STEERING WHEEL & COLUMN

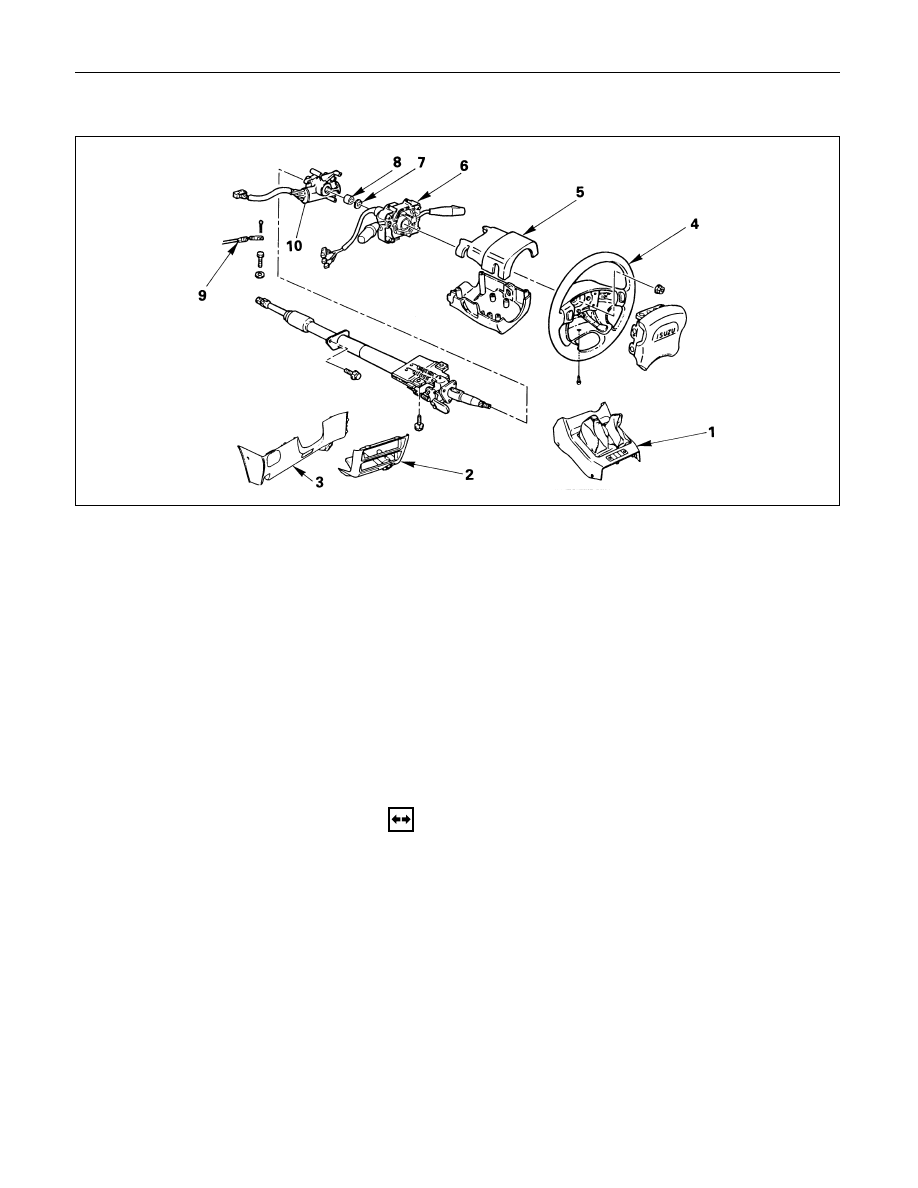

INSTALLATION
3. Steering Wheel
Align the setting marks made when removing.
CAUTION:
Never apply force to the setting wheel in direction of the
shaft by using a hammer or other impact tools in an
attempt to install the steering wheel. The steering shaft is
designed as an energy absorbing unit.
2. Nut
Steering Wheel Nut Torque
N·m (kg·m/lb·ft)
34 (3.5 / 25)
1. Center pad
Fit four projections of pad in holes on the steering
wheel side.
Tighten the screws on the lower side of the pad.
Center Pad Nut Torque
N·m (kg·m/lb·in)
2.5 (0.25 / 21.7)

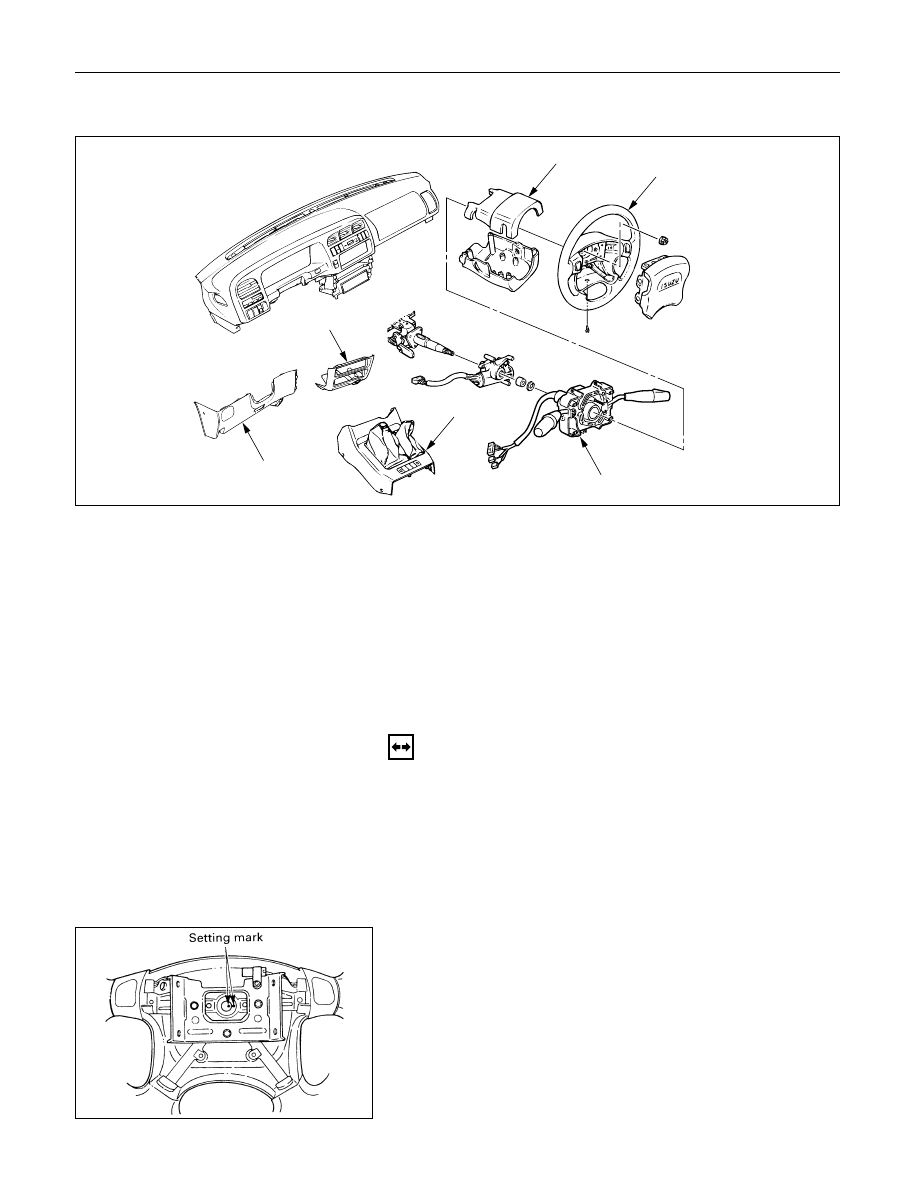

3. Steering Wheel

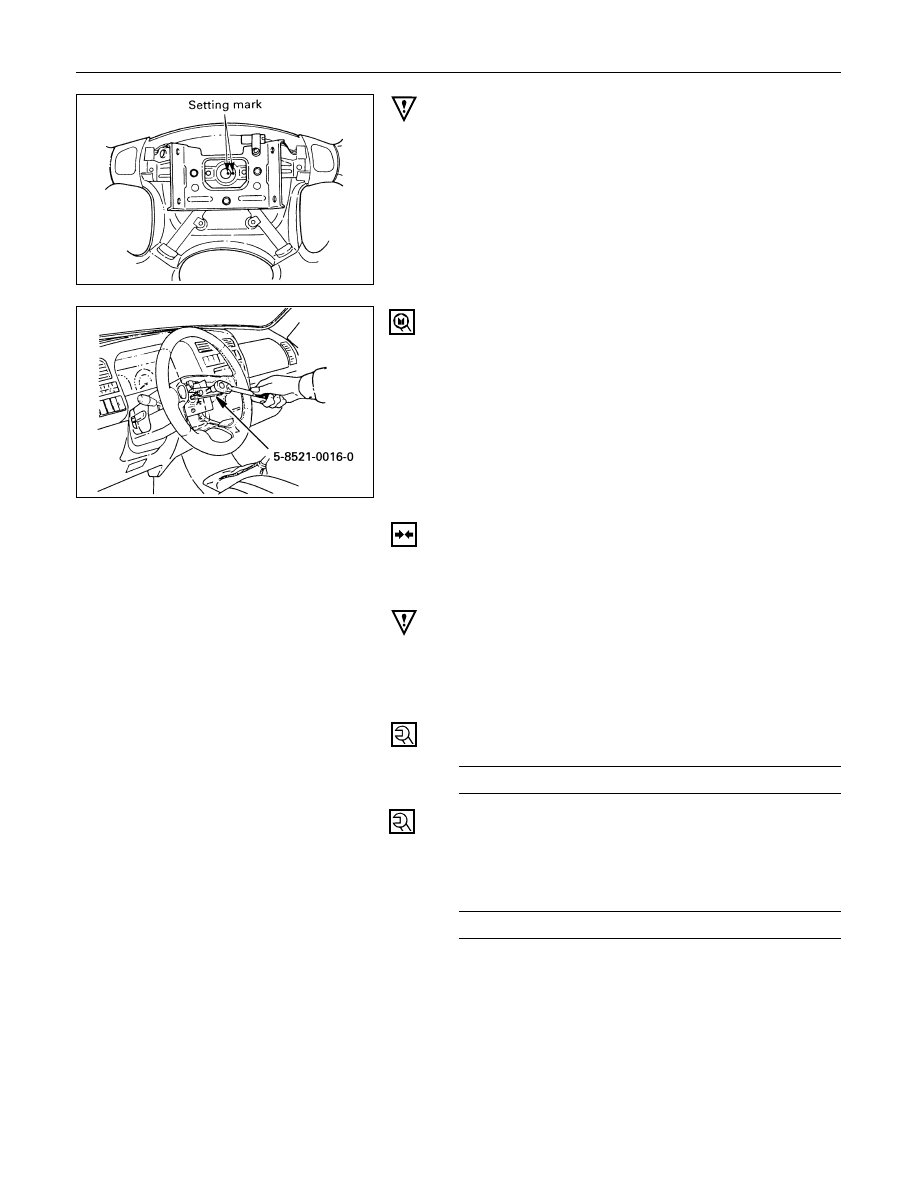

1) Apply a setting mark across the steering wheel
and shaft so parts can be reassembled in their
original position.

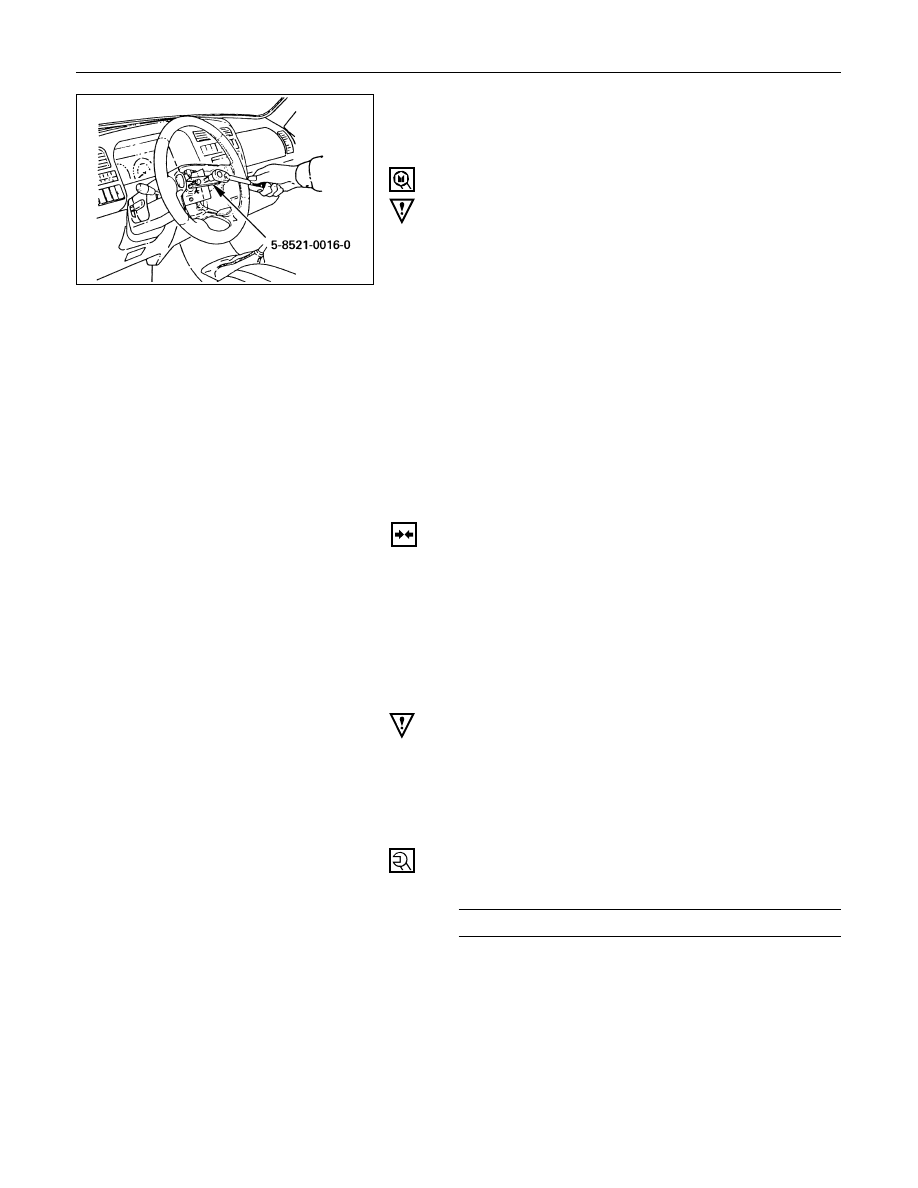

2) Use special tool.
Steering wheel remover:5-8840-0016-0(J-29752)
NOTE:
Never apply force to the steering wheel in direction
of the shaft by using a hammer or other impact tools
in an attempt to remove the steering wheel. The
steering shaft is designed as an energy absorbing
unit.
