1B–126 AIR CONDITIONING

ON-VEHICLE SERVICE

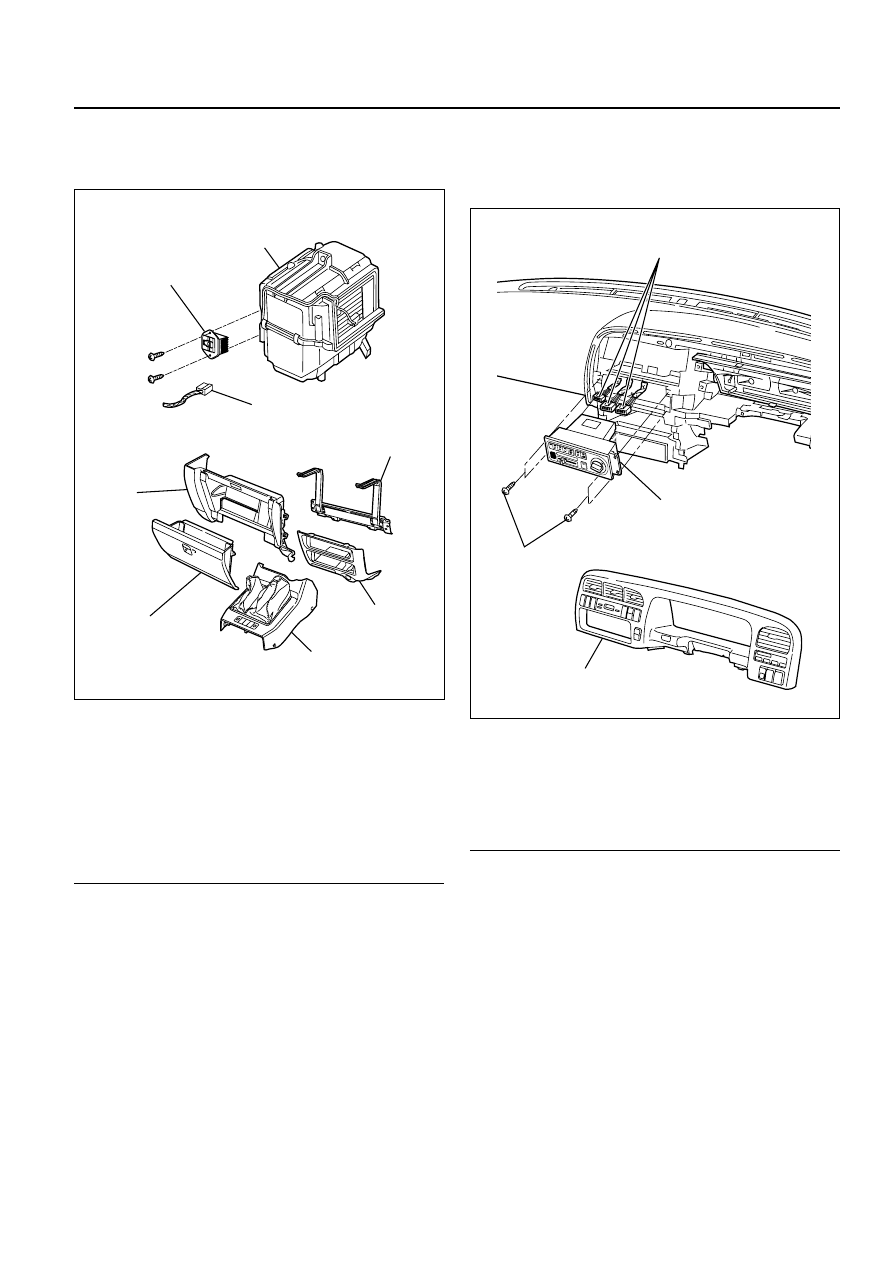

Power Transistor

Legend

(1)

Evaporator Assembly

(2)

Passenger Knee Bolster Reinforcement

(3)

Lower Cluster

(4)

Front Console

(5)

Glove Box

(6)

Instrument Panel Passenger Lower Cover

(7)

Power Transistor Connector

(8)

Power Transistor

Removal

1. Remove front console.

2. Remove lower cluster.

3. Remove glove box.

4. Remove instrument panel passenger lower

cover.

5. Remove passenger knee bolster reinforcement.

6. Disconnect the power transistor connector.

7. Remove power transistor.

Installation

To install, follow the removal step in the reverse
order.

Automatic Heater/Air Conditioner Control
Unit

Legend

(1)

Connector

(2)

Automatic Heater / Air Conditioner Control
Unit

(3)

Instrument Panel Cluster

(4)

Set Screw

Removal

1. Disconnect the battery ground cable.

2. Remove instrument panel cluster.

•

Refer to Instrument Panel Assembly in Body
Structure section.

3. Disconnect the automatic heater / air conditioner

control unit connector.

4. Remove automatic heater/ air conditioner

control unit.

Installation

To install, follow the removal step in the reverse
order.

7

6

5

4

3

2

8

1

874RY00001

This illustration is based on RHD

20       2

5       3

0

ZEXEL

AUTO

A/C

OF

F AUTO LO

HI

3

2

4

1

865RY00007

This illustration is based on RHD

AIR CONDITIONING  1B–127

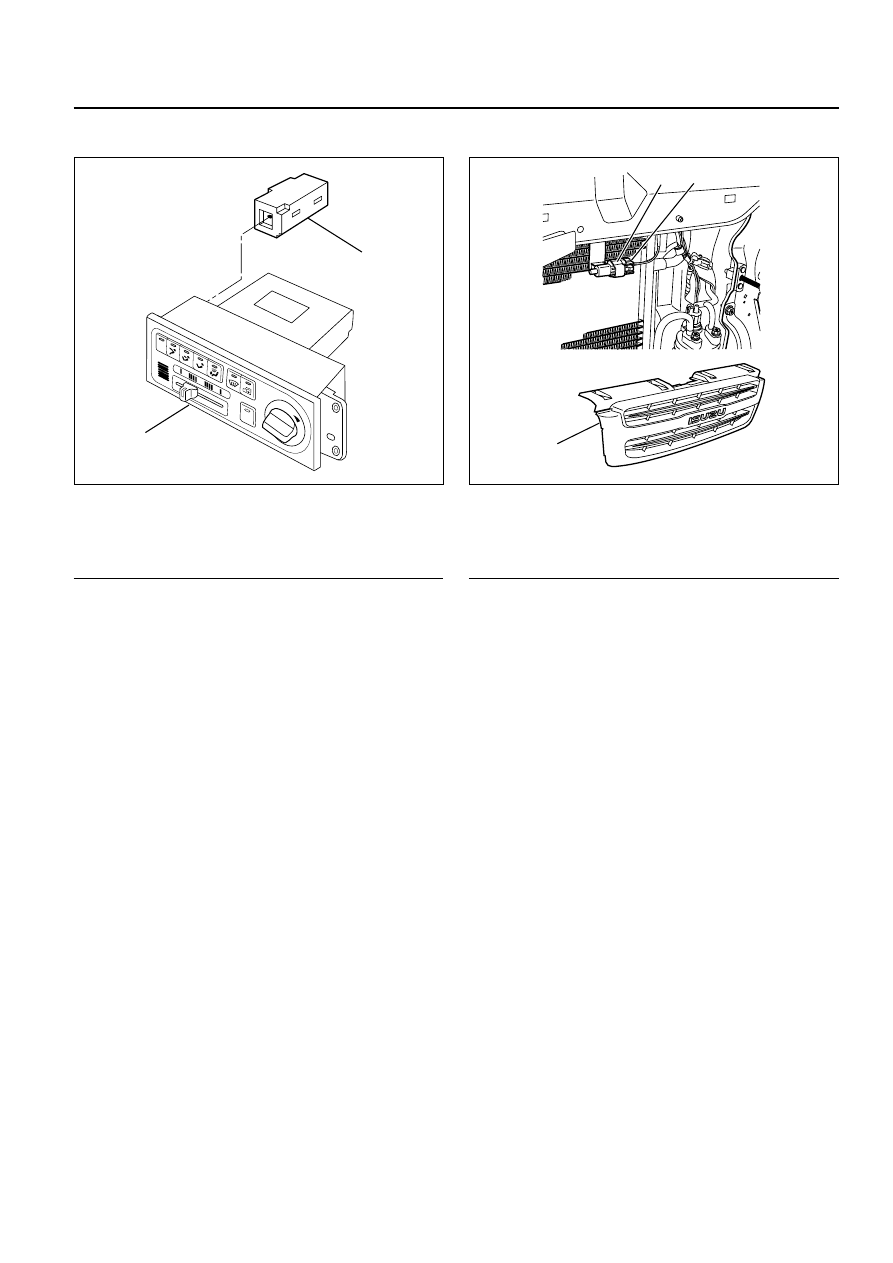

In Car Sensor

Legend

(1)

In Car Sensor

(2)

Automatic Heater / Air Conditioner Control
Unit

Removal

1. Disconnect the battery ground cable.

2. Remove the automatic heater / air conditioner

control unit.

•

Refer to the automatic heater / air conditioner
control unit section.

3. Remove in car sensor.

Installation

To install, follow the removal step in the reverse
order.

Ambient Sensor

Legend

(1)

Ambient Sensor

(2)

Sensor Connector

(3)

Radiator Grill

Removal

1. Disconnect the battery ground cable.

2. Remove radiator grille.

•

Refer to Radiator Grille in Body Structure
section.

3. Disconnect the ambient sensor connector.

4. Remove the ambient sensor.

Installation

To install, follow the removal step in the reverse
order.

20

25

30

ZEX

EL

AUTO

A/C

OFF

AUTO

LO

HI

2

1

865RY00006

1

2

3

875RY00001

1B–128 AIR CONDITIONING

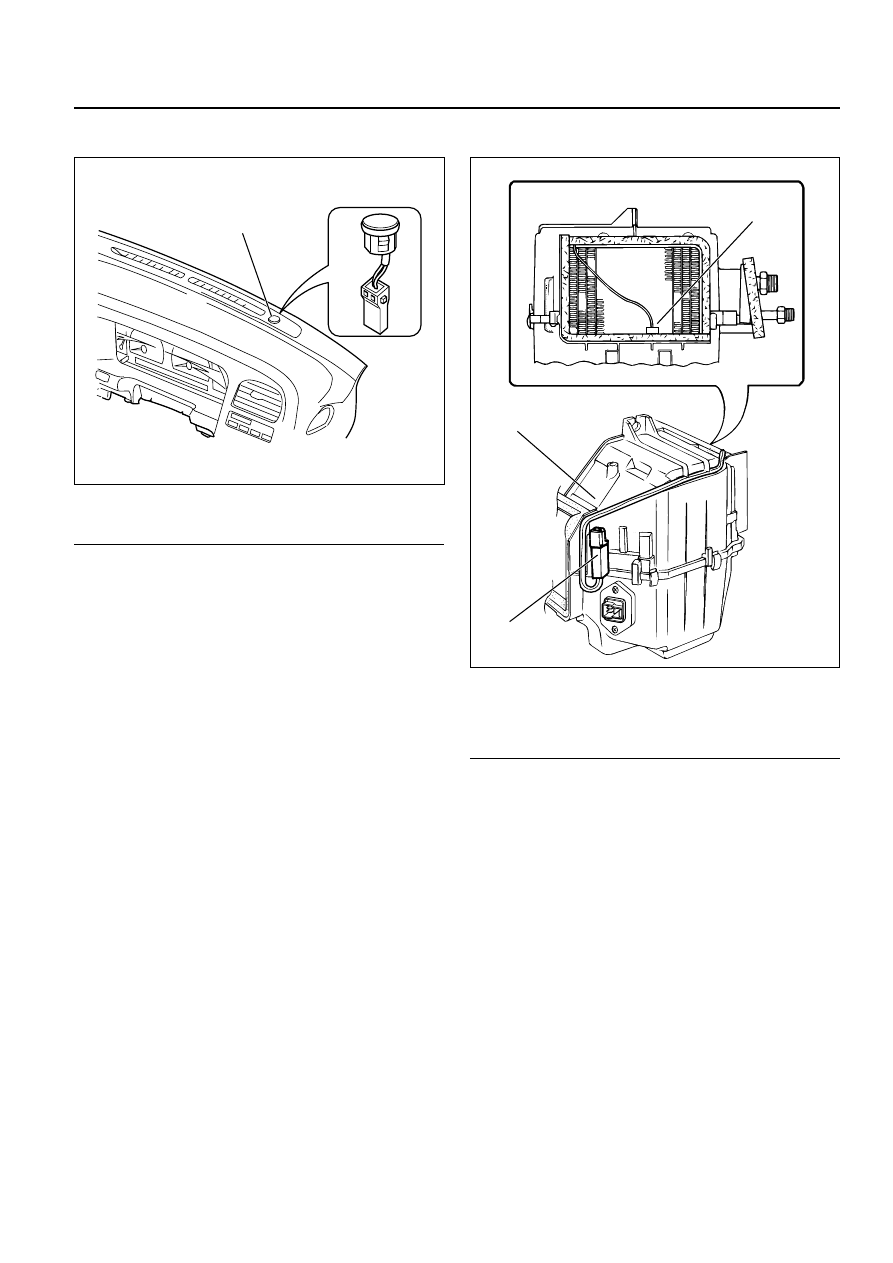

Sun Sensor

Legend

(1)

Sun Sensor

Removal

1. Disconnect the battery ground cable.

2. Remove the sun sensor.

3. Disconnect the sun sensor connector.

Installation

To install, follow the removal step in the reverse
order.

Electronic Thermostat

Legend

(1)

Duct Sensor

(2)

Thermostat Assembly

(3)

Evaporator Assembly

Removal

1. Disconnect the battery ground cable.

2. Remove evaporator assembly.

•

Refer to Evaporator Assembly section.

3. Remove electronic thermostat.

Installation

To install, follow the removal step in the reverse
order.

1

826RY00001

1

3

2

874RY00002

This illustration is based on RHD

This illustration is based on RHD

AIR CONDITIONING  1B–129

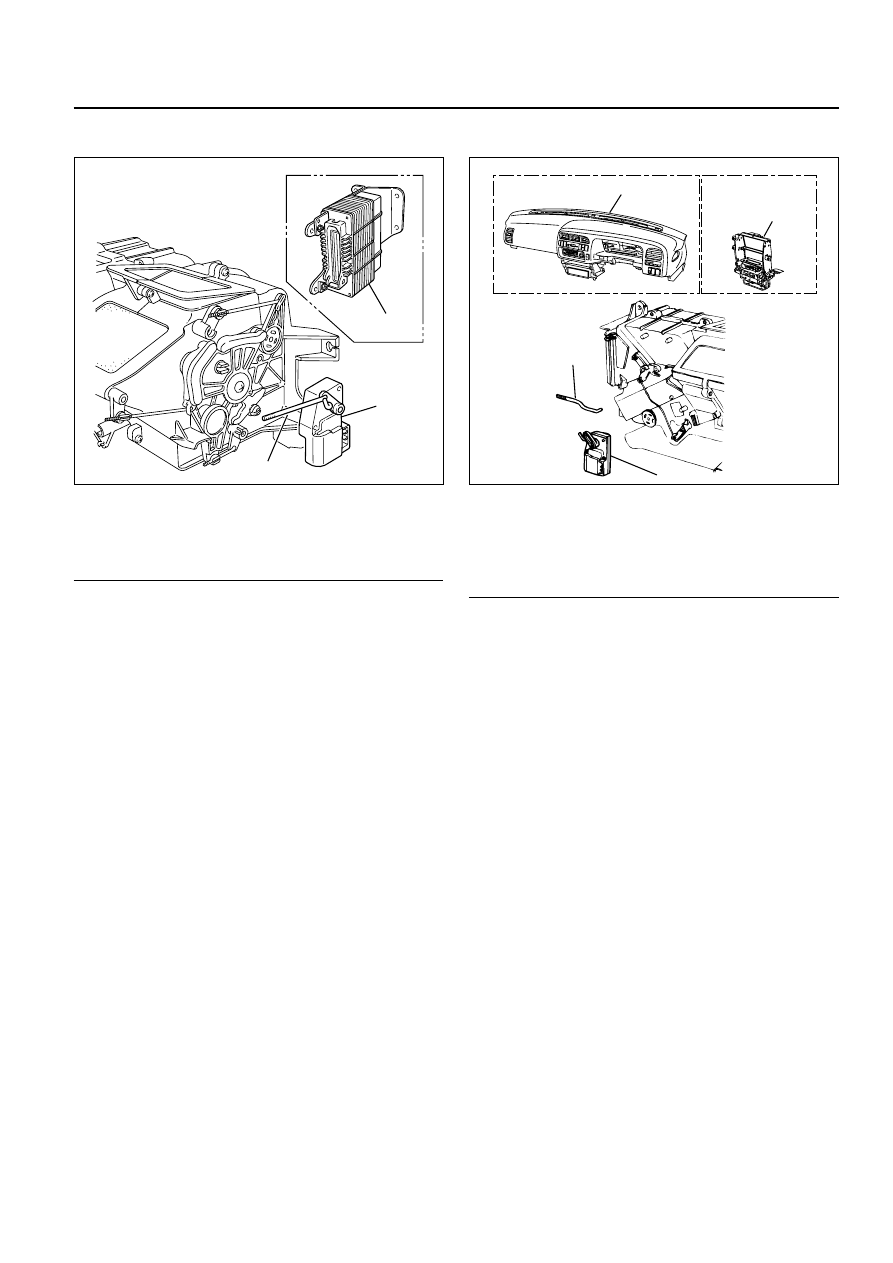

Mode Actuator

Legend

(1)

A/T Control Unit

(2)

Mode Actuator

(3)

Actuator Rod

Removal

1. Disconnect the battery ground cable.

2. Remove the A/T control unit.

•

The connector shall remain connected.

3. Remove the actuator rod.

4. Remove the mode actuator.

Installation

To install, follow the removal step in the reverse
order.

MIX Actuator

Legend

(1)

Instrument Panel Assembly

(2)

Instrument Panel Center Bracket

(3)

Actuator Rod

(4)

Mix Actuator

Removal

1. Disconnect the battery ground cable.

2. Remove the instrument panel assembly.

•

Refer to the Instrument Panel Assembly in
Body Structure section.

3. Remove the instrument panel center bracket.

4. Remove the actuator rod.

5. Remove the mix actuator.

Installation

To install, follow the removal step in the reverse
order.

2

1

3

860RW030

2

3

4

1

20       2

5       30

AUTO

A/C

OFF

AUTO

LO

HI

860RY00004

This illustration is based on RHD

This illustration is based on RHD
