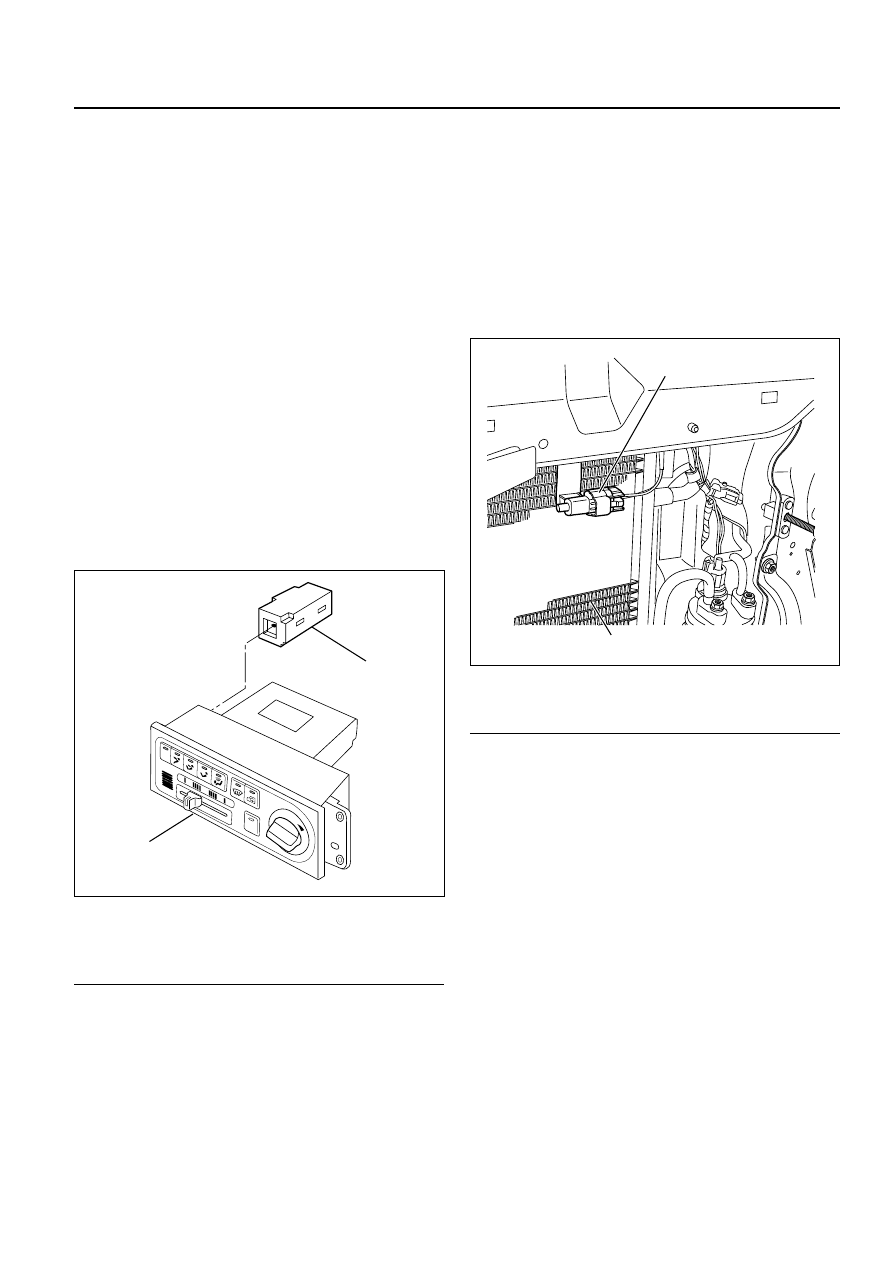

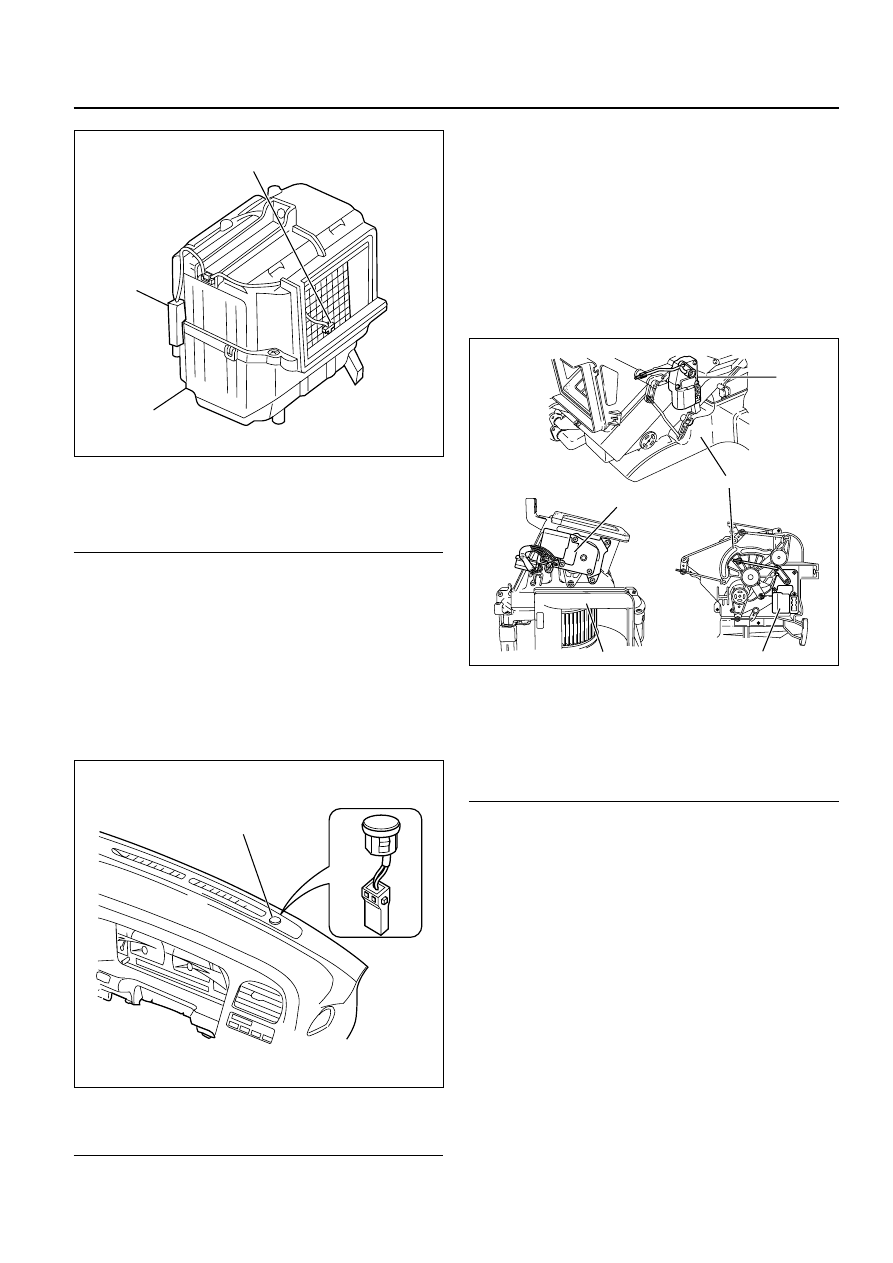

1B–82 AIR CONDITIONING OPERATION AND FUNCTIONS OF CONTROL PANEL SWITCHES 1. Auto Switch (1) Pressing this switch turns on the automatic control mode. It resets all manual switches except that for the fan control. However, when the Manual REC is selected for the intake or the Manual Open is (2) It causes the A/C (air conditioner) to the ON mode (this function, however, available only when the fan is turned on and also the compressor is turned on because of the given outside air temperature <Indication> • The AUTO LED comes on. • Currently selected mode for the Mode and Intake are respectively indicated. 2. Mode Switch <Indication> (1) Pressing the VENT, B/L or FOOT switch selects the corresponding mode. (2) When the Auto is selected for the Mode and Intake, pressing the mode switch fixes the Intake to the immediately preceding status. <Indication> • Turns off the Auto LED. • Currently selected blow port is indicated. 3. DEF Switch Press this switch to select the DEF mode. <Indication> *1: When the manual REC is selected for the Intake, the manual REC is maintained. *2: The ON mode is enabled only when the fun is turned on, and also the compressor is turned on because of the given outside air temperature level. <Indication> • The Auto LED is turned off. • DEF is indicated for the blow port, A/C LED comes on (only when the fan is turned on), and status display is provided for the Intake. Example 1: 4. Intake Switch Pressing this switch sequentially selects a different intake port in the following order. Example 1: Example 2: PUSH Auto REC FRESH REC PUSH PUSH PUSH PUSH PUSH Auto REC MIX REC FRESH DEF SW:ON (Selects the DEF mode) A/C OFF mode A/C ON mode A/C ON mode is maintained. Mode switches for other than the DEF mode: ON (Resets the DEF mode) Blow port Intake port A/C MIX DEF Auto FRESH *1 ON mode *2 Auto |
