EXTERIOR/INTERIOR TRIM

14. Remove the quarter upper trim cover.

D

Remove the rear side clips of the trim cover and pry
the quarter upper trim cover retainers free from the
body panel.

687RS004

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the seat belt anchor bolt to the specified

torque.

Torque: 39 N·m (4.0kg·m/29 lb ft)

EXTERIOR/INTERIOR TRIM

8J–17

Luggage Side and Quarter Upper Trim Cover (Short Wheel Base)

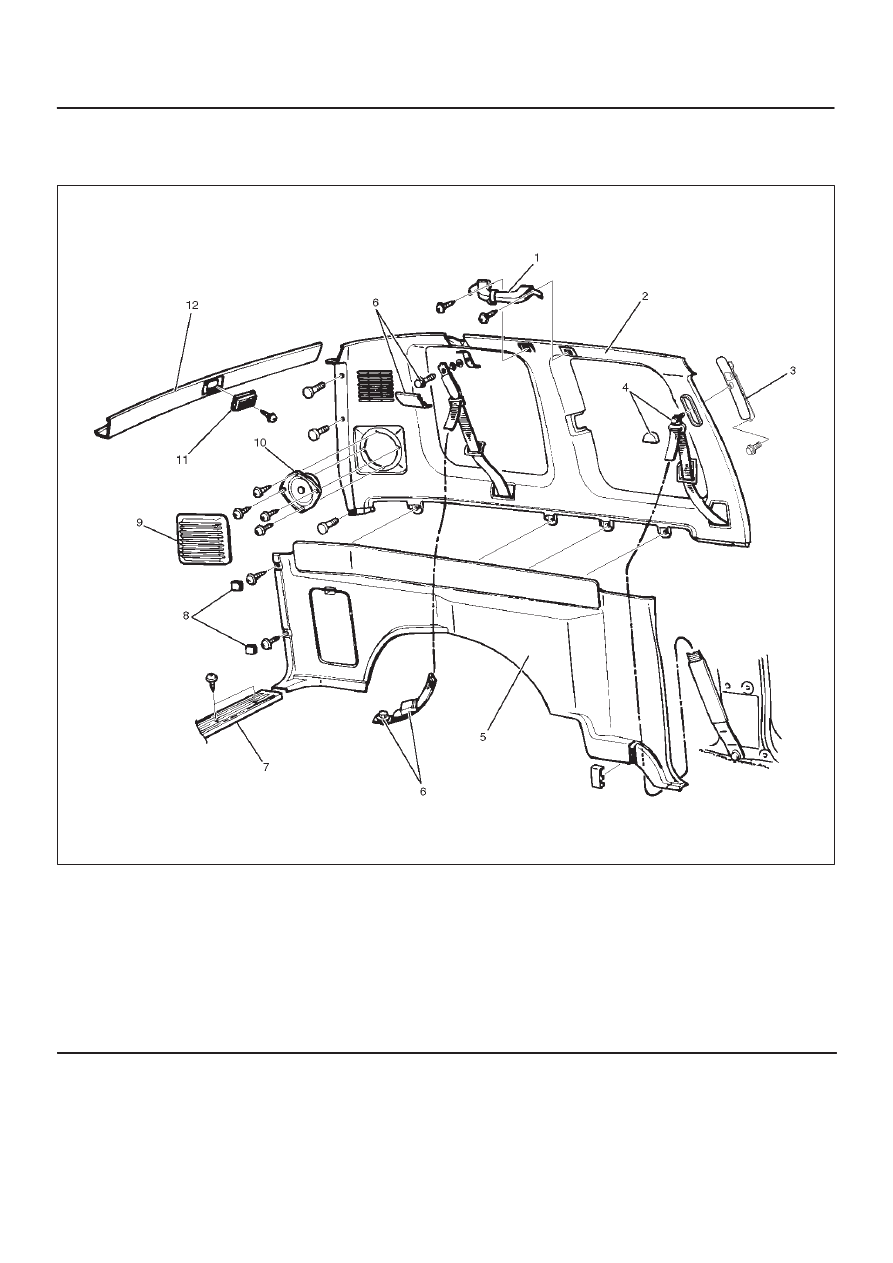

Luggage Side, Quarter Upper Trim Cover and Associated Parts

760RW021

Legend

(1) Rear Assist Grip
(2) Quater Upper Trim Cover
(3) Seat belt adjust Shoulder Anchor Plate
(4) Front Seat Belt Anchor Bolt Cover and Anchor

Bolt

(5) Luggage Side Trim Cover
(6) Rear Seat Belt Anchor Bolt Cover and Anchor

Bolt

(7) Rear End Floor Trim Cover
(8) Luggage Side Cap
(9) Speaker Grill

(10) Rear Speaker

(11) Luggage Room Light

(12) Rear Roof Trim Cover

Removal

1. Disconnect the battery ground cable.

2. Remove the rear end floor trim cover.
3. Remove the luggage side cap.

8J–18

EXTERIOR/INTERIOR TRIM

4. Remove the luggage side trim cover (1).

D

Remove the rear side fixing screws and pry the trim
cover retainers free from the body panel and the
upper trim cover.

D

Remove the cover by pulling the front seat belt out
of the slit on the lower side of the trim cover.

687RS002

5. Remove the luggage room light.

D

Remove the luggage room light lens and the fixing
screws.

D

Disconnect the luggage room light connector.

6. Remove the rear roof trim cover.

D

Pry the trim cover retainers free from the body
panel.

666RS001

7. Remove the speaker grille.

687RS003

8. Remove the rear speaker.

D

Remove the rear speaker fixing screws and
disconnect the connector.

9. Remove the rear assist grip (7).

D

Open the both side of the assist grip cover (8) and
remove two fixing screws.

743RW004

EXTERIOR/INTERIOR TRIM

8J–19

10. Remove the rear seat belt anchor bolt cover (1) and

the anchor bolt (2).

755RW037

11. Remove the front seat belt anchor bolt cover (3) and

the anchor bolt (4).

760RW006

12. Remove the quarter upper trim cover.

D

Remove the rear side clips of the trim cover and pry
the quarter upper trim cover retainers free from the
body panel.

687RW001

13. Remove the seat belt adjust shoulder anchor plate.

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the seat belt anchor bolts to the specified

torque.

Torque: 39 N·m (4.0kg·m/29 lb ft)
