8J–12

EXTERIOR/INTERIOR TRIM

2. Pass the inside handle through the mounting hole of

the trim panel.  Assemble the trim panel.  Engage
securely seven clips into the door panel.  Also, leave
the connector of the power window drawn out to its
prescribed position, so that it will not caught.

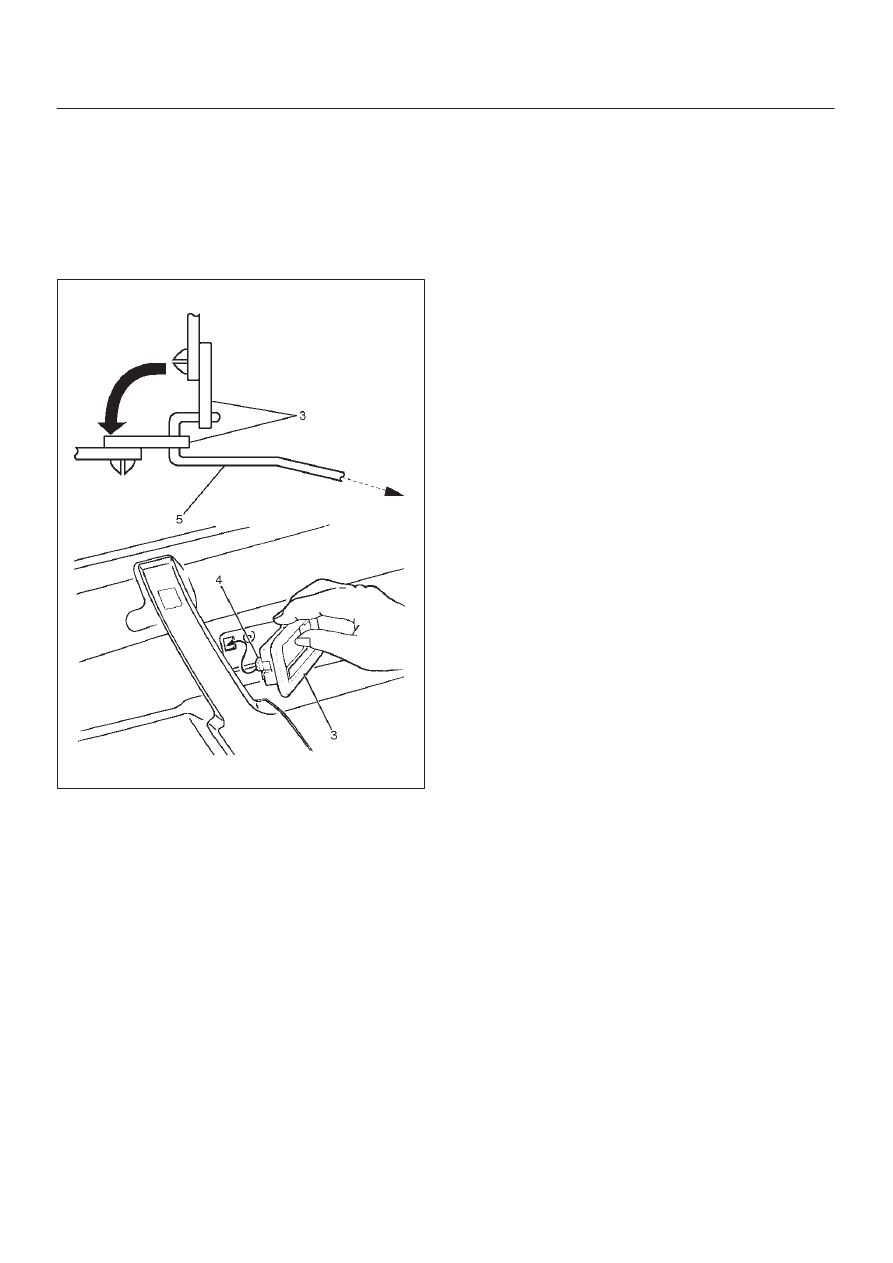

3. Put back the inside handle(3) to the original position

of the link(5).  Fit the claw(4) of the inside handle
securely into the hole of the door panel.  Fix the
handle with the screw.

632RW011

EXTERIOR/INTERIOR TRIM

8J–13

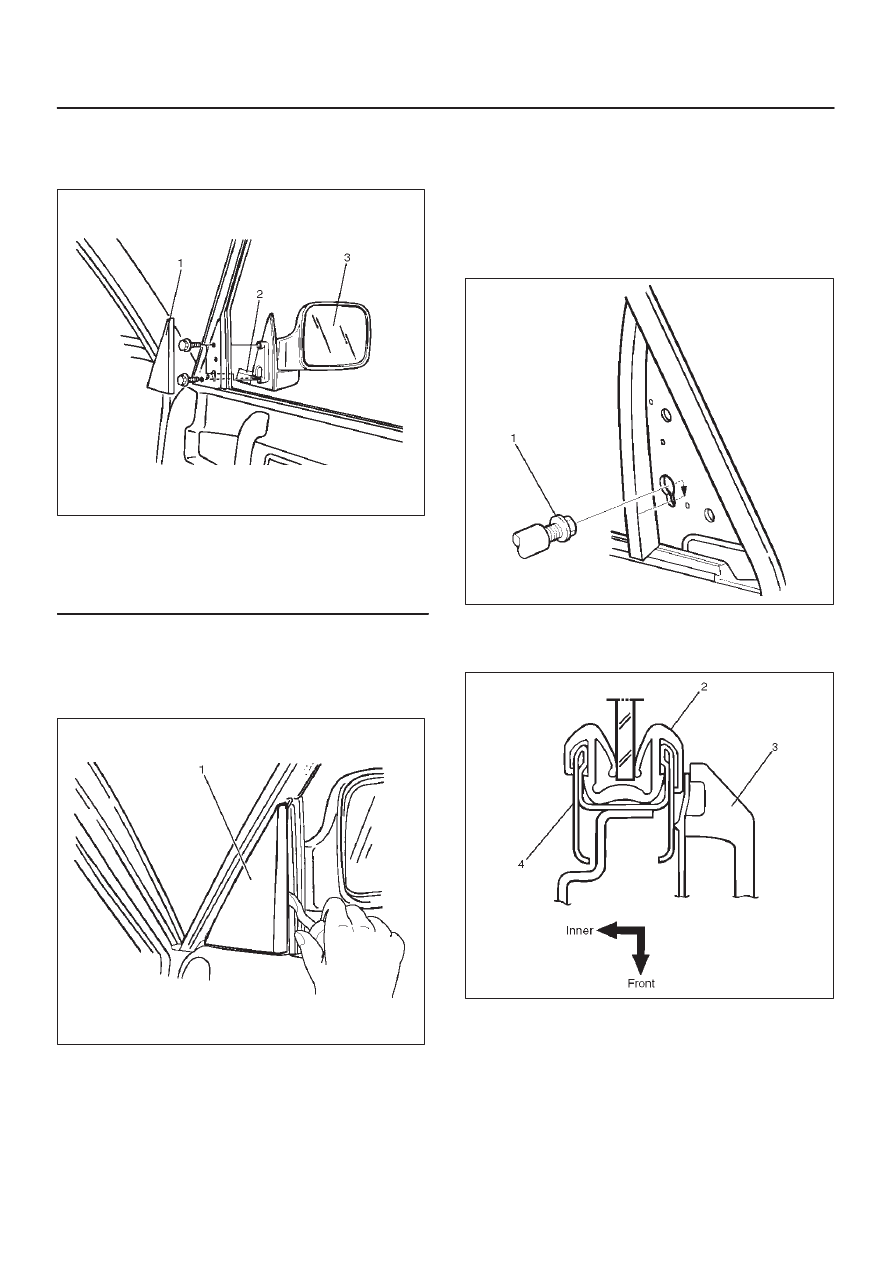

Door Mirror

Door Mirror and Associated Parts

720RS012

Legend

(1) Door Mirror Cover
(2) Door Mirror Connector
(3) Door Mirror

Removal

1. Disconnect the battery ground cable.
2. Remove the door mirror cover(1).

720RW011

3. Remove the door mirror connector.
4. Remove the door mirror.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. When you install the door mirror, install the bolt(1) to

the mirror temporarily, hook the bolt to the door side
hole and tighten the bolt from the inside.

720RS001

2. When installing the door mirror, hold the glass run

lip(2) between the door mirror base(3) and the center
sash(4).

A10RS001

3. Tighten the door mirror fixing bolts to the specified

torque.

Torque: 8 N·m (0.8kg·m/69 lb in)

8J–14

EXTERIOR/INTERIOR TRIM

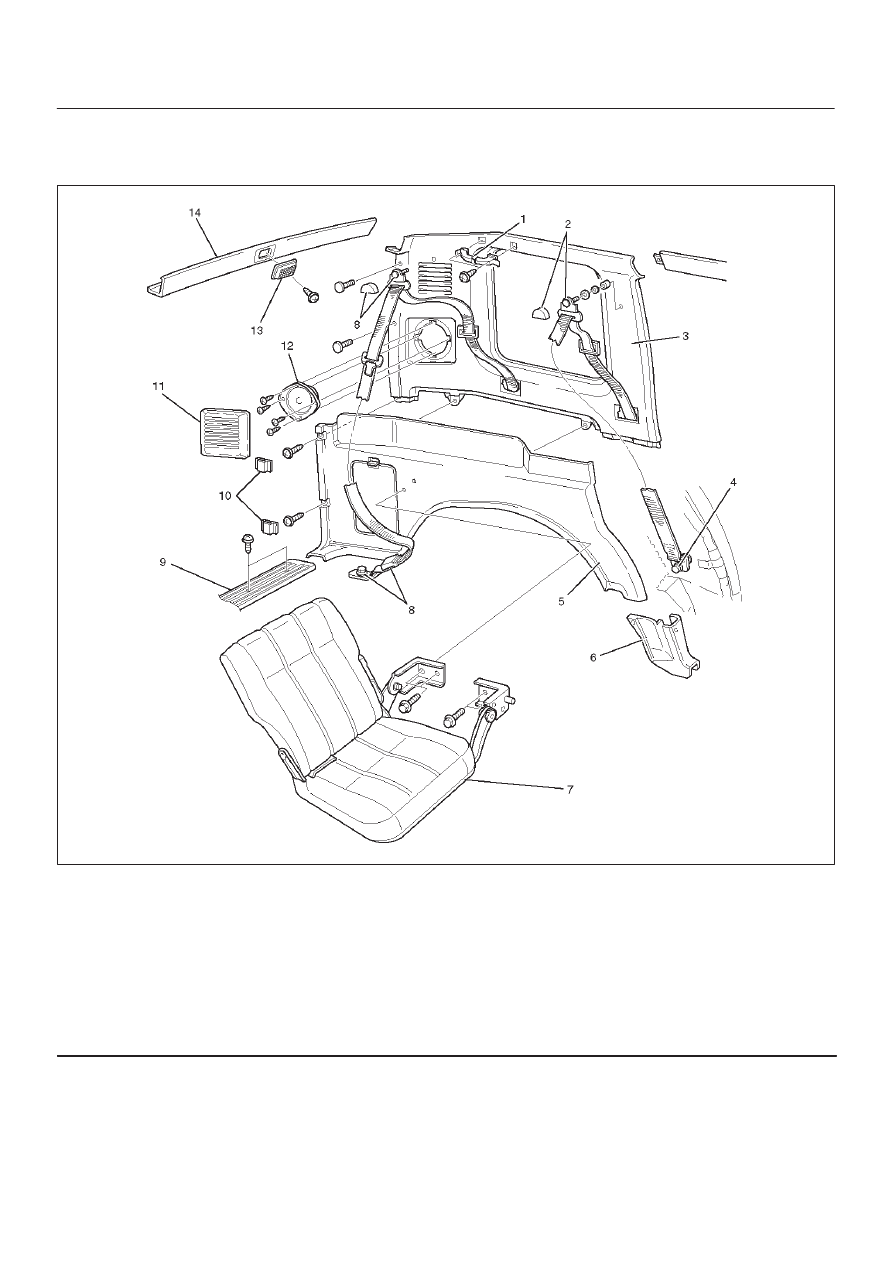

Luggage Side and Quarter Upper Trim Cover (Long Wheel Base)

Luggage Side, Quarter Upper Trim Cover and Associated Parts

760RW017

Legend

(1) Assist Grip
(2) Rear Seat Belt Anchor Bolt Cover and Anchor

Bolt

(3) Quarter Upper Trim Cover
(4) Anchor Bolt
(5) Luggage Side Trim Cover
(6) Luggage Side Lower Cover
(7) Third Seat Assembly and seat Bracket

(8) Third Seat Belt Anchor Bolt Cover and Anchor

Bolt

(9) Rear End Floor Trim Cover

(10) Luggage Side Cap

(11) Speaker Grille

(12) Rear Speaker
(13) Luggage Room Light
(14) Rear Roof Trim Cover

Removal

1. Disconnect the battery ground cable.
2. Remove the third seat assembly and seat bracket.
3. Remove the rear end floor trim cover.
4. Remove the luggage side cap.

EXTERIOR/INTERIOR TRIM

8J–15

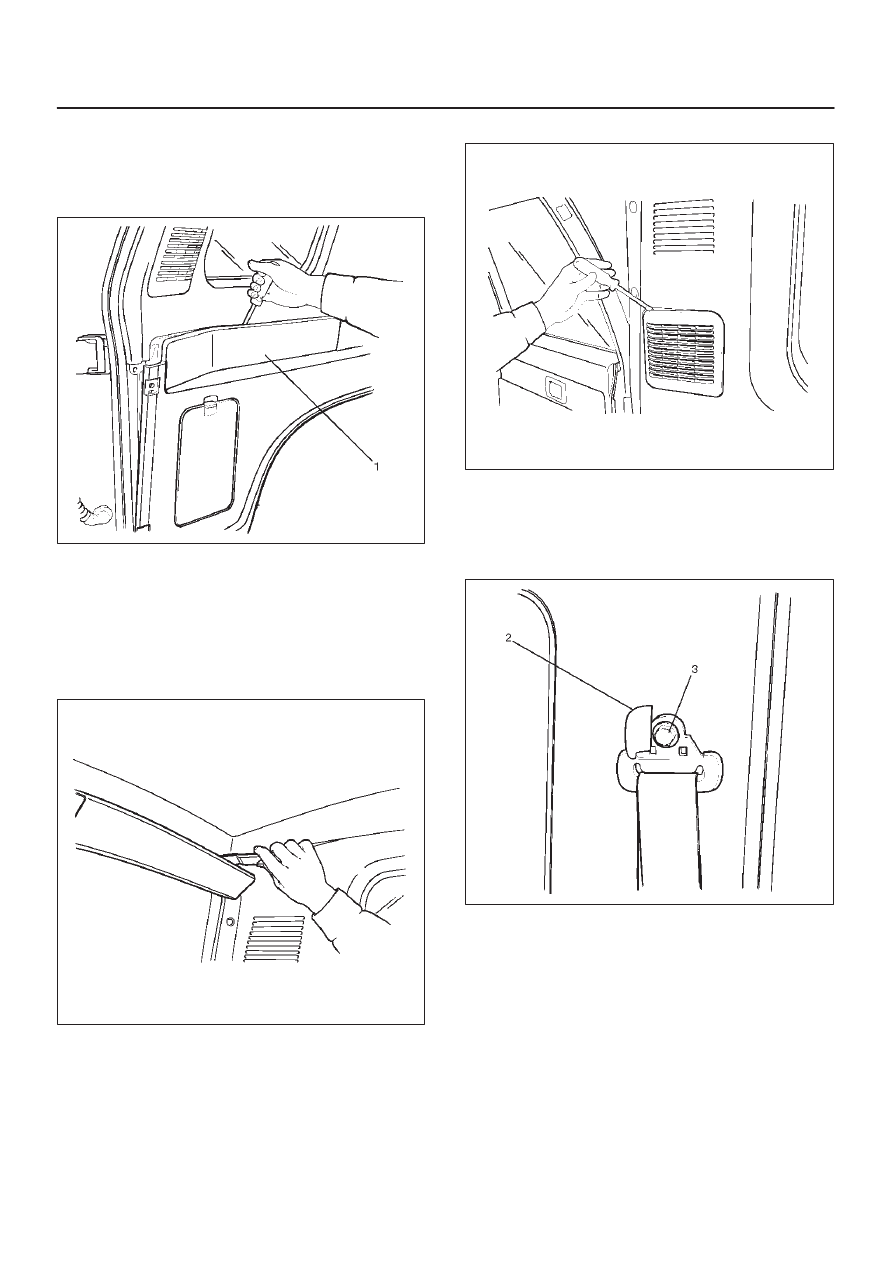

5. Remove the luggage side lower cover.
6. Remove the luggage side trim cover (1).

D

Remove the rear side fixing screws and pry the trim
cover retainers free from the body panel and the
upper trim cover.

687RS002

7. Remove the luggage room light.

D

Remove the luggage room light lens and the fixing
screws.

D

Disconnect the luggage room light connector.

8. Remove the rear roof trim cover.

D

Pry the trim cover retainers free from the body
panel.

666RS001

9. Remove the speaker grille.

687RS003

10. Remove the rear speaker.

D

Remove the rear speaker fixing screws and
disconnect the connector.

11. Remove the rear seat belt anchor bolt cover (2) and

the anchor bolt (3).

760RW005

12. Remove the third seat belt anchor bolt cover and

anchor bolt.

D

Refer to the Third Seat Belt removal procedure in
Seat Belt System section.

13. Remove the assist grip.
