8F–104 BODY STRUCTURE

Tailgate Glass

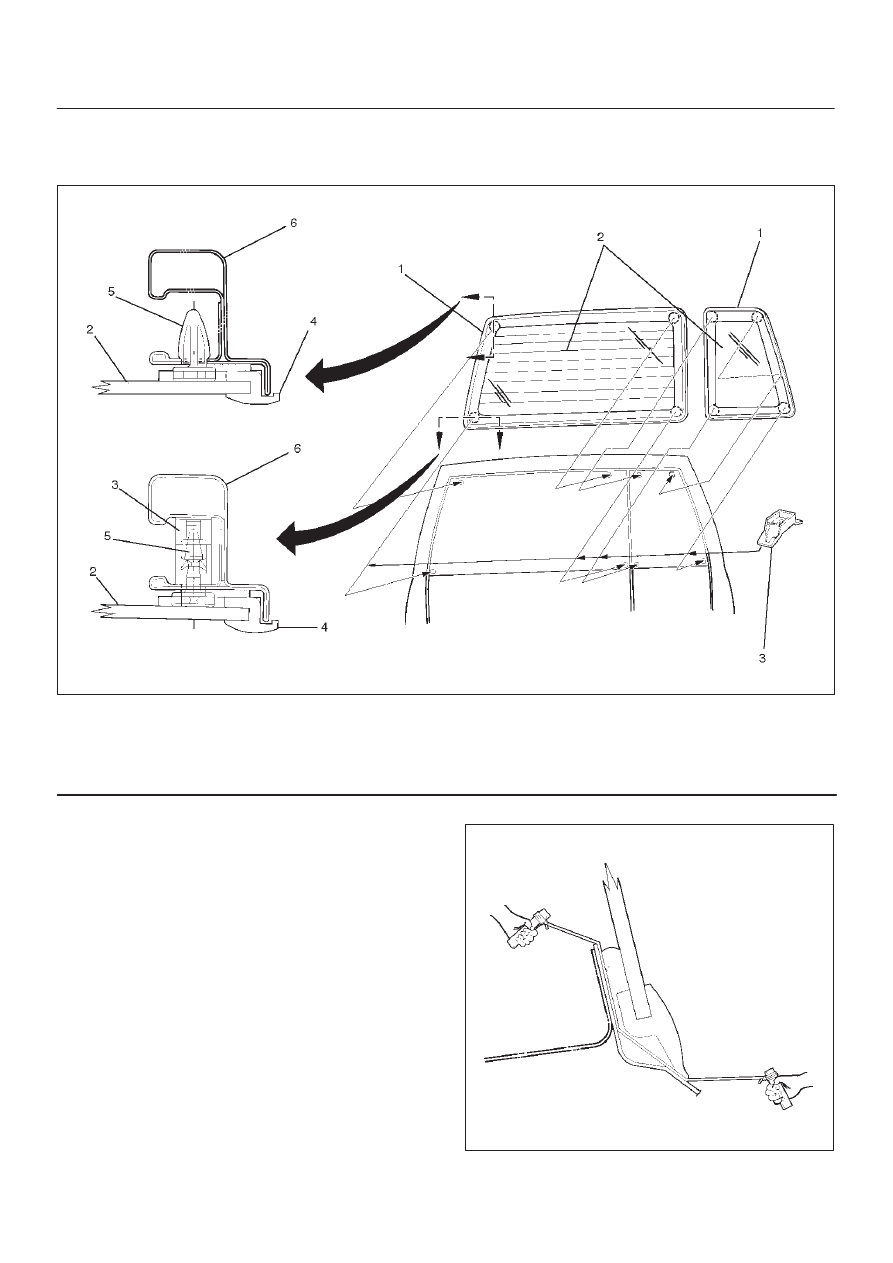

Parts Location

682RW008

Legend

(1) Tailgate Glass Moulding
(2) Tailgate Glass
(3) Tailgate Glass Clip

(4) Glass Moulding
(5) Clip
(6) Body Panel

Removal

1. Remove battery ground cable.
2. Remove tailgate trim panel.
3. Remove tailgate sash trim cover (RH only).

D

Remove the tailgate frame cover. Refer to Exterior /
Interrior Trim in this section

4. Remove tailgate glass.

D

Refer to Windshield removal procedure in this
section.

682RS007

5. Remove tailgate glass clip.

8F–105

BODY STRUCTURE

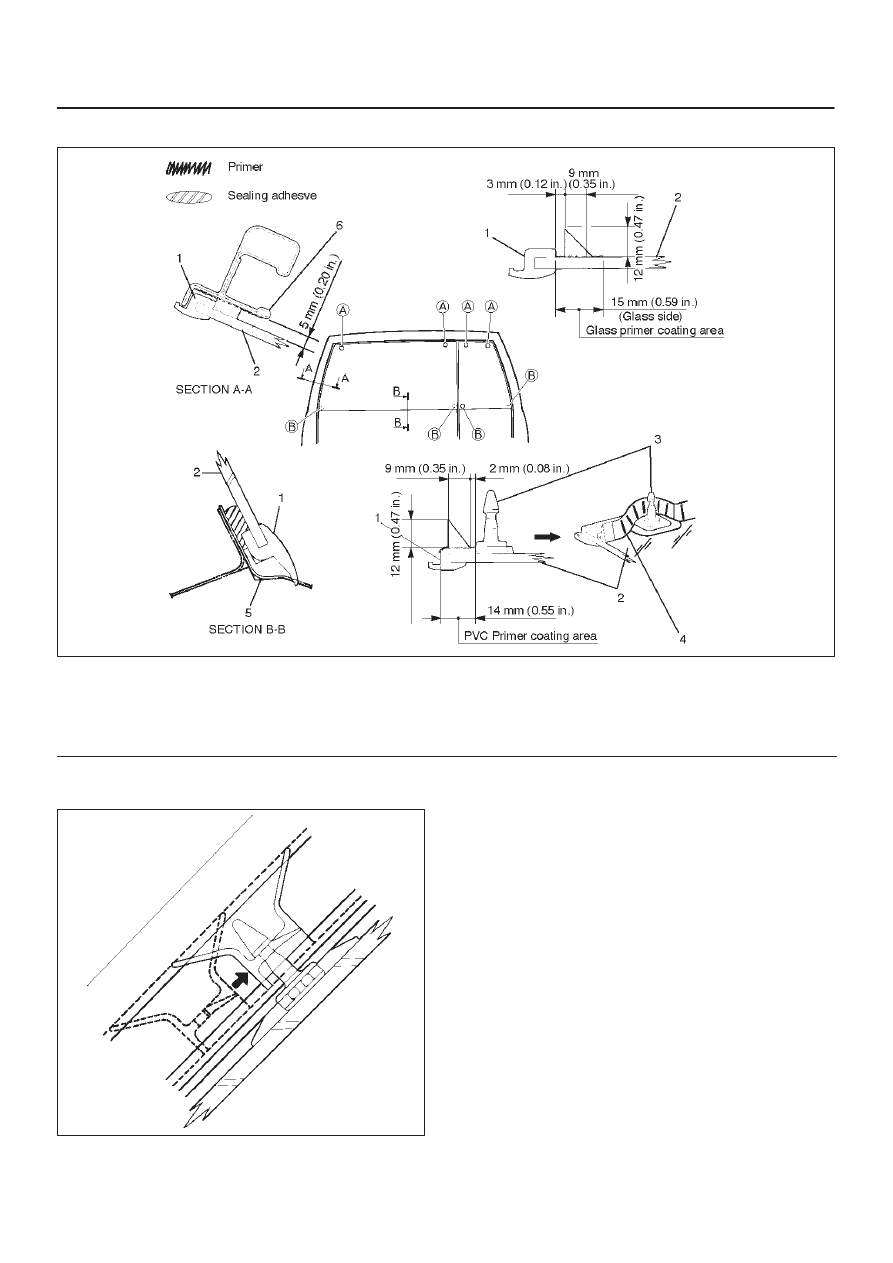

Installation

682RW009

Legend

(1) Glass Moulding
(2) Tailgate Glass
(3) Clip

(4) Sealing Adhesive
(5) Body Panel
(6) Tailgate Frame

1. Install the tailgate glass clip.

682RS008

2. Install the tailgate glass (2).

D

Clean the bonding surfaces of both the tailgate
glass and the tailgate panel.

D

Be absolutely sure to apply glass primer to the
tailgate glass and PCV primer to the glass moulding
(1).

D

Apply a sealing adhesive to the circumference of
the tailgate glass as shown.

D

Insert the clip of the tailgate glass A portion into the
tailgate panel hole to position the glass.

D

Install the new tailgate glass clip to the clip of the
tailgate glass B portion while sliding it, and bond the
glass to the tailgate panel by applying pressure.
Always use new tailgate glass clips.

D

Cure the bonding at a temperature of 20~30

°

C

(68

∼

86

°

F) for 24 hours.

D

Check that the tailgate glass does not leak water.

8F–106 BODY STRUCTURE

Main Data and Specifications

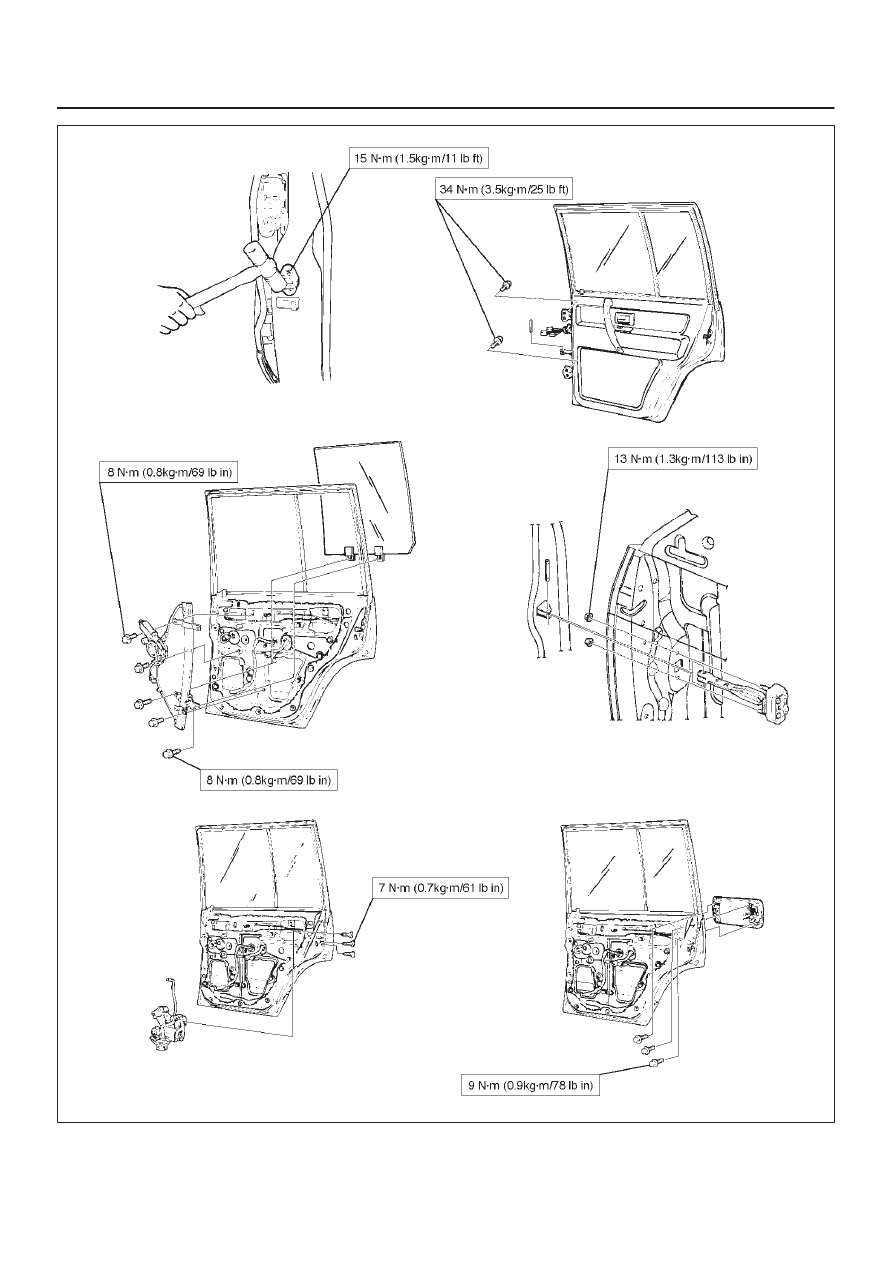

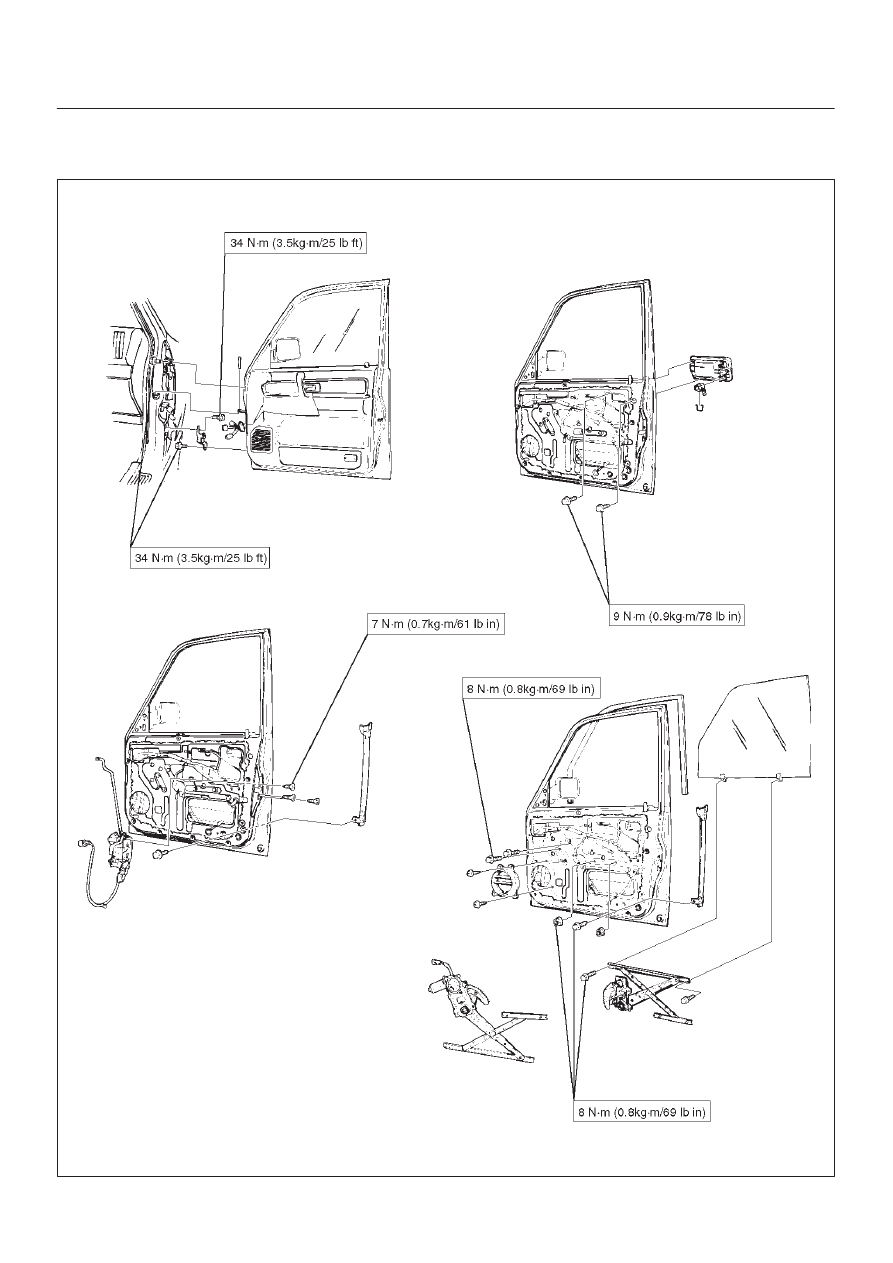

Torque Specifications

E10RW020

8F–107

BODY STRUCTURE

E10RW019
