8F–100 BODY STRUCTURE

6. Install the windshield support (2).

631RS014

D

Apply a sealing adhesive to the circumference of
the windshield.

D

Apply the sealing adhesive to the frange portion of
the cowl upper rail.

D

Adjust the gap clearance of the windshield.

D

Install the windshield to the body panel by applying
pressure to the windshield.

D

Cure the adhesive at a temperature of 20~30

°

C

(68

∼

86

°

F) for 24 hours.

D

Check that the windshield does not leak water.

607RS007

7. Install the windshield side moulding.

D

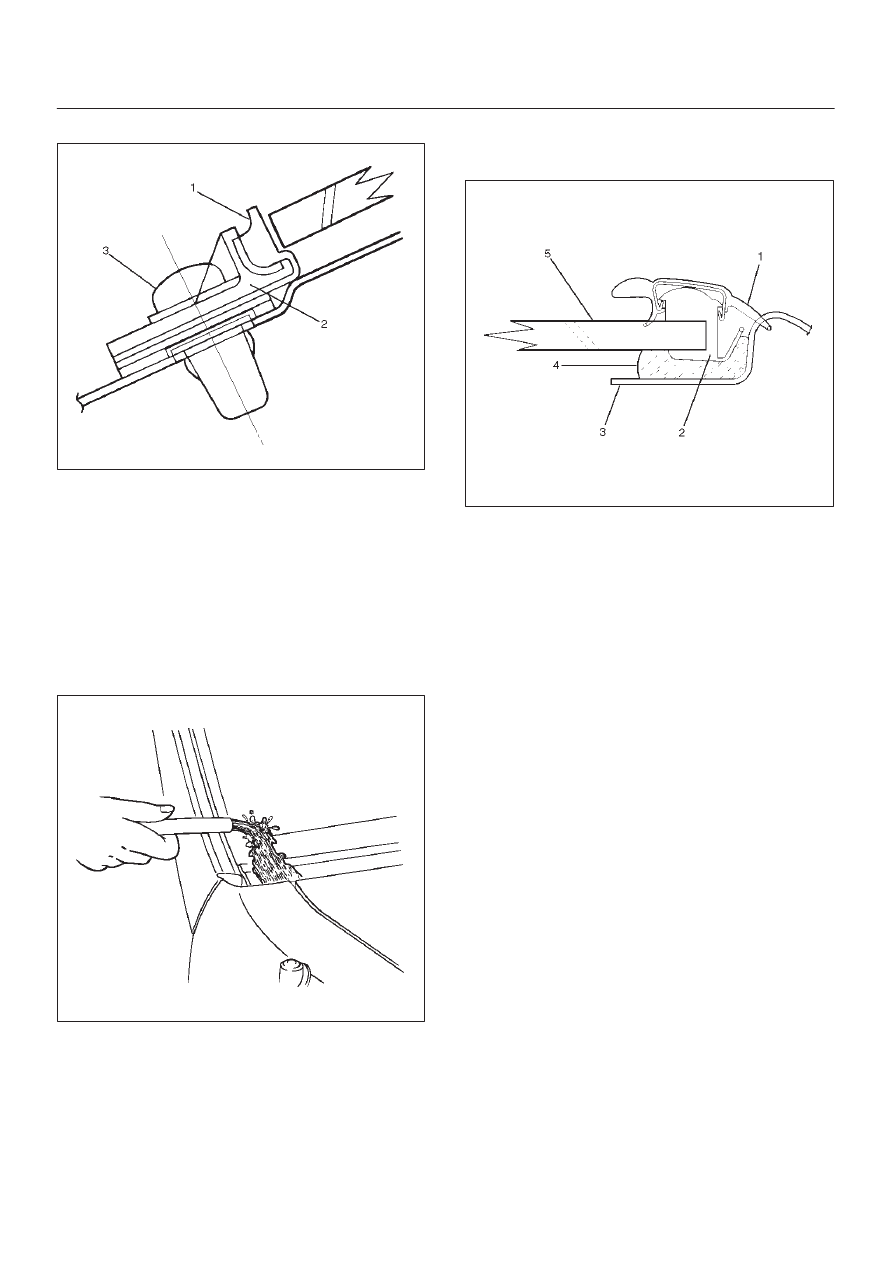

Insert the windshield (5) side moulding (1) into the
moulding clip (2).

607RS008

D

Take care not to damage the side moulding when
you install it.

8. Install the front cowl cover.
9. Install the windshield wiper.

8F–101

BODY STRUCTURE

Rear Quarter Side Glass

Parts Location

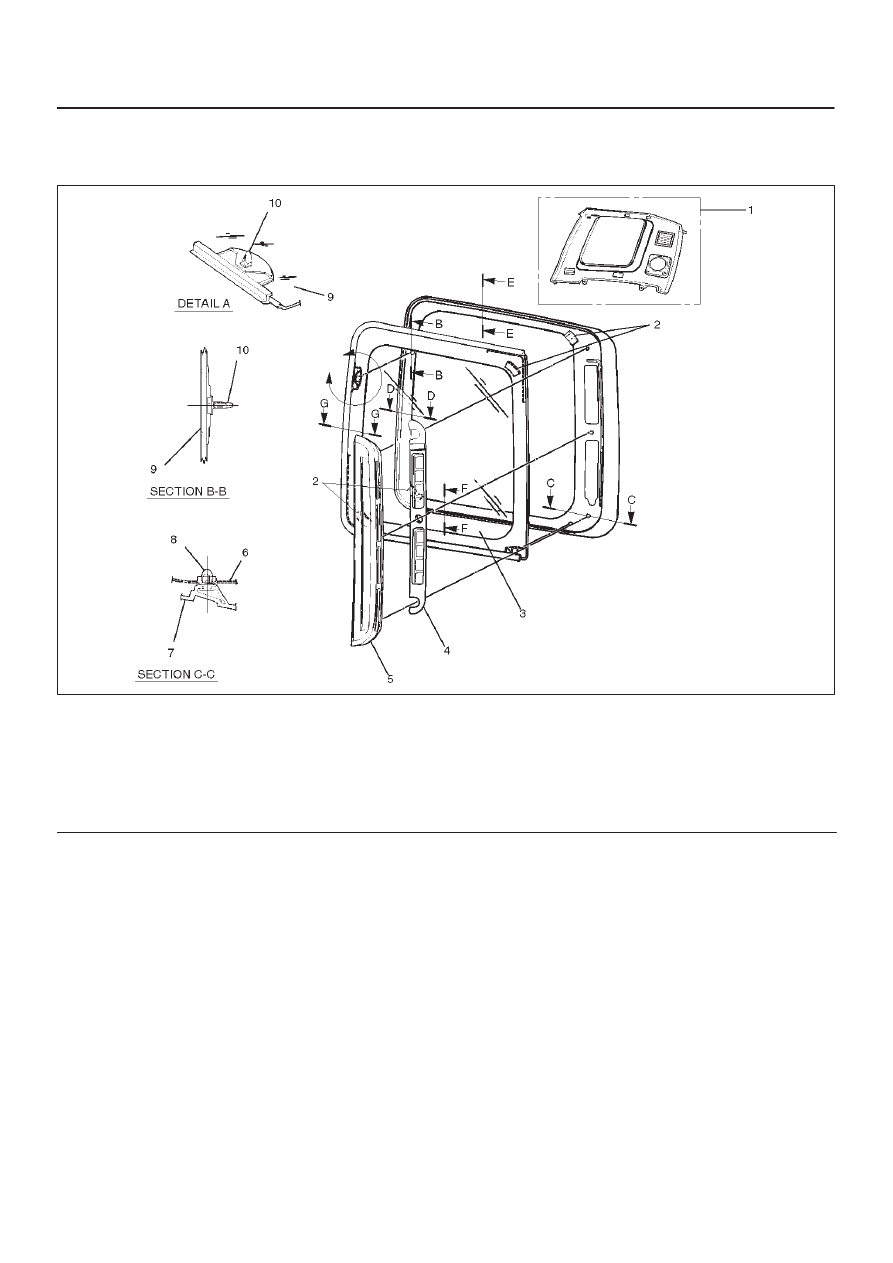

641RS005

Legend

(1) Rear Quarter Upper Trim Panel
(2) Fastener
(3) Rear Quarter Side Glass
(4) Valve Assembly
(5) Ventilation Assembly

(6) Side Outer Panel
(7) Ventilation Assembly
(8) Ventilation Fixing Clip
(9) Rear Quarter Side

(10) Glass Fixing Clip

Removal

1. Disconnect the battery ground cable.
2. Remove rear quarter upper trim panel.

D

Refer to Exterior / Interrior Trim in this section.

3. Remove ventilation assembly.
4. Remove valve assembly.

D

Refer to Exterior / Interrior Trim in this section.

5. Remove rear quarter side glass.

D

Refer to Windshield removal procedure in this
section.

8F–102 BODY STRUCTURE

Installation

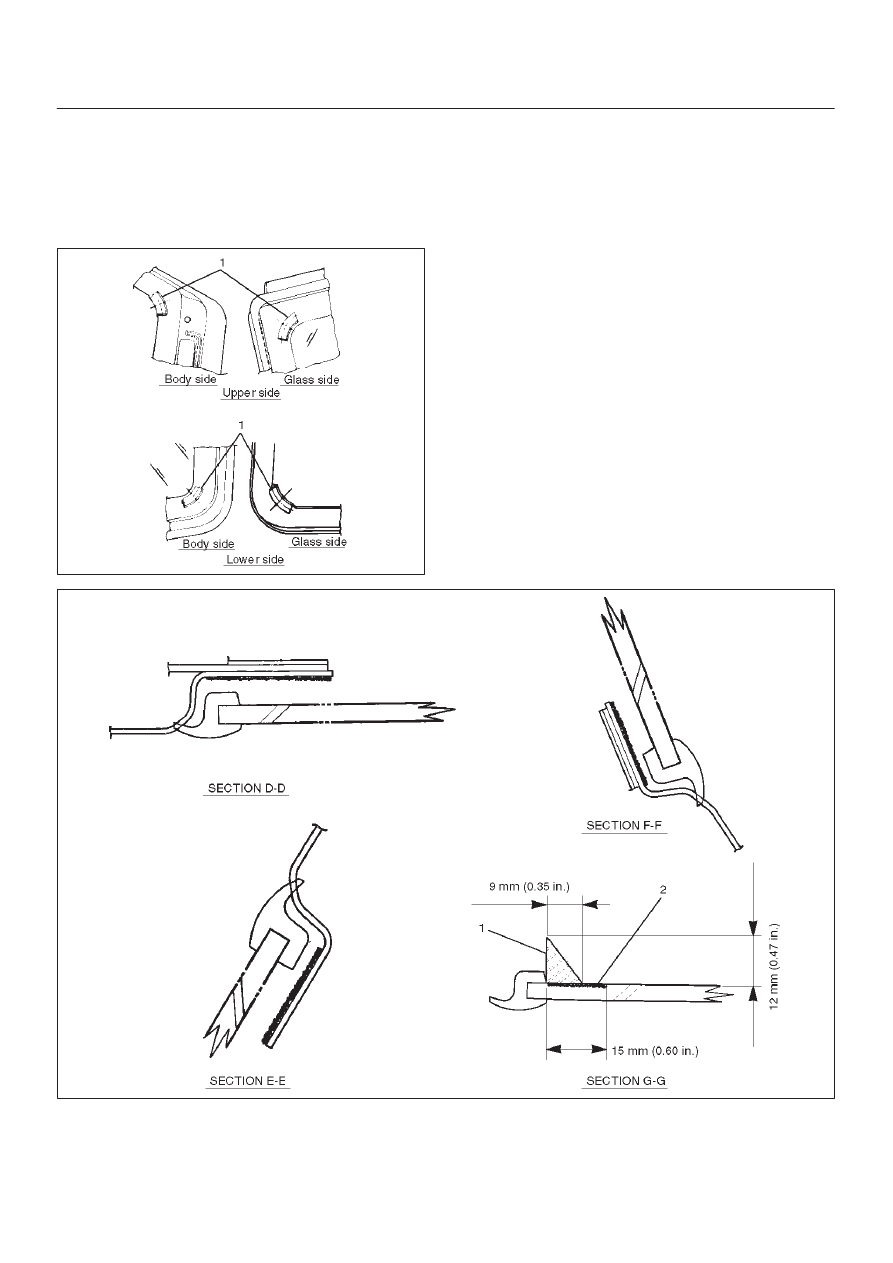

1. Install the rear quarter side glass.

D

Clean the bonding surfaces of both the glass and the
body panel.

D

Install the fasteners (1) to the fixed positions of the
glass and the body panel.

641RS006

D

Always use new fasteners.

D

Be absolutely sure to apply glass primer (2) to the side
glass.

D

Apply a sealing adhesive (1) to the glass
circumference.

641RS007

8F–103

BODY STRUCTURE

D

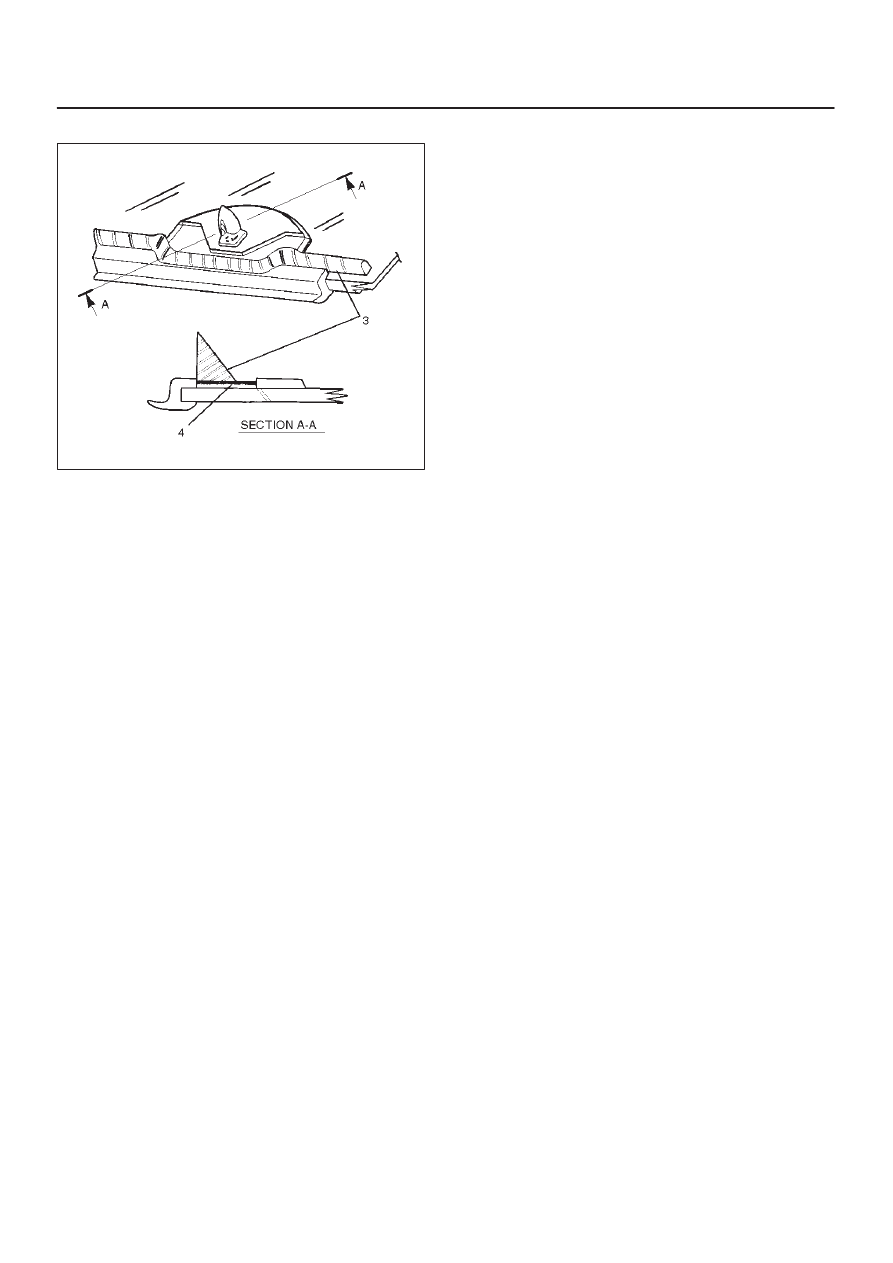

Apply PVC primer (4) to the A clip portion.

641RS008

D

Insert the fixing clip on the side glass into the body
panel.

D

Push the side glass against the body panel and bond
them.

D

Cure the adhesive at a temperature of 20~30

°

C

(68~86

°

F) for 24 hours.

D

Check that the rear quarter side glass does not leak
water.

2. Install the valve assembly.
3. Install the ventilation assembly.
4. Install the rear quarter upper trim panel.
