8D – 342 WIRING SYSTEM

Rear Defogger

General Description

When rear defogger switch is turned on with starter
switch on, battery voltage is applied to rear defogger
through rear defogger relay to operate rear defogger.
Alarm & relay control unit is provided with a timer.
When the operation time of the timer elapses which
has been set in advance at manufacture, the switch is
automatically turned off. (The timer operating time is
normally about 30 minutes).

WIRING SYSTEM 8D

–

 343

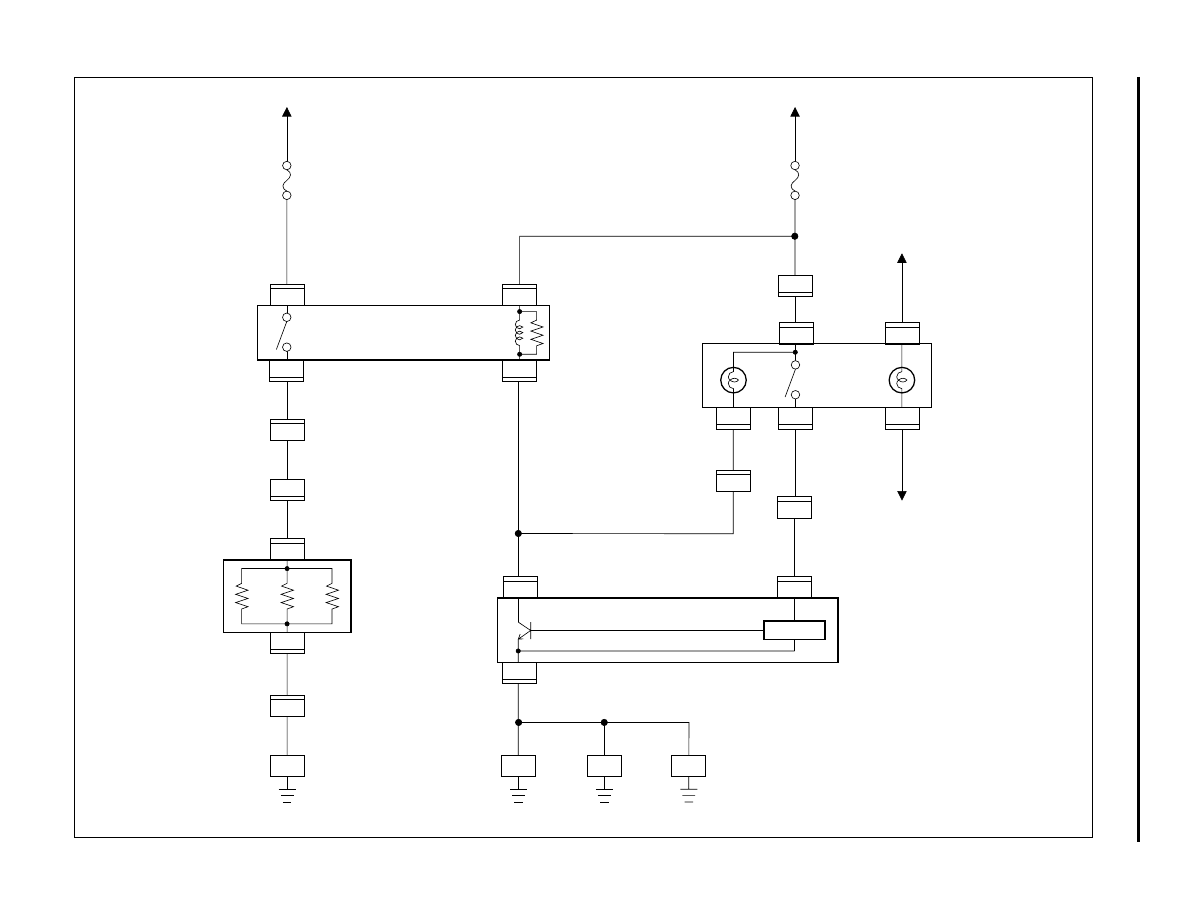

Circuit Diagram (RHD)

D08RW664

5.0

W

BATT.(+)

C-17 25A
RR DEFOG

3.0

B/Y

STARTER SW

(IG1)

C-4 10A
ELEC. IGN.

3.0

L/W

3.0

B/L

3.0

B/L

3.0

B/L

3.0

B

3.0

B

2.0

B

0.85

B

2.0

B

2.0

B

RR DEFOGGER
RELAY

RR DEFOGGER
SW

RR DEFOGGER

B-38

B-38

0.5

L/W

2

B-38

3

4

1

B-38

0.5

O/L

0.5

O/L

0.5

O/L

0.5

O/L

0.5

O/G

0.5

O/G

0.3

R/G

0.85

G/R

0.85

L/W

0.5

L/W

0.5

L/W

ALARM & RELAY
CONTROL UNIT
(RR DEFOGGER)

B-7

5

B-7

8

9

B-6

G-7

1

H-37

1

G-3

2

2

H-31

4

H-37

R-3

BODY-RR

BODY-LH

BODY-RH

BODY-CTR

B-2

B-26

B-18

TIMER

I-17

3

I-17

4

H-25

20

I-17

ILLUMINATION

CONTROLLER(3)

2

5

I-17

2

H-26

6

I-17

TAIL RELAY(4)

1

H-25

8D – 344 WIRING SYSTEM

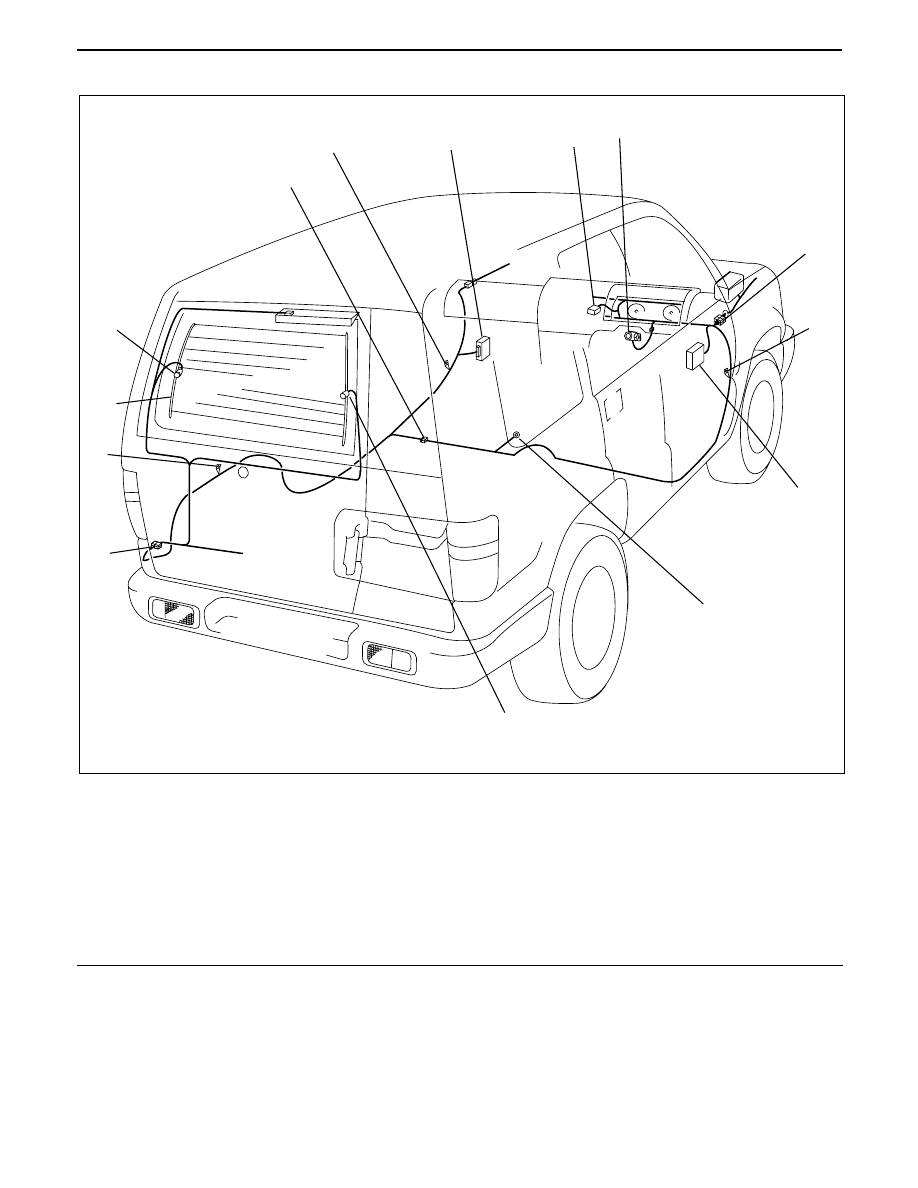

Parts Location (RHD)

Legend

(1) I-17 (Rear Defogger Switch)
(2) Starter Switch
(3) H-25, H-26
(4) B-19
(5) Fuse Box (B-38)
(6) B-26
(7) G-7

(8) H-37
(9) R-3

(10) Rear Defogger
(11) G-3
(12) H-31
(13) B-2
(14) B-6, B-7 (Alarm and Relay Control Unit)

8

9

10

11

12

13

14

1

2

3

4

5

6

7

D08RW811

WIRING SYSTEM 8D

–

 345

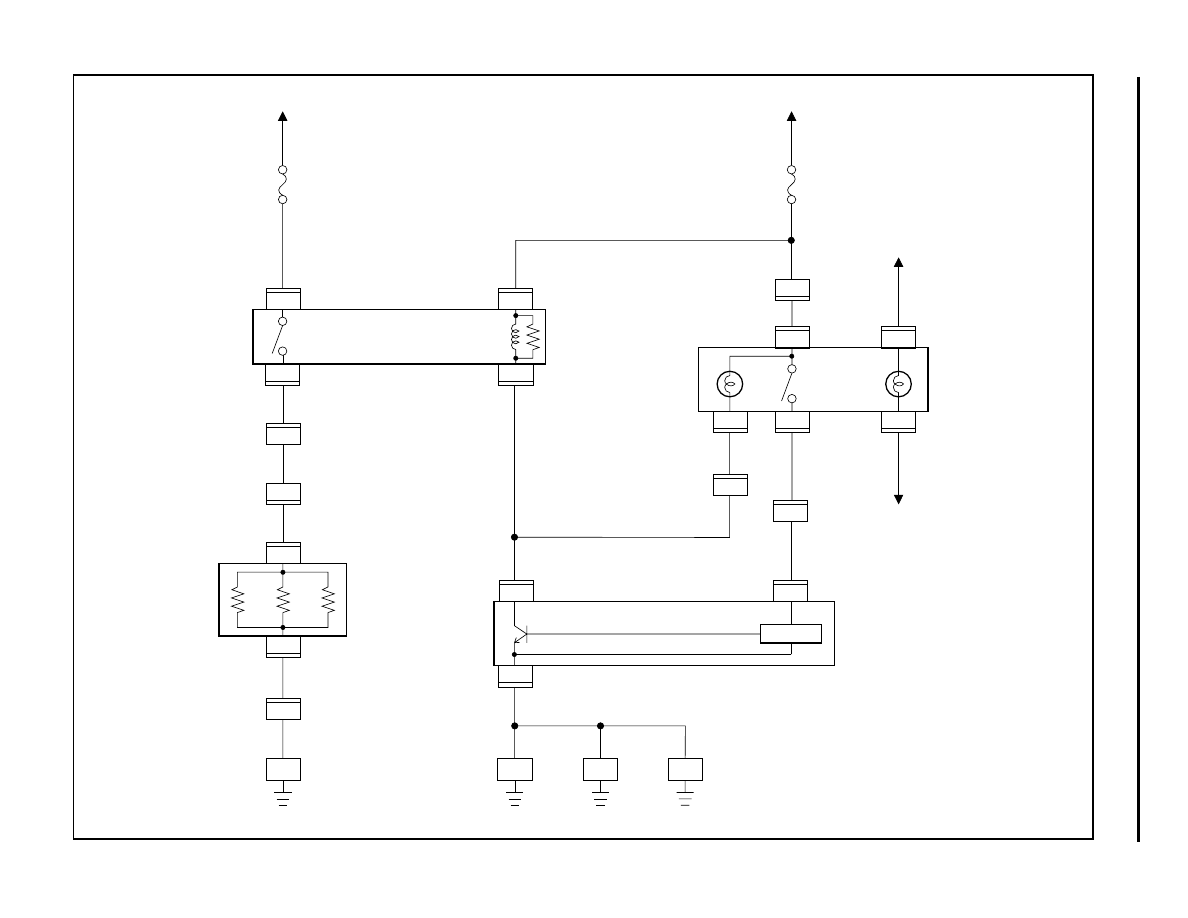

Circuit Diagram (LHD)

5.0

W

BATT.(+)

C-17 25A
RR DEFOG

3.0

B/Y

STARTER SW

(IG1)

C-4 10A
ELEC. IGN.

3.0

L/O

3.0

B/L

3.0

B/L

3.0

B/L

3.0

B

3.0

B

2.0

B

0.85

B

2.0

B

2.0

B

RR DEFOGGER
RELAY

RR DEFOGGER
SW

RR DEFOGGER

B-38

B-38

0.5

L/W

2

B-38

3

4

1

B-38

0.5

O/L

0.5

O/L

0.5

O/L

0.5

O/L

0.5

O/G

0.5

O/G

0.3

R/G

0.85

G/R

0.85

L/W

0.5

L/W

0.5

L/W

ALARM & RELAY
CONTROL UNIT
(RR DEFOGGER)

B-7

5

B-7

8

9

B-6

G-7

1

H-37

1

G-3

2

2

H-31

4

H-37

R-3

BODY-RR

BODY-RH

BODY-LH

BODY-CTR

B-2

B-26

B-18

TIMER

I-17

3

I-17

4

H-25

5

I-17

ILLUMINATION

CONTROLLER(3)

2

5

I-17

3

H-25

6

I-17

TAIL RELAY(4)

1

H-48

D08RW809
