WIRING SYSTEM

Parts Location (LHD)

4

1

7

6

2

3

5

D08RW395

Legend

(1) B-13 or B-14
(2) H-32
(3) Fuse Box

(4) B-26
(5) B-32
(6) Relay and Fuse Box
(7) H-15

WIRING SYSTEM

8D–303

Windshield Wiper/Washer

General Description

The circuit consists of windshield wiper/washer
switch, windshield wiper motor, windshield washer
motor and alarm & relay control unit.
When windshield wiper/washer switch is turned on
with starter switch on, battery voltage is applied to
windshield wiper motor to activate wipers.
When windshield washer switch is turned on with
starter switch on, battery voltage is applied to
windshield washer motor.
Windshield washer motor squirts glass cleaning
fluid while windshield washer switch is pushed and
at the same time, alarm & relay control unit activates
windshield wiper motor to wipe glass cleaning fluid
at low speed.

8D–304

WIRING SYSTEM

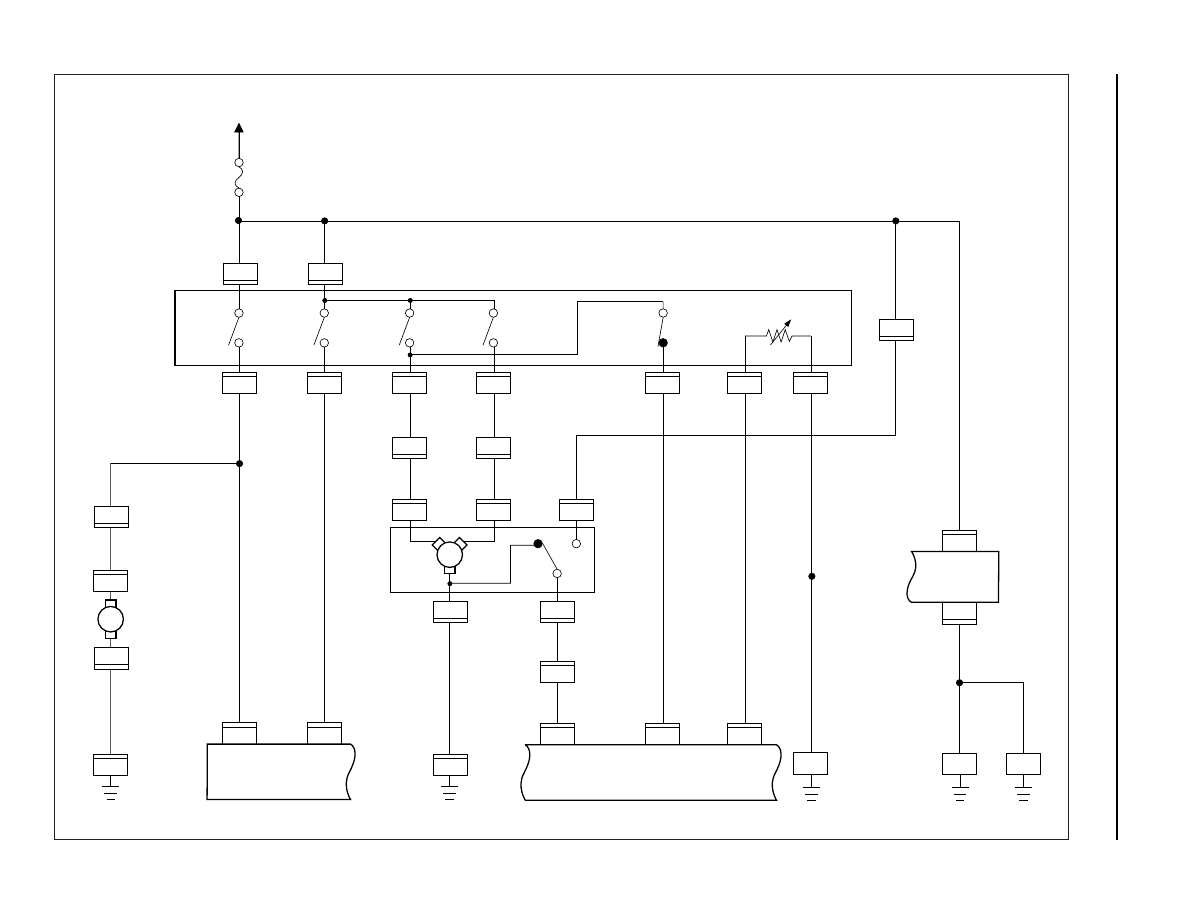

Circuit Diagram (RHD)

3.0

B/R

0.85

W/L

0.85

W/L

0.85

L/Y

0.85

L/Y

0.85

L/Y

0.5

B

0.85

L/Y

C-5  15A
FRT WIPER & WASHER

STARTER SW

(IG2)

B-52

B-52

B-7

7

19

1

0.85

LG/R

B-52

B-52

B-7

2

20

0.85

O

0.85

W/L

B-52

B-7

6

11

0.85

L/R

B-52

B-6

8

14

B-7

1

0.5

B

0.85

W/L

0.85

W/L

1.25

B

0.85

B

2.0

B

2.0

B

B-52

14

B-19

3

H-13

9

0.85

R/Y

0.85

R/Y

0.85

B

B-52

5

C-38

2

H-13

C-35

C-39

4

7

C-35

2

1

M

WIND-
SHIELD
WASHER
MOTOR

WIND-
SHIELD
WIPER
MOTOR

WINDSHIELD WIPER & WASHER SW
(COMBINATION SW)

FENDER-RH

FENDER-RH

WASHER

INT

LOW

H-13

2

0.85

L

0.85

L

B-52

4

C-38

1

HIGH

OFF

M

C-39

2

C-38

3

0.85

L/O

0.85

L/O

H-13

12

B-7

12

C-38

5

B-7

9

C-38

6

ALARM & RELAY

CONTROL UNIT

BODY-LH

BODY-RH

BODY-RH

B-2

B-18

H-15

2

D08RW644

WIRING SYSTEM

8D–305

Parts Location (RHD)

Legend

(1) B-52
(2) B-2
(3) Alarm and Relay Control Unit (B-6, B-7)
(4) Fuse Box
(5) B-18, B-19

(6) FRT Wind Shild Washer Motor (C-35)
(7) Wind Shield Washer Tank
(8) Relay and Fuse Box
(9) C-39

(10) H-13, H-15
(11) Wind Shild Wiper Motor (C-38)

2

3

4

5

6

7

8

9

10

11

1

D08RWA06
