MANUAL TRANSMISSION

7B–5

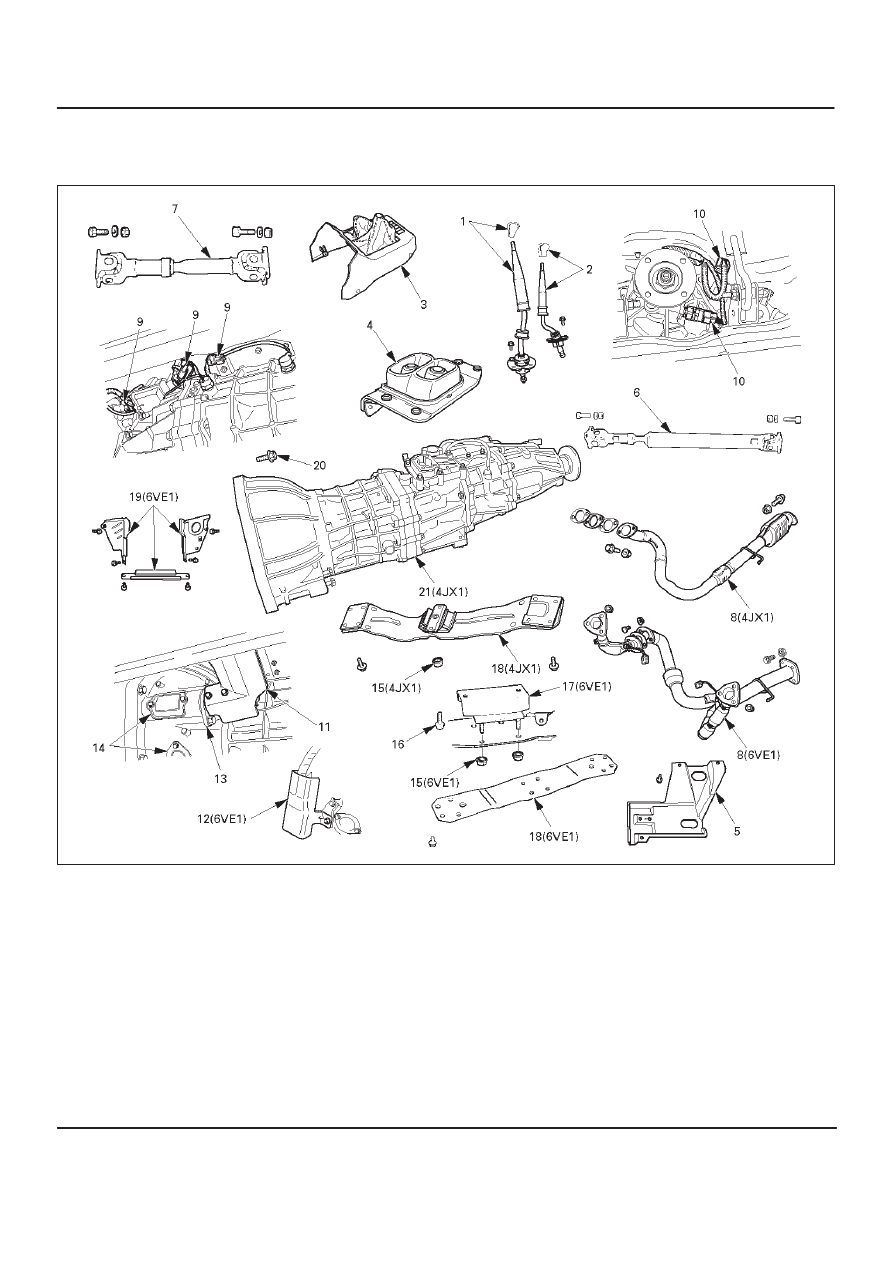

Manual Transmission Assembly

Transmission and Associated Parts

220RW108

Legend

(1) Gear Control Lever and Knob
(2) Transfer Control Lever and Knob
(3) Front Console Assembly
(4) Grommet Assembly
(5) Transfer Protector
(6) Rear Propeller Shaft
(7) Front Propeller Shaft
(8) Exhaust Pipe
(9) Backup Lamp, 4WD Indicator, and 1–2

Indicator Switch Harness Connector

(10) Speedometer Sensor and 2WD–4WD Actuator

Harness Connector

(11) Slave Cylinder Heat Protector

(12) Harness Heat Protector
(13) Slave Cylinder
(14) Dust Cover
(15) Engine Rear Mount Nut
(16) Engine Rear Mount Bolt
(17) Engine Rear Mount
(18) Third Crossmember
(19) Flywheel Under Cover
(20) Transmission Retaining Bolt
(21) Transmission Assembly with Transfer Case

7B–6

MANUAL TRANSMISSION

Removal

NOTE: Before remove the transmission and transfer
assembly from the vehicle, change the transfer mode to
2WD using push button on dash panel.

1. Remove engine hood.
2. Disconnect battery ground cable.
3. Remove the gear control lever knob.
4. Remove the front console assembly.
5. Remove the grommet assembly.
6. Remove the transmission control lever and transfer

control lever.

235RW014

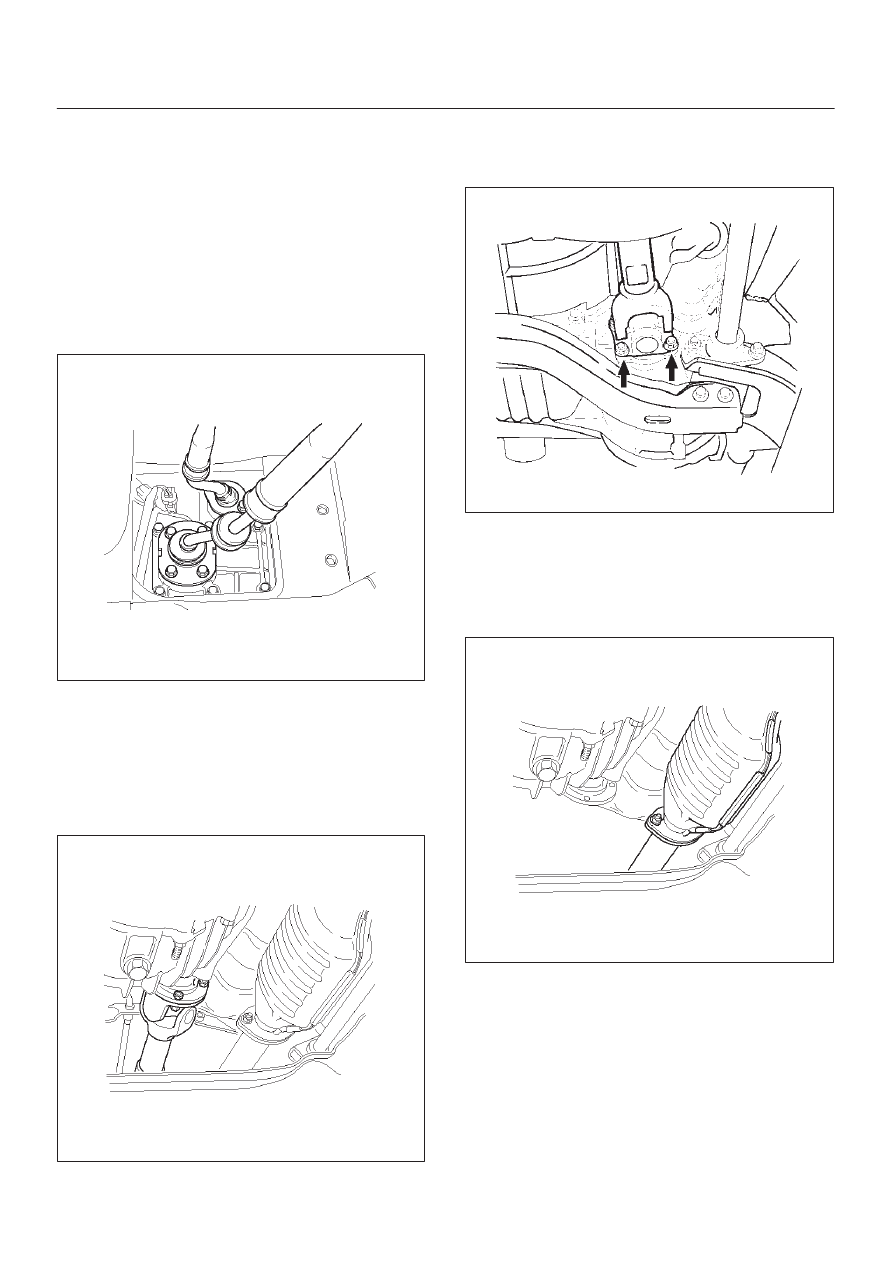

7. Raise and support the vehicle with suitable jack

stand.

8. Remove transfer protector.
9. Remove the rear propeller shaft.

NOTE: Apply alignment marks on the flange at the both
front and rear side.

(4JX1)

401RW060

10. Remove the front propeller shaft.

NOTE: Apply alignment marks on the flange at both the
front and rear sides.

401RS003

11. Disconnect two oxygen sensor connectors from the

transmission harness (6VE1).

12. Remove the front and 3 way exhaust pipe (6VE1).

Remove the exhaust pipe with catalytic converter
(4JX1).

(4JX1)

150RW041

MANUAL TRANSMISSION

7B–7

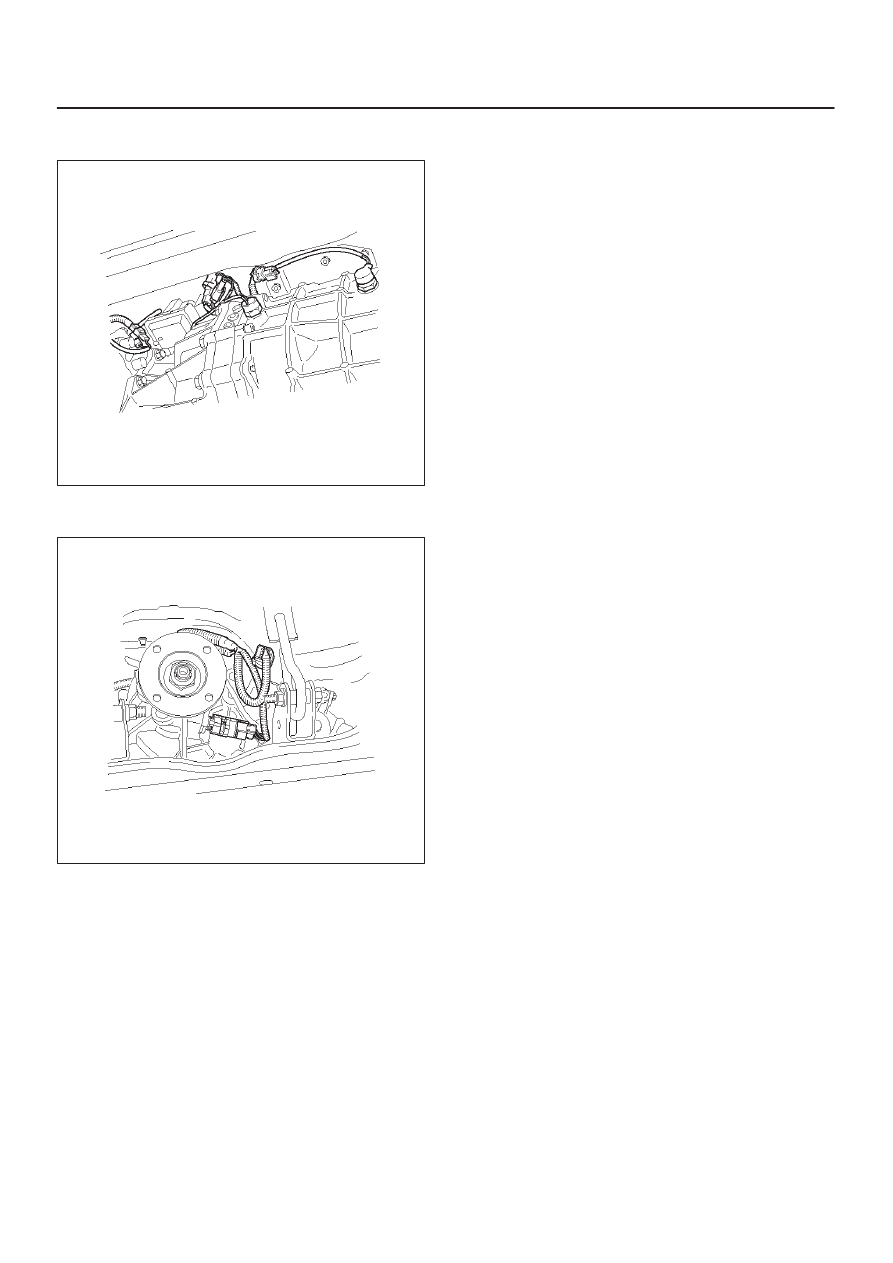

13. Disconnect the backup lamp switch, 4WD indicator

switch and 1–2 indicator switch harness connectors.

826RW023

14. Disconnect the speedometer sensor and 2WD-4WD

actuator harness connectors.

826RW024

7B–8

MANUAL TRANSMISSION

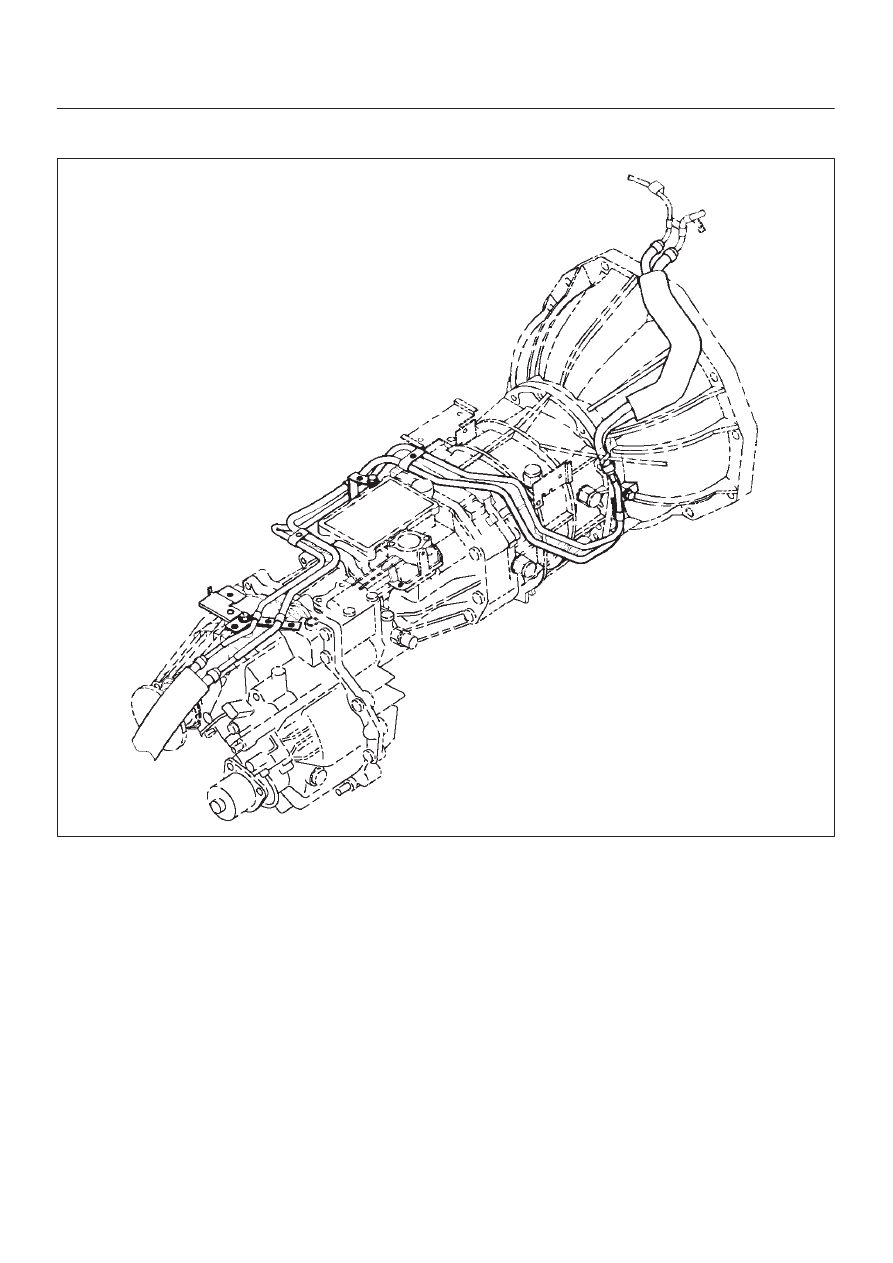

15. Remove four fuel pipe bracket from the transmission

case (6VE1).

141RW024
