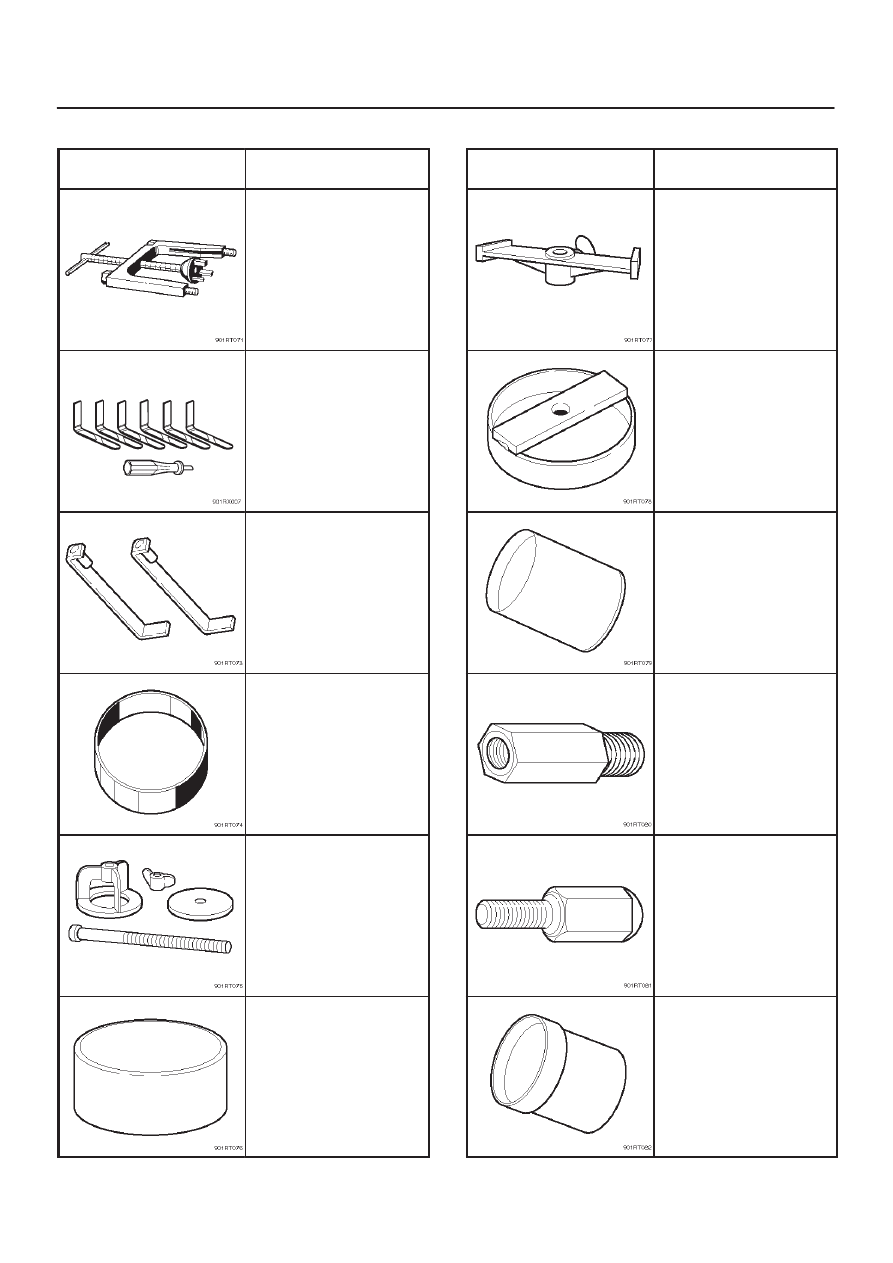

7A–81

AUTOMATIC TRANSMISSION (4L30–E)

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–0501–0

(J–23075)

Spring compressor (For

servo piston)

5–8840–2258–0

(J–38450–A)

Third clutch snap ring

compressor

5–8840–2259–0

(J–23075–12)

Third clutch spring

compressor adapter

(Use with

5–8840–0501–0

(J–23075))

5–8840–2260–0

(J–23084)

Third clutch piston

installer

5–8840–0195–0

(J–23327)

Third clutch spring

compressor

5–8850–2261–0

(J–23080–A)

Second clutch piston

installer

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–2262–0

(J–23085–A)

Selective washer

gauging tool

5–8840–2263–0

(J–23327–90)

Fourth clutch spring

compressor (Use with

5–8840–0195–0

(J–23327))

5–8840–2264–0

(J–38553)

3/4 Accumulator piston

fitter

5–8840–2403–0

(J–41096)

Cover remover (Use

with 5–8840–2266–0

(J–38584))

5–8840–2266–0

(J–38584)

Slide hammer adapter

(Use with

5–8840–0019–0

(J–23907))

5–8840–2267–0

(J–38554)

Fourth clutch piston fitter

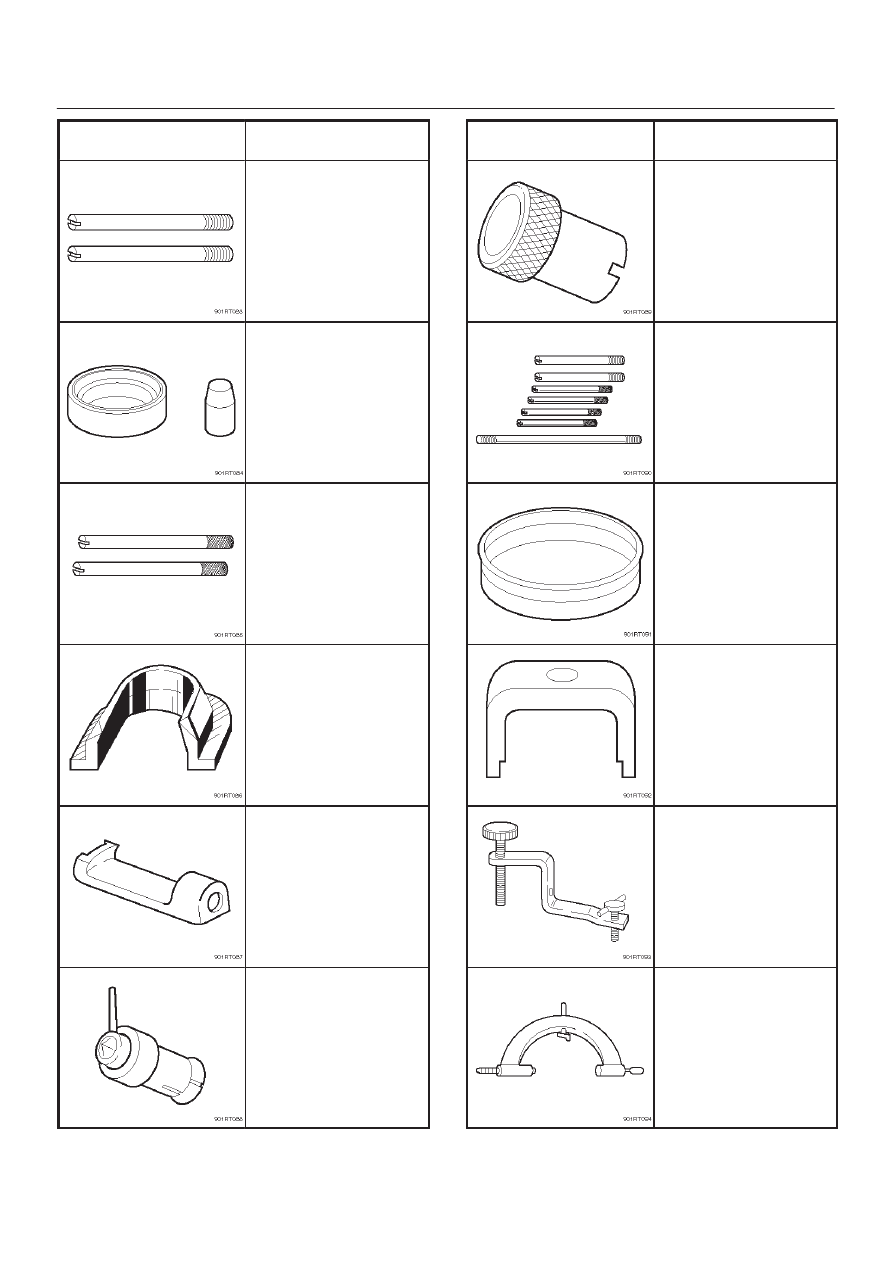

7A–82

AUTOMATIC TRANSMISSION (4L30–E)

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–2268–0

(J–38588)

Guide pins; adapter

case to main case

5–8840–2269–0

(J–38555)

Overrun clutch piston

seal installer set

5–8840–2270–0

(J–3387–2)

Guide pins; gasket and

transfer plate to valve

body

5–8840–2271–0

(J–25022)

Turbine shaft puller (Use

with 5–8840–0618–0

(J–24773–1))

5–8840–0196–0

(J–23129)

Oil seal remover (Use

with 5–8840–2266–0

(J–23907) and

5–8840–0019–0

(J–38584))

5–8840–2272–0

(J–38557)

Oil pump centering tool

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–2273–0

(J–23082–01)

Oil pump rotation tool

5–8840–0022–0

(J–25025–B)

Guide pins; valve body

to main case

5–8840–2274–0

(J–38428)

Servo piston fitter

5–8840–2275–0

(J–23327–91)

Overrun clutch spring

compressor

5–8840–2277–1

(J–38559–A)

3/4 Accumulator piston

cover compressor

5–8840–2278–0

(J–8763–02)

Holding fixture

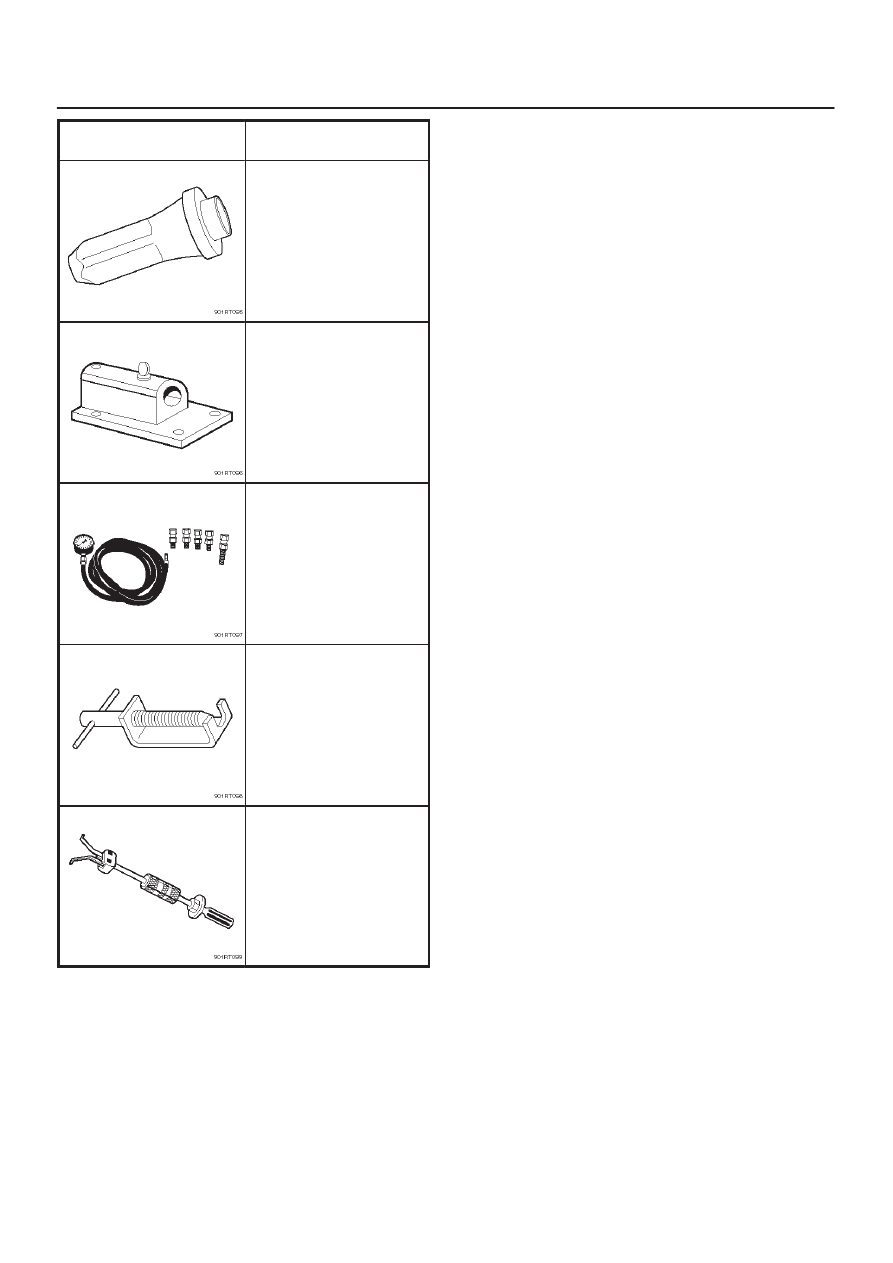

7A–83

AUTOMATIC TRANSMISSION (4L30–E)

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–2282–0

(J–36797)

A/T extension housing

oil seal installer (Inside)

5–8840–0003–0

(J–3289–20)

Holding fixture base

5–8840–0004–0

Pressure gauge

5–8840–0618–0

(J–24773–1)

End play fixture (Use
with 5–8840–2271–0

(J–25022))

5–8840–0019–0 &

5–8840–2000–0

(J–23907)

Slide hammer

7A–84

AUTOMATIC TRANSMISSION (4L30–E)

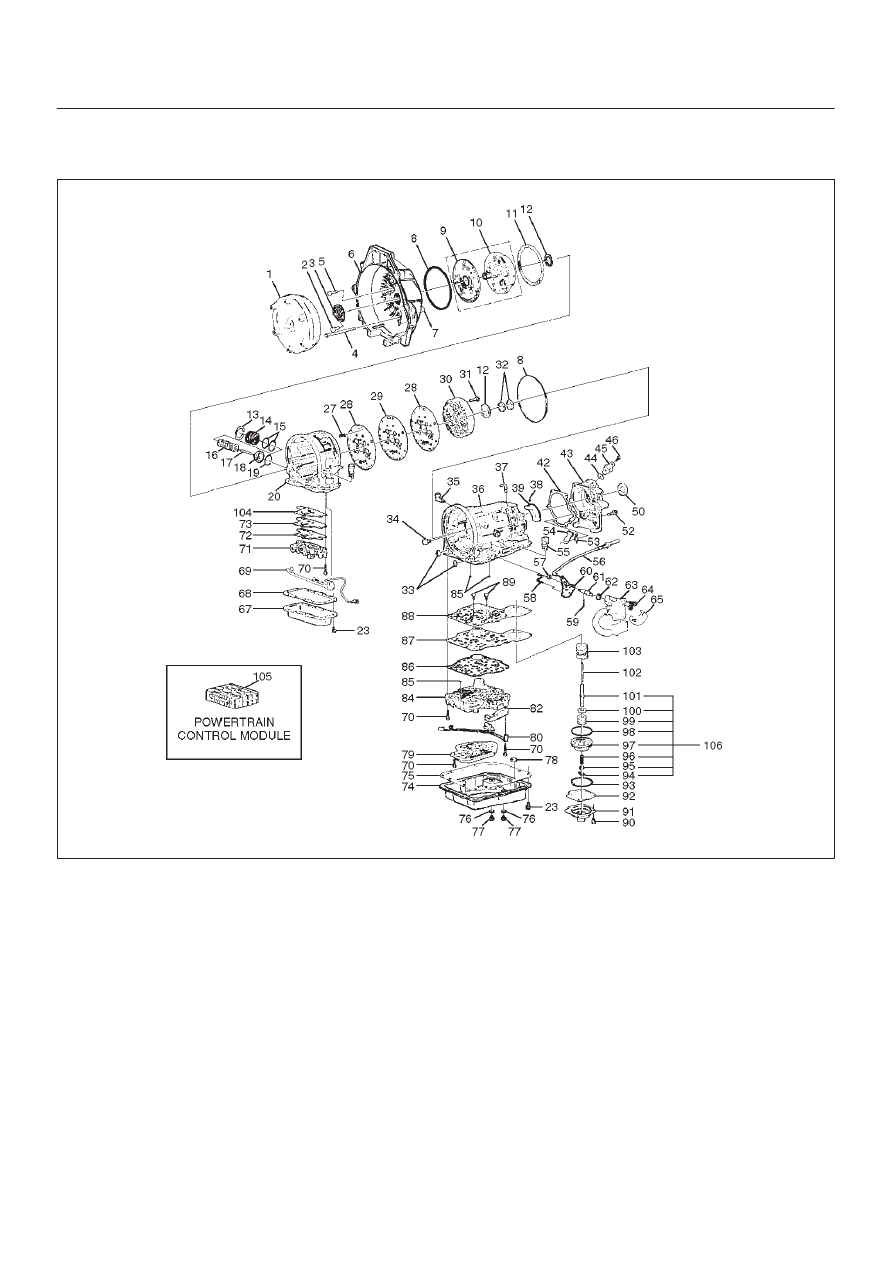

4L30–E Parts List

Case And Associated Parts

241RW014

Legend

(1) Torque Converter
(2) Screw, Seal Ring Assembly
(3) Seal Ring Assembly, Converter Housing
(4) Screw, Converter Housing/Main Case
(5) Screw, Converter Housing/Oil Pump
(6) Housing, Converter
(7) Plug, Converter Housing
(8) Seal, O–Ring
(9) Wear Plate, Oil Pump Body

(10) Pump Assembly, Oil

(11) Gasket

(12) Washer, Thrust Selective
(13) Ring, Snap
(14) Cover, 3–4 Accumulator Piston
(15) Seal, O–Ring, 3–4 Accumulator
(16) Spring, 3–4 Accumulator Piston

(17) Pin, 3–4 Accumulator Piston
(18) Piston, 3–4 Accumulator
(19) Ring, 3–4, Accumulator Piston
(20) Case, Adapter
(22) Connector, Electrical/Adapter Case
(23) Screw, Pan
(27) Restrictor, Oil
(28) Gasket, Transfer Plate/Adapter
(29) Plate, Transfer Adapter/Center Support
(30) Support Assembly, Center
(31) Screw, Center Support
(32) Ring, Oil Seal
(33) Seal, O–Ring Main Case
(34) Fitting, Cooler
(35) Fitting Assembly, Cooler
(36) Case, Main
(37) Breather, Pipe
