7A–69

AUTOMATIC TRANSMISSION (4L30–E)

Inspection And Repair

Visual Check:

If any damage, deformation or wear is found,  replace the
damaged part.

Operation Check:

Shake the piston and listen for check ball movement.
Movement indicates proper check ball operation.
Replace the piston if the check ball is missing or falls out.

Reassembly

1. Install piston assembly (10) into the second clutch

drum (11).

D

Lubricate the lip seal with  transmission fluid.  Use
the 5–8840–2261–0 (J–23080–A) second clutch
piston installer to protect the outer piston lip seal.

NOTE: Lip of the seal should point toward front of
transmission.

D

Remove the installer.

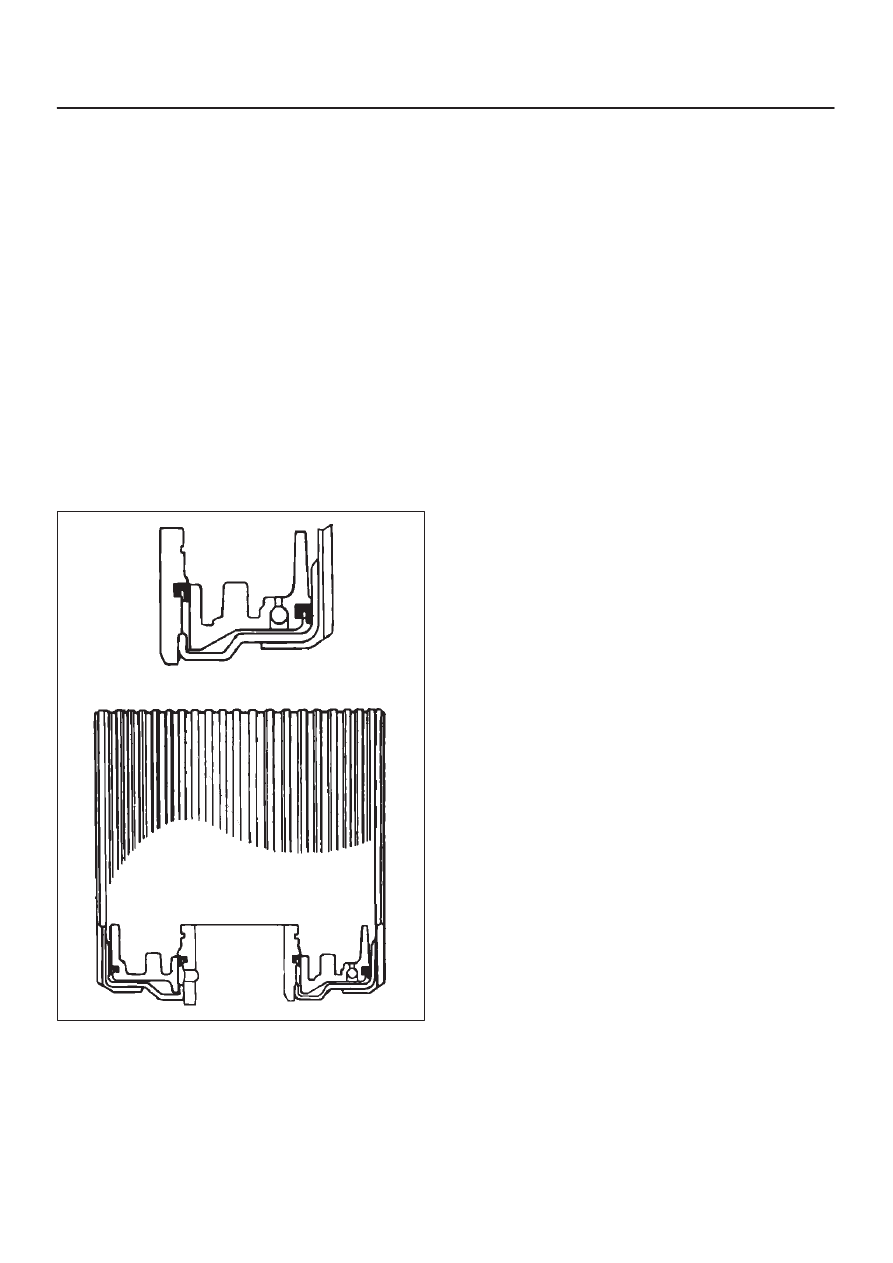

247RS007

2. Install twenty–two piston springs (9) and spring seat

(8) on the second clutch piston (10).  Place retaining
ring (7) onto spring seat.

D

Use the 5–8840–0195–0 (J–23327) compressor to
compress the piston springs.

NOTE: Do not let spring seat catch in ring groove.

D

Remove the compressor.

3. Install waved plate (6) and clutch plates (5).  Start with

a steel plate and alternate with lined plates.

D

Align second clutch inner tangs.

4. Install spacer (4), with the fluted end toward clutch

plates.

5. Install retaining ring (3), ring gear (2) and retaining

ring (1).

7A–70

AUTOMATIC TRANSMISSION (4L30–E)

3–4 Accumulator Piston

Disassembled View

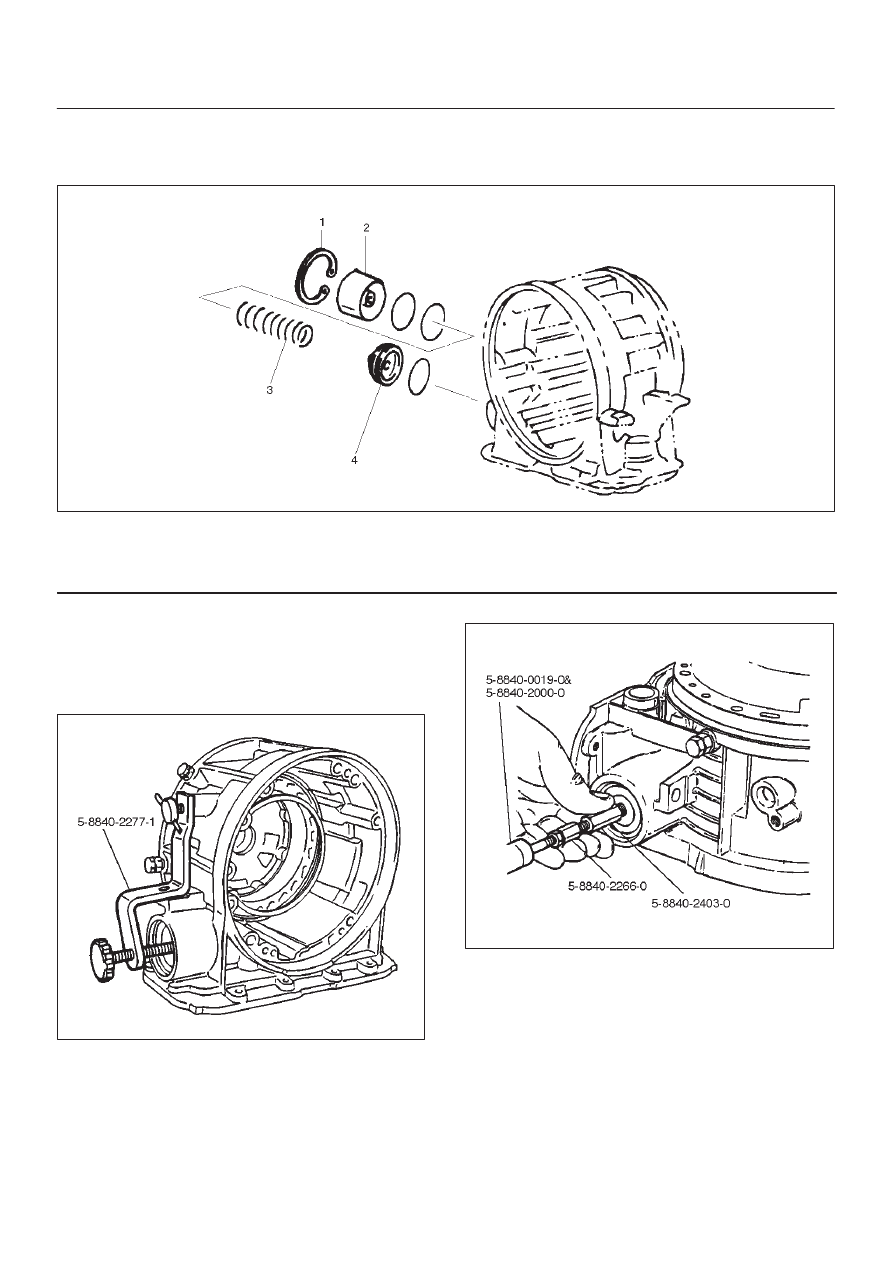

244RS005

Legend

(1) Snap Ring
(2) Cover

(3) Spring
(4) Piston Assembly

Disassembly

1. Install the 5–8840–2277–1 (J–38559–A) cover

compressor on adapter case.

D

Compress piston cover then remove snap ring.

242RW009

2. Install the 5–8840–2403–0 (J–41096) cover remover

and 5–8840–2266–0 (J–38584) adapter to center
hole of cover.

D

Use the 5–8840–0019–0 and 5–8840–2000–0
(J–23907) slide hammer to remove cover.

3. Remove spring and piston assembly.

242RW010

Inspection And Repair

Visual Check:

If any damage, deformation or wear is found, replace the
damaged part.

7A–71

AUTOMATIC TRANSMISSION (4L30–E)

Reassembly

1. Place the 5–8840–2264–0 (J–38553) piston fitter into

adaptor case and push the piston into position, using
suitable diameter tube.

D

Remove the piston fitter.

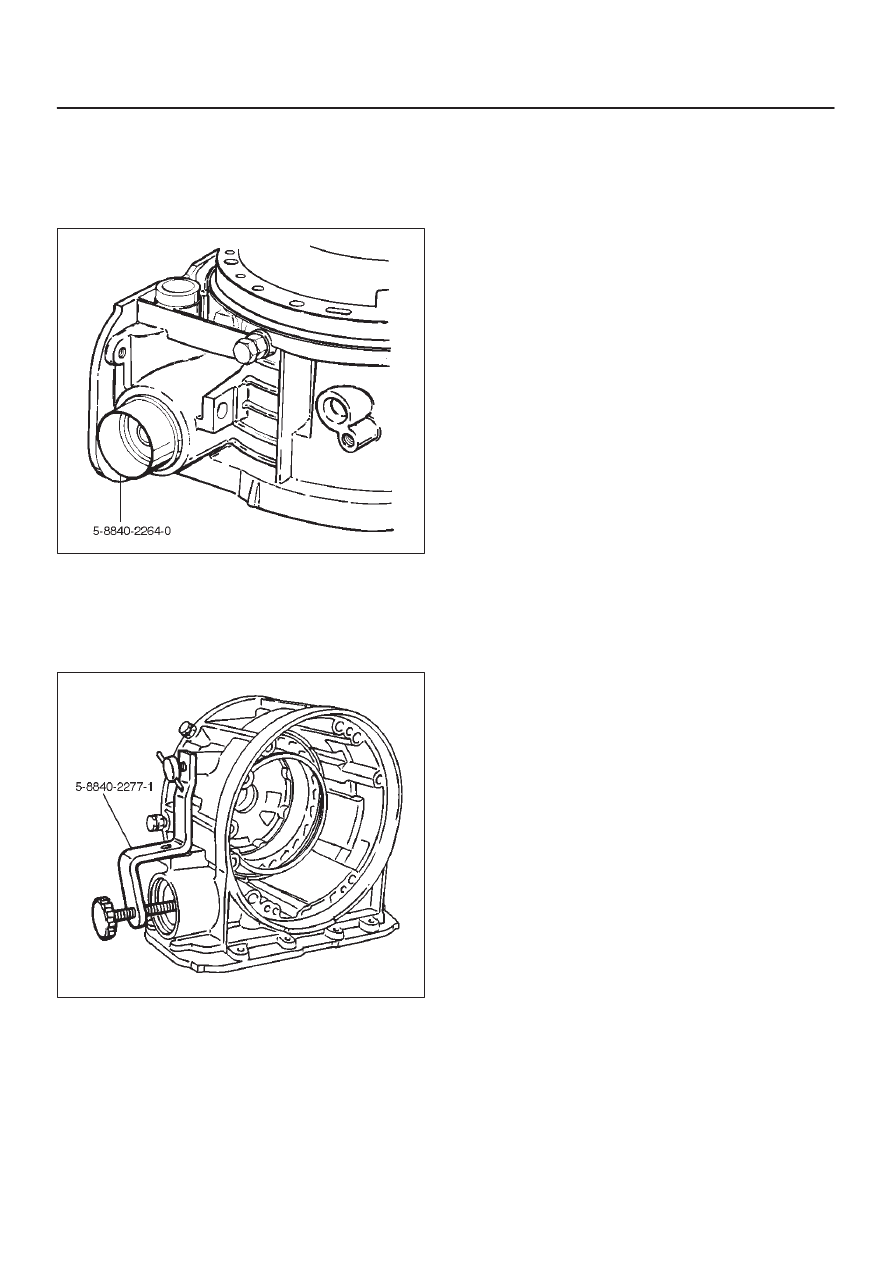

244RW005

2. Install spring and cover.
3. Install snap ring, using the 5–8840–2277–1

(J–38559–A) compressor tool.

D

Install snap ring in groove.

D

Remove the compressor tool.

244RW006

7A–72

AUTOMATIC TRANSMISSION (4L30–E)

Reverse Clutch Piston And Center Support

Disassembled View

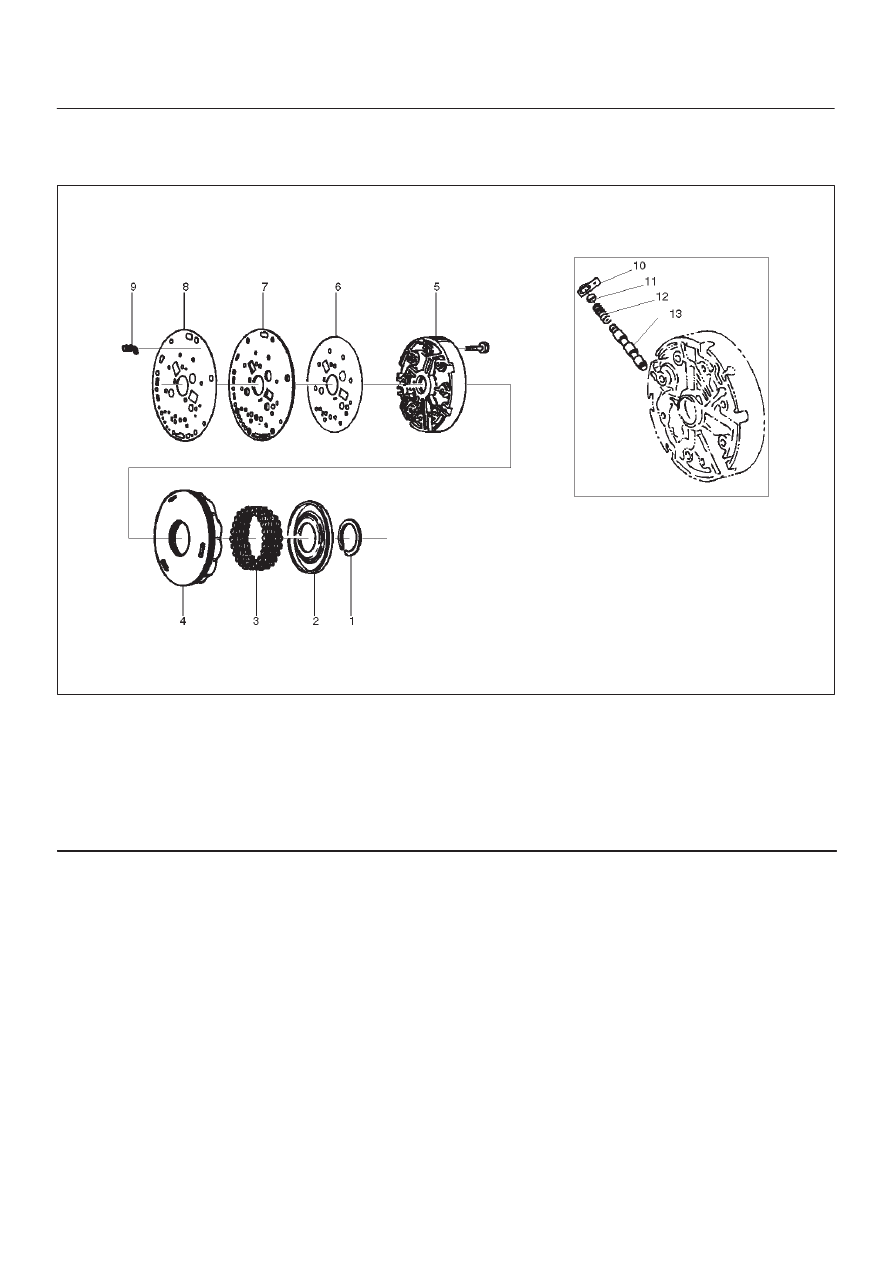

242RS006

Legend

(1) Retaining Ring
(2) Spring Seat
(3) Springs
(4) Piston Assembly
(5) Center Support
(6) Gasket

(7) Transfer Plate
(8) Gasket
(9) Restrictor

(10) Retainer Plate

(11) Plug

(12) Spring
(13) Overrun Lock Out Valve

Disassembly

1. Install the 5–8840–0195–0 (J–23327) compressor

tool on spring seat, then compress the spring seat.

D

Remove retaining ring (1).

NOTE: Do not over–stress the springs and seat, as this
will cause damage to the spring seat.

D

Remove the compressor tool.
