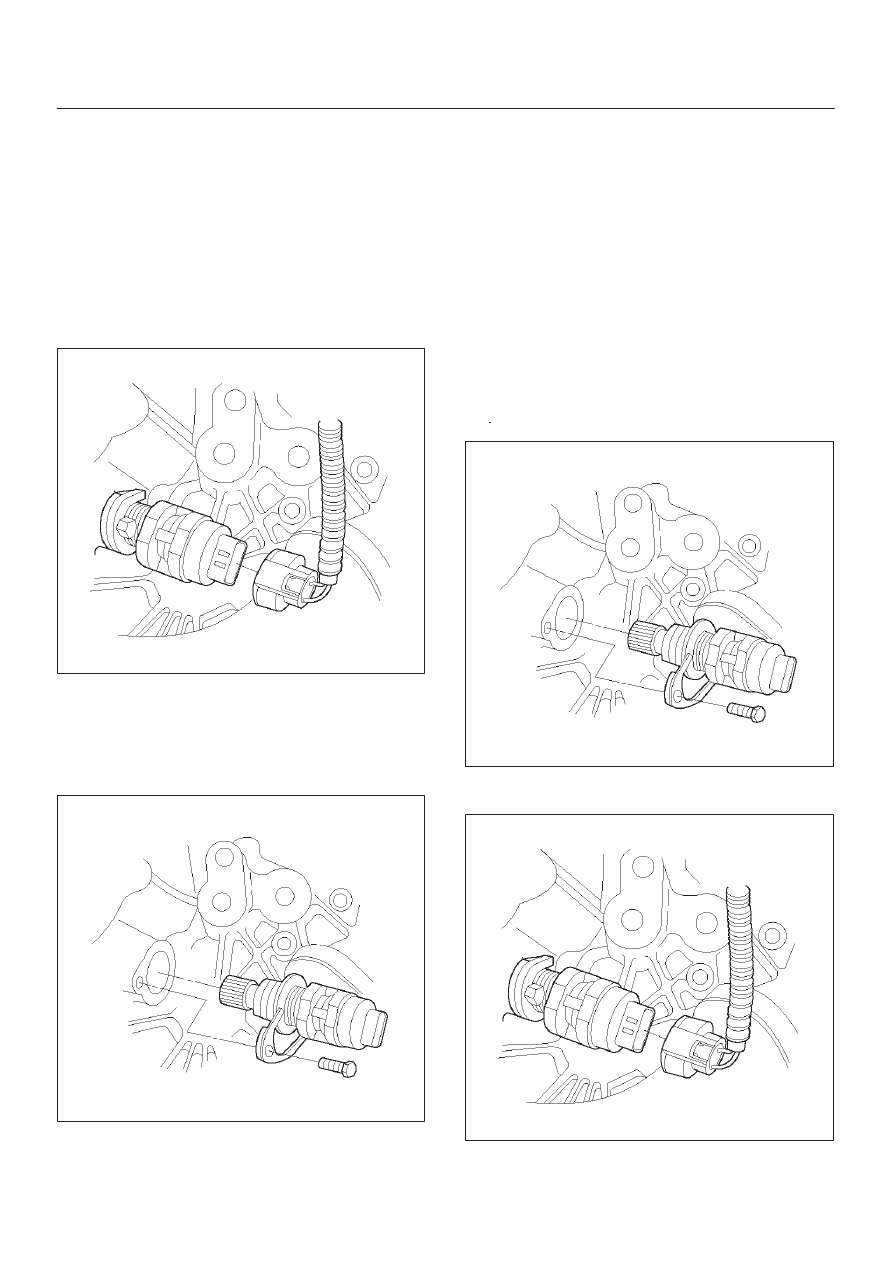

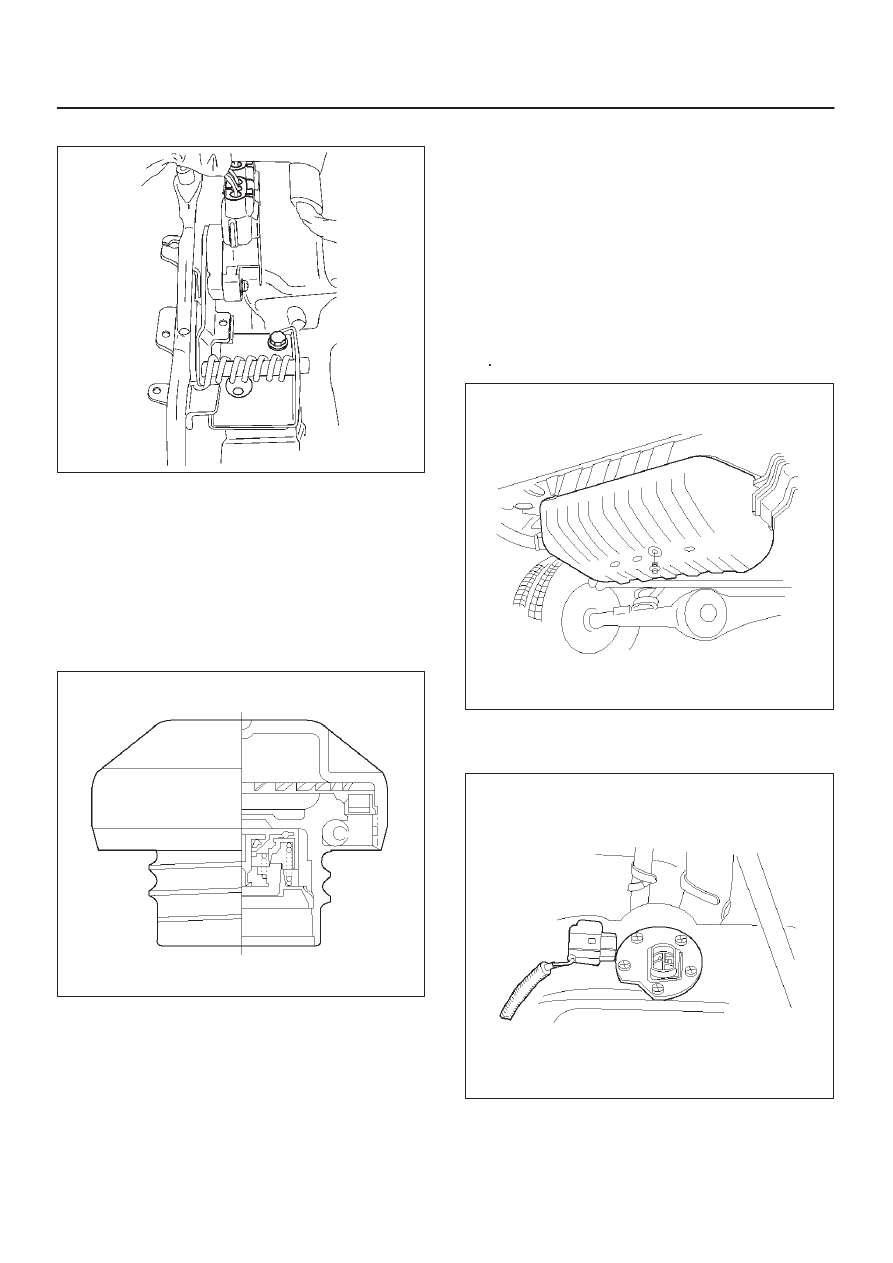

6E–210 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS Vehicle Speed Sensor (VSS) Removal Procedure CAUTION: The VSS is located on the right side of 1. Disconnect the negative battery cable. TS23748 3. Remove the bolt and the clamp securing the VSS in place. IMPORTANT: Have a container ready to catch any fluid that leaks out when the VSS is removed from the transfer TS23780 4. Remove the VSS from the transfer case by wiggling it slightly and pulling it straight out. Inspection Procedure 1. Inspect the electrical connector for signs of corrosion or warping. Replace the VSS if the electrical 2. Inspect the VSS driven gear for chips, breaks, or worn condition. Replace the VSS if the driven gear is 3. Inspect the O-ring for wear, nicks, tears, or looseness. Replace the O-ring if necessary. Installation Procedure 1. Install the VSS in the transfer case with the notch for the connector facing the rear. 2. Secure the VSS in place with the clamp and the bolt. Tighten D Tighten the bolt to 16 N·m (12 lb ft.). TS23780 3. Connect the VSS electrical connector. TS23748 4. Check the transfer case oil level. Add fluid if necessary. |
