Crankshaft Position (CKP)

Sensor

Removal Procedure

1. Disconnect the negative battery cable.

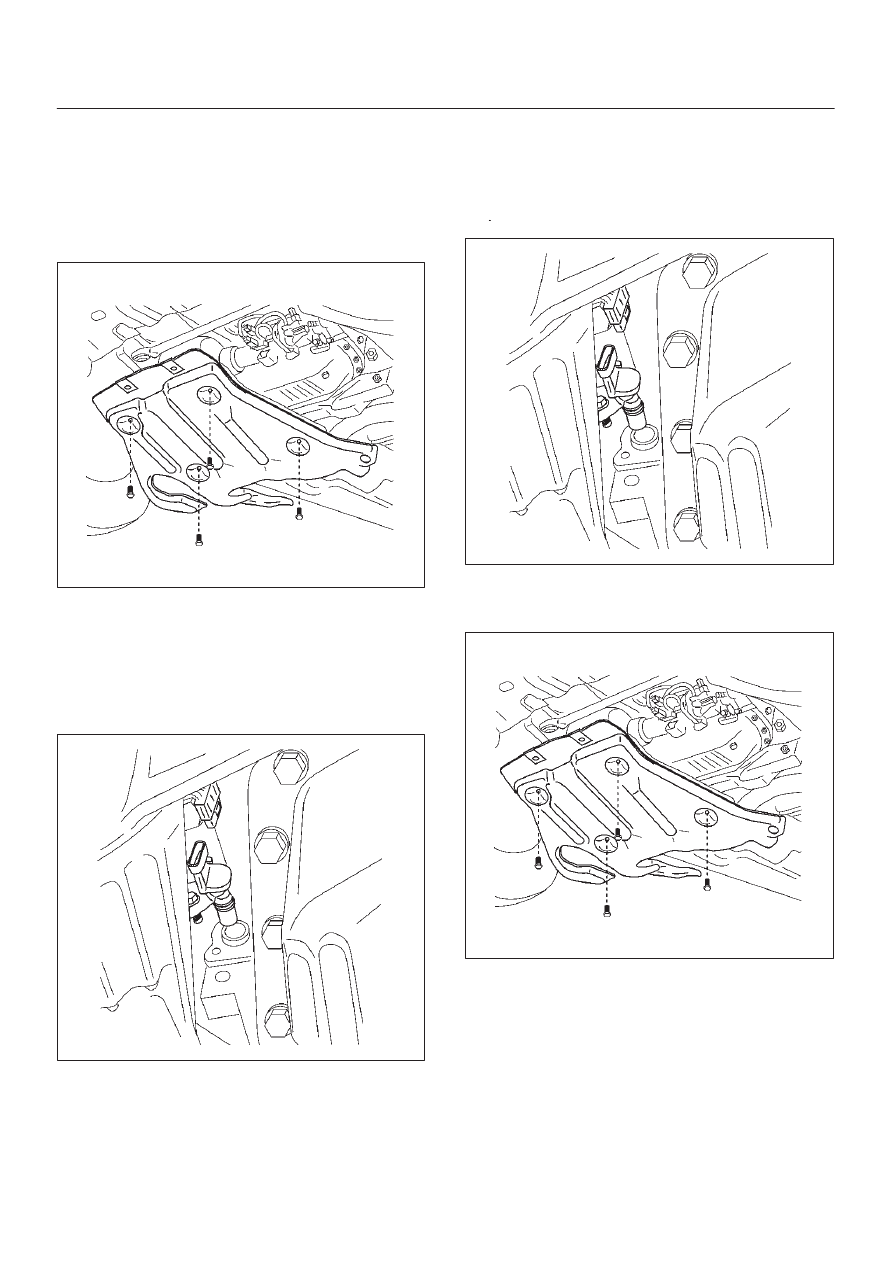

2. Remove the under cover.

035RW091

3. Disconnect the electrical connector to the CKP

sensor.

4. Remove one bolt and the CKP sensor from the left

side of the engine block.

NOTE: Use caution to avoid any hot oil that might drip
out.

035RW090

Inspection Procedure

1. Inspect the sensor O-ring for cracks or leaks.
2. Replace the O-ring if it is worn or damaged.
3. Lubricate the new O-ring with engine oil.
4. Install the lubricated O-ring.

Installation Procedure

1. Install the CKP sensor in the engine block.
2. Install the CKP sensor mounting bolt.

Tighten

D

Tighten the mounting bolt to 9 N·m (78 lb in.).

035RW090

3. Connect the electrical connector to the CKP sensor.
4. Install the under cover.

035RW091

5. Connect the negative battery cable.

6E–203

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

Engine Coolant Temperature

(ECT) Sensor

Removal Procedure

NOTE: Care must be taken when handling the engine
coolant temperature (ECT) sensor.  Damage to the ECT
sensor will affect proper operation of the fuel injection
system.

1. Disconnect the negative battery cable.
2. Drain the radiator coolant.  Refer to

Draining and

Refilling Cooling System in Engine Cooling.

3. Disconnect the electrical connector.

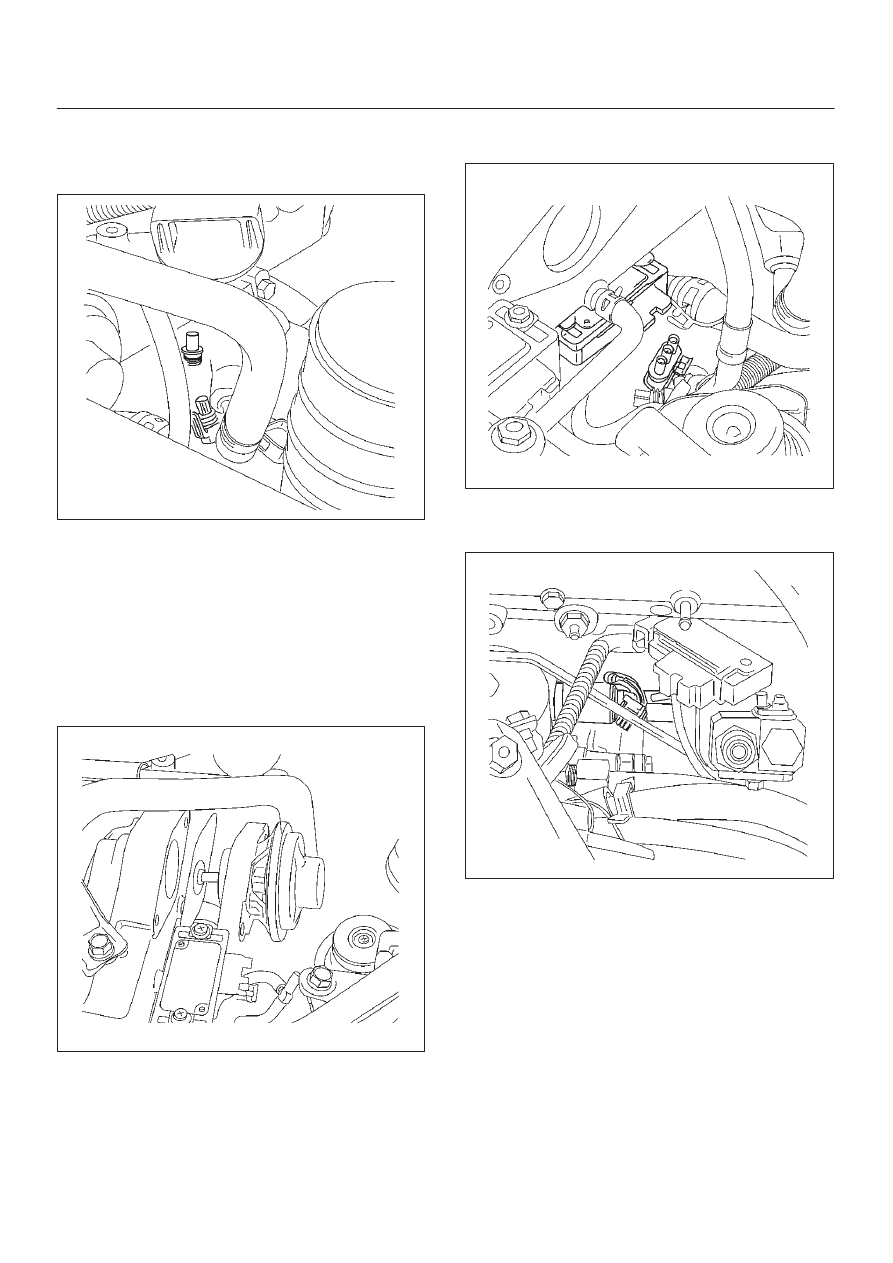

4. Remove the ECT sensor from the front side of the

intake manifold.

035RW058

Installation Procedure

1. Apply sealer (LOCTITE 262) or the equivalent to the

threads of the ECT sensor.

2. Install the ECT sensor in the front side of the intake

manifold.

Tighten

D

Tighten the ECT sensor to 19 N·m (14 lb ft.).

3. Connect the electrical connector.

035RW058

4. Fill the radiator with coolant.  Refer to

Draining and

Refilling Cooling System in Engine Cooling.

5. Connect the negative battery cable.

Intake Air Temperature (IAT)

Sensor

Removal Procedure

1. Disconnect the negative battery cable.
2. Disconnect the electrical connector from the IAT

sensor.

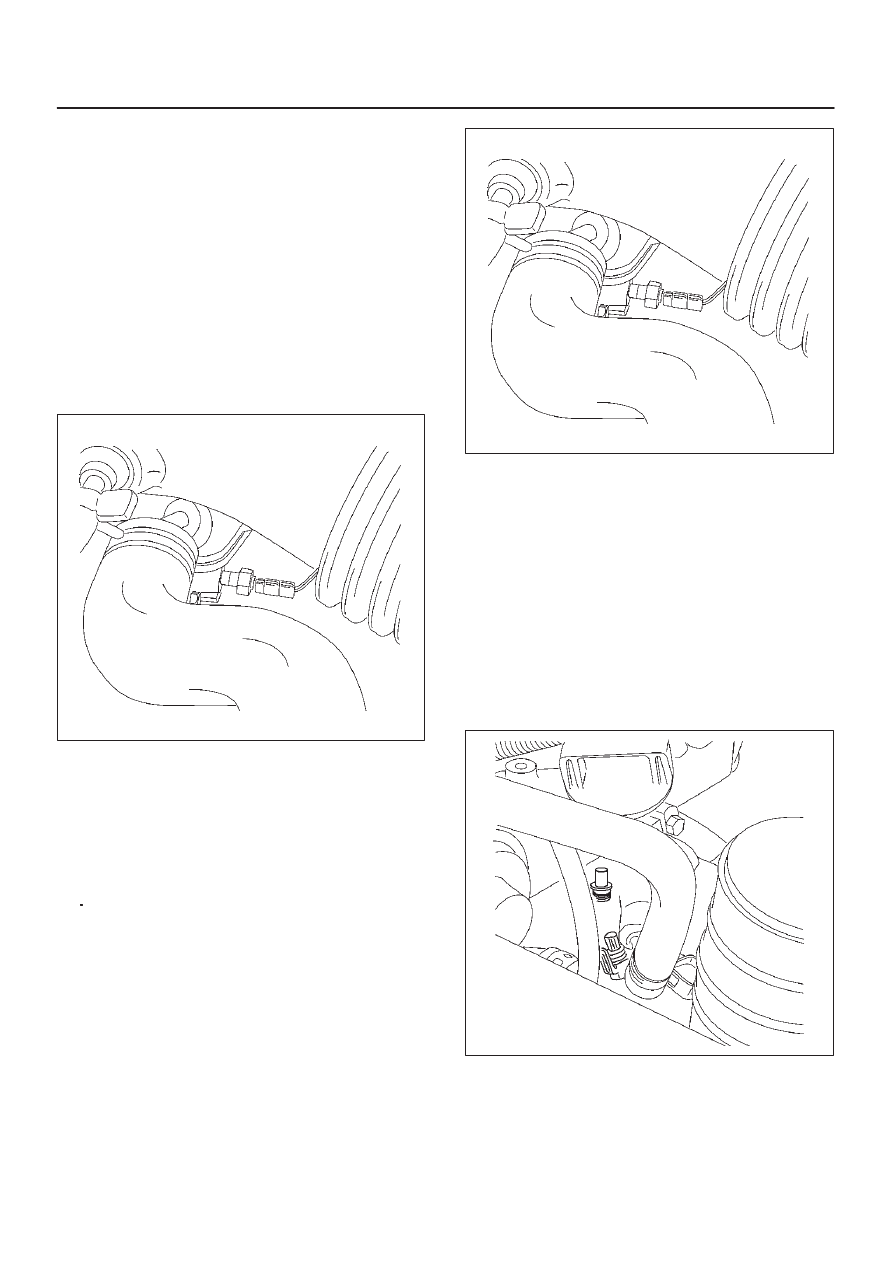

3. Remove the IAT sensor from the intake air duct by

using a rocking motion while pulling the sensor.

035RW056

6E–204

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

Installation Procedure

1. Install the IAT sensor into the grommet in the intake

air duct.

035RW056

2. Correct the IAT electrical connector.
3. Connect the negative battery cable.

Manifold Absolute Pressure

(MAP) Sensor

Removal Procedure

1. Disconnect the negative battery cable.
2. Disconnect the EGR valve.

035RW054

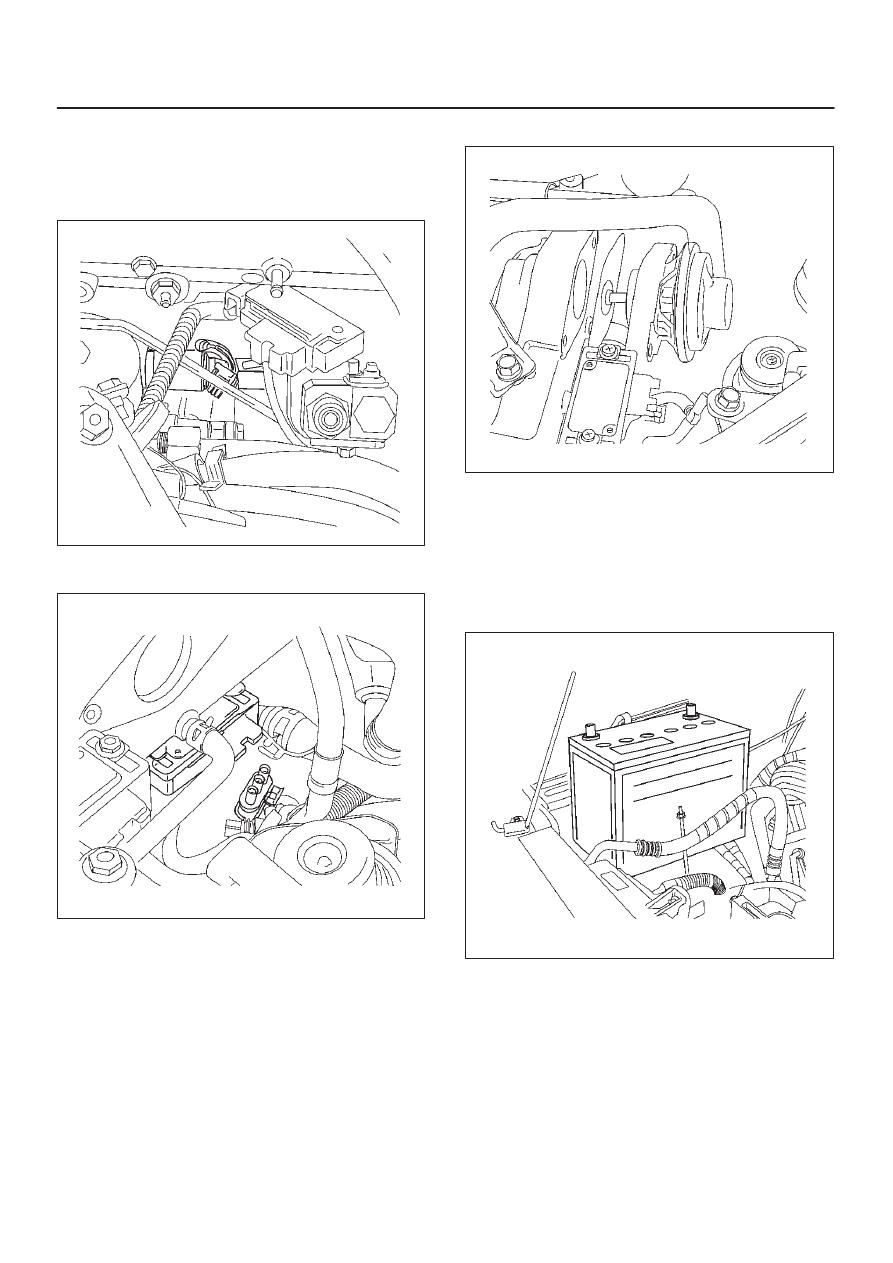

3. Disconnect the MAP sensor connector from the MAP

sensor.

035RW053

4. Remove the bolts and the MAP sensor from the

intake manifold.

035RW057

6E–205

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

Installation Procedure

1. Install the MAP sensor and bolts on the intake

manifold.

Torque: 4 N·m (35 lb in)

035RW057

2. Connect the MAP sensor connector.

035RW053

3. Connect the EGR valve.

035RW054

4. Connect the negative battery cable.

Oil Temperature (OT) Sensor

Removal Procedure

1. Disconnect the negative battery cable.
2. Remove the battery.

035RW095
