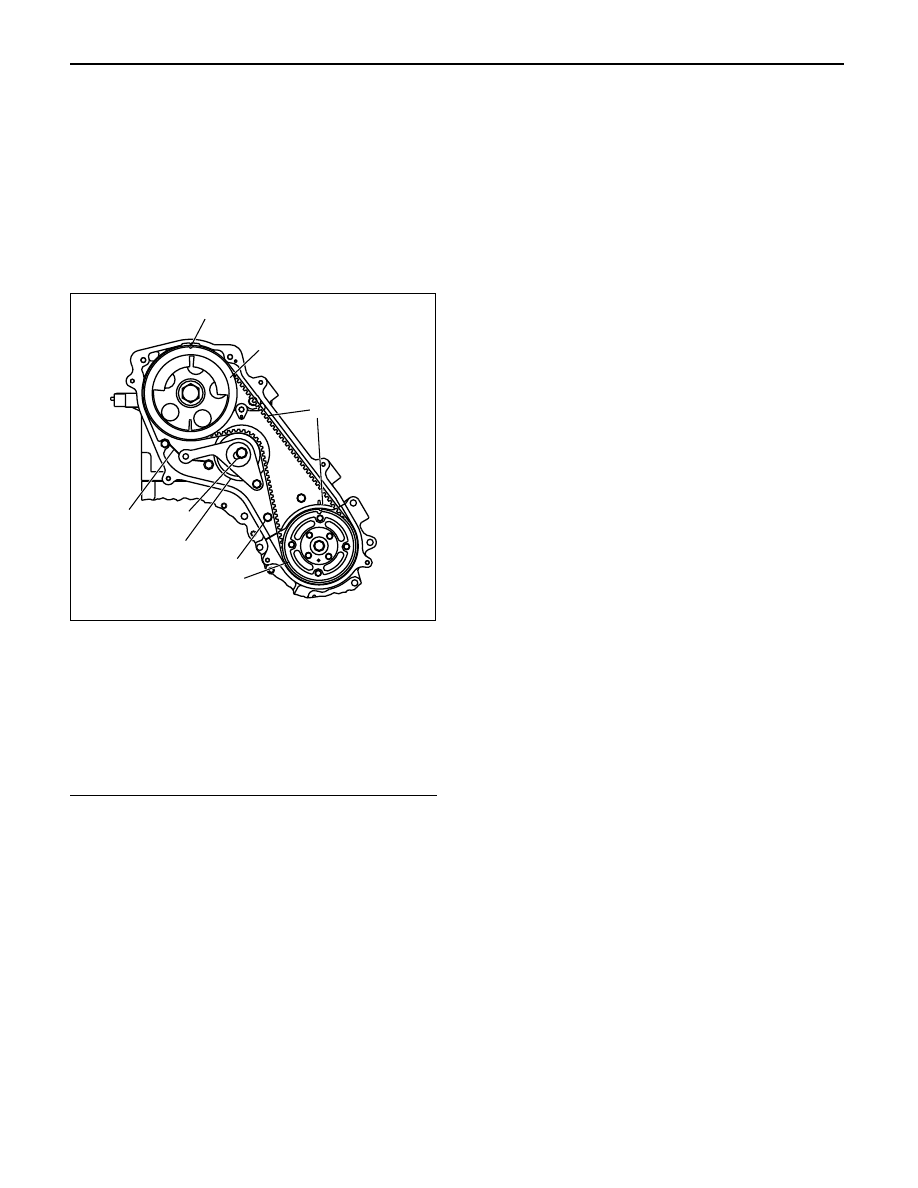

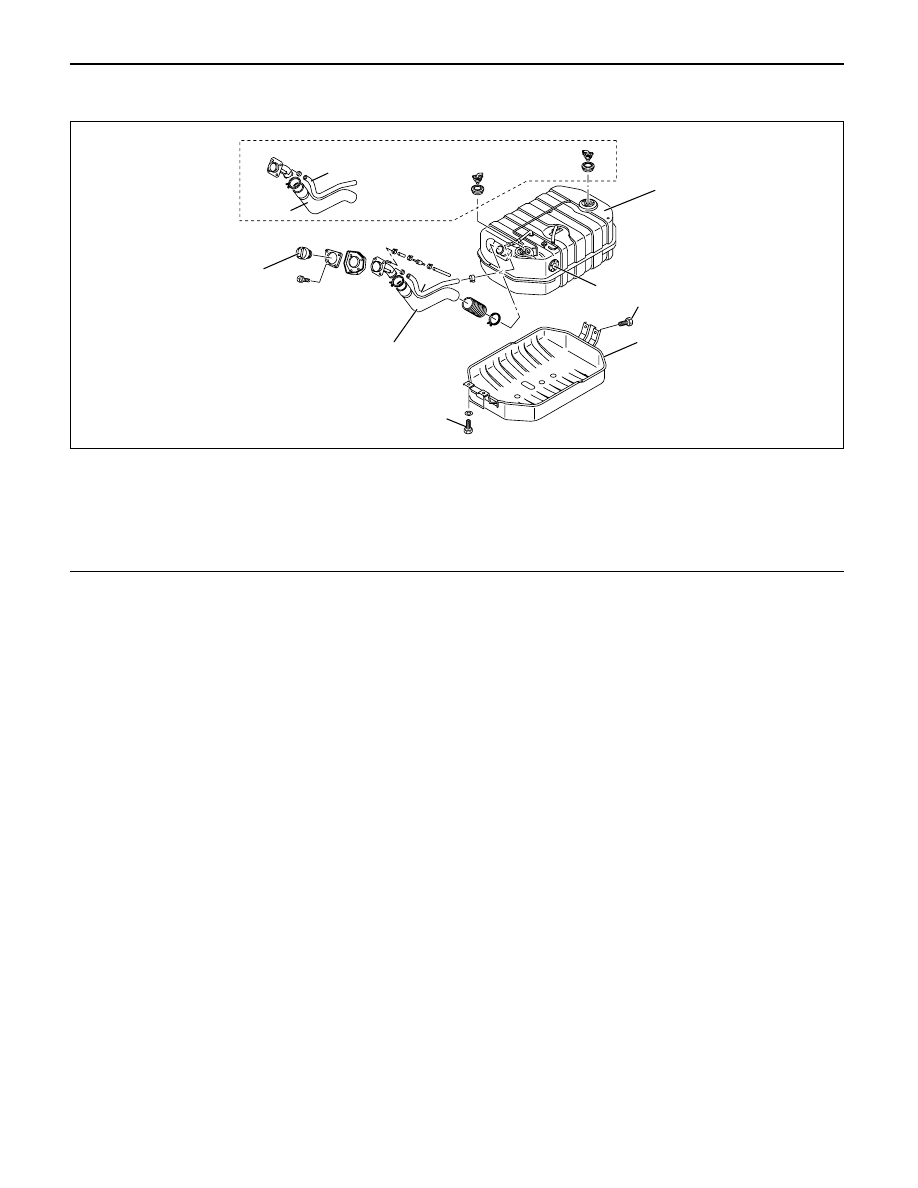

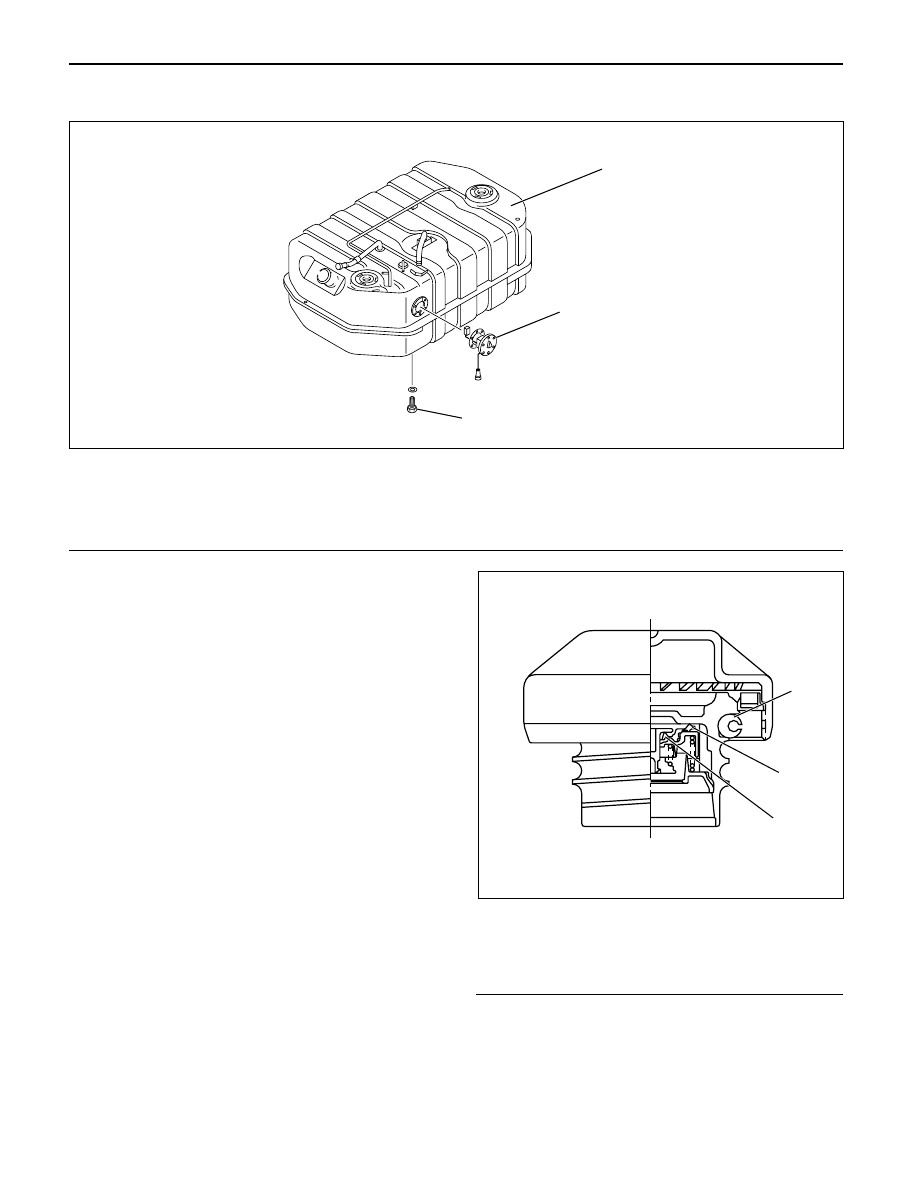

6C – 18 ENGINE FUEL 4. Remove lock bolt of idle gear A. Refer to “Timing gear” in this manual. 6. Install front plate. Torque: 20 N·m (2.0 kg·m/14.5 lb ft) 7. Install timing pulley of high pressure oil pump. Torque: 10 N·m (1.0 kg·m/7.2 lb ft) 8. Install timing belt and tighten timing belt tensioner assembly. Legend (1) Align Mark 9. Install CMP sensor bracket. Torque: 20 N·m (2.0 kg·m/14.5 lb ft) Torque: 9 N·m (0.9 kg·m/6.5 lb ft) pressure oil pipe installation port of the oil rail using 13. Immediately install high pressure oil pipe and tighten to specified torque. NOTE: 1) Use new O-ring. Torque: 80 N·m (8.1 kg·m/57.9 lb ft) 14. Install the crankshaft damper pulley with specified torque. Torque: 220 N·m (22 kg·m/159 lb ft) Refer to “Intercooler” in this manual. 16. Install air cleaner cover and air duct. 1 2 3 8 6 7 4 5 F06RW055 |
