Opel Frontera UBS. Manual - part 2888





8H–4

SECURITY AND LOCKS

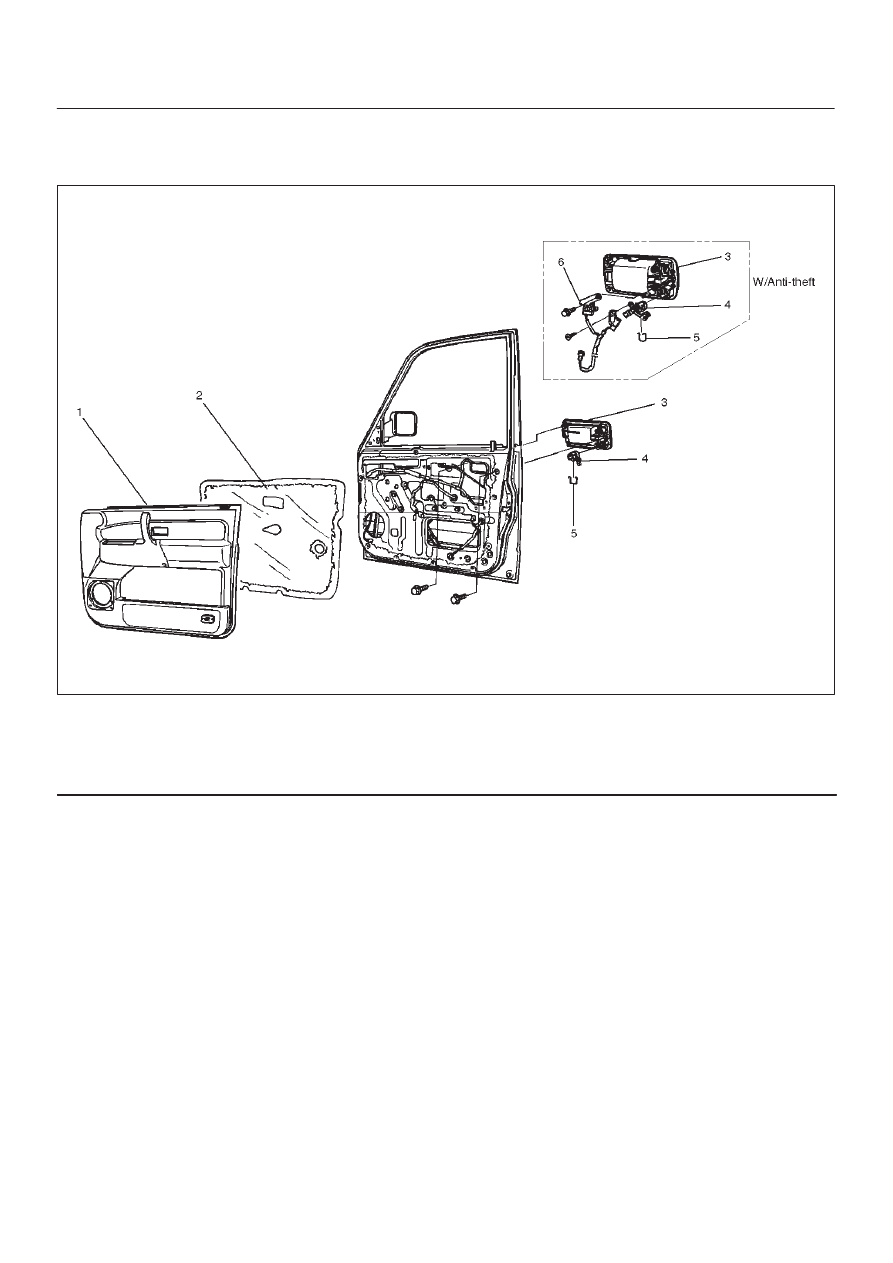

Front Outside Handle and Door Lock Cylinder

Front Outside Handle, Door Lock Cylinder and Associated Parts

632RS006

Legend

(1) Door Trim Panel
(2) Waterproof Sheet
(3) Outside Handle

(4) Door Lock Cylinder
(5) Clip
(6) Key Switch (W/Anti-Theft)

Removal

1. Disconnect the battery ground cable.
2. Remove the door trim panel.
3. Remove the waterproof sheet.

D

Refer to the Front Window Regulator, Glass And
Glass Run in Body Structure section.

SECURITY AND LOCKS

8H–5

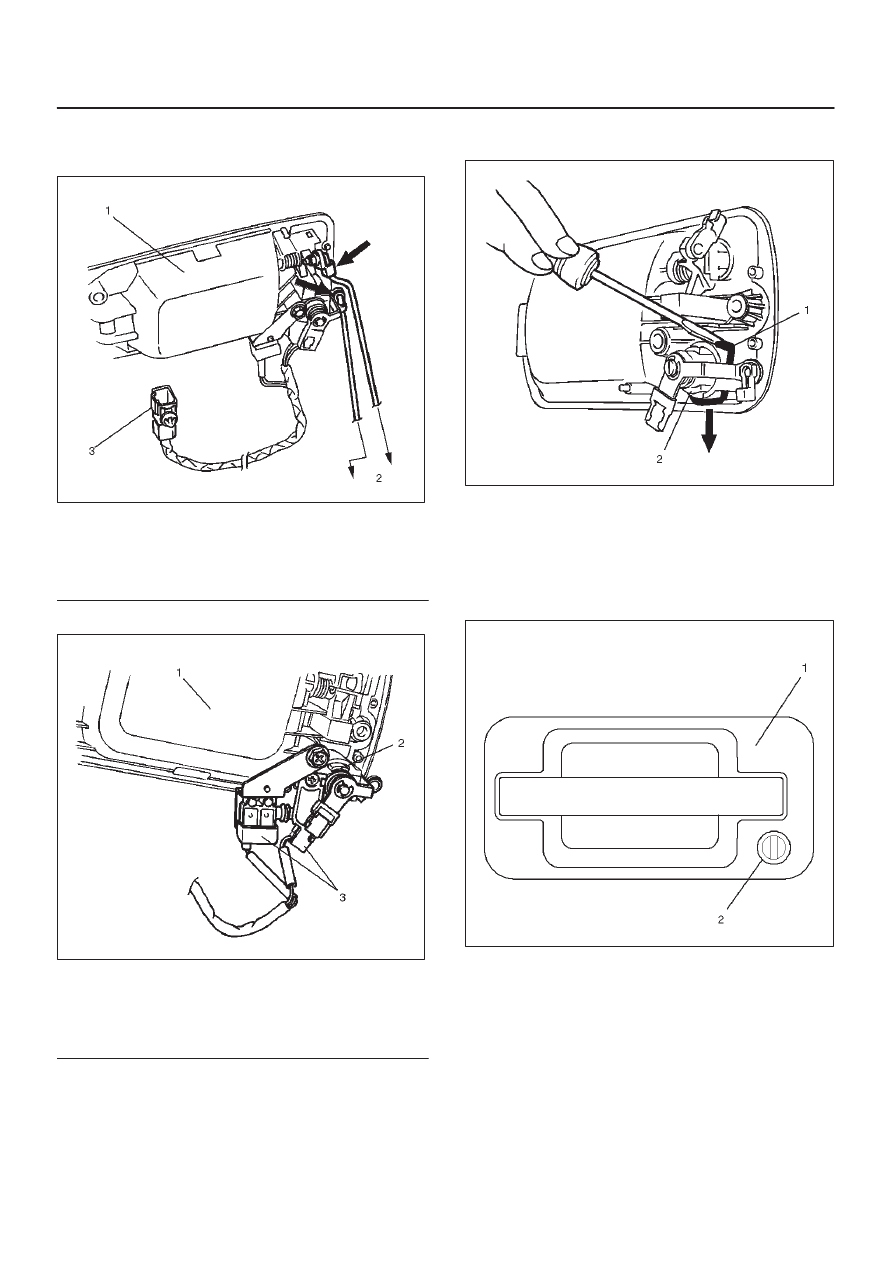

4. Disconnect the locking links (arrow marks positions)

and key switch connector (w/anti-theft) to remove the
outside handle.

632RS005

Legend

(1) Outside Handle
(2) To Door Lock Assembly
(3) Key Switch Connector (W/Anti–Theft)

5. Remove the key Switch.

632RS007

Legend

(1) Outside Handle
(2) Lock Cylinder
(3) Key Switch

6. Remove the fixing clip(1) to remove the door lock

cylinder(2).

632RS009

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Be sure to install the door lock cylinder(2) at a right

angle to the outside handle(1).

632RS008

8H–6

SECURITY AND LOCKS

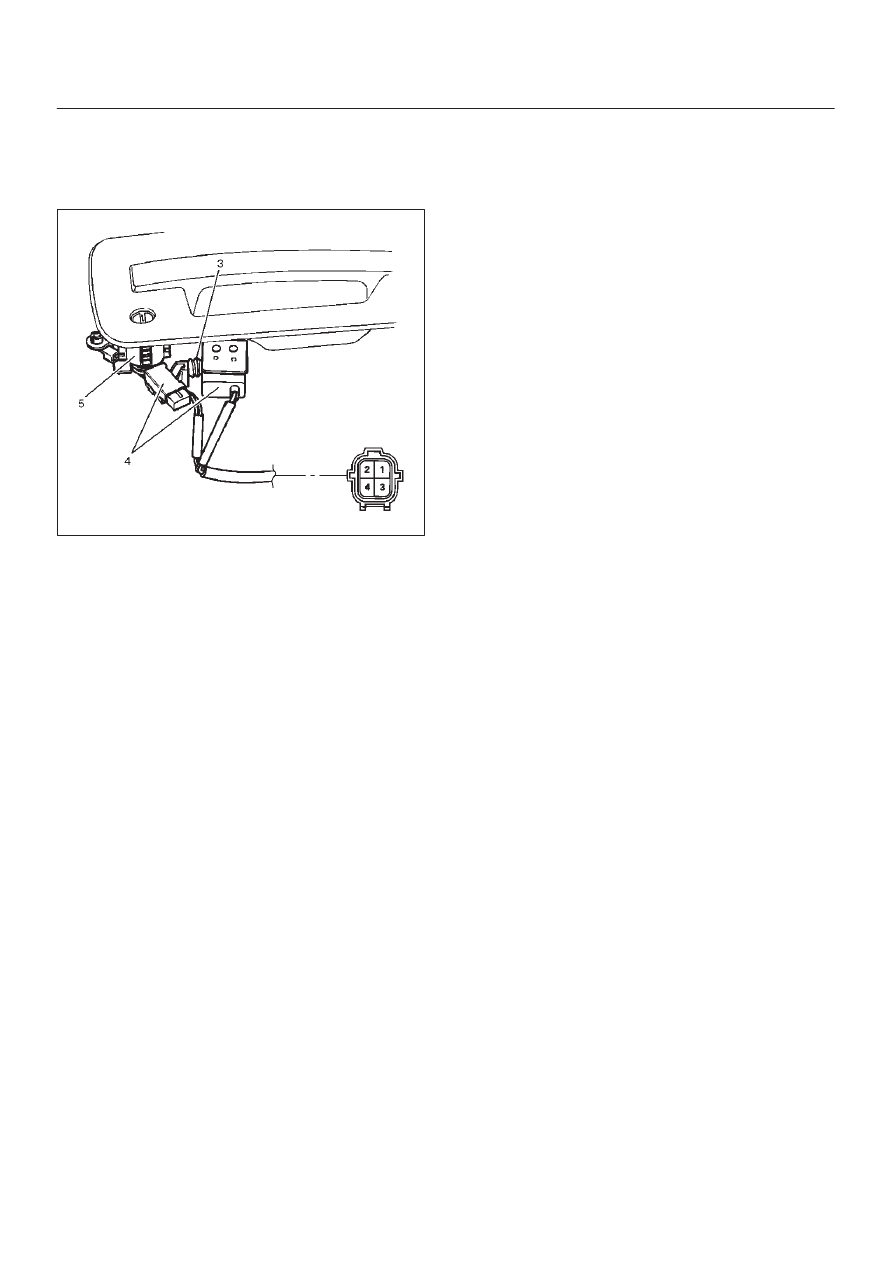

2. For the anti-theft system, be sure to install the push

rod(3) of key switch while pressing it to the door lock
cylinder(5) so that there is no continuity between the
key switch(4) side connector terminal No. D6–2 and
D6–4 (No. D16–2 and D16–4: passenger side).

632RS010

3. Tighten the outside handle and key switch fixing bolts

to the specified torque.

Torque: 9 N·m (0.9kg·m/78 lb in)

4. Check for smooth outside handle and lock cylinder

operation.

SECURITY AND LOCKS

8H–7

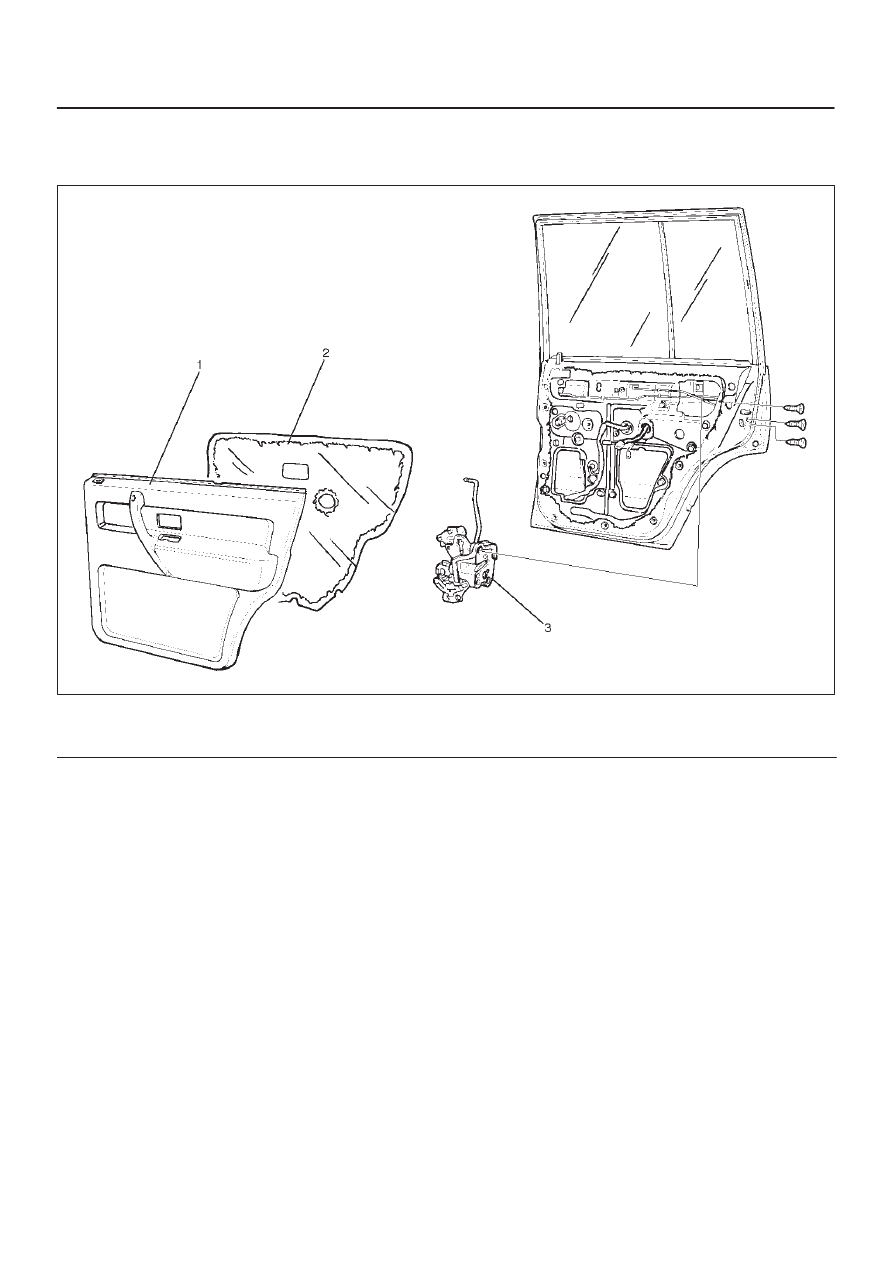

Rear Door Lock Assembly

Rear Door Lock Assembly and Associated Parts

652RW004

Legend

(1) Door Trim Panel

(2) Waterproof Sheet
(3) Door Lock Assembly

Removal

1. Disconnect the battery ground cable.
2. Remove the door trim panel.
3. Remove the waterproof sheet.

D

Refer to the Rear Window Regulator And Glass in
Body Structure section.
