8F–90

BODY STRUCTURE

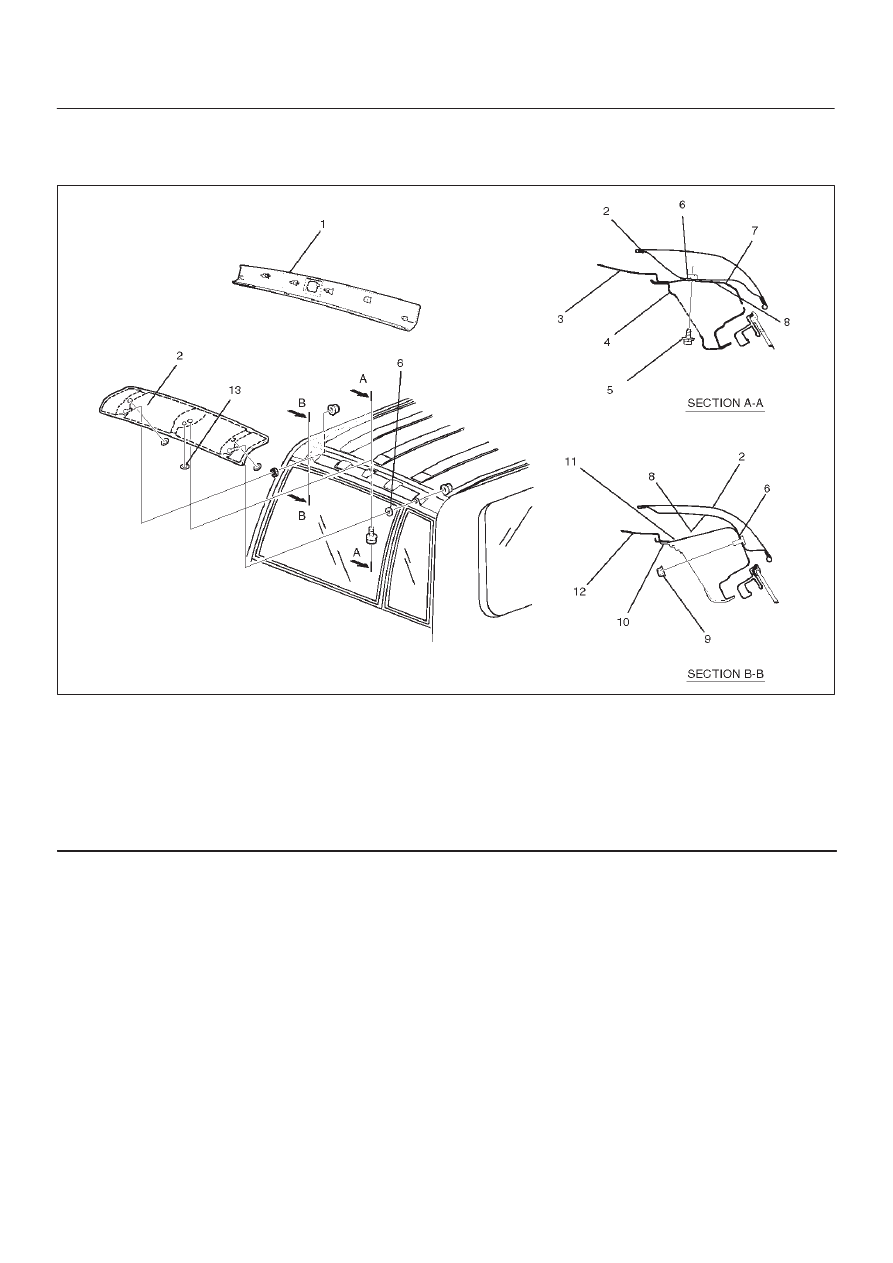

Rear Air Deflector

Parts Location

667RW001

Legend

(1) Rear Roof Trim Cover
(2) Rear Air Deflector
(3) Roof Rail
(4) Rear Inner Roof Rail
(5) Fixing Bolt
(6) Nylon Washer

(7) Rear Outer Roof Panel
(8) Grommet
(9) Fixing Nut

(10) Rear Pillar Upper Reinforcement

(11) Rear Outer Roof Rail

(12) Roof Panel
(13) Grommet

Removal

1. Disconnect the battery ground cable
2. Remove rear roof trim cover.

D

Refer to Luggage Side and Quarter Upper Trim
Cover in Exterior / Interior section.

3. Remove rear air deflector.

D

Take notice of the grommet and the nylon washer.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

8F–91

BODY STRUCTURE

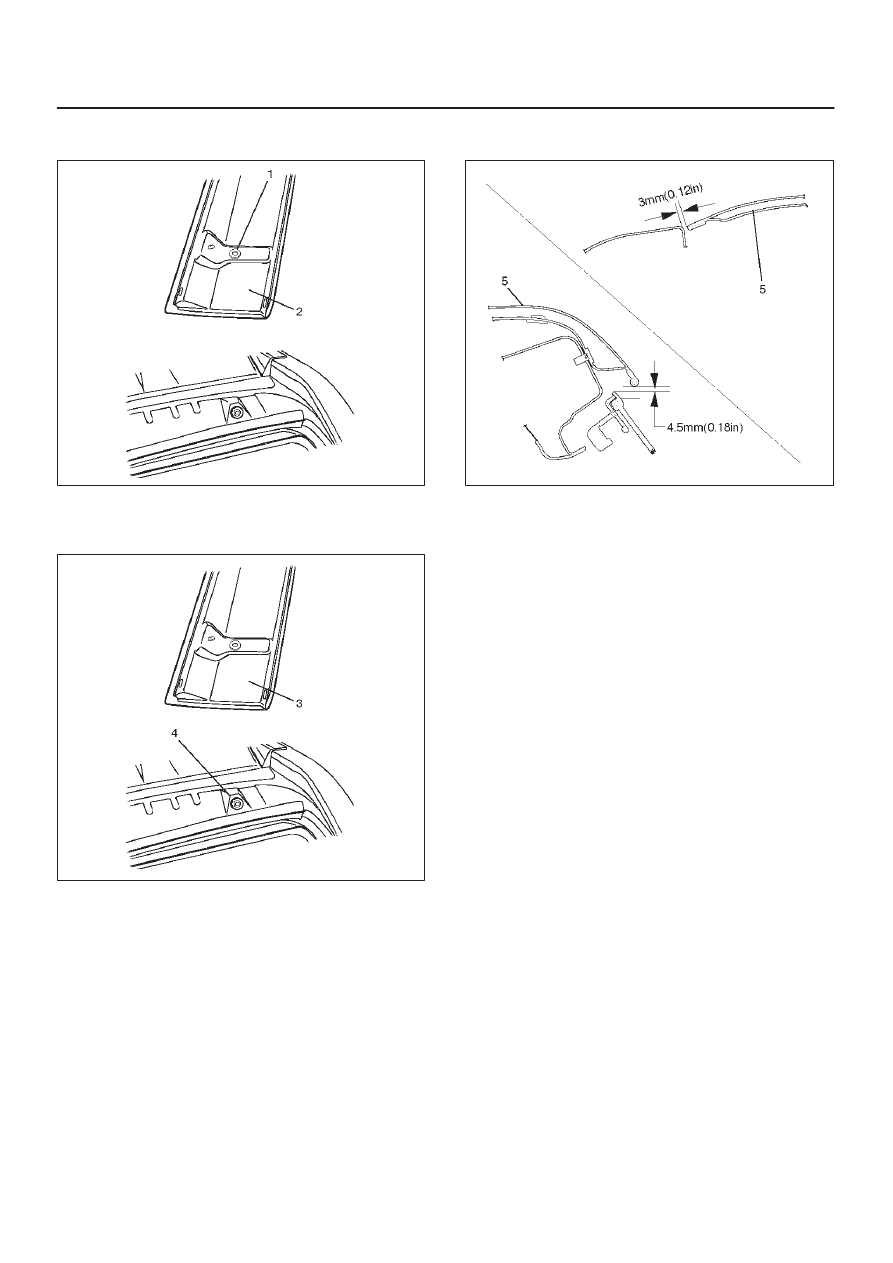

1. Install the grommet (1) to the air deflector (2) drain

hole.

667RW002

2. Use a new nylon washer (4). Peel off the adhesive

tape of the washer to install the nylon washer to the air
deflector (3).

667RW004

3. Install the air deflector (5) to the roof by referring to the

specified values shown in the illustration.

667RW003

4. Tighten the deflector fixing to the specified torque.

Bolt Torque : 6 N

•

m (0.6kg·m/52  lb in)

Nut Torque : 8 N

•

m (0.8kg·m/69  lb in)

8F–92

BODY STRUCTURE

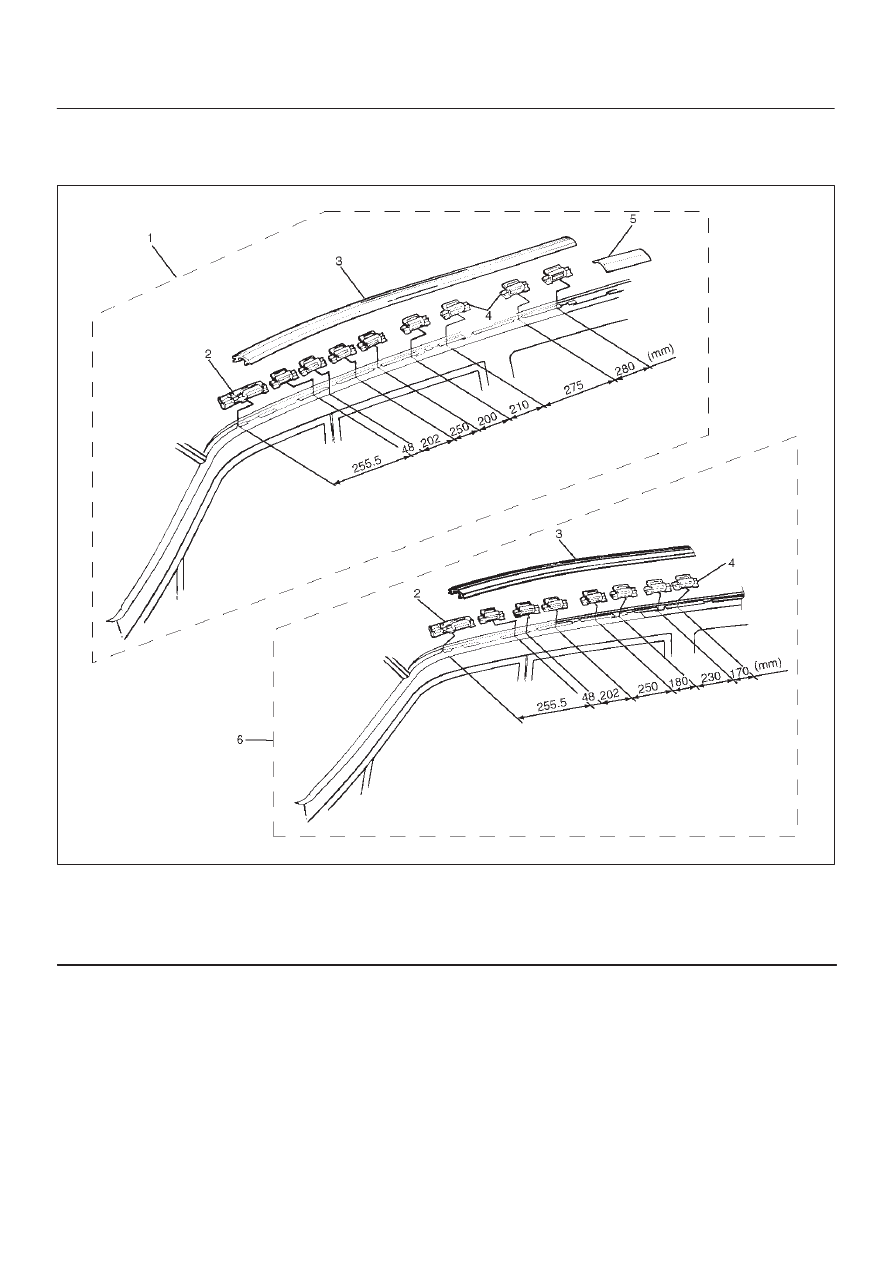

Roof Moulding

Parts Location

645RW009

Legend

(1) L·W·B
(2) Windshield Side Moulding Upper Clip
(3) Roof Moulding

(4) Roof Moulding Clip
(5) Roof End Moulding
(6) S·W·B

Removal

1. Disconnect the battery ground cable.
2. Remove roof moulding.

3. Remove roof end moulding.

D

Remove the sealing adhesive and the adhesive
tape of the roof end moulding from the panel using a
knife or scraper while you peel them off.

4. Remove roof moulding clips.

8F–93

BODY STRUCTURE

Installation

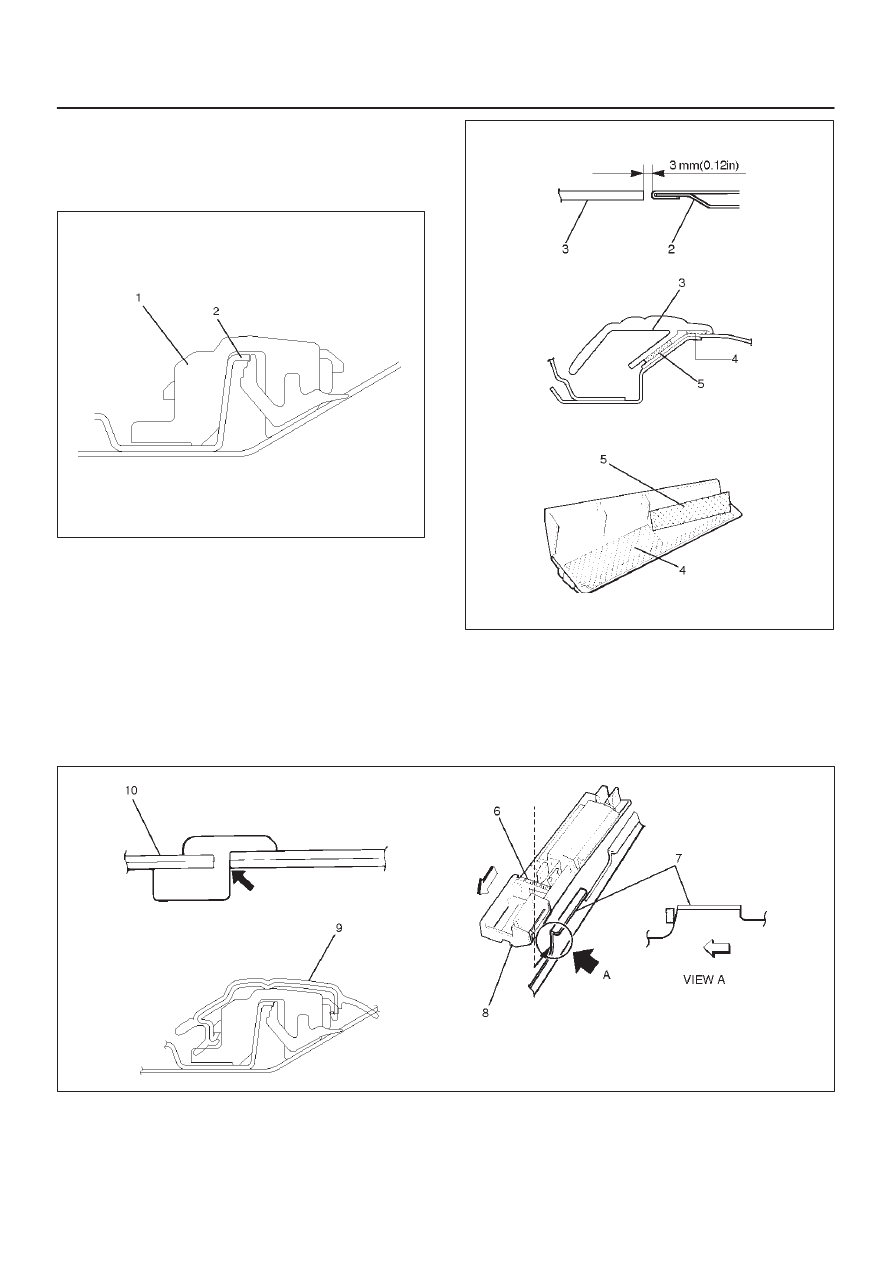

1. Install the moulding roof clips (1).

D

Install the clips on roof panel flange (2) to refer the
illustration.

645RW003

2. Install the roof end moulding (3).

D

Clean the body panel where the roof end moulding
is installed.

D

Install the roof end moulding and the rear air
deflector (2) so that the installation clearance
between them is within the specified values.
Securely fix it with the adhesive tape (4) and sealing
adhesive (5).

645RW001

3. Install the roof moulding (9).

D

Assemble the windshield side moulding upper clip
(8) to the roof panel with the clip positioning rib (6)
(oblique lines portion) attached to the roof panel
flange (7). Assemble the roof moulding (9) while
you attach the front edge portion of the roof molding
to the windshield side moulding (10).

645RX001
