8F–70

BODY STRUCTURE

D

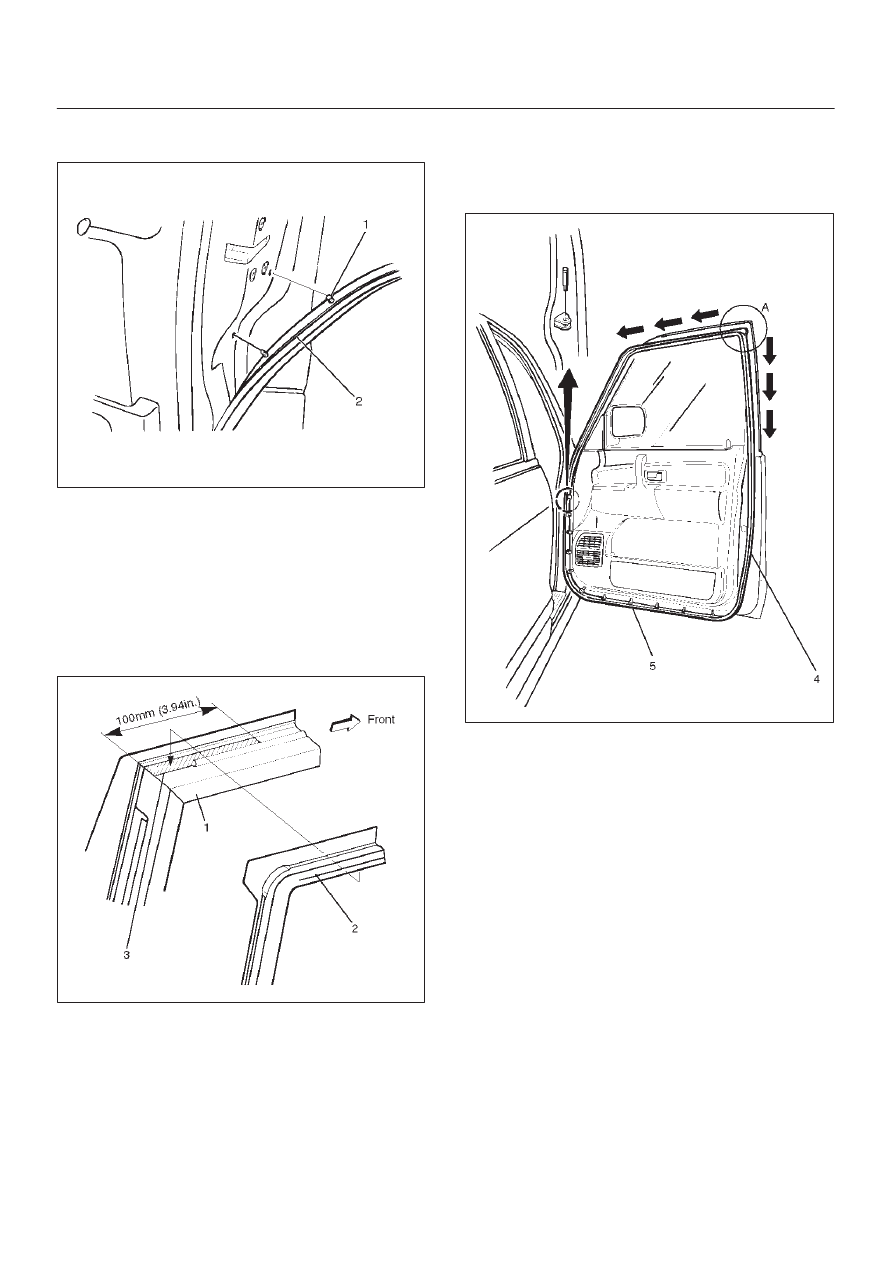

Carefully remove the weatherstrip (2) from the door
panel.

631RW003

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Apply soapy water to the door frame groove when

installing the front door weather strip (2).

2. Apply the sealing adhesive (3) to the upper A portion

of the door frame (1) and press it for installation after
assembling the weatherstrip (2).

631RS013

3. After positioning the weatherstrip (4) corner, insert

the weatherstrip into the door frame groove from A
point in the arrow–marked direction.

4. Insert the weatherstrip clip (5) into the door panel up

to its base.

631RW009

8F–71

BODY STRUCTURE

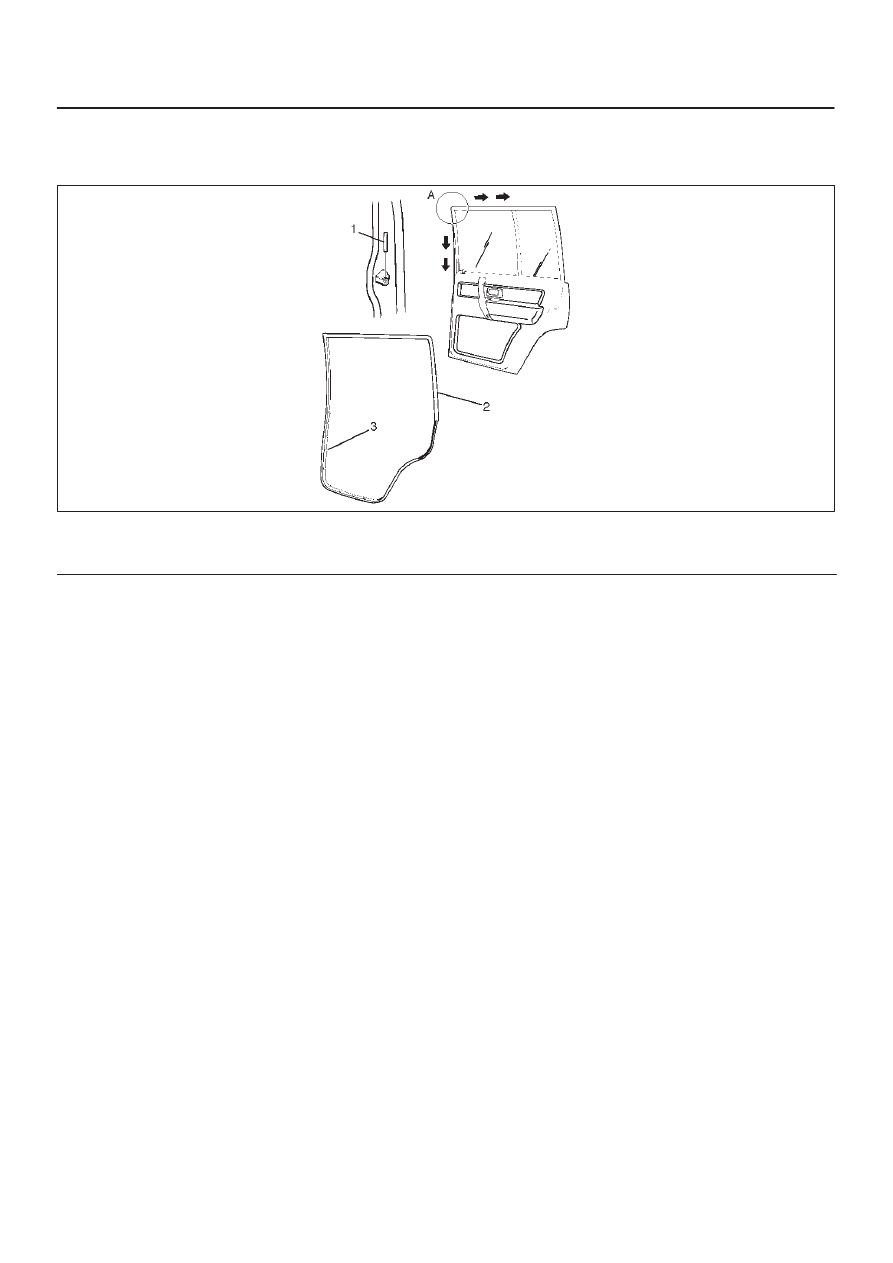

Rear Door Weatherstrip

Parts Location

655RW010

Legend

(1) Check Arm Pin

(2) Rear Door Weather Strip
(3) Clip

Removal and Installation

Refer to Front Door Weatherstrip in this section.

8F–72

BODY STRUCTURE

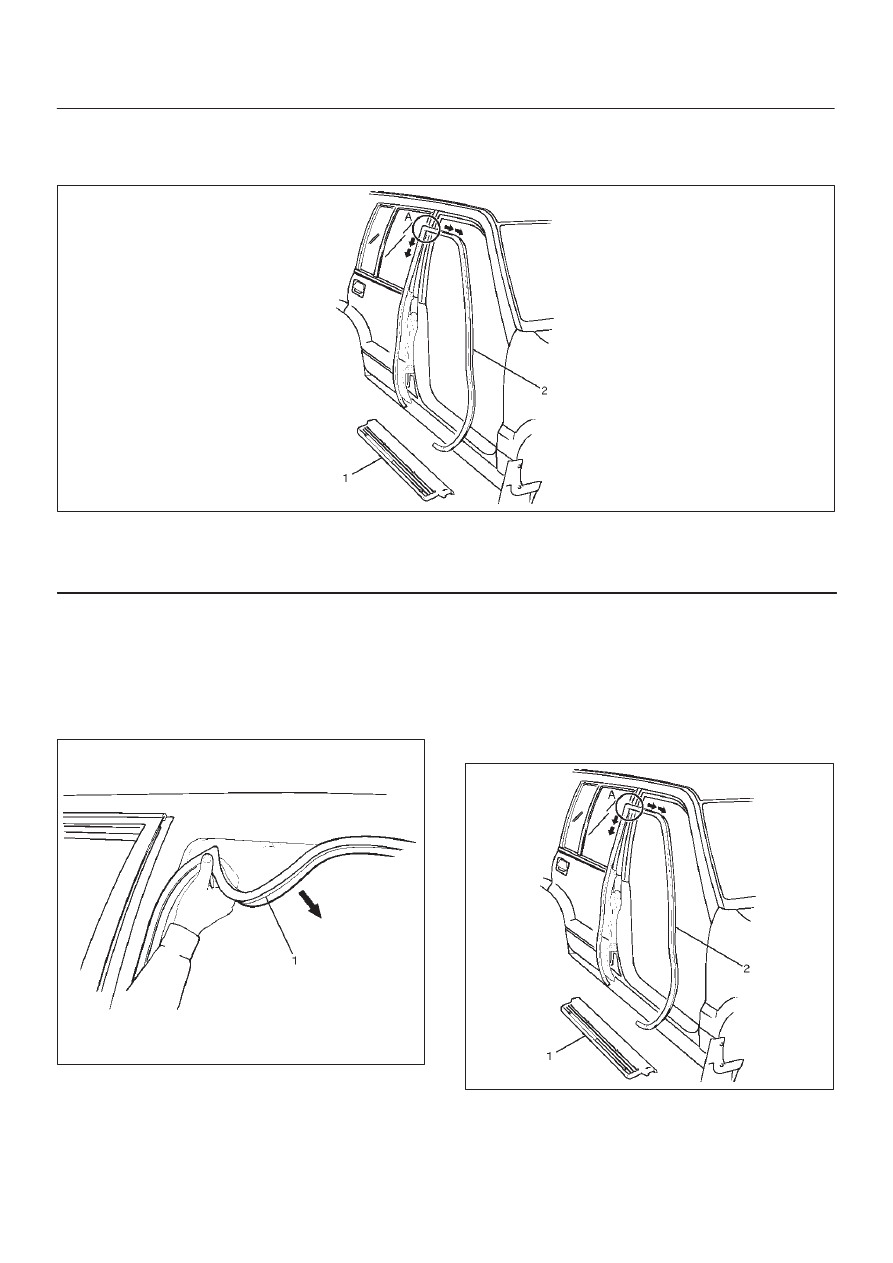

Front Door Seal Finisher

Parts Location

635RS002

Legend

(1) Front Door Sill Plate
(2) Front Door Seal Finisher

Removal

1. Disconnect the battery ground cable.
2. Remove front door sill plate.
3. Remove front door seal finisher (1).

D

Pull the finisher out from the body panel.

635RS003

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Insert the finisher into the A corner and install the

finisher (2) in the arrow–marked directions.

2. Take care not to allow the sill plate (1) to distort or twist

the finisher.

635RS002

8F–73

BODY STRUCTURE

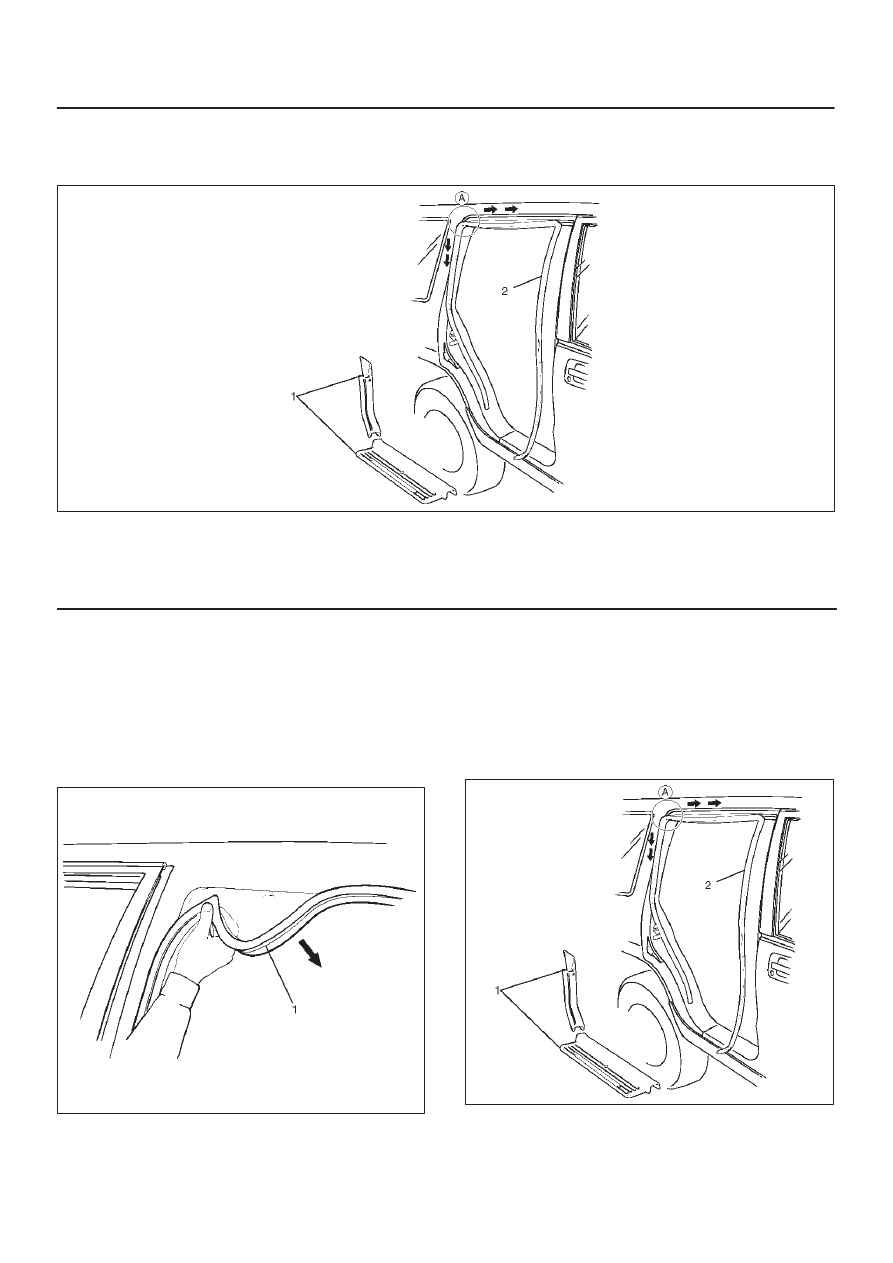

Rear Door Seal Finisher

Parts Location

655RS002

Legend

(1) Rear Door Sill Plate and Luggage Side Lower

Cover

(2) Rear Door Seal Finisher

Removal

1. Disconnect the battery ground cable.
2. Remove rear door sill plate and the luggage side

lower cover.

3. Remove rear door seal finisher (1).

D

Pull the rear door seal finisher (1) out from the body
panel.

635RS003

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Insert the rear door seal finisher (2) into the A corner

and install the finisher in the arrow-marked directions.

2. Be careful not to allow the sill plate and cover (1) to

distort or twist the finisher.

655RS002
