4. Remove glass.

D

Bring the glass down to the position where the bolt
can be seen.

D

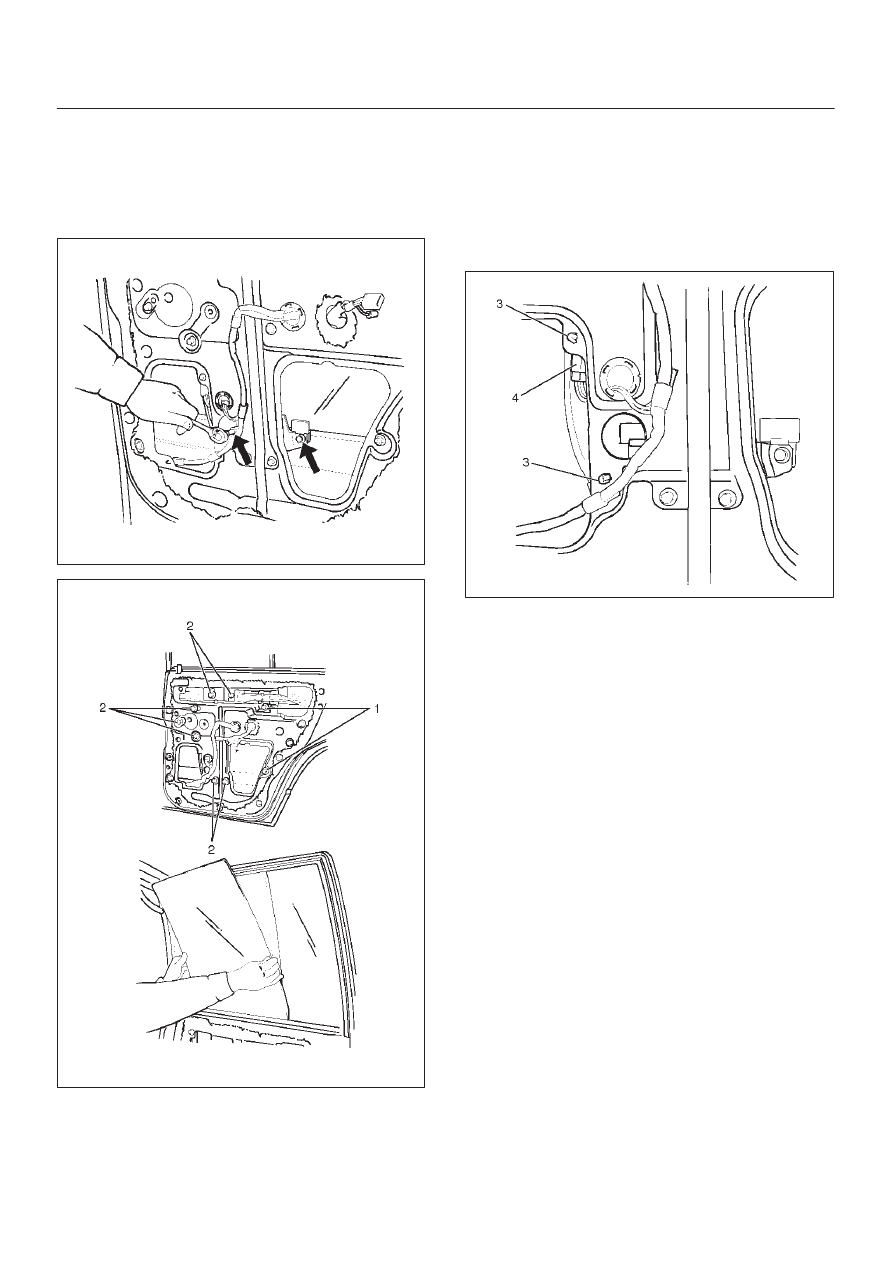

Remove the sash division 2 fixing bolts (1) and then
remove the glass fixing bolt to remove the glass
upwards.

651RS003

651RW010

5. Remove window regulator.

D

Disconnect the regulator motor connector (4) and
remove the window regulator cable fixing clip (3)
from the door panel, if model is equipped with power
windows.

D

Remove the window regulator 7 fixing bolts (2) and
pull the regulator out from the lower hole of the door
panel.

651RW011

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Tighten the window regulator and the glass fixing

bolts to the specified torque.

Torque : 8  N

•

m (0.8kg·m/69  lb in)

2. Install the waterproof sheet with no clearance

between the door panel and the waterproof sheet.

8F–63

BODY STRUCTURE

Rear Door Fixed Glass And Glass Run

Parts Location

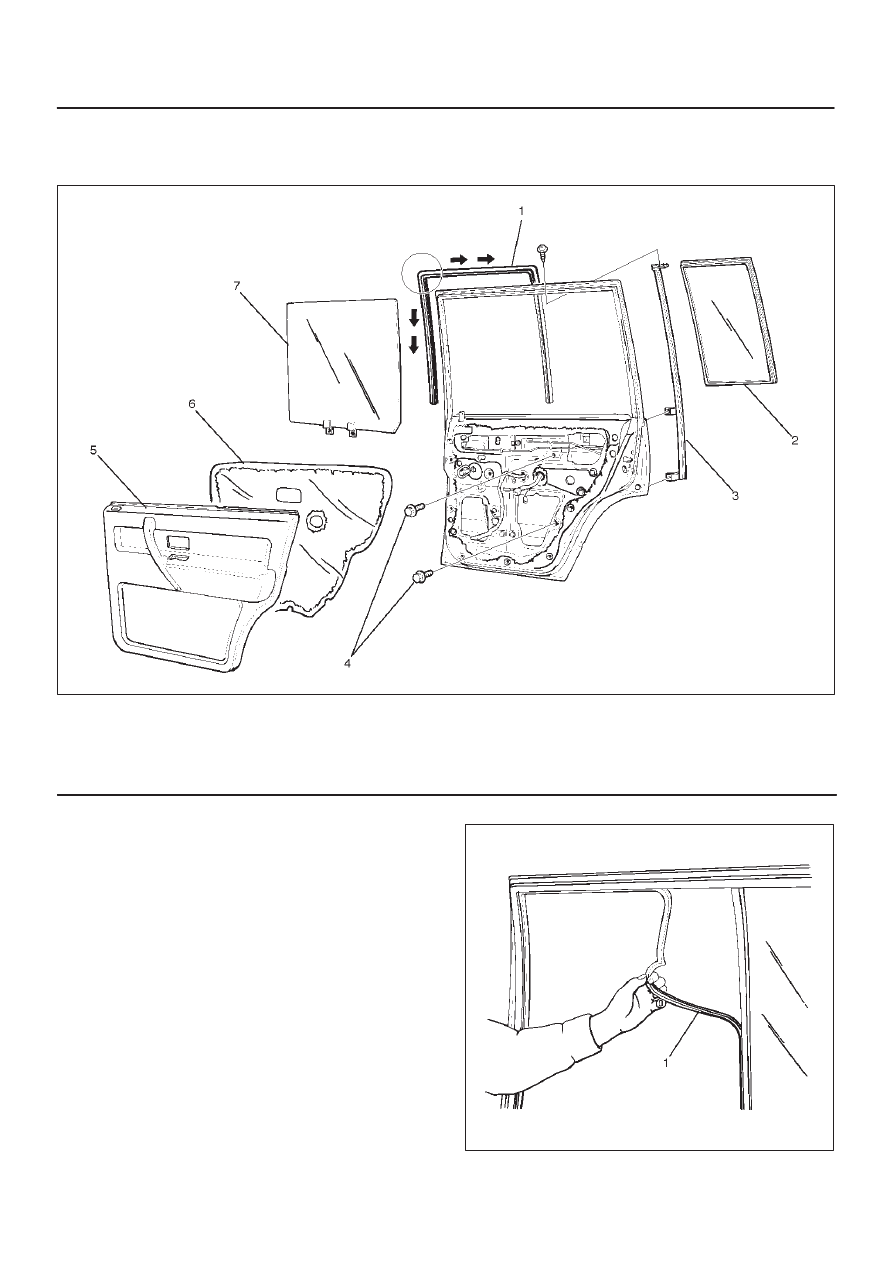

651RW019

Legend

(1) Glass Run
(2) Rear Fixed Glass
(3) Sash Division

(4) Sash Division Fixing Bolts
(5) Door Trim Panel
(6) Waterproof Sheet
(7) Glass

Removal

1. Disconnect the battery ground cable.
2. Remove door trim panel.
3. Remove waterproof sheet.
4. Remove glass.

D

Refer to Window Regulator and Glass in this
section.

5. Remove glass run.

D

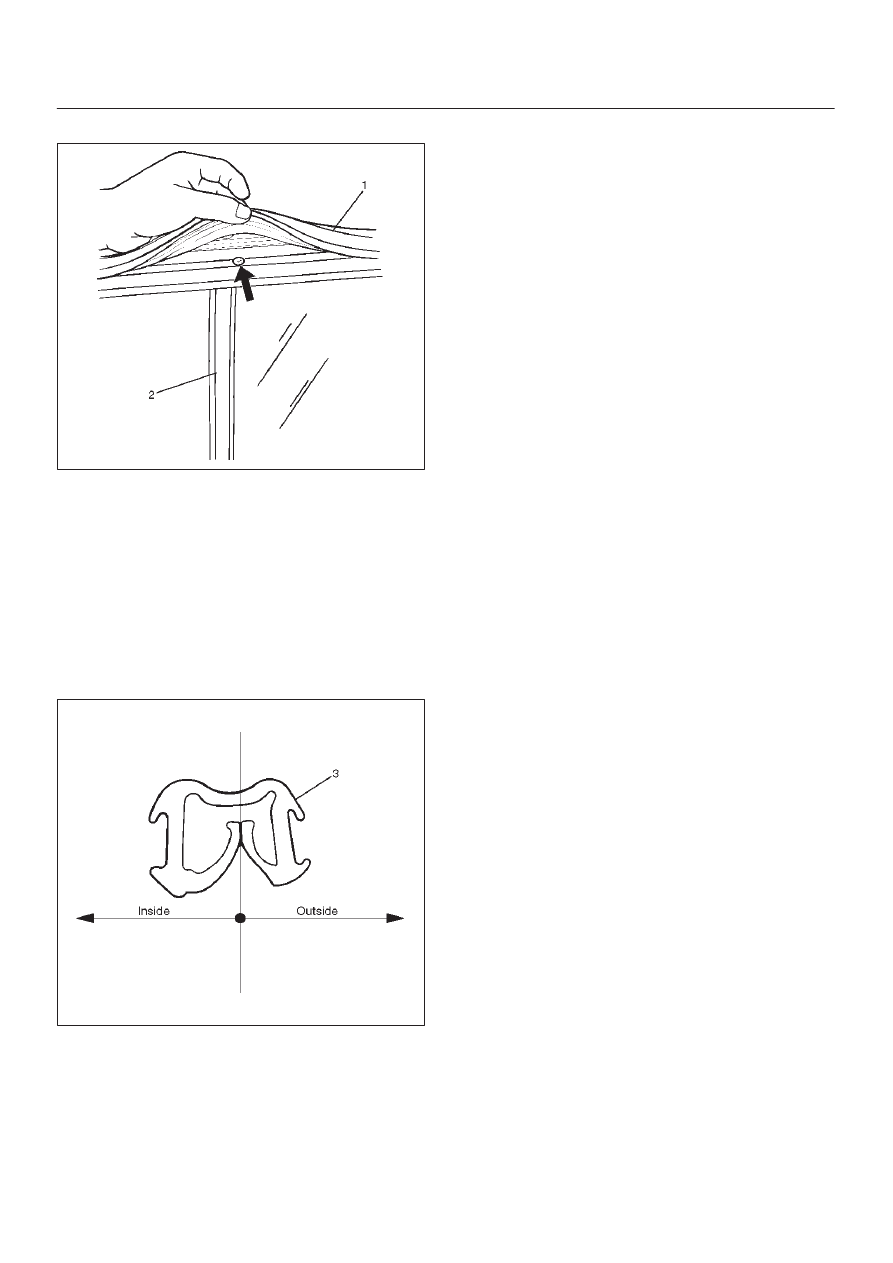

Pull the glass run (1) out from the door frame.

651RS007

8F–64

BODY STRUCTURE

6. Remove sash division (2).

651RS008

7. Remove door fixed glass.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Apply soap and water to the fixed glass.
2. Apply soap and water to the door groove and insert

the glass run (3) to the frame from the corner in the
arrow-marked directions.

3. Be sure to install the glass run with its end pointed to

the inside of the vehicle.

A10RW019

8F–65

BODY STRUCTURE

Front Door Sash Moulding

Parts Location

645RS001

Legend

(1) Front Door Sash Moulding

Removal

1. Remove front door slash moulding.

D

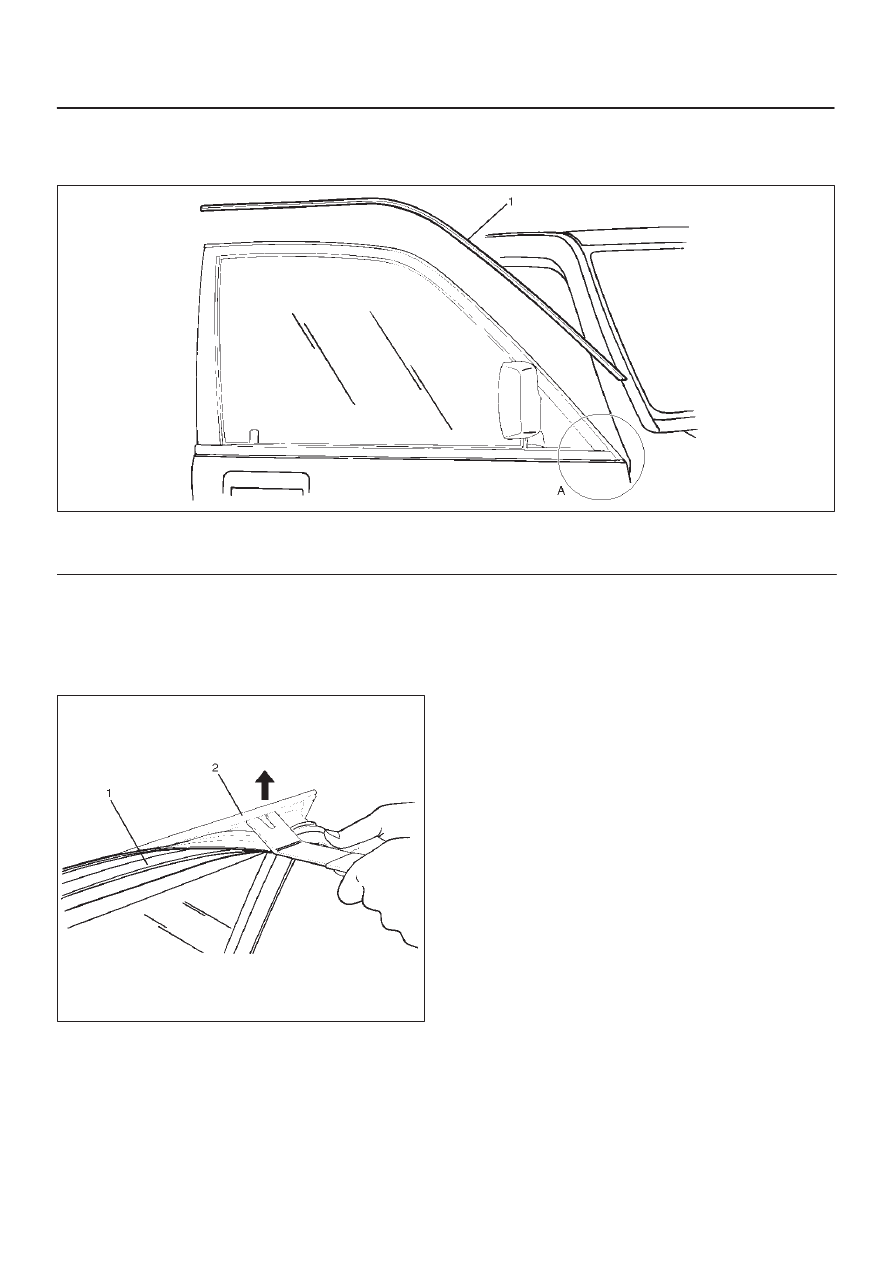

To avoid the weatherstrip (1) and pry the door sash
moulding (2) out from the door panel.

645RS002

Installation

1. Install the front door sash moulding.

D

Assemble the edge portion (A portion) of the
moulding so that the clearance between the
moulding and the waist seal becomes 1 mm (0.04
in).
