8F–54

BODY STRUCTURE

Front Door Assembly

Parts Location

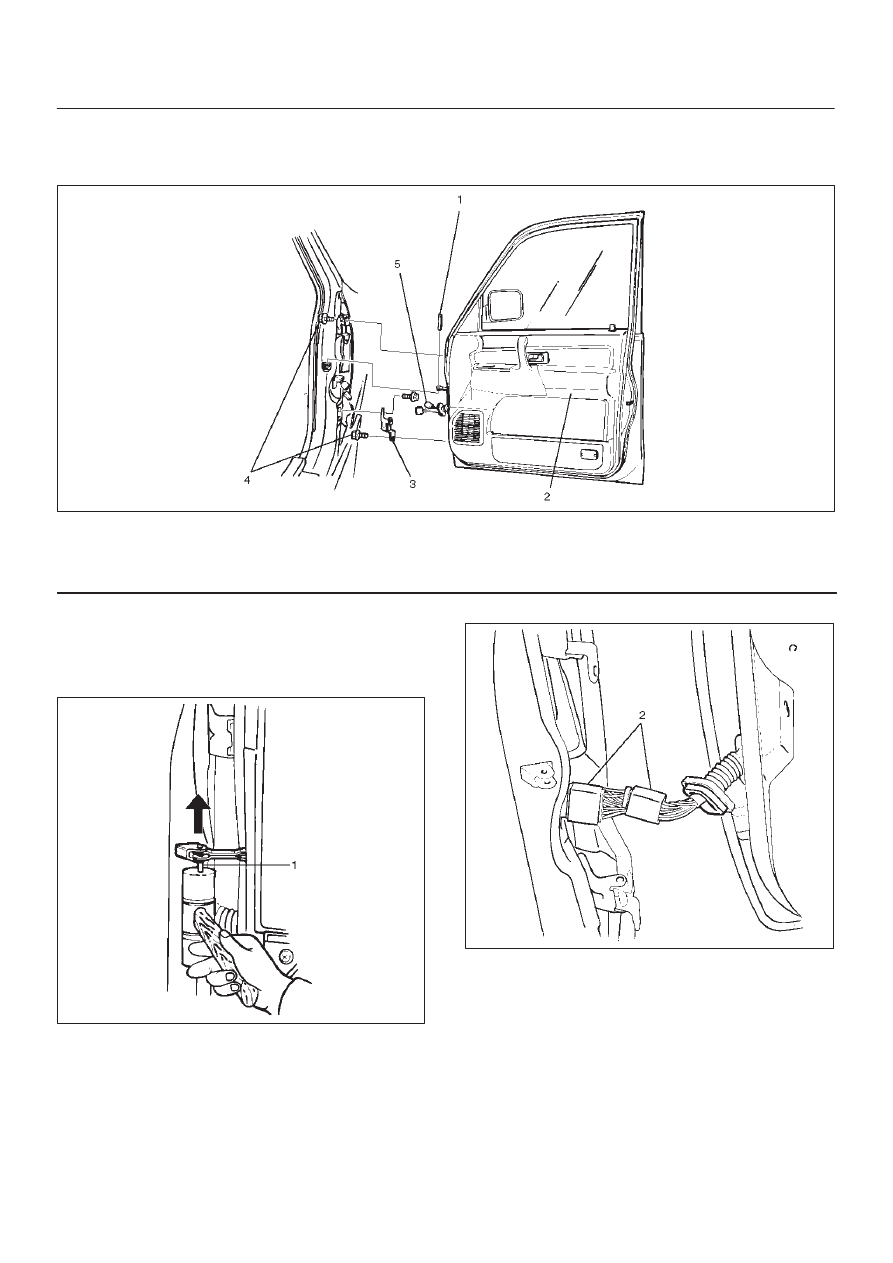

630RS001

Legend

(1) Door Check Arm Pin
(2) Front Door Assembly

(3) Door Hinge Assembly
(4) Hinge Bolt
(5) Door Harness Connection

Removal

1. Disconnect the battery ground cable.
2. Remove door check arm pin (1).

630RS002

3. Remove hinge bolt.

D

Align the hinge bolt to the door side hinge and put a
marker on it.

4. Remove door harness connection (2).

D

Pull the door harness grommet out in order to
disconnect the harness connection.

810RS001

5. Remove front door assembly.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Align the door fitting to the body by referring to Body

Dimensions in this section.

2. Tighten the door hinge bolts to the specified torque.

Torque : 34  N

m (3.5kg·m/25  lb ft)

3. Apply chassis grease to the door check arm pin and

the door hinge moving surface.

8F–55

BODY STRUCTURE

Rear Door Assembly

Parts Location

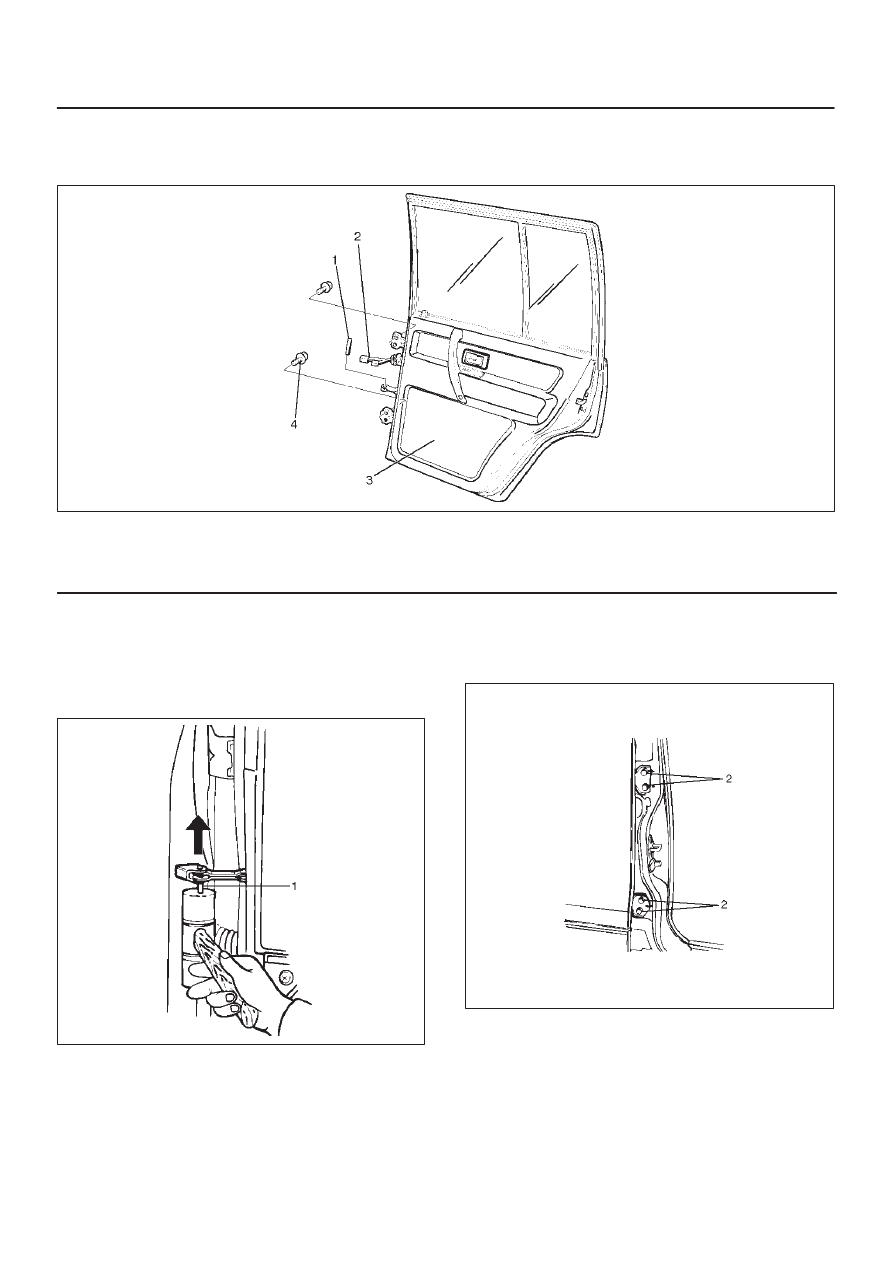

650RW007

Legend

(1) Door Check Arm Pin
(2) Door Harness Connection

(3) Rear Door Assembly
(4) Hinge Bolt

Removal

1. Disconnect the battery ground cable.
2. Apply a setting mark on the body side hinge.
3. Remove door check arm pin (1).

630RS002

4. Remove hinge bolt.

D

Open the front door and remove the body side hinge
bolts (2).

650RS002

8F–56

BODY STRUCTURE

5. Remove door harness connection (3).

D

Pull the door harness grommet out in order to
disconnect the door harness connection.

810RS002

6. Remove door assembly

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Align the door fitting to the body by refer to Body

Dimensions in this section.

2. Tighten the door hinge bolts to the specified torque.

Torque : 34  N

m (3.5kg·m/25  lb ft)

3. Apply chassis grease to the check arm pin and the

door hinge moving surface.

Door Strikers

Adjustment

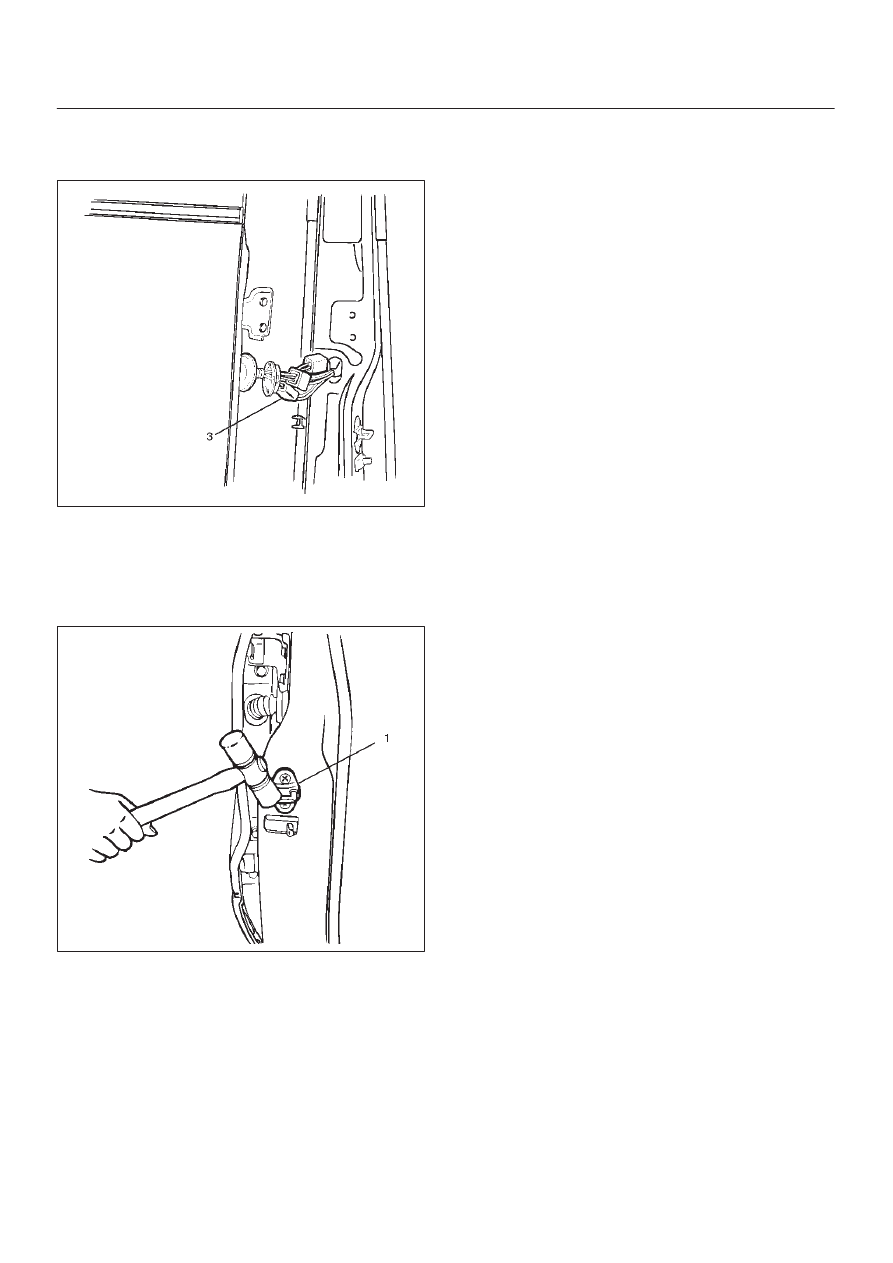

632RS001

1. Loosen the striker (1) screws.
2. Tap with a plastic hammer to align.
3. Tighten the striker screws.

Torque : 15  N

m (1.5kg·m/11 lb ft)

8F–57

BODY STRUCTURE

Door Check Arm Assembly (Front & Rear)

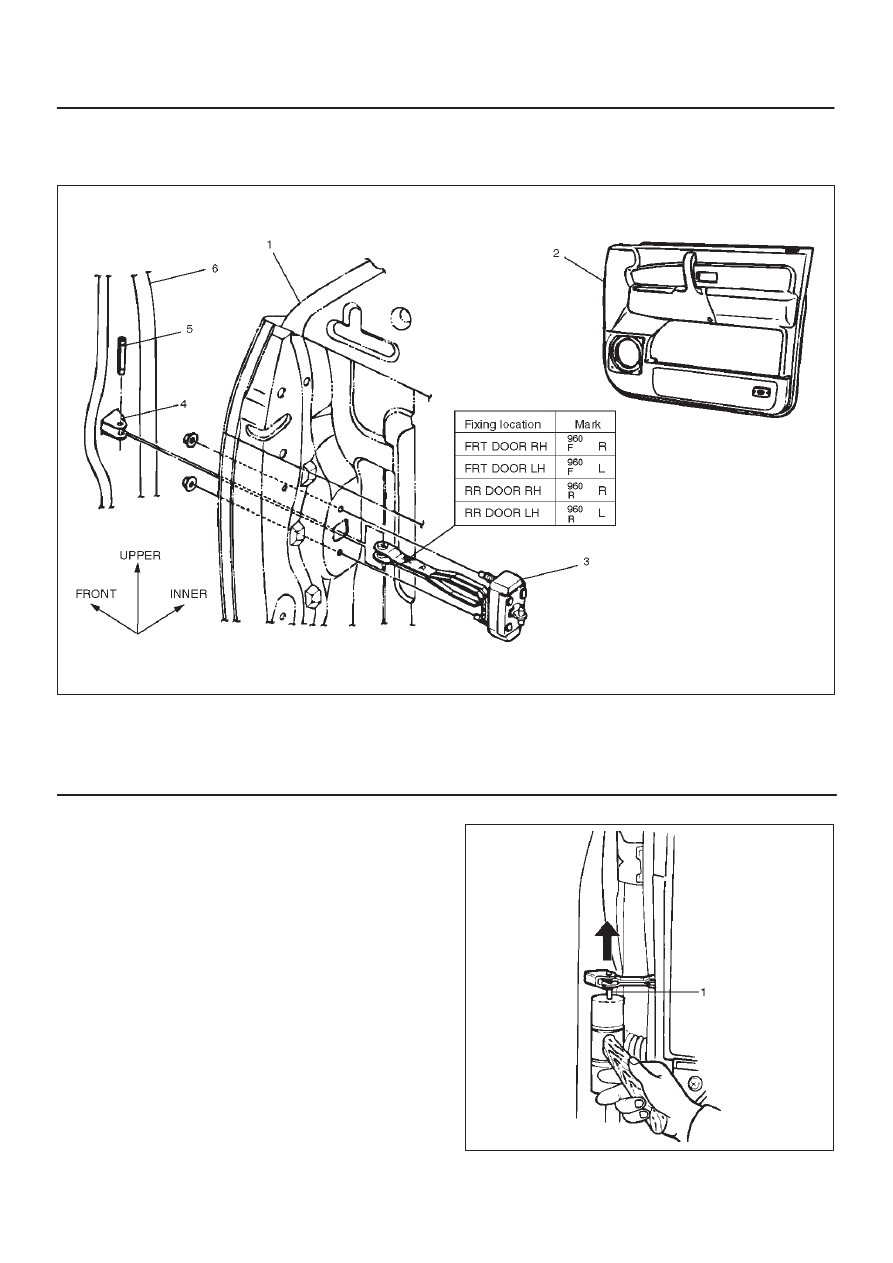

Parts Location

630RS003

Legend

(1) Front or Rear Door
(2) Door Trim Panel
(3) Check Arm Assembly

(4) Check Arm Pin Bracket
(5) Check Arm Pin
(6) Front or Center Pillar

Removal

1. Disconnect the battery ground cable.
2. Remove door trim panel.

D

Refer to Front Door Trim Panel in Exterior / Interior
Trim section.

3. Remove check arm pin (1).

630RS002
