8E–8

METER AND GAUGE

Table for Meter/Gauge Connector Terminal Connections

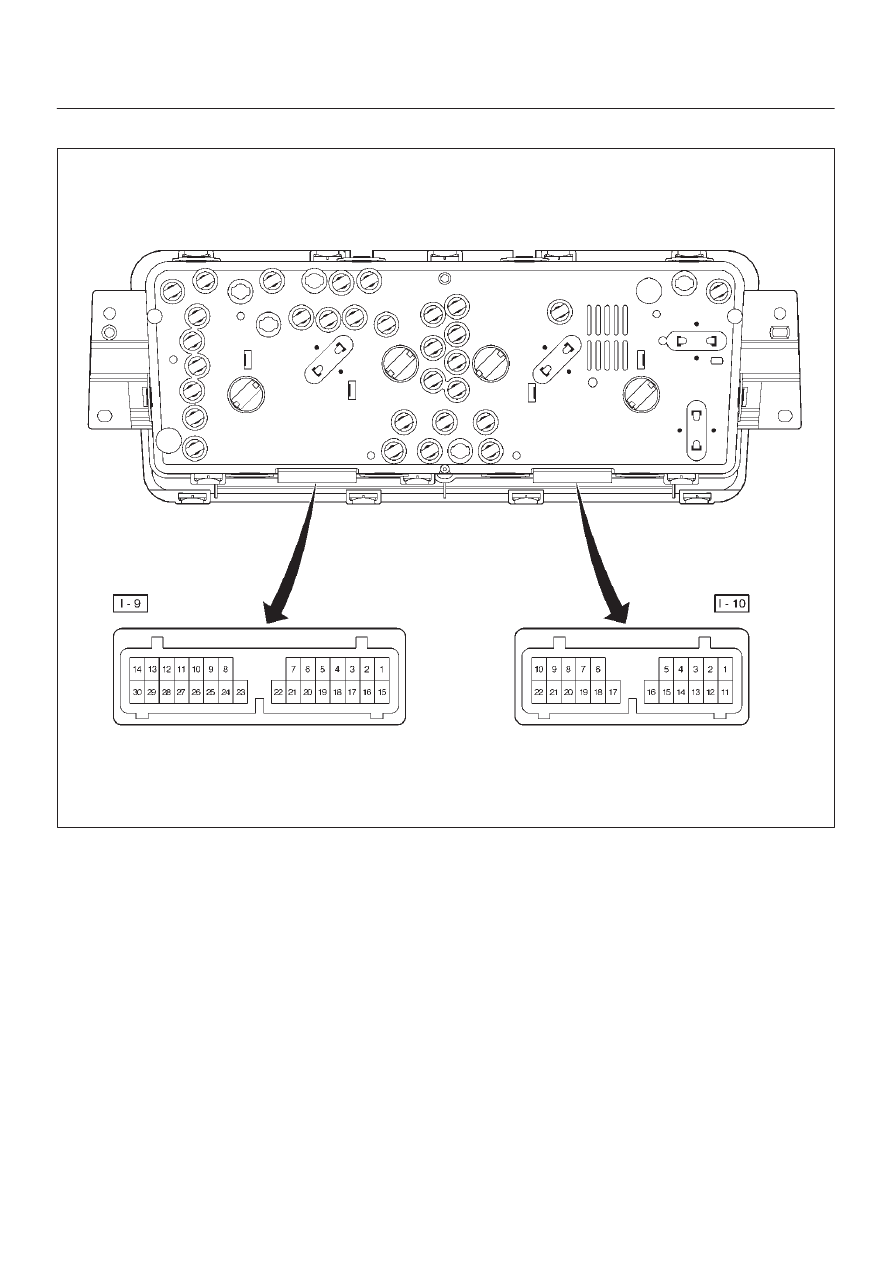

Meter Assembly–Gasoline W/O TOD–1

825RW206

METER AND GAUGE

8E–9

Meter Assembly–Gasoline W/O TOD–2

Connector No. I–9

Terminal

Function

1

A/T oil temp warning light

2

Seat belt warning light

3

Check trans warning light

4

Brake warning light

5

Check engine warning light

6

Charge warning light

7

Cigarette lighter illumination light

8

Illumination controller

9

Tachometer

10

D position (A/T)

11

—

12

A/T shift indicator control unit

13

—

14

2 position (A/T)

15

Starter switch

16

Cruise set indicator light

17

Cruise main indicator light

18

4WD indicator light

19

Ground (Gauge)

20

—

21

Winter drive indicator light

22

Oil pressure warning light

23

—

24

Air bag warning light

25

Power drive indicator light

26

—

27

—

28

Turn signal indicator light (Left)

29

—

30

Ground

Connector No. I–10

Terminal

Function

1

Turn signal indicator light (Right)

2

L position (A/T)

3

R position (A/T)

4

Engine coolant temperature gauge

5

Speedometer

6

—

7

—

8

Battery (+)

9

—

10

Rear fog light

11

P position (A/T)

12

N position (A/T)

13

3 position (A/T)

14

High-beam indicator light (–)

15

High-beam indicator light (+)

16

ABS indicator light

17

—

18

Fuel warning light

19

Oil pressure gauge

20

Fuel gauge

21

—

22

—

8E–10 METER AND GAUGE

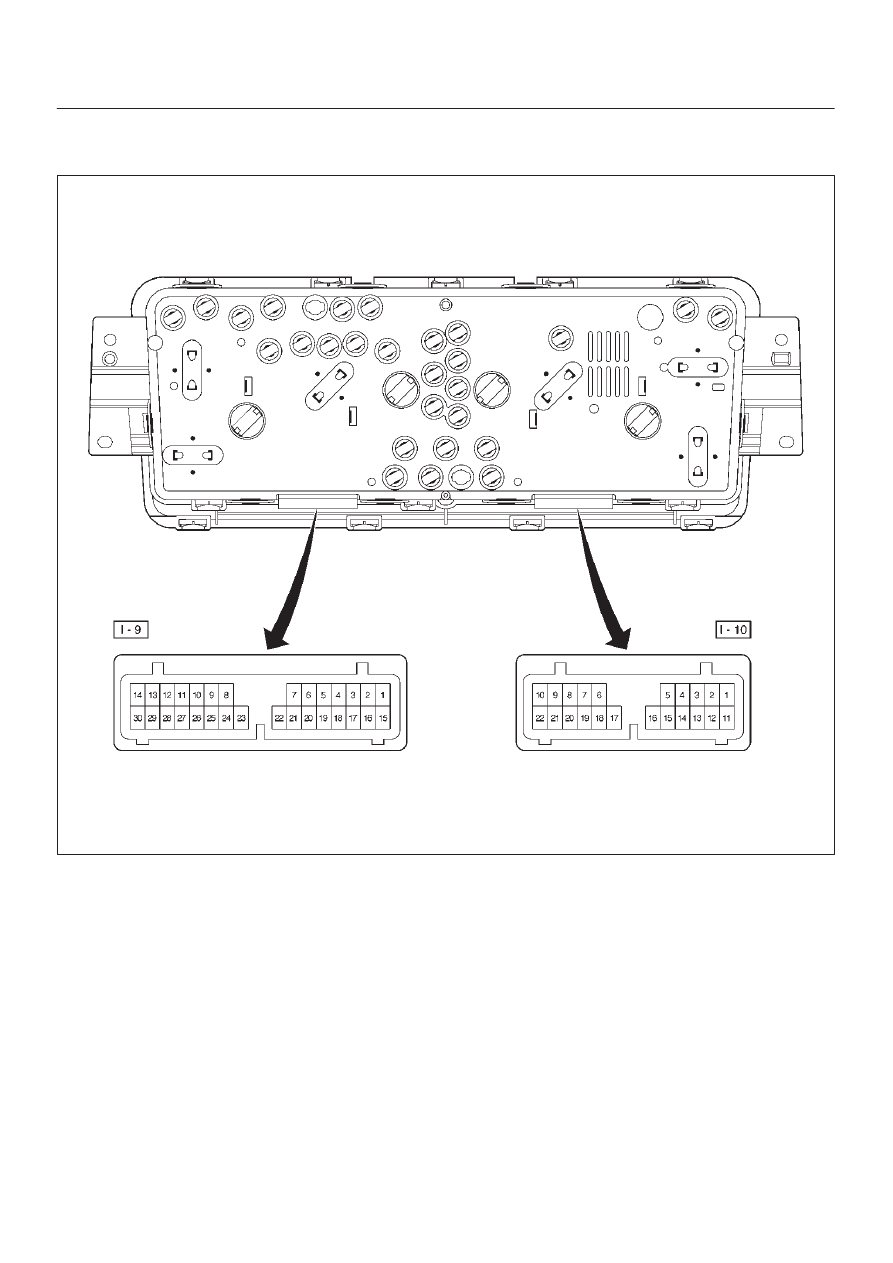

Meter Assembly–Gasoline W/TOD–1

825RW209

METER AND GAUGE

8E–11

Meter Assembly–Gasoline W/TOD–2

Connector No. I–9

Terminal

Function

1

—

2

Air bag warning light

3

A/T oil temp warning light

4

Charge warning light

5

Check engine warning light

6

Check trans warning light

7

Brake warning light

8

—

9

Tachometer

10

—

11

Turn signal indicator light (Left)

12

A/T shift indicator control unit

13

2 position (A/T)

14

D position (A/T)

15

Rear (TOD)

16

Auto (TOD)

17

Check (TOD)

18

Cruise set indicator light

19

Cruise main indicator light

20

Oil pressure warning light

21

Front “1” (TOD)

22

Front “2” (TOD)

23

Front “3” (TOD)

24

Cigarette lighter illumination light

25

Illumination controller

26

Starter switch

27

—

28

Winter drive indicator light

29

Power drive indicator light

30

—

Connector No. I–10

Terminal

Function

1

Turn signal indicator light (Right)

2

L position (A/T)

3

R position (A/T)

4

Check engine warning light

5

Speedometer

6

—

7

—

8

Battery (+)

9

Engine coolant temperature gauge

10

Ground

11

P position (A/T)

12

N position (A/T)

13

3 position (A/T)

14

High beam indicator light (–)

15

High beam indicator light (+)

16

ABS indicator light

17

—

18

Fuel warning light

19

—

20

Fuel gauge

21

Ground (Gauge)

22

—
