8E–4

METER AND GAUGE

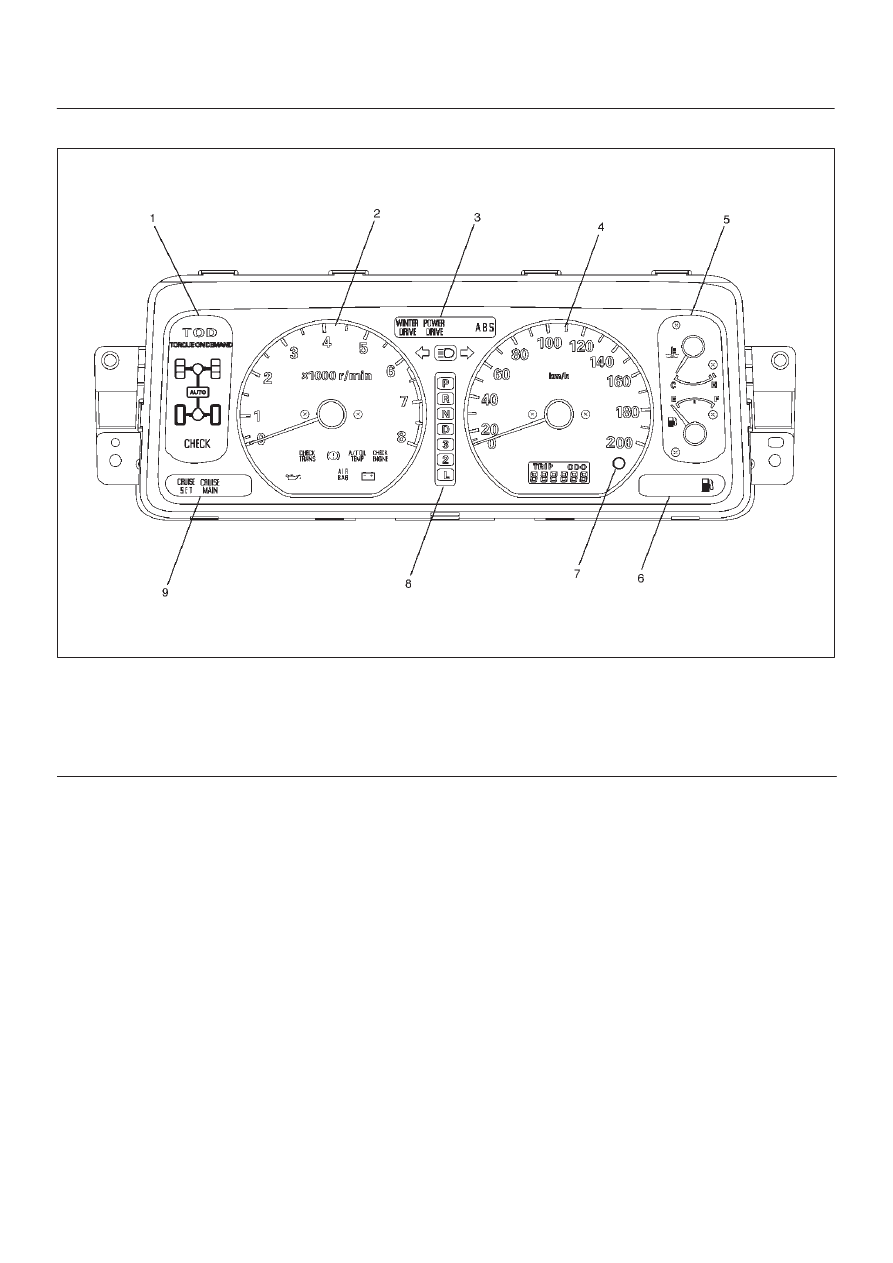

Meter Assembly–Gasoline W/TOD (Front View)

825RW210

Legend

(1) TOD Indicator
(2) Tachometer
(3) Warning Light Lens
(4) Speedometer

(5) Coolant Temperature Gauge & Fuel Gauge
(6) Warning Light Lens
(7) Reset Knob
(8) A/T Shift Indicator
(9) Warning Light Lens

METER AND GAUGE

8E–5

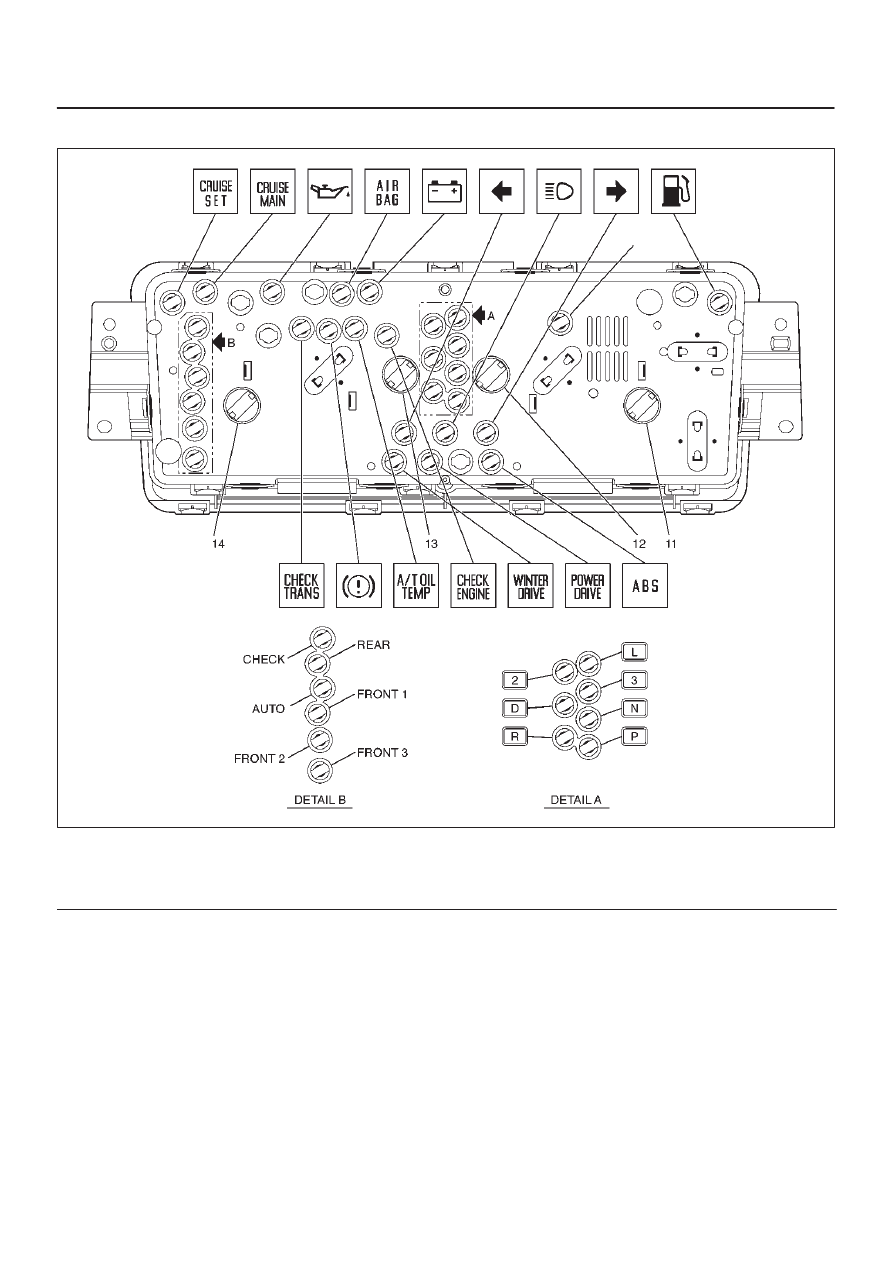

Meter Assembly–Gasoline W/TOD (Rear View)

825RW212

Legend

(10) LCD Light

(11) Illumination Light

(12) Illumination Light
(13) Illumination Light
(14) Illumination Light

8E–6

METER AND GAUGE

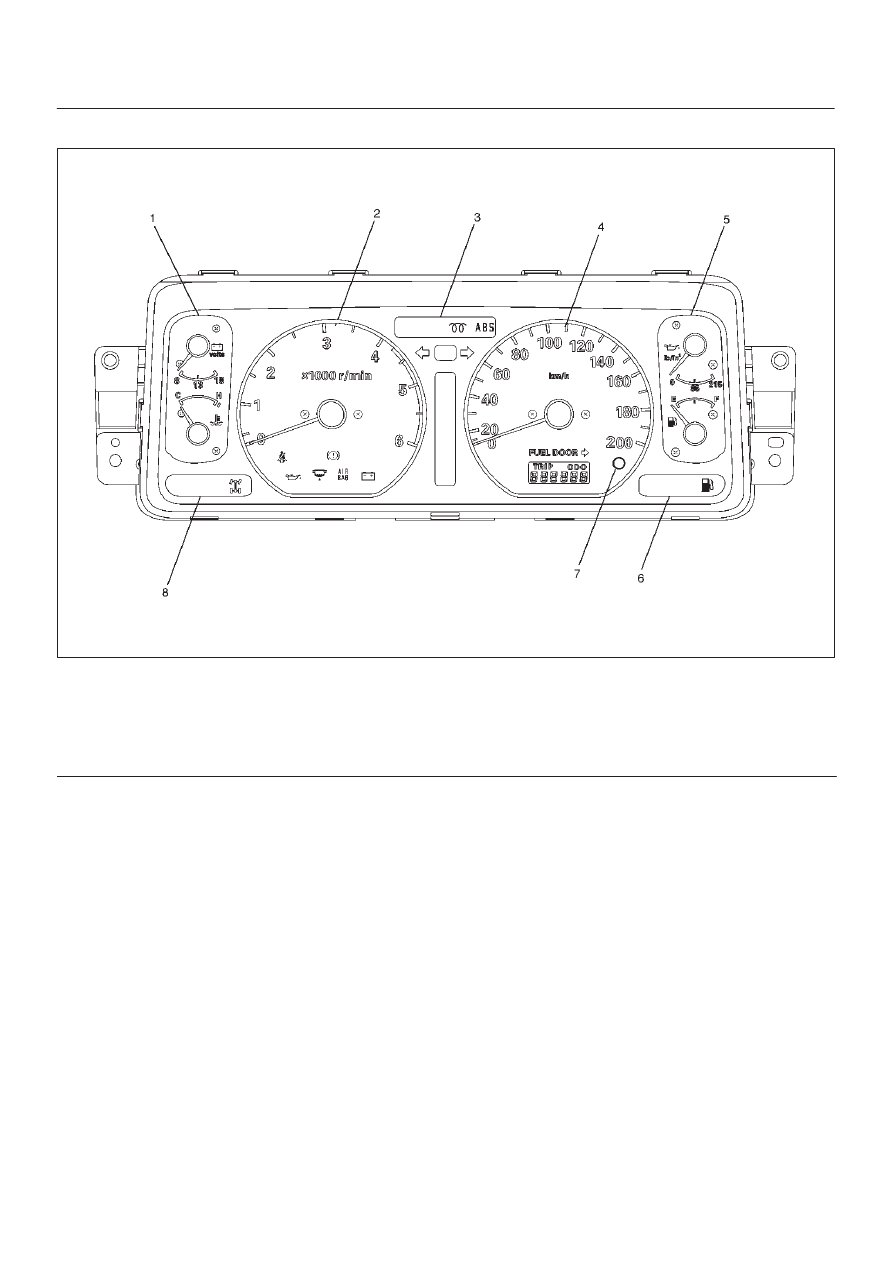

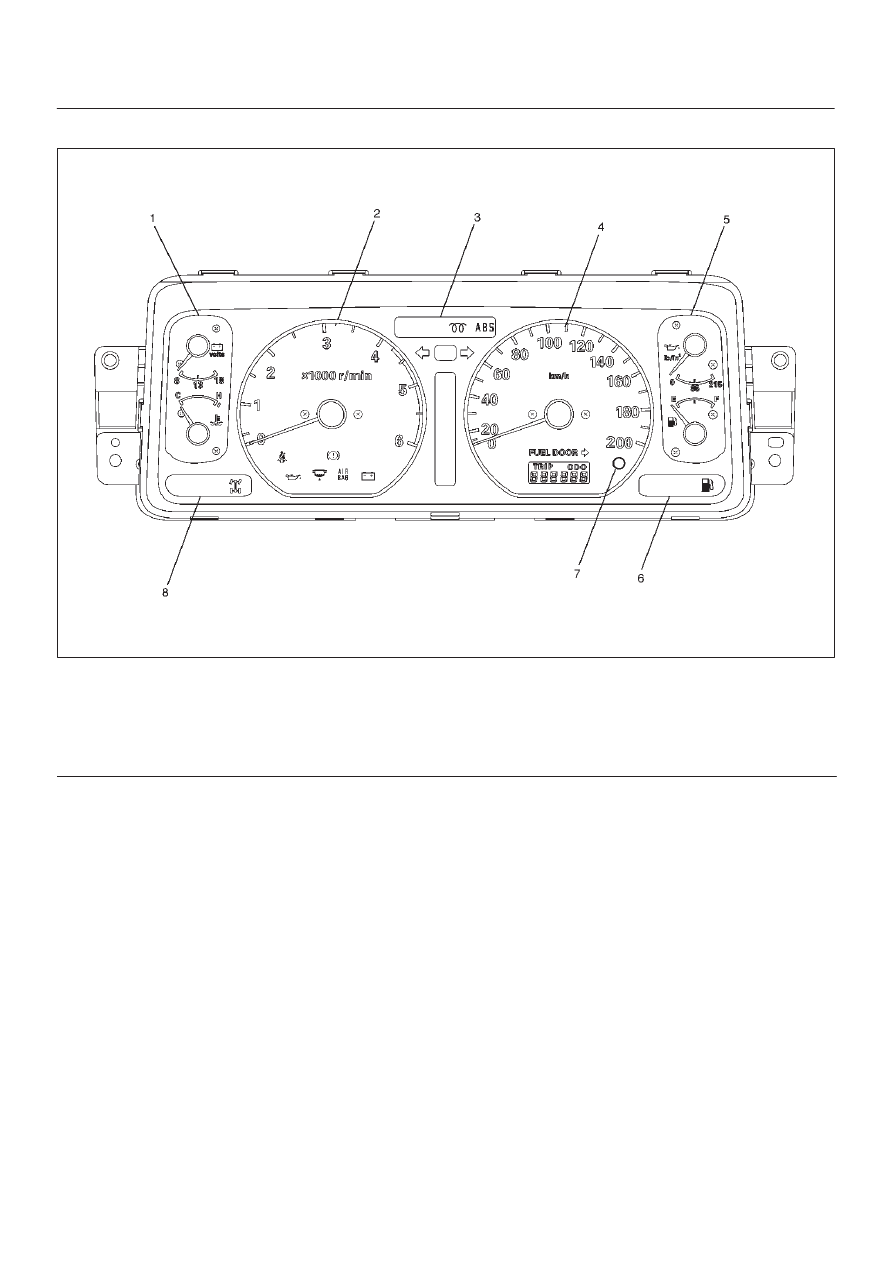

Meter Assembly–Diesel (Front View)

825RW211

Legend

(1) TOD Indicator
(2) Tachometer
(3) Warning Light Lens
(4) Speedometer

(5) Coolant Temperature Gauge & Fuel Gauge
(6) Warning Light Lens
(7) Reset Knob
(8) Warning Light Lens

METER AND GAUGE

8E–7

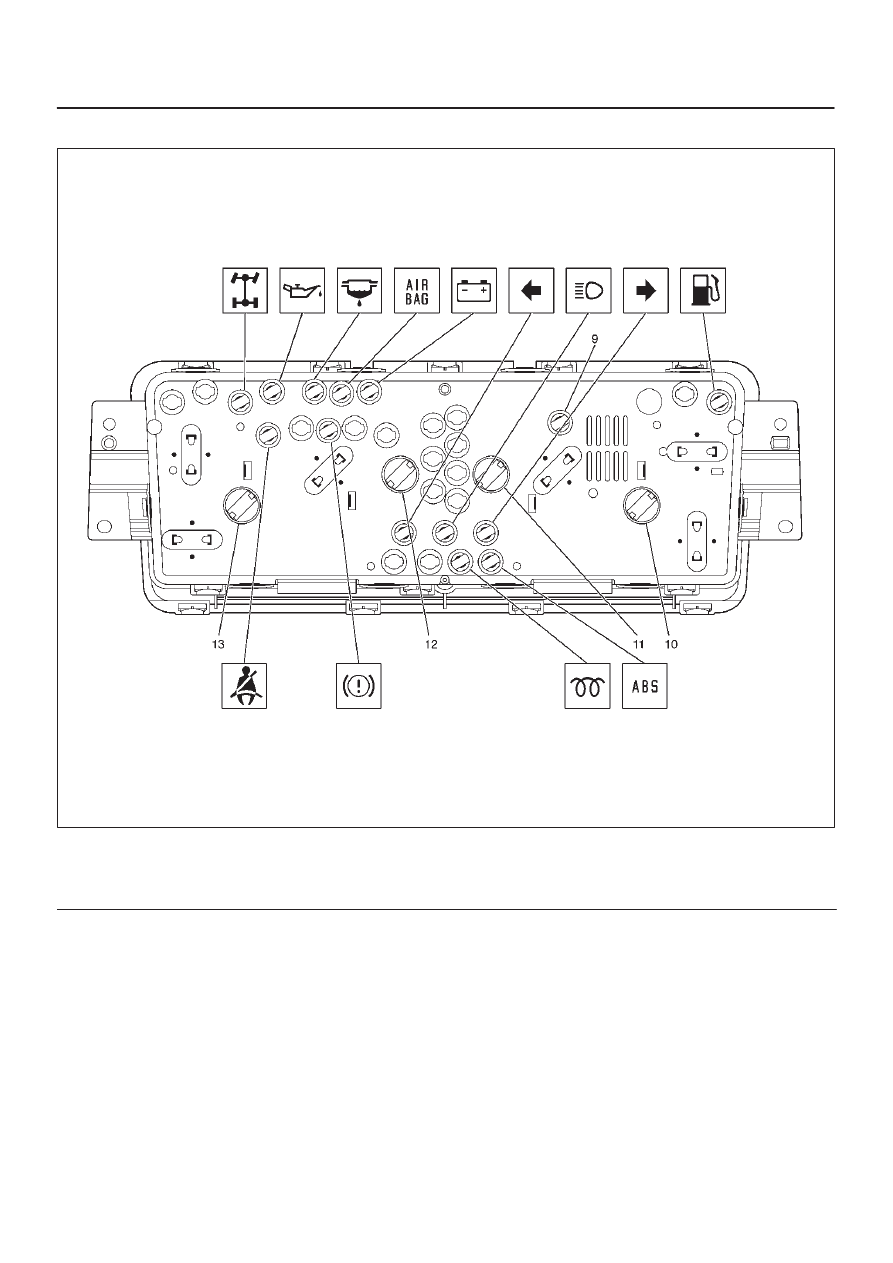

Meter Assembly–Diesel (Rear View)

825RW232

Legend

(9) LCD Light

(10) Illumination Light

(11) Illumination Light

(12) Illumination Light
(13) Illumination Light
