6E–30

ENGINE DRIVEABILITY AND EMISSIONS

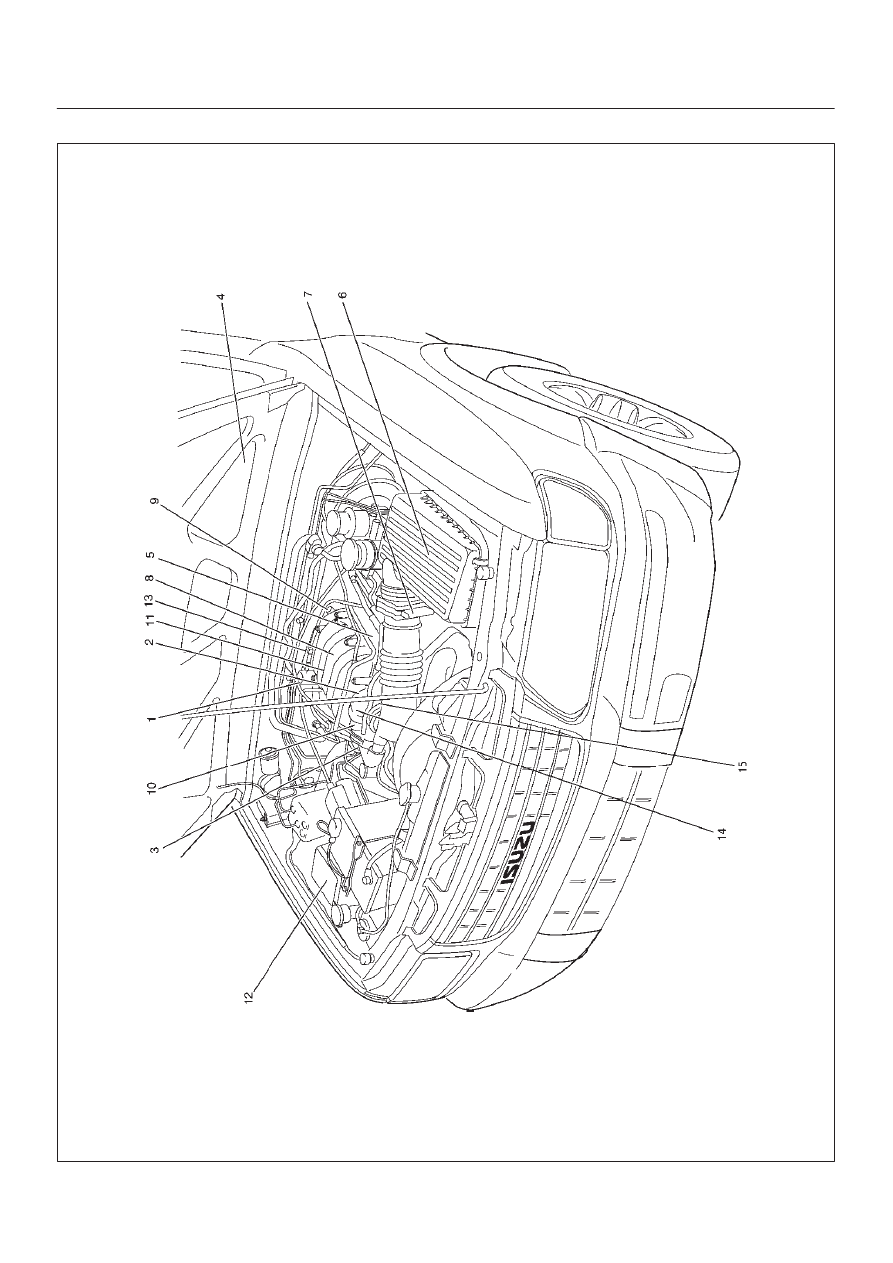

Engine Component Locator (This illustration is based on LHD model.)

755RW062

6E–31

ENGINE DRIVEABILITY AND EMISSIONS

Engine Component Locator Table

Number

Name

Location

1

Linear Exhaust Gas Recirculation (EGR) Valve

Rear right side of the engine

2

Throttle Position (TP) Sensor

On the rear of the throttle body

3

Intake Air Temperature (IAT) Sensor

On the intake air duct near the throttle body

4

Check Engine (MIL) Light

On the instrument panel beneath the
tachometer

5

Positive Crankcase Ventilation (PCV) Valve

On the left of the cylinder head cover

6

Air Cleaner

Left front of the engine bay

7

Mass Air Flow (MAF) Sensor

Attached to the air filter box

8

Camshaft Position (CMP) Sensor

On the rear right side at the left of the cylinder
head cover

9

Fuel Pressure Regulator

Rear right side of the engine

10

Idle Air Control (IAC) Valve

On the left of the throttle body

11

Upper Intake Manifold

Top of the engine

12

Fuse/Relay Box

Along the inside of the right fender

13

Manifold Absolute Pressure (MAP) Sensor

Bolted to the top of the upper intake manifold

14

Throttle Body

Between the intake air duct and the upper
intake manifold

15

Engine Coolant Temperature Sensor

On the coolant crossover pipe at the front of
the engine, near the throttle body

6E–32

ENGINE DRIVEABILITY AND EMISSIONS

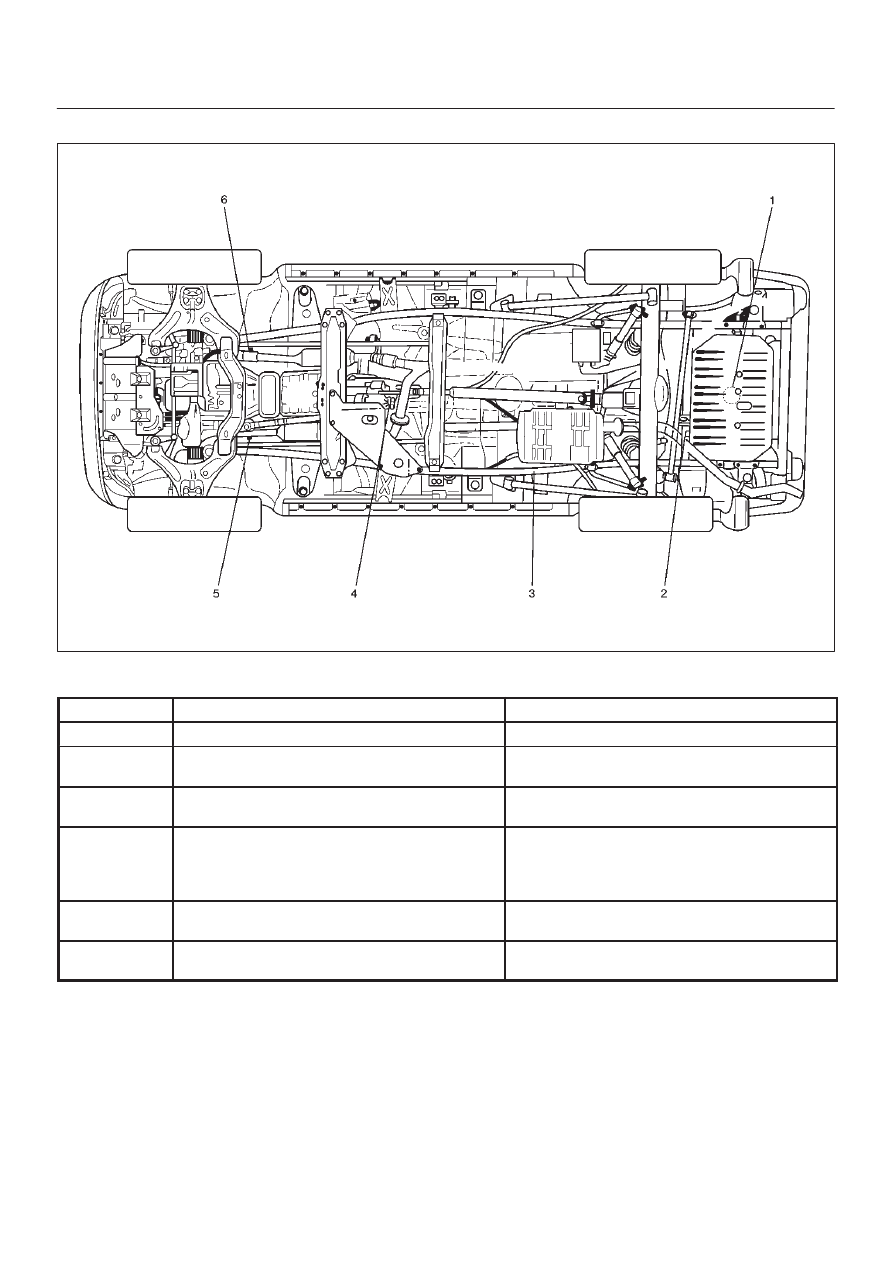

Undercarriage Component Locator

F00RW040

Undercarriage Component Locator Table (Automatic Transmission)

Number

Name

Location

1

Fuel Pump Assembly

Installed in the top of the fuel tank

2

Fuel Gauge Unit

Installed in the front edge of the fuel tank, on
the right side

3

Fuel Filter

Located along the inside of the right frame rail,
ahead of the rear axle

4

Vehicle Speed Sensor (VSS)

2WD: Protrudes from the transmission
housing, just ahead of the propeller shaft.

4WD: Protrudes from the rear output shaft
housing of the transfer case.

5

Heated Oxygen Sensor (Bank 1, HO2S 1)

Threaded into the exhaust pipe ahead of the
right-hand catalytic converter

6

Heated Oxygen Sensor (Bank 2, HO2S 1)

Threaded into the exhaust pipe ahead the
left-hand catalytic converter

6E–33

ENGINE DRIVEABILITY AND EMISSIONS

Undercarriage Component Locator Table (Manual Transmission)

Number

Name

Location

1

Fuel Pump Assembly

Installed in the top of the fuel tank

2

Fuel Gauge Unit

Installed in the front edge of the right frame
rail, ahead of the rear axle

3

Fuel Filter

Located along the inside of the right frame rail,
ahead of the rear axle

4

Vehicle Speed Sensor (VSS)

2WD: Protrudes from the transmission
housing, just ahead of the propeller shaft.

4WD: Protrudes from the rear output shaft
housing of the transfer case.

5

Heated Oxygen Sensor (Bank 1, HO2S 1)

Threaded into the exhaust pipe ahead of the
right-hand catalytic converter

6

Heated Oxygen Sensor (Bank 2, HO2S 1)

Threaded into the exhaust pipe ahead of the
left-hand catalytic converter

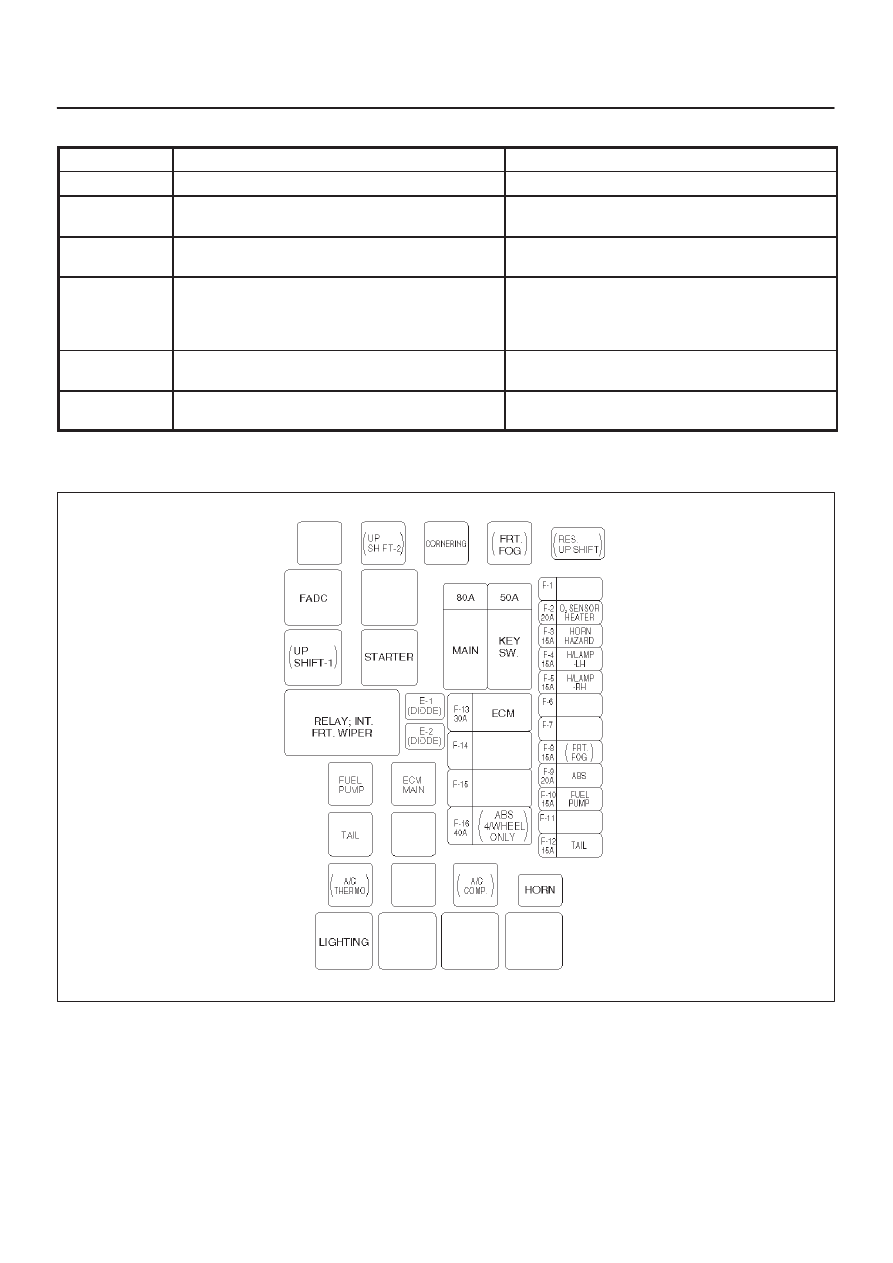

Fuse and Relay Panel (Underhood Electrical Center)

TS23336
