6E–26

ENGINE DRIVEABILITY AND EMISSIONS

PCM Pinout Table, 32-Way Blue Connector – Row “E”

(For EXPORT and SOUTH AFRICA)

TS23346

PIN

PIN Function

Wire Color

IGN ON

ENG RUN

Refer To

E1

Transmission Output Shaft
Sensor (TOSS) High

RED

0.0 V

0.1 V

Automatic Transmission
(4L30E)

E2

Transmission Output Shaft
Sensor (TOSS) Low

WHT

0.0 V

0.0 V

Automatic Transmission
(4L30E)

E3

Pressure Control Solenoid
Low

PPL/RED

0.0 V

1.1 V

Automatic Transmission
(4L30E)

E4

Pressure Control Solenoid
High

PPL/WHT

0.0 V

4.9 V

Automatic Transmission
(4L30E)

E5

Not Used

—

—

—

—

E6

Not Used

—

—

—

—

E7

Transmission Range
Signal “B”

BLU/YEL

0.0 V

0.0 V

Automatic Transmission
(4L30E)

E8

Throttle Position (TP)
Sensor

BLU

0.5-0.8 V

0.5-0.8 V

(at idle)

General Description and
Operation, Throttle Position
Sensor

E9

Engine Coolant
Temperature (ECT)
Sensor

BLU/RED

0.5-4.9 V

(depends on

temperature)

0.5-4.9 V

(depends on

temperature)

General Description and
Operation, Engine Coolant
Temperature (ECT) Sensor

E10

Not Used

—

—

—

—

E11

Crankshaft Position (CKP)
Sensor +5 Volt Reference

YEL/RED

5.0 V or less

than 1.0 V

5.0 V

General Description and
Operation, Crankshaft
Position Sensor

E12

Transmission Range
Signal “A”

BLU/WHT

B+

B+

Automatic Transmission
(4L30E)

E13

Fuel Pump (FP) Relay

RED/WHT

0.0 V

B+

On-Vehicle Service, Fuel
Pump Relay

E14

Shift High (BAND APPLY)

BRN/WHT

B+

B+

Automatic Transmission
(4L30E)

E15

A/C Request

GRN/ORN

0.0 V

0.0 V

Electric Cooling Fans

E16

Ignition Feed (1 of 2 F16)

RED/BLU

B+

B+

—

6E–27

ENGINE DRIVEABILITY AND EMISSIONS

PCM Pinout Table, 32-Way Blue Connector – Row “F”

TS23346

PIN

PIN Function

Wire Color

IGN ON

ENG RUN

Refer To

F1

Not Used

—

—

—

—

F2

Transmission Range
Signal “C”

BLU/BLK

0.0 V

0.0 V

Automatic Transmission
(4L30E)

F3

Transmission Range
Signal “P”

YEL/GRN

B+

0.0 V

Automatic transmission
(4L30E)

F4

Brake Switch

GRN/YEL

0.0 V

0.0 V

Automatic transmission
(4L30E)

F5

Power Switch

PPL/RED

B+

B+

Automatic Transmission
(4L30E)

F6

Winter Switch

PPL/GRN

B+

B+

Automatic Transmission
(4L30E)

F7

Transmission Fluid
Temperature

RED/BLK

0.5-4.9 V

(depends on

temperature)

0.5-4.9 V

(depends on

temperature)

Automatic Transmission
(4L30E)

F8

Manifold Absolute
Pressure (MAP)

GRY/BLK

3.5-4.9 V

(depends on

altitude and

barometric

pressure)

0.6-1.3 V

General Description and
Operation, Manifold Absolute
Pressure

F9

Not Used

—

—

—

—

F10

Cruise Control

GRY/BLU

B+

B+

Automatic transmission
(4L30E)

F11

Kickdown Switch

LT BLU

B+

B+

Automatic Transmission
(4L30E)

F12

DIAG

ORN/BLU

B+

B+

—

F13

Injector “C” Cylinder #3

GRN

B+

B+

General Description and
Operation, Fuel Injector

F14

Shift “A” Solenoid

BRN/RED

B+

B+

Automatic Transmission
(4L30E)

F15

Injector Cylinder #5

GRN/BLK

B+

B+

General Description and
Operation, Fuel Injector

F16

Ignition Feed (1 of 2 E16)

RED/BLU

B+

B+

—

6E–28

ENGINE DRIVEABILITY AND EMISSIONS

Component Locators

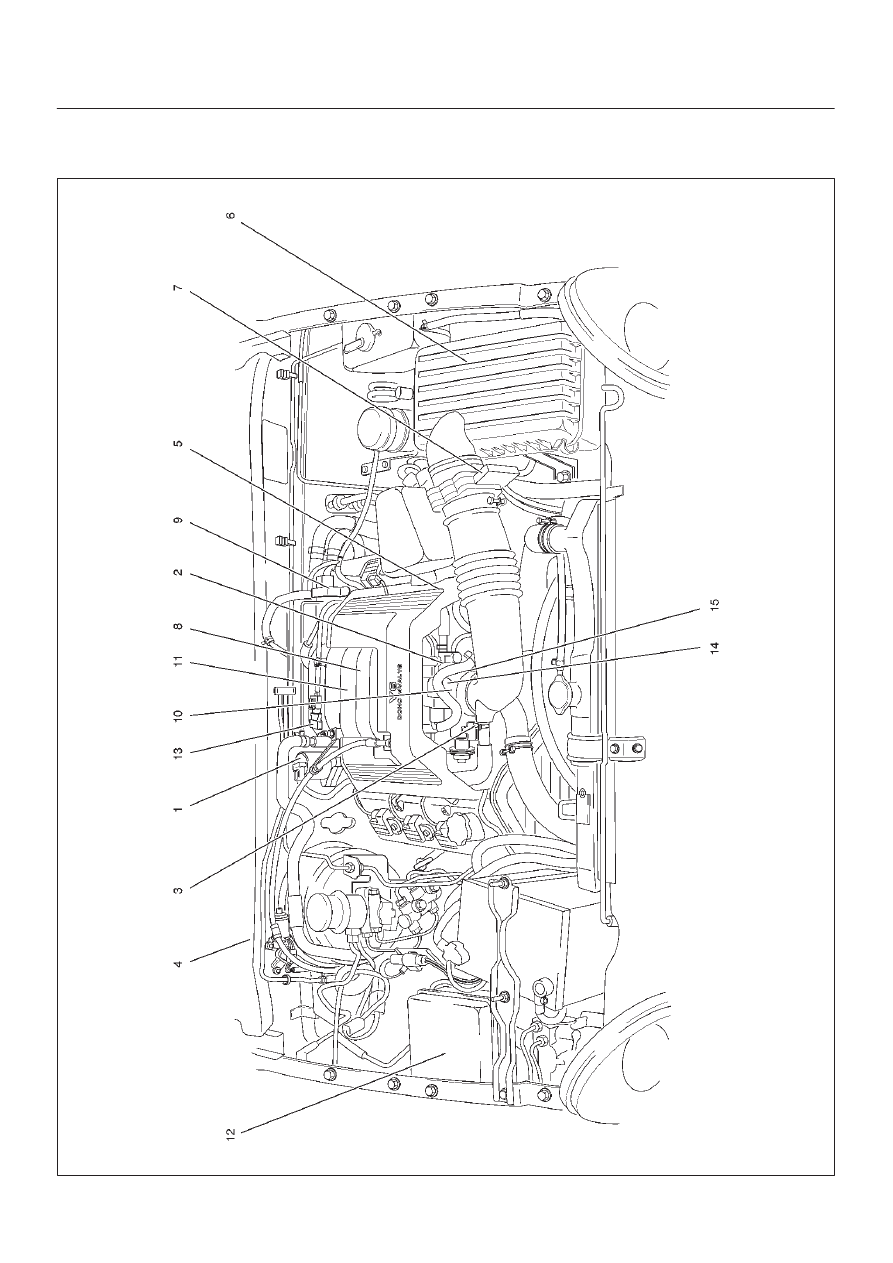

Engine Component Locator (This illustration is based on RHD model.)

060RW210

6E–29

ENGINE DRIVEABILITY AND EMISSIONS

Engine Component Locator Table

Number

Name

Location

1

Linear Exhaust Gas Recirculation (EGR) Valve

Rear right side of the engine

2

Throttle Position (TP) Sensor

On the rear of the throttle body

3

Intake Air Temperature (IAT) Sensor

On the intake air duct near the throttle body

4

Check Engine (MIL) Light

On the instrument panel beneath the
tachometer

5

Positive Crankcase Ventilation (PCV) Valve

On the left of the cylinder head cover

6

Air Cleaner

Left front of the engine bay

7

Mass Air Flow (MAF) Sensor

Attached to the air filter box

8

Camshaft Position (CMP) Sensor

On the rear right side at the left of the cylinder
head cover

9

Fuel Pressure Regulator

Rear right side of the engine

10

Idle Air Control (IAC) Valve

On the left of the throttle body

11

Upper Intake Manifold

Top of the engine

12

Fuse/Relay Box

Along the inside of the right fender

13

Manifold Absolute Pressure (MAP) Sensor

Bolted to the top of the upper intake manifold

14

Throttle Body

Between the intake air duct and the upper
intake manifold

15

Engine Coolant Temperature Sensor

On the coolant crossover pipe at the front of
the engine, near the throttle body
