8D–160

WIRING SYSTEM

3.  Actuator On The Left (Or Right) Side Does Not Stop

YES

REPAIR OR REPLACE THE ACTUATOR
(FAILURE OF THE SENSOR OR A SHORT
CIRCUIT IN THE ACTUATOR)

NO

•

IS THERE CONTINUITY BETWEEN MOTOR
CONNECTOR TERMINALS 4  C-77  AND 6  C-77
(OR 4  C-76  AND 6  C-76  )?

REPAIR OR REPLACE THE ACTUATOR (FAILURE
OF THE RELAY IN THE ACTUATOR)

WIRING SYSTEM

8D–161

Clearance Light, Taillight and

License Plate Light

General Description

The circuit consists of the lighting switch, clearance
light, taillight and license plate light.
All these lights come on when the lighting switch
are turned on with the switch to either clearance or
headlight position.

8D–162

WIRING SYSTEM

3.0

W

0.85

R/B

F-12 15A

TAIL,ILLUMI.

TAIL RELAY

BATT.(+)

0.3

G

0.3

G

3

X-9

1

X-9

0.5

B

0.85

G/R

0.85

G/R

0.85

G/O

0.85

G/R

0.85

G/R

0.85

R/B

4

X-9

CLEARANCE

2

X-9

10

A

B-12

H-15

B-12

LIGHTING

SW

(COMBINATION

SW)

FRT

COMBINATION

LIGHT

-LH

0.5

B

1.25

B

8

3

7

2

C-22

1

H-41

4

H-15

H-32

0.85

G/R

0.85

G/R

0.85

G/R

INTERIOR

ILLUMINATION

LIGHT

B-19

BODY-RH

FENDER-LH

1

C-22

1

C-16

0.5

B

CLEARANCE

FRT

COMBINATION

LIGHT

-RH

2

C-31

FENDER-LH

1

C-31

1

C-16

9

H-32

B

D08RW619

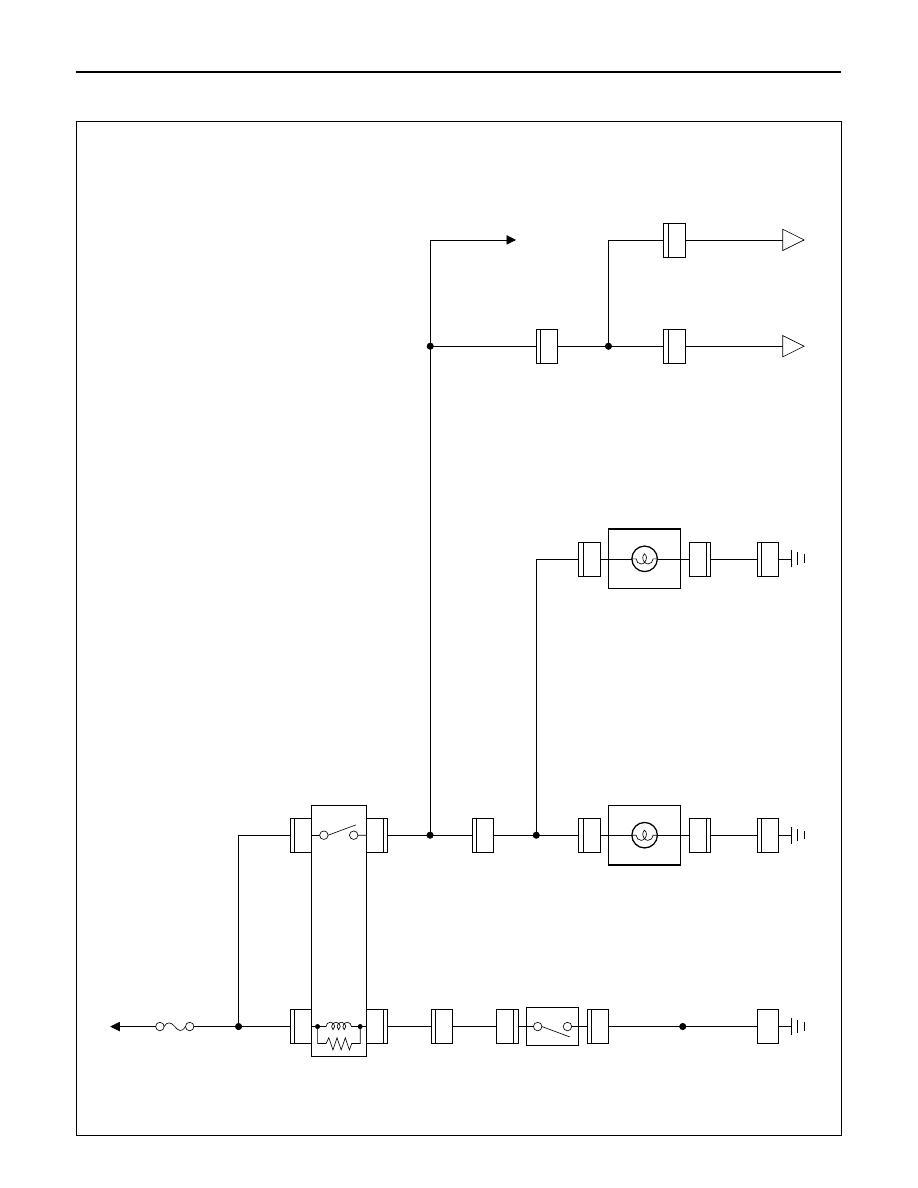

Circuit Diagram (RHD)-1

WIRING SYSTEM

8D–163

Circuit Diagram (RHD)-2

0.85

G/R

0.85

G/R

1.25

B

0.5

B

0.5

W/L

0.5

G/R

0.85

G/R

1.25

B

LICENSE

PLATE

LIGHT

TAIL

LIGHT

-RH

(BODY)

B

0.85

G/O

R-4

BODY-RR

2

G-8

1

H-39

2

H-39

1

G-8

TAIL

LIGHT

-LH

(BODY)

A

1

R-13

6

R-13

1

R-12

6

R-12

D08RW799
