8D–48

WIRING SYSTEM

(33) Battery Negative Cable
(34) P-7
(35) P-10
(36) E-16
(37) P-9
(38) E-31, E-32
(39) E-5
(40) B-1, B-2
(41) H-18, H-19
(42) P-2
(43) P-6
(44) H-41, H-42, H-43, H-60

(45) H-2, H-3 (4J

∗∗

)

(46) Engine Room Harness (RH)
(47) Battery
(48) P-5
(49) P-1
(50) Relay and Fuse Box
(51) H-1, H-2, H-3 (6V

∗

1)

(52) C-39
(53) FRT Door Harness (RH)
(54) H-12, H-13, H-14, H-15, H-16, H-20, H-48
(55) H-21

WIRING SYSTEM

8D–49

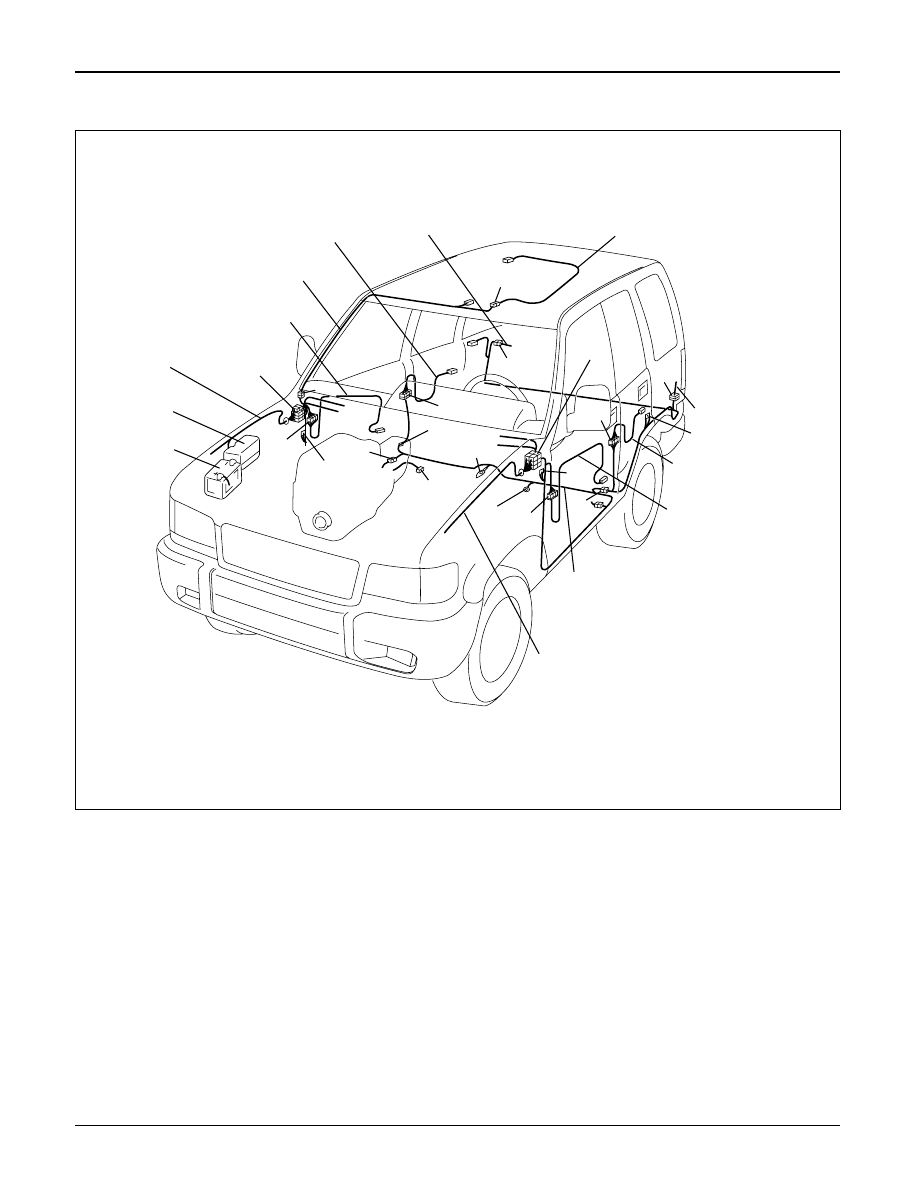

Cable Harness Routing (LHD) – 2

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

20

21

22

23

24

25

26

27

28

29

30

19

D08RWB03

Legend

(1) FRT Door Harness (RH)
(2) Domelight Harness
(3) RR Door Harness (RH)
(4) Tail Gate Harness (RH)
(5) H-45
(6) Sun Roof Harness
(7) H-37, H-38
(8) Tail Gate Harness (LH)
(9) R-3, R-4

(10) RR Door Harness (LH)
(11) H-28, H-29
(12) FRT Door Harness (LH)
(13) H-7, H-8, H-9, H-24, H-25, H-26, H-61, H-62,

H-64, H-65, H-66

(14) B-18, B-19

(15) H-31, H-32, H-46
(16) Body Harness
(17) H-22, H-23
(18) B-28
(19) Engine Room Harness (LH)
(20) B-26
(21) H-47
(22) H-34, H-35
(23) C-85
(24) H-58
(25) B-1, B-2
(26) H-21
(27) Battery
(28) Relay and Fuse Box
(29) Engine Room Harness (RH)
(30) H-12, H-13, H-14, H-15, H-16, H-20, H-48

8D–50

WIRING SYSTEM

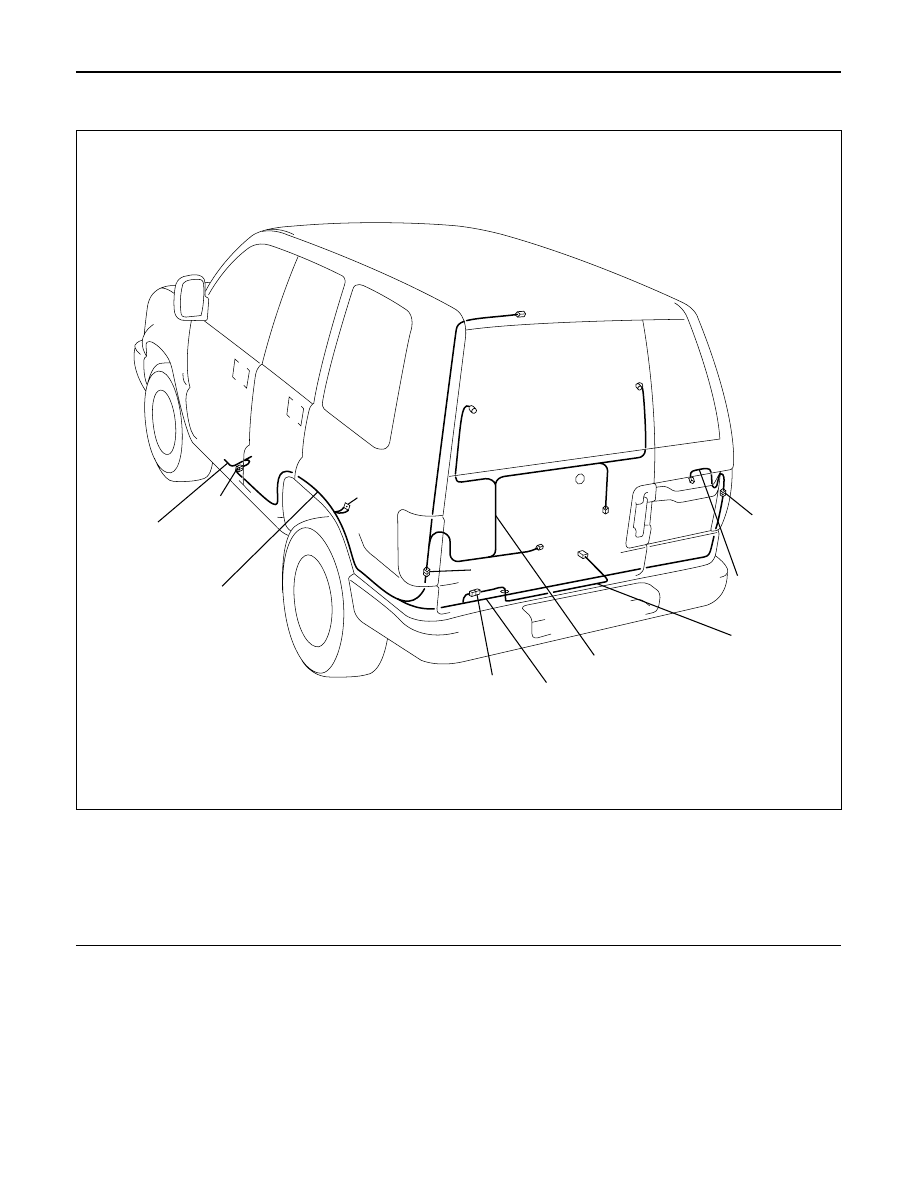

Cable Harness Routing (LHD) – 3

1

2

3

4

5

6

7

8

9

10

11

D08RWB02

Legend

(1) H-39
(2) Tail Gate Harness (RH)
(3) Chassis Harness
(4) Tail Gate Harness (LH)
(5) RR Body Harness

(6) H-33
(7) H-37, H-38
(8) R-3, R-4
(9) RR Body Harness

(10) H-31, H-32, H-46
(11) Body Harness

WIRING SYSTEM

8D–51

Fuse Block Circuit
