8D–40

WIRING SYSTEM

1

4

5

6

7

8

2

3

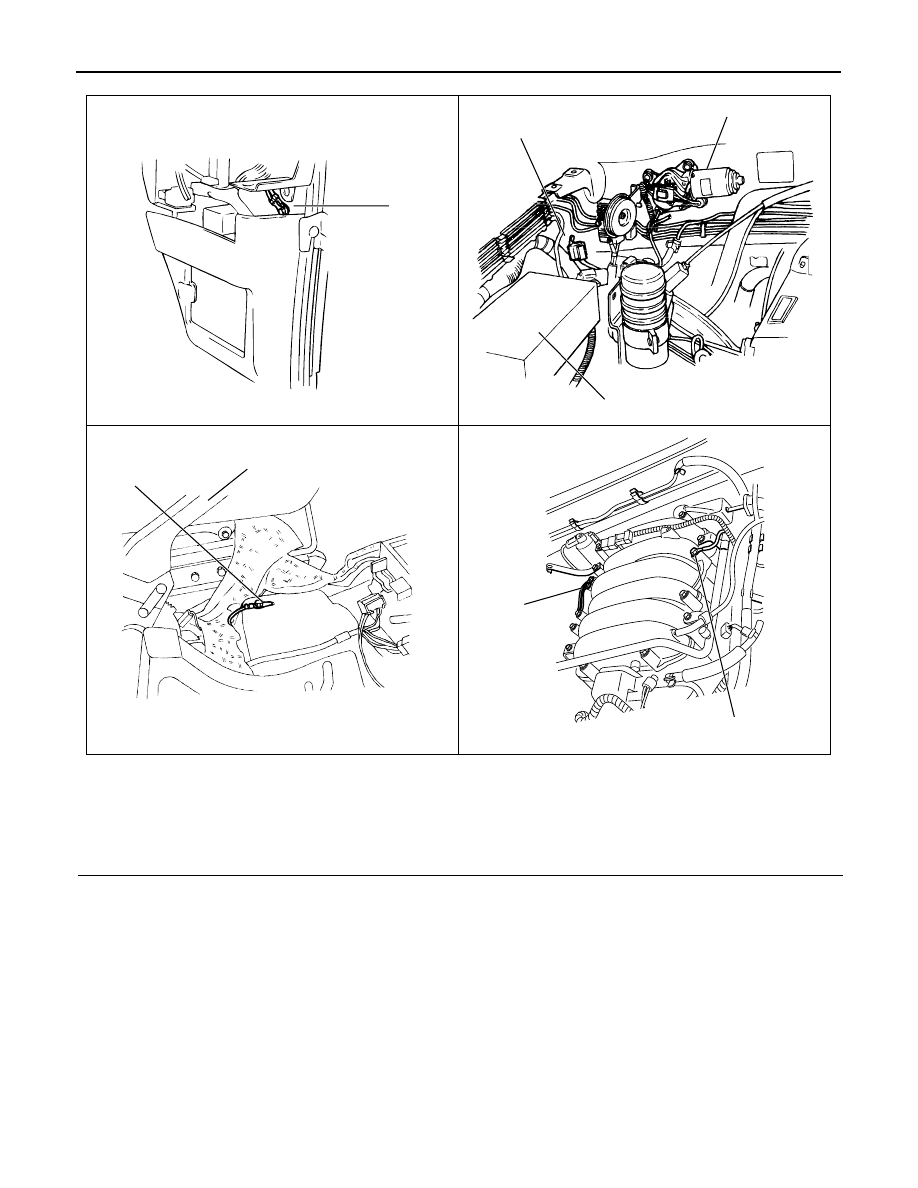

D08RWA24

Legend

(1) B-18, B-19
(2) B-26
(3) Parking Brake Lever
(4) C-39

(5) Windshield Wiper Motor
(6) Relay and Fuse Box
(7) Common Chamber: RH
(8) Common Chamber: LH

WIRING SYSTEM

8D–41

2

3

4

1

5

7

6

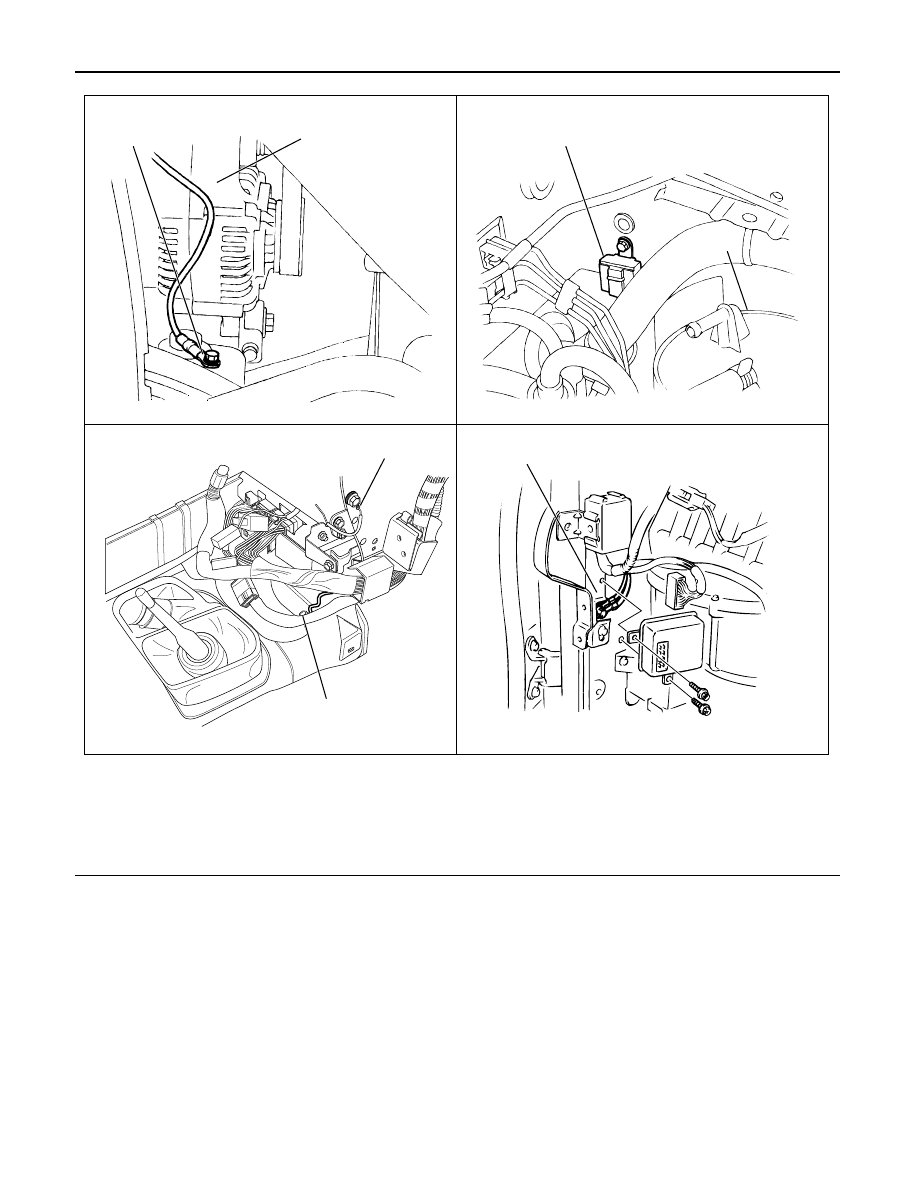

D08RWA23

Legend

(1) P-10
(2) AC Generator
(3) I-39
(4) U-2

(5) C-16
(6) Canister
(7) B-1, B-2

8D–42

WIRING SYSTEM

1

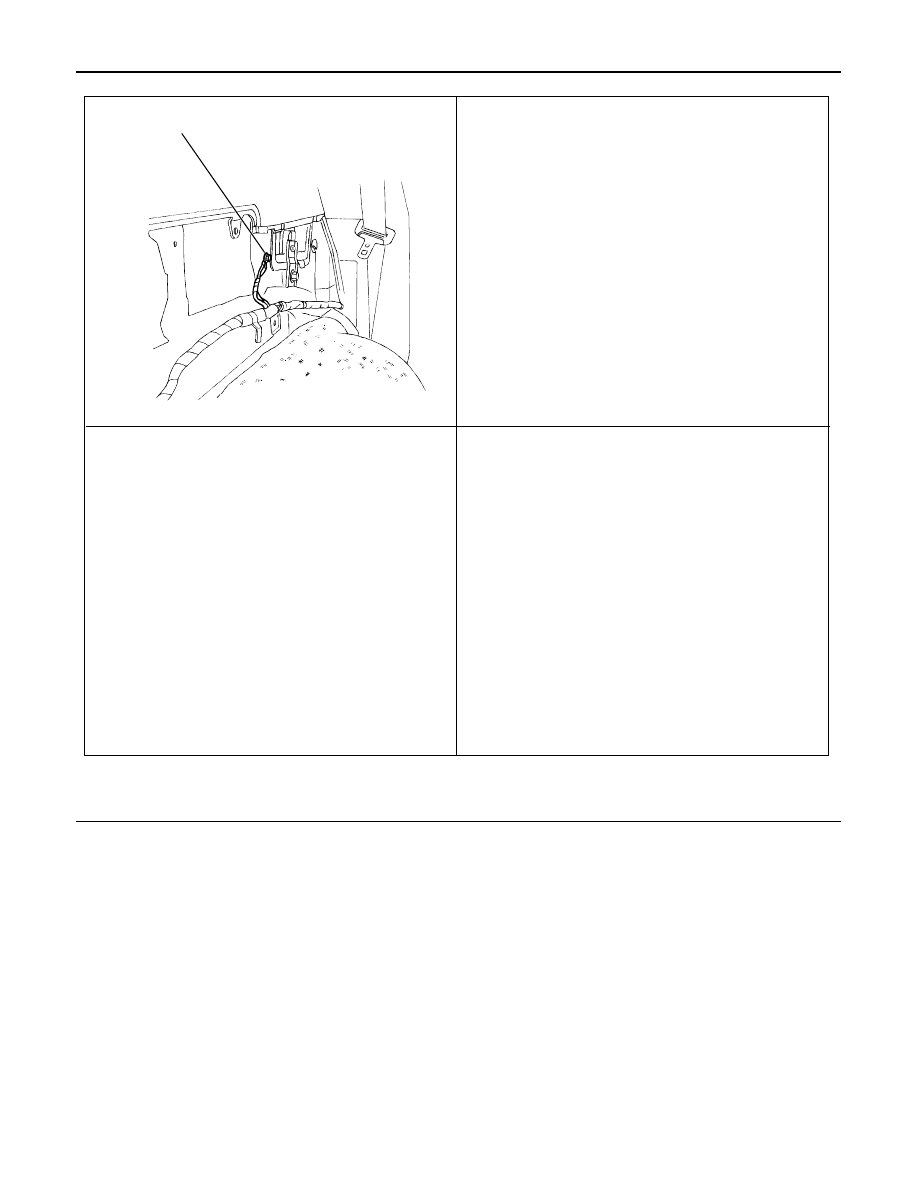

D08RWA30

Legend

(1) R-3, R-4

WIRING SYSTEM

8D–43

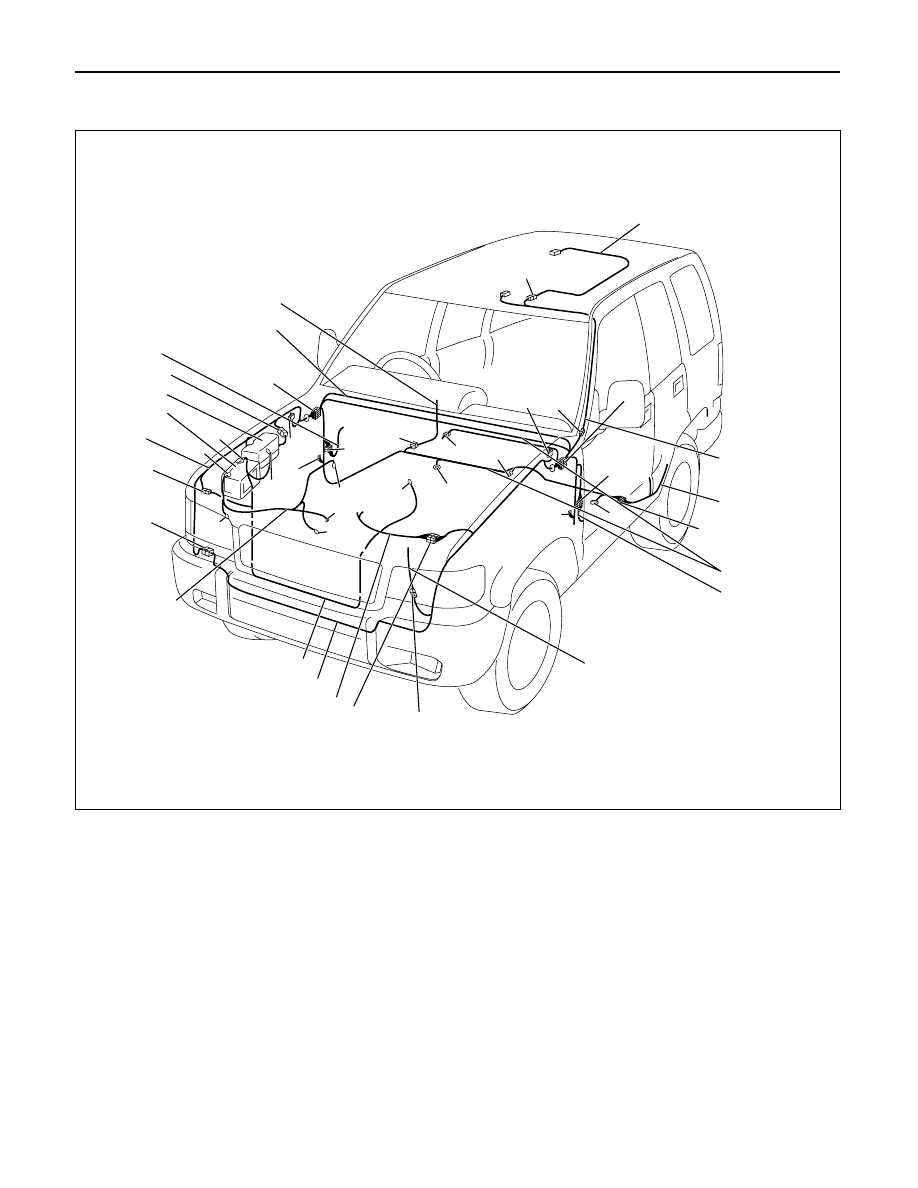

Cable Harness Routing (RHD) – 1

8

40

1

2

33

16

14

10

13

15

6

45

42

44

9

7

11

5

22

23

25

24

30

31

27

28

32

34

35

41

29

43

36

37

39

21

19

17

18

12

26

38

4

3

20

D08RWA34

Legend

(1) Instrument Harness
(2) RR Door Extension Harness
(3) H-45
(4) Sun Roof Harness
(5) C-16
(6) H-21
(7) H-7, H-8, H-9, H-20, H-24, H-65
(8) Domelight Harness
(9) RR Body Harness

(10) H-31, H-32, H-46
(11) Body Harness
(12) FRT Door Harness
(13) H-18, H-19
(14) C-85
(15) B-1, B-2

(16) B-26
(17) H-12
(18) B-28
(19) P-4
(20) H-10, H-11, H-53
(21) H-4, H-5, H-6
(22) Engine Harness
(23) Engine Room Harness (LH)
(24) Battery Positive Cable
(25) Battery Negative Cable
(26) Transmission Harness
(27) P-7
(28) P-10
(29) P-9
(30) H-41, H-42, H-43, H-60
(31) P-6
