7B–36 MANUAL TRANSMISSION

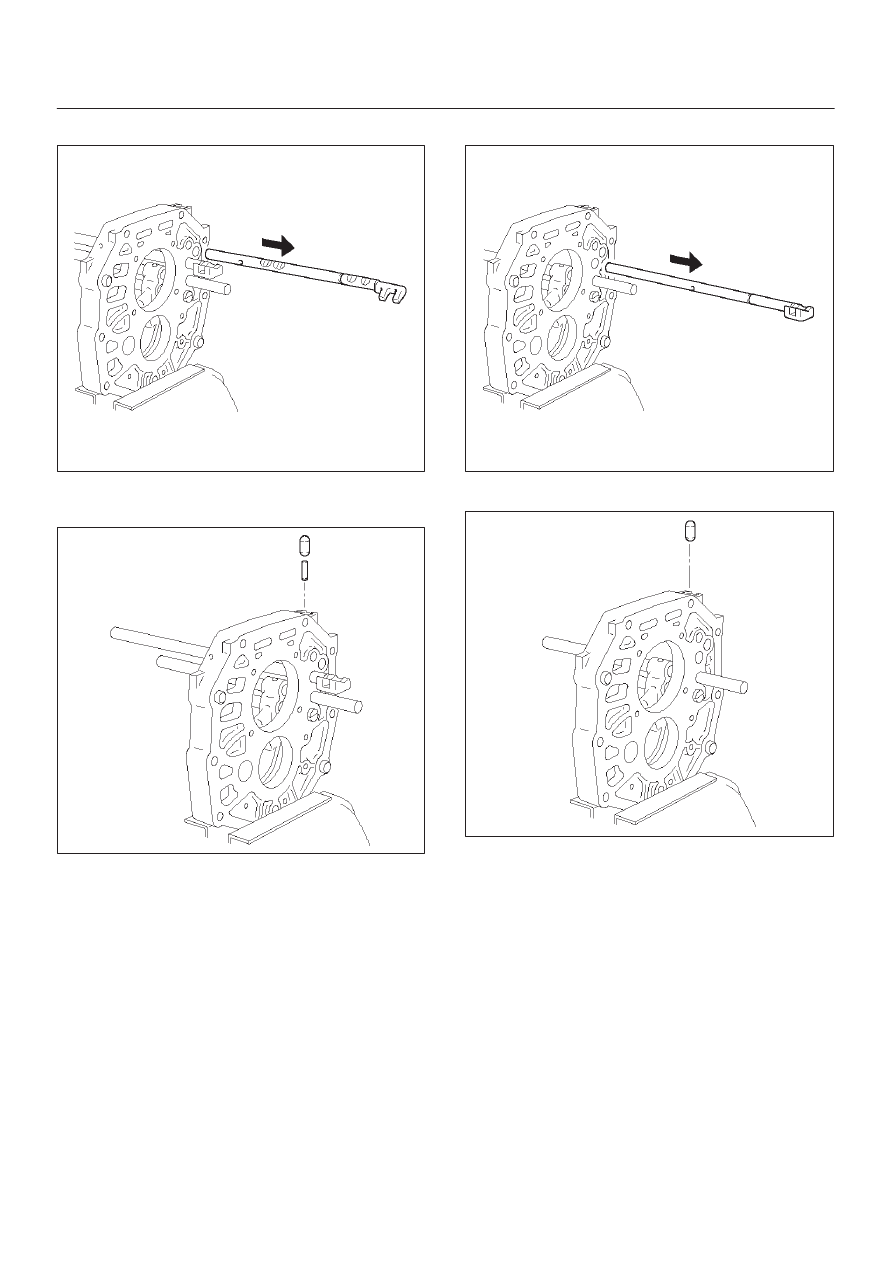

6. Pull out the 3rd–4th shift rod at the rear.

226RW047

7. Using a magnetic finger, remove the interlock pin

and straight pin.

226RW043

8. Pull out the 1st–2nd shift rod at the rear.

226RW045

9. Using a magnetic finger, remove the interlock pin.

226RW042

MANUAL TRANSMISSION

7B–37

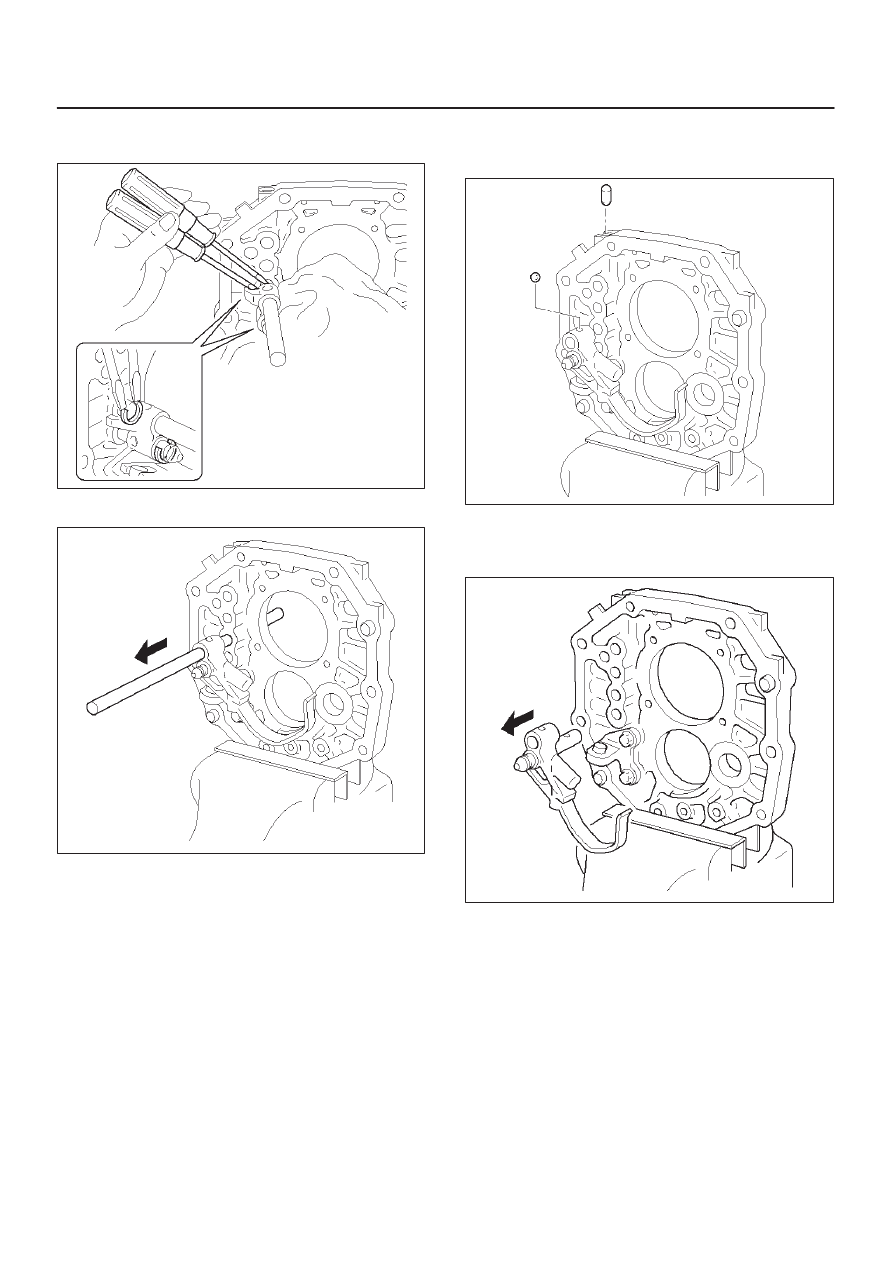

10. Using 2 screwdrivers and a hammer, remove 2

snap rings.

226RW041

11. Pull out the 5th-reverse shift rod at the front.

226RW040

12. Using a magnetic finger, remove the interlock pin

from the intermediate plate.  Remove the ball
from the reverse shift arm No.1.

226RW039

13. Pull out at the rear reverse shift rod, reverse shift

arm No.1 and reverse shift arm No.2 at the same
time.

226RW038

7B–38 MANUAL TRANSMISSION

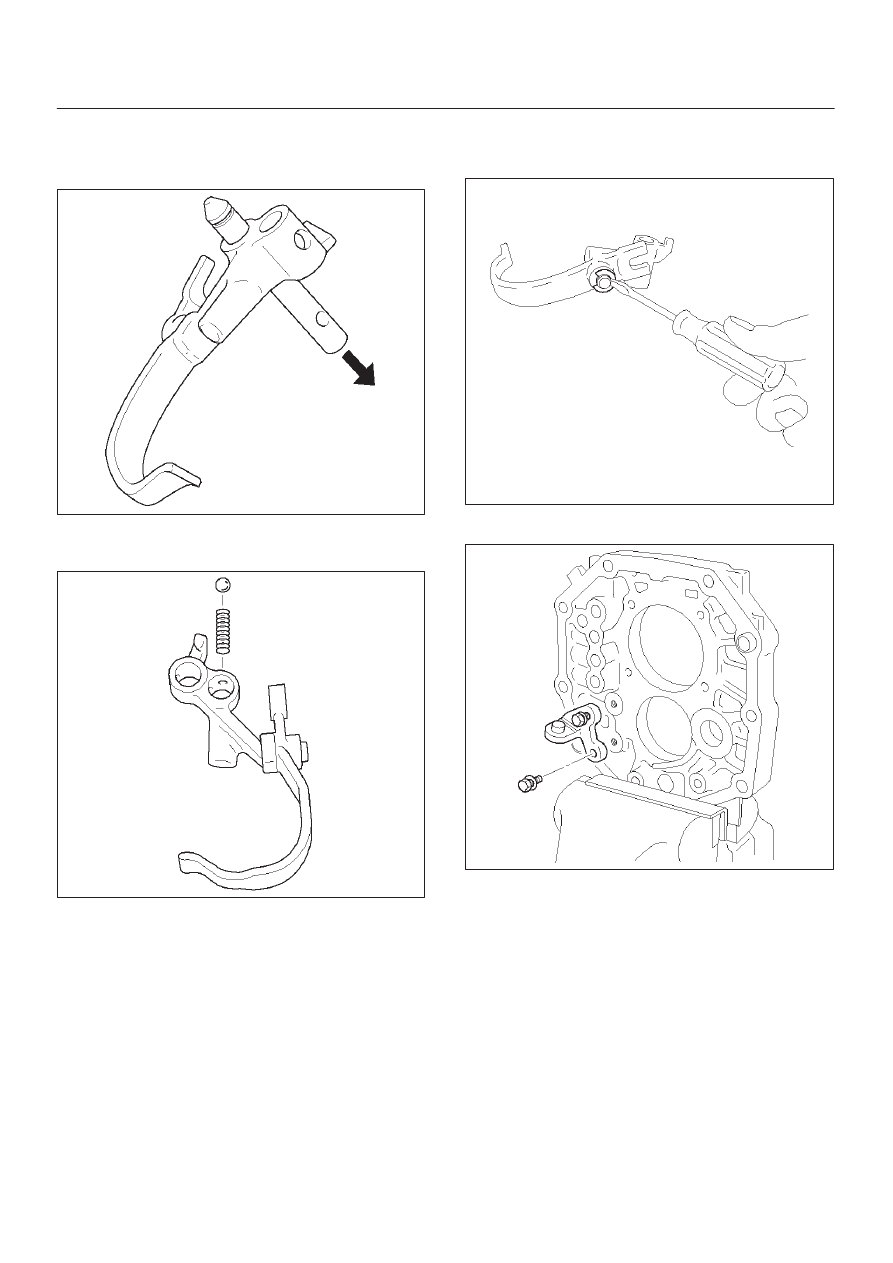

14. Pull out reverse shift rod from reverse shift arm

No.1.

NOTE: Be sure remove at the rear.

226RW055

15. Using a magnetic finger, remove the ball and

spring from reverse shift arm No.1.

226RW056

16. Remove the reverse shift arm No.2 E–ring.

Remove the reverse shift arm No.2 from reverse
shift arm No.1.

226RW089

17. Remove the 2 bolts and reverse shift arm bracket.

226RW054

MANUAL TRANSMISSION

7B–39

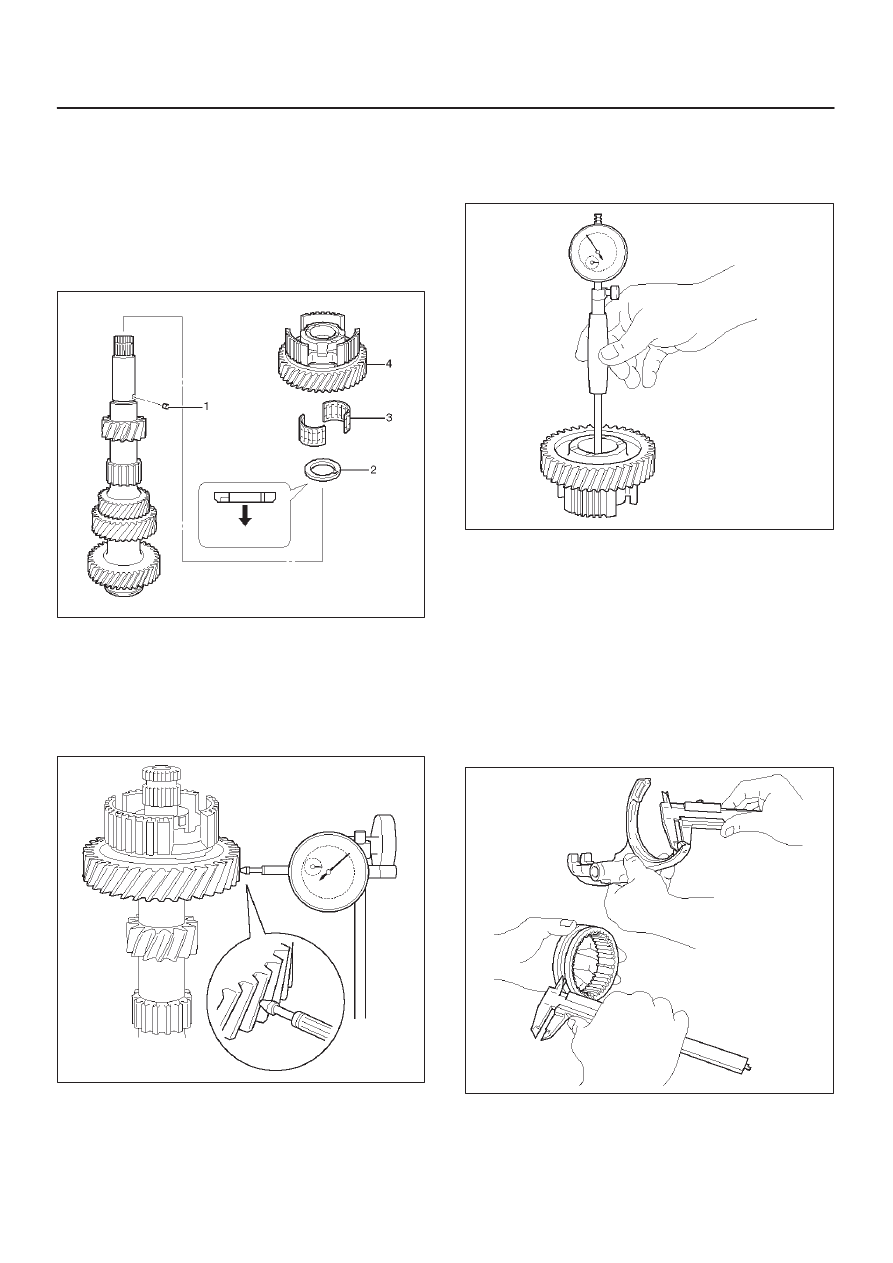

Inspection

1. Counter 5th gear radial clearance.

1. Install the following parts to the counter gear

shaft.

1. Counter 5th gear thrust washer pin (1).
2. Counter 5th gear thrust washer (2).
3. Counter 5th gear needle bearing( 3).
4. Counter 5th gear (4).

226RW088

2. Mount the counter gear shaft through the

aluminum plate in vise.

3. Using a dial indicator, measure the counter 5th

gear radial clearance.

Standard: 0.015 – 0.068 mm
(0.00059 – 0.00268 in)

226RW183

4. Using a inside dial indicator, measure the gear

inside diameter.

Standard: 38.015 – 38.040 mm
(1.49665 – 1.49763 in)

226RW085

2. 5th-reverse shift arm and hub sleeve No.3 clearance.

1. Using a vernier caliper, measure the 5th-reverse

shift arm thickness.

Reference: 10.2 mm (0.402 in)

2. Using a vernier caliper, measure the center

groove of hub sleeve No.3.  Calculate the
clearance between the hub sleeve No.3 and shift
arm.

Standard: 0.26 – 0.84 mm (0.0102 – 0.0331 in)

Reference: Center groove dimension 10.5mm
(0.413 in)

226RW086
